Aluminium access ladder 54°

Garanzia 5 anni
It shows the validity of the guarantee in years
Flow 150 kg
It shows the maximum weight capacity of a product

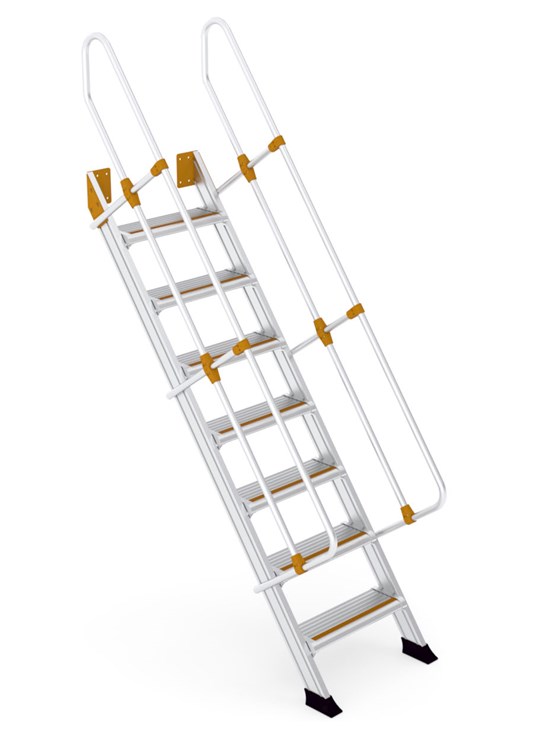

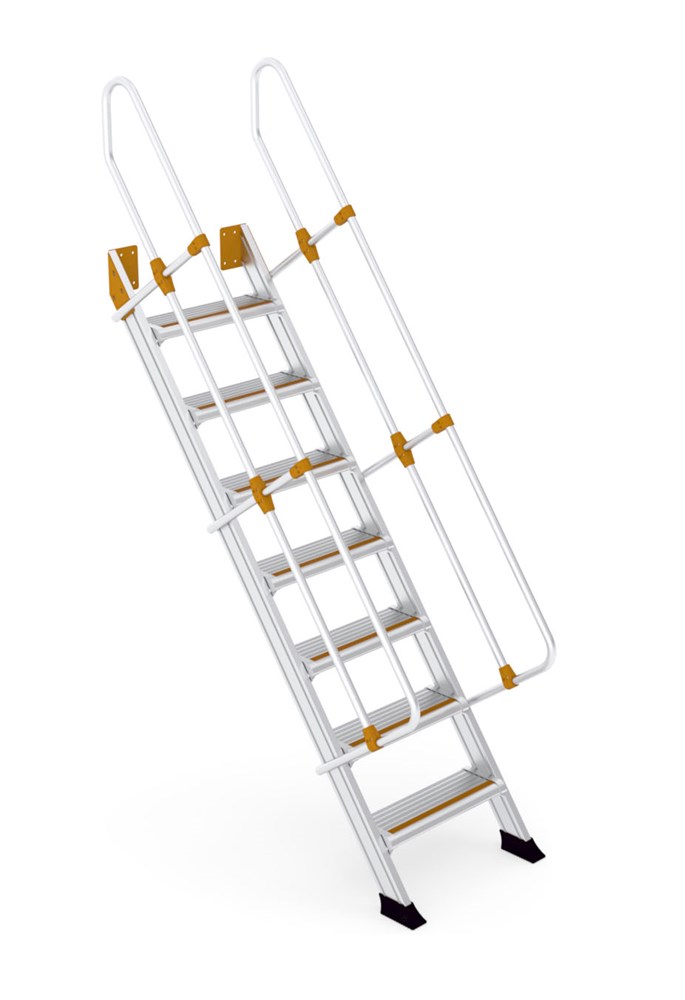

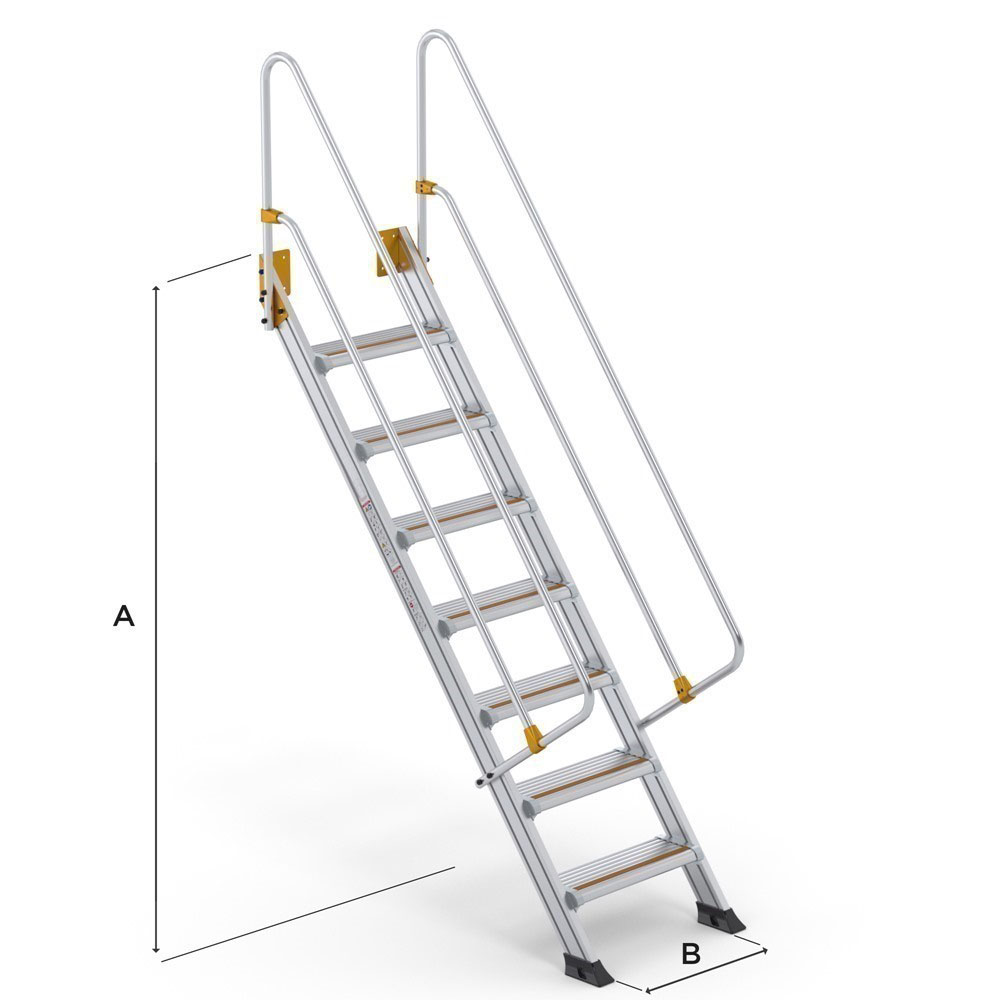

Access ladder 54° equipped with handrails, support feet and brackets for fixing to the ground and to the wall

Made of extruded ribbed aluminium with a wide landing platform, handrail and safety guardrail. The inclination of the ramp and non-skid rungs grant a comfortable climb. Ladders come in disassembled parts (for freight costs reasons) and it can be easily assembled thanks to the detailed instructions manual. The ramp width can be 60, 80 or 100 cm. Special size on request. Two brackets are required for attachment, but they can be custom-made.

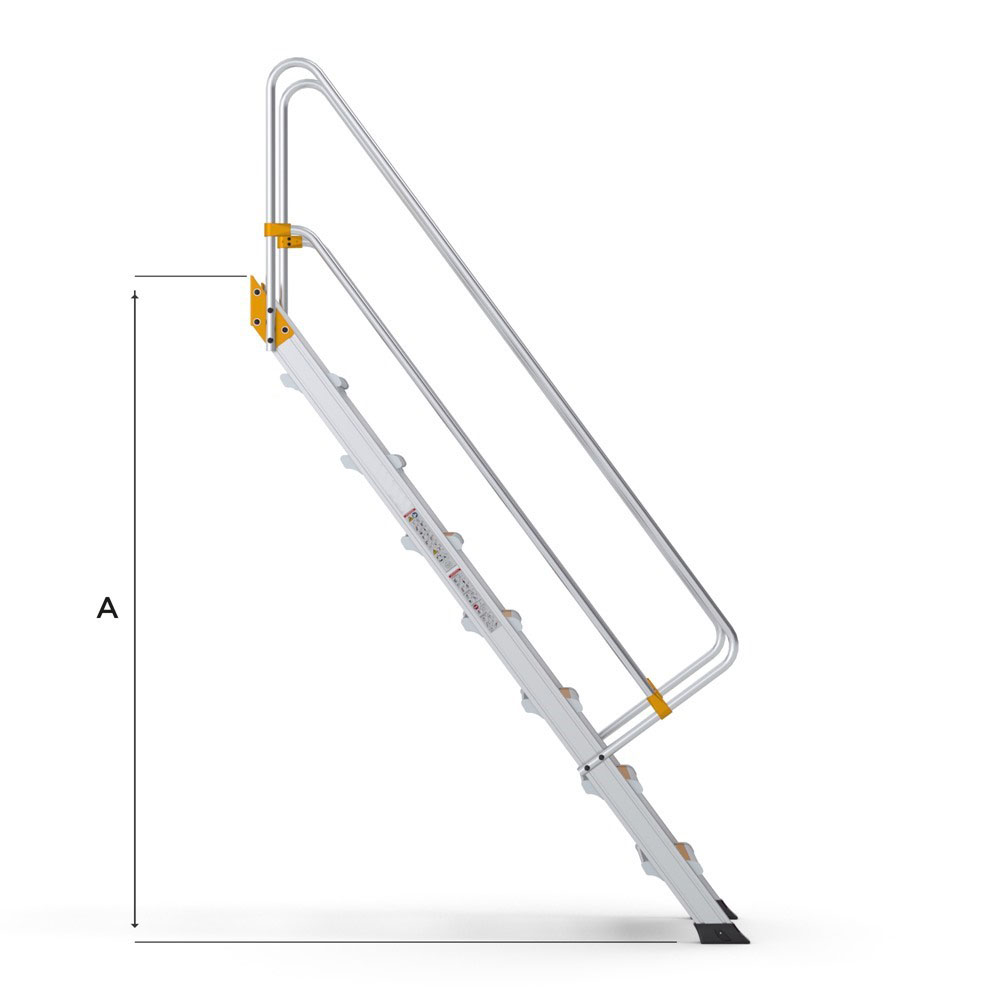

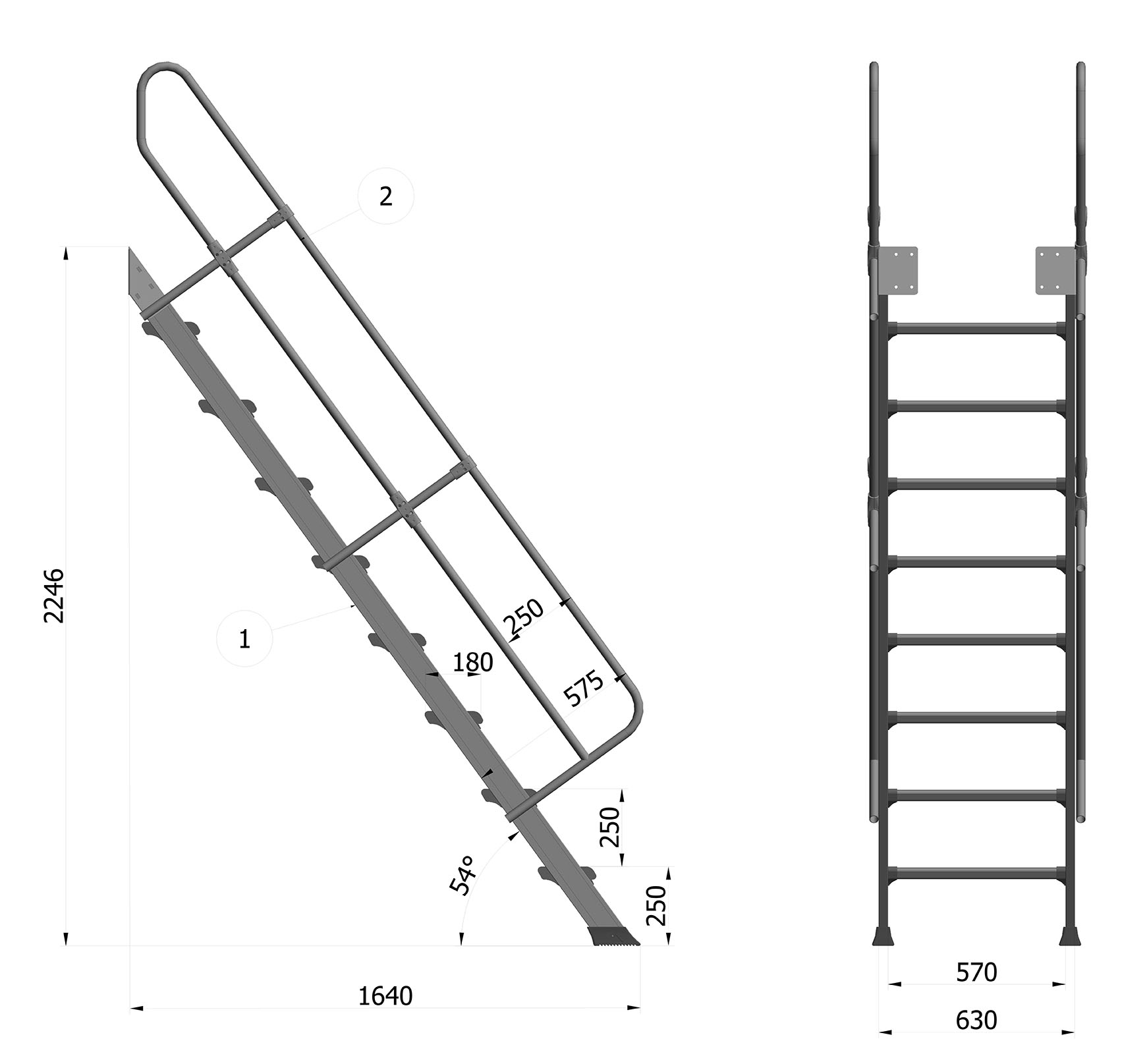

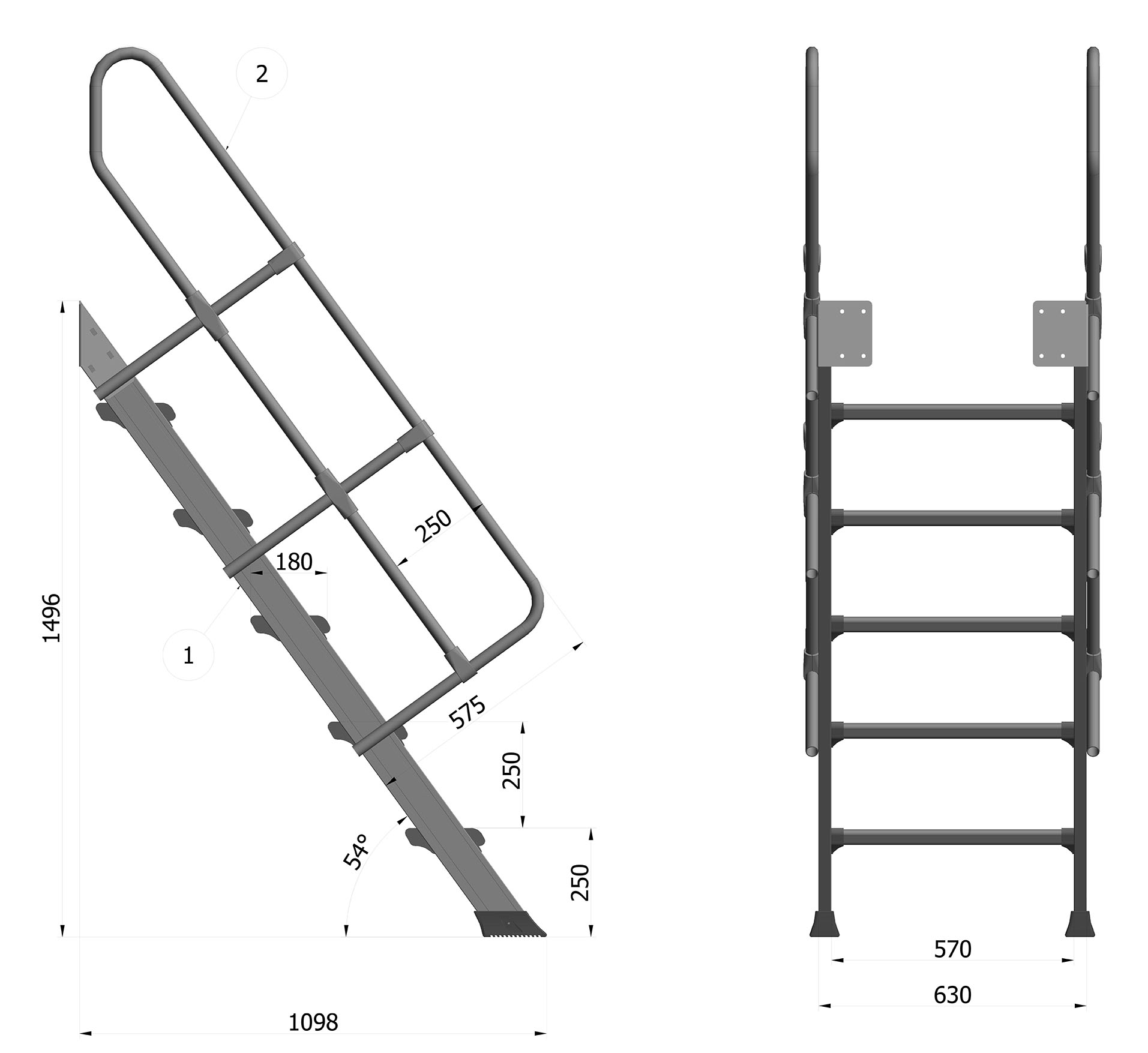

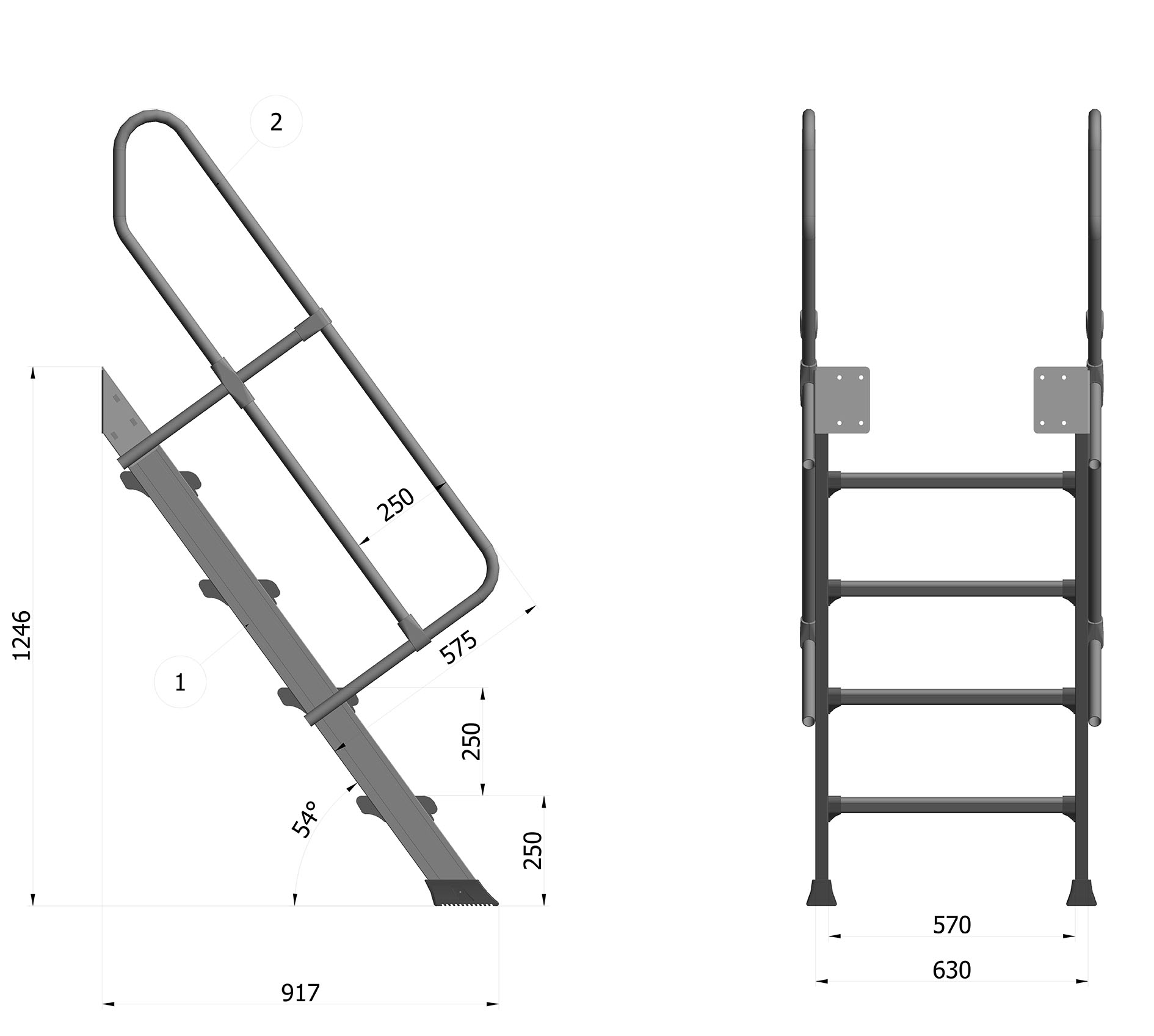

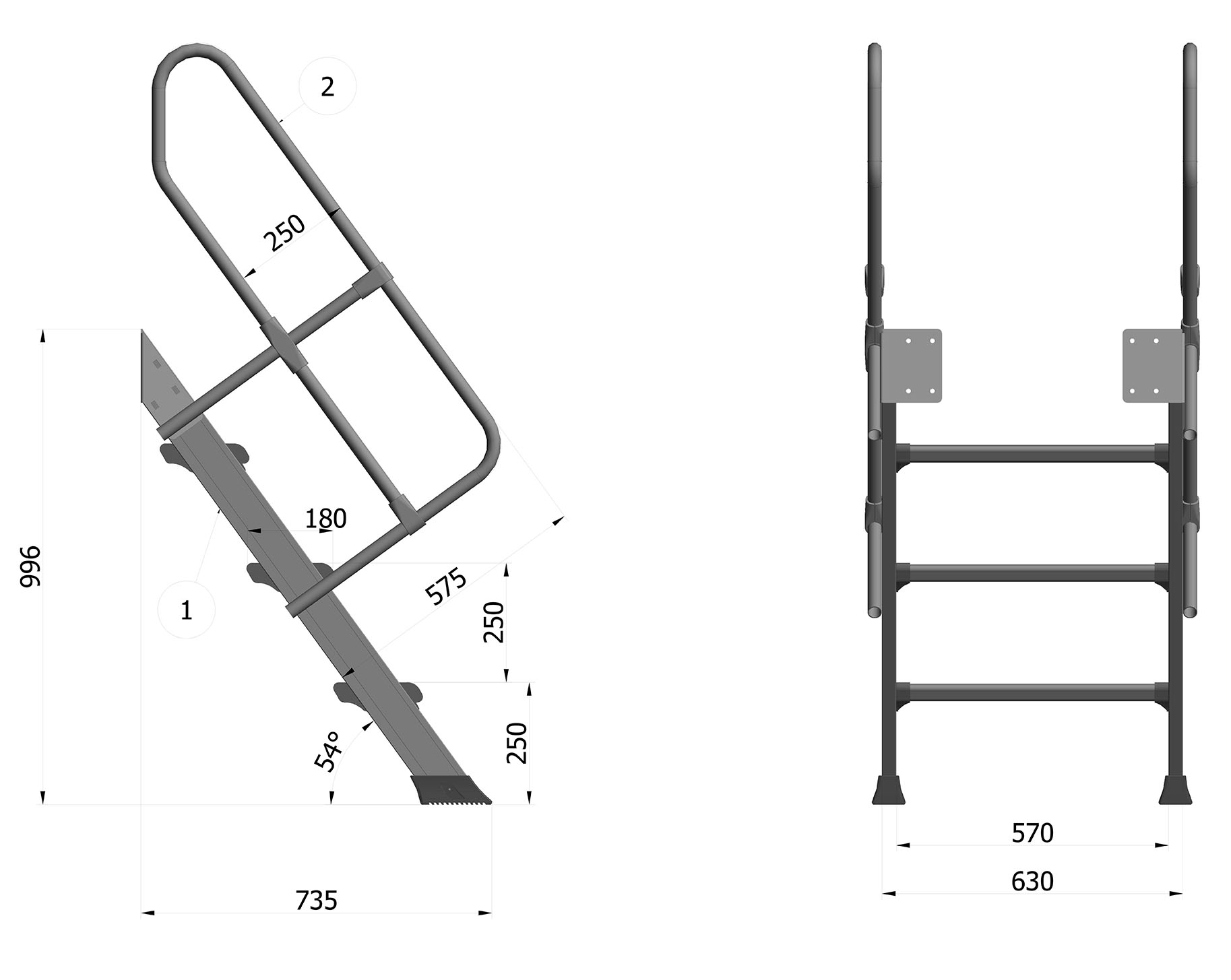

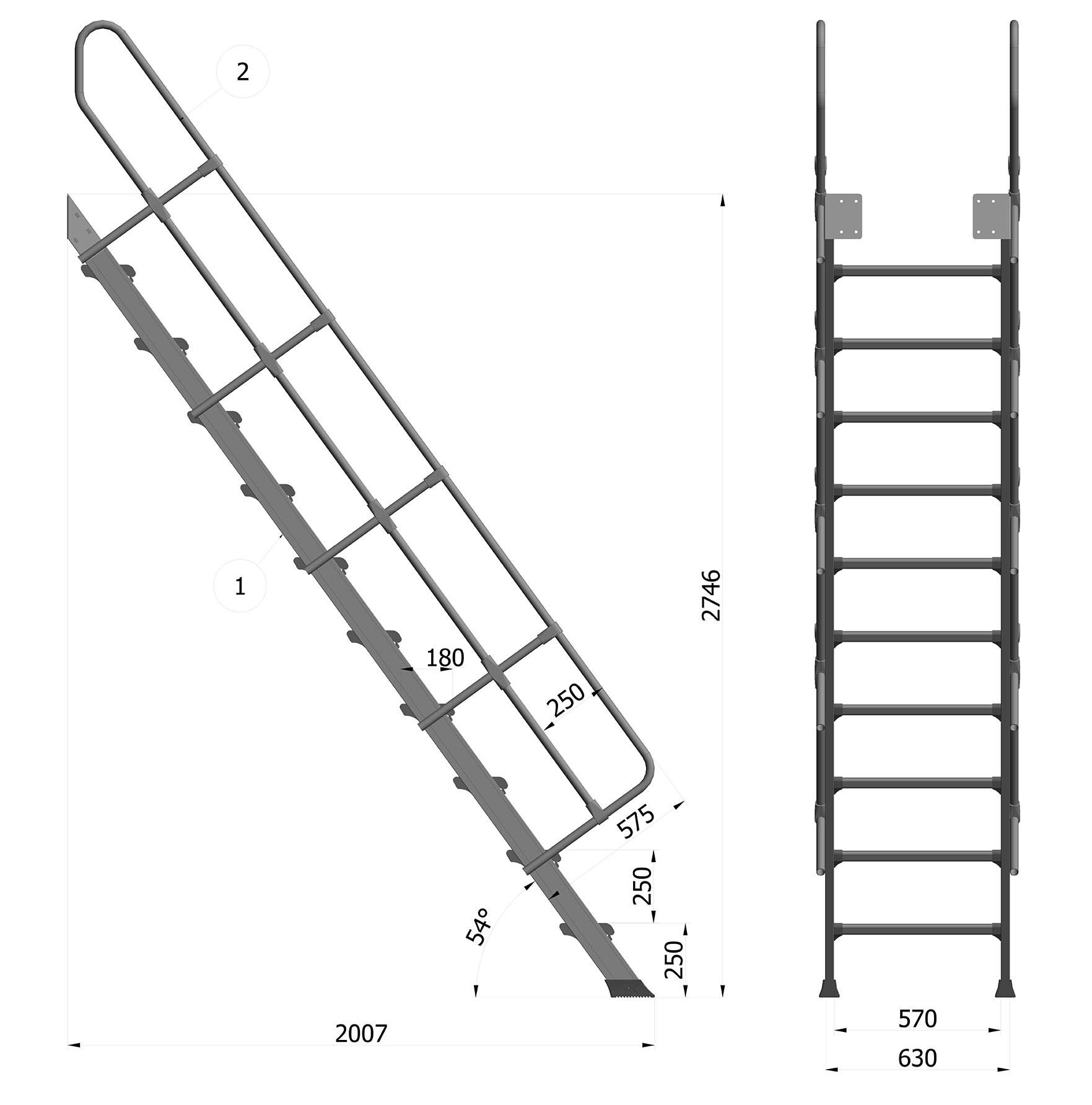

  •  Max landing height = 250 mm more than the last step height
  • Height of 2 handrails 530 mm
  • Height of 2 handrails at landing 950 mm
  • External width 830 mm

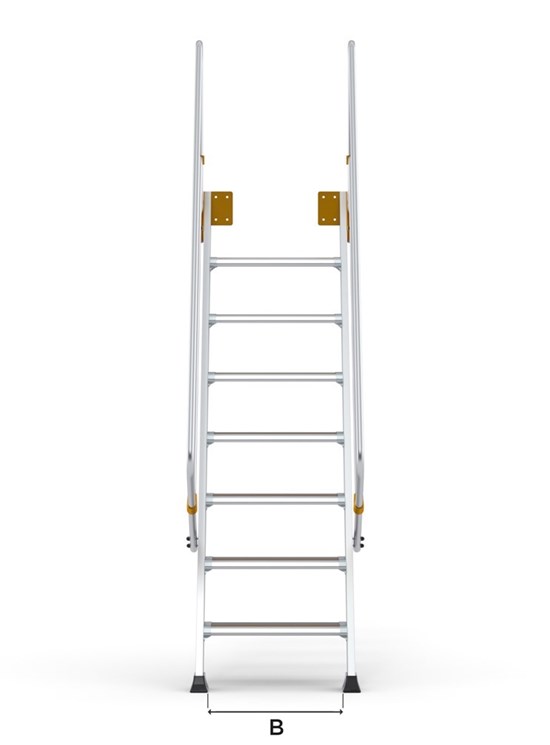

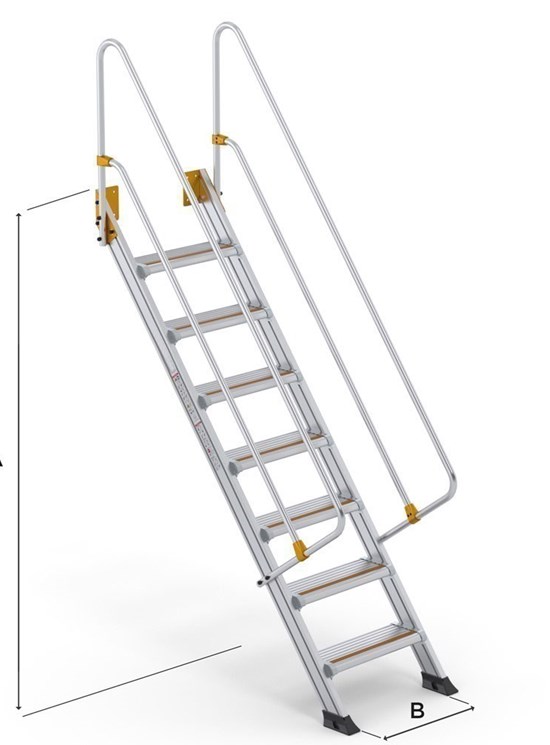

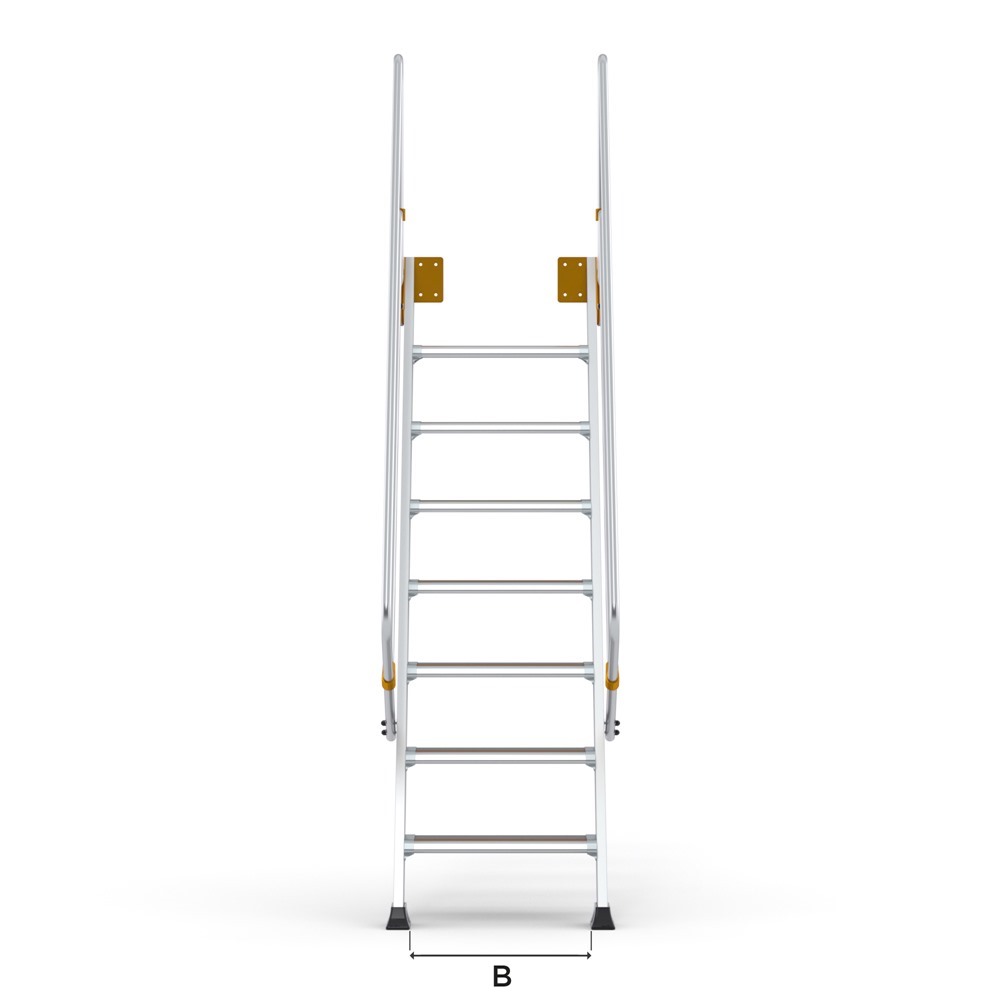

  • Internal width B 700 mm

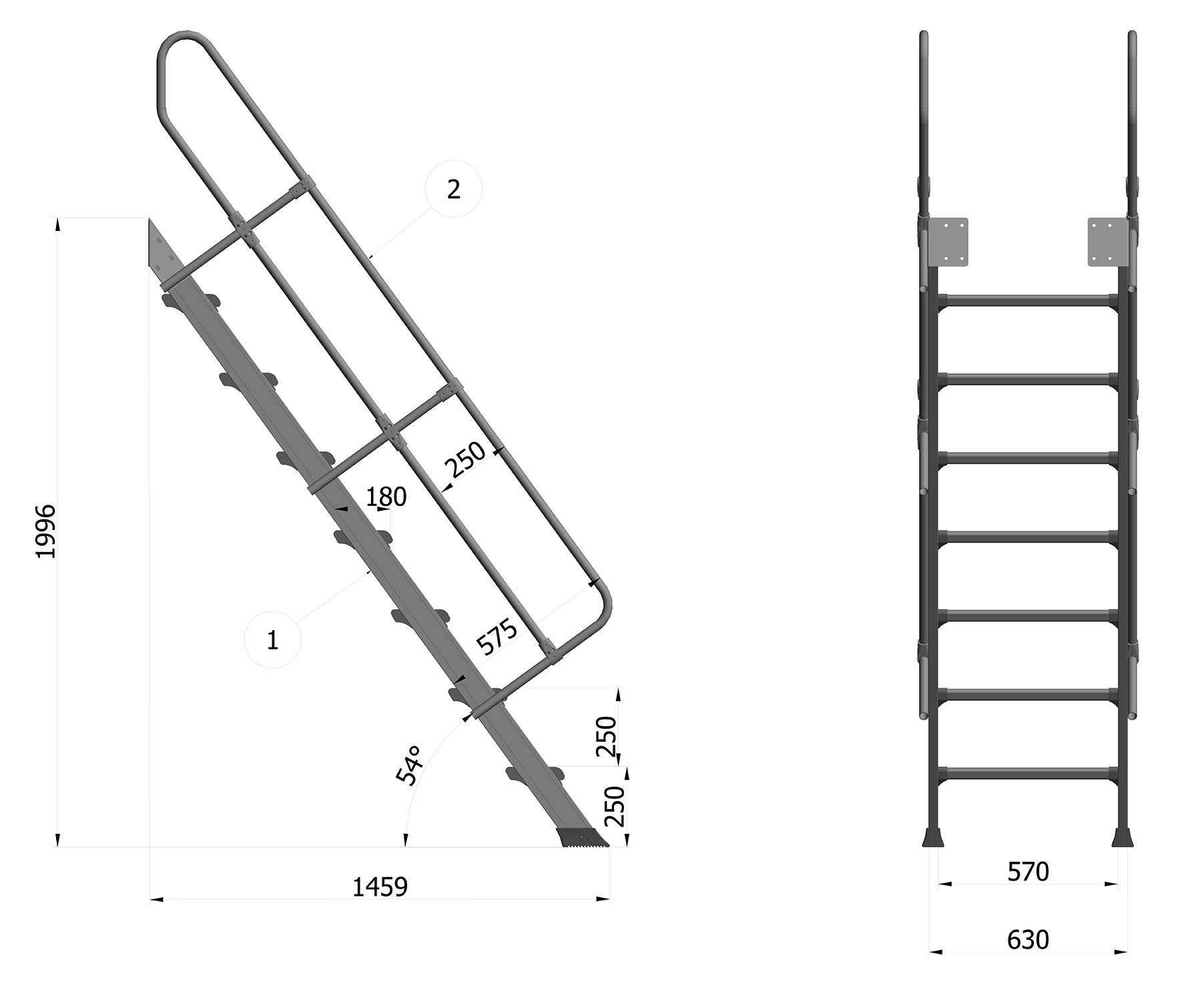

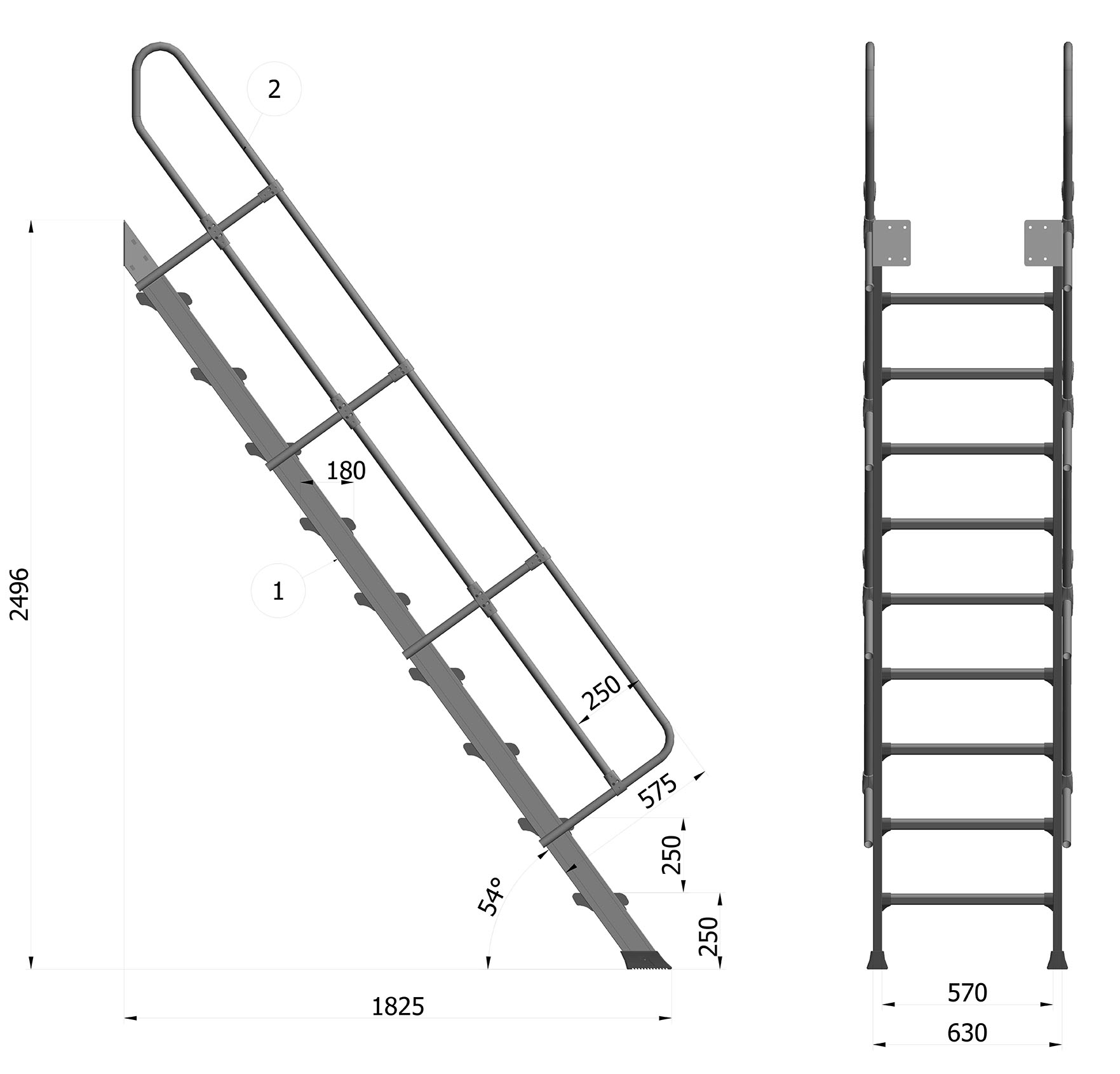

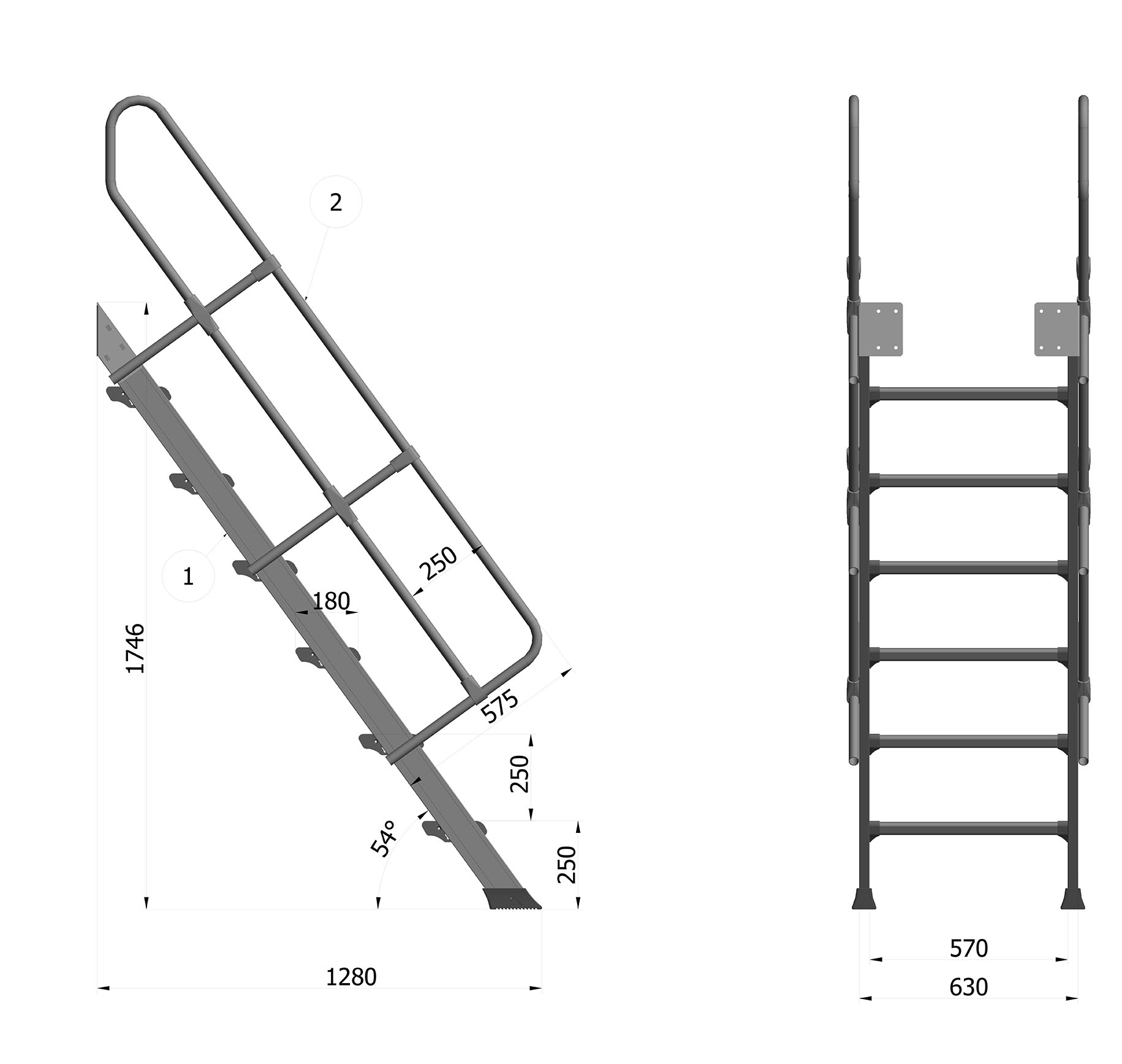

  • Climb angle 54 °
  • Distance between steps 250 mm
  • Step depth 180 mm

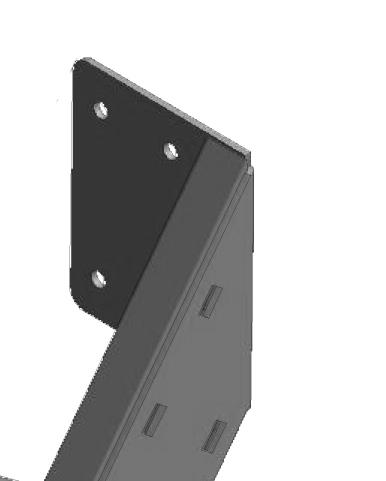

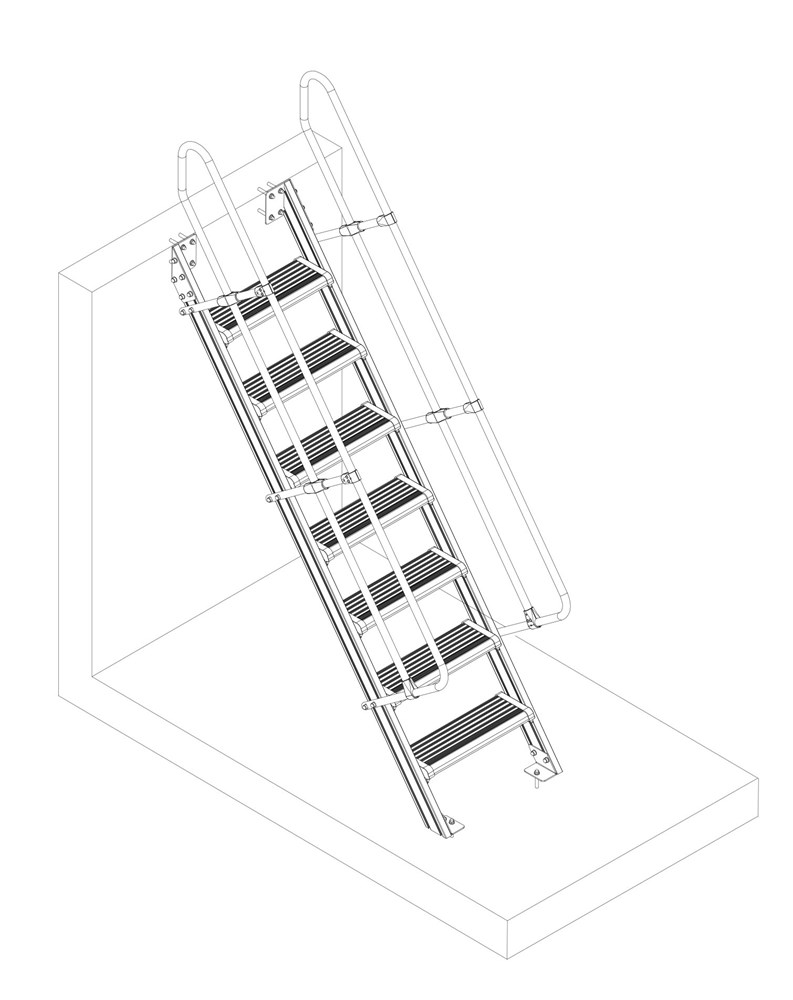

  • 2 wall fixing brackets included
  • 2 Ground fixing brackets included
  • 2 rubber feet to rest on the ground included
  • Professional use capacity Kg 150
  • Special reinforced packaging for shipping by courier
