E3F WITH ROPE

Max heigh m 11,90
EN131 TESTED BY TÜV
This product has successfully passed the test of the German quality control body TÜV according to the European Standard on ladders
Garanzia 5 anni
It shows the validity of the guarantee in years
Flow 150 kg
It shows the maximum weight capacity of a product
European Standards EN 131
It is the European Standard for ladders
Suitable for heavy duty

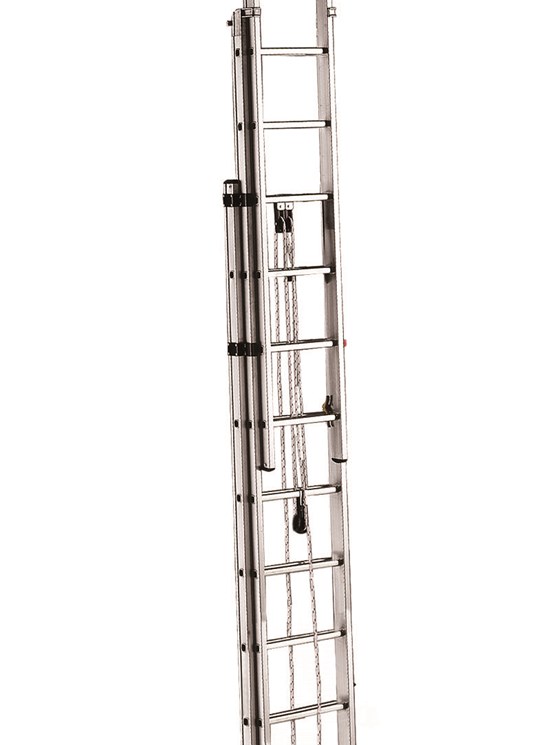

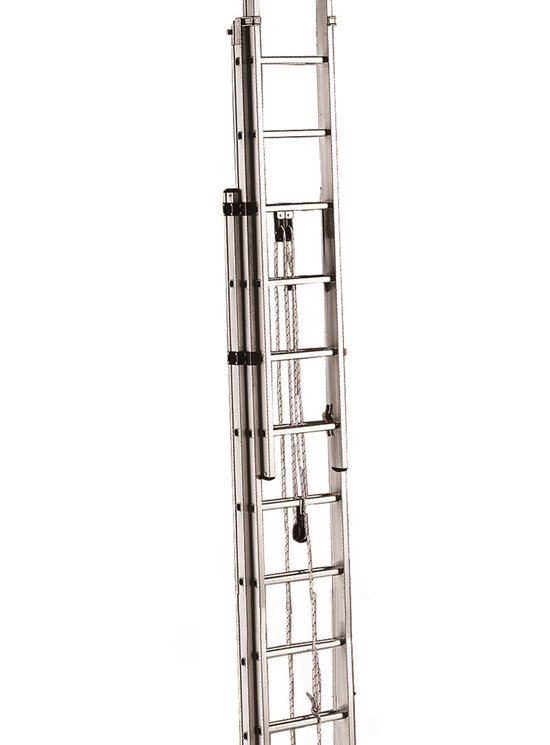

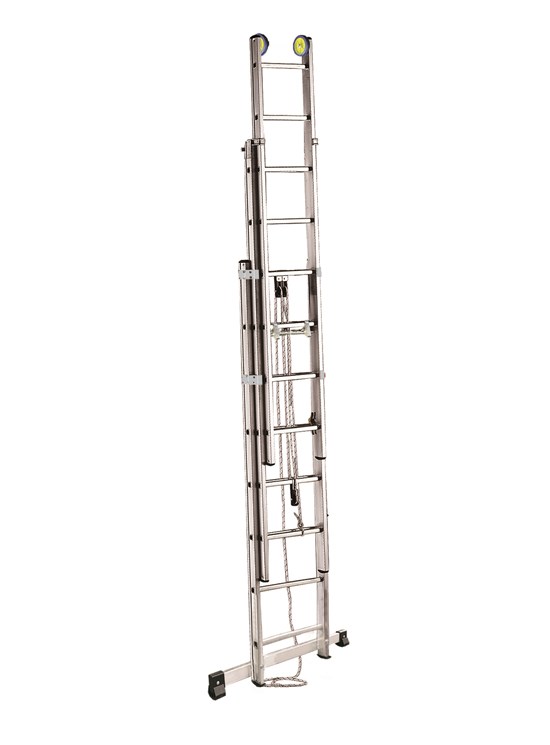

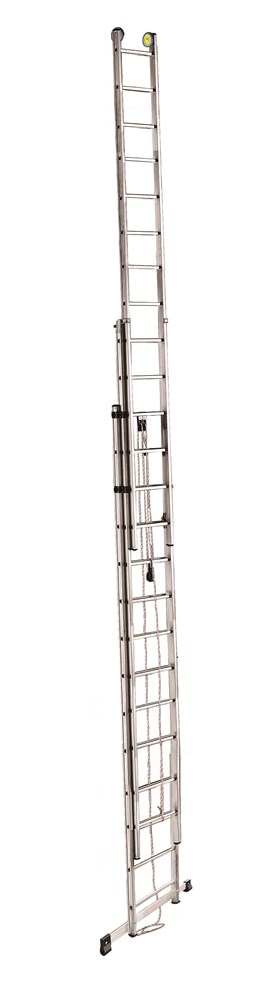

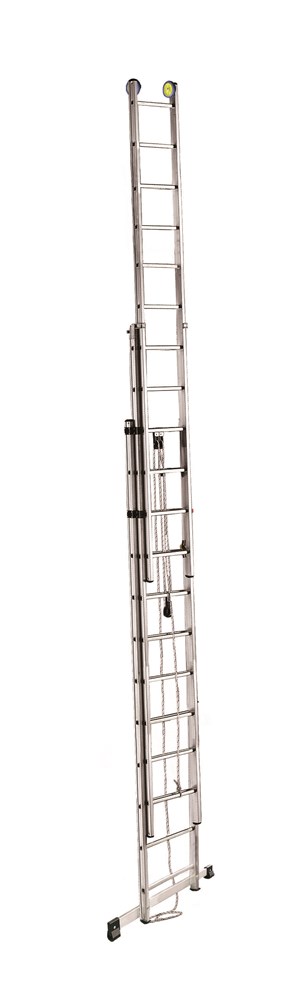

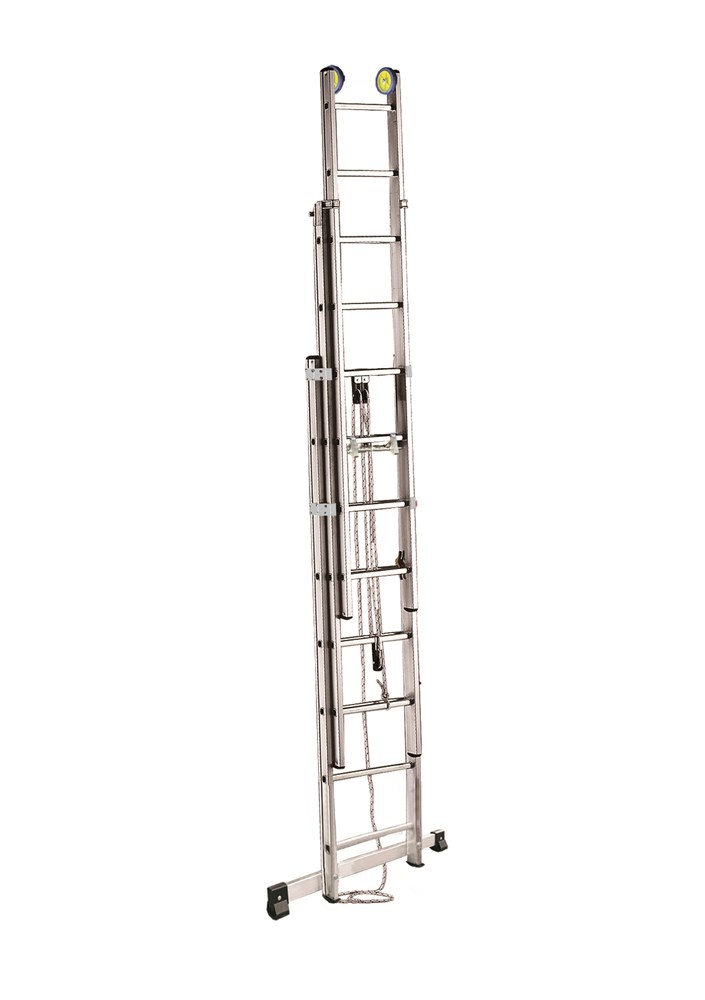

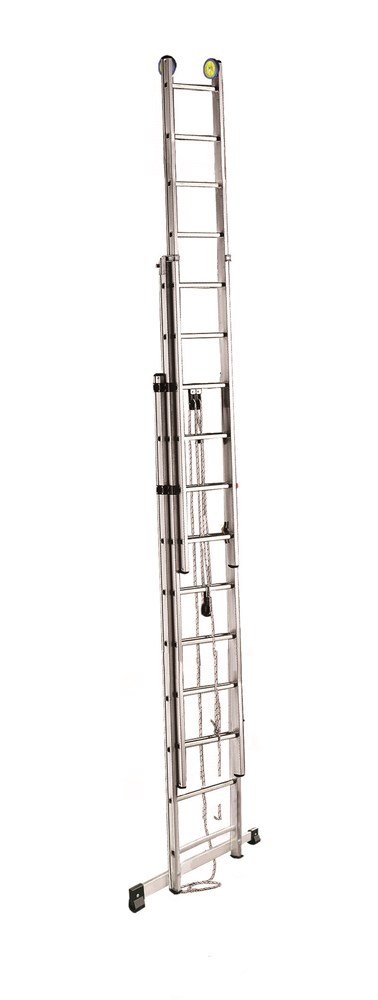

3-section push-up ladder with rope, equipped with sliding wheels and pulley for rope control.

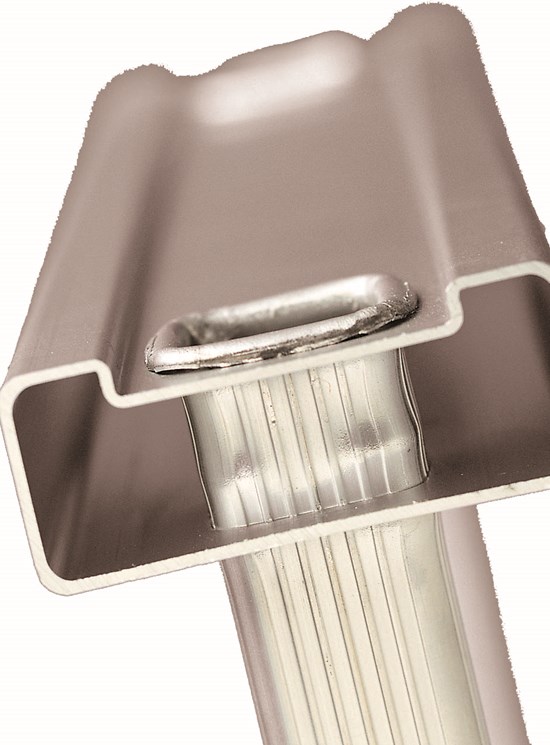

Flanged professional extension ladders in ribbed aluminium.
They conform to European standard EN131.
The model is excellent for both its structure and features.

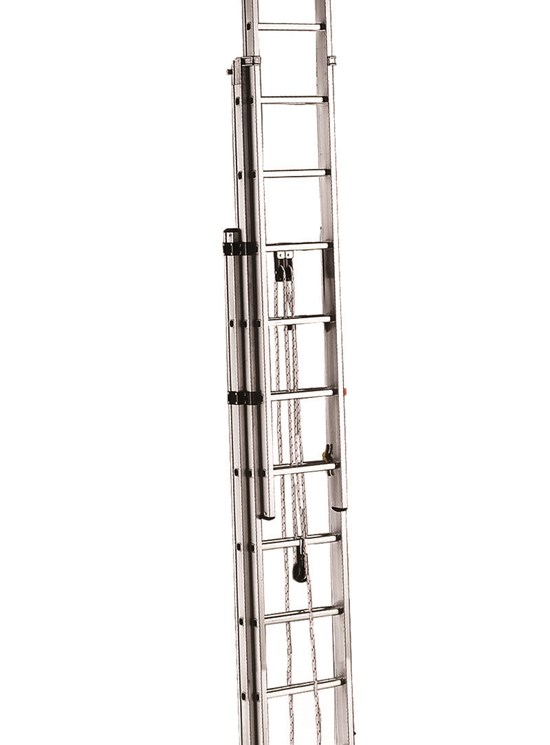

3-section push-up ladder with rope. Equipped with sliding wheels and pulley for rope control.

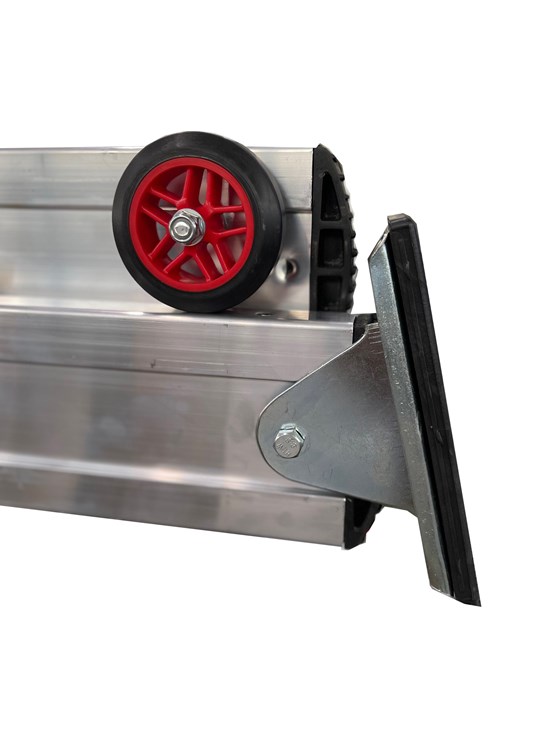

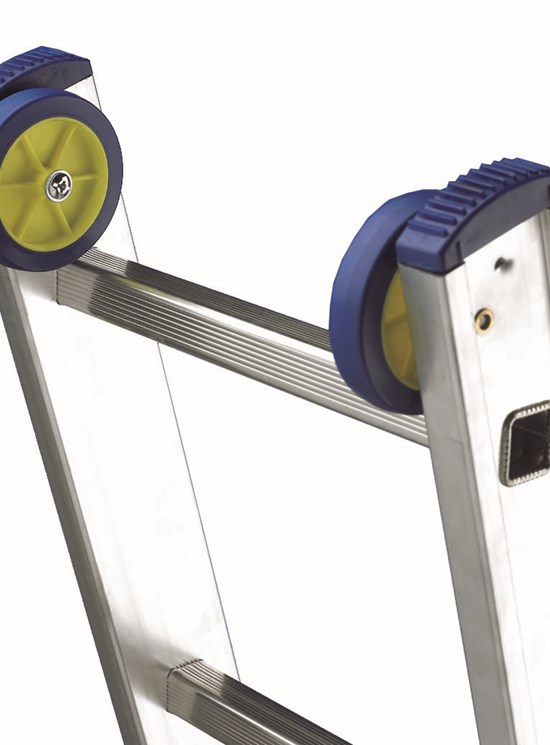

  • Sliding wheels

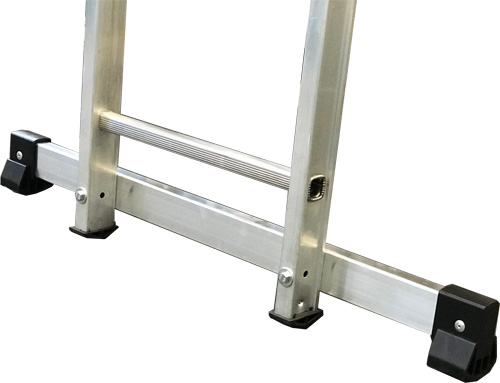

  • Base stabiliser
  • Adjustable wrench for stabiliser fastening
  • Instructions for assembly and use
  • Rungs section 27 x 27 mm
  • Rung distance 28 cm
  • Base section width 48 cm
  • Medium section width 42,3 cm
  • Final section width 36,5 cm
  • Nylon reinforcement inside stabiliser seat
  • Aluminium opening system
  • Straps preventing uncontrolled ladder opening
  • Rubber feet

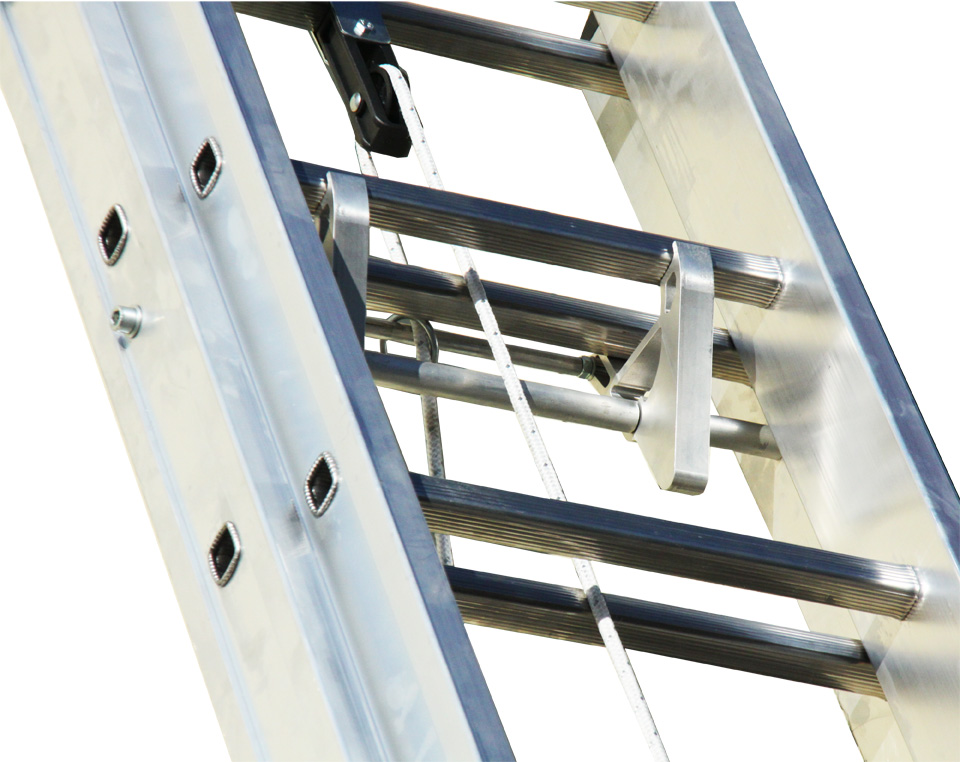

  • Device to stop upward movement

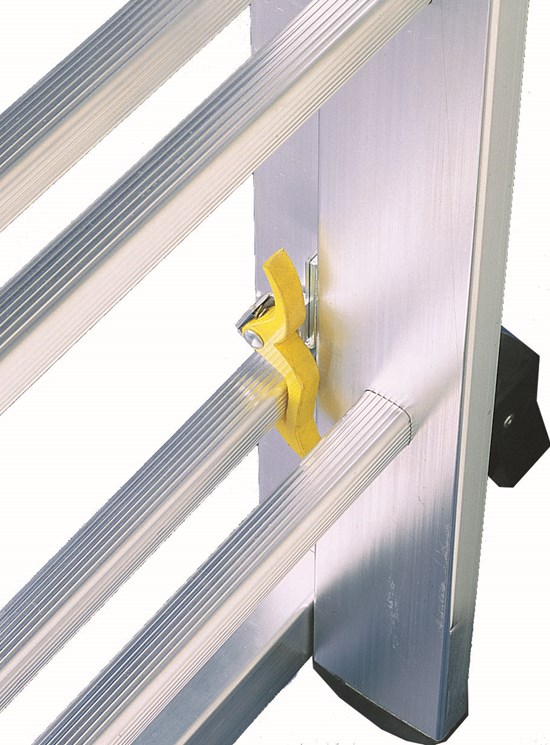

  • Extension blocking device to prevent ladder movement when the safety limit is reached
  • Capacity 150 kg

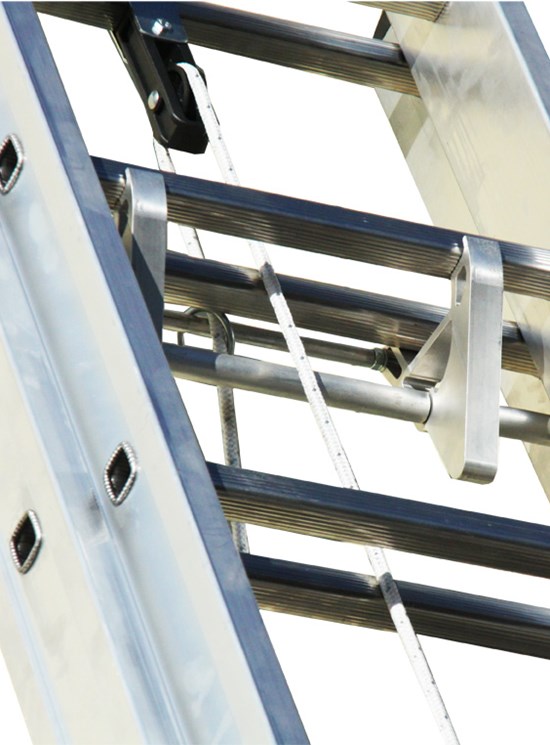

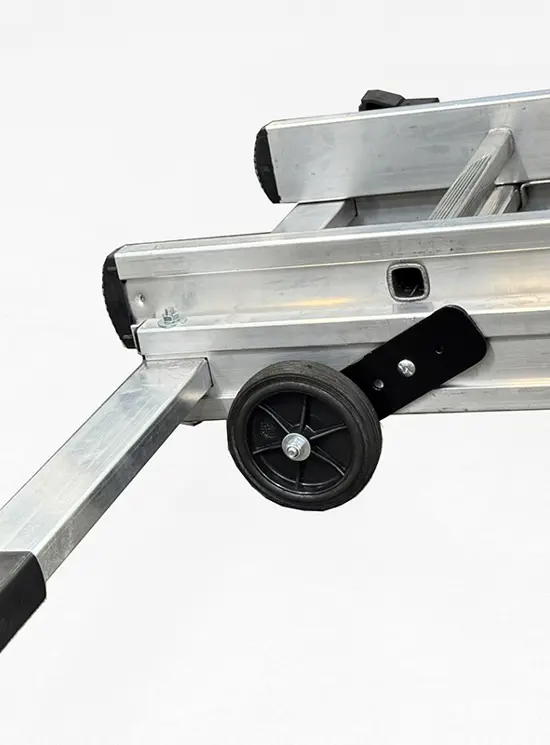

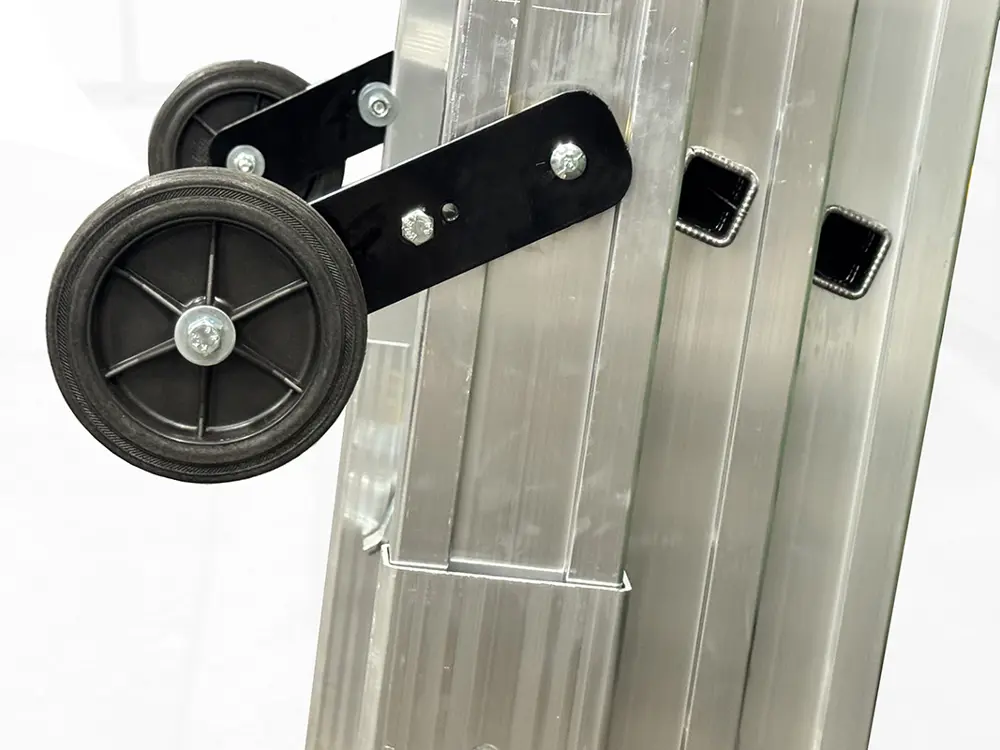

  • Equipped with sliding wheels and pulley for rope control

Very important: this model cannotbe used as a stepladder.

Available also in fiberglass (V3F)

TECHNICAL FEATURES
Code
Rungs
number for each  section
Closed height
m
Leaning height
m
Proflie
mm
Weight
Kg
Stabilizer lenght
mm
SCE3RF10S 3x10R 3.0 7.45 84x27 26.5 1145
SCE3F012S 3x12 3.5 8.55 84x27 30.5 1225
SCE3F014S 3x14 4.1 10.2 100x27 36.5 1225
SCE3F016S 3x16 4.6 11.9 115x27 44.0 1225

SPARE PARTS


code                                   model
codiceSGANCSALT84
E3Fx12  E3Fx10
SGANCSALT100
 E3Fx14
SGANCSALT115
E3Fx16
STABILZERS
model             code               code screws
EURO 3FX10R GR  SALLAR36                   SALLARV0003
EURO 3FX12 GR    SALLAR37                   SALLARV0003
EURO 3FX14 GR    SALLAR37                   SALLARV0003
EURO 3FX16 GR    SALLAR37                   SALLARVF160
