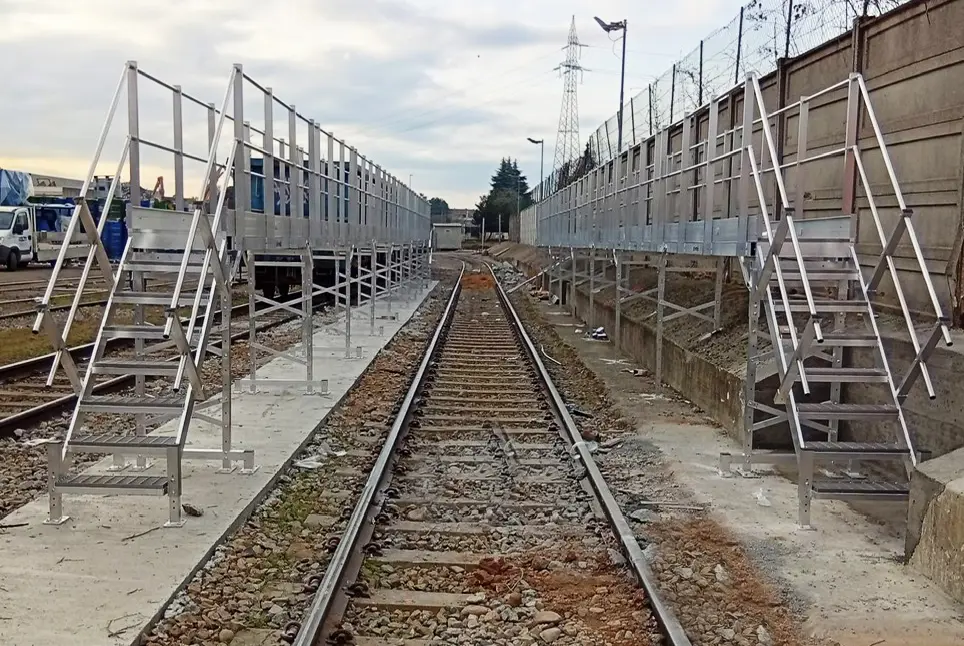

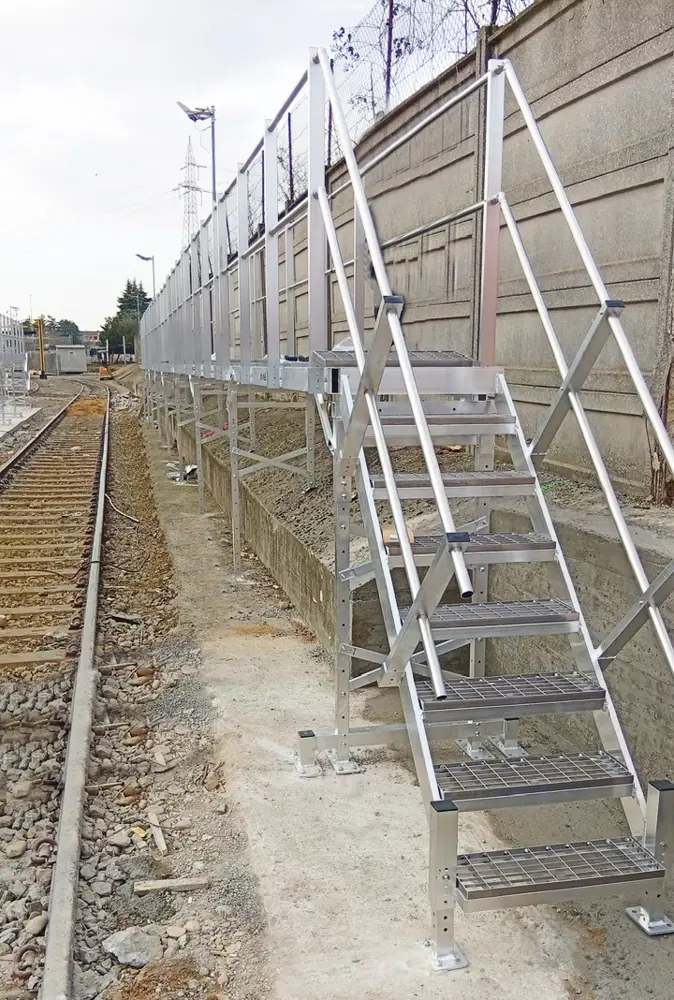

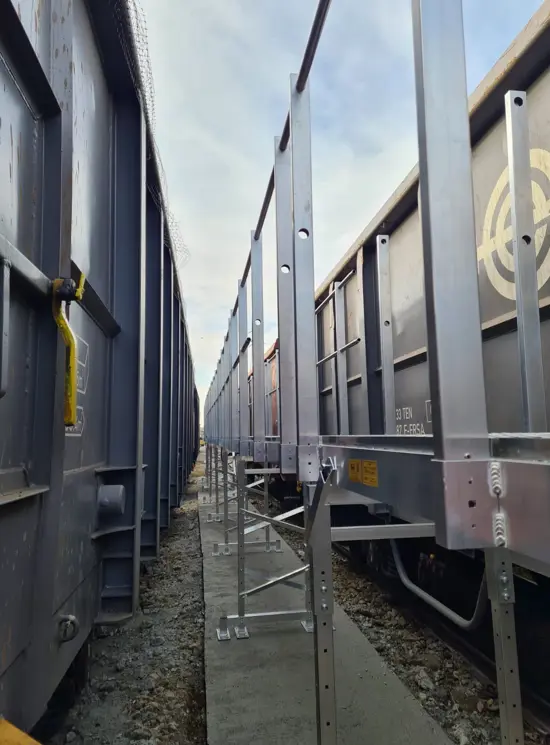

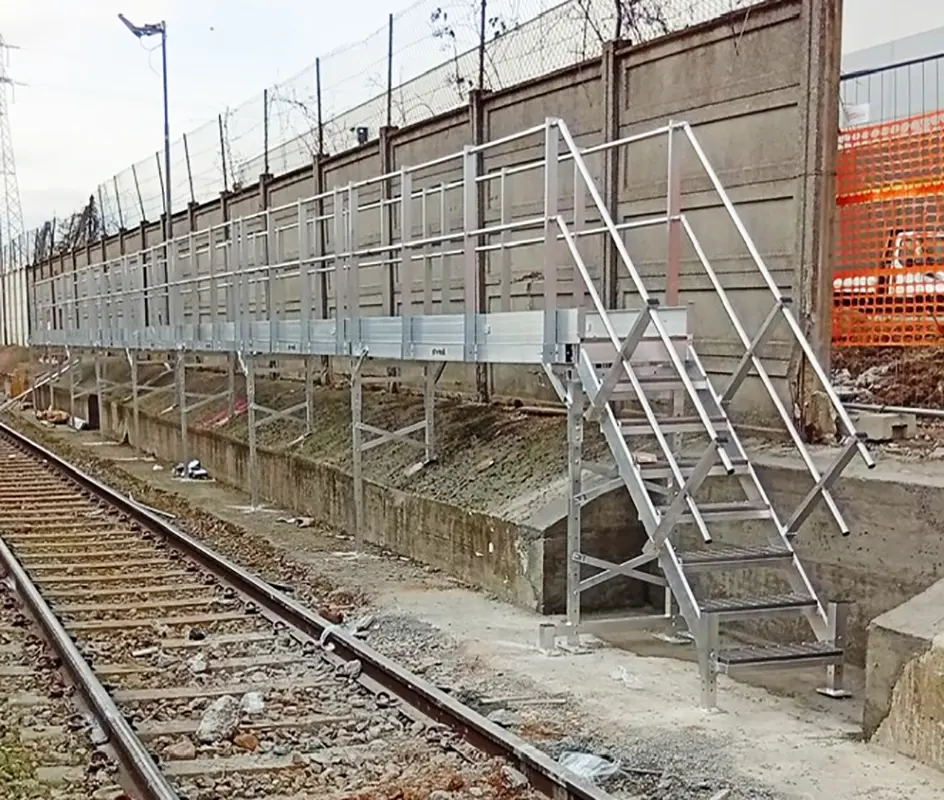

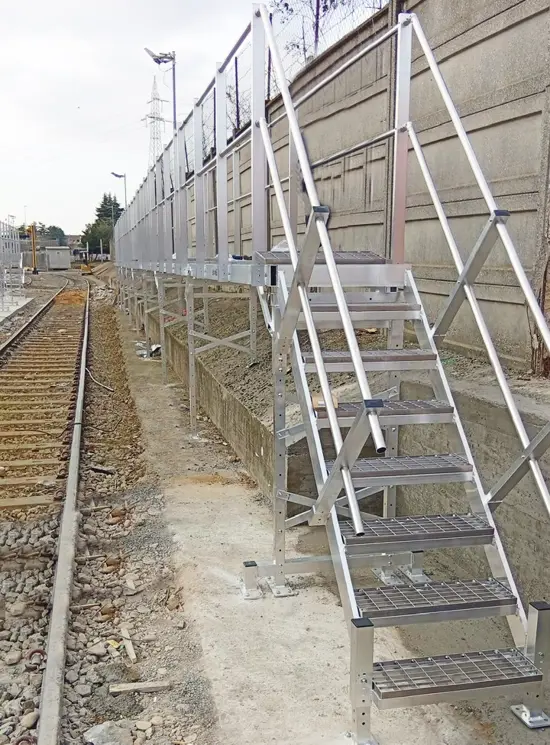

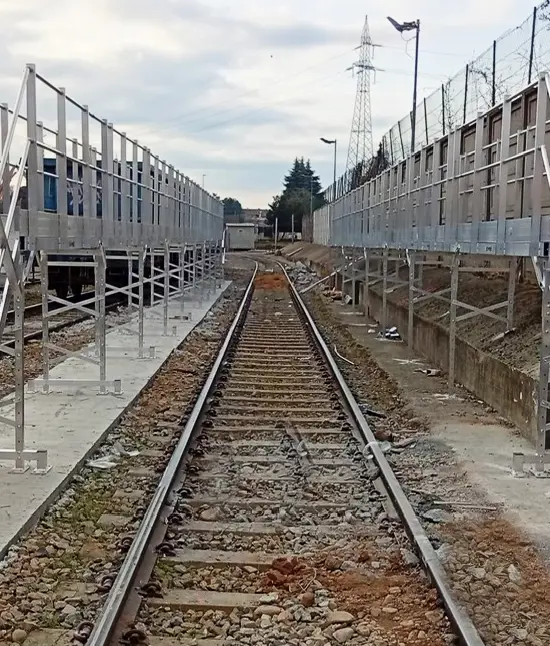

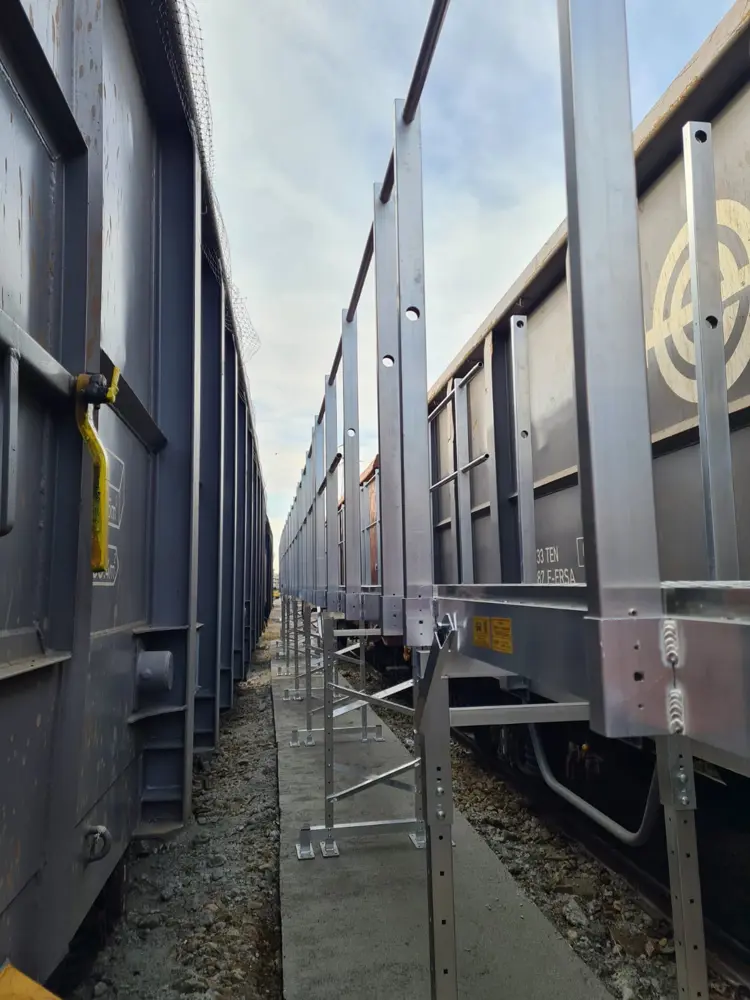

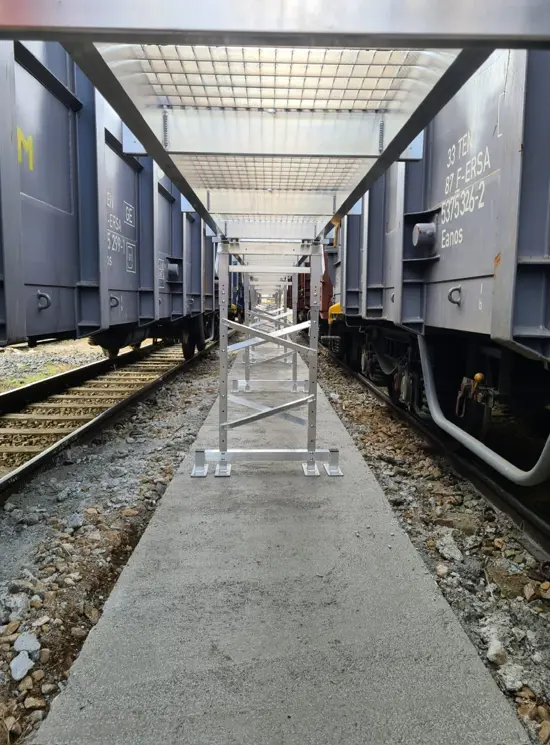

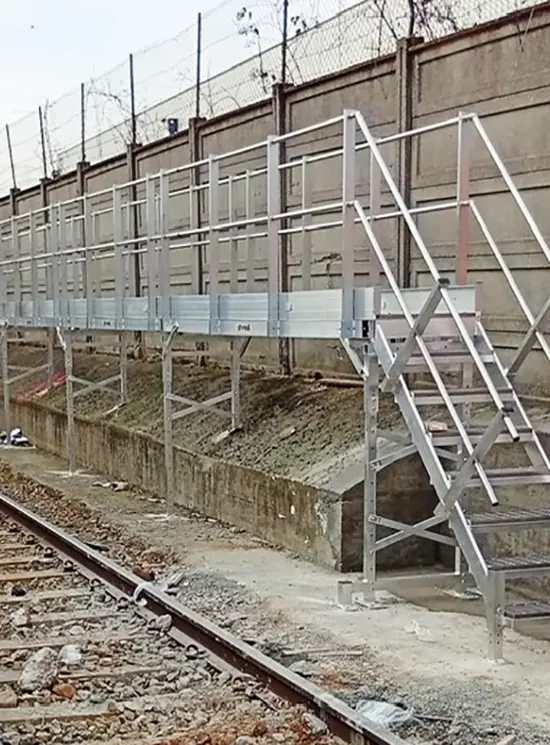

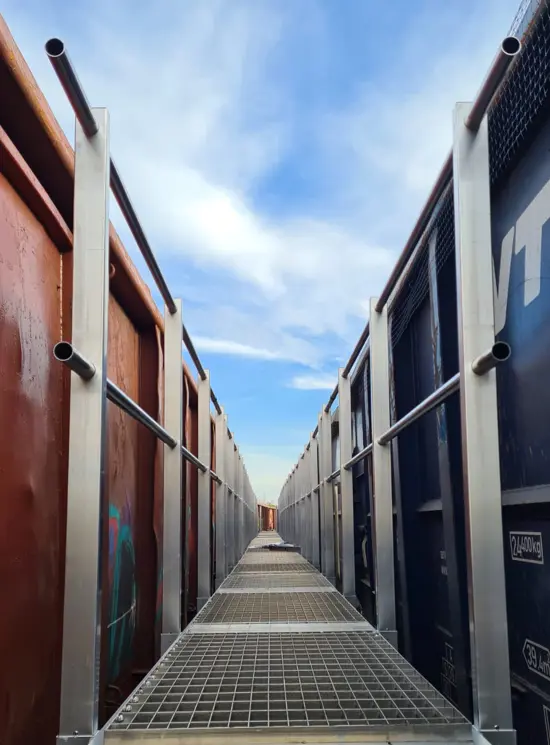

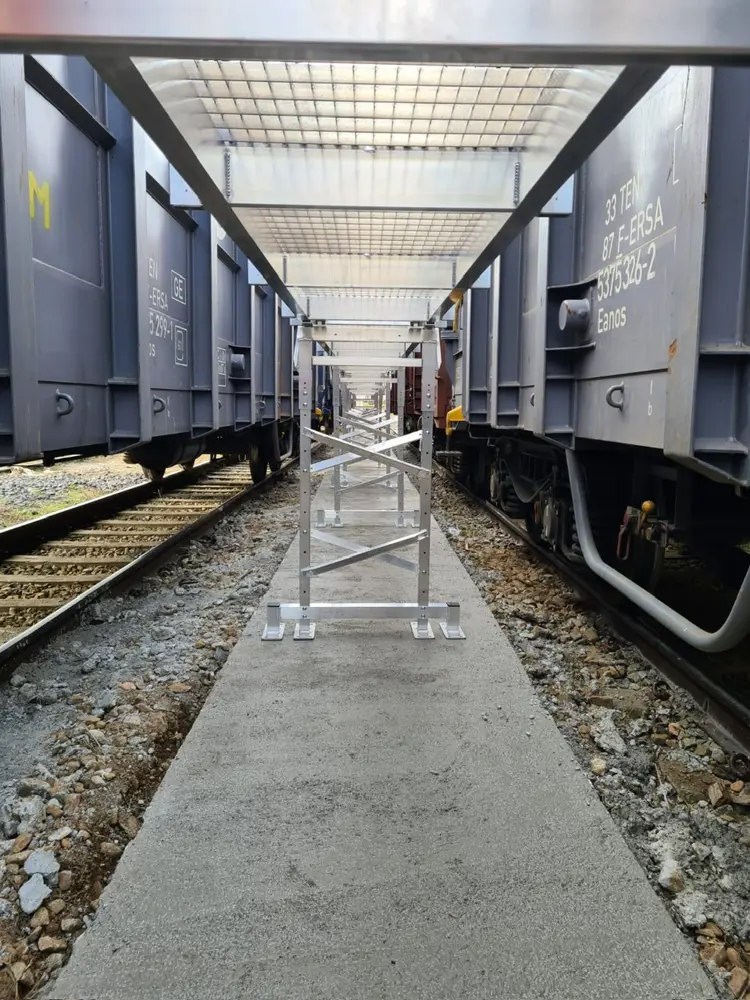

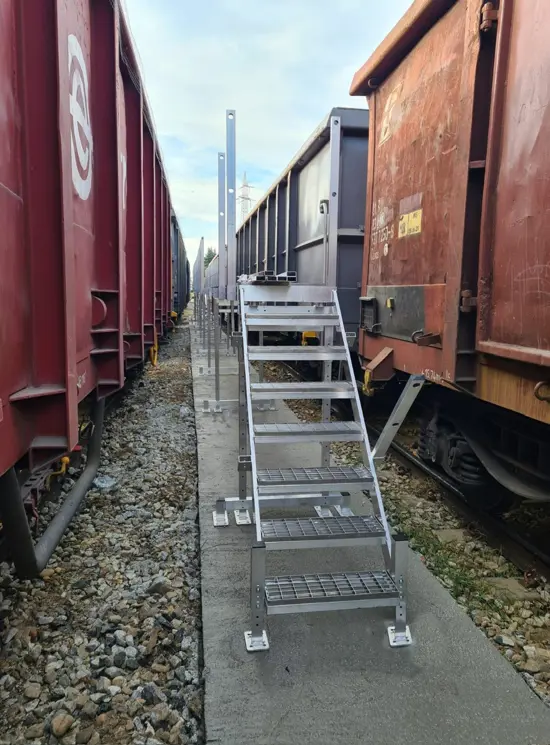

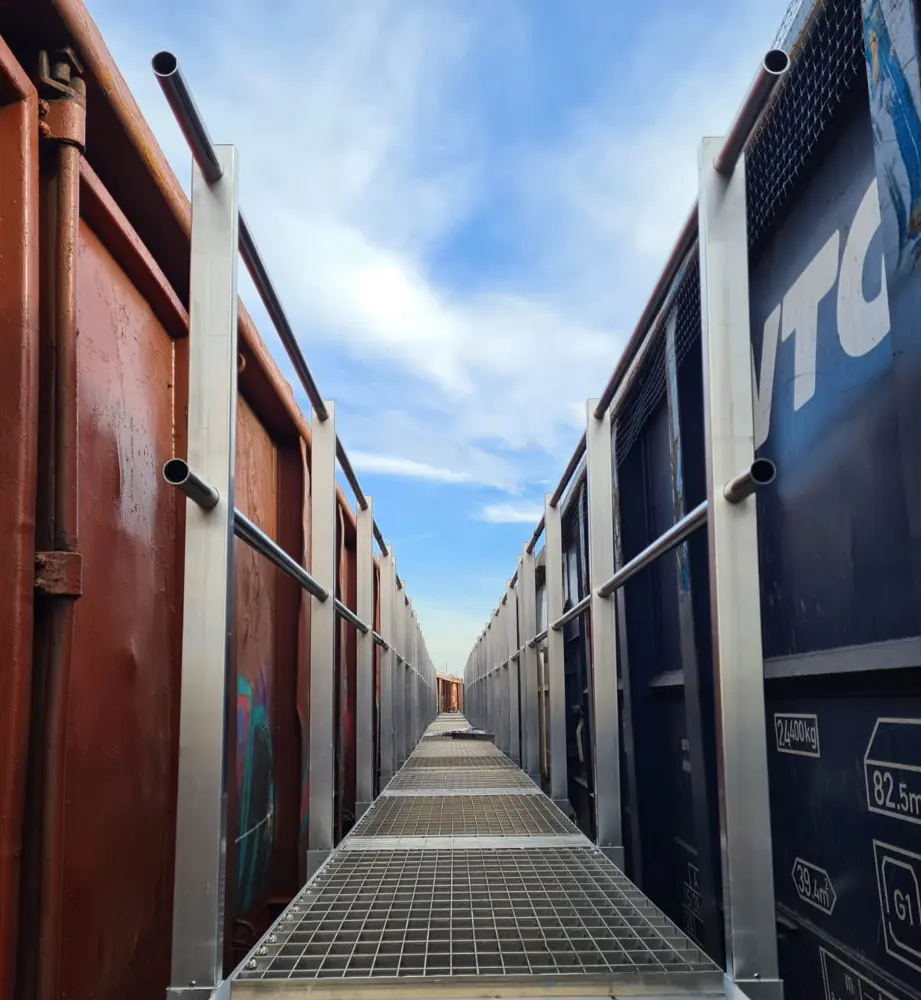

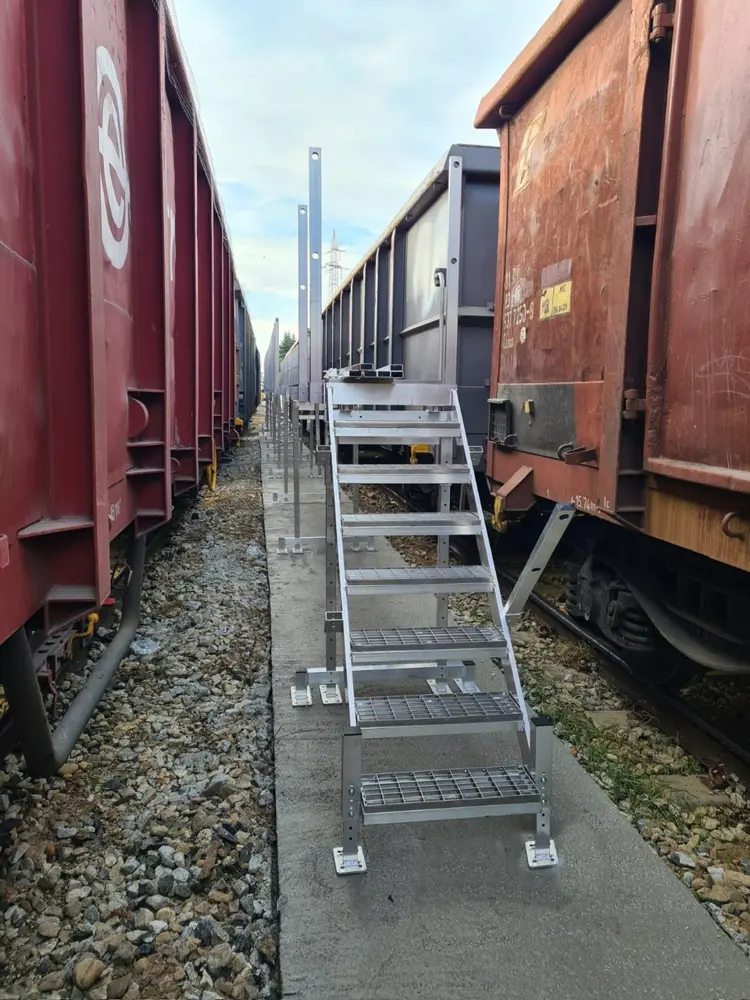

Modular aluminium walkways to be mounted alongside railways or buses for the maintenance of trains, wagons, tractors, trams, buses and any other long vehicle. To European standards EN14122-2-3

Svelt modular aluminium gangways allow you to work laterally on train carriages and buses or any long vehicle.

Equipped with parapets on one or both sides, and with accesses and dimensions that can also be decided by the customer.
They are rust-proof and built according to Legislative Decree 81/2008 and tested according to European standards EN14122-2-3, with accesses and dimensions that can also be tailored to the customer's needs.
The posts of the parapets are assembled using special quick-fit sockets and the beams are inserted into the posts, changing their length if necessary.

They are divided into 2 models:

1) Basic – suitable as stand-up elements withoutconfiguration possibilities

alternatives such as joining each other, etc. (they are substantially devoid of the grafts of

head and tail) and the supports are supplied in pairs and are fixed by bolts on the

longitudinal structure.

2) Executive – suitable to be installed in line with severalmodules and be

configured in multiple ways (L-shaped, T-shaped, creating paths, etc.) and the supports are fixed under the

head and tail glasses.

The capacity is 200 kg sqm, also based on the distance between supports. TIG certified welds. 10 years guarantee

SPECIFICATIONS

Standard width	mm 600/800/1000 (useful dimension)
Special widths	mm 700/900 only with almond top (useful dimension)
Standard module length	mm1000/1208/1418/2008/2226/2430/2640/3030/3440 NB: to calculate walkways with moremodules, add + mm207 to the Lengths mentioned above
Parapet height	1100 mm
Minimum high toe clip	h 150 mm
Reach	200 Kgm²

Easy to install, they are light and resistant.

Modular modular system: walkway elements, columns and beams, supports.

When making a request, it is necessary to communicate in mm:

usable width
Overall length
whether with or without railings
any quotas of obstacles to be overcome
possible inclination of the wagon in degrees
any corners
a sketch of the plan of the walkway with the measurements is appreciated.

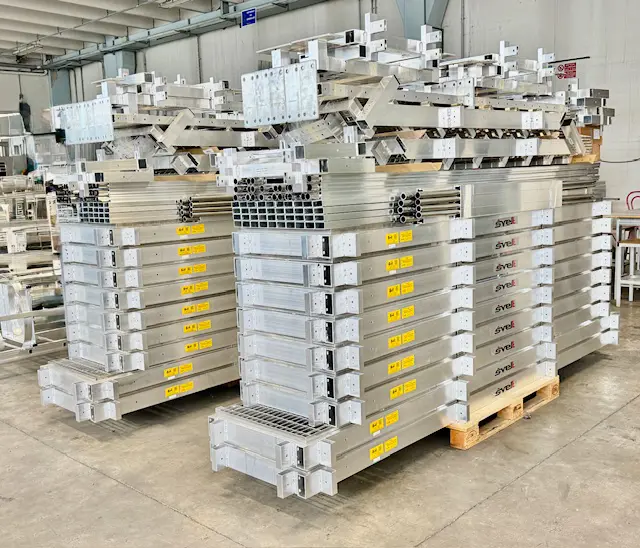

TRANSPORT FOOTPRINT

The production system takes into account the convenience of transport as well as assembly.

Let's see an example of 60 linear meters of walkways equipped with handrails and transported on only 2 pallets.

ON REQUEST

painting of the required color

DELIVERY TIME APPROX. 35/40 WORKING DAYS
