Aluminium Walkways

Customized dimensions

Indicates the possibility of requesting compliance of the product with the European Technical Standard for access to machinery

It shows the validity of the guarantee in years

All our products conforms to the standads in force

It is shown on products which conform to the European Standard on welding

Suitable for heavy duty

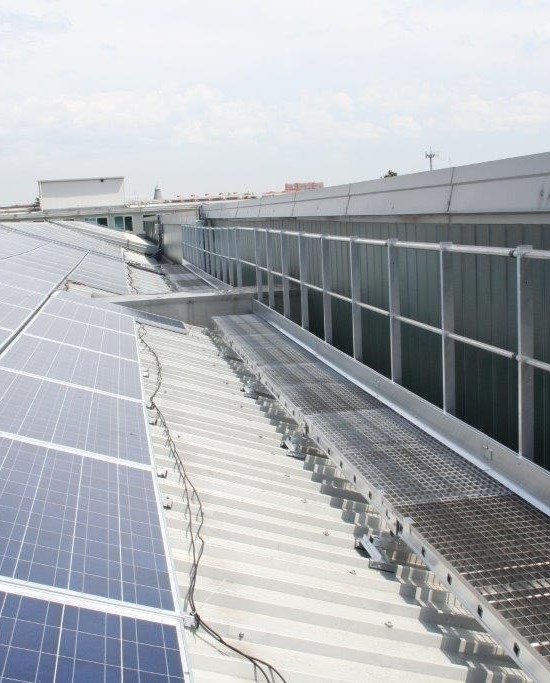

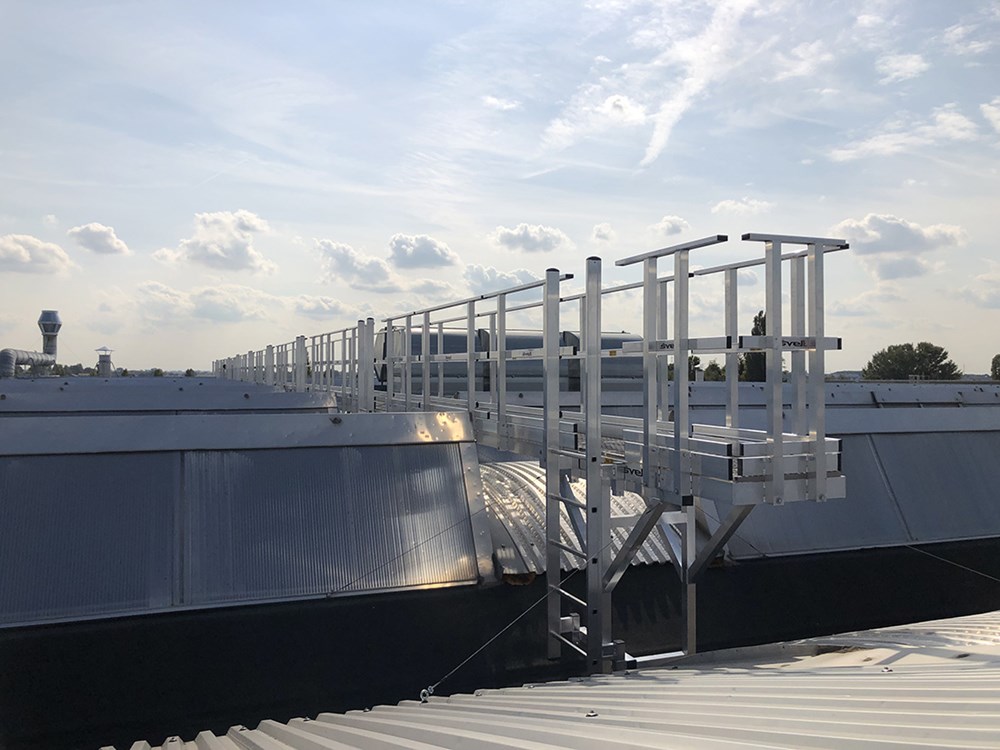

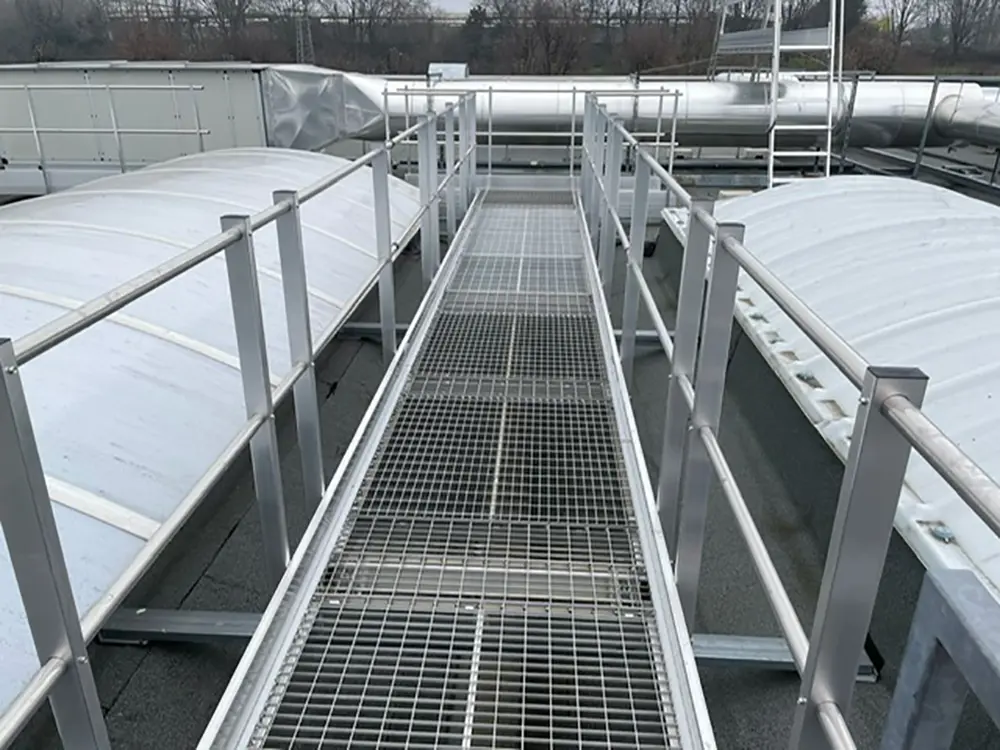

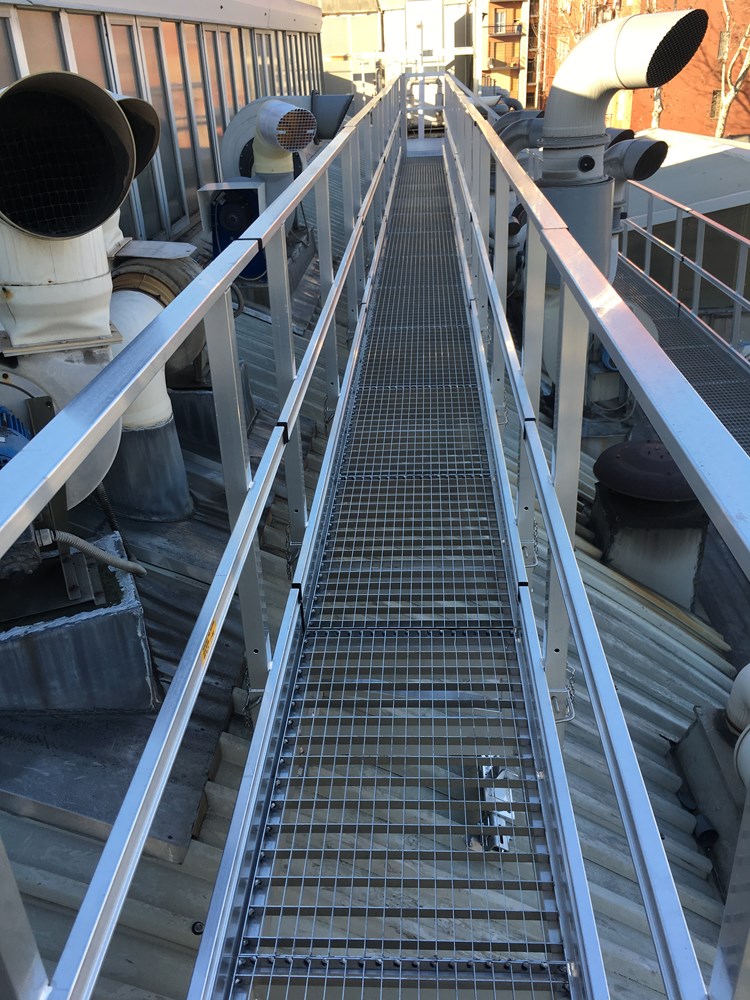

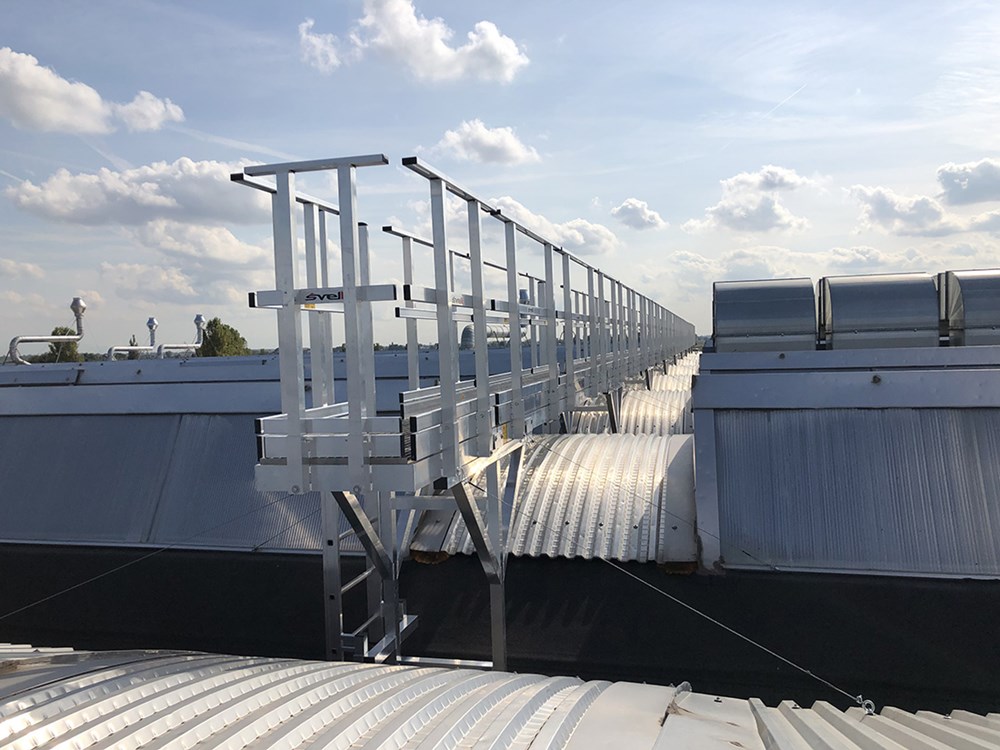

For roofs, machinery, rooflight or Eternit reclamation

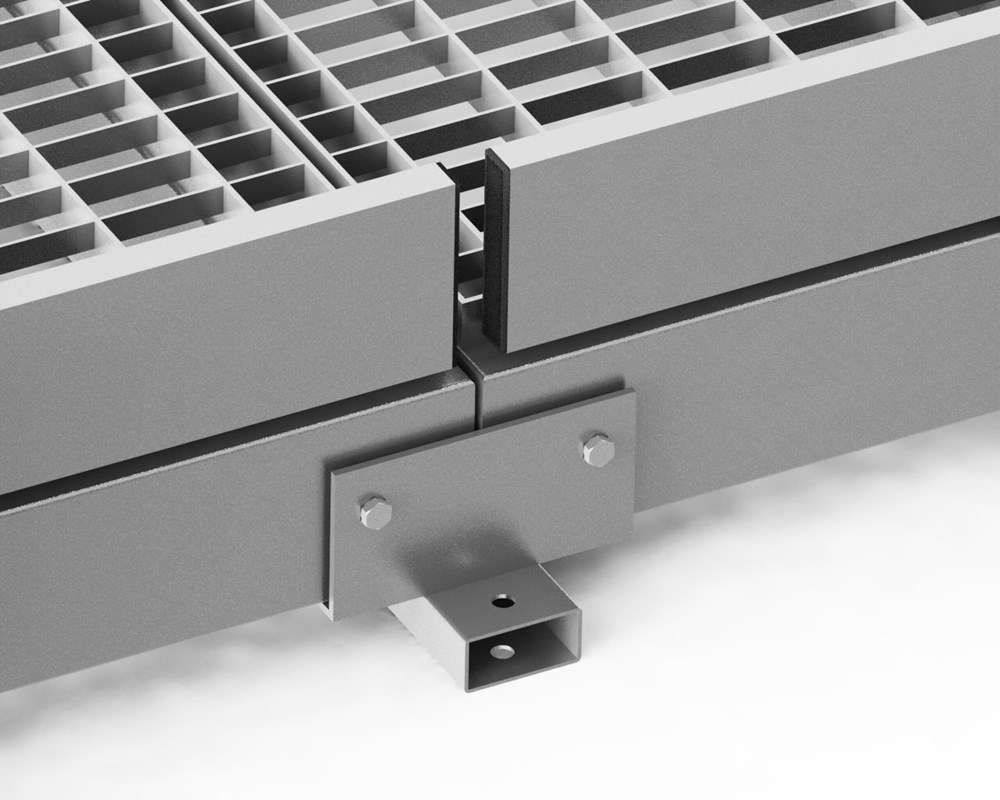

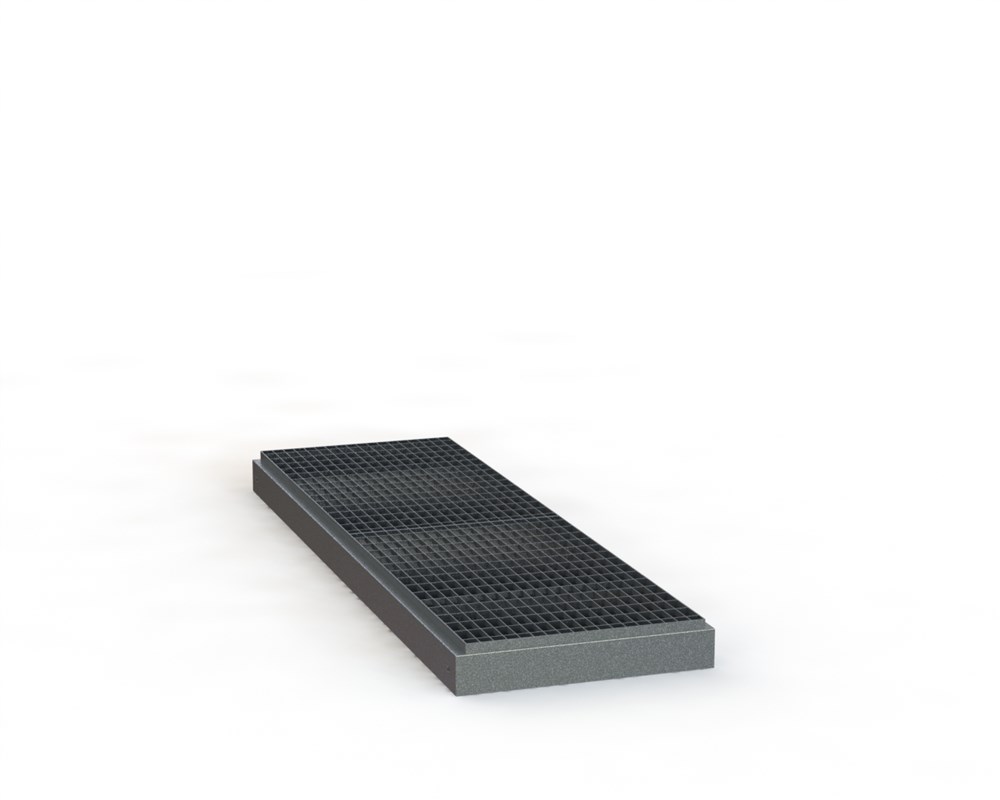

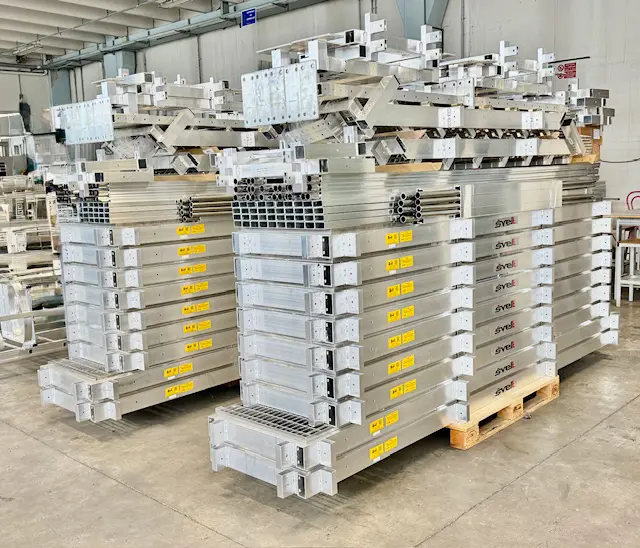

Modular walkways lenght on request for roofs, machinery, rooflight or eternit reclamation.

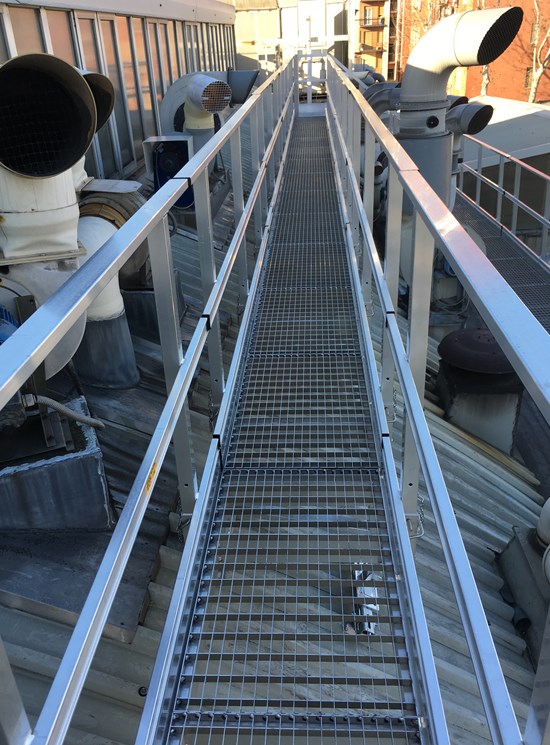

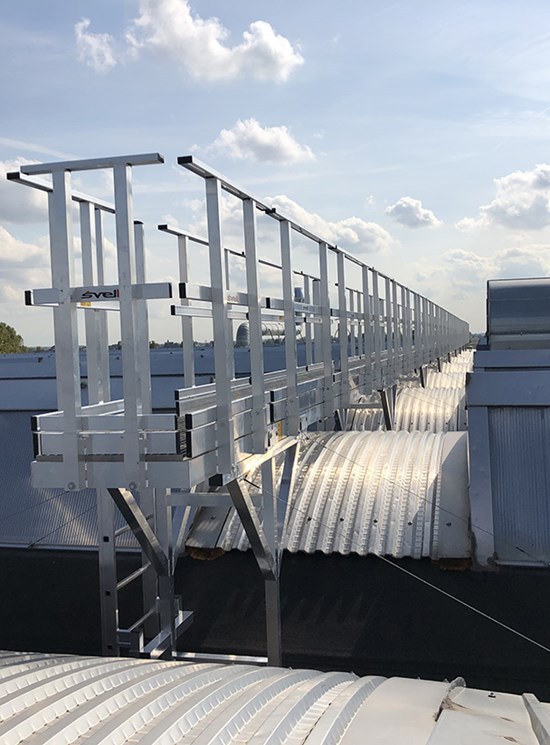

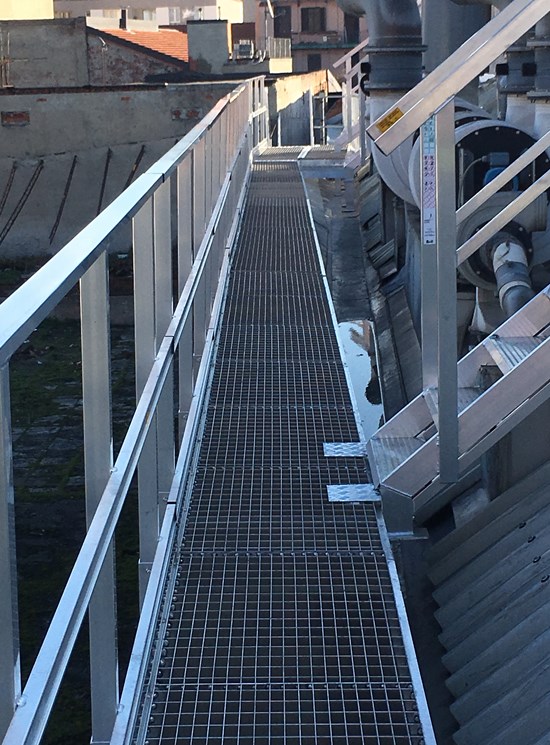

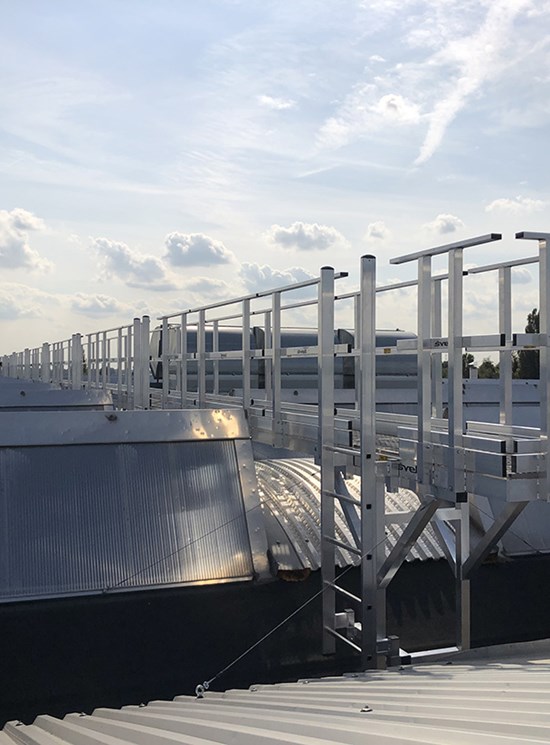

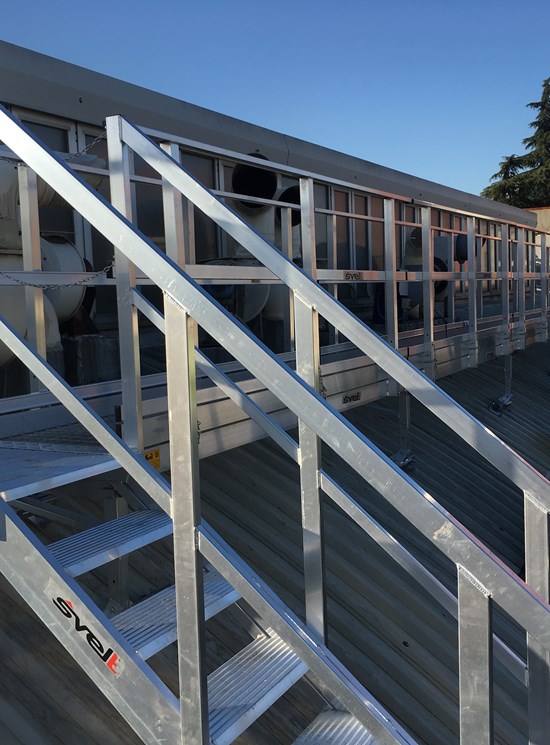

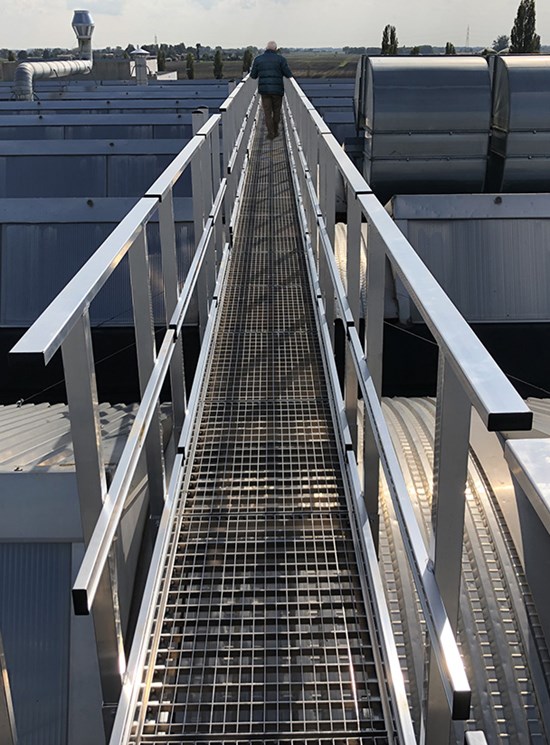

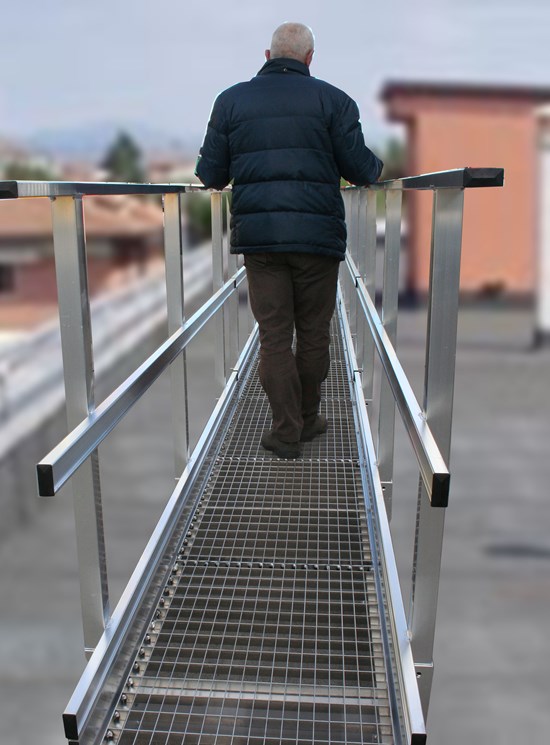

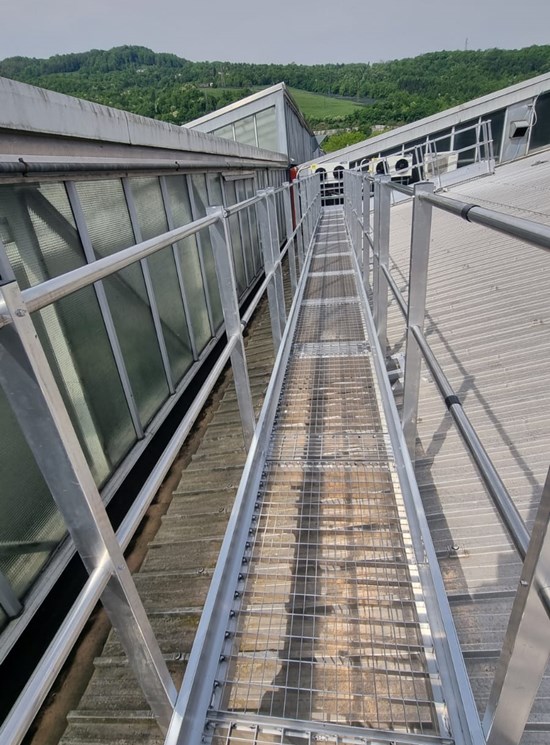

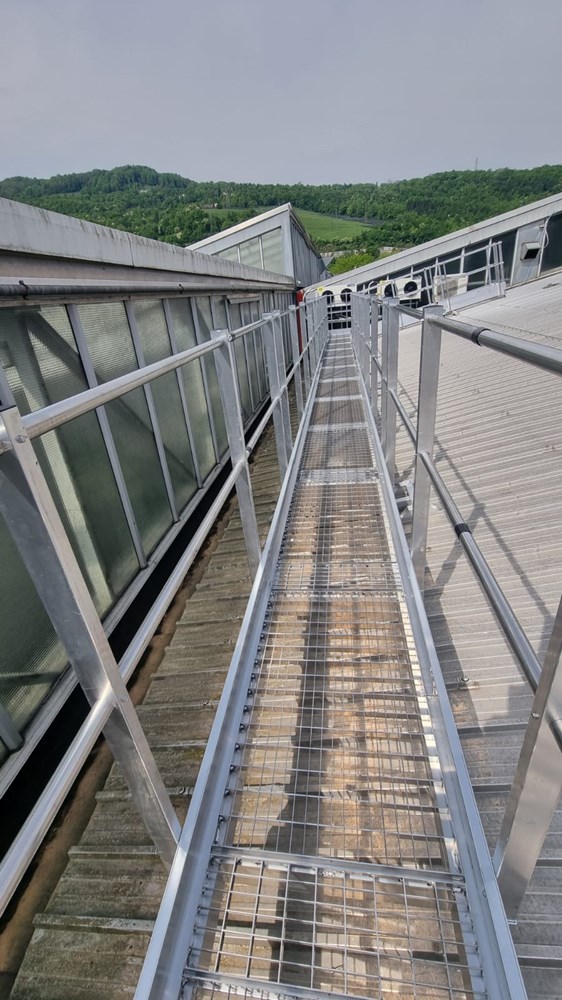

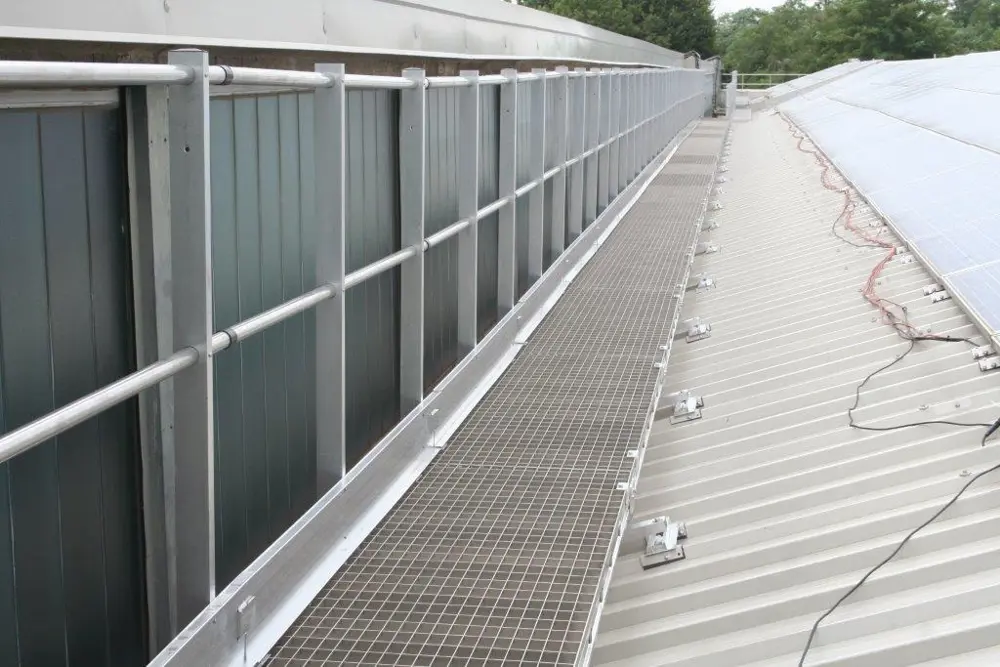

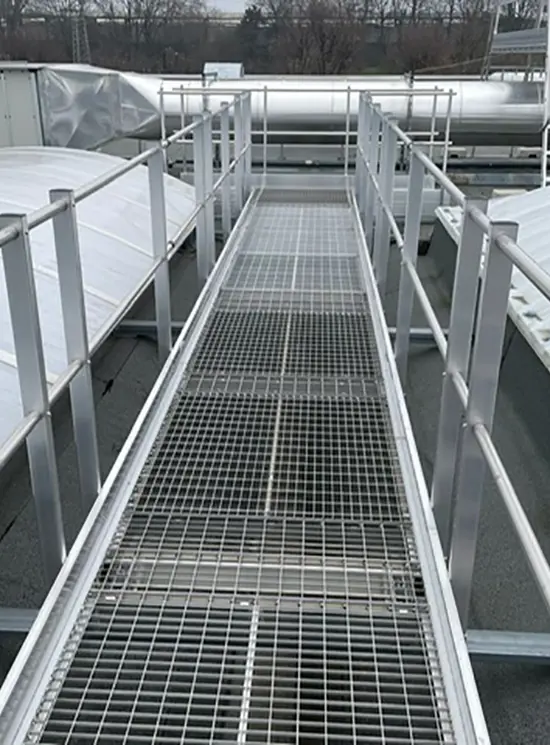

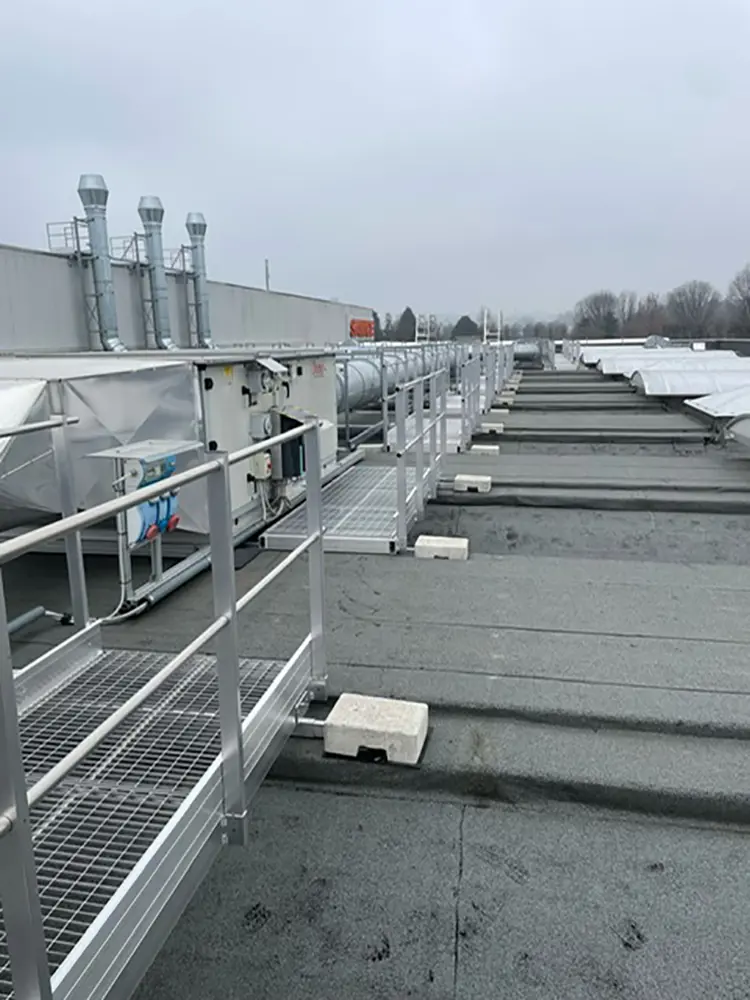

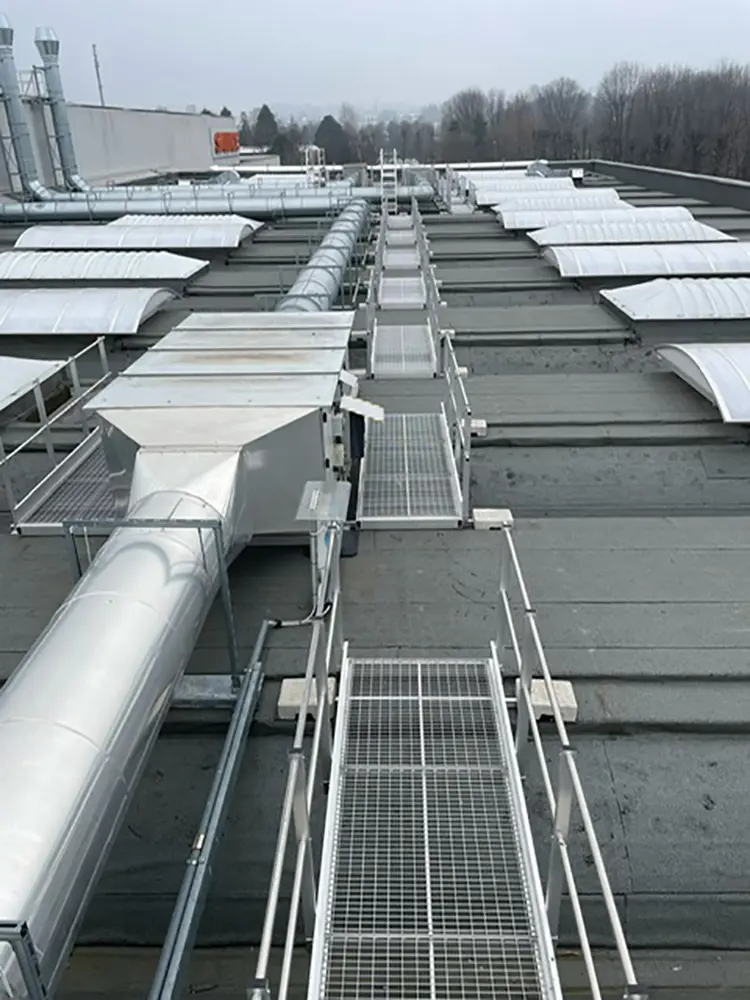

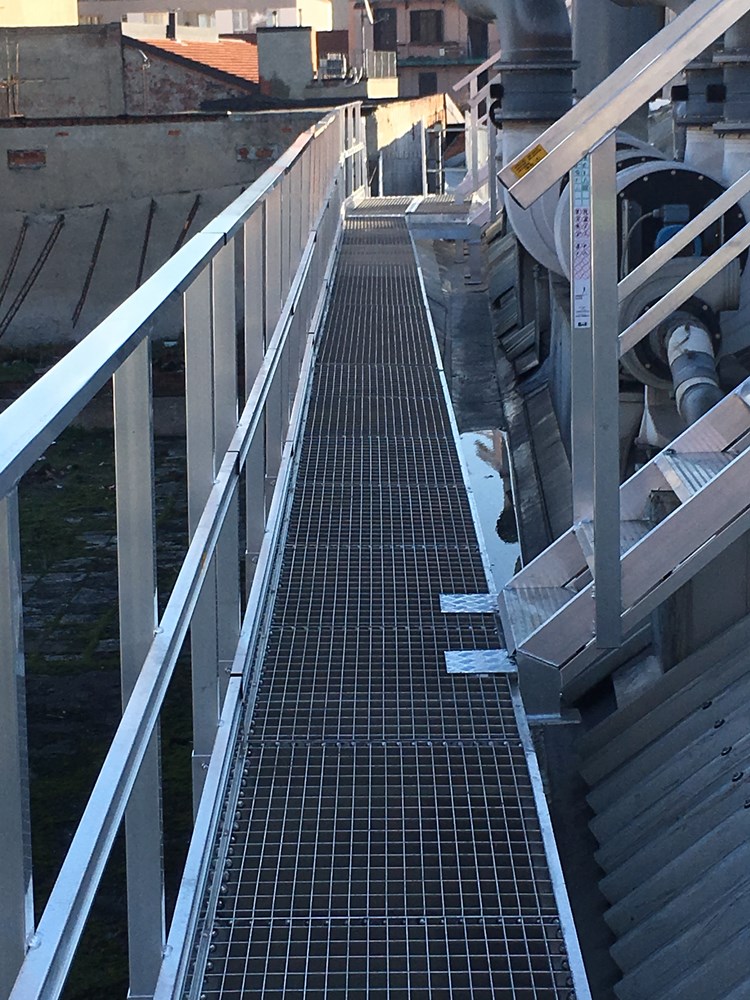

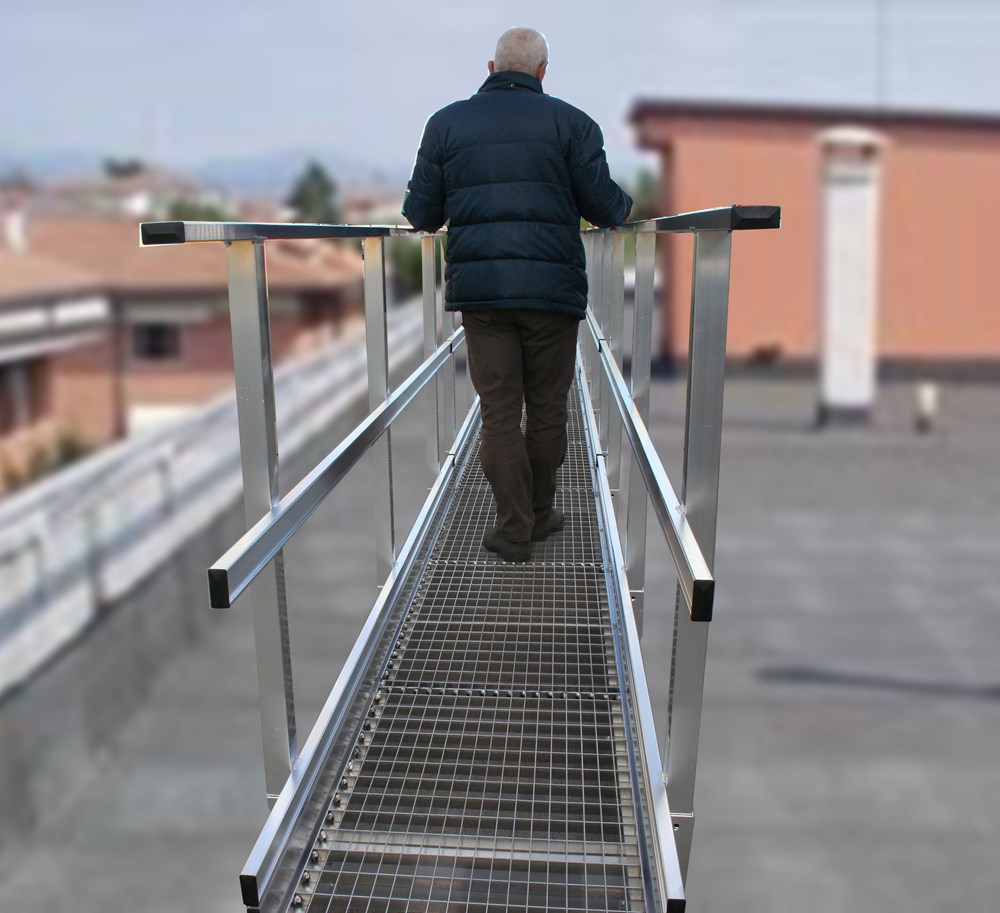

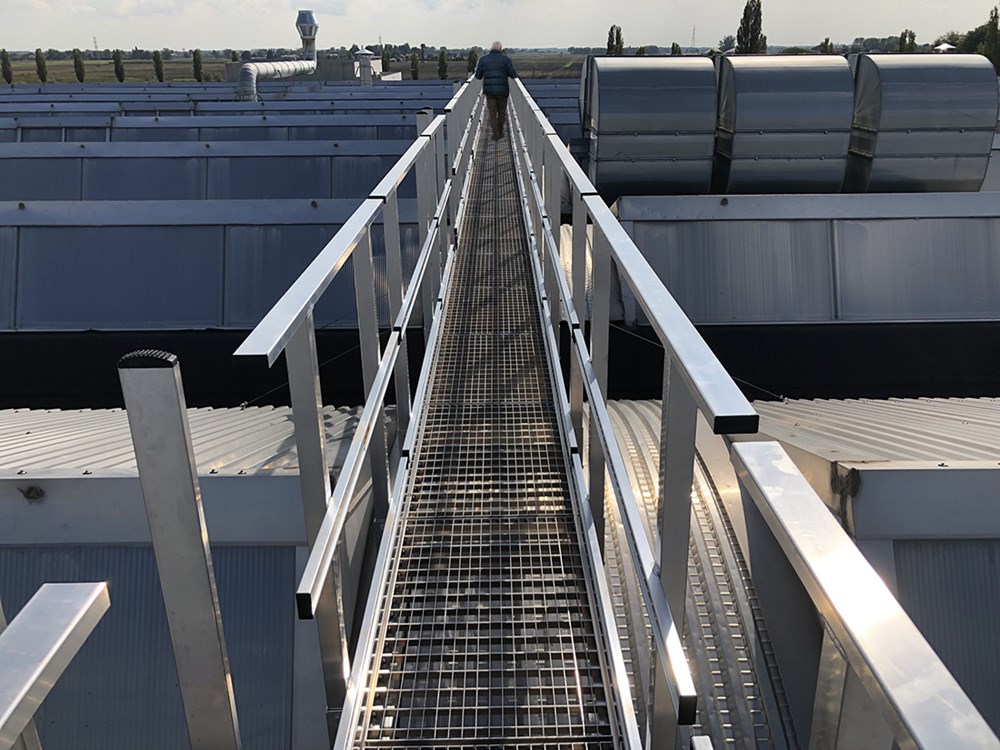

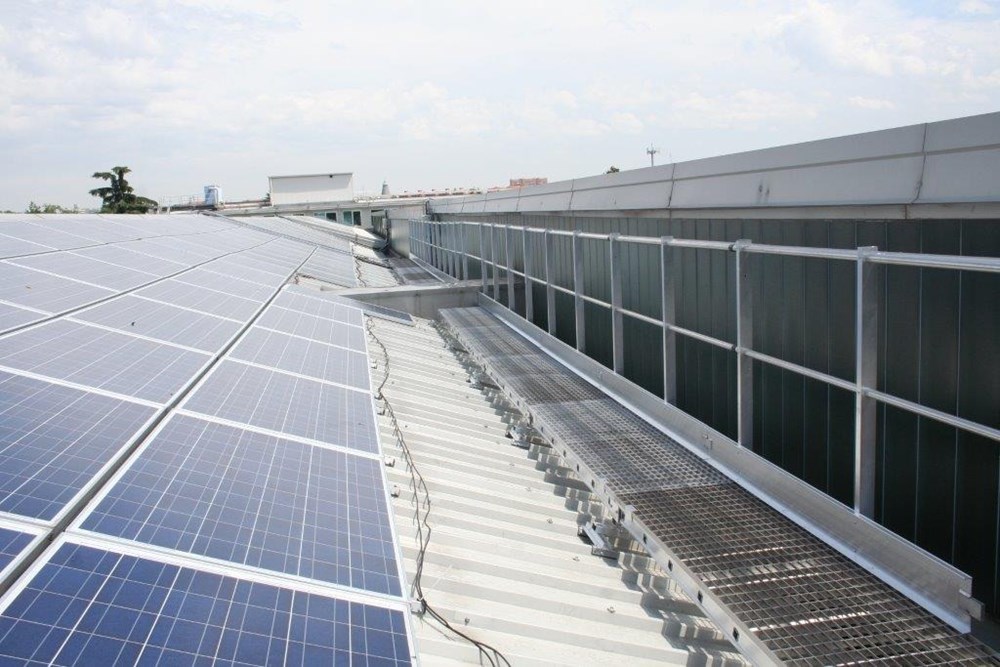

Aluminium gangways which allow safe walk on fragile or slippery roofs or work in inaccessible areas.

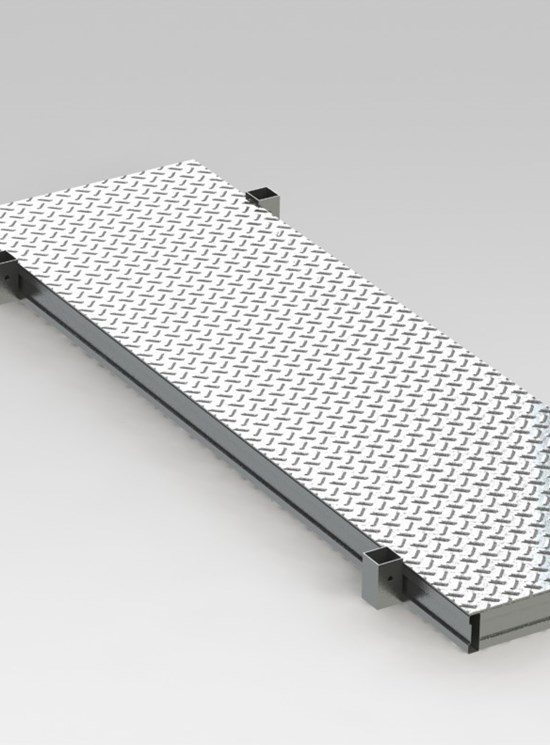

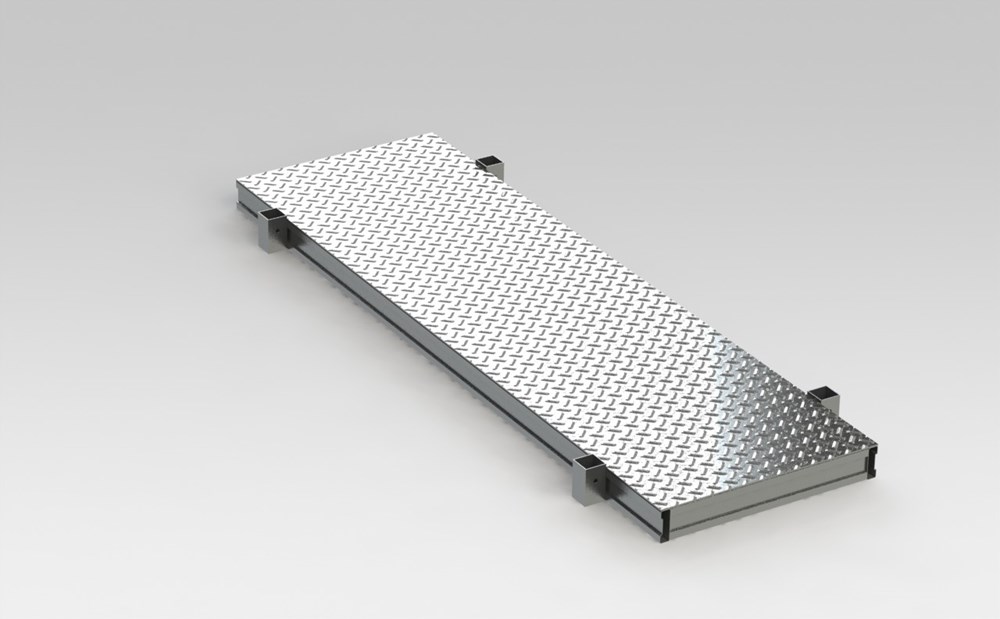

They are rustprof and equipped with non-slip knurled platform.
They are easy to assemble, light and can be installed on preexistent structures.

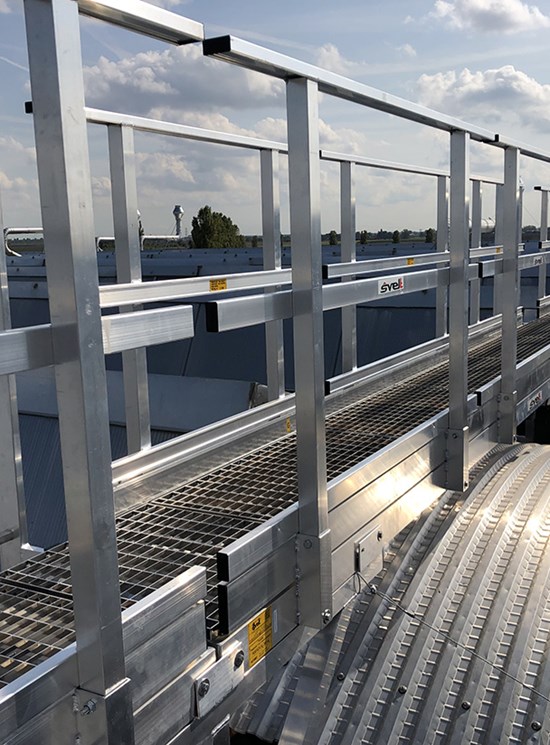

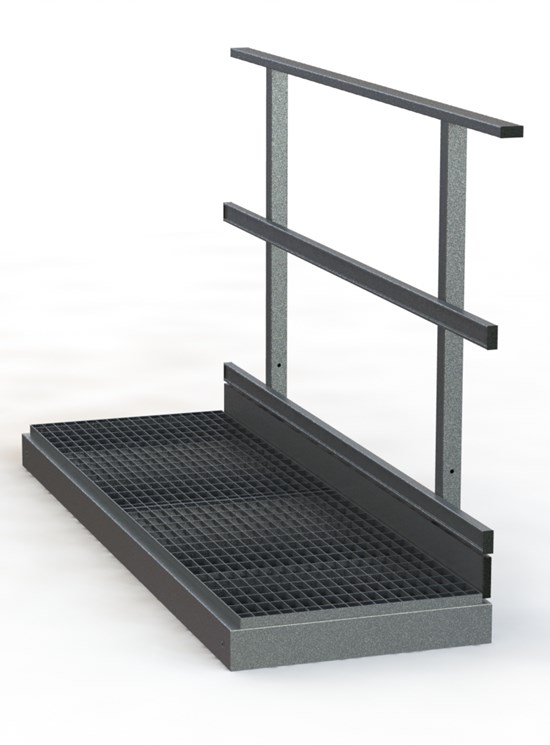

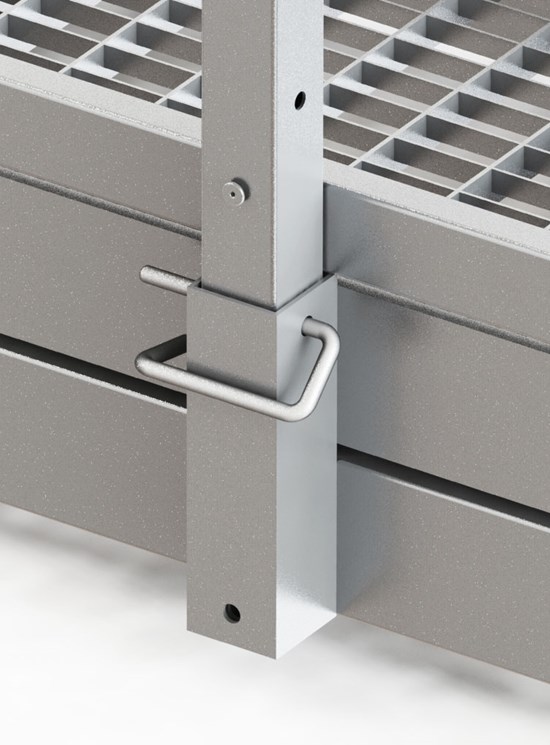

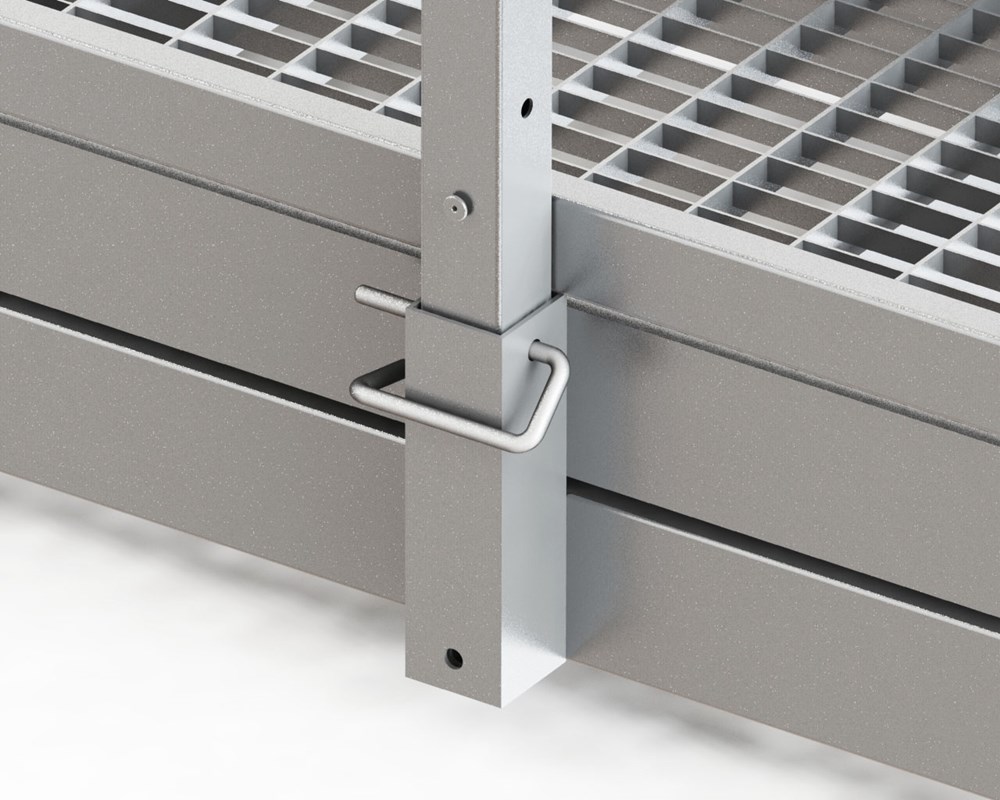

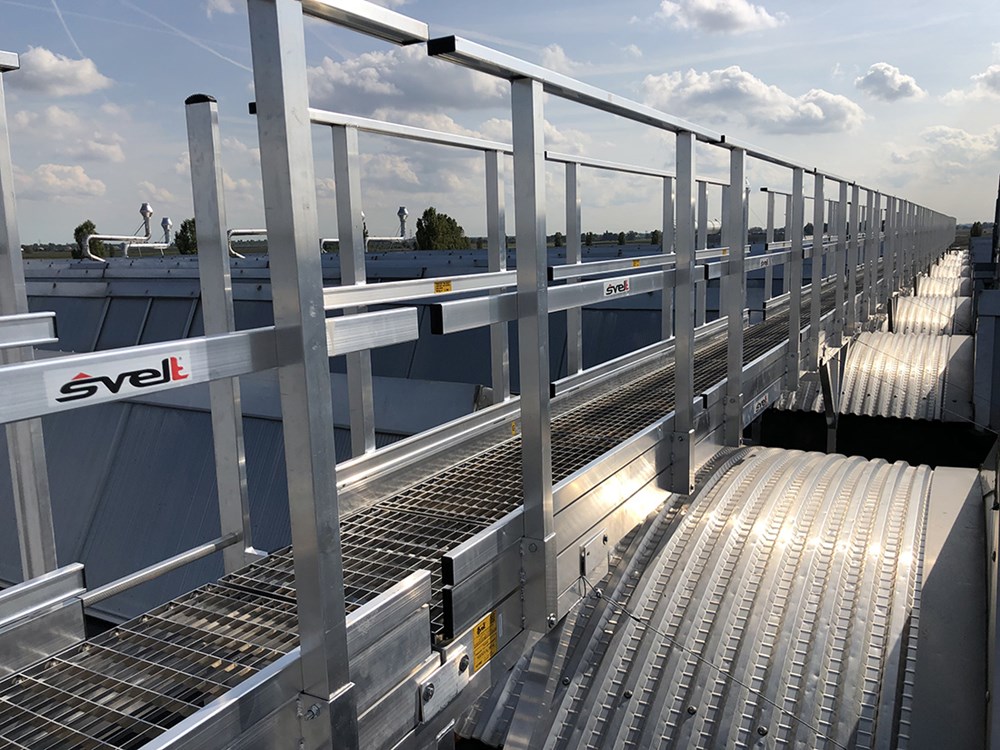

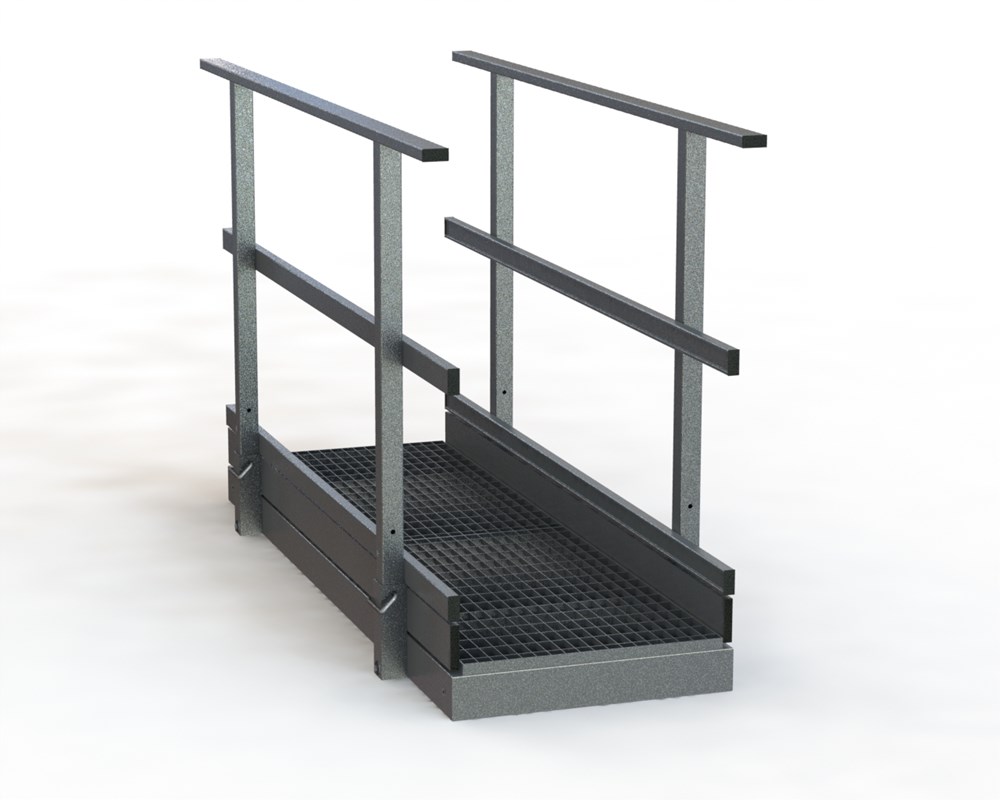

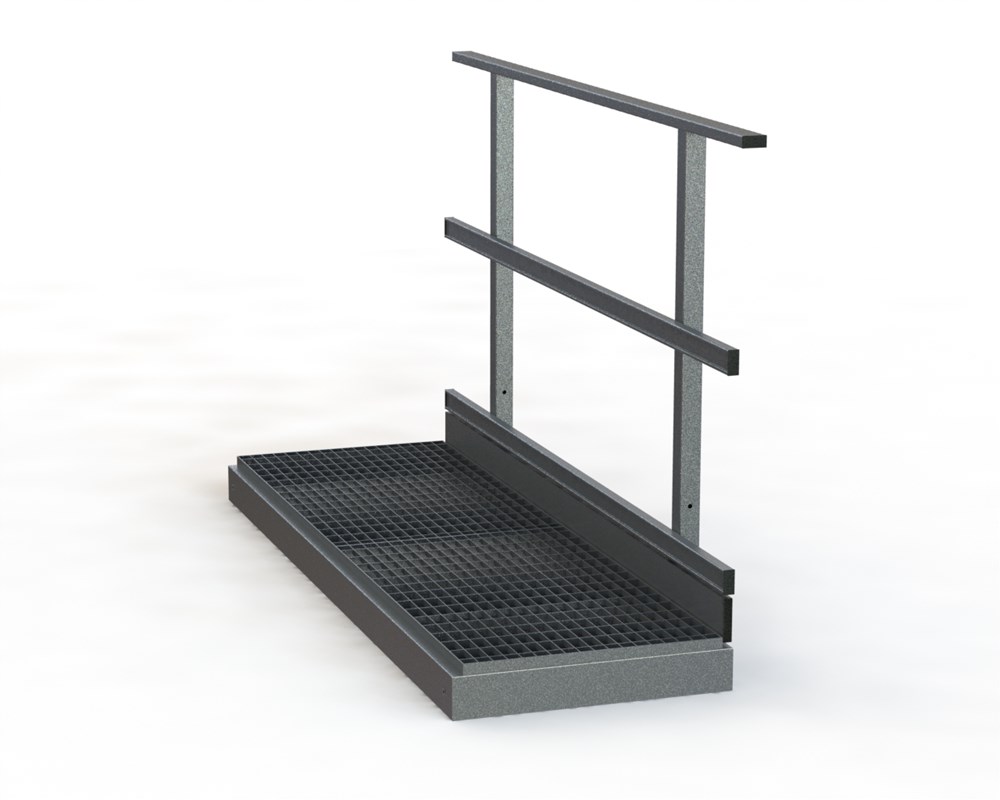

On request they can be supplied with one (left or right) or both guardrails. (designed and produced just for protection and safety of men at work)

Walkways can be:

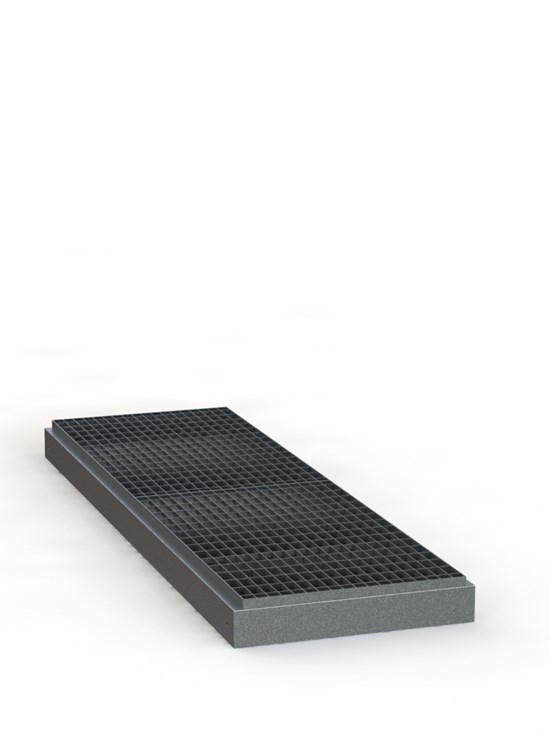

Modular or custom-made

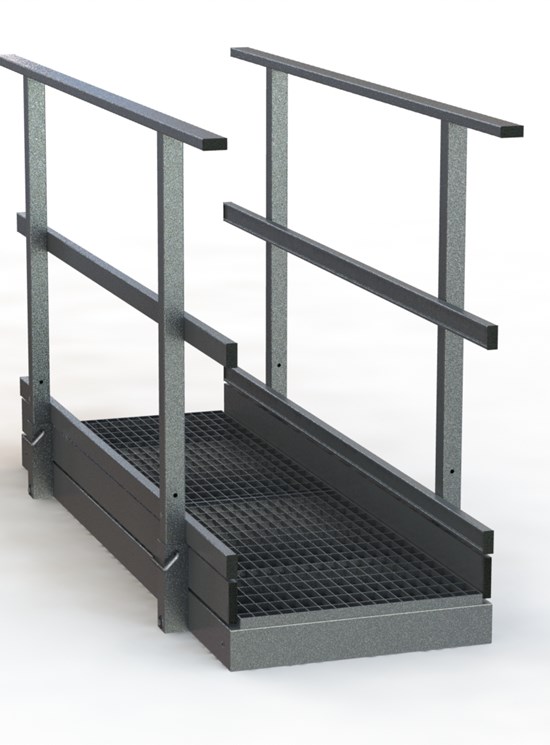

With or without left or right guardrails
Standard width: mm 600/800/1000
Custom-made special width: mm 700/900
Modules standard length: mm 1000/2000/3000
Great allowance which permits good fitting to cambers or imperfections of the surface
Toeboarding height 174 mm - guardrails height 1100 mm
Tig certificated welding
Instruction manual
Compliance certificate

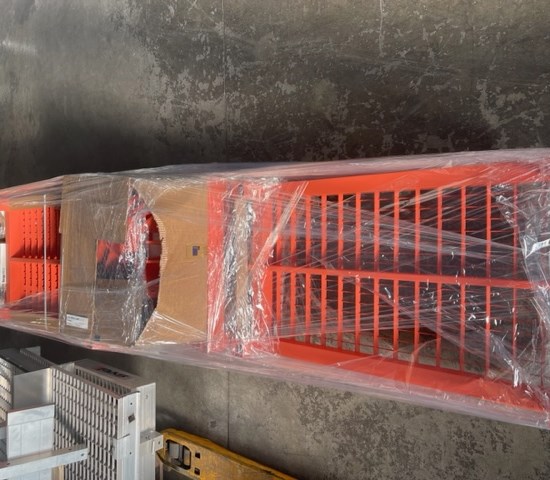

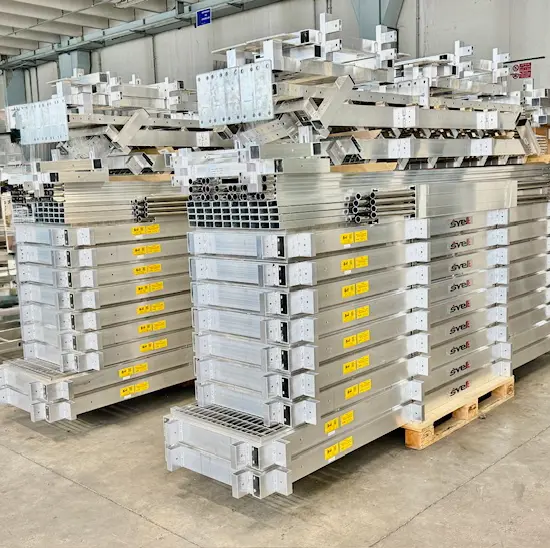

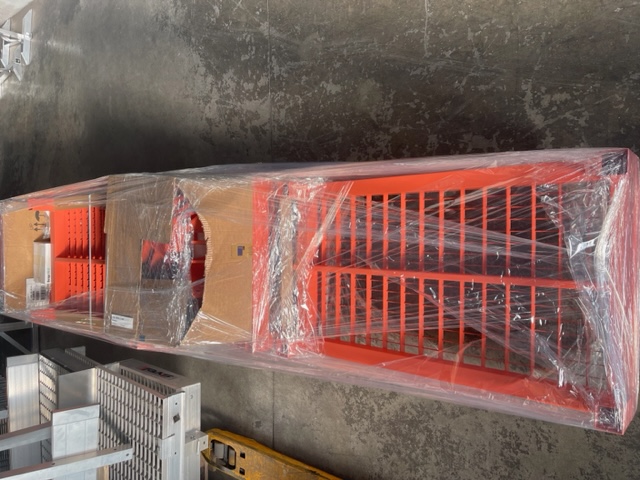

Note: compact dimensions for easy transport

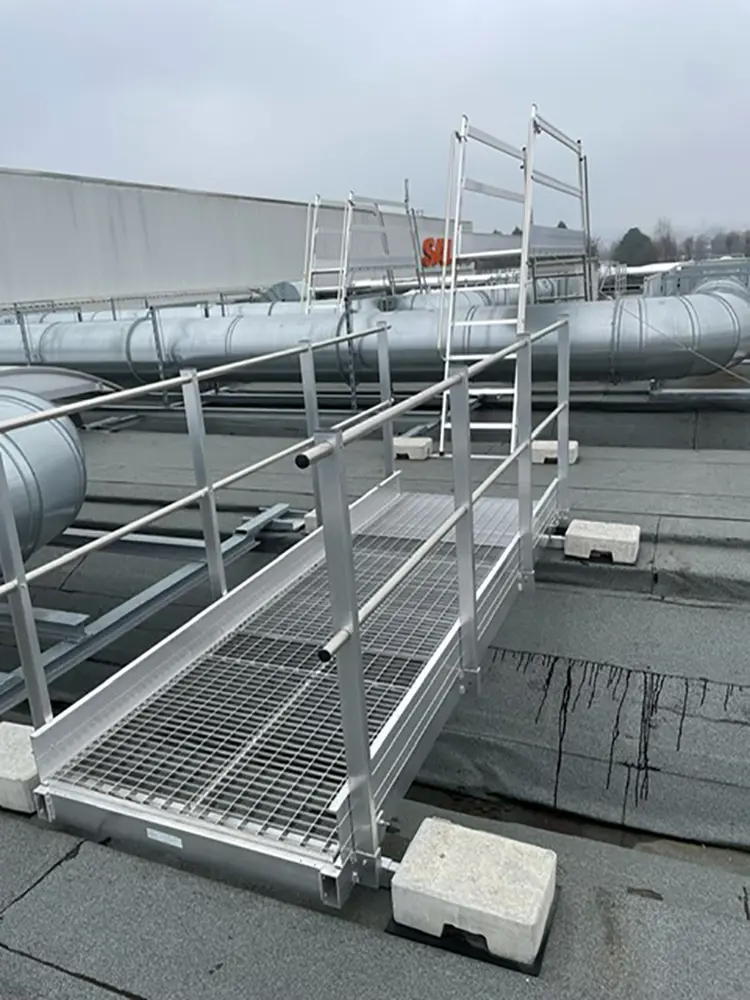

Svelt walkway are designed to be used totally adhered to flat or slightly inclined surfaces or adhering to supports with a max centre to centre
distance of 1500 mm and a capacity of max 100 kg every linear meter (distributed). For particular requirements (for example centre to centre
distance > 1500 mm), please ask for a quotation specifying special requests such as walkway dimensions, distance between supports, capacity, place of use.

Walkways are not designed to install safe lines systems.

These products are manufactured conform to ISO 9000 according to EN ISO 9602. Our welders and welding machines are periodically examined by an approved lab who issues a license when they pass functionality, ability and precision tests. Our suppliers of row materials are
certified according to ISO9001. Our products are welded with TIG method.
SVELT WALKWAYS are designed according to local regulations.
