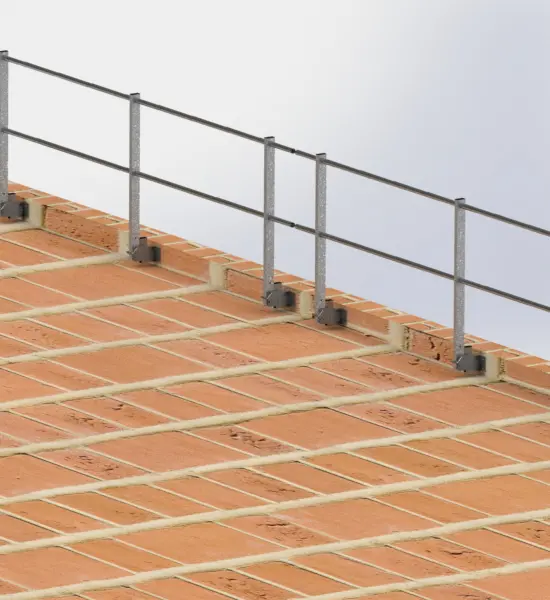

Class A permanent protection railings

Name: Class A permanent protection railings
Brand: Svelt

Customized modular length

Quick-mount aluminum railings for roofs and machinery.

Custom-made aluminium protective railings designed for roofs and machinery.

Our range of permanent guardrails is designed to ensure maximum collective protection.
The system is structurally verified by qualified engineering firms and tested in the laboratory by the manufacturer who provides the Declaration of Conformity.
Our "SYSTEM" is available and certified in 3 configurations based on 3 different standards that the customer can choose according to their needs.

What are the types of railings available from SVELT?

Permanent fall arrest railing (UNI11996:2025) applicable for roofs in category H
Permanent fall arrest railing (NTC:2018) applicable for roofs referred to in category H
Fixed guardrails for access to machinery (ENISO14122-3:2016) applicable wherever there is machinery

Class A permanent fall arrest railing

Lightness and Modularity

Collective edge protection device (DPC) characterized by an extremely light and manageable modular structure, designed to be tailor-made along the perimeter required by the customer.
Certified Quality and Safety

Our high-quality extruded aluminium railings guarantee permanent collective protection in full compliance with current regulations.
Design and Structural Performance

They combine high ease of assembly with a refined aesthetic, while ensuring maximum rigidity and excellent structural resistance to static loads.

Key technical note for fixing:

"The fully assembled system is not watertight.

Therefore, to prevent the entry and stagnation of moisture inside the profiles, installation must be carried out exclusively by mechanical bolting or dowel on suitable supports.

It is strictly forbidden to lay by direct drowning or immersion in castings of cementitious material, mortars or the like."

TECHNICAL CHARACTERISTICS PARAPETS UNI11996 AND ENISO14122-3

Parapet height	1100 mm - standard UNI11996 establishes minimum height mm1000
Aluminium columns with variable centre distance	up to 1400 mm
Mainstream and knee protectors	Ø 32 mm
Columns section	60x30 and/or 80x30
Maximum span between horizontal elements UNI11996	470 mm
Maximum span between horizontal elements ENISO14122-3	500 mm
Toe height supplied	175 mm
Plates	perforated for fixing to the wall or floor
Flow UNIEN11996	1000 N/m
Flow rate ENISO14122-3	300 N/m

TIG certified welding
Assembly and use manual
10-year warranty
It only takes a few minutes to obtain a comfortable, light and rust-resistant parapet.
Fixing on the roof is excluded and by the customer. (assembly by SVELT on request).
Each module is equipped with joints on request to create continuity along the entire roof.
The parapet can also be equipped with curves.
Quality aluminum railings that ensure collective protection in accordance with the law.

Class A modular balustrade

Class A defines the scope of the roofing system with a maximum slope of the walking surface of up to 10° (equivalent to a slope of 17.6%).

Aluminium edge protection system consisting of columns, rails and toe clips: the components are extremely light and easy to handle.

The standard posts must be installed perpendicular to the roof and then joined to form a custom-made system as requested by the customer.

With a quick assembly it is possible to obtain a comfortable, light and rust-resistant parapet.

Aesthetically pleasing and statically resistant and rigid.
Parapet systems must guarantee only resistance to static loads, the basic requirements are:

support a person leaning on the guard and provide support when the person walks on his side
arrest a person who walks or falls towards the guard.

The parapet system can be configured and supplied without the integrated toe strip, provided that this fall arrest function is already performed by a pre-existing fixed structure on the installation surface (for example, a solid wall or curb with a minimum height of not less than 150 mm).

Optional painting

The railings are completely made of aluminum and for this reason it is not necessary to paint them.

Aluminium is practically eternal and resistant to atmospheric agents unlike iron (even hot-dip galvanised) which needs maintenance over time.

For aesthetic reasons, however, we can paint the railings in the RAL colors requested by customers.

Certificates and Regulations

NTC (certified with horizontal load resistance of 1.0 kN/m / 100 kgf/m)
UNI 11996 (certification with horizontal load resistance of 1.0 kN/m / 100 kgf/m)
EN ISO 14122-3 (Industrial configuration with certification for a horizontal load resistance of 0.3 kN/m / 30 kgf/m).
Manuals: Each product comes with an assembly, use and maintenance manual.
Sign: The system is equipped (as standard equipment or on specific request) with an information and safety sign, which the customer is required to place near the access to the roof.
Our raw material suppliers are certified ISO9001.
Svelt Parapets comply with the ISO 9000 welding standard according to ENISO9606/2: welders and welding machinery are periodically examined by a recognized laboratory, which issues a license to pass the tests of functionality, skill and precision required by the legislation.

"Special" parapets

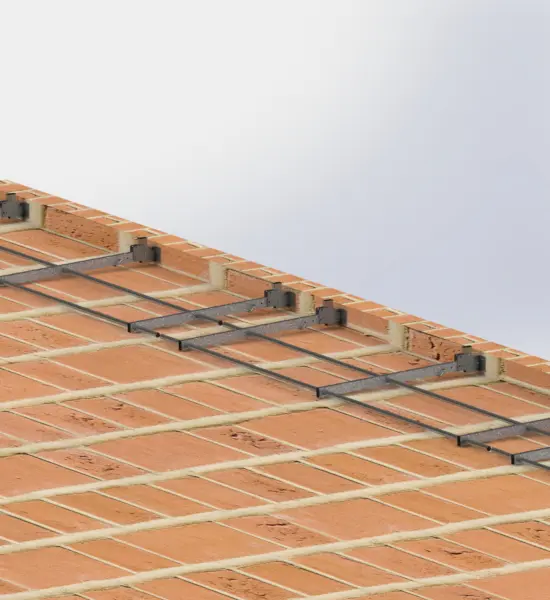

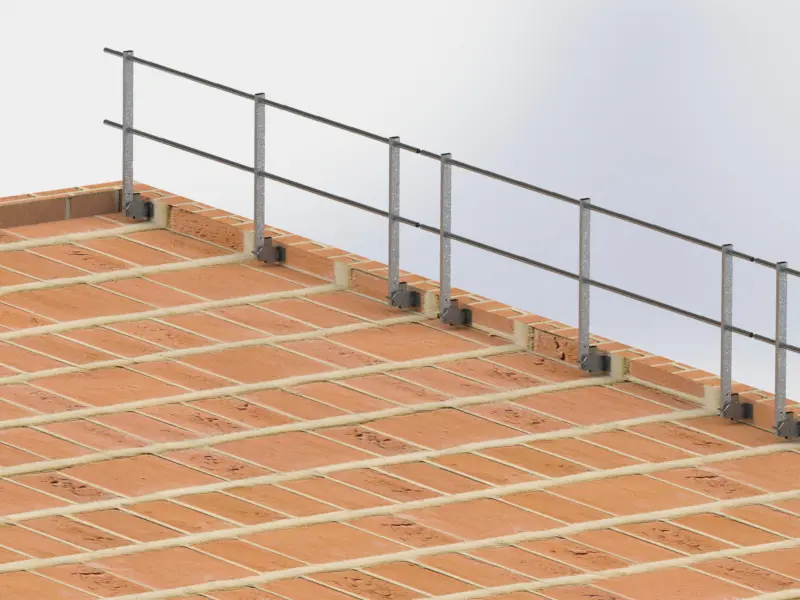

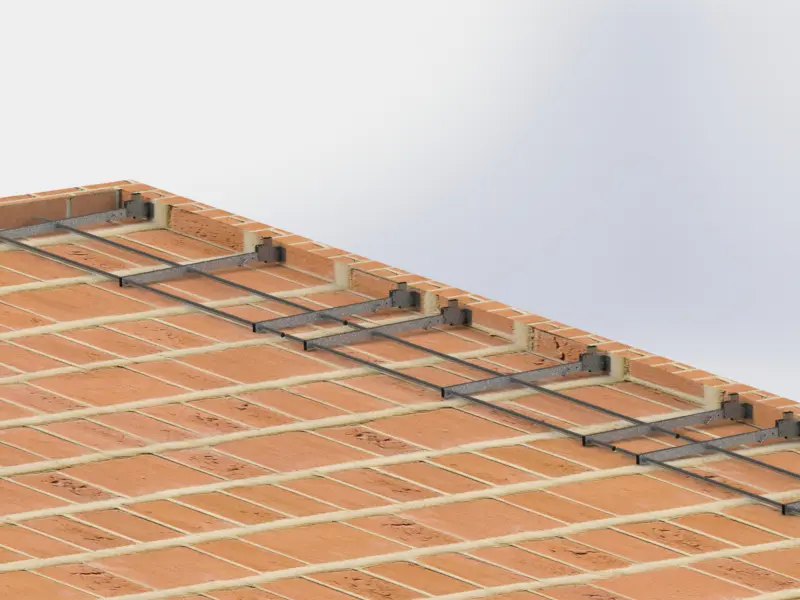

PCRF4A Side-tilting to be fixed to the wall
PCRF1A Front Reclining to Fix to the Floor

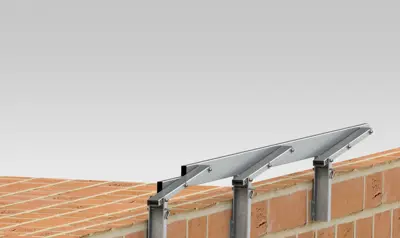

PCRF2A Reclining frontally to be fixed to the wall
PCRF2A Reclining frontally to be fixed to the wall

PCRF4A

PCRF2A

PCRF2A

Closable guardrails

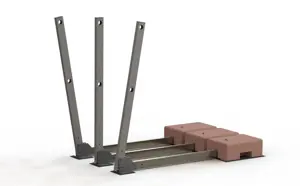

PCR3A Closable parapet with adjustable inclination (resting with ballast).
It is completed with toe stops, knee protectors and handrails.
Ideal for relocation multiple times
It takes up little space in the transport of even numerous parts.

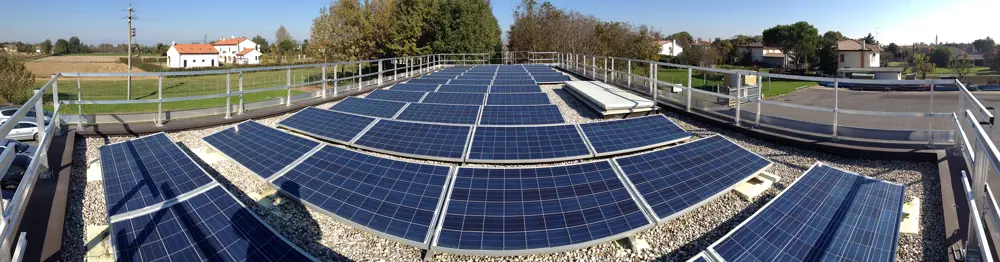

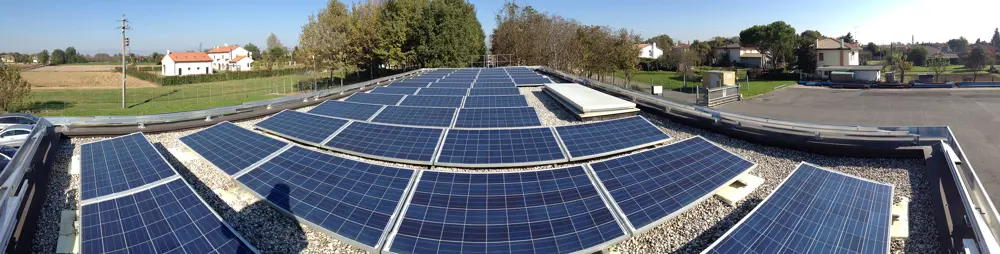

For Photovoltaics

All reclining models are perfect for roofs on which photovoltaic systems are mounted as it always remains closed avoiding shading.
The parapet is opened by the operator only before maintenance operations and then closed again.
