Push Around Coffin Lift

Max height m 5,00

It shows the validity of the guarantee in years

CE mark

Suitable for heavy duty

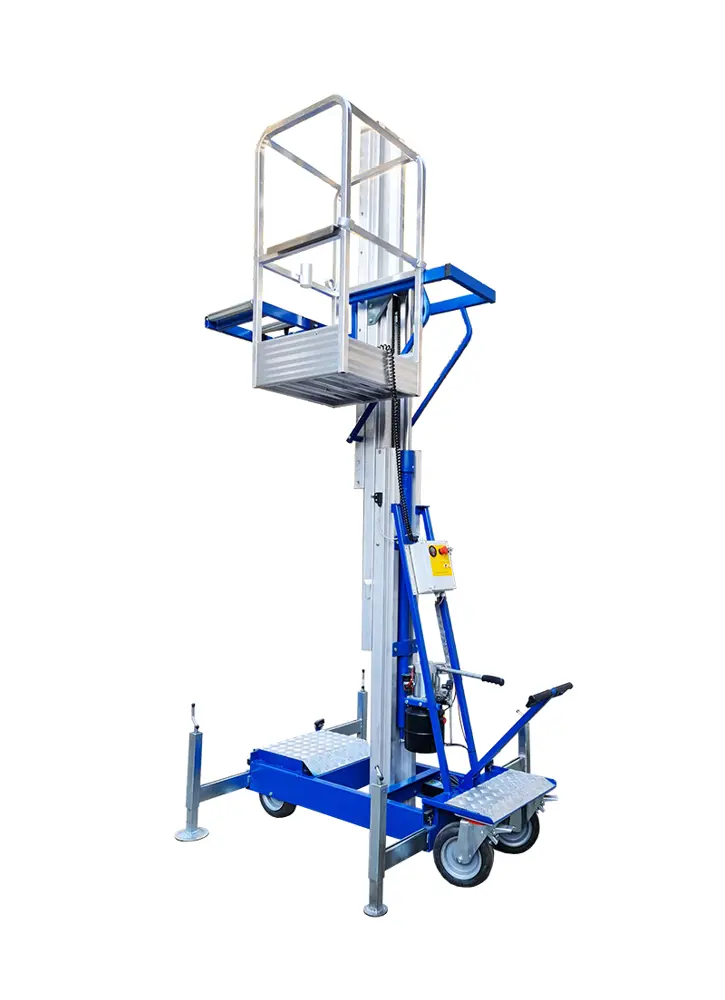

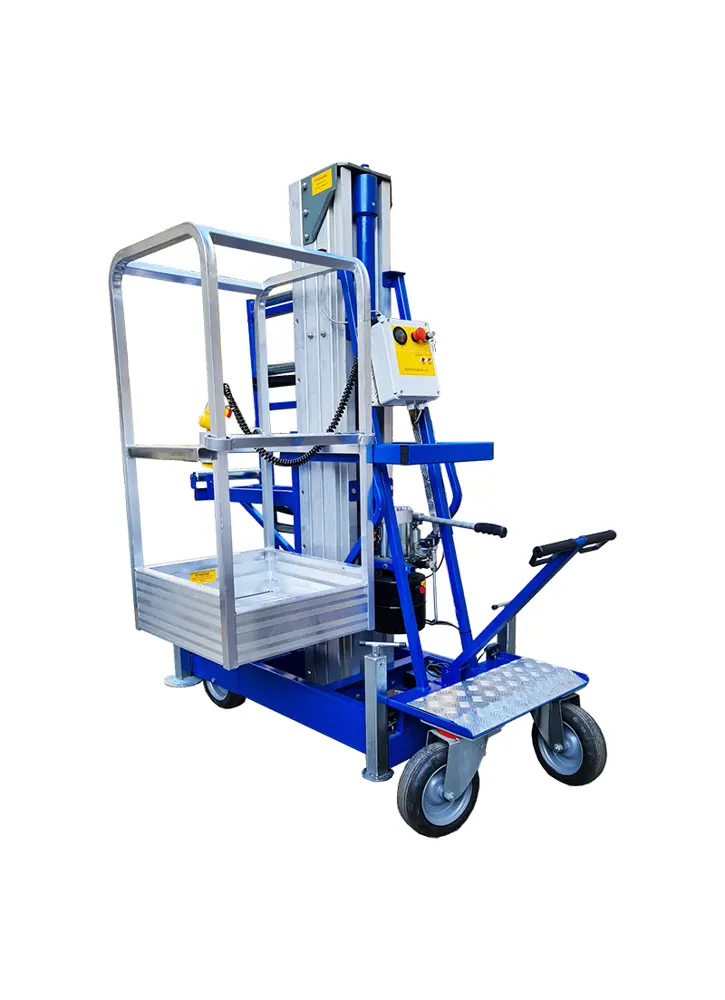

Push-around coffin lift with electrical lift for 1 or 2 operators

Single-beam coffin lift in aluminium with steel base and closable roller conveyor.

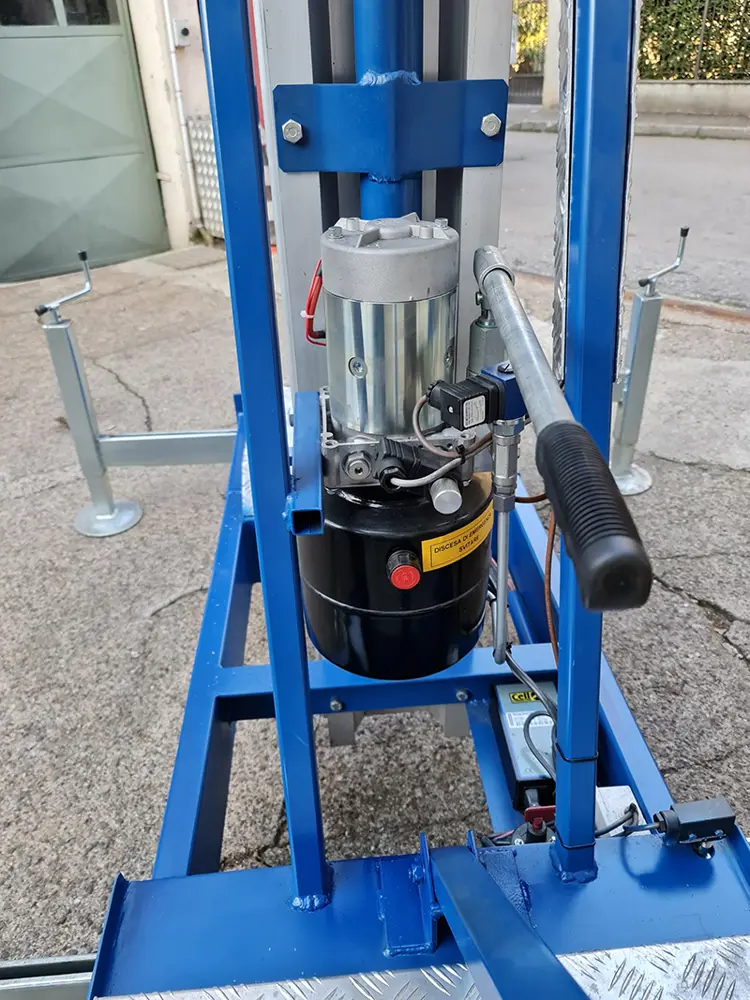

Electro-hydraulic lift with steel chains.

Coffin roller in steel equipped with rollers for sliding the coffin and fixing belts.

Screw stabilizer in steel.

Steel chassis and elevation columns in reinforced flexion-controlled aluminium.

Epoxy painted steel chassis and telescopic column in ribbed aluminium with controlled flexion
Front burial roller

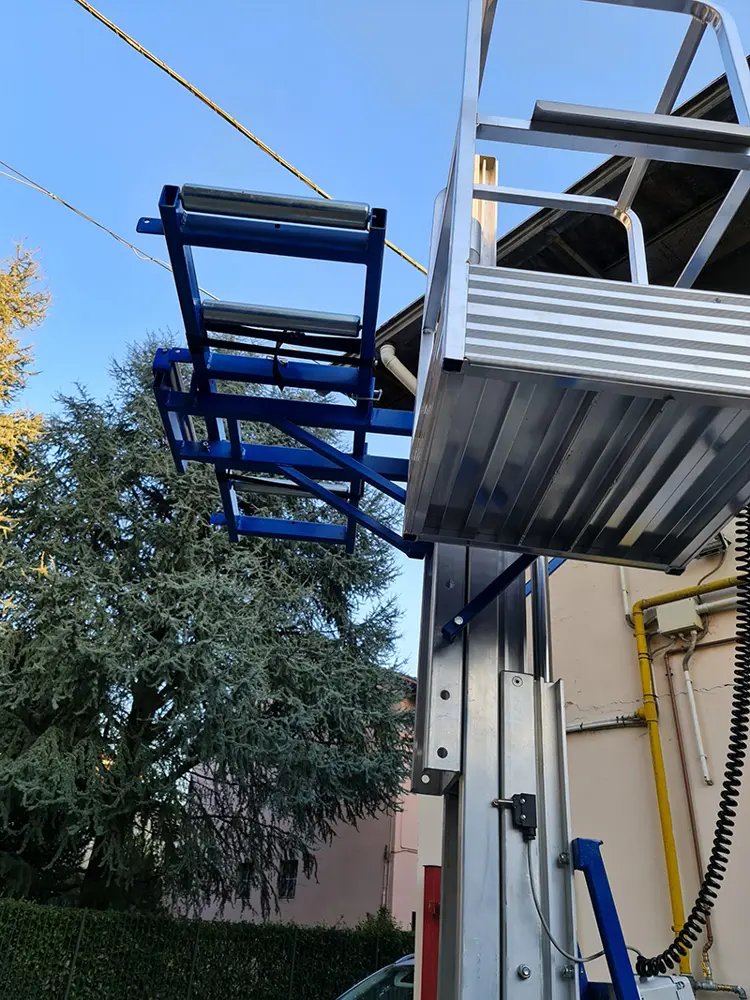

Adjustable roller conveyor for various height needs
Folding roller conveyor and removable basket for easy transport

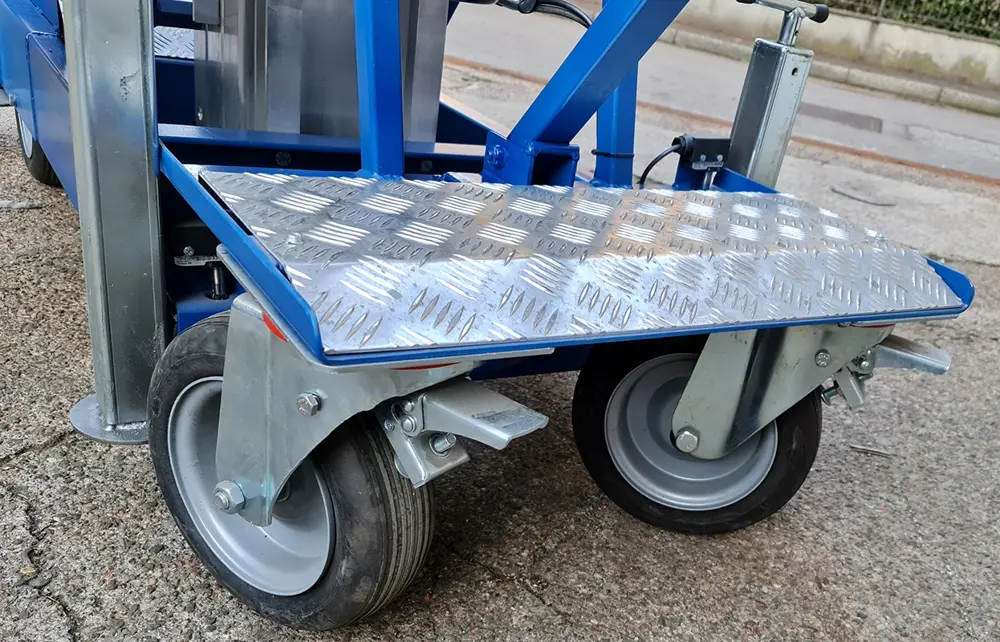

Easy to manoeuvre
Emergency lowering valve
1 battery with automatic charger
Battery switch
Platform joystick with up and down buttons and emergency lock
Control panel on the chassis with

1. Battery charge indicator

2. Start / stop selector

3. Emergency stop

4. Correct outrigger positioning indicator

5. Overload indicator

MAXIUMUM CAPACITY

On demand:

Coffin Lift with manual push on wheels and manual lifting
Coffin Lift self-propelled by motor wheel and electric lifting
Coffin Lift with differential axle (rough terrain) and electric lift

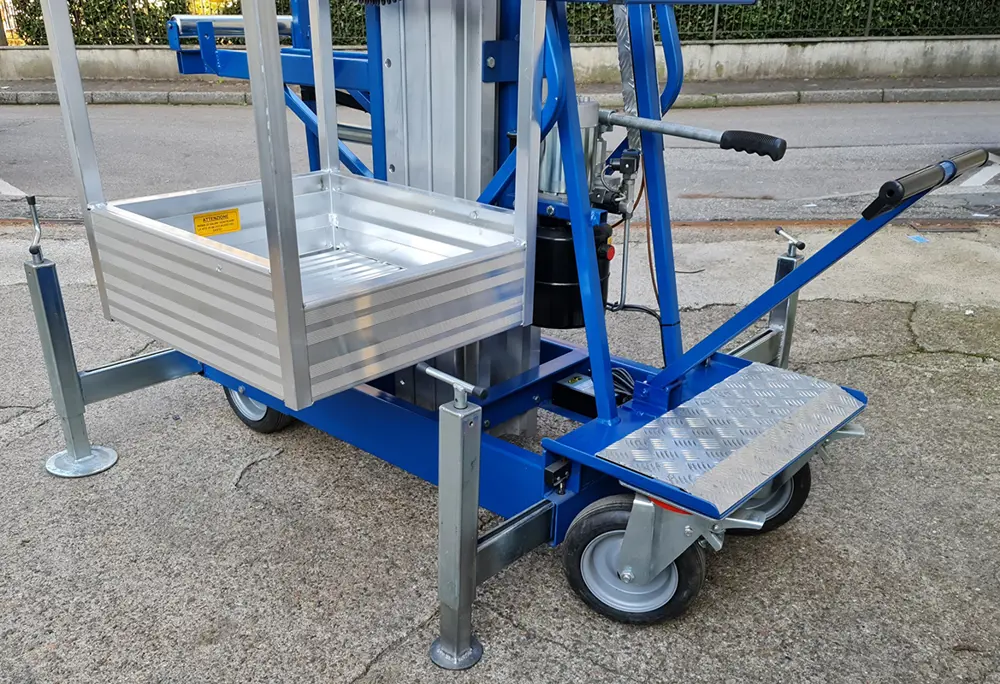

Additional basket for the second operator
Coffin Lift cylinder (to position the roller conveyor automatically)
Sheet metal plate (cover) to cover the roller to prevent the rollers from getting dirty when closing the burial recess and to use the machine as a loading surface for lifting materials necessary to close the burial recess.
All types are available in LATERAL VERSION for chapels with roller conveyor and lifting column rotated by 90 °.
Pair of ramps without edge to overcome steps
Lateral burial slide that allows the coffin to be buried by inserting it for the long part.
