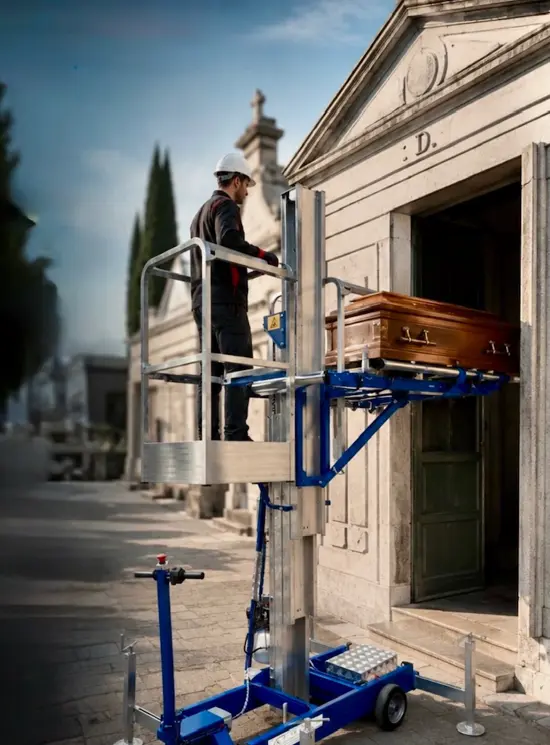

Crawler coffin lift

Max height m 5,00

It shows the validity of the guarantee in years

All our products conforms to the standads in force

CE mark

Suitable for heavy duty

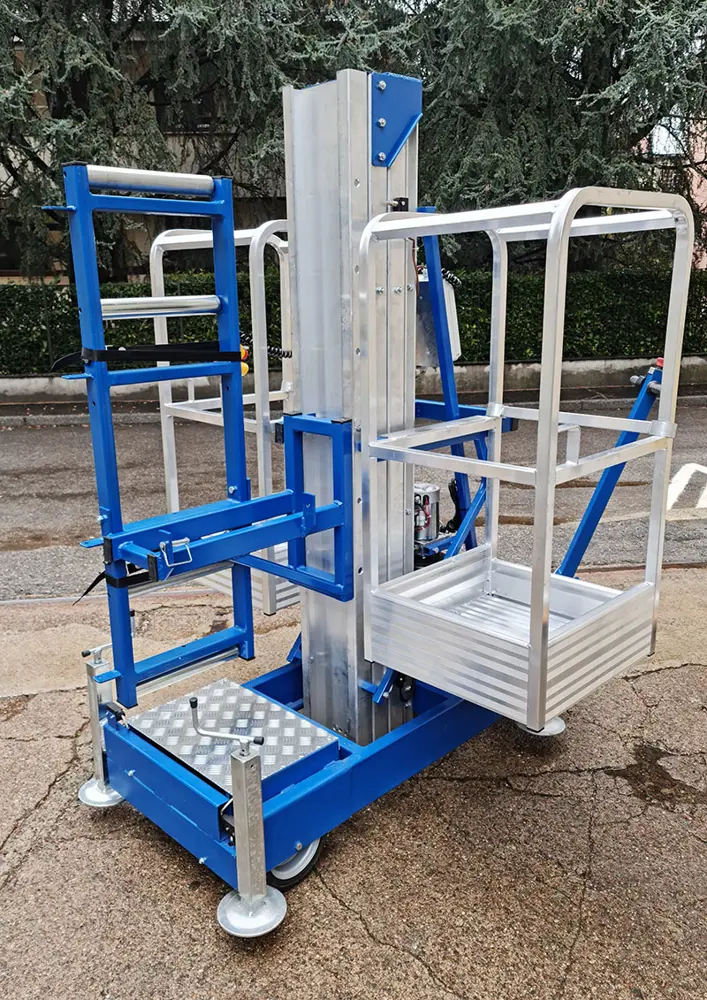

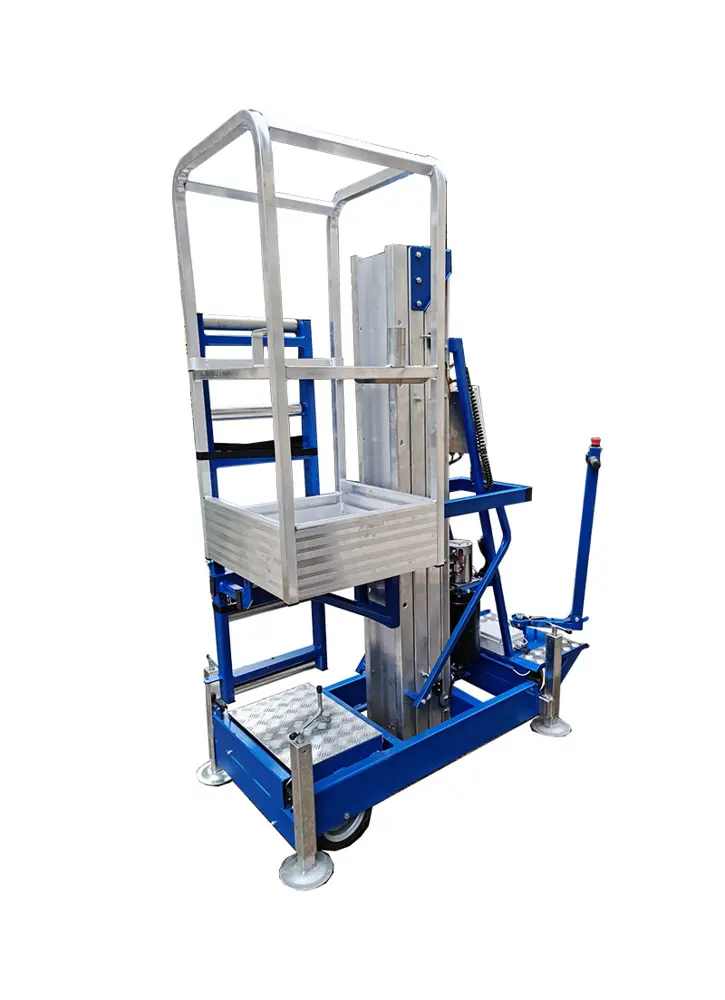

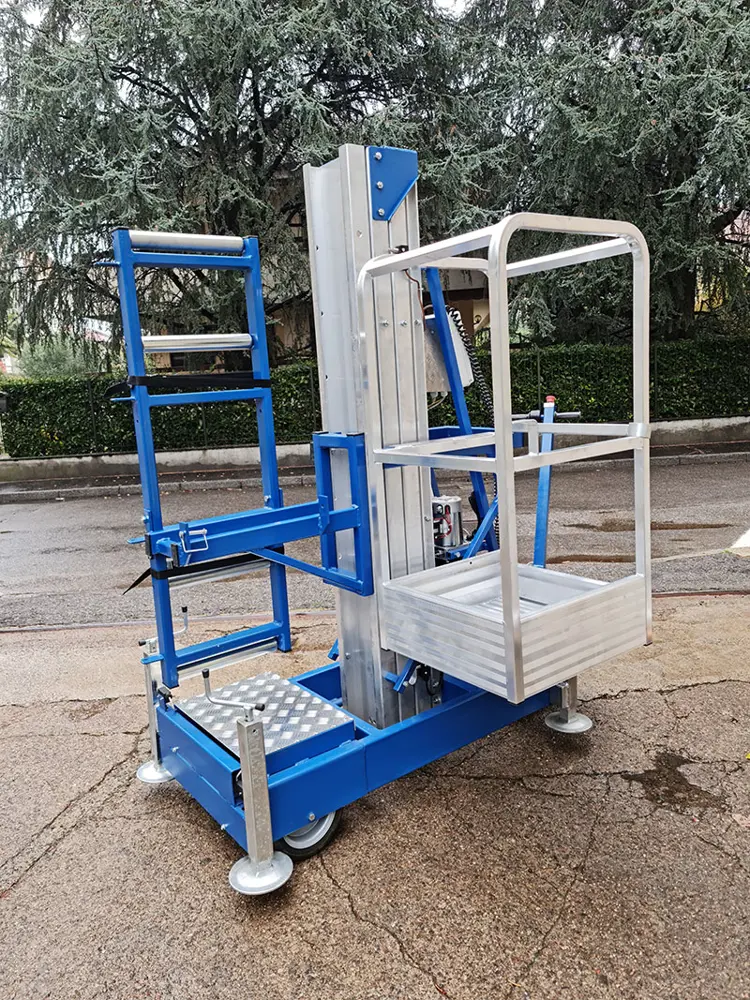

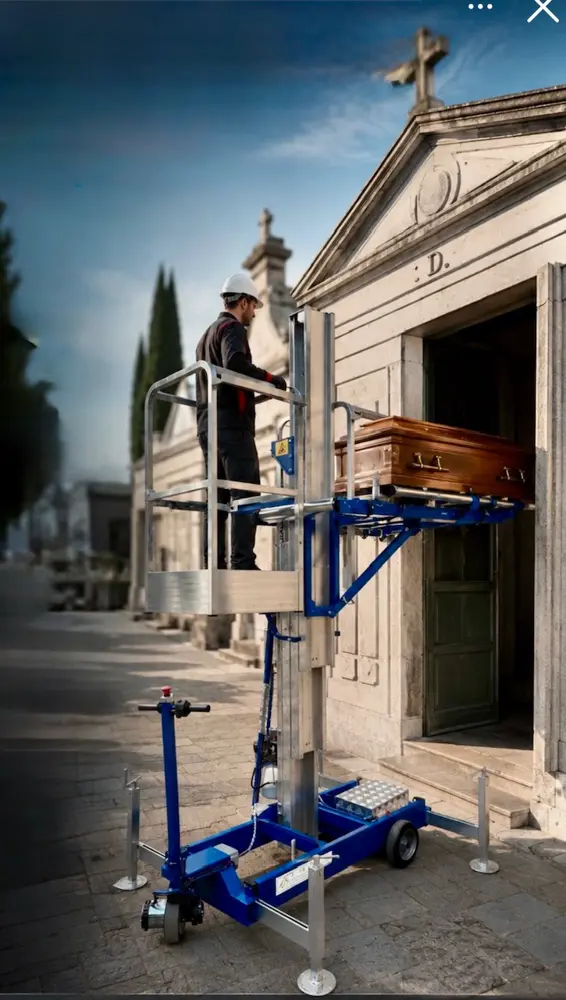

Self-propelled crawler coffin lift for 1 or 2 operators

Single-beam coffin lift in aluminium with steel base and closable roller conveyor.

Electro-hydraulic lift with steel chains.

Coffin roller in steel equipped with rollers for sliding the coffin and fixing belts.

Screw stabilizer in steel.

Steel chassis and elevation columns in reinforced flexion-controlled aluminium.

The tracks allow the translation on any surface (gravel, mud, earth) and the overcoming of steps (through the use of special ramps that protect the steps).

Epoxy painted steel chassis and telescopic column in ribbed aluminium with controlled flexion
Front burial roller
Adjustable roller conveyor for various height needs

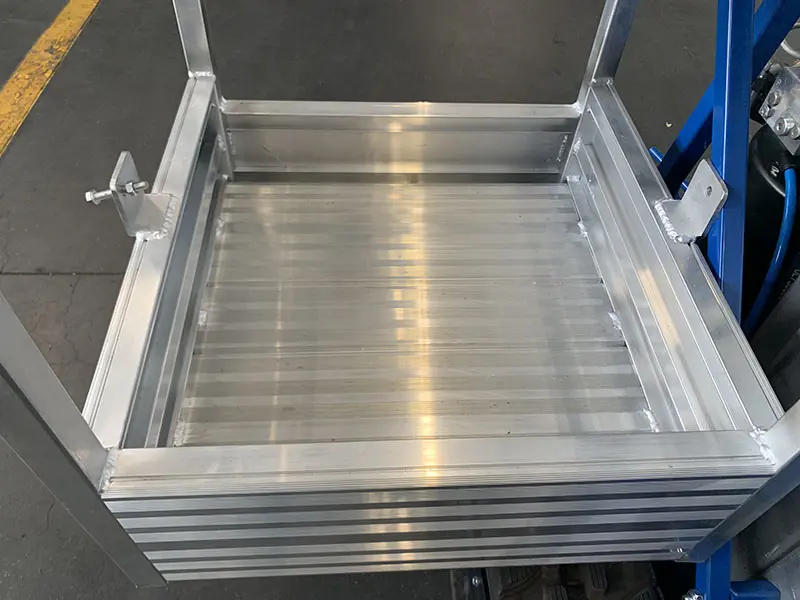

Folding roller conveyor and removable basket for easy transport
Easy to manoeuvre thanks to the tracks with lever controls (curve radius = 0 °)
Emergency lowering valve
2 batteries with automatic charger
Translation with petrol engine. Key switch
Battery switch

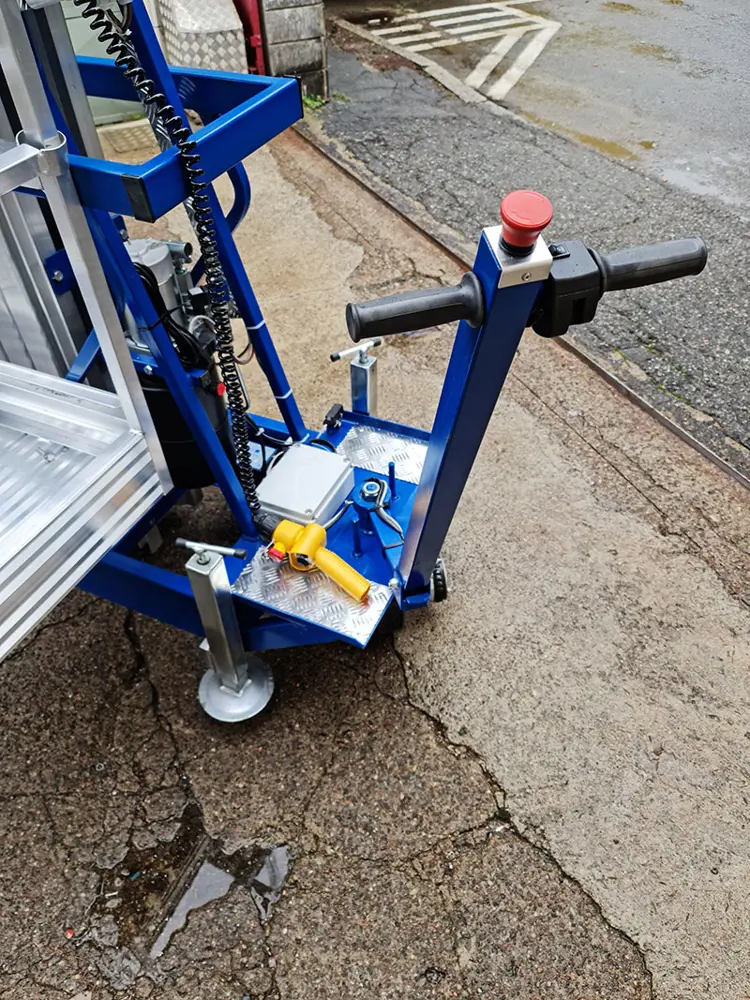

Platform joystick with up and down buttons and emergency lock

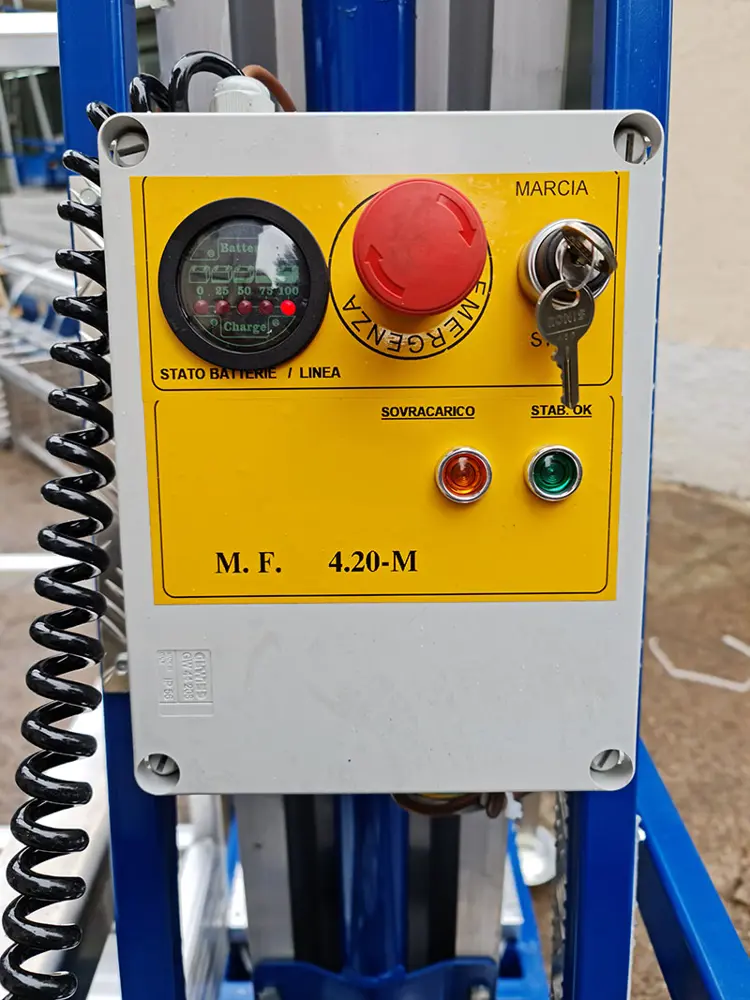

Control panel on the chassis with

1. Battery charge indicator

2. Start / stop selector

3. Emergency stop

4. Correct outrigger positioning indicator

5. Overload indicator

Compact and handy

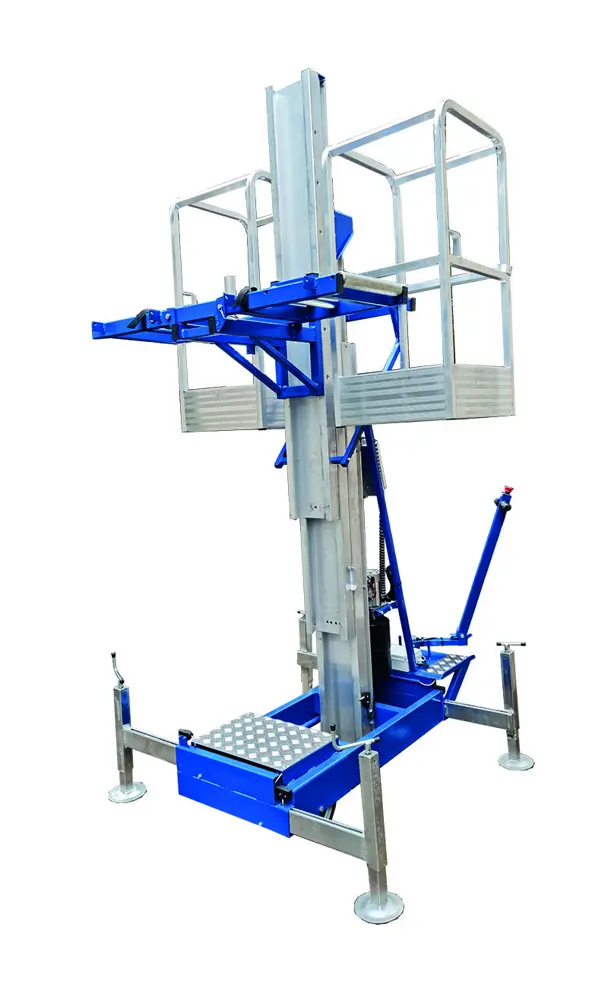

Equipped with plate outriggers
Safety locking device and emergency lowering
Platform safety belt attachment point
Labels and user and maintenance manual
Test certificate according to Italian and European standards (CE)

MAXIUMUM CAPACITY

Single operator basket kg 120
Double operator basket (2 operators) kg 80 each
Coffin roller conveyor Kg 200

Self-propelled crawler coffin
Working height	m 5,00
Platform height	m 3,00
Maximum burial height	m 4,20
Platform dimensions	cm 54x56
Weight	kg 520
Stowed width	mm 800
Stowed height	mm 1.950
Length	mm 1.300
Max gradeability	30%

On demand:

Coffin Lift with manual push on wheels and manual lifting
Coffin Lift with manual push on wheels and electric lift
Coffin Lift self-propelled by motor wheel and electric lifting
Coffin Lift with differential axle (rough terrain) and electric lift
Additional basket for the second operator
Coffin Lift cylinder (to position the roller conveyor automatically)
Sheet metal plate (cover) to cover the roller to prevent the rollers from getting dirty when closing the burial recess and to use the machine as a loading surface for lifting materials necessary to close the burial recess.
All types are available in LATERAL VERSION for chapels with roller conveyor and lifting column rotated by 90 °.
Pair of ramps without edge to overcome steps
