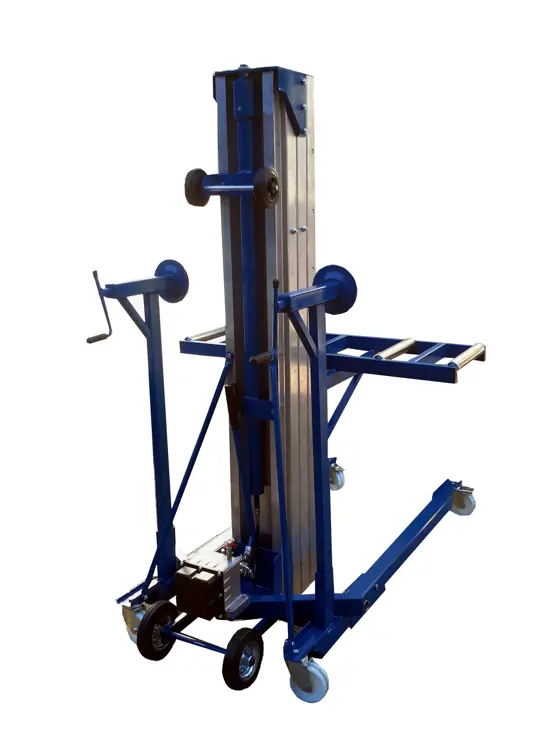

Hercules coffin lifters

Max height 4.50 m

It shows the validity of the guarantee in years

All our products conforms to the standads in force

CE mark

Suitable for heavy duty

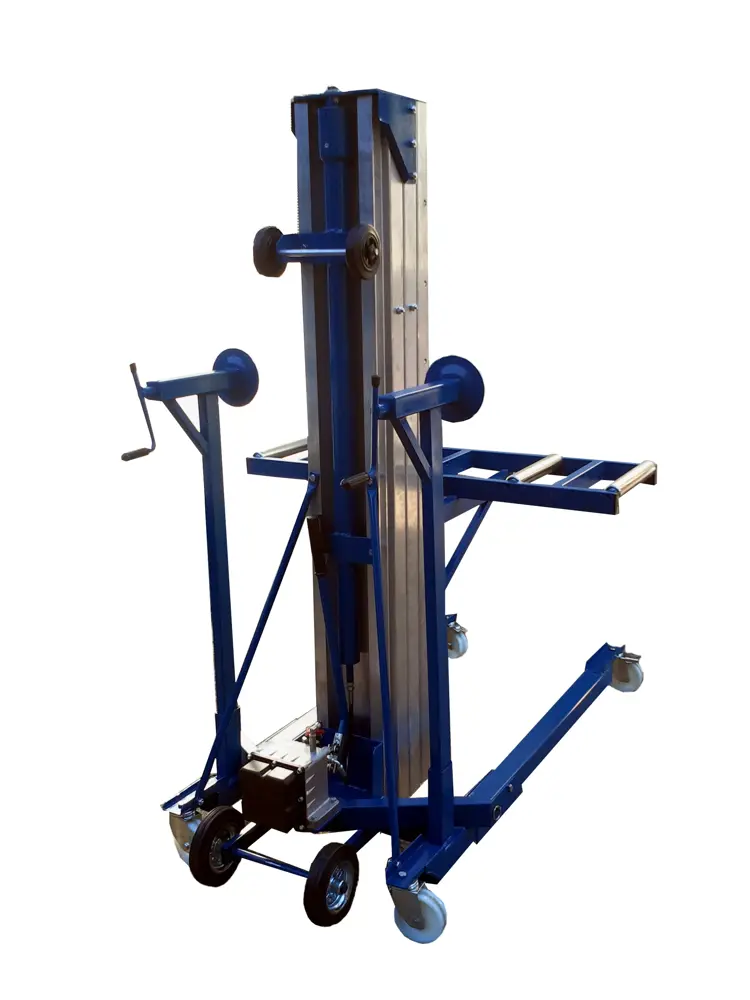

Transportable dynamic oil coffin elevator.

Single-beam aluminum coffin lifts with foldable base, manual oil-dynamic raising, by hand pump and steel chains. Steel coffin holder surface equipped with rollers for sliding the coffin and fastening straps. Equipped with a roller conveyor for coffins. Removable steel screw stabilizers and safety straps. Steel base frame and reinforced aluminum elevation columns. The machine can be equipped with 2 3-wheel systems (optional), installed at the rear, to facilitate transport and climbing stairs. Convenient, quick to use and above all easily transportable.

Epoxy painted steel frame and aluminum column
Load capacity 250 kg

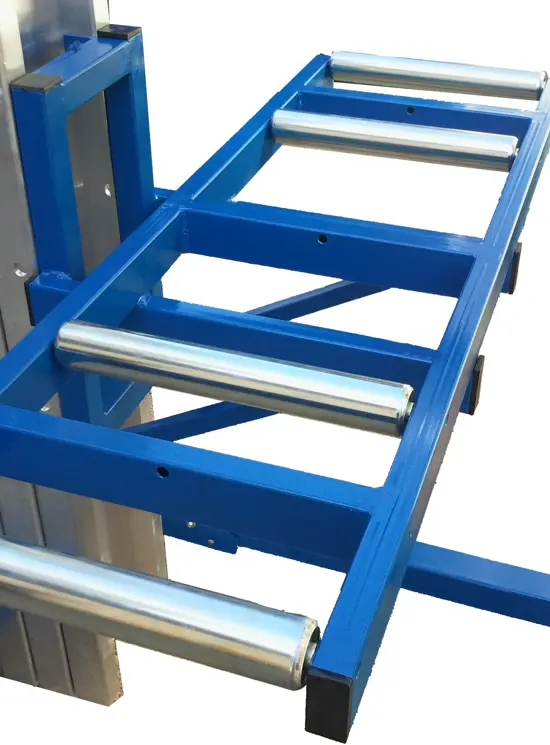

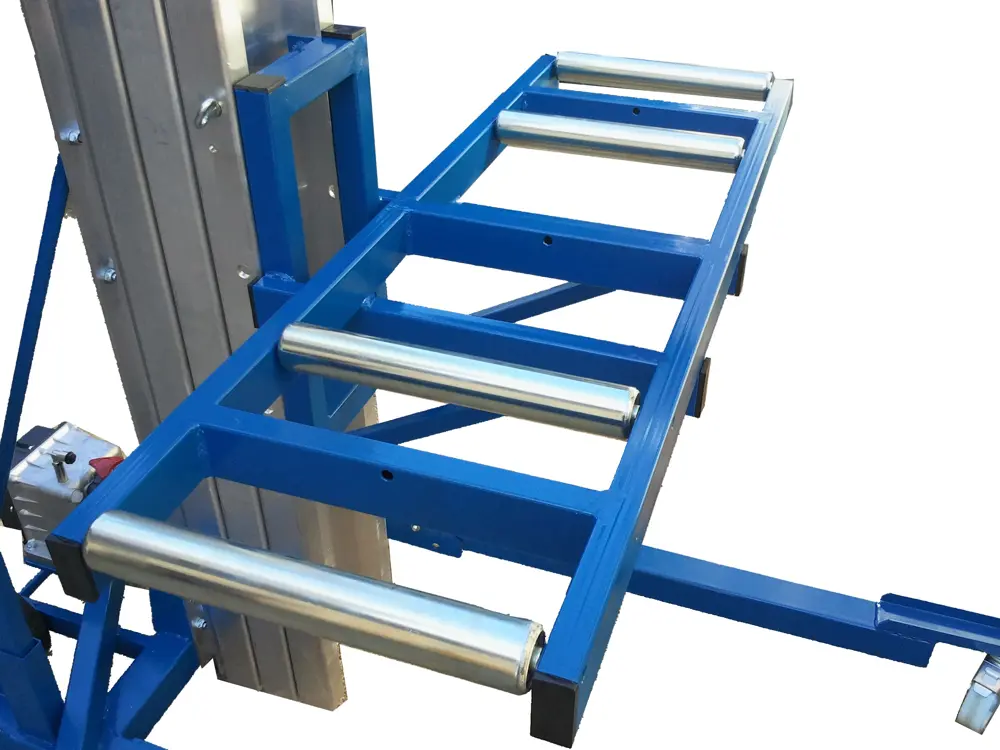

Reinforced forks to support the coffin along the entire length
Compact, lightweight and handy
Telescopic column in ribbed aluminum with controlled bending

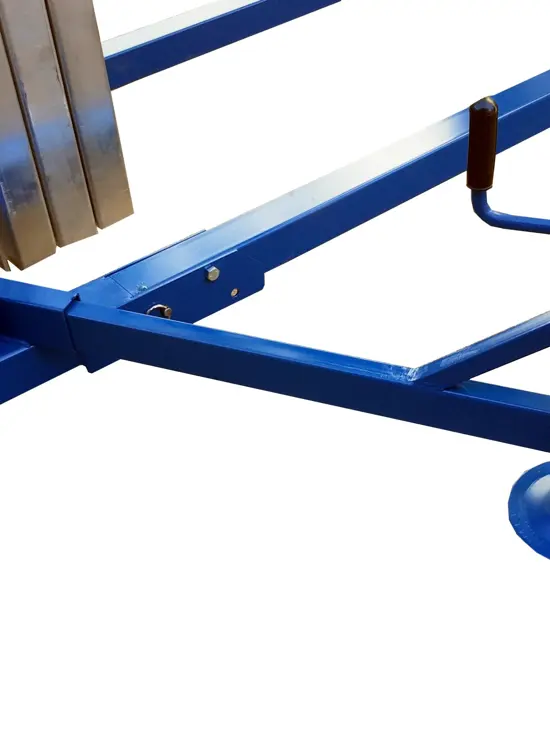

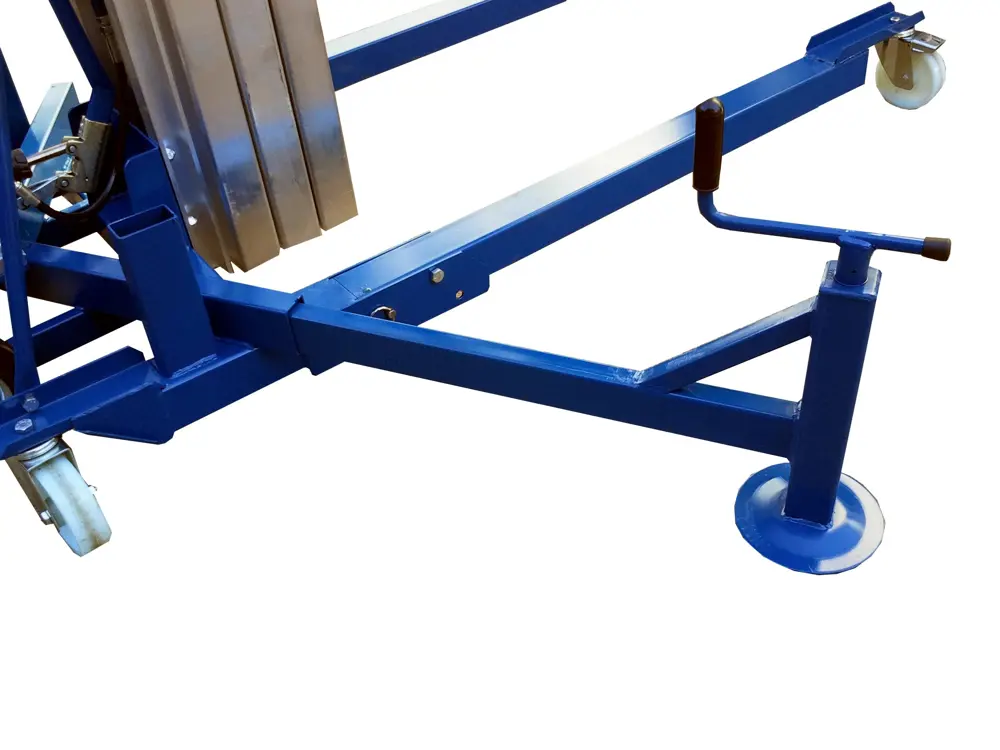

Equipped with plate stabilizers

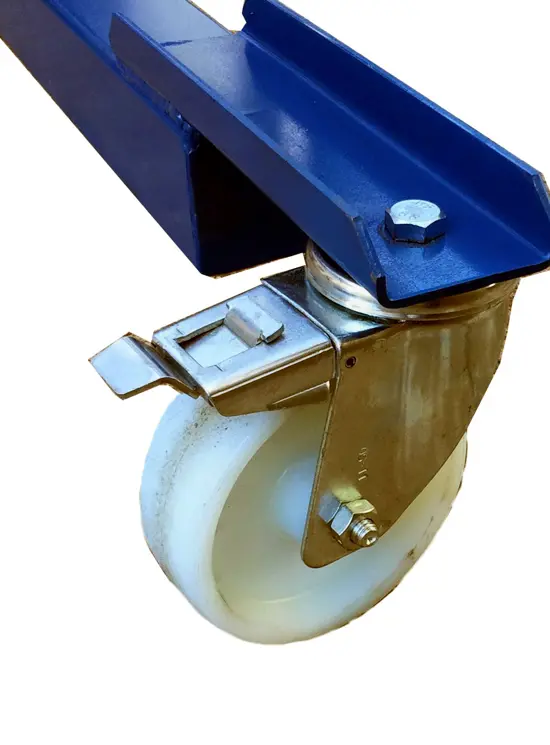

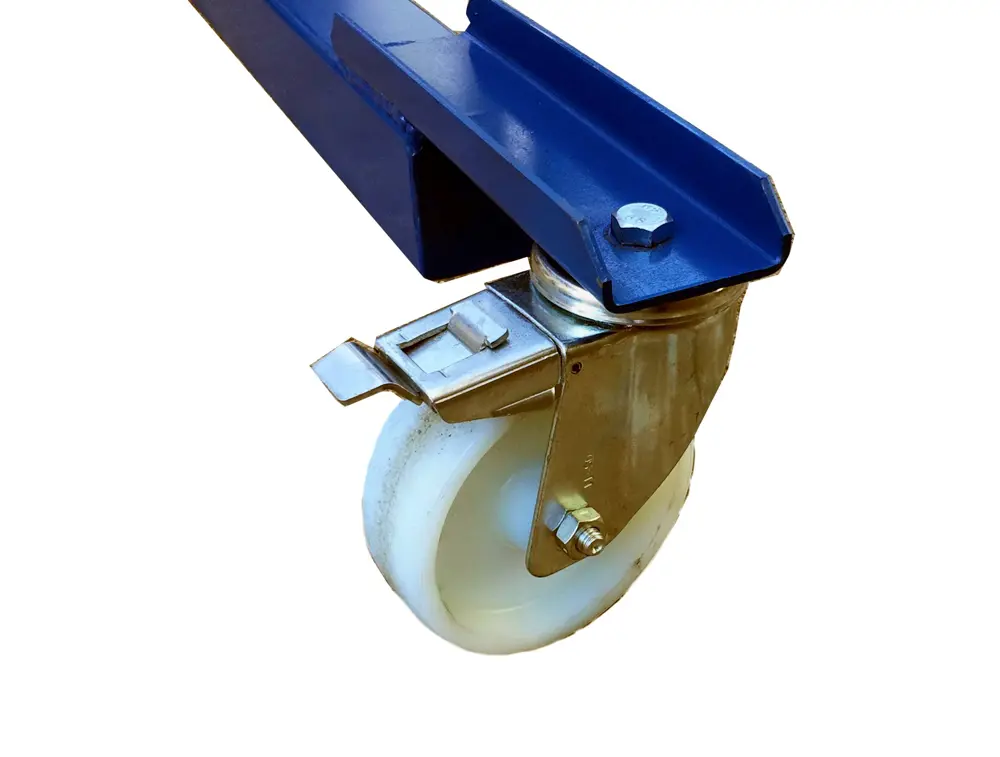

Easy to manoeuvre thanks to special pivoting wheels with brakes
Foldable legs and forks for easy transport
Easy to load on most common means of transport

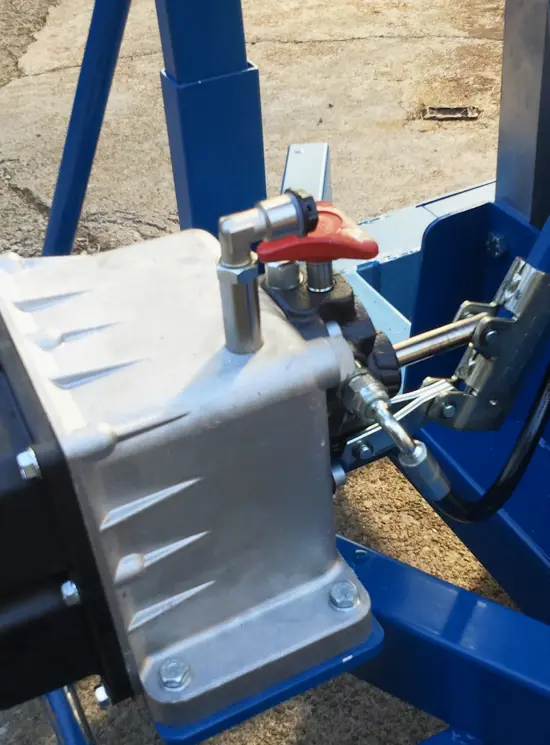

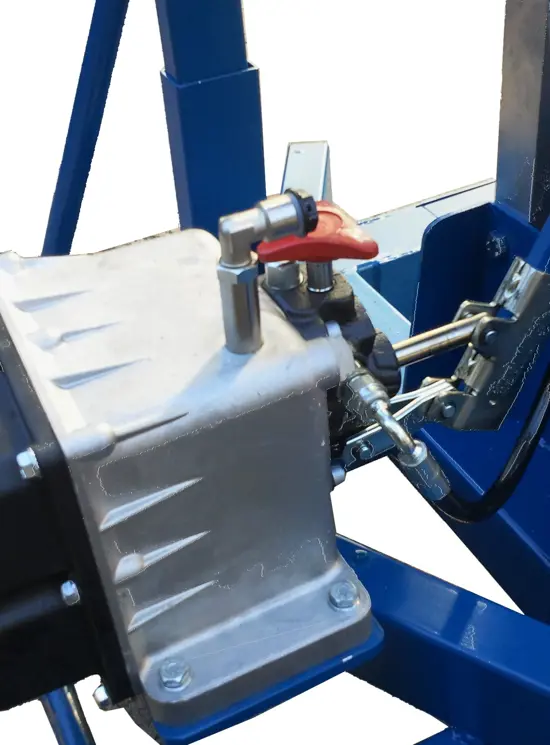

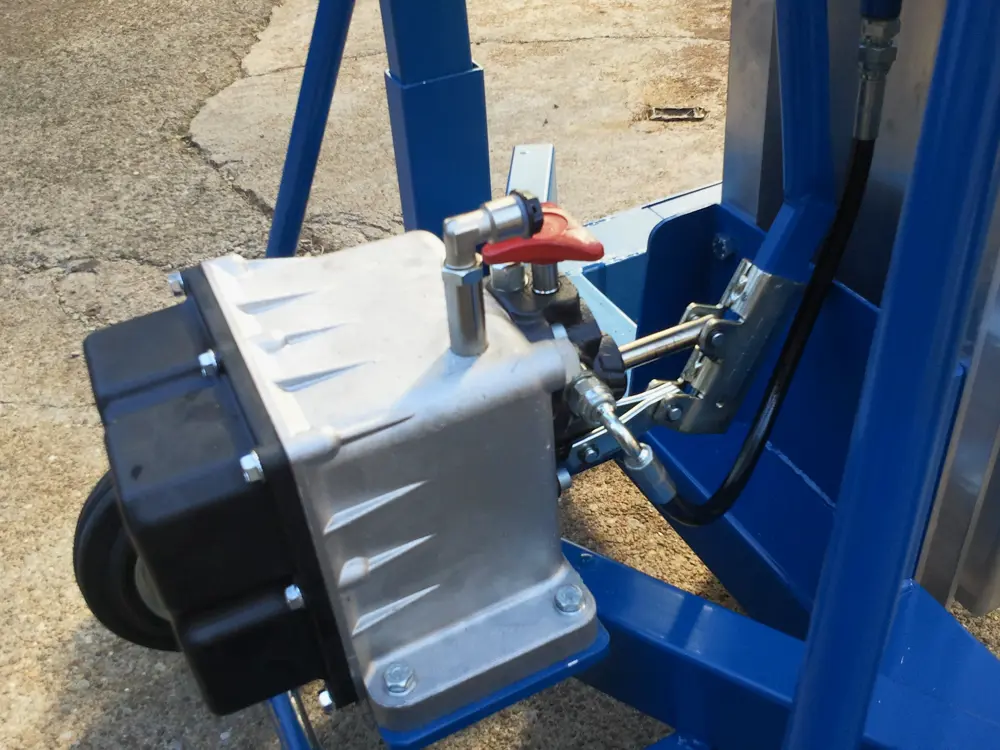

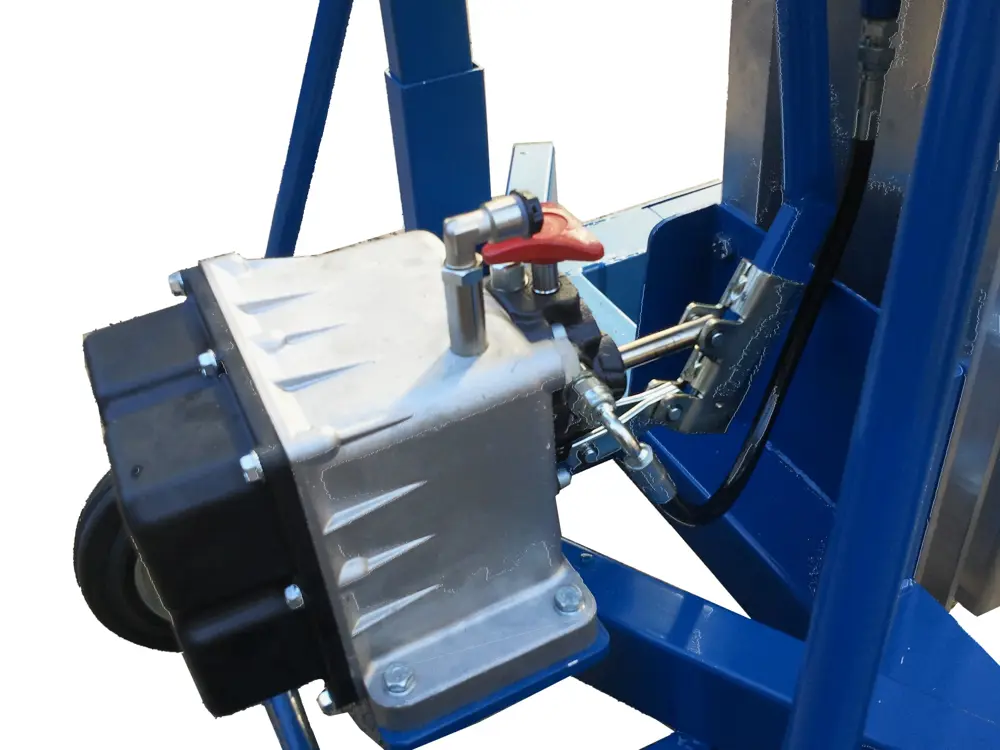

Oil-dynamic manual mechanical operation with pump and chain
Safety Locking Device
Plate levelers mounted on side stabilizers
Labels and use and maintenance manual
Test certificate according to Italian and European regulations (CE)

Hercules 450	XSOLHM450
Maximum roller conveyor height	m 4.50
Reach	kg 250
Machine weight	kg 155
Roller conveyor weight	30 kg
Height closed	mm 1.880
Width with standard stabilizers	mm 1.880
Width	mm 770
Length	mm 1.520

Manual oil-dynamic lifting
Chain lifting system

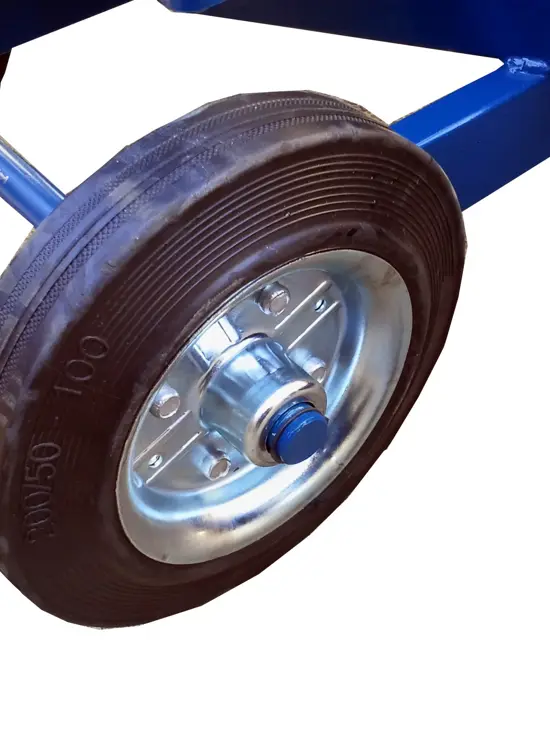

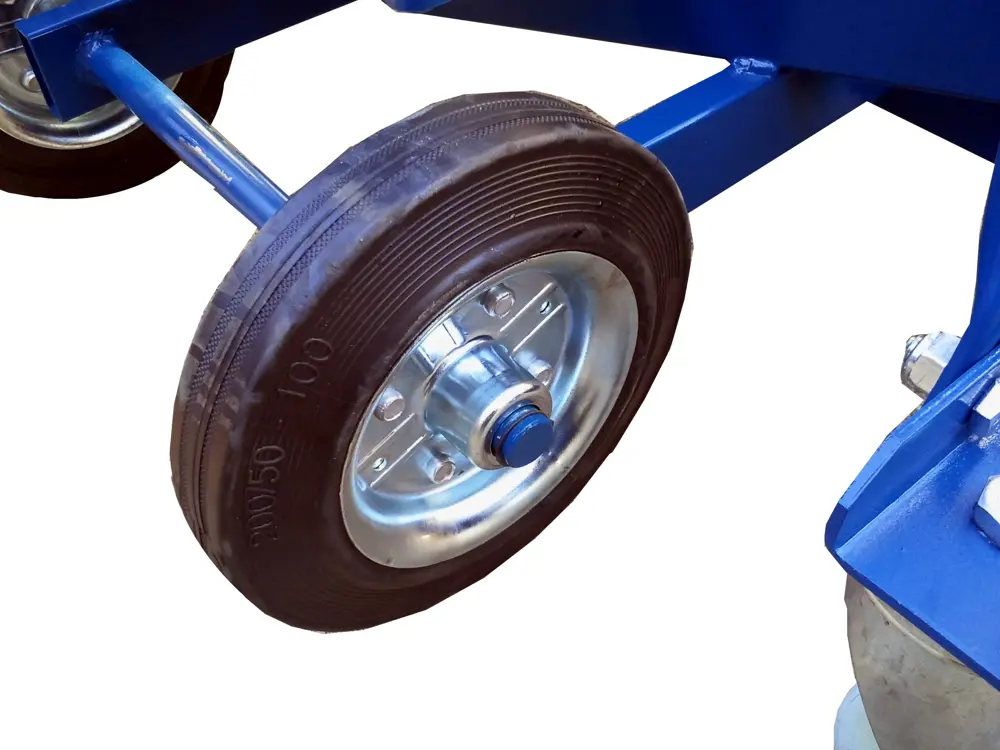

Tipping wheel diameter mm 200 + 125
Rear wheel diameter 125 mm
Front wheel diameter 125 mm braking

Hercules 350	XSOLHM350
Maximum roller conveyor height	m 3.50
Reach	kg 250
Machine weight	kg 110
Roller conveyor weight	30 kg
Height closed	mm 1.880
Width with stab.optional stabilizers	mm 1.880
Width	mm 770
Length	mm 1.520

Manual oil-dynamic lifting
Chain lifting system
Tipping wheel diameter mm 200 + 125
Rear wheel diameter 125 mm
Front wheel diameter 125 mm braking

To view our series of stairs for cemeteries: http://www.svelt.it/it/catalogo/scala-per-cimiteri-540/scheda-tecnica

N.B. AS A CUSTOMER SERVICE OUR. COMPANY OFFERS MANDATORY ANNUAL INSPECTION SERVICE

SEE ALSO THE MODELS WITH ELECTRIC ELEVATION AND WITH BOTH SELF-PROPELLED AND PUSH MOVEMENT:

Self-propelled tracked coffin lifter with electric elevation

Self-propelled coffin lifter with electric wheel drive

Coffin lifts with push movement with electric elevation

DELIVERY TIME APPROX. 90/100 WORKING DAYS
