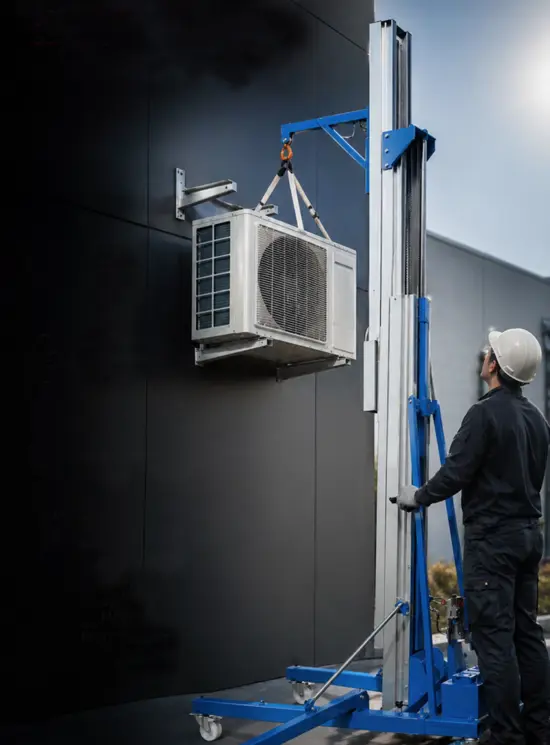

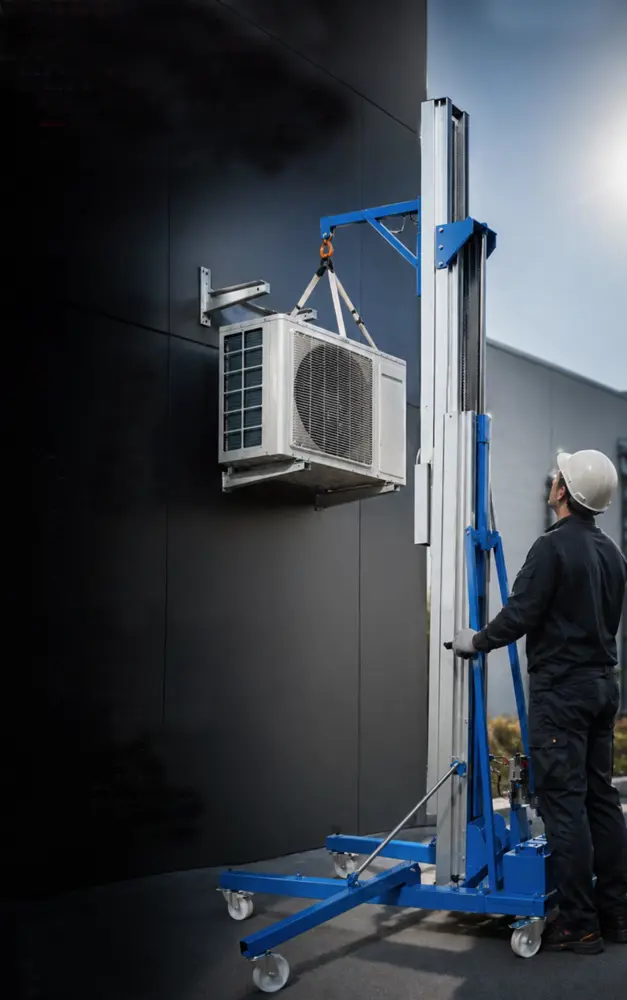

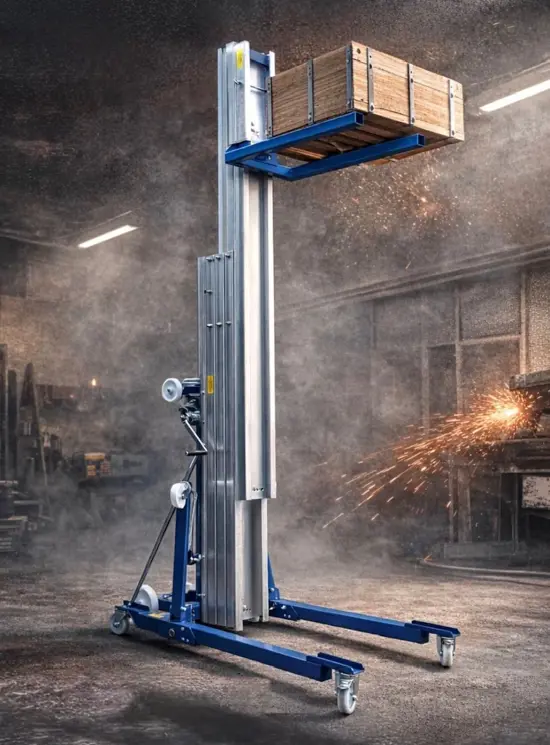

Transportable material lifts Hercules

Max height m 7.2

It shows the validity of the guarantee in years

All our products conforms to the standads in force

CE mark

Suitable for heavy duty

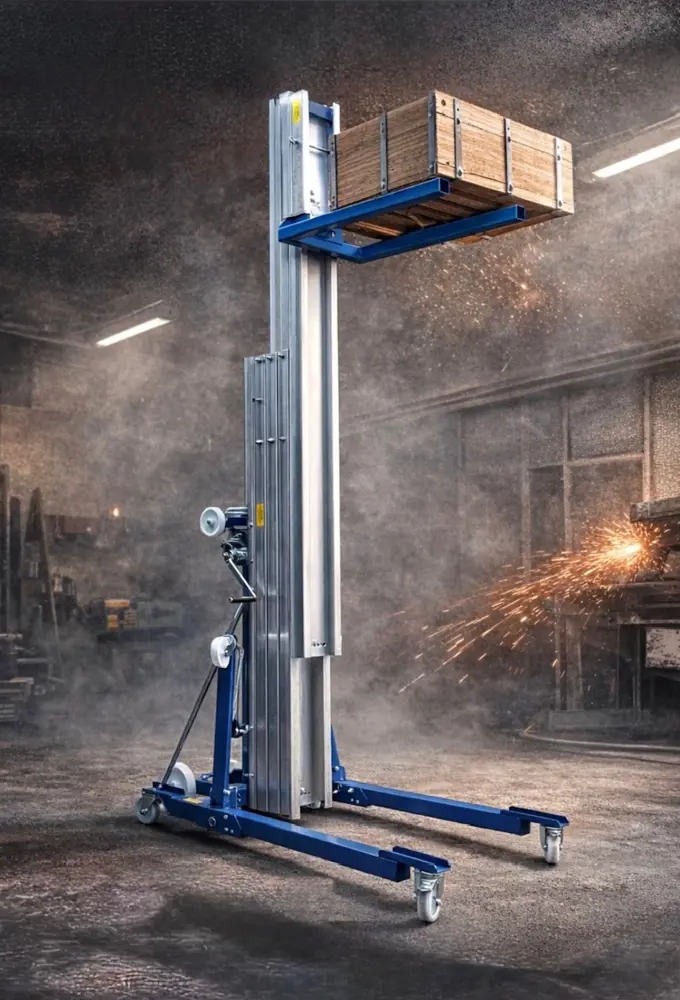

Transportable material lifts

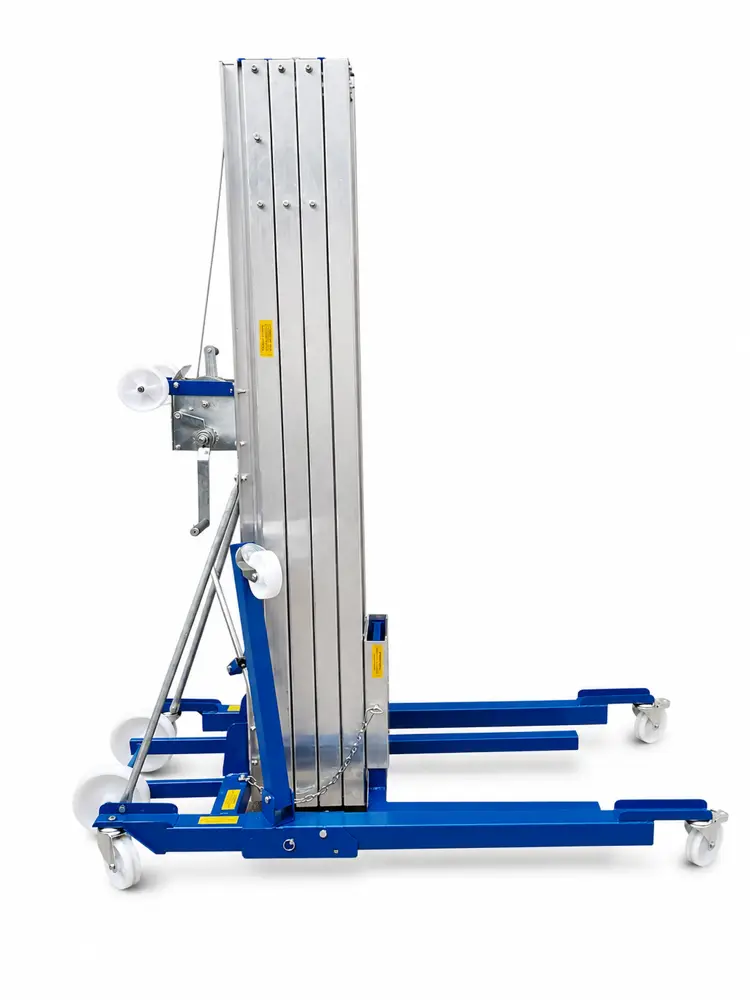

Material lift has strong aluminium masts expressly studied to resist stress both vertical and lateral with a controlled flexibility. Locking system of the mast makes transport operations easier.

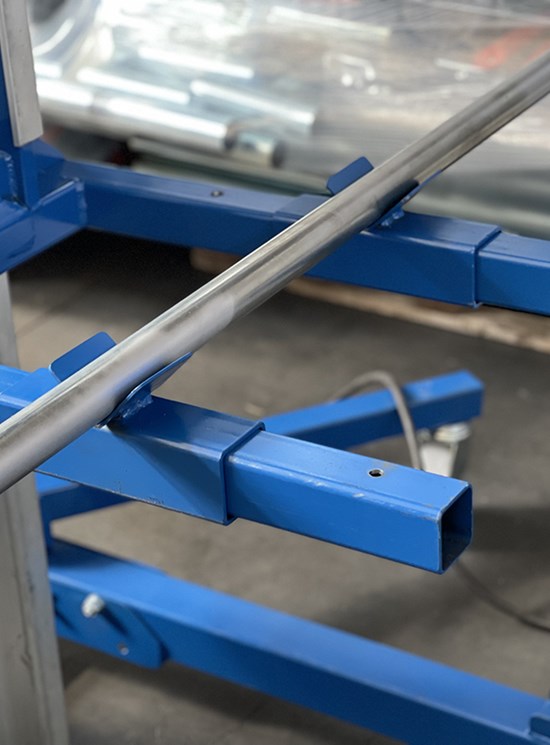

Forks can be used in the standard position or can alternatively be turned over to reach maximum height.

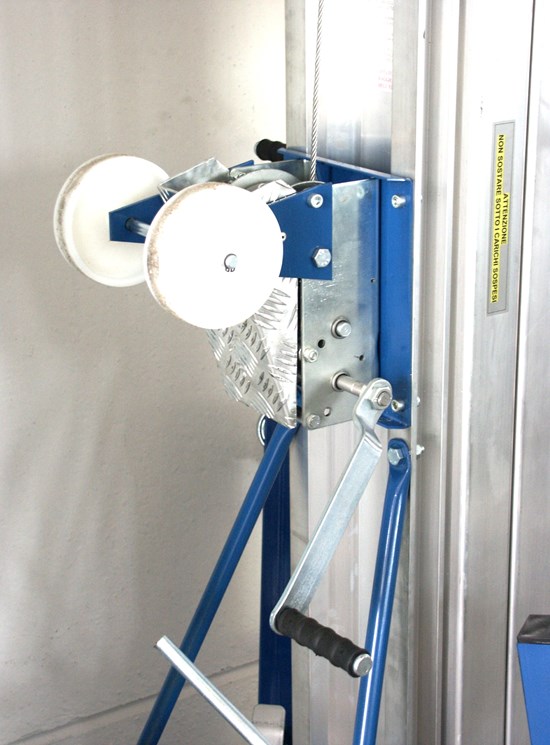

Lifting system is totally mechanic and it functions thanks to a handle and a winch. A blocking safe¬ty device keeps the load in its correct position and it activates when there are some problems or defects in the functioning of the lifting system.
It conforms to European Standard and has CE Certification.

TECHNICAL FEATURES

Hercules                                      Model 720     Model 545    Model 385
Load height (forks up) m                7,20              5,45               3,85
Load height (forks down) m           6,63            4,90                3,30
Stowed height m                              2,14              2,14                 2,14
Capacity kg                                        300               340               380
Weight kg                                            200              165                125

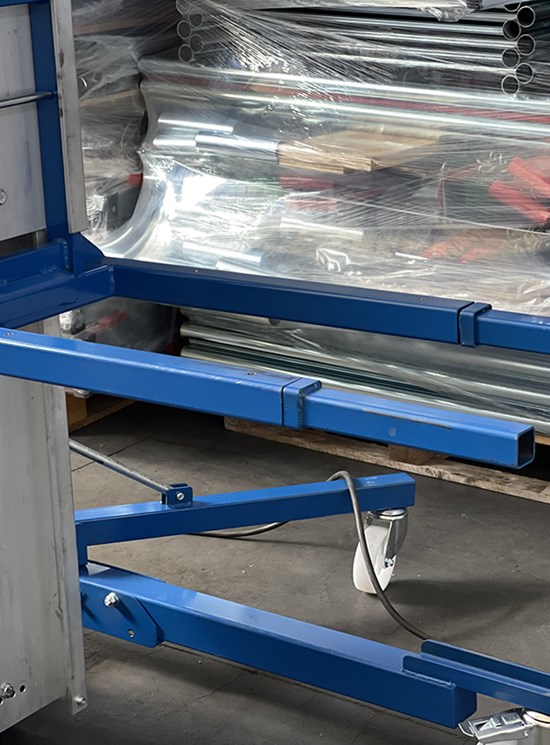

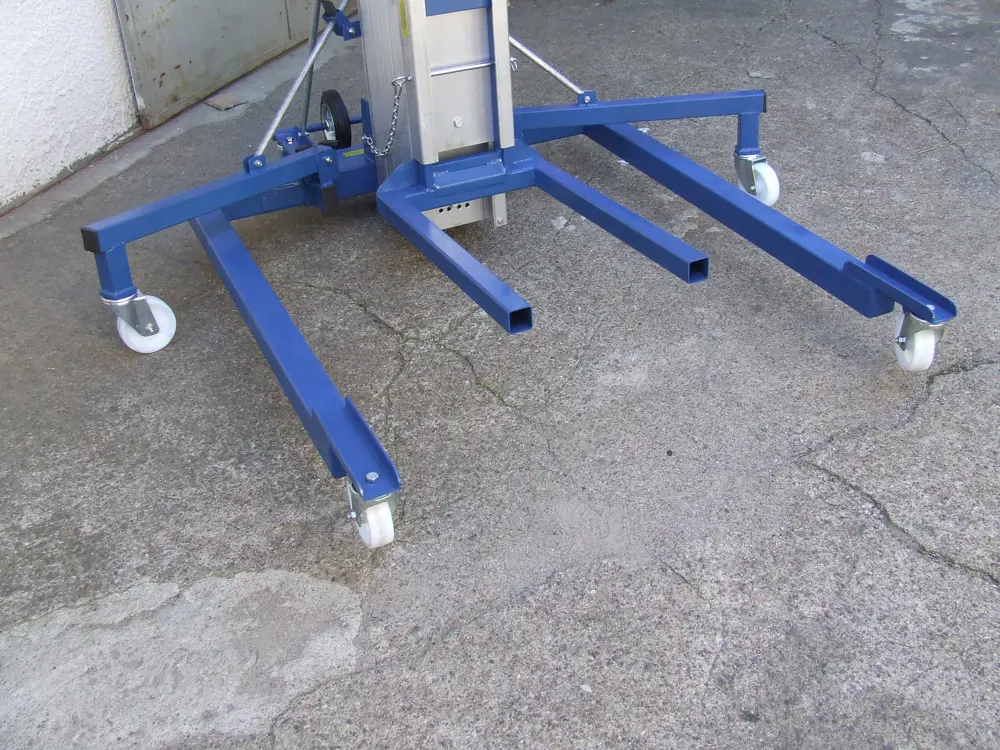

Width with stabilisers m                      Standard stab 1,88
Width mm                                           0,77              0,77                0,77
Length m                                             1,82               1,82              1,82
Lifting                                                                  Manual
Tilting back wheels diameter mm 200+125 200+125 200+125
Rear wheels diameter mm              125               125                 125

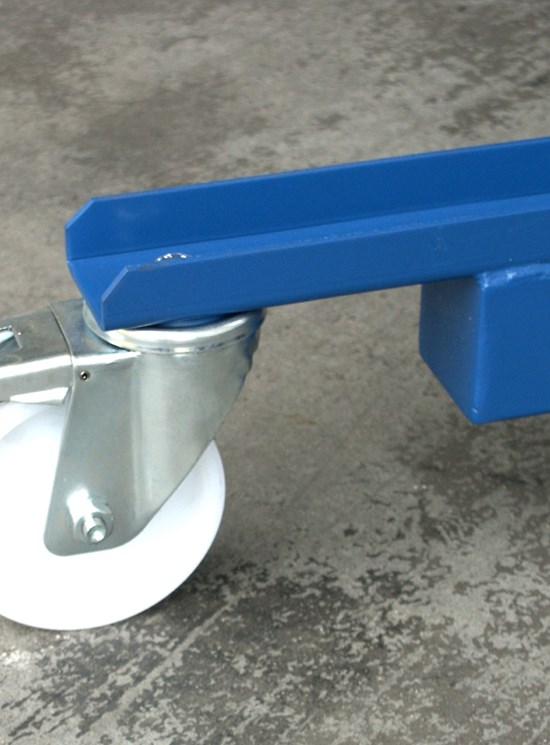

Front wheels diameter mm                         125 – braking
