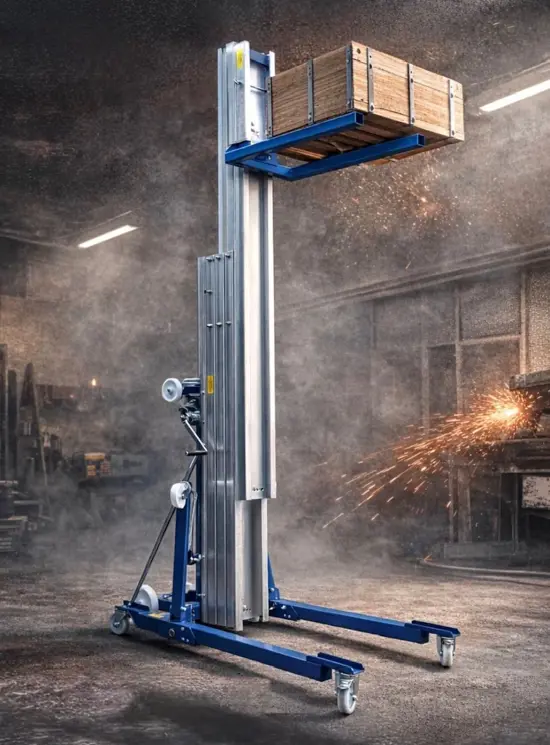

Transportable compact material lifts Hercules

Transportable compact material lifts Hercules

Maximum height m 6.25

It shows the validity of the guarantee in years

All our products conforms to the standads in force

CE mark

Suitable for heavy duty

Transportable compact material lifts

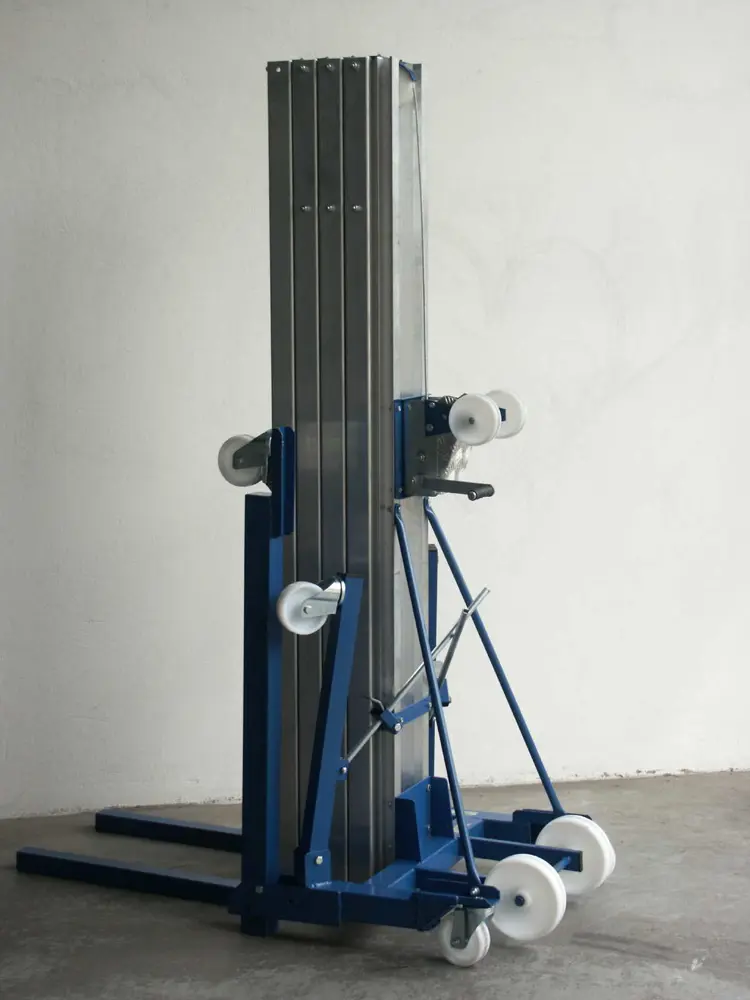

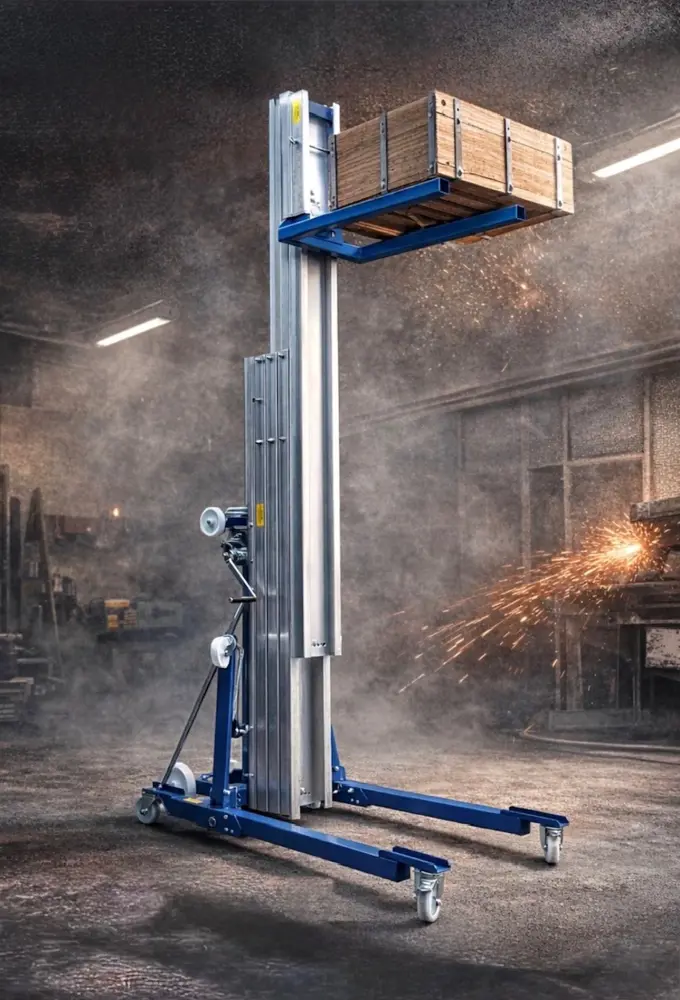

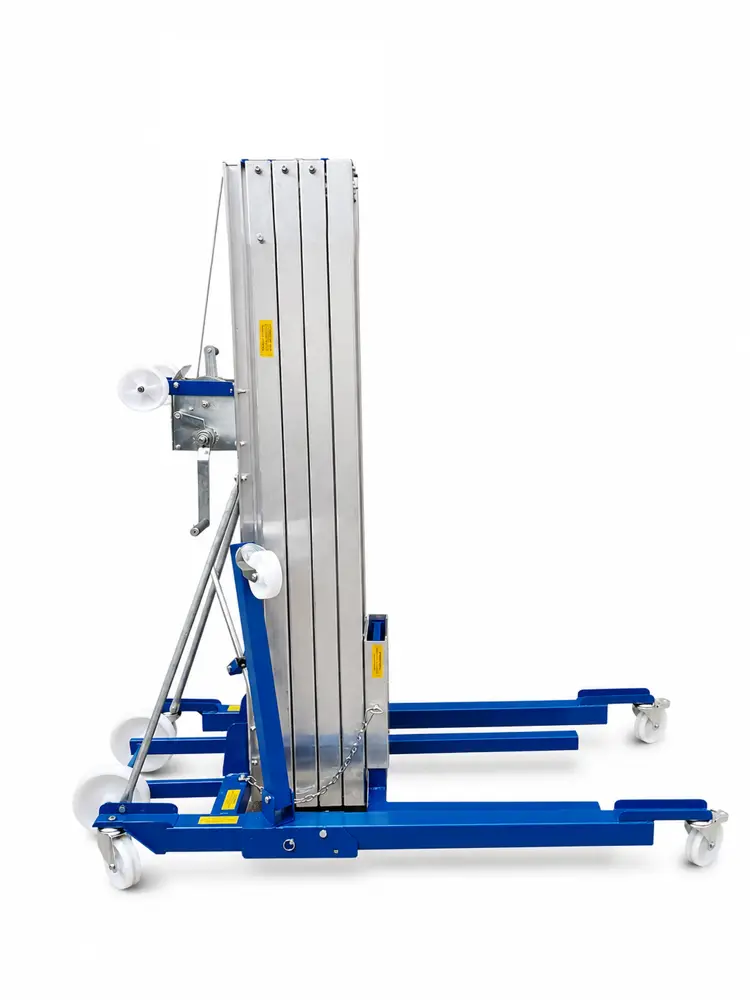

Material lift has strong aluminium masts expressly studied to resist stress both vertical and lateral with a controlled flexibility. Locking system of the mast makes transport operations easier.

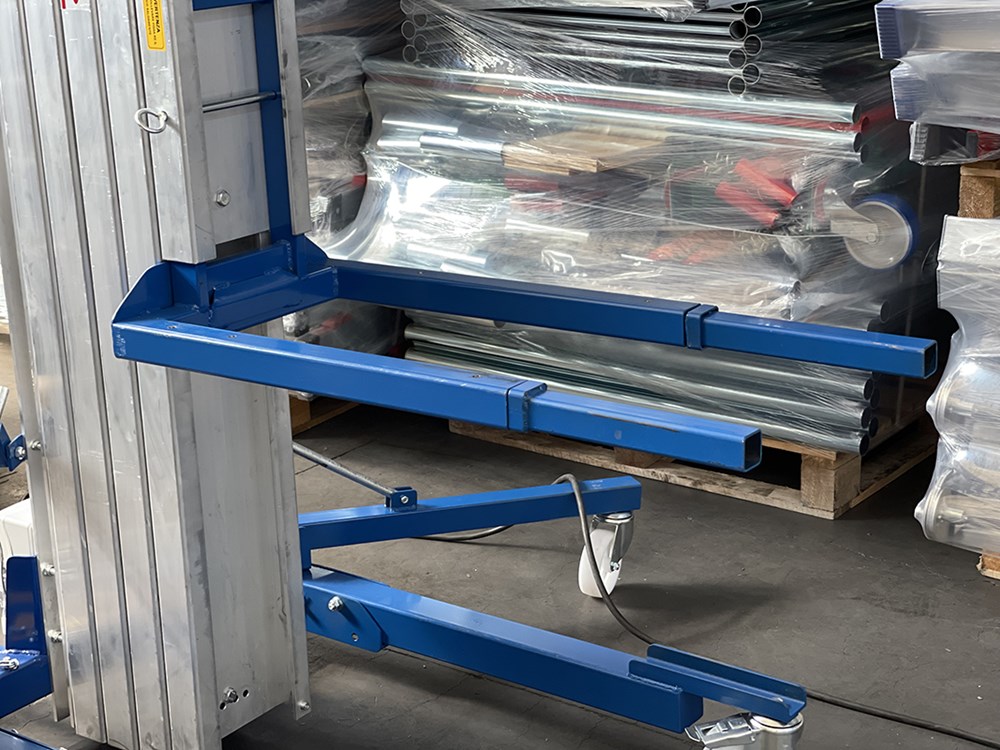

Forks can be used in the standard position or can alternatively be turned over to reach maximum height.

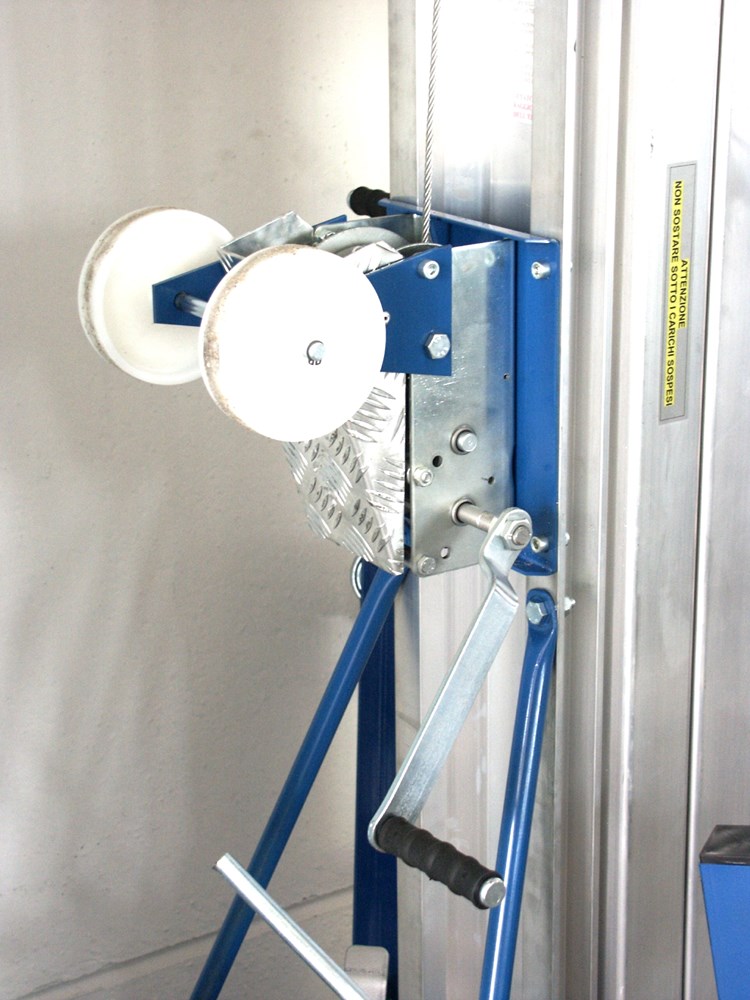

Lifting system is totally mechanic and it functions thanks to a handle and a winch. A blocking safe¬ty device keeps the load in its correct position and it activates when there are some problems or defects in the functioning of the lifting system.
It conforms to European Standard and has CE Certification.

TECHNICAL FEATURES

Hercules                                          Model 625     Model 485      Model 345
Load height (forks up) m                    6,25                4,85                3,45
Load height (forks down) m             5,70                4,27                 2,87
Stowed height m                                  1,88              1,88                  1,88
Capacity kg                                           280                 280                   280
Weight kg                                              175                145                    100
Width with stabilisers m                             Standard stab 1,88
Width mm                                              0,77               0,77                   0,77
Length m                                               1,52      1,52         1,52
Lifting                                                                         Manual
Tilting back wheels diameter mm    200+125     200+125         200+125
Rear wheels diameter mm                 125               125                     125

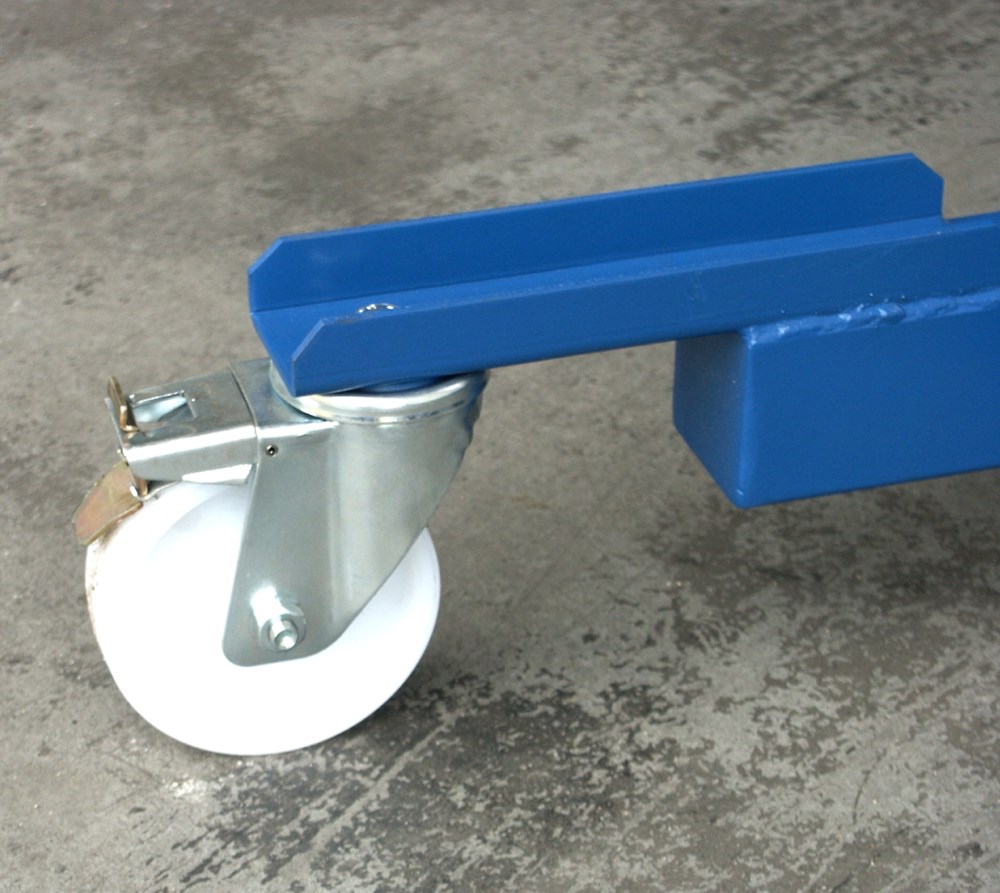

Front wheels diameter mm                               125 – braking
