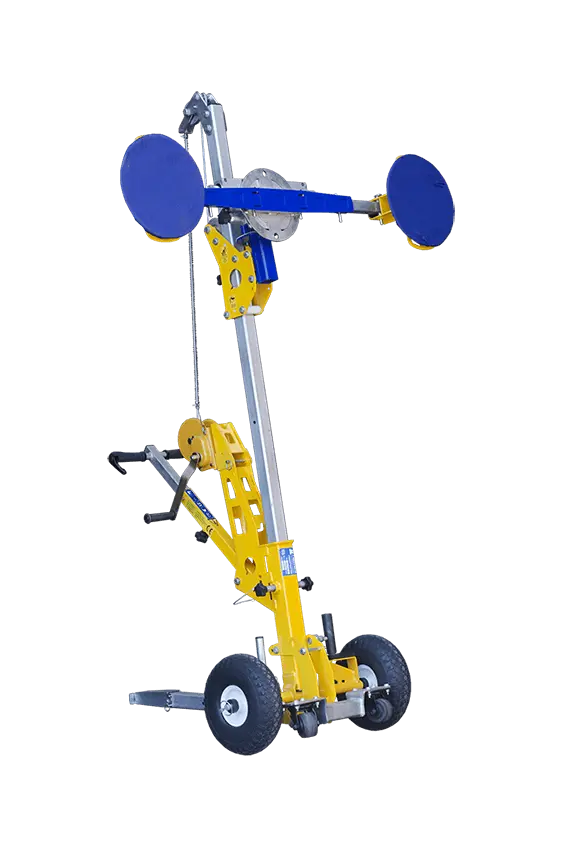

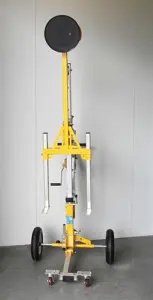

Glass lifter Express 200 S

Capacity Kg 200

It shows the validity of the guarantee in years

All our products conforms to the standads in force

CE mark

Suitable for heavy duty

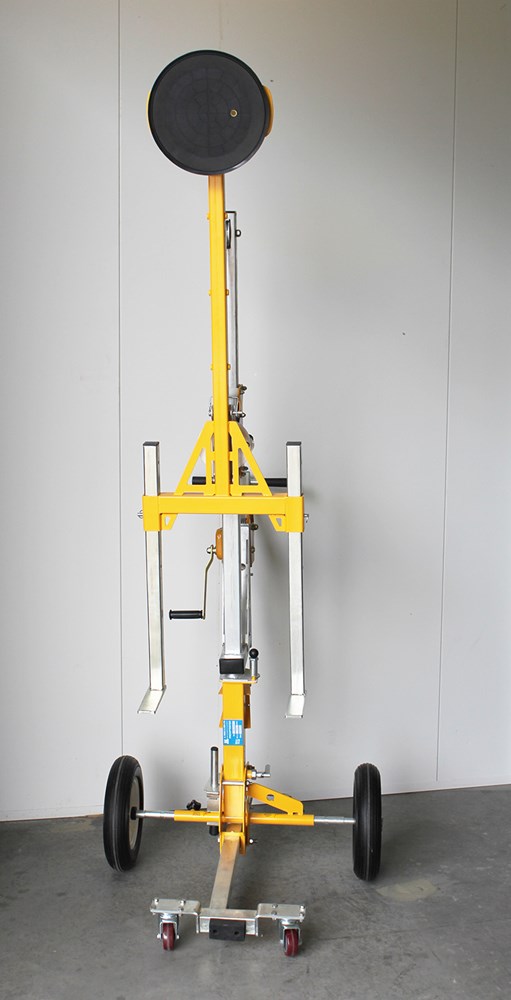

Compact, easy-to-transport transportable glass lifter, pneumatic wheels, 360° sheet rotation

Glass sheet lifter and conveyor with mechanical operation with manual elevation.

Express is compact and can be assembled in a few minutes and is easy to transport.

Handling glazing can be dangerous, especially on rough terrain.

Large heavy windows have always been transported by hand with great risks.

Express was created precisely to solve this need.

An innovative, lightweight, small and portable elevator that can carry 80 kg (one person) or 200 kg (2 people) windows.

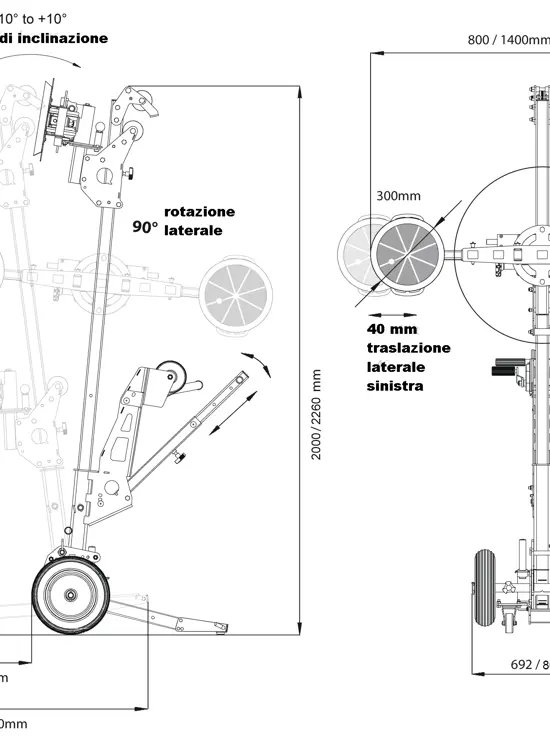

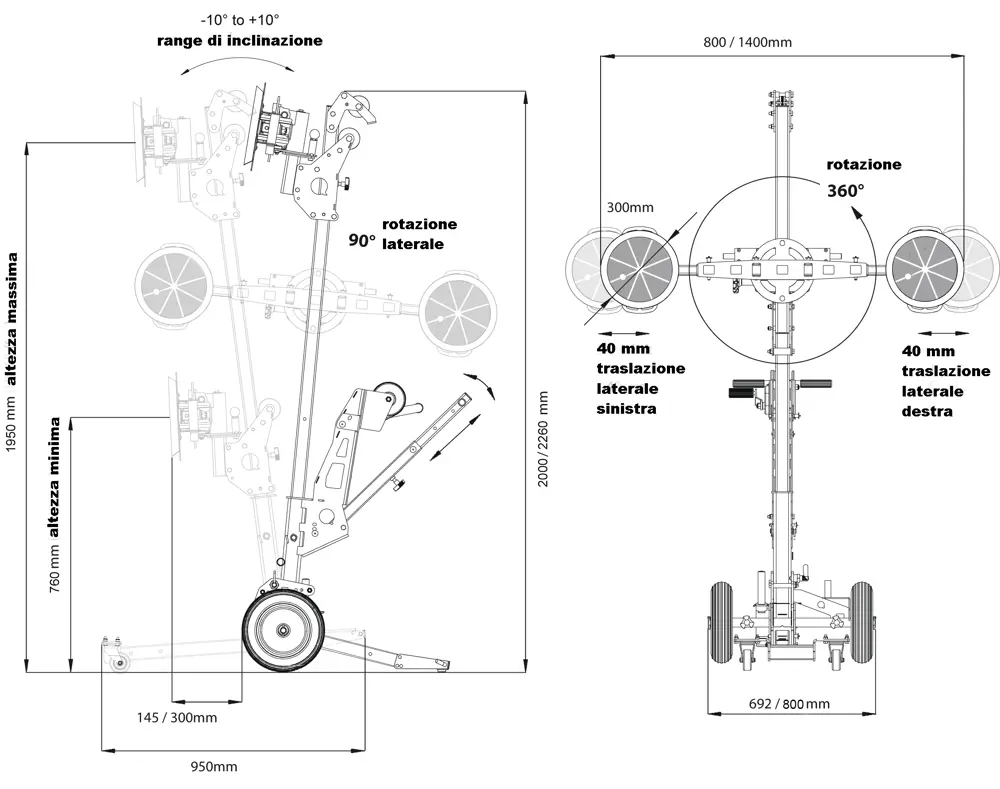

Maximum height of suction cups in vertical position (upper suction cup center) mm 2750
Maximum height of suction cups in horizontal position (cup centre) mm 1950
Minimum height of suction cups in horizontal position (cup centre) mm 760
Diameter of suction cups 300 mm (H-frame suction cups 250 mm)

STANDARD EQUIPMENT

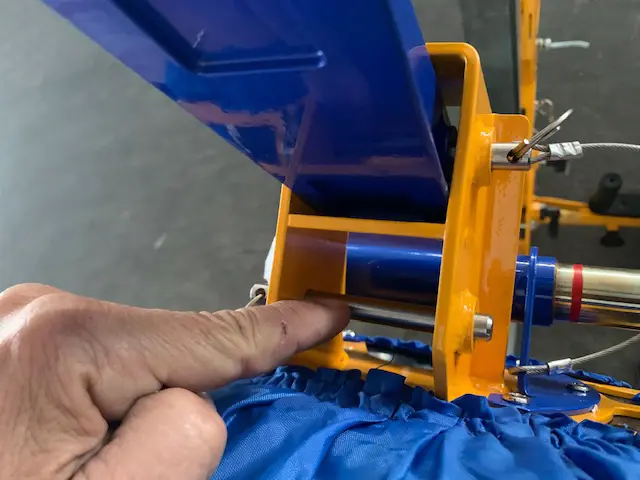

Manual drive controls with single crank winch

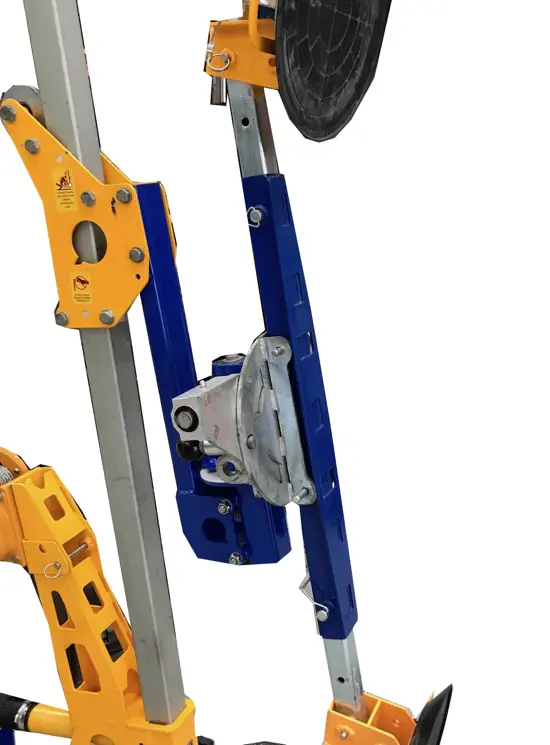

360° slab rotation device
Vertical and horizontal millimetric adjustment device to center the glass in the seat in the window
Robust elevation column with controlled bending
Labels and use and maintenance manual
Test certificate according to Italian and European regulations (CE)

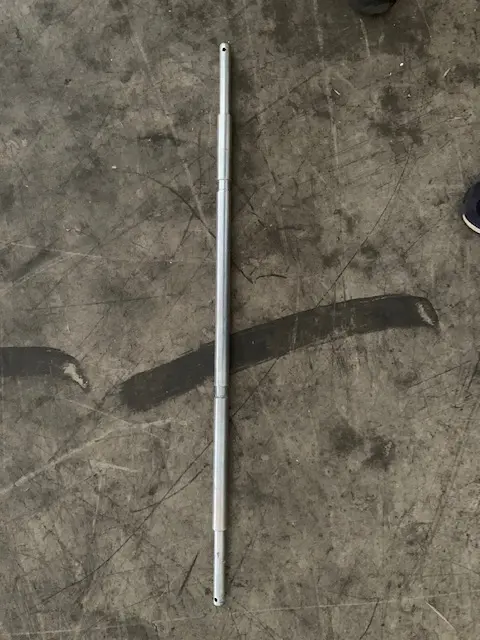

Telescopic boom with eyebolt for crane or overhead crane
Machine net weight Kg 113,8

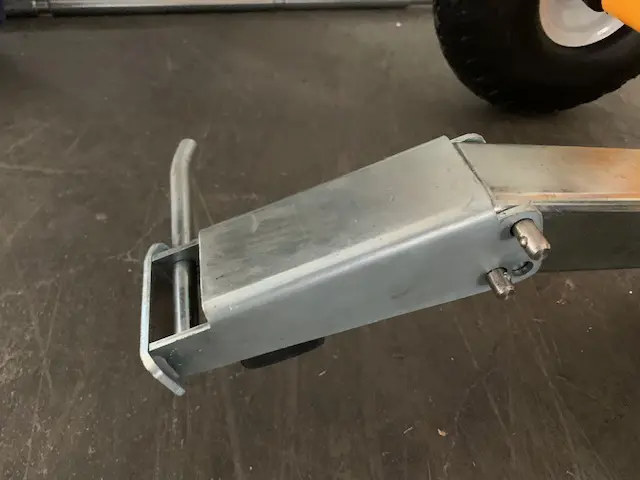

Weight of components to be transported on the van: (base Kg 41.2) (column Kg 49.8) (drawbar Kg 22.8)
Packaging dimensions (case): 1956x533x483
Total gross weight (including case): 120 Kg
Maximum lifting capacity of 200 kg.
It allows you to rotate glass with a maximum length of 3660 mm.
Adjustment system such as to allow the insertion of the glass both laterally and from above in the seats of the window.
330mm pneumatic wheels for traveling on rough terrain typical of construction sites.
Adjustable wheel axle from 70 cm to 80 cm depending on the aisle or space available for transport.
360° rotation of the sheet to pass through doors and corridors

ACCESSORIES ON REQUEST:

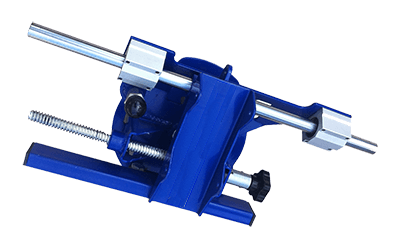

Lateral millimeter translation device

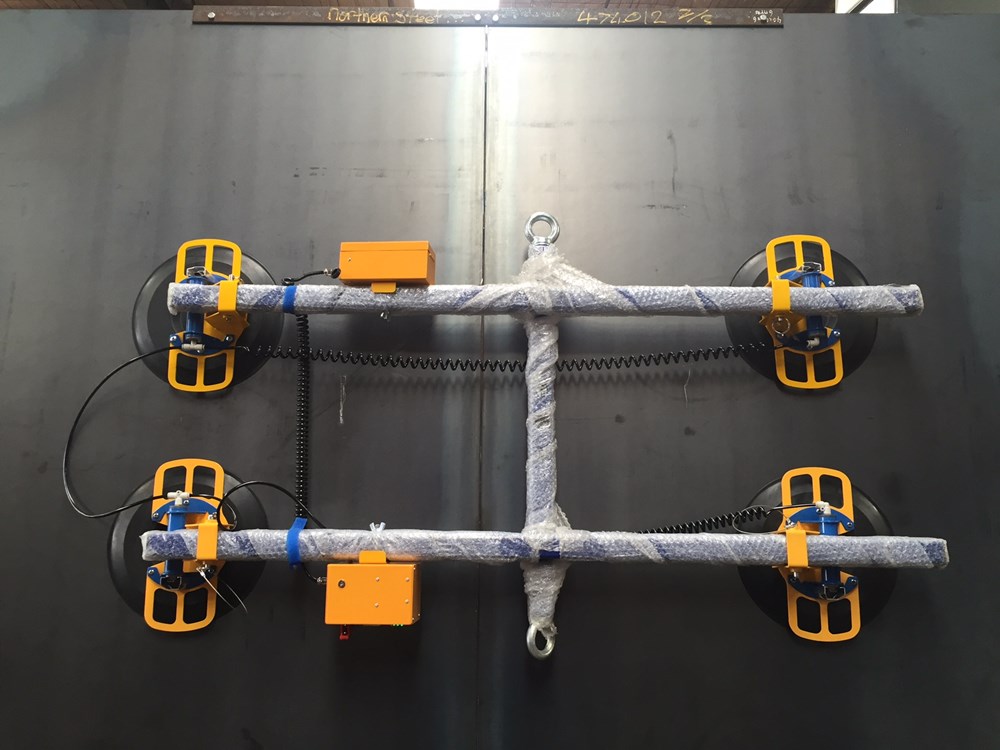

H-frame with 2 additional suction cups (diam. 250 mm) with lifting ring with crane

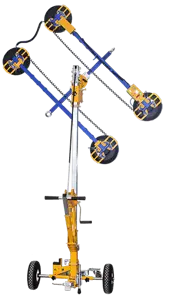

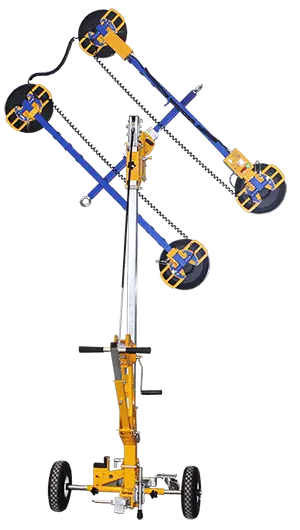

H-frame with electric pump with eyebolt for crane lifting (the 2 suction cups in the machine kit are used)
H-shaped frame with electric pump with eyebolt for crane lifting + 2 additional suction cups (diam. 250 mm) (4 total because the 2 suction cups are used in the machine kit.

H-frame with electric pump with lifting eyebolt with crane + 4 suction cups (if you do not already have an EXPRESS)

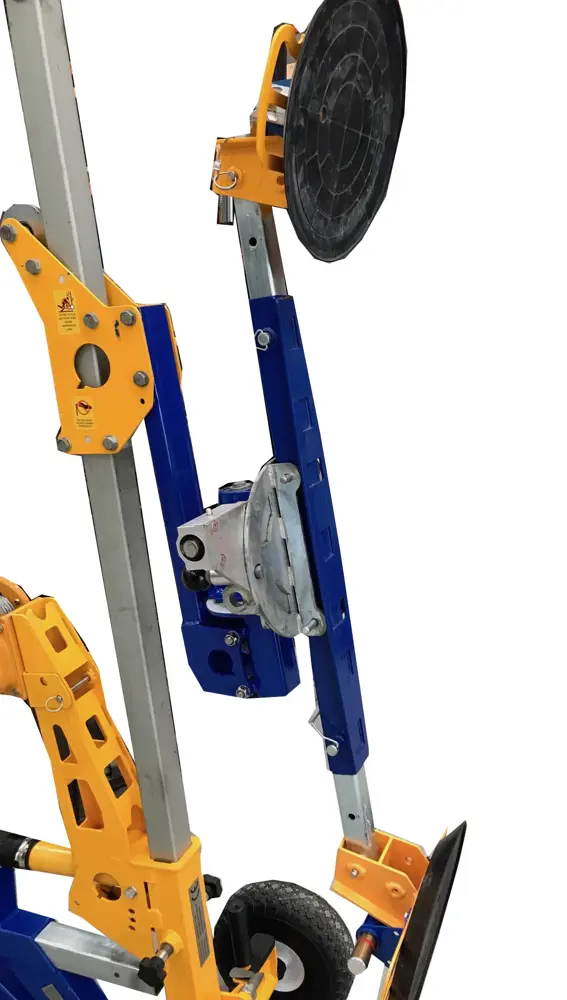

Mini-slab kit: for mounting glass balustrades (height from the ground 400 mm) (see video)

(Express' balustrade kit allows you to handle small slabs by raising the axis for fixing the suction cups on the slab starting from the ground.

The blue arm of the kit can in fact be positioned in such a way as to facilitate lifting from the ground and keep the slab suspended to carry out the assembly of the

hinges and the positioning of the slab in position. Without this kit the standard arm would be too high compared to the centerline of the small slab

making it difficult to rotate and lift.

Window mounting frame

Annual audits (blog)

N.B.: To avoid delivery problems, please let us know in the order if you are not equipped with a forklift for unloading.
