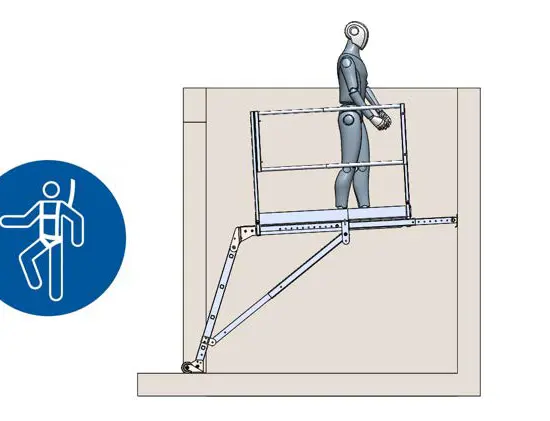

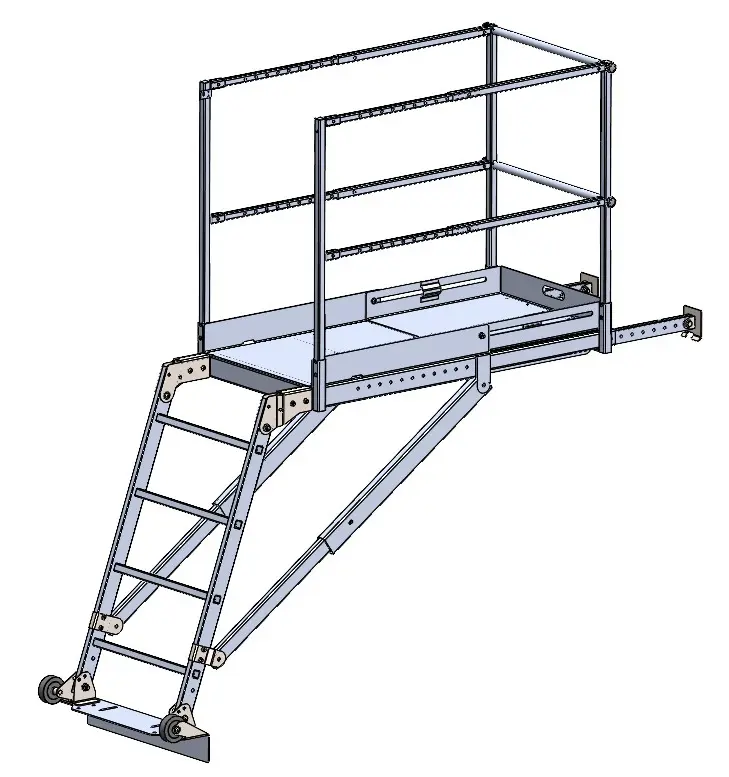

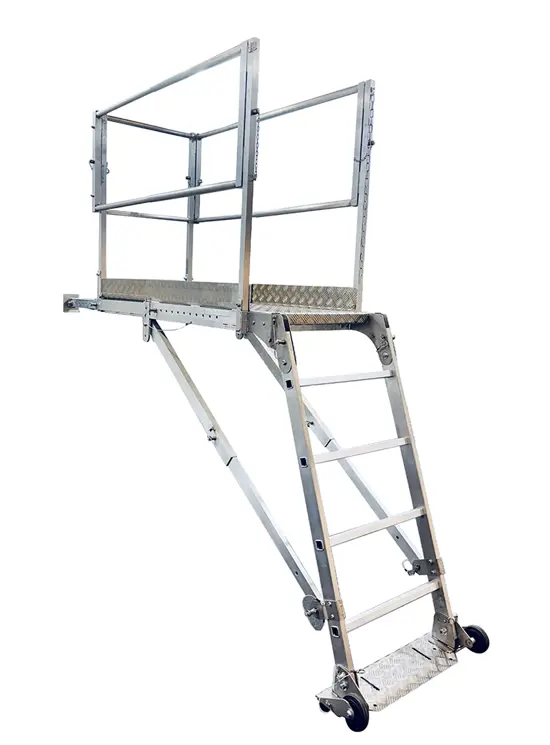

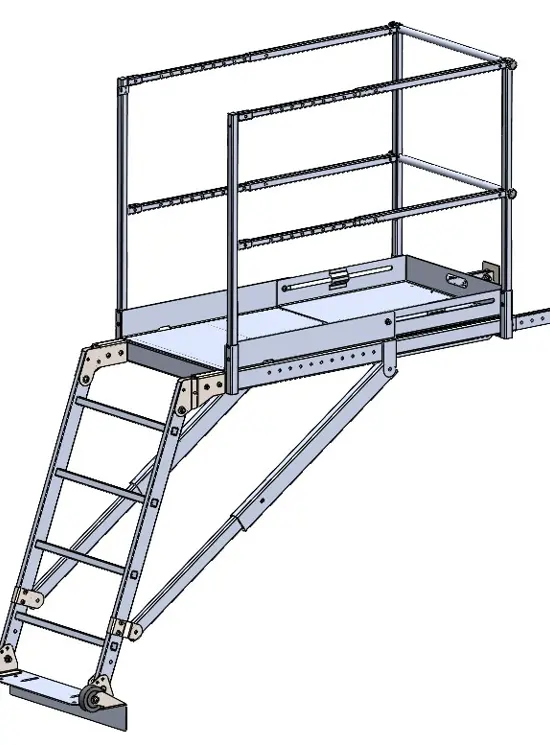

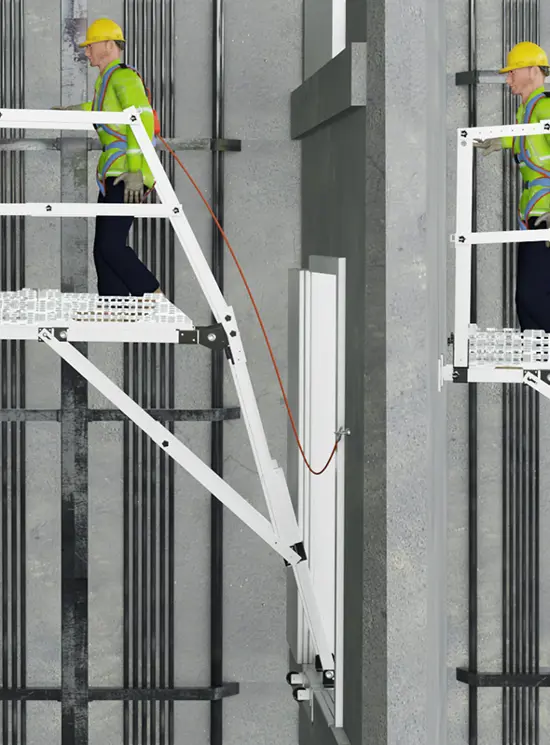

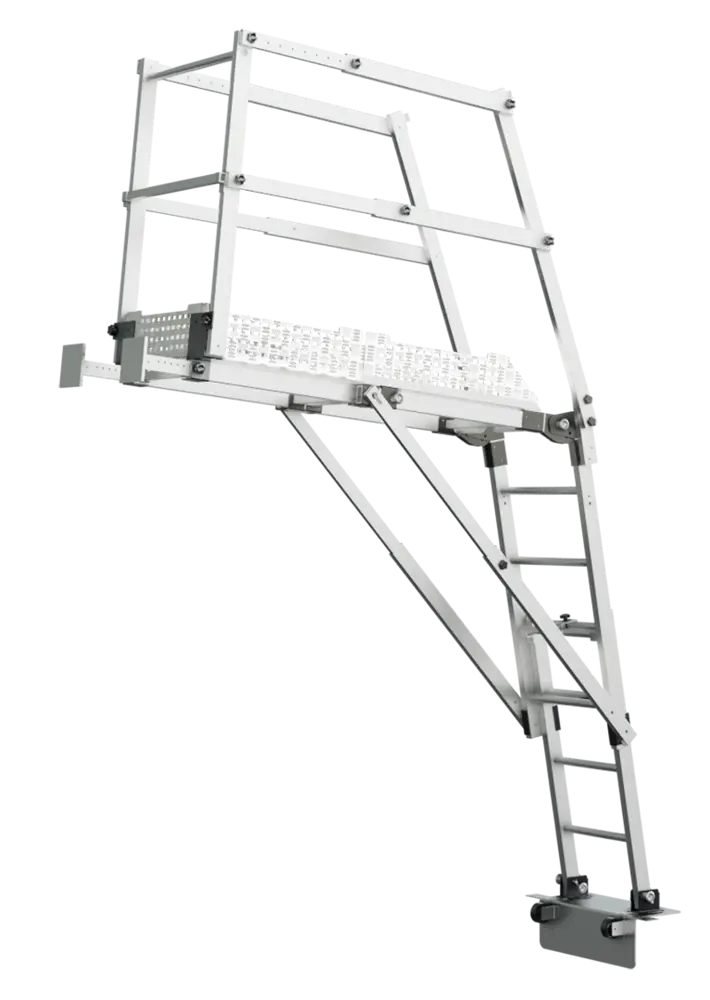

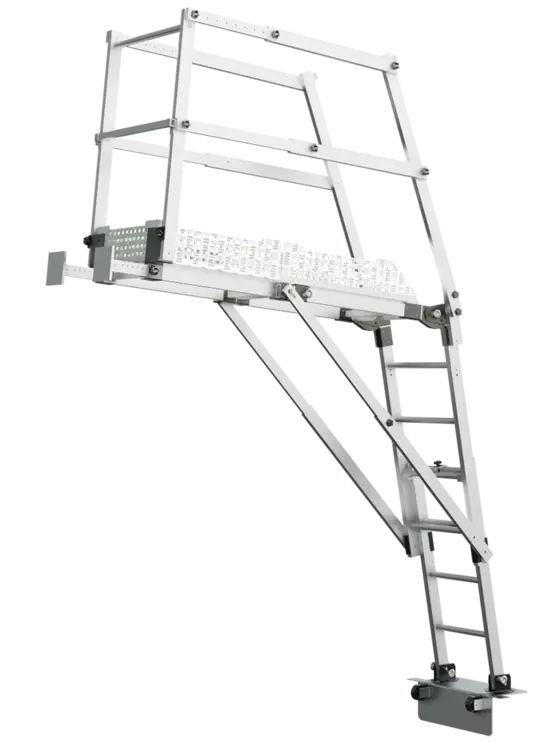

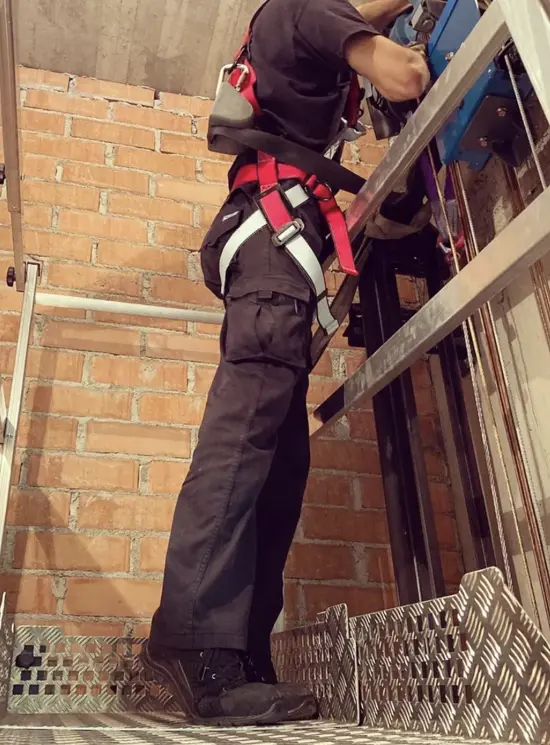

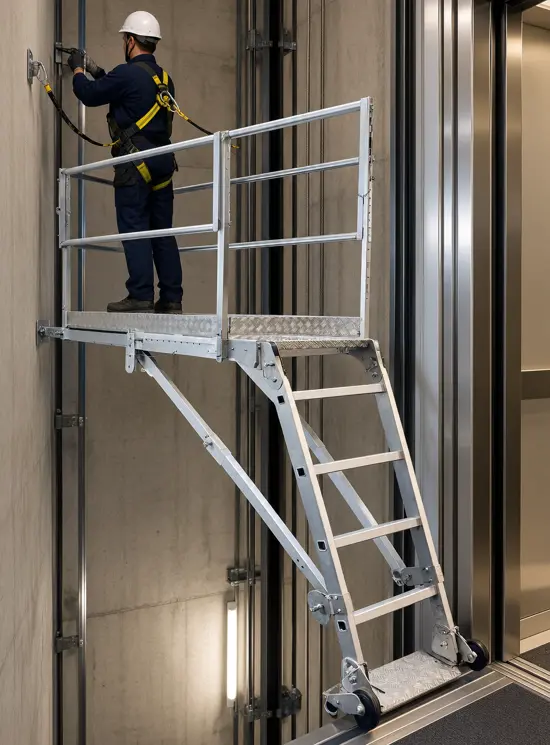

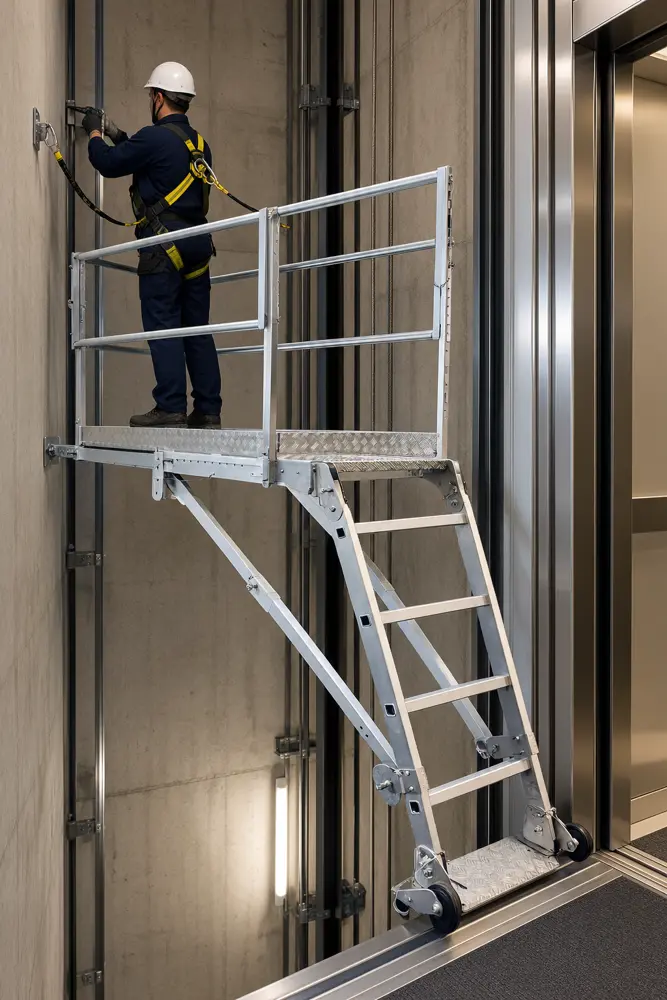

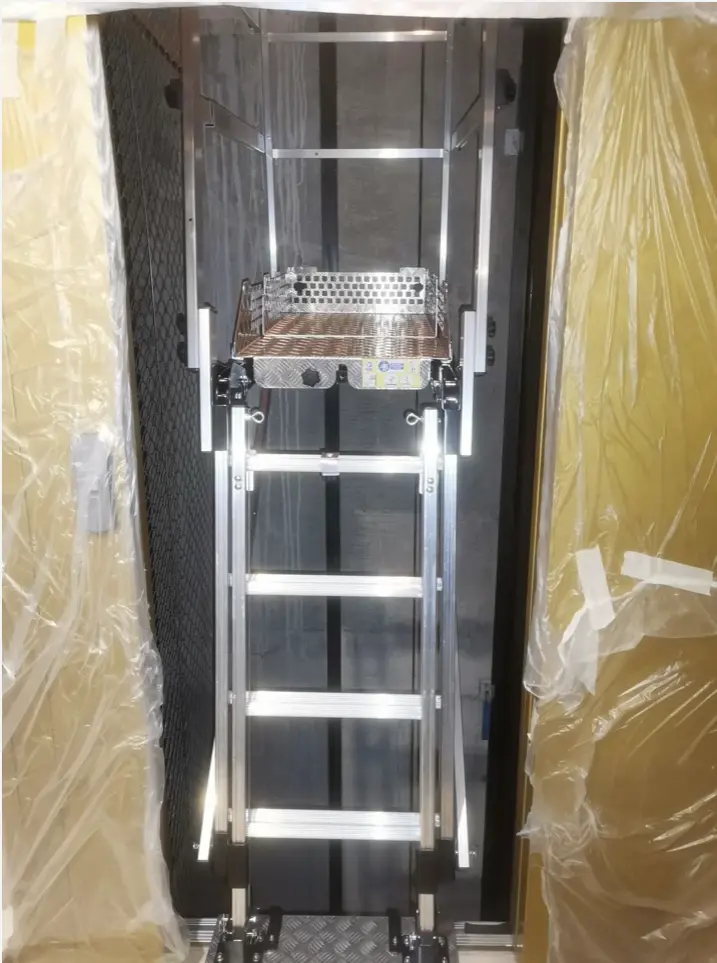

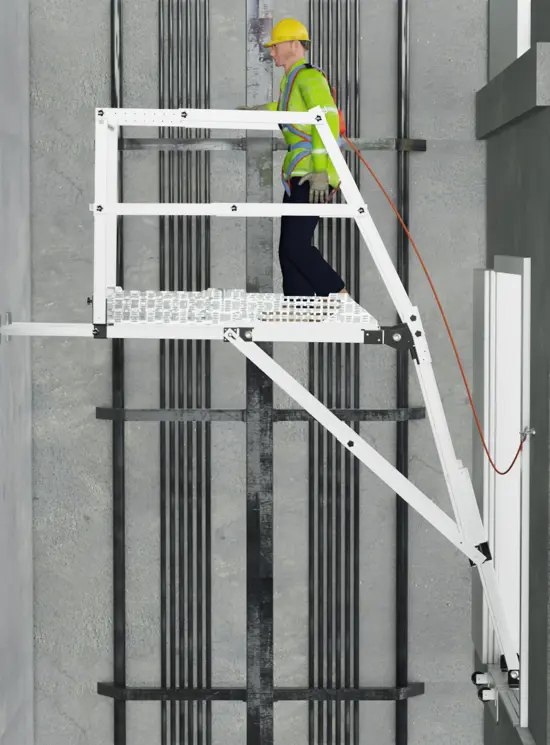

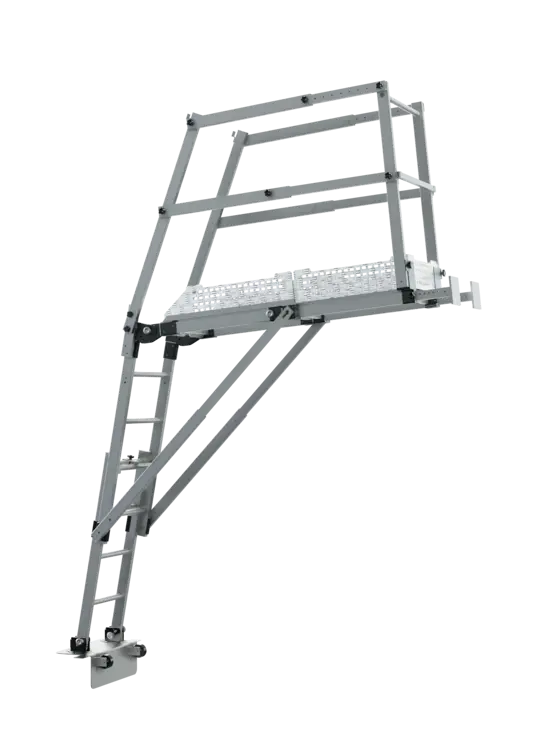

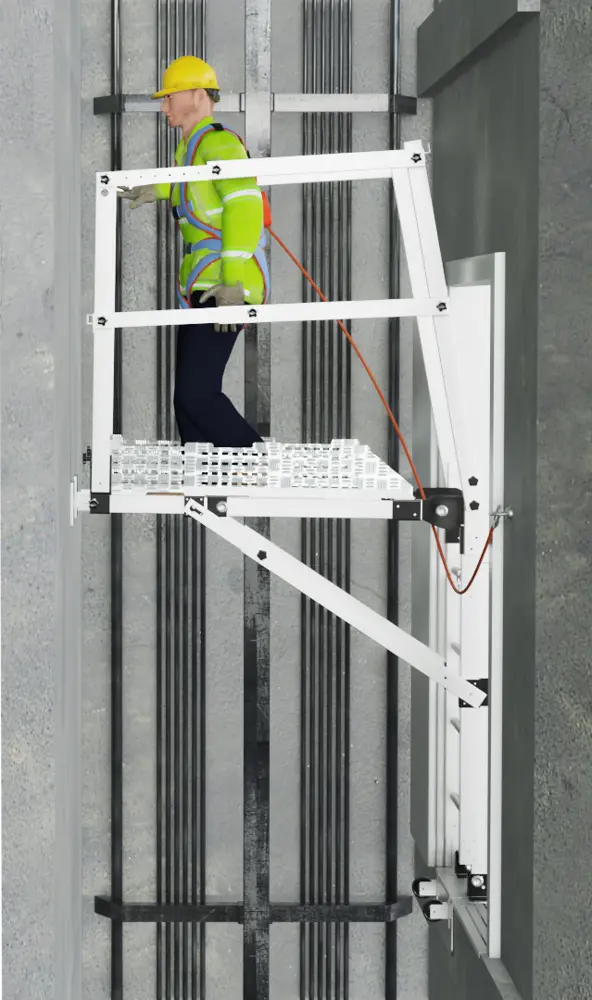

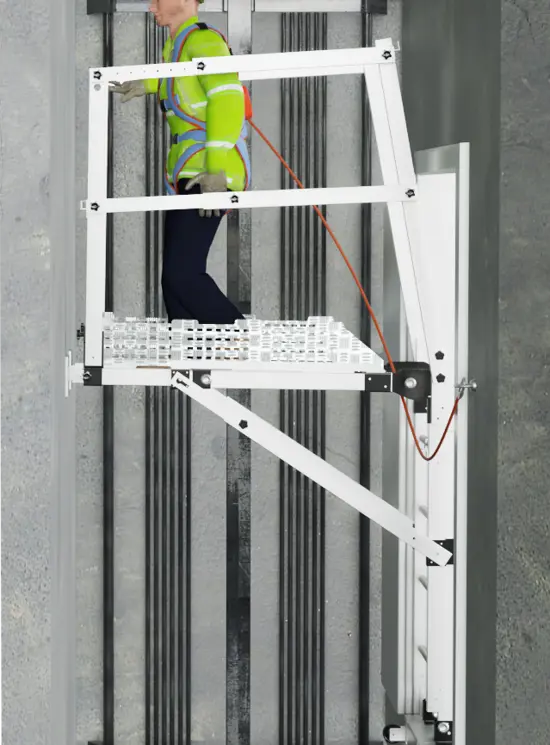

Telescopic platform for elevator shafts

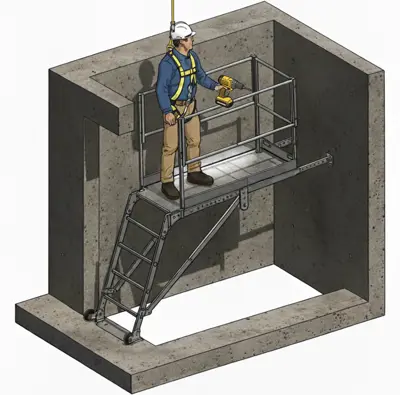

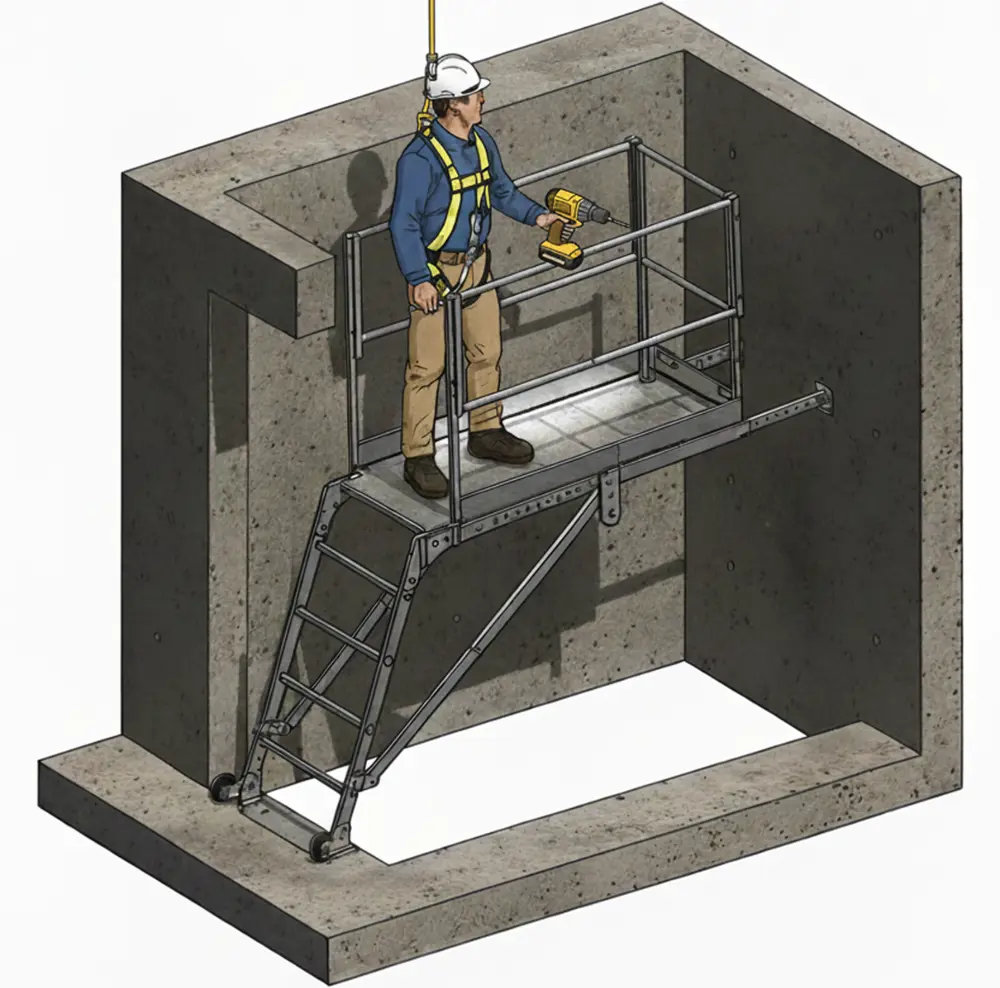

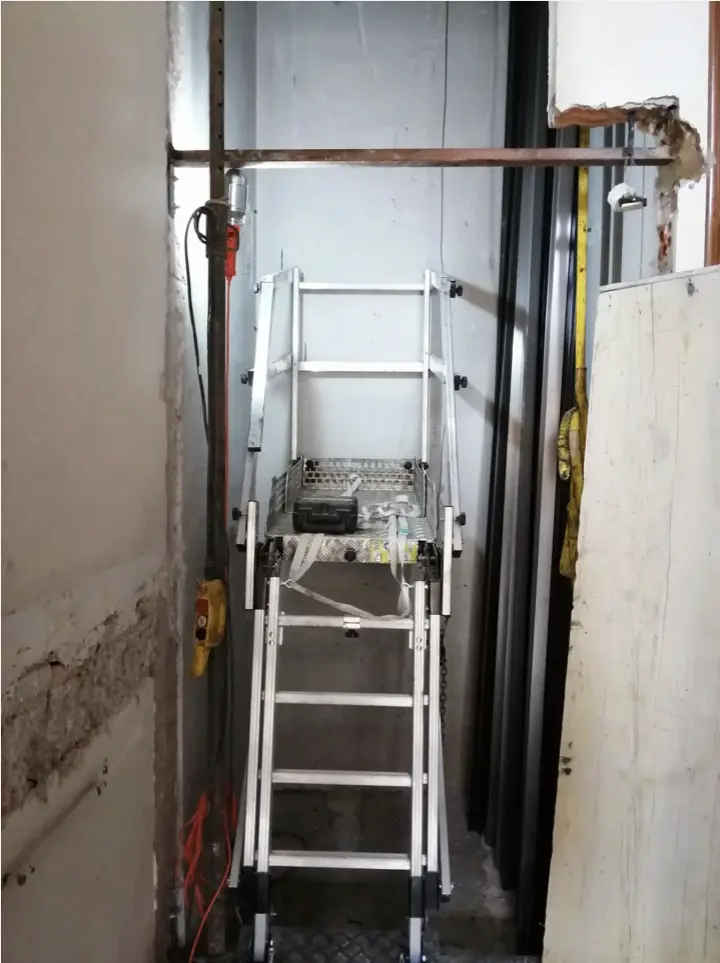

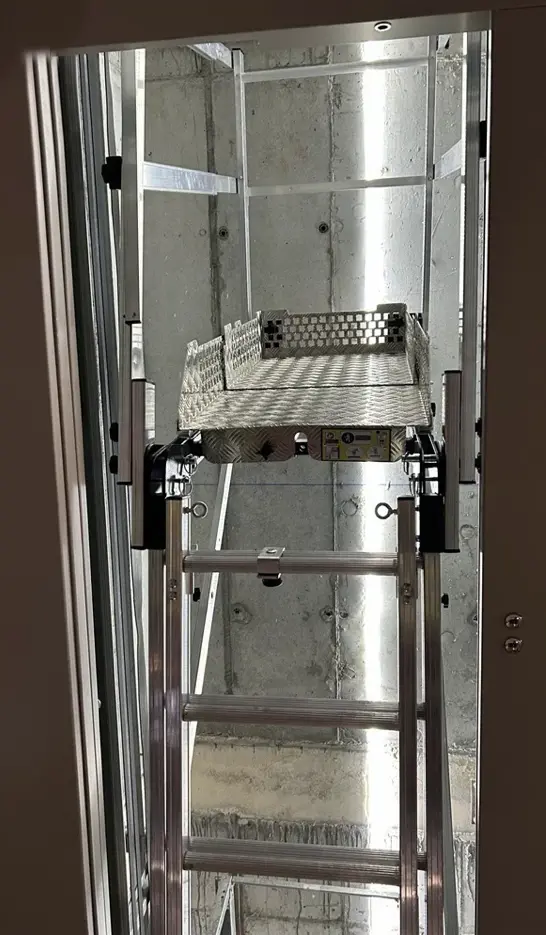

The telescopic temporary access platform for elevator shafts is manufactured from aluminum with certified welds and is designed for work in elevator shafts.

It can be used for both new installation work and for renovation, renovation or repair work.

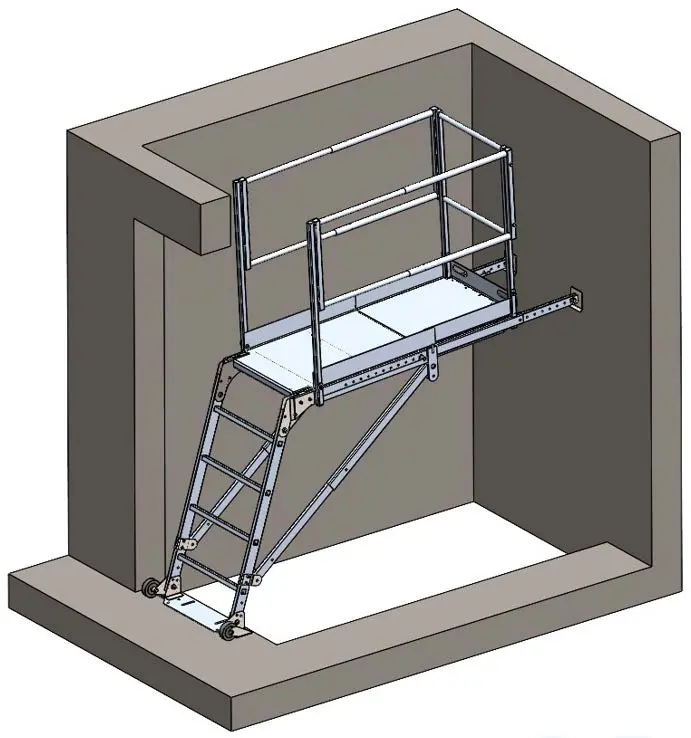

It can be adapted to use on existing lifts, allowing interventions up to 3.30 m in height (1.30 m at the floor).

The platform has an adjustable length and is equipped with removable side body guards for transport.

Lightweight and transportable on wheels.

The declaration of conformity is issued on the basis of the risk analysis and resistance to static load.

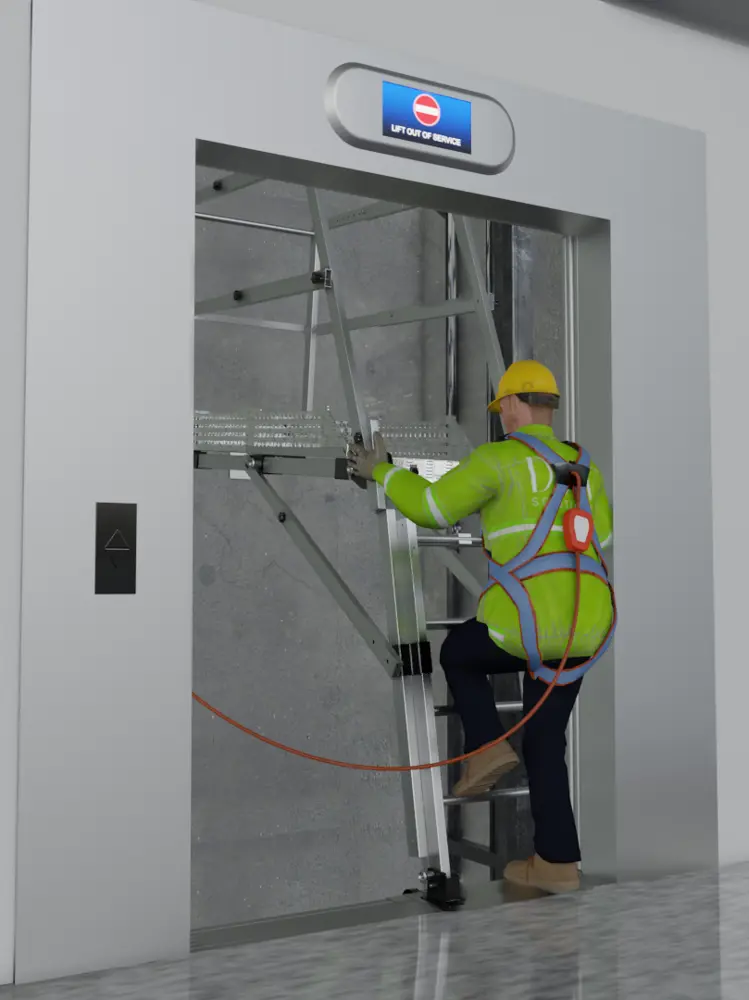

N.B.: to insert the platform in the lift shaft it is necessary to have a door with minimum dimensions of 800 cm (width) x 2000 cm (height).

Models:

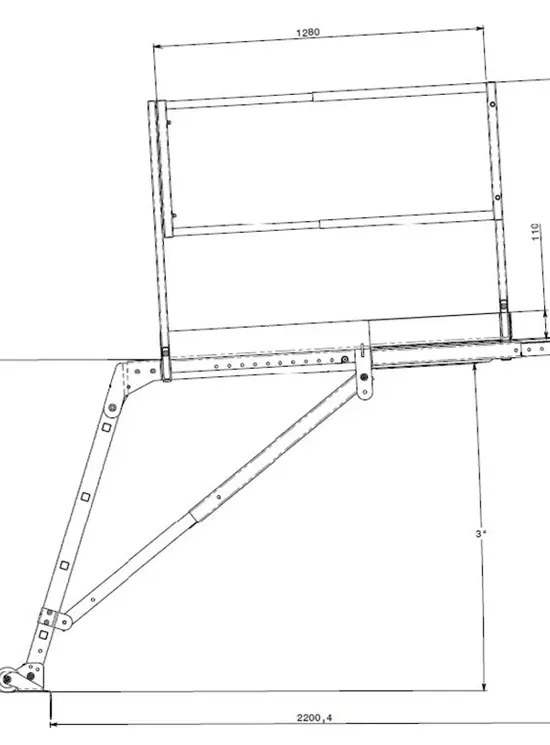

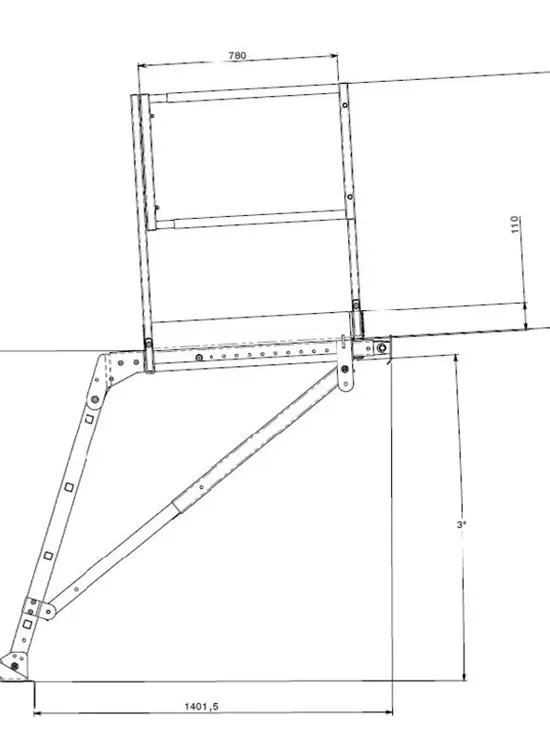

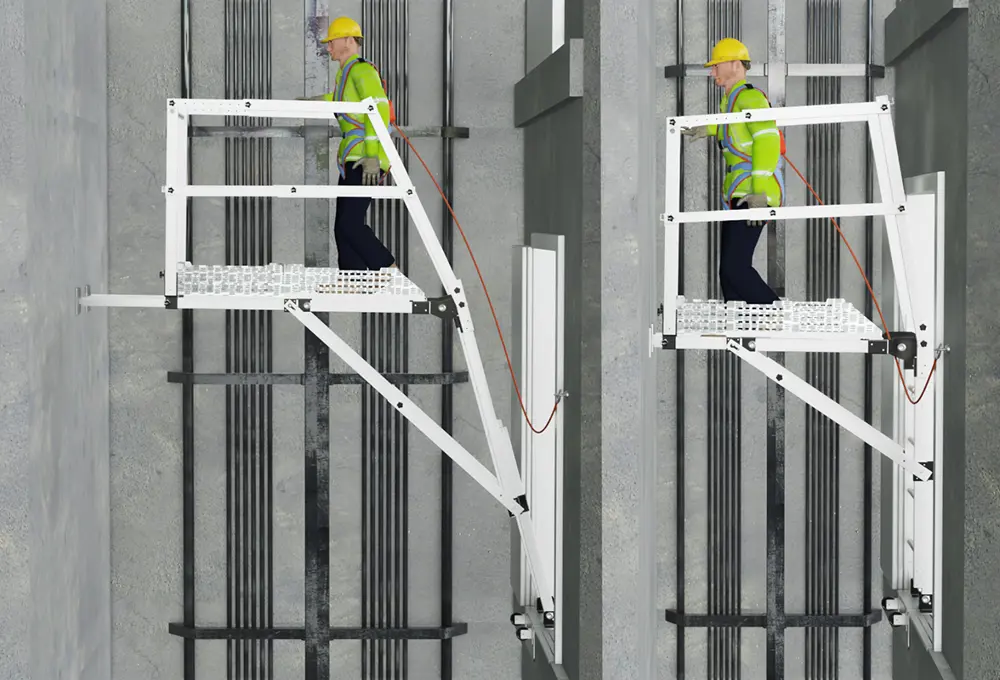

• TELESCOPIC PLATFORM 800/2200: This temporary access platform to the elevator shaft is designed to pass through external openings with a net clearance of 700 millimeters.

  It is specifically designed to allow access to the elevator shaft during maintenance operations and the initial assembly phase of the complete system.

  Adjustable for compartment depths between 800 and 2200 millimeters, ensures safe and efficient access

  With a weight of 38 kg, it is a fundamental tool to protect the safety of operators on site and reduce physical effort.

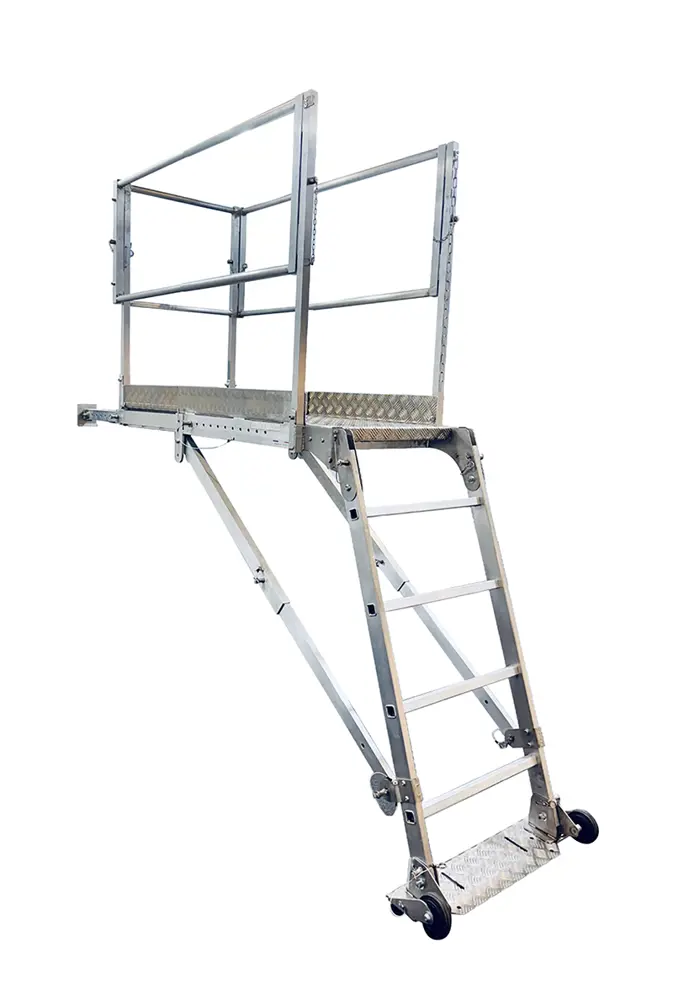

• Material: Laser welded aluminum
• Capacity Kg 150 (1 operator)
• Weight Kg 38
• Fits through 700mm wide doors

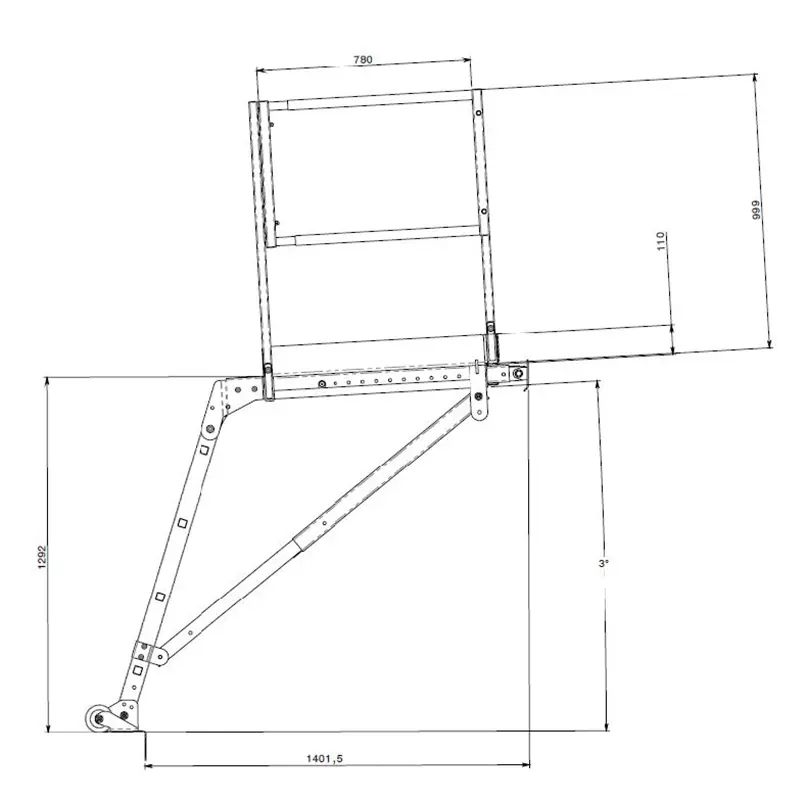

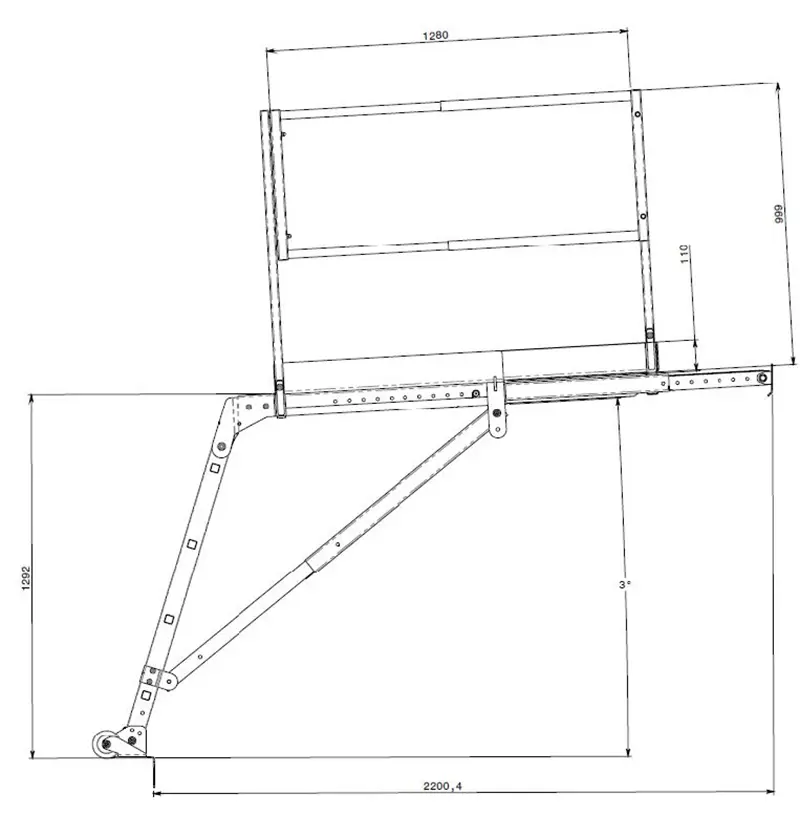

• Height adjustable from 1200 mm to 1800 mm
• Working height (hand) adjustable from 3200 mm to 3800 mm

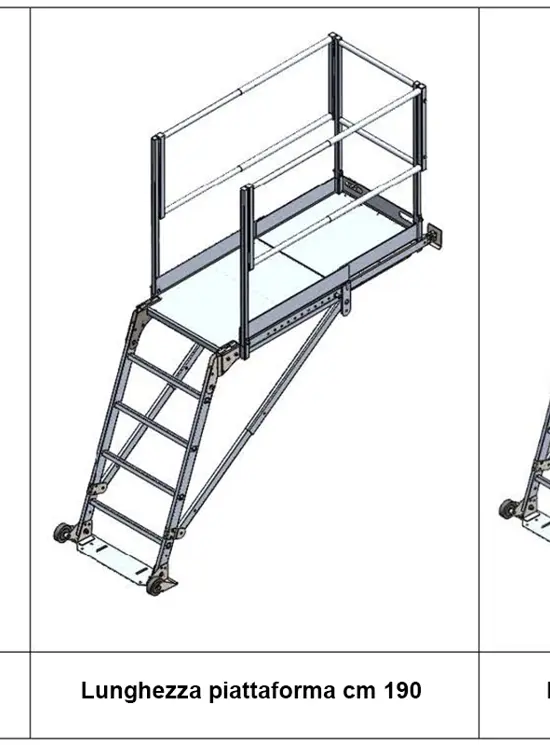

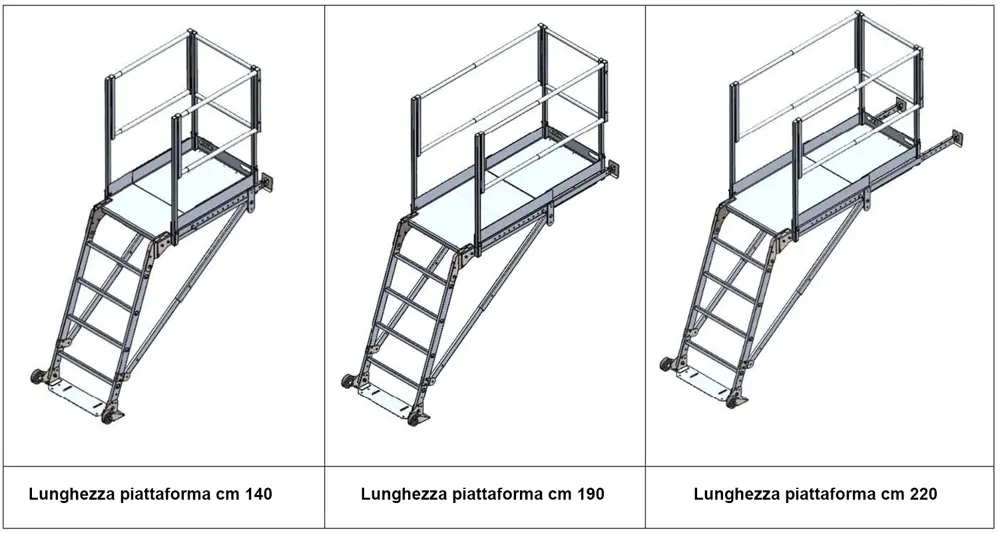

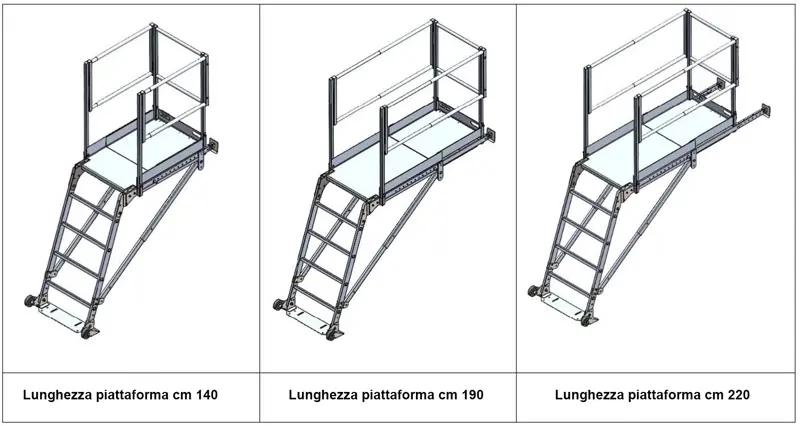

• Adjustable length from 800 to 2200 mm

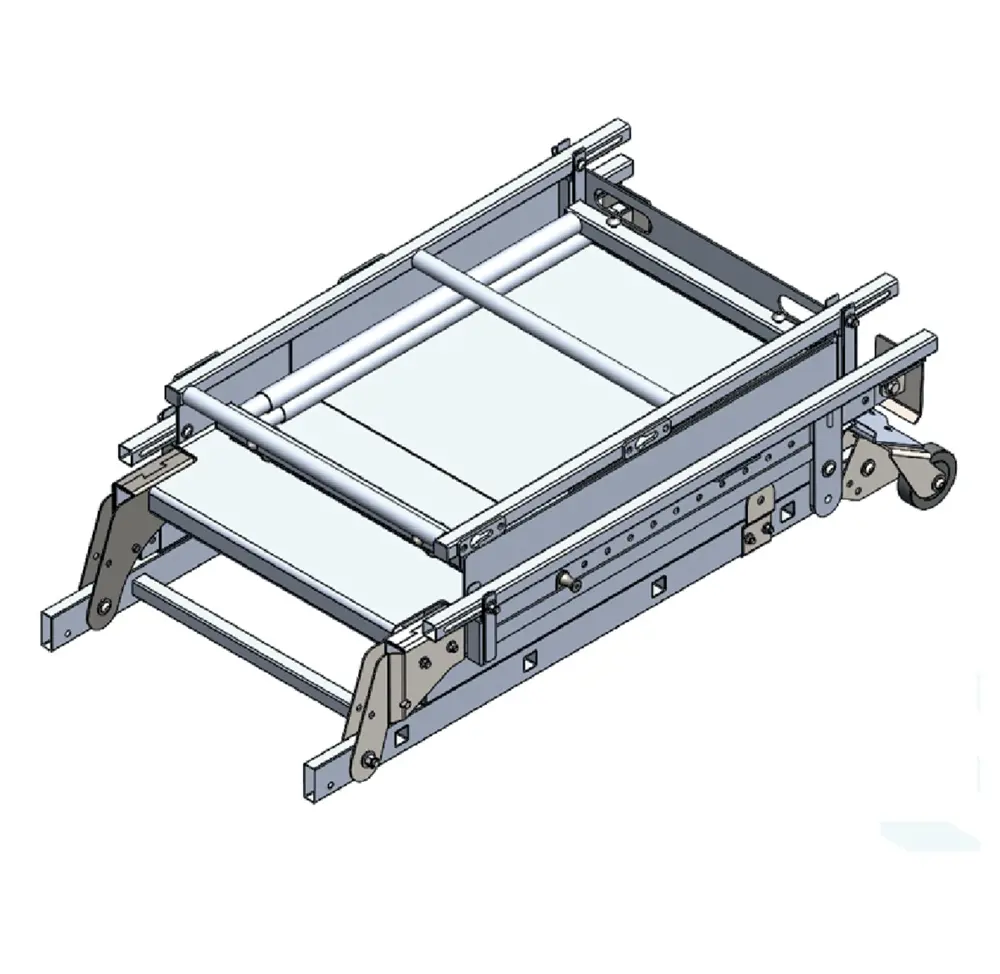

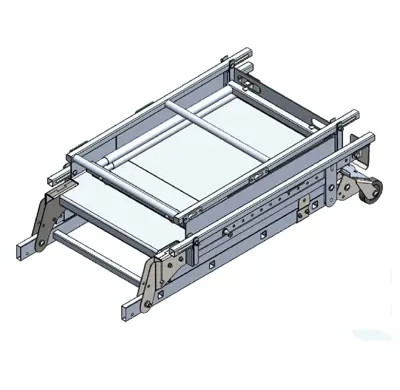

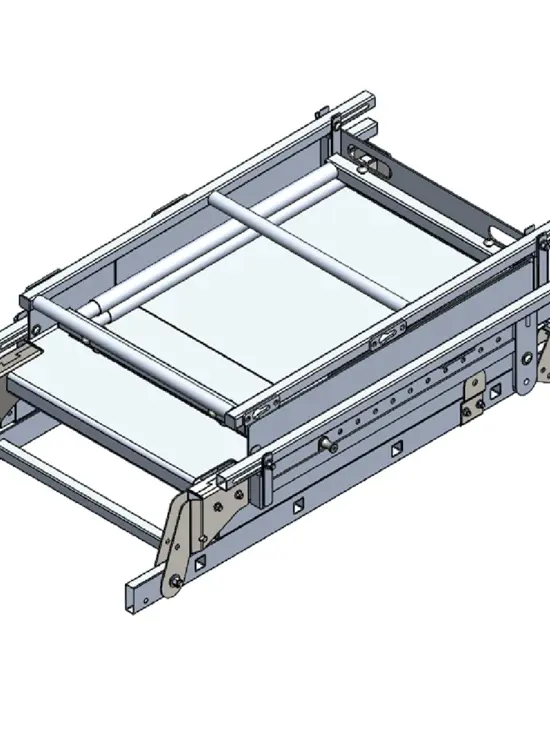

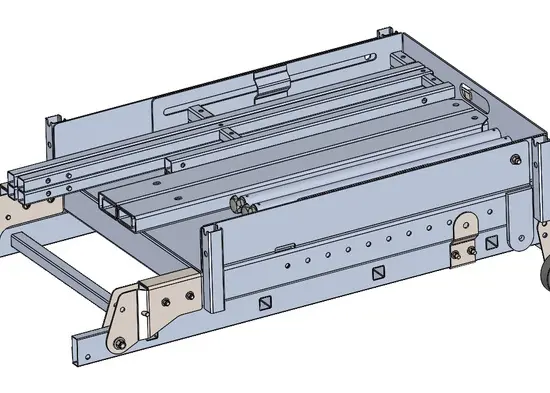

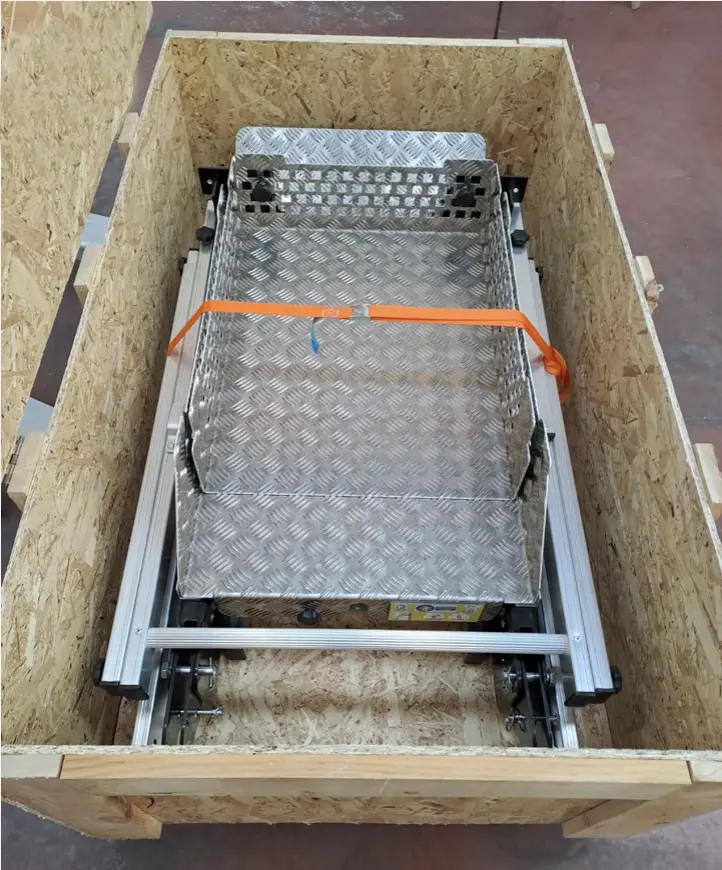

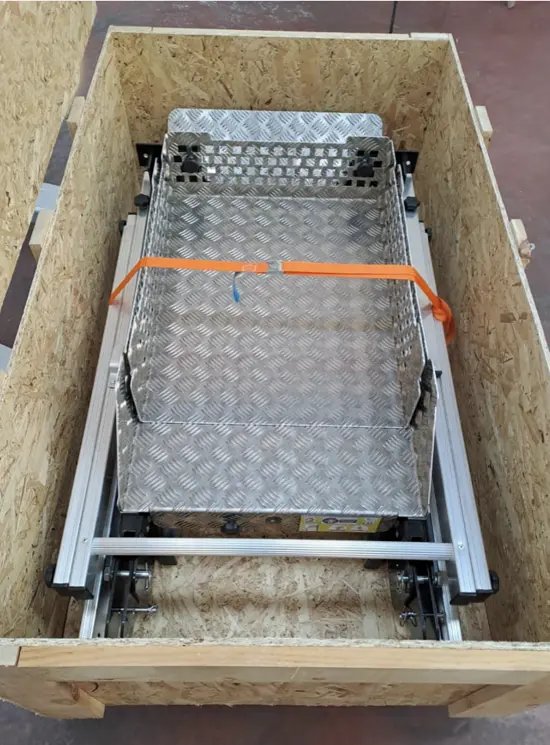

• Transport foldable (transport dimensions mm 1200x815x558)
• Equipped with transport wheels
• Removable railings on 2 sides

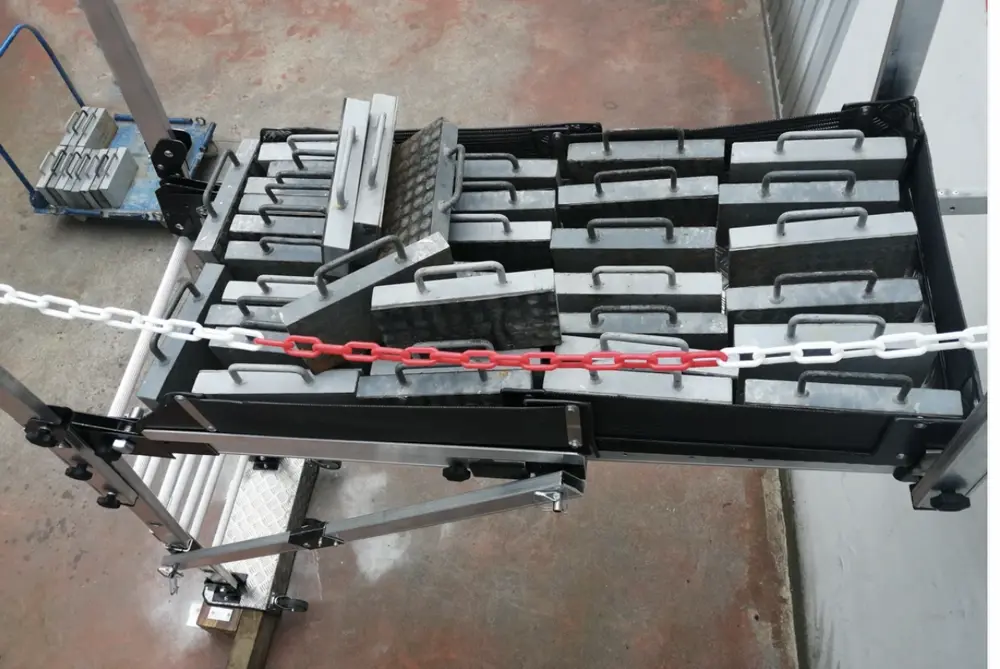

• Tested with 500 kg of load at maximum extension



• 1700/3000 TELESCOPIC PLATFORM: This temporary elevator shaft access platform is designed to pass through external openings with a net span of 1000 millimeters.

  It is specifically designed to allow access to the elevator shaft during maintenance operations and the initial assembly phase of the complete system.

  Adjustable for compartment depths between 1700 and 3000 millimetres, ensuring safe and efficient access

  With a weight of 62 kg, it is a fundamental tool to protect the safety of operators on site and reduce physical effort.

• Material: Laser welded aluminum
• Capacity Kg 150 (1 operator)
• Weight Kg 62
• Fits through 1000mm wide doors
• Height adjustable from 1200 mm to 1800 mm
• Working height (hand) adjustable from 3200 mm to 3800 mm
• Adjustable length from 1700 to 3000 mm

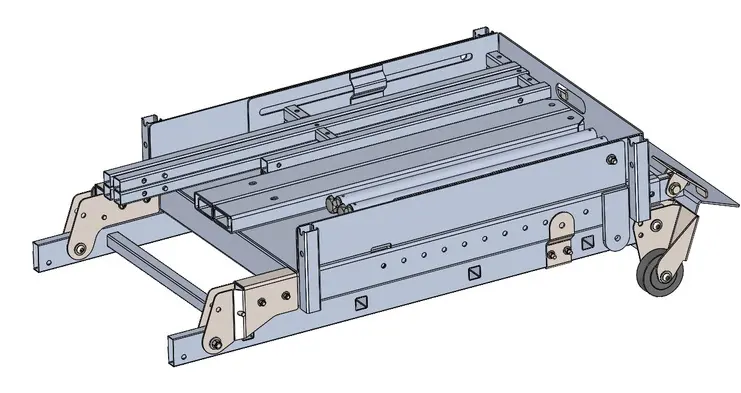

• Foldable for transport (transport dimensions mm 1700x1100x558)
• Equipped with transport wheels
• Removable railings on 2 sides
• Tested with 650 kg of load at maximum extension

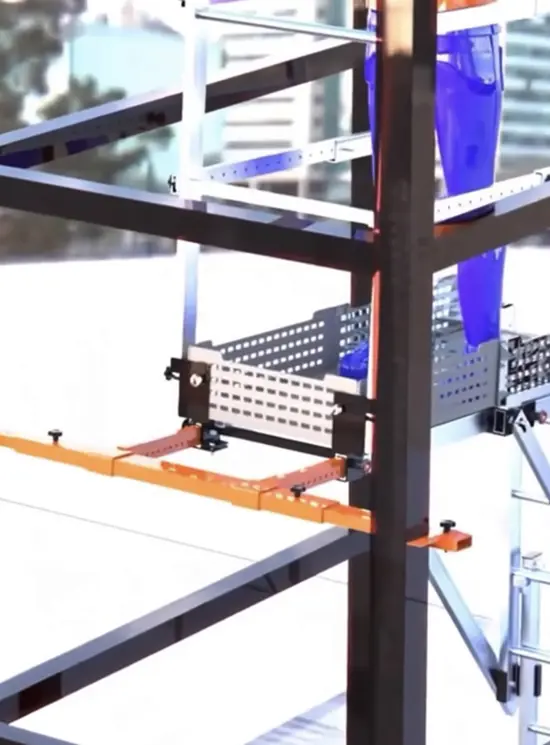

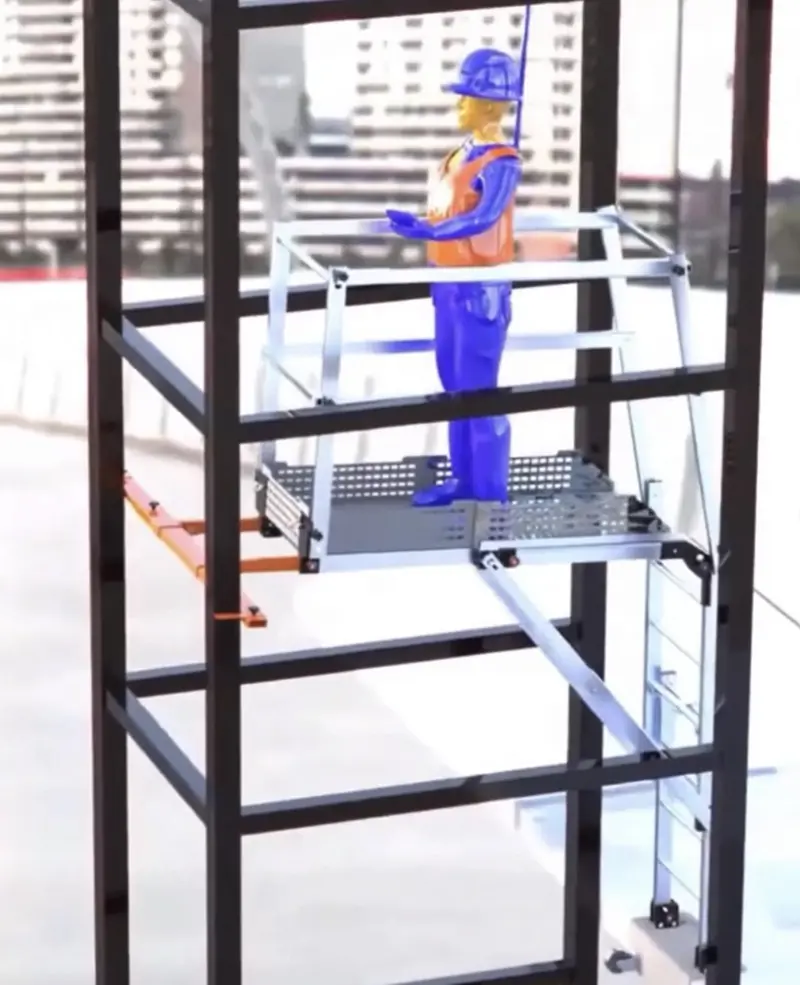

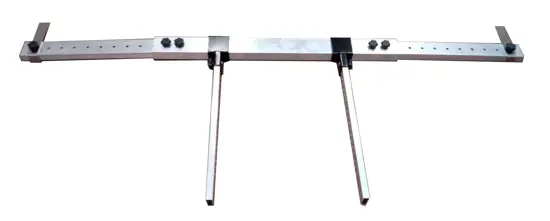

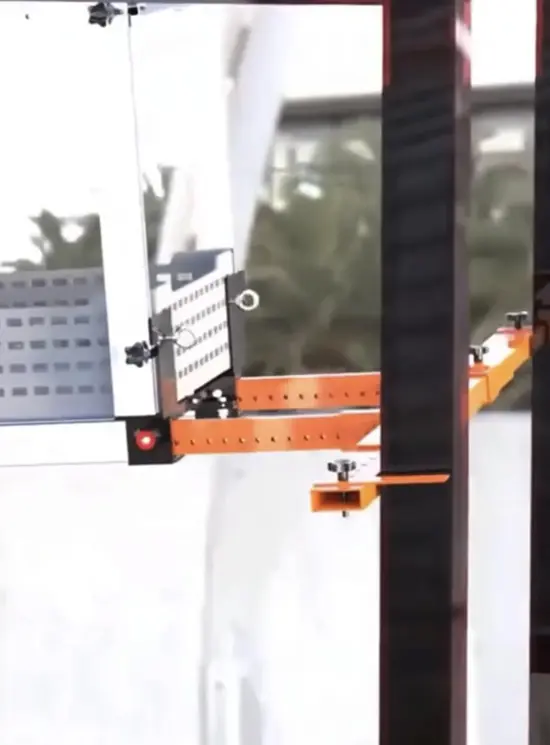

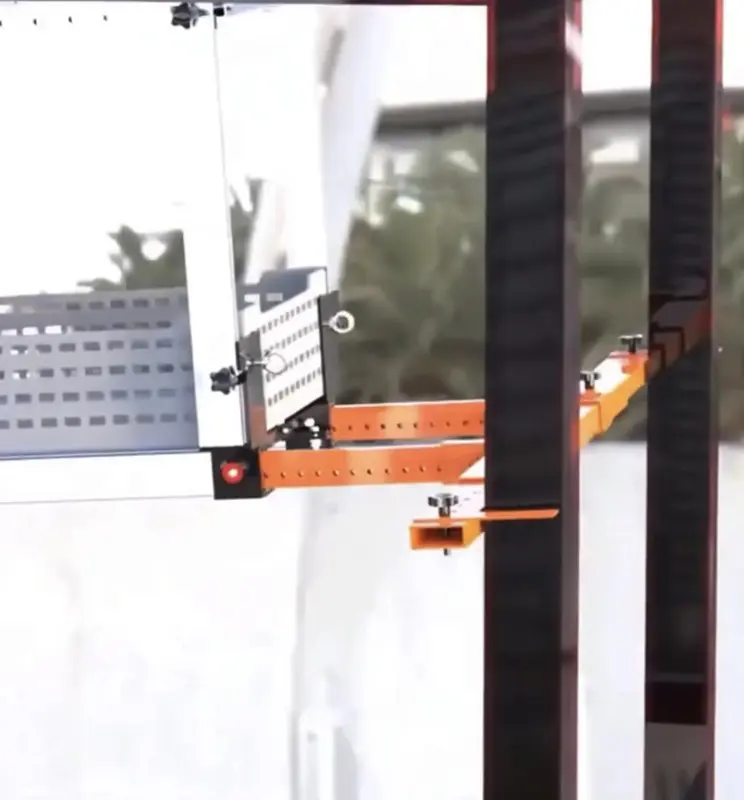

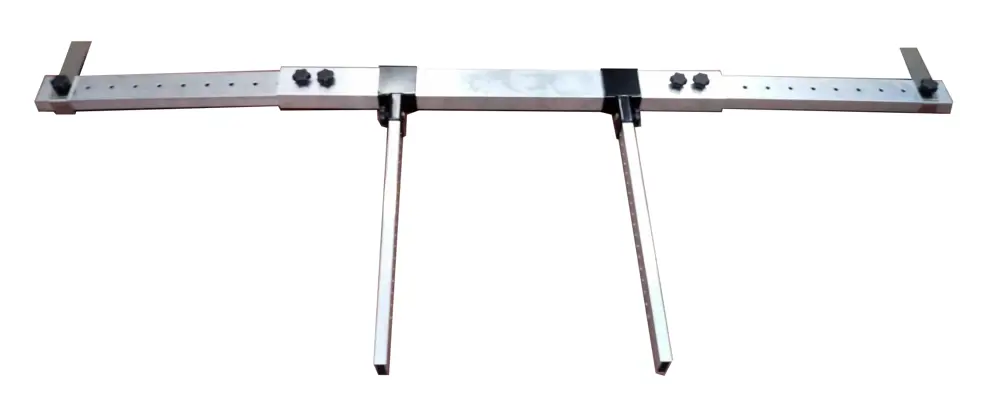

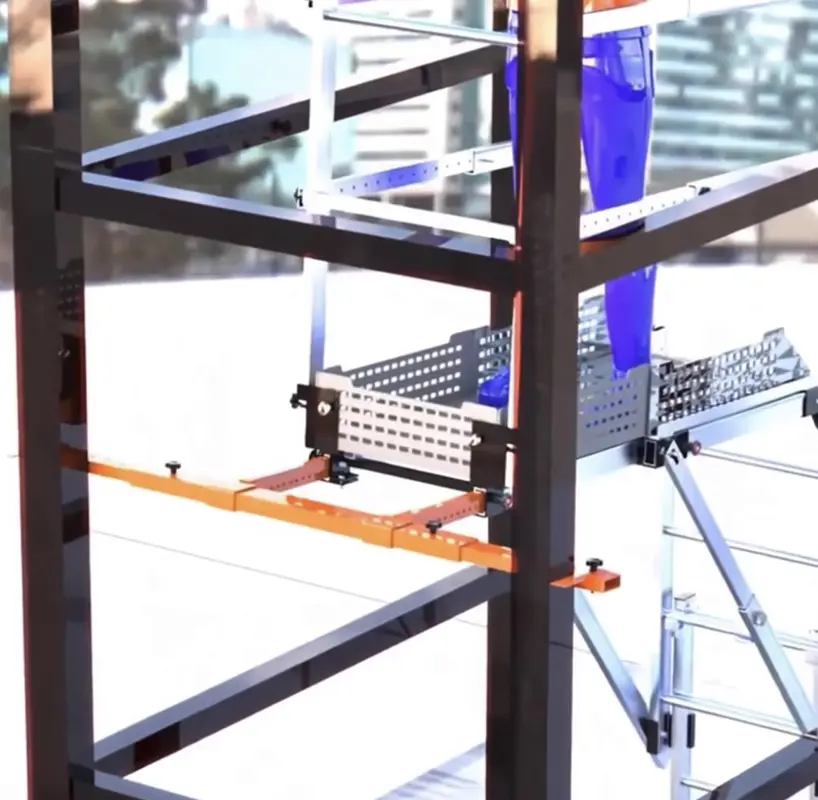

Metal Structure Kit (optional)

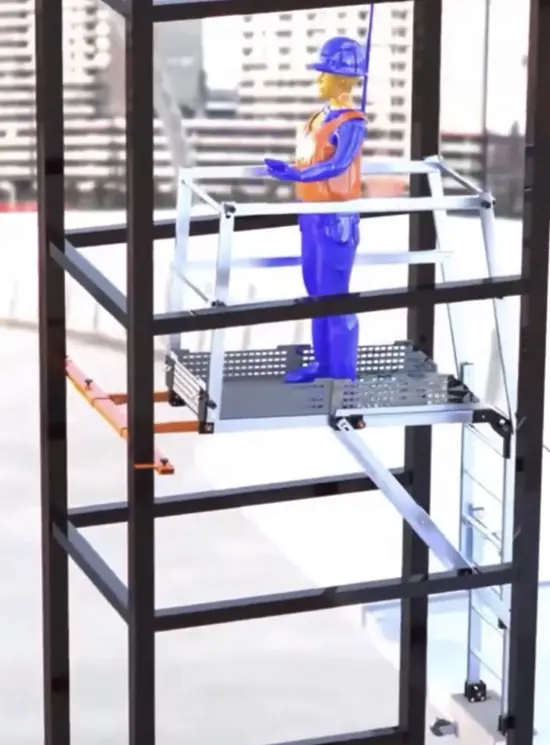

The Metal Structure kit allows the telescopic platform to be used in the presence of a structure without a support wall.

It will be the steel supporting structure of the elevator that will support the load of the platform.





Design philosophy and regulations

The design of the SVELT Elevator Shaft Platform is based on the principles of safety, simplicity and compliance that have always been indicative of our products.

Adjustments and installation are intuitive.

• Compliant with Legislative Decree 81/08

Typical Applications

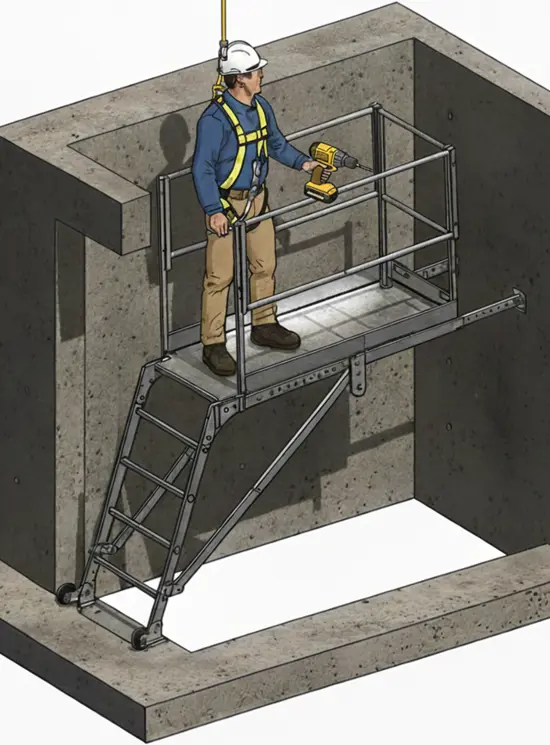

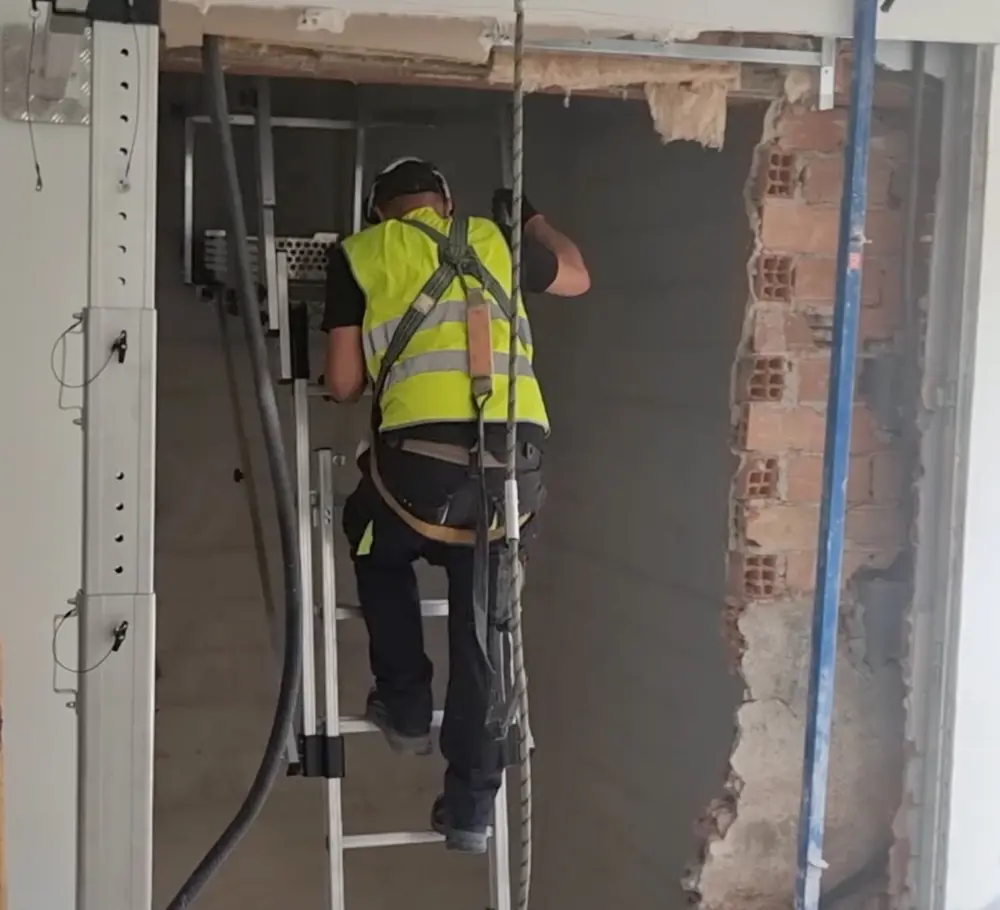

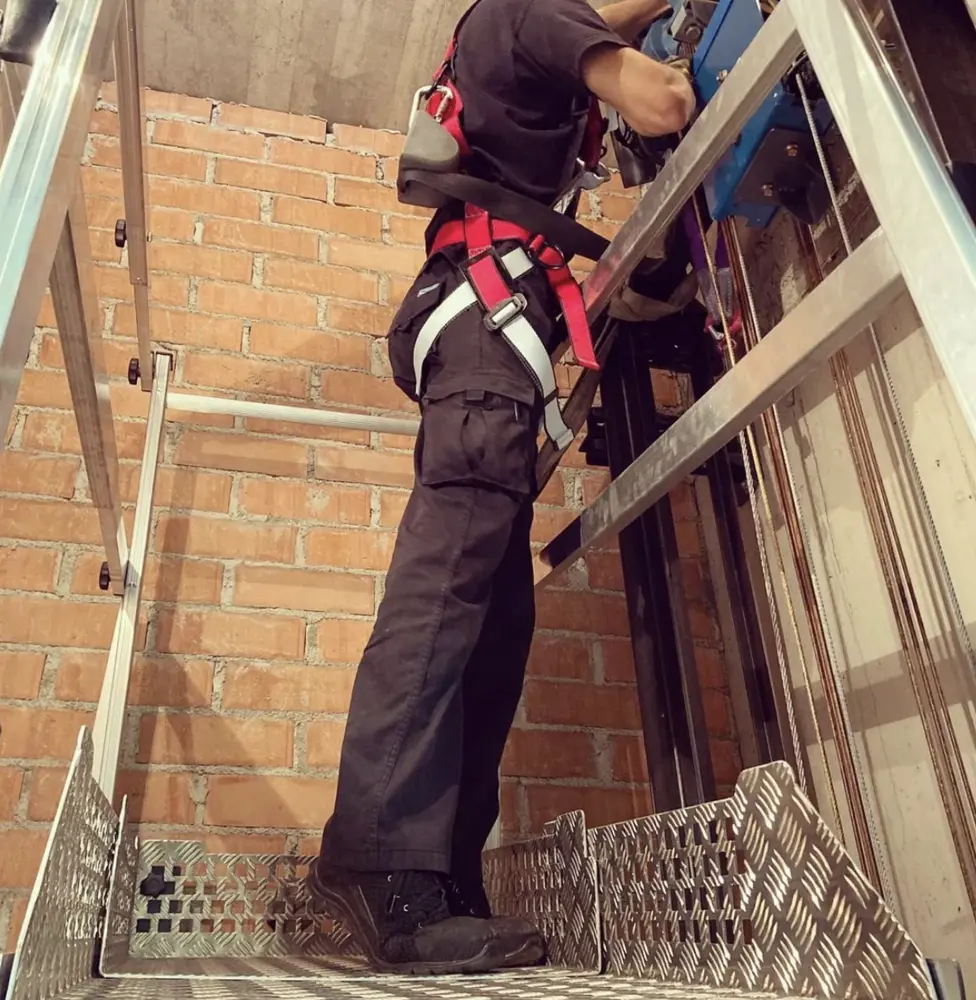

• Routine maintenance and inspections inside the elevator shafts.
• Elevator modernization or dismantling projects.
• Installation or replacement of components in the shaft (shock absorbers, switches, regulators).
• Short-term access requirements in confined vertical shafts.

Strengths

The platform is designed specifically for work in elevator shafts and offers features designed for the professional.

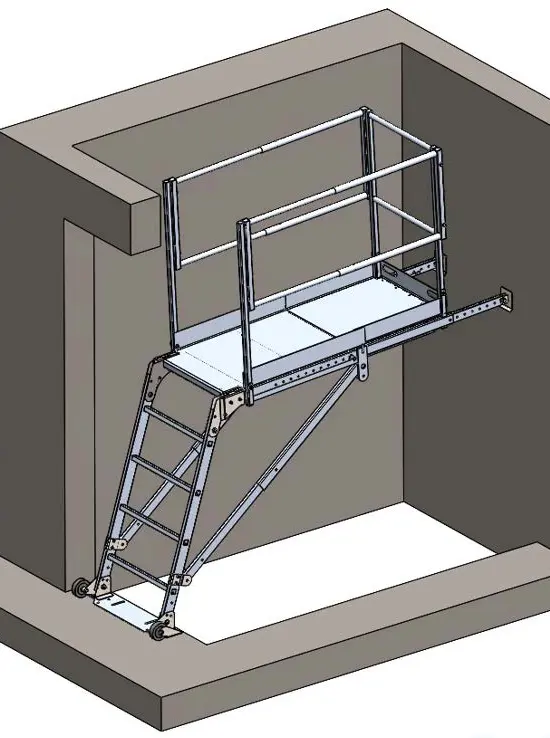

• Telescopic work surface: the easily adjustable side bodyguard allows the platform to safely cover lift shafts of various types.



• Foldable structure: The main frame, including integrated access ladders/ladders, folds compactly for efficient storage and easy transport on any vehicle.



• Non-slip worktop surface: The high-grip platform surface improves safety, even in potentially wet or dusty conditions.
• Integrated wheels: allow easy transport both on flat ground and on stairs.

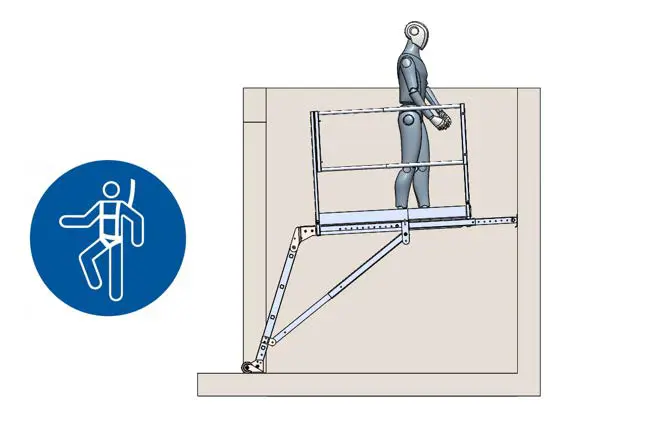

• Robust guardrail system: provides complete fall protection on exposed sides, complying with safety standards.
• Stabilizing reinforcement arms: once unfolded, they provide lateral stability and prevent tipping over.
• Tool-free assembly: Designed for quick installation and disassembly without the need for tools.
• Lightweight yet strong: Made primarily of high-quality aluminum alloy for durability and maneuverability.
• All locking pins and components are connected to the structure so that nothing is lost during transport and assembly

Why it is economically worthwhile
Every intervention takes time.
Time is the main cost of an assembly crew.

Reduce:

• Preparation of the construction site
• Handling
• Mounting
• Disassembly

... it means increasing the number of daily interventions.

The Telescopic Platform allows you to use a faster solution when you don't need to install a complete scaffolding.
The result is a measurable return on investment over time.

A single working system for the elevator shaft

Two products, one philosophy, maximum efficiency at any stage of the job.
