Wheeled shelf ladder

max height 4,66 m

It shows the validity of the guarantee in years

It shows the maximum weight capacity of a product

All our products conforms to the standads in force

Suitable for heavy duty

Ladder with advanced sliding system

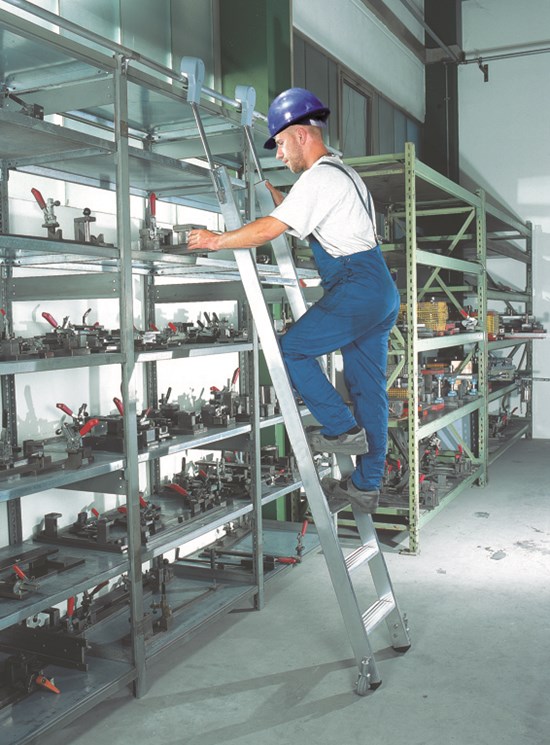

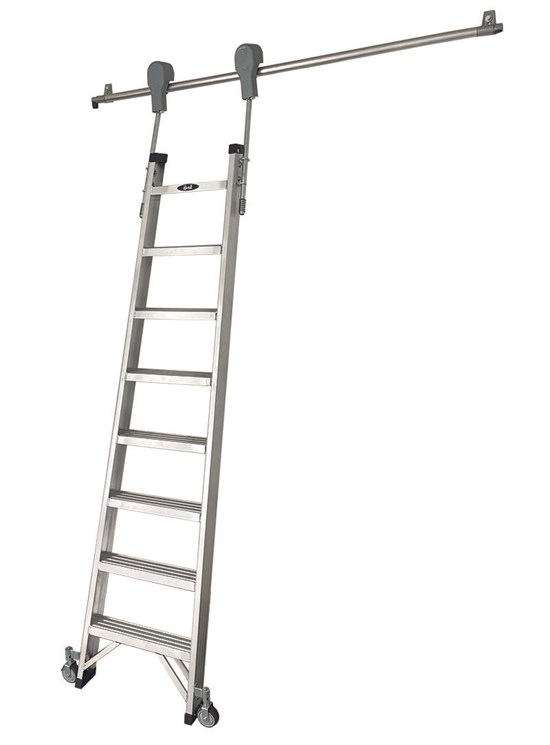

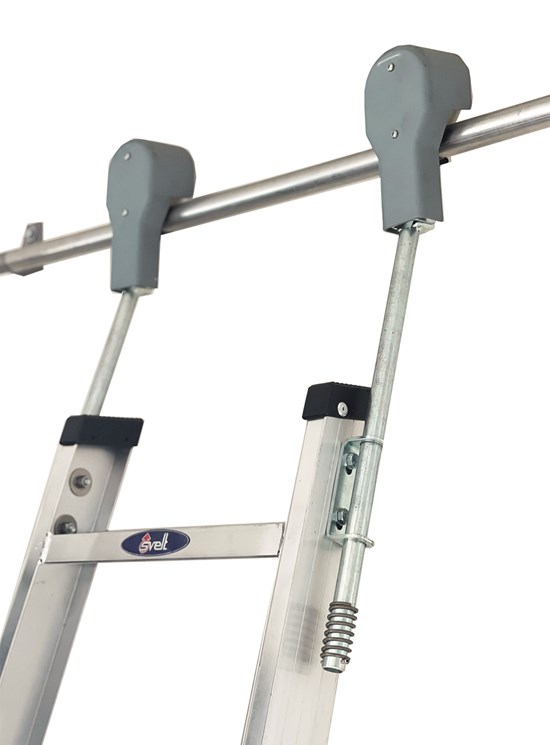

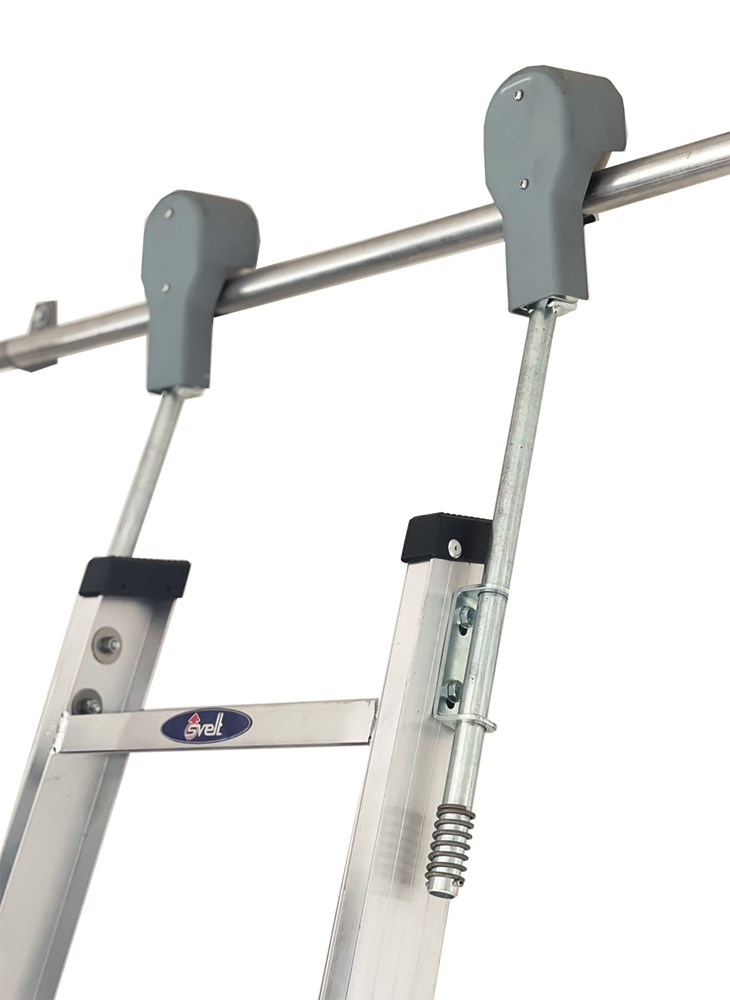

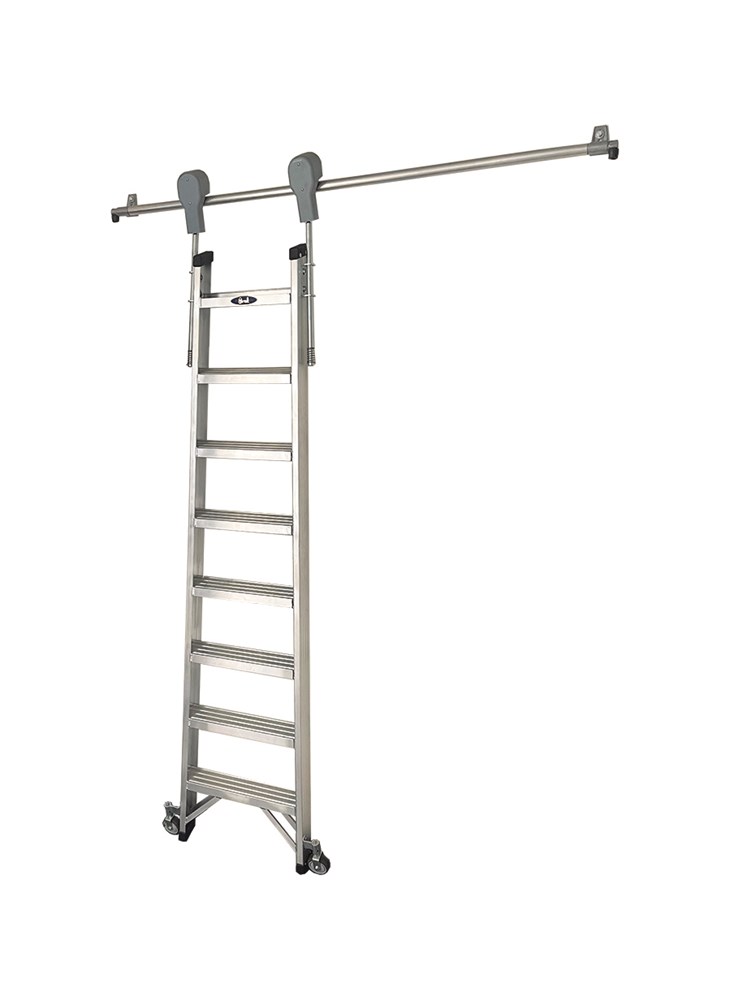

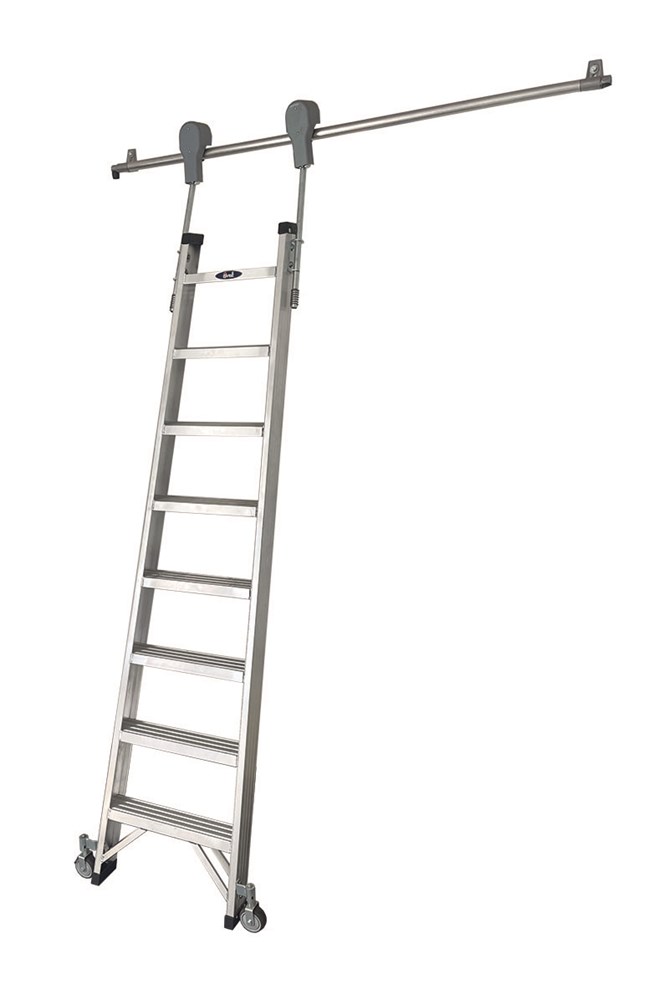

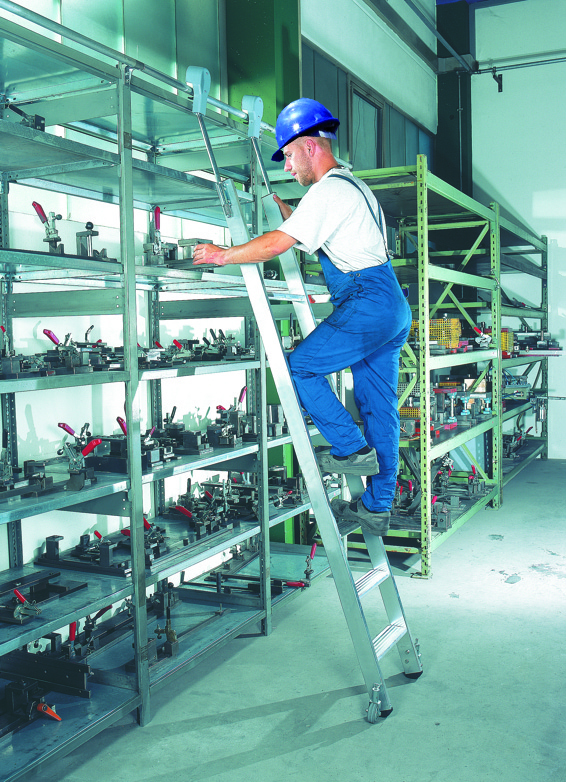

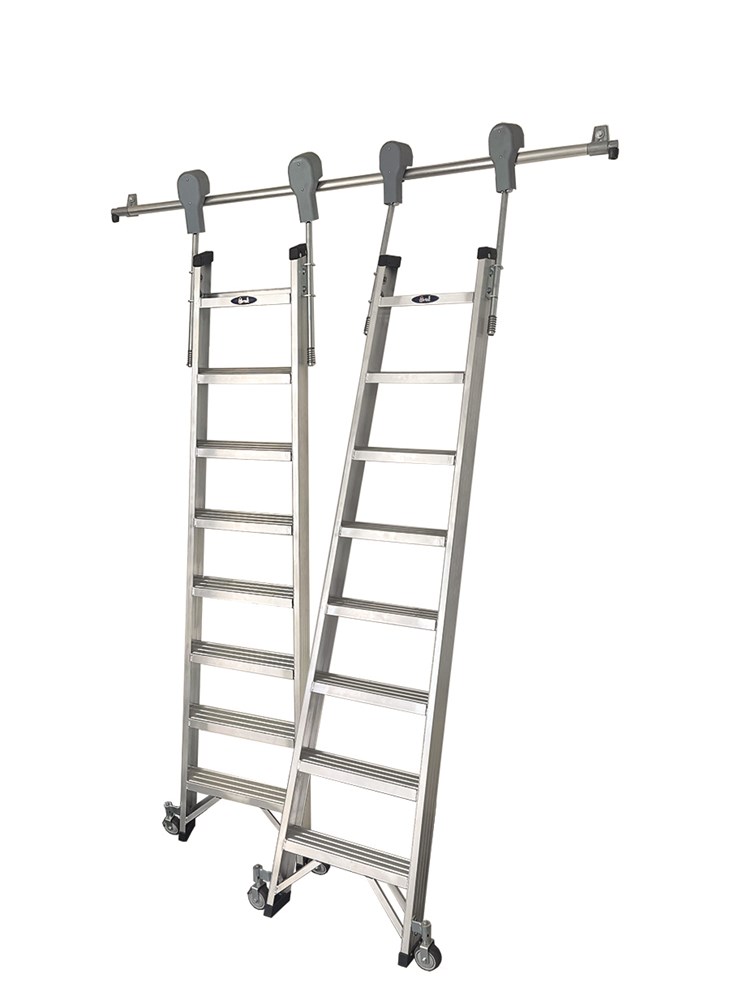

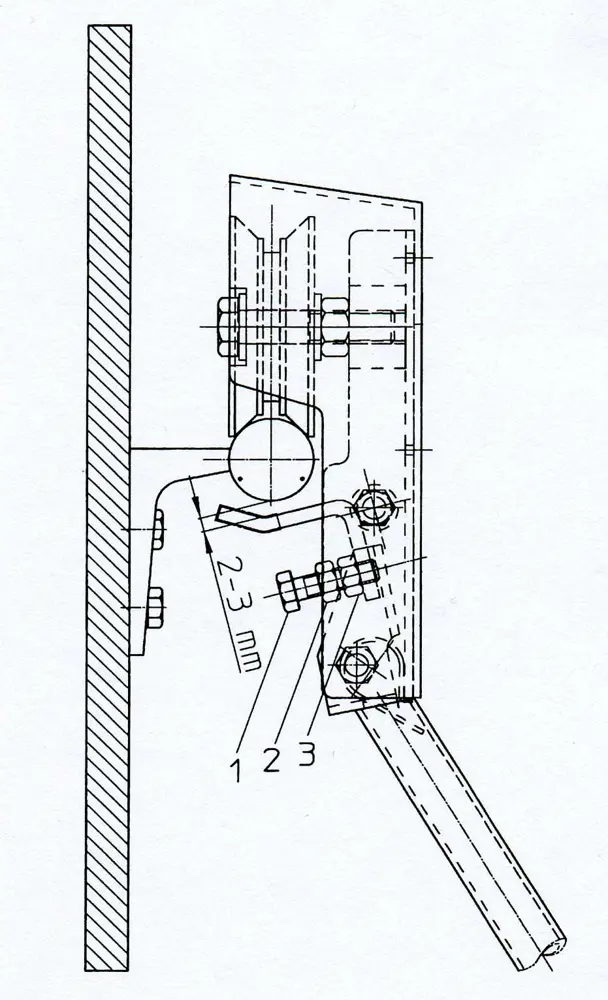

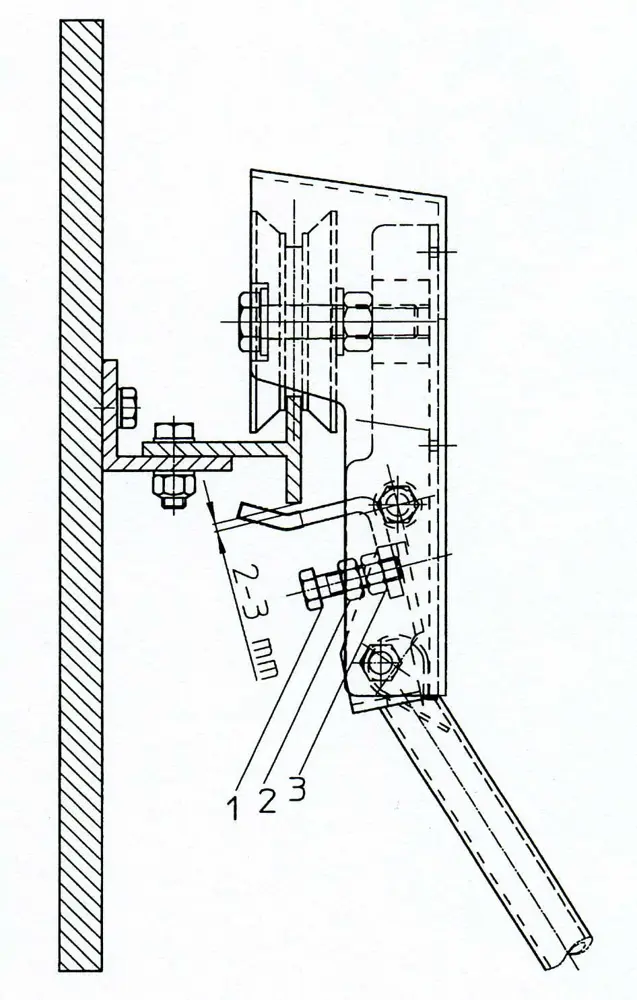

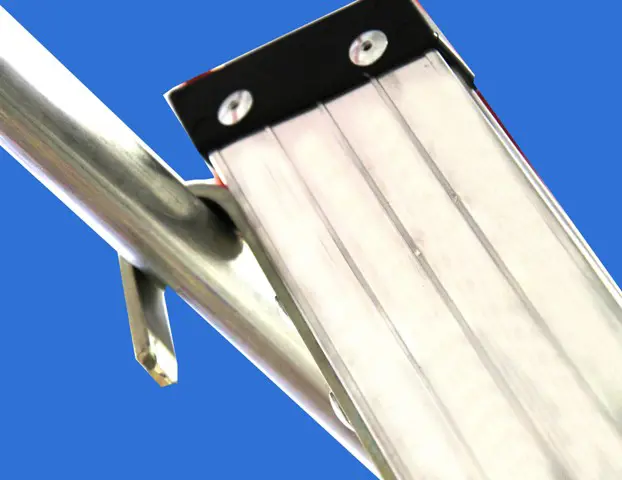

In extruded aluminium is equipped with step-to-side rail connection; the lower end has two self-locking castors (Ø 80 mm) and the upper end has a running gear. To use the ladder, you have to place it in vertical position in front of the shelf. Automatic braking device: it becomes operative when the ladder is in working position and the user is going up the ladder. When the user goes down, the braking system is no more operative and the ladder can be easily moved.

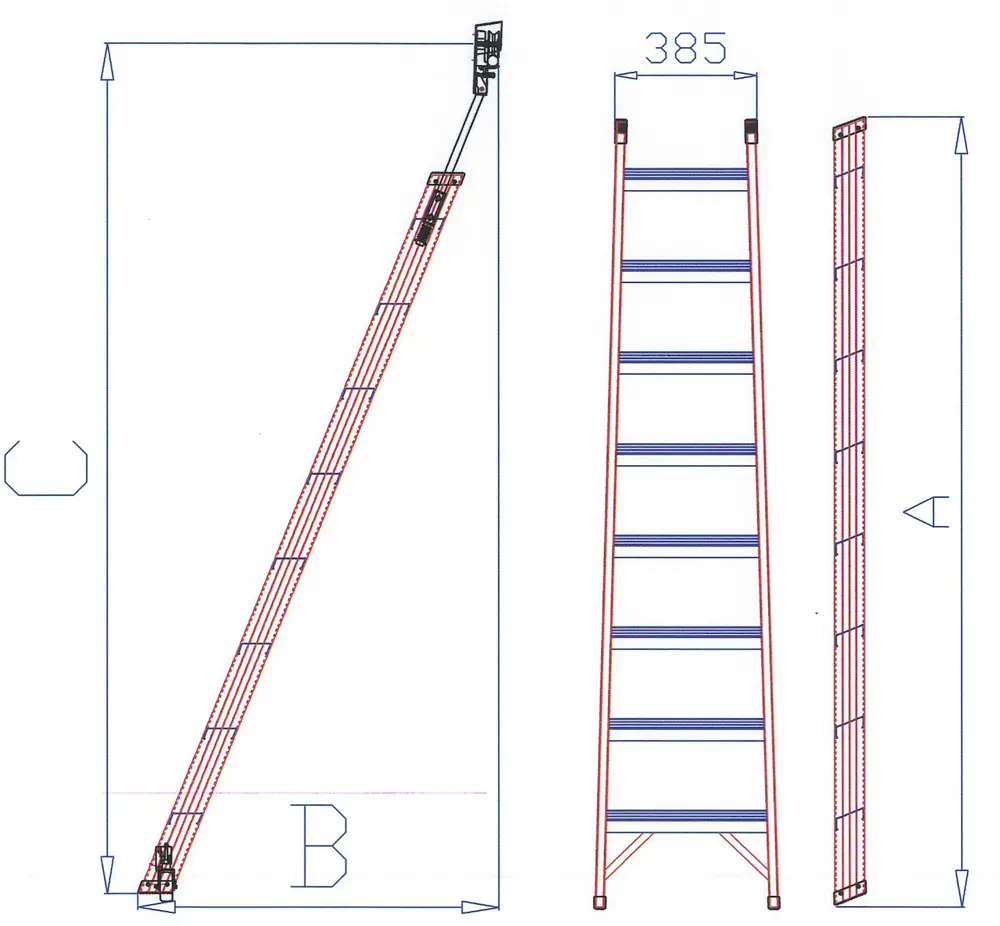

TECHNICAL FEATURES
• Rung depth: 8 cm
• Distance between steps: 25 cm
• No. of rungs: 8 to 18
• Total height: 2,16 to 4,66 m

On request:

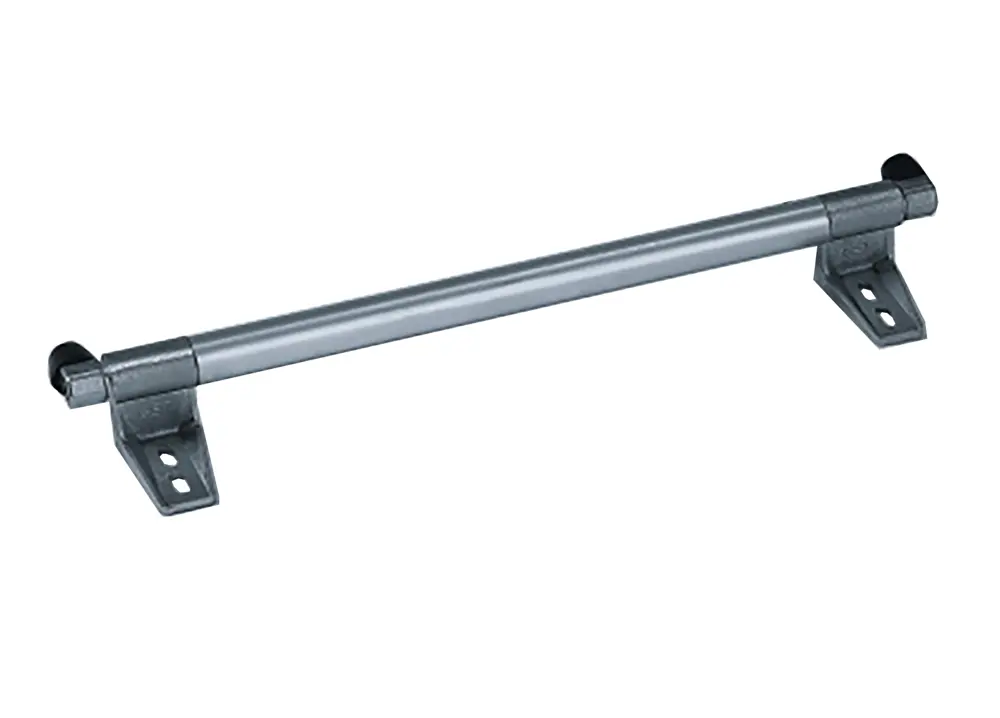

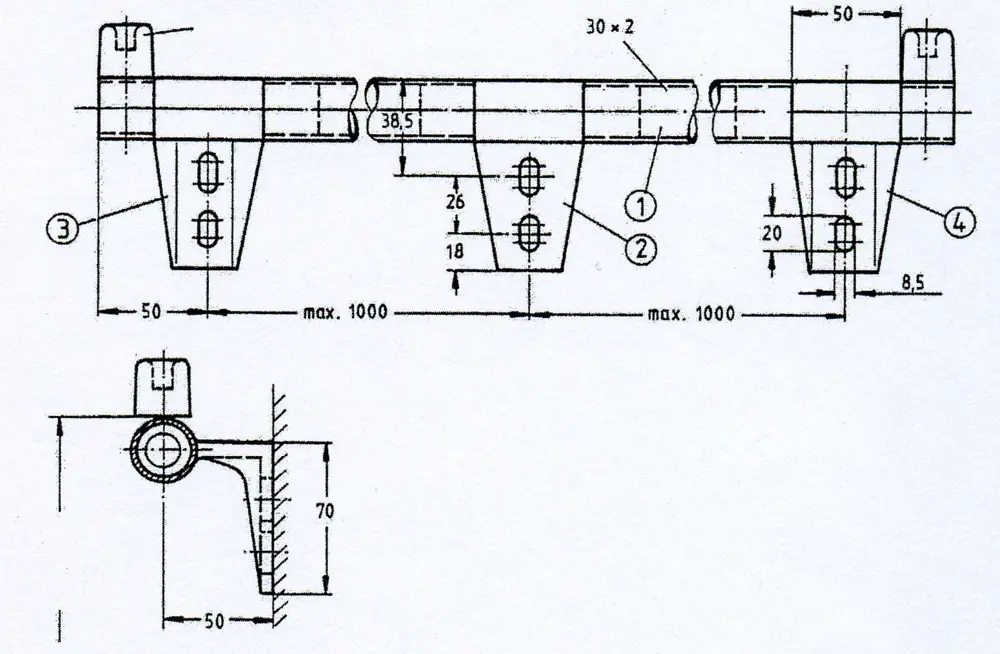

Aluminium rail 3 m, Ø 30 mm

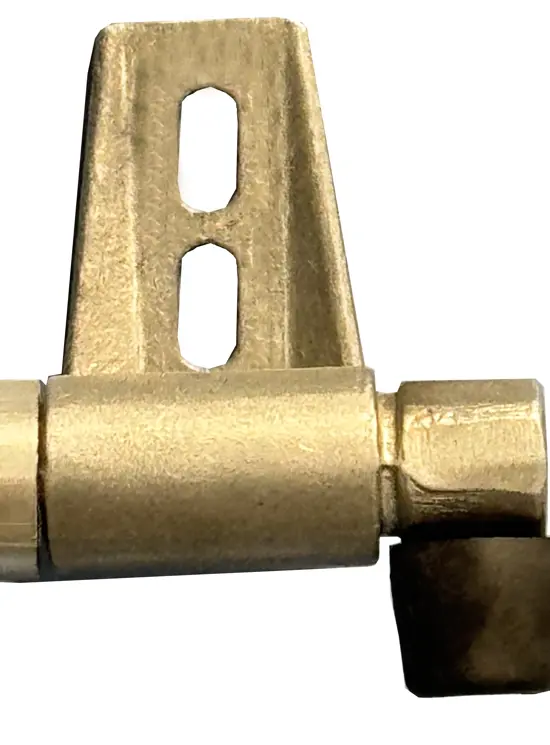

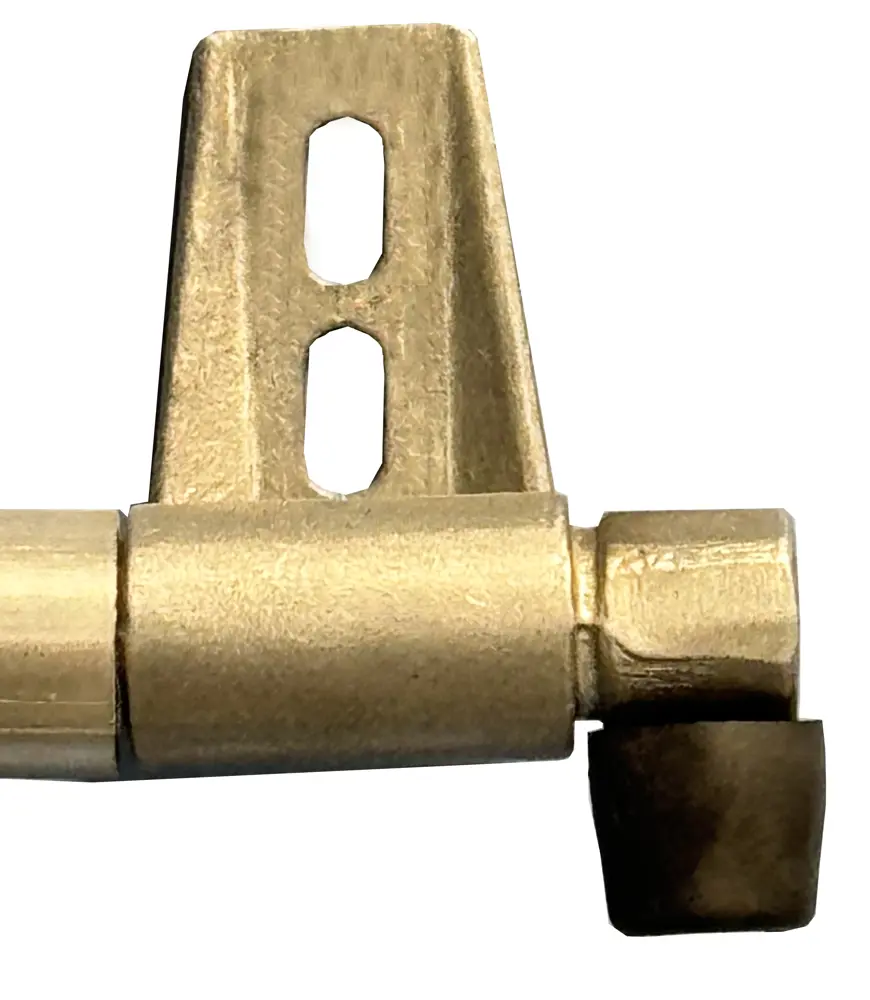

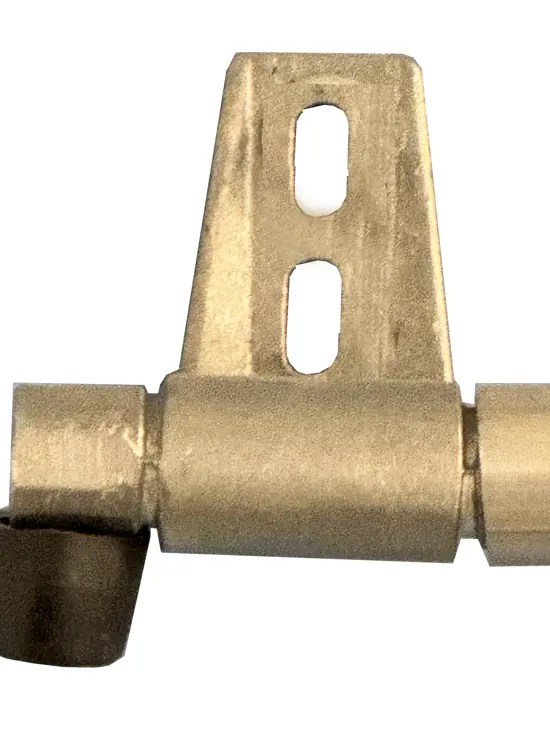

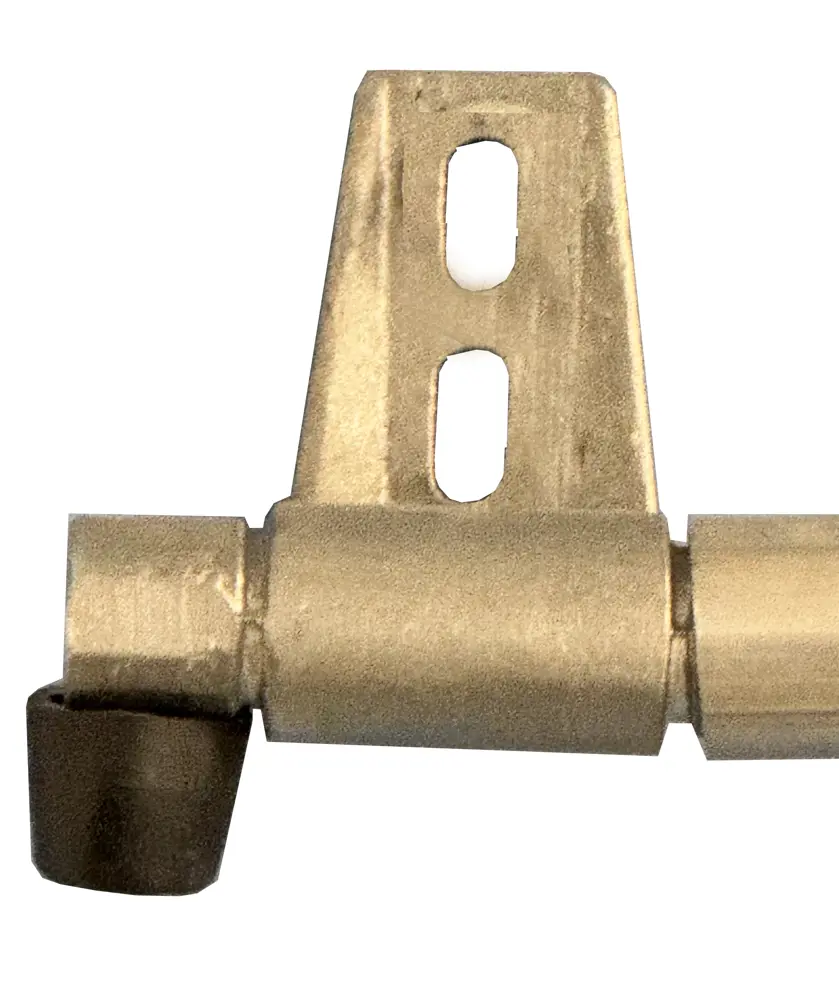

Right upper end support
Left upper end support

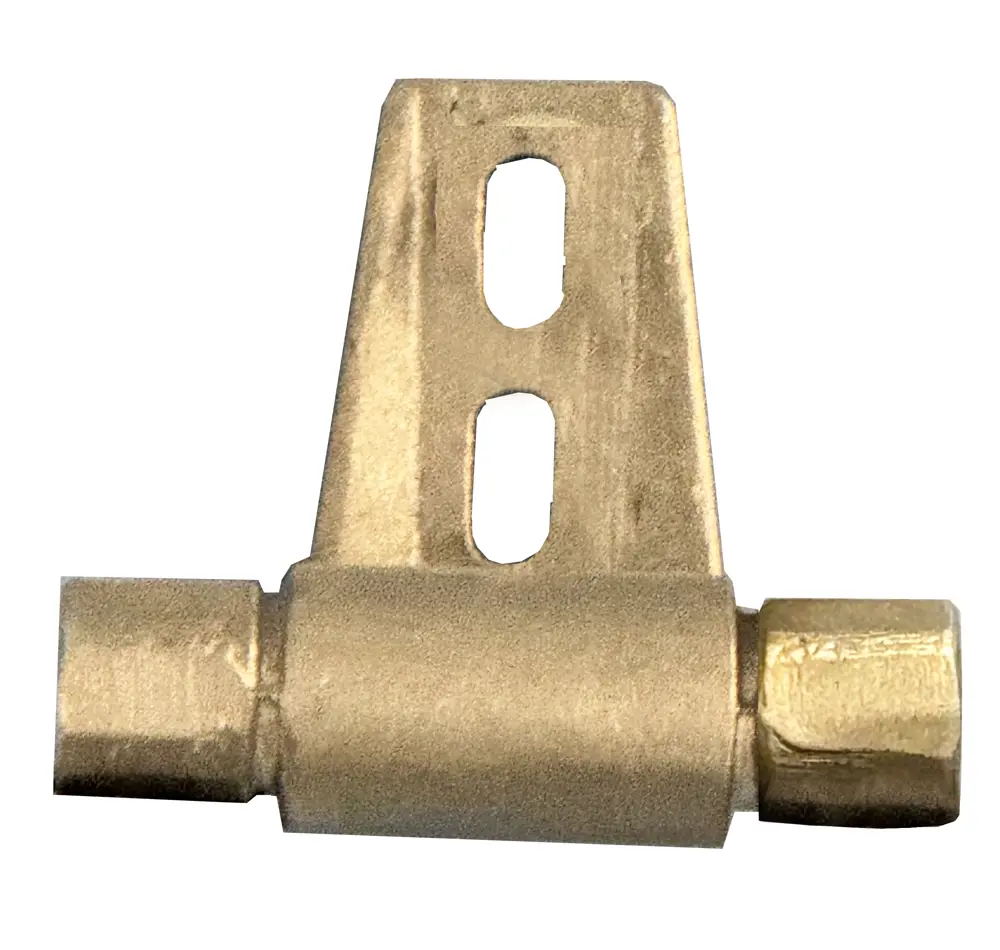

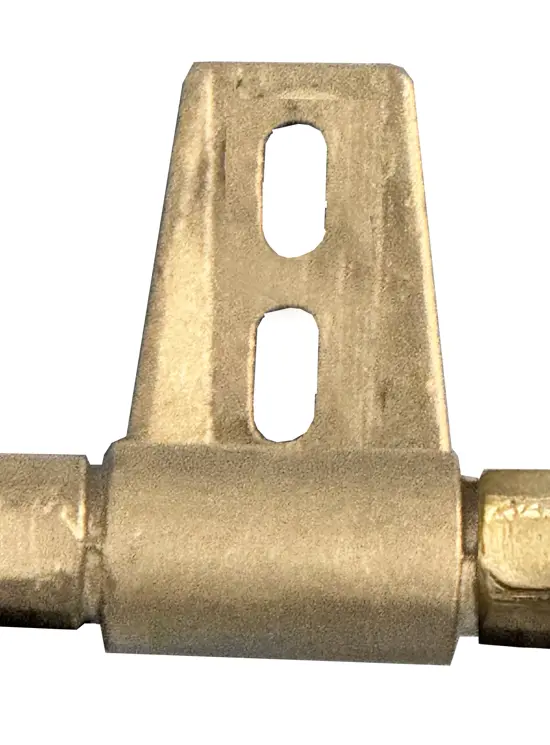

Intermediate support (compulsory 1 m rail each)
Simple stepladder or rungs with hooks and non-skid rubber feet
