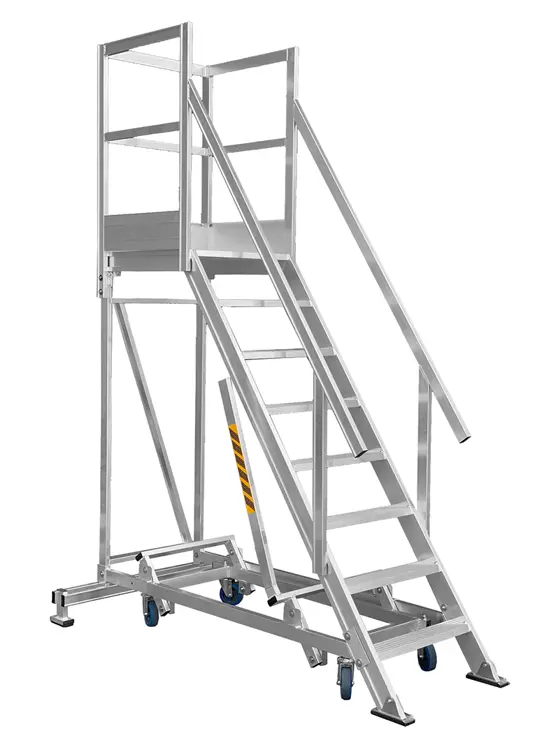

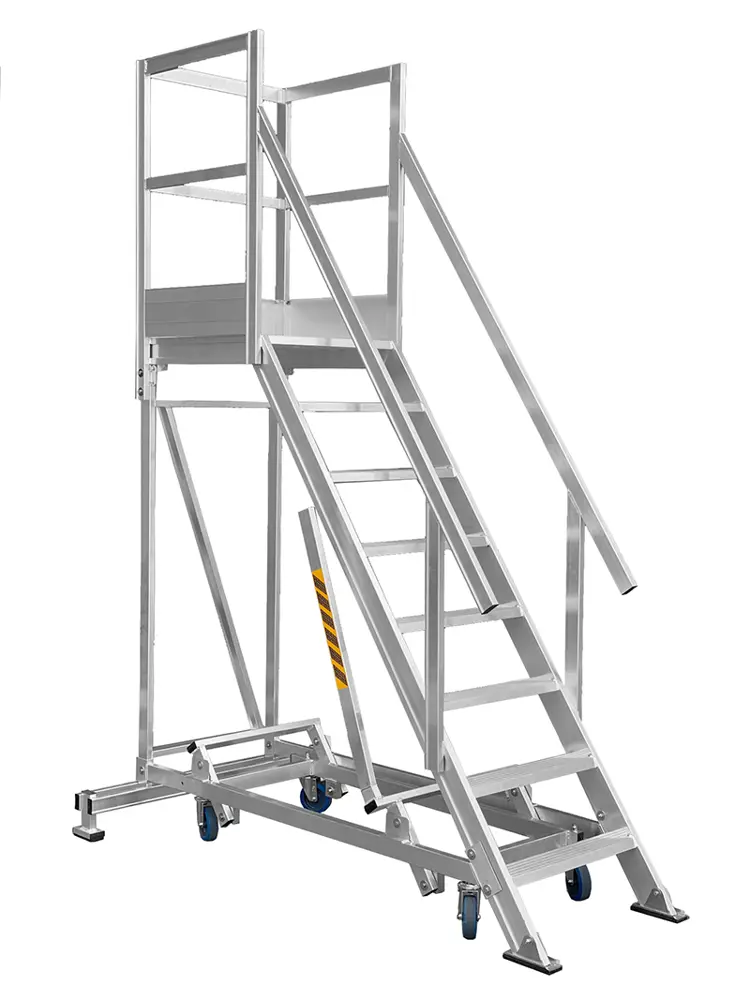

Torretta Safe 4WD
Max height m 4.68
It shows the validity of the guarantee in years
It shows the maximum weight capacity of a product
All our products conforms to the standads in force
Suitable for heavy duty

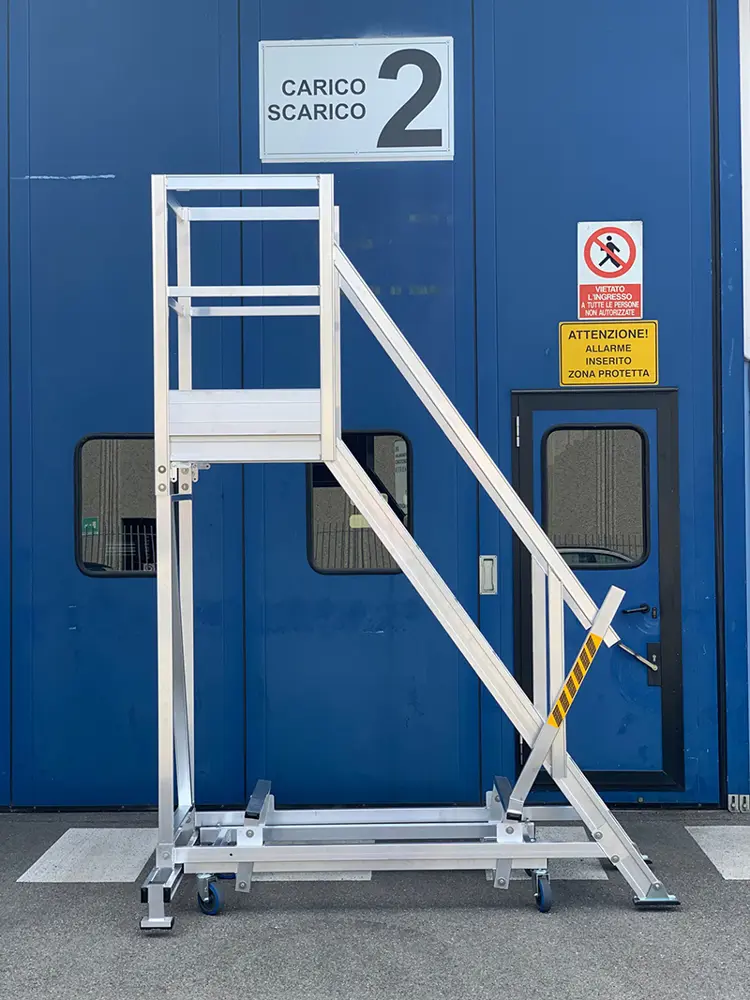

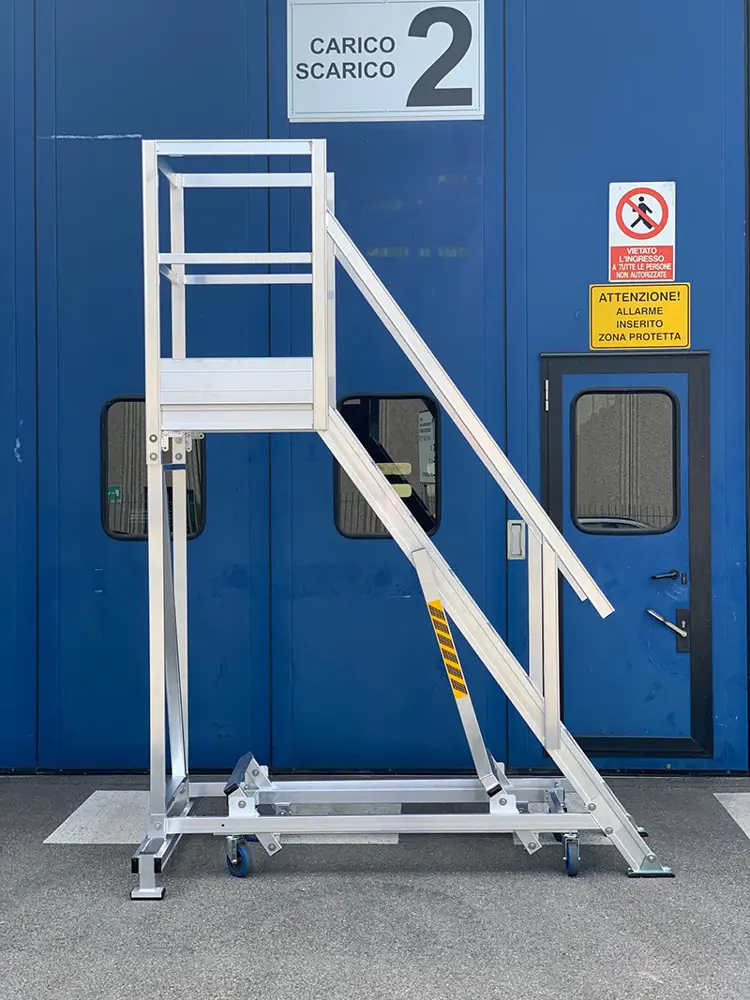

Custom customizable bunk ladder with SAFE wheel lock frame
Fixed non-foldable ladder equipped with 60x70 cm platform, bodyguard and 1 meter high handrail.
For professional use it is made of welded ribbed extruded aluminum.
The steps are welded to the posts to create an ultra-strong monolith.
The ladder can be equipped with a front or side landing with a gate to access vehicles or machinery.
The backrest is perpendicular to the ground so that the operator can approach the wall or machine head-on.
The wide and comfortable ramp is very inclined 55° for easier climbing, also guaranteed by the flat non-slip steps 10 or 20 cm deep and with a distance of only 23 cm from each other.
SICURBLOCK braking system
The Sicurblock self-braking safety system allows the ladder to be moved on 4 Ø 125 mm swivel wheels and locked in the working position with a gesture.
It consists of a manual lever that allows the operator to activate the base frame equipped with wheels when movement is necessary.
When the lever truck is deactivated, the feet of the ladder rest on the ground and make it stable and ready for the operator to climb.
When the lever truck is deactivated, the feet of the ladder rest on the ground and make it stable and ready for the operator to climb.
The ladder must not be moved with people, objects and/or material on board.
TECHNICAL CHARACTERISTICS AND EQUIPMENT
- Ramp profile: 100x30 mm
- Bodyguard and handrail height: 100 cm
- Toe height: cm 15
- Ramp width: 65 cm
- Wheels: diam. 200 mm with brake
- Anti-bending crossbars on longer steps
- Ergonomic and oversized non-slip rubber pads for maximum adherence to the ground
- Labels and use and maintenance manual
- Test certificate according to Italian regulations
- Certified TIG welding
CODES STEP 100 mm | CODES STEP 200 mm | STEPS n. | HEIGHT PLATFORM m | HEIGHT TOTAL m | HEIGHT WORKING TIME HANDS-ON m | OVERALL DIMENSIONS A EARTH width.xlung. m | WEIGHT STEP 100 mm KG | WEIGHT STEP 200 mm KG |
| SCTSAFE103 | SCTSAFE203 | 3 | 0,70 | 1,70 | 2,70 | 1.00x1.27 | 33,00 | 35,00 |
| SCTSAFE104 | SCTSAFE204 | 4 | 0,92 | 1,92 | 2,92 | 1.00x1.43 | 36,00 | 39,00 |
| SCTSAFE105 | SCTSAFE205 | 5 | 1,15 | 2,15 | 3,15 | 1.00x1.60 | 38,00 | 42,00 |
| SCTSAFE106 | SCTSAFE206 | 6 | 1,38 | 2,38 | 3,38 | 1.00x1.75 | 39,00 | 44,00 |
| SCTSAFE107 | SCTSAFE207 | 7 | 1,60 | 2,60 | 3,60 | 1.16x1.90 | 41,00 | 47,00 |
| SCTSAFE108 | SCTSAFE208 | 8 | 1,85 | 2,85 | 3,85 | 1.16x2.07 | 45,00 | 52,00 |
| SCTSAFE109 | SCTSAFE209 | 9 | 2,06 | 3,06 | 4,06 | 1.16x2.23 | 49,00 | 57,00 |
| SCTSAFE110 | SCTSAFE210 | 10 | 2,30 | 3,30 | 4,30 | 1.16x2.40 | 51,00 | 60,00 |
| SCTSAFE111 | SCTSAFE211 | 11 | 2,53 | 3,53 | 4,53 | 1.32x2.55 | 56,00 | 66,00 |
| SCTSAFE112 | SCTSAFE212 | 12 | 2,75 | 3,75 | 4,75 | 1.32x2.70 | 60,00 | 71,00 |
| SCTSAFE113 | SCTSAFE213 | 13 | 3,00 | 4,00 | 5,00 | 1.48x2.90 | 62,00 | 74,00 |
| SCTSAFE114 | SCTSAFE214 | 14 | 3,20 | 4,20 | 5,20 | 1.48x3.03 | 67,00 | 80,00 |
| SCTSAFE115 | SCTSAFE215 | 15 | 3,45 | 4,45 | 5,45 | 1.48x3.20 | 71,00 | 85,00 |
| SCTSAFE116 | SCTSAFE216 | 16 | 3,68 | 4,68 | 5,68 | 1.48x3.20 | 77,00 | 92,00 |
| SCTSAFE117 | SCTSAFE217 | 17 | 3,91 | 4,91 | 5,91 | 1.60x3.40 | 82,00 | 98,00 |
On request
- Tool tray
- Possibility of front or side landing with gate or chains
- Access side protected with chain
- Closable railing for passage under doors
- Grating Steps/Platform (Galvanized Steel)
- Grating Steps/Platform (aluminium)
- Turret ladder with double ascent or bridge
- Special sizes
- Telescopic or cantilever platform
- Steps and/or platform with ANTI-SLIP PROFILES (for use in the presence of oil, water, and other slippery substances)
- Bumpers for delicate products (planes, helicopters, trains, buses, etc.)
AVERAGE DELIVERY TIME APPROX. 20/25 WORKING DAYS
