Cantilevered turret

Max height m 4.68

It shows the validity of the guarantee in years

It shows the maximum weight capacity of a product

All our products conforms to the standads in force

Suitable for heavy duty

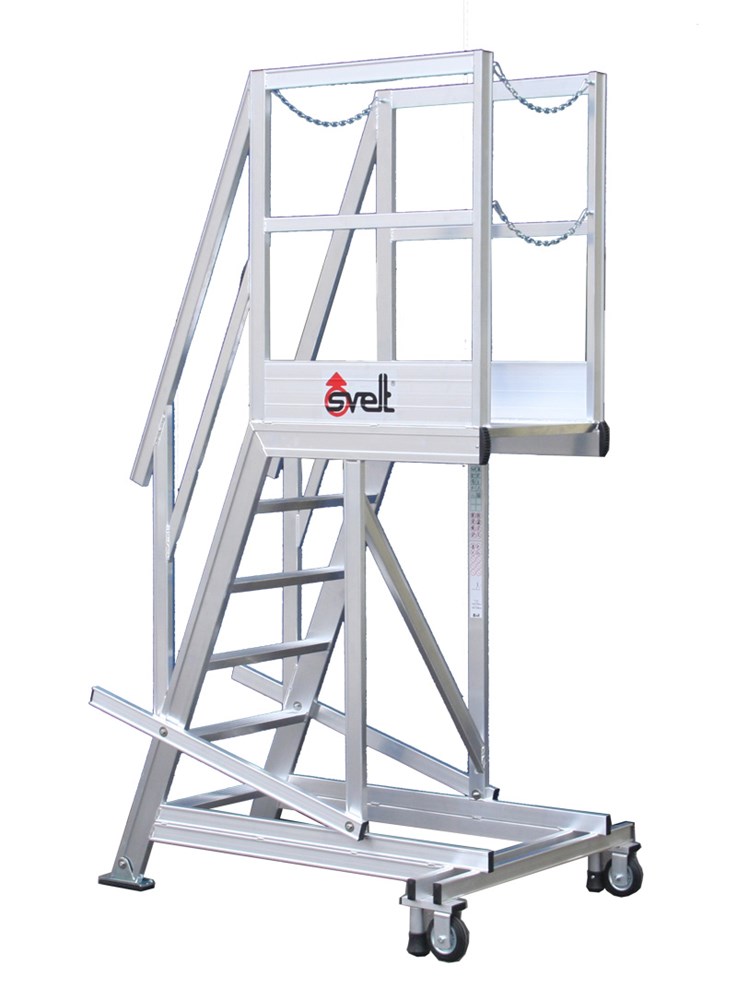

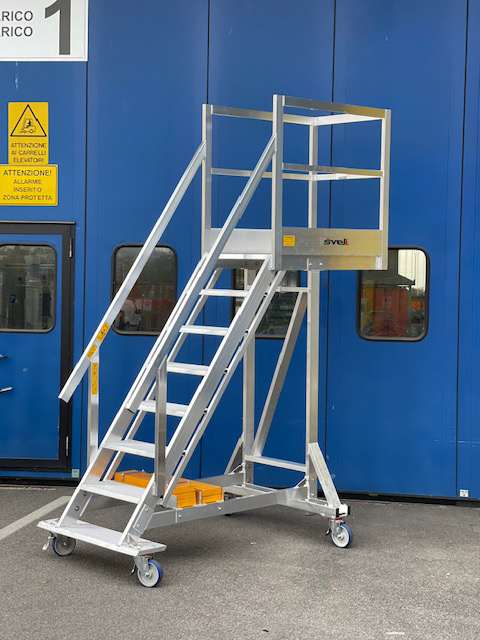

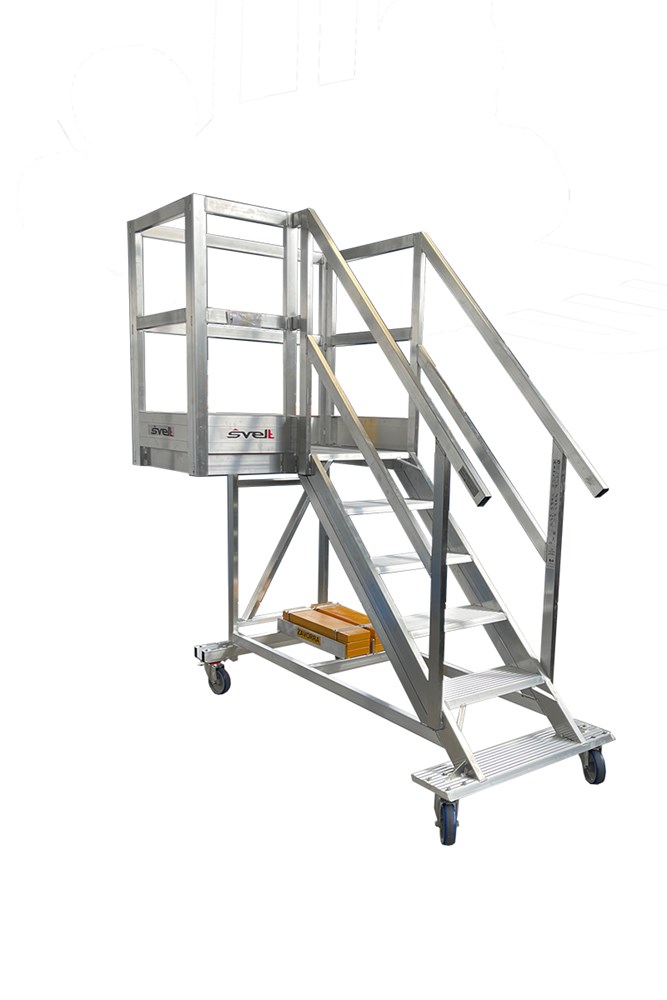

Customisable bunk staircase with custom-made cantilever

Custom-made movable ladder equipped with 60x70 cm platform, bodyguard and 1 meter high handrail.

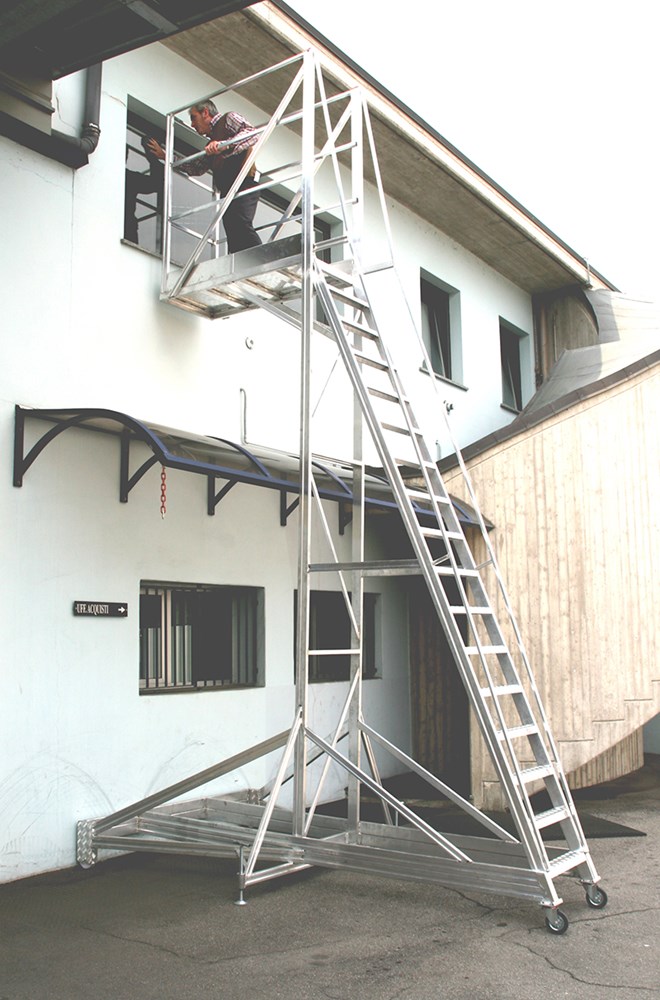

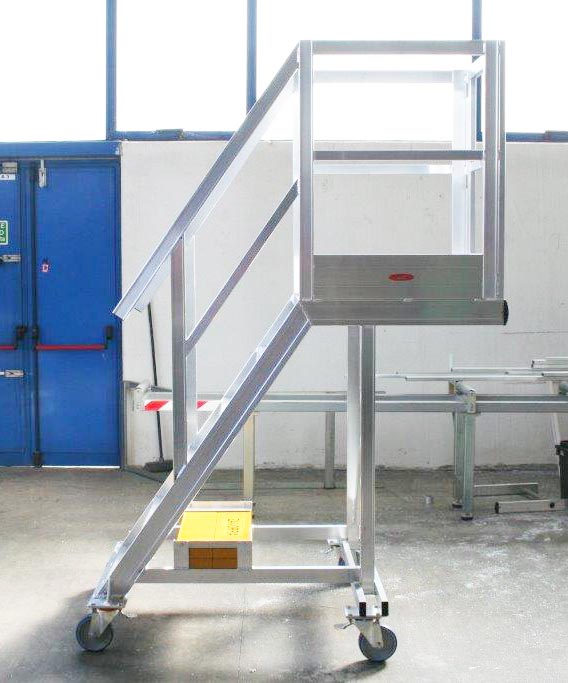

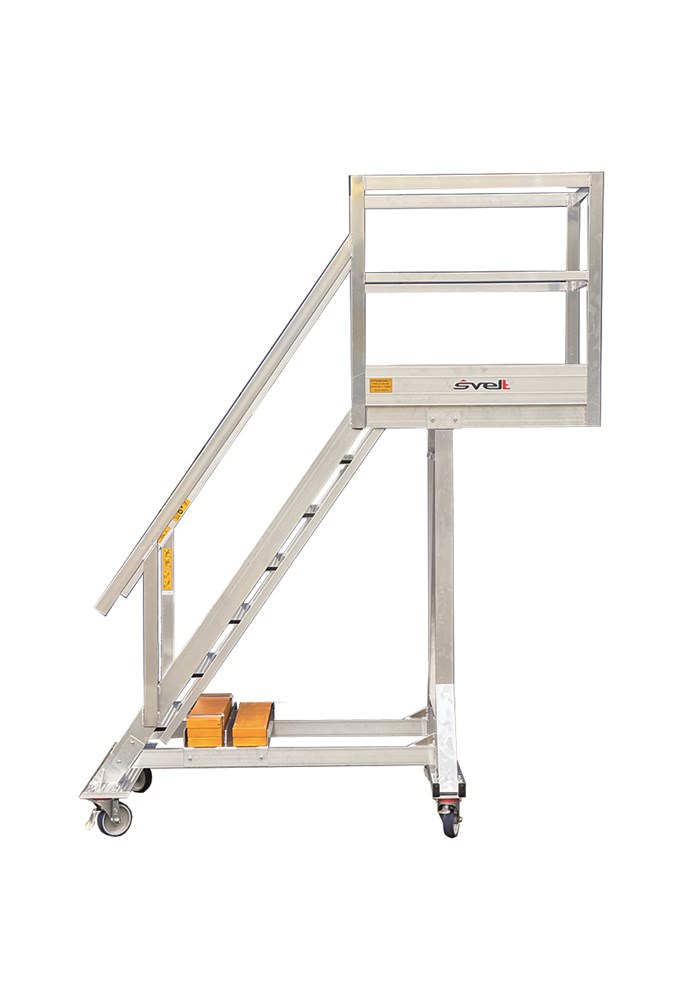

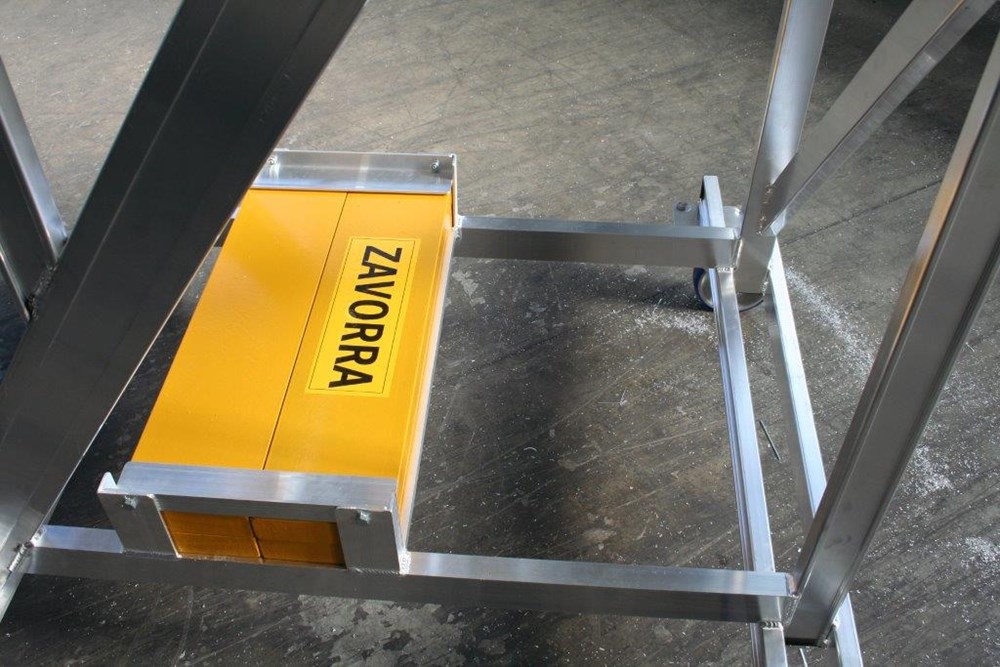

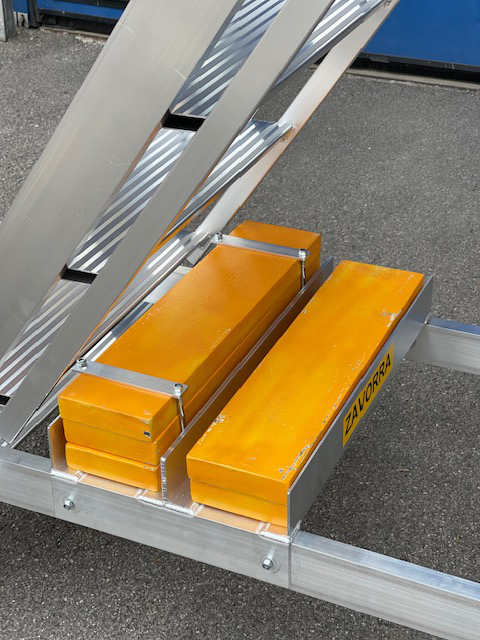

Equipped with a custom-made EMBOSS and relative counterweights or, optionally, bracing on the ground that balances the overhang.

For professional use , it is made of welded ribbed extruded aluminum and is ideal for climbing over production lines, containers, obstacles.

The steps are welded to the posts to create an ultra-strong monolith.

The ladder can be equipped with a front or side landing with a gate to access vehicles or machinery.

The backrest is perpendicular to the ground so that the operator can approach the wall or machine head-on.

The wide and comfortable ramp is very inclined 55° for easier climbing, also guaranteed by the flat non-slip steps 10 or 20 cm deep and with a distance of only 23 cm from each other.

EQUIPMENT AND TECHNICAL CHARACTERISTICS

Ramp profile: 100x30 mm
4WDF: kit of 4 wheels Ø 150 mm with brake
Bodyguard and handrail height: 100 cm
Toe height: cm 15
Ramp width: 65 cm
Wheels: diam. 200 mm with brake
Anti-bending crossbars on longer steps

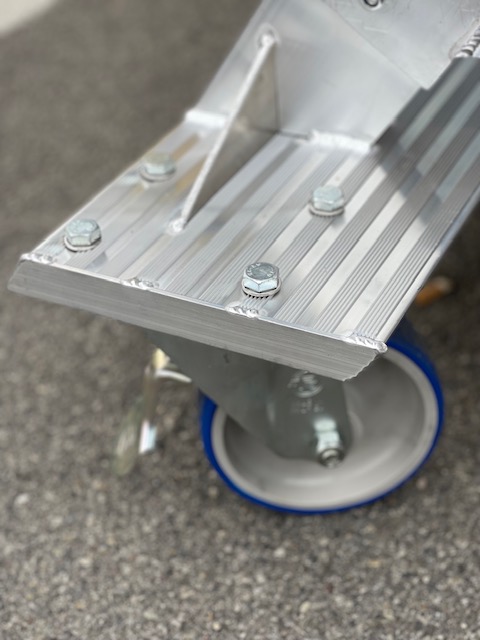

Ergonomic and oversized non-slip rubber pads for maximum adherence to the ground
Labels and use and maintenance manual
Test certificate according to Italian regulations
Certified TIG welding

STEPS n.	HEIGHT PLATFORM m	HEIGHT TOTAL m	HEIGHT WORKING TIME HANDS-ON m	OVERALL DIMENSIONS A EARTH m	WEIGHT KG STEP 100 mm	WEIGHT KG STEP 200 mm
3	0,70	1,70	2,70	1.00x1.27	26,00	28,00
4	0,92	1,92	2,92	1.00x1.43	29,00	32,00
5	1,15	2,15	3,15	1.00x1.60	31,00	35,00
6	1,38	2,38	3,38	1.00x1.75	32,00	37,00
7	1,60	2,60	3,60	1.16x1.90	34,00	40,00
8	1,85	2,85	3,85	1.16x2.07	37,00	44,00
9	2,06	3,06	4,06	1.16x2.23	41,00	49,00
10	2,30	3,30	4,30	1.16x2.40	44,00	53,00
11	2,53	3,53	4,53	1.32x2.55	47,00	57,00
12	2,75	3,75	4,75	1.32x2.70	51,00	62,00
13	3,00	4,00	5,00	1.48x2.90	53,00	65,00
14	3,20	4,20	5,20	1.48x3.03	57,00	70,00
15	3,45	4,45	5,45	1.48x3.20	61,00	75,00
16	3,68	4,68	5,68	1.60x3.20	66,00	81,00
17	3,91	4,91	5,91	1.60x3.40	71,00	87,00

On request

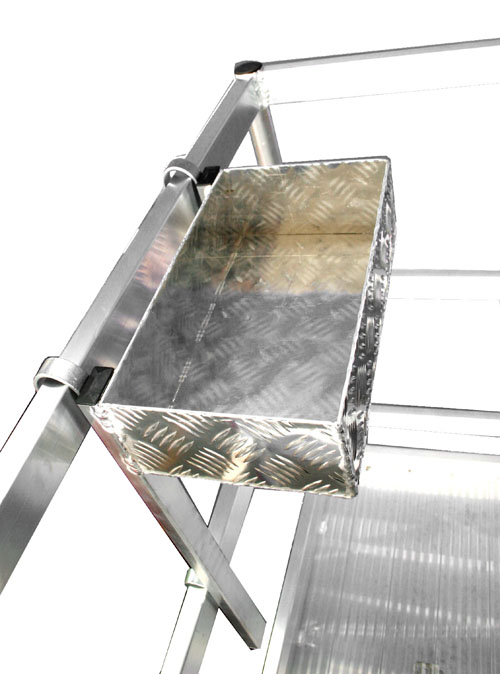

Tool tray
Possibility of front or side landing with gate or chains
Access side protected with chain
Grating Steps/Platform (Galvanized Steel)
Grating Steps/Platform (aluminium)
Special sizes
Steps and/or platform with ANTI-SLIP PROFILES (for use in the presence of oil, water, and other slippery substances)

Bumpers for delicate products (planes, helicopters, trains, buses, etc.)

MANDATORY INTERNAL TESTING

Svelt supplies this product with its own certificate of compliance with Italian regulations Legislative Decree 81/2008

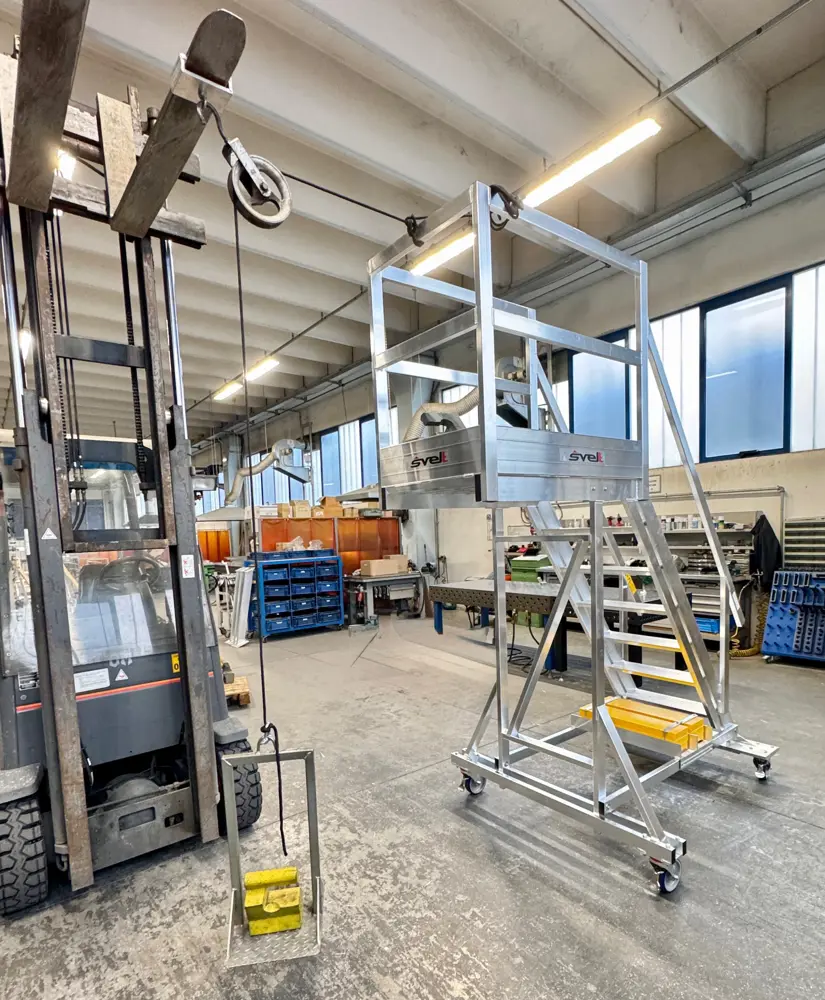

The ladder is also tested in-house for the declared flow rate.

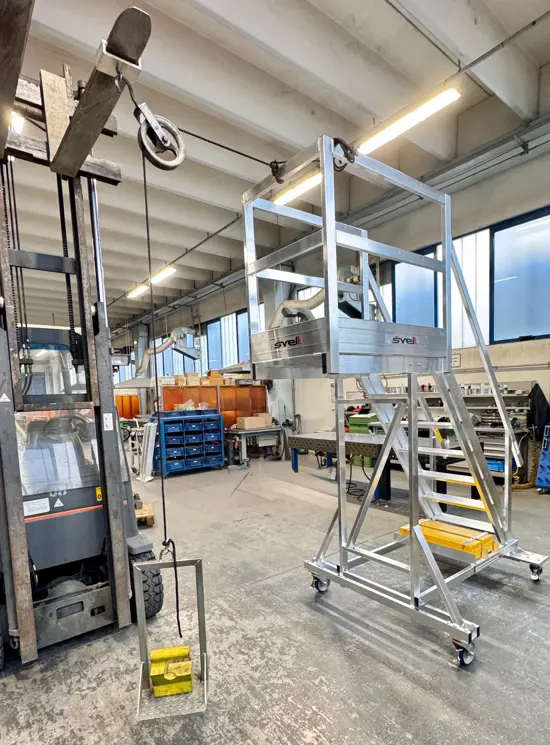

A rollover test is also carried out.

A documentation of the successful testing is stored in the SVELT database.

TESTING YES. PREV. (ON REQUEST)

In case you wish to test the staircase with an external engineering company (SI. PREV.), this must be immediately requested from SVELT who will send a quote.

In this case, it is necessary that the test request is made at the same time as that of the staircase.

In this case, the capacity of the ladder cannot exceed 100 kg, since the former ISPELS standard on which the testing is based, does not contemplate tests for higher capacities.

AVERAGE DELIVERY TIME APPROX. 20/25 WORKING DAYS
