Torretta
Max height m 4.68
It shows the validity of the guarantee in years
It shows the maximum weight capacity of a product
All our products conforms to the standads in force
Suitable for heavy duty
Customisable bunk staircase

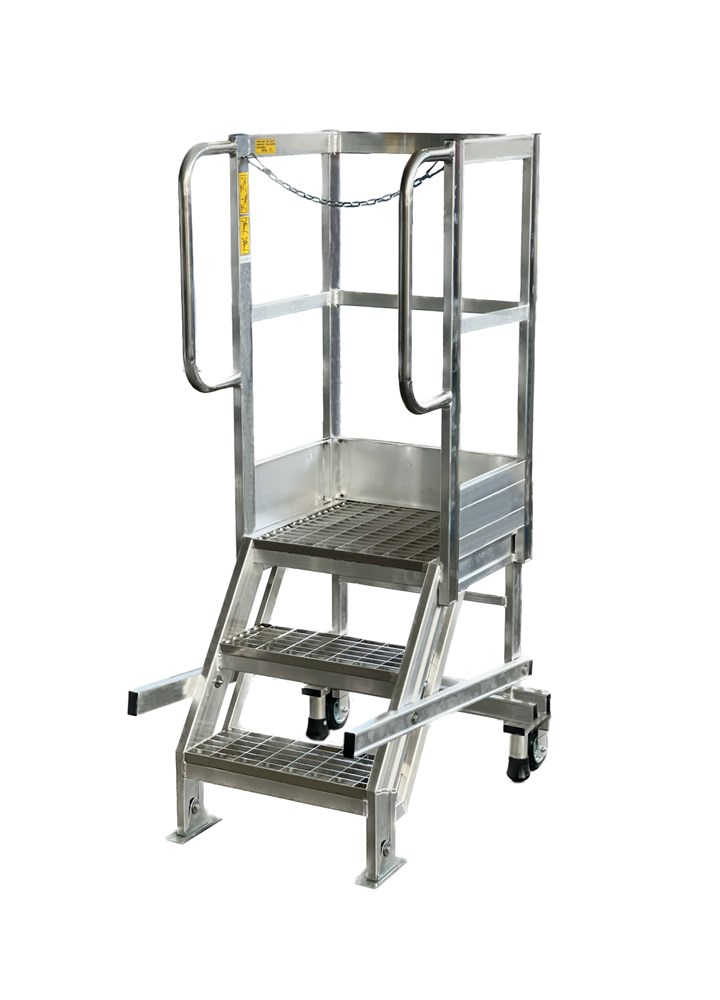

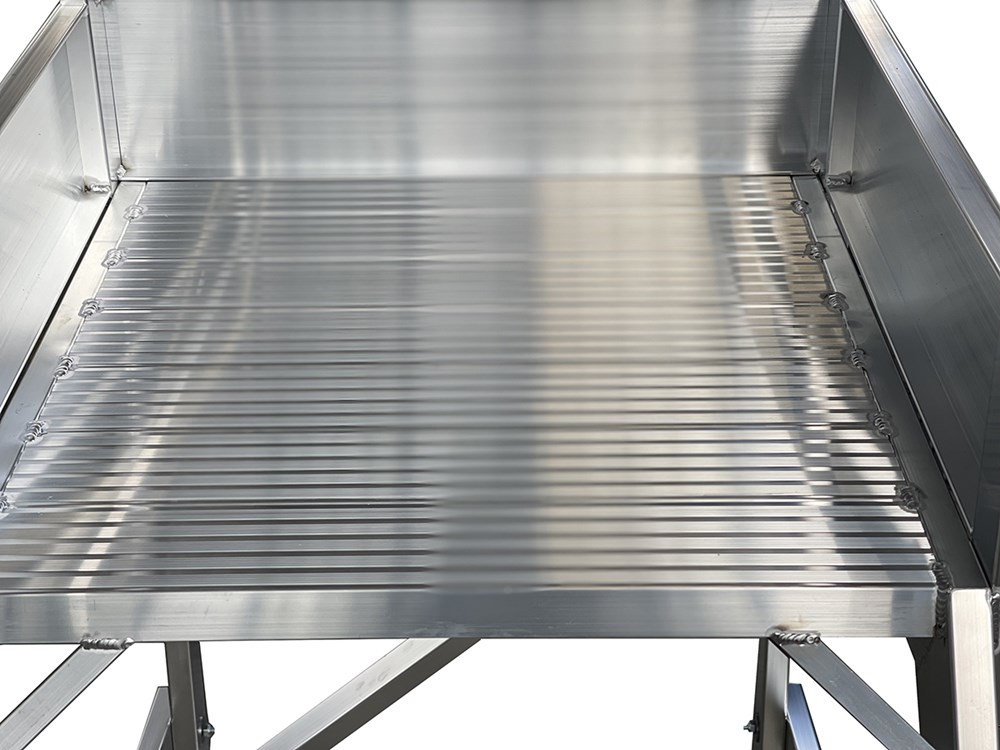

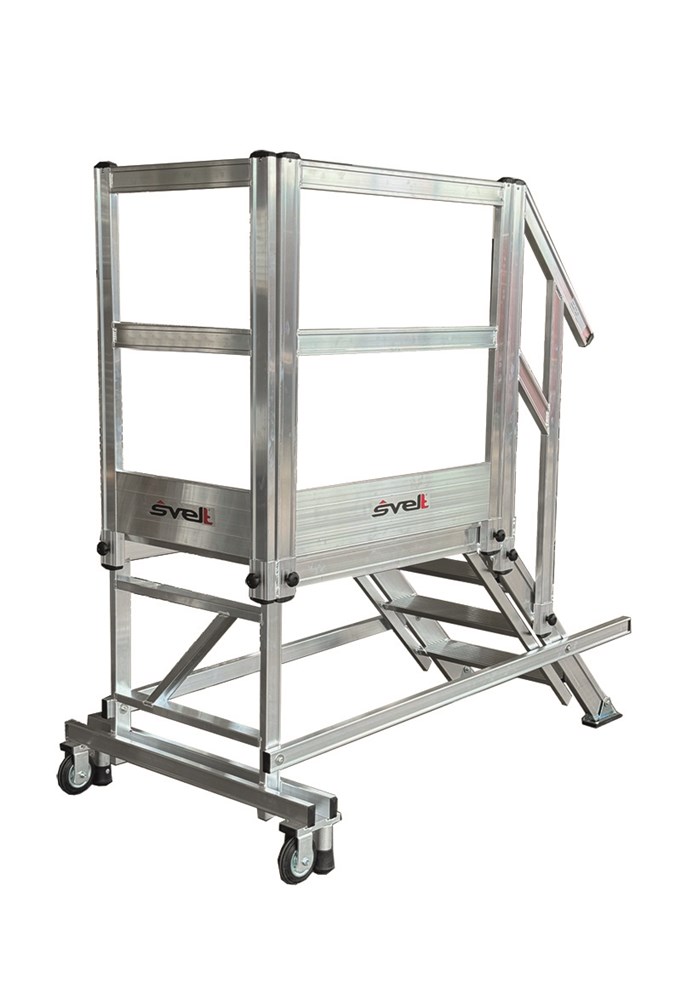

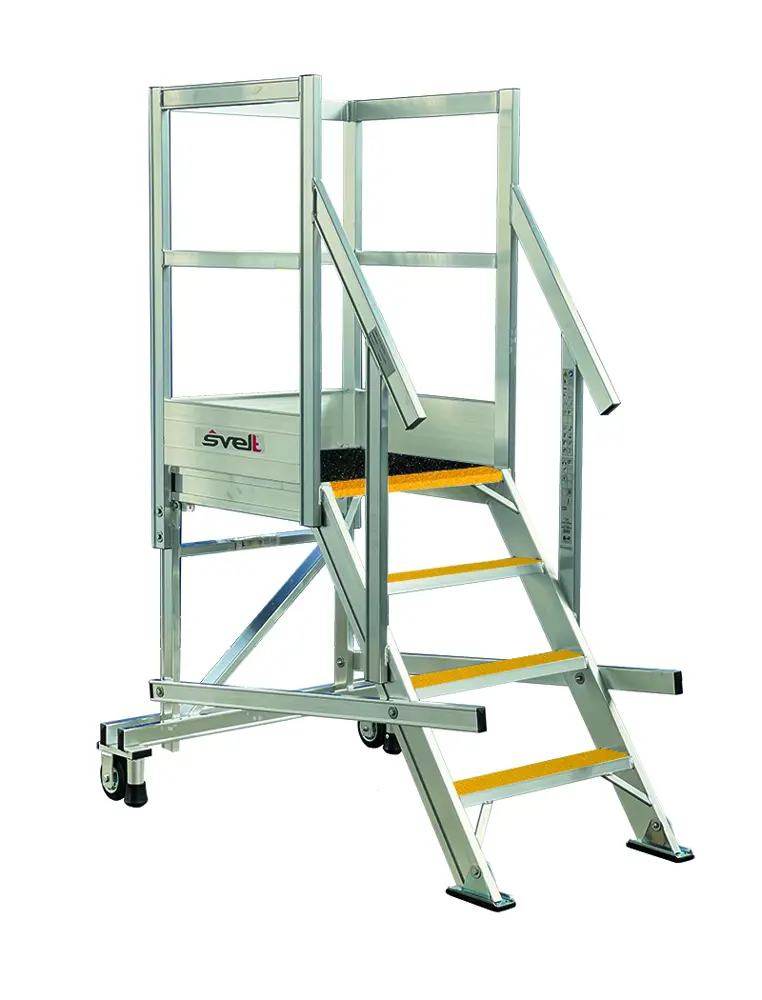

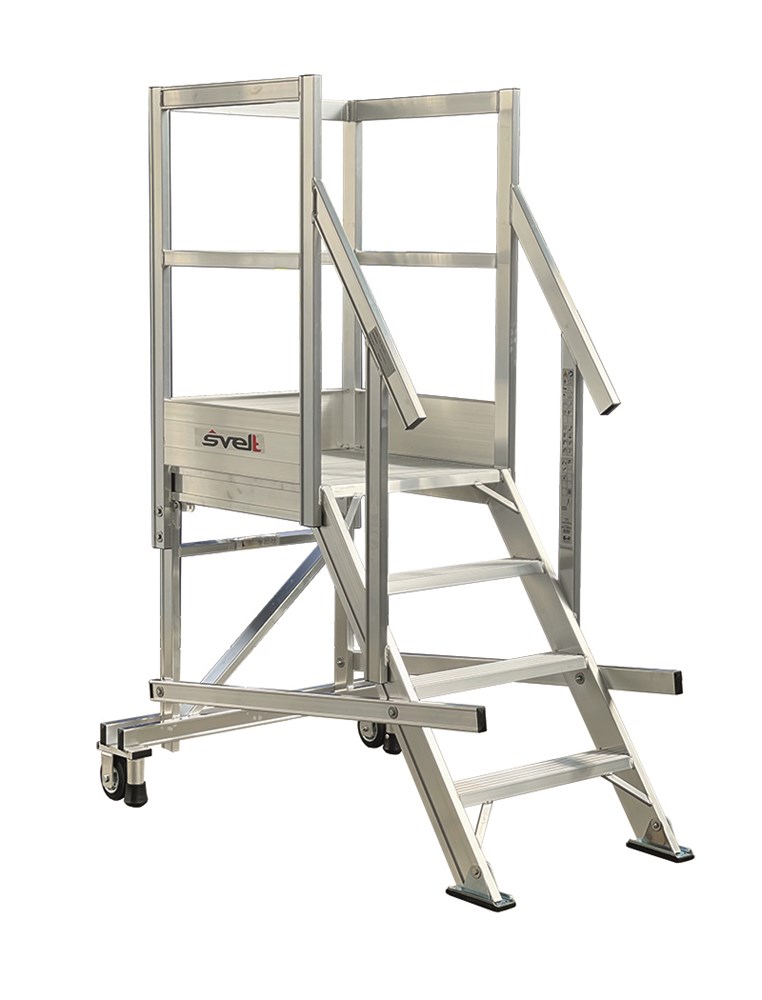

Fixed non-foldable ladder equipped with 60x70 cm platform, bodyguard and 1 meter high handrail.
For professional use it is made of welded ribbed extruded aluminum.
The steps are welded to the posts to create an ultra-strong monolith.
The ladder can be equipped with a front or side landing with a gate to access vehicles or machinery.
The backrest is perpendicular to the ground so that the operator can approach the wall or machine head-on.

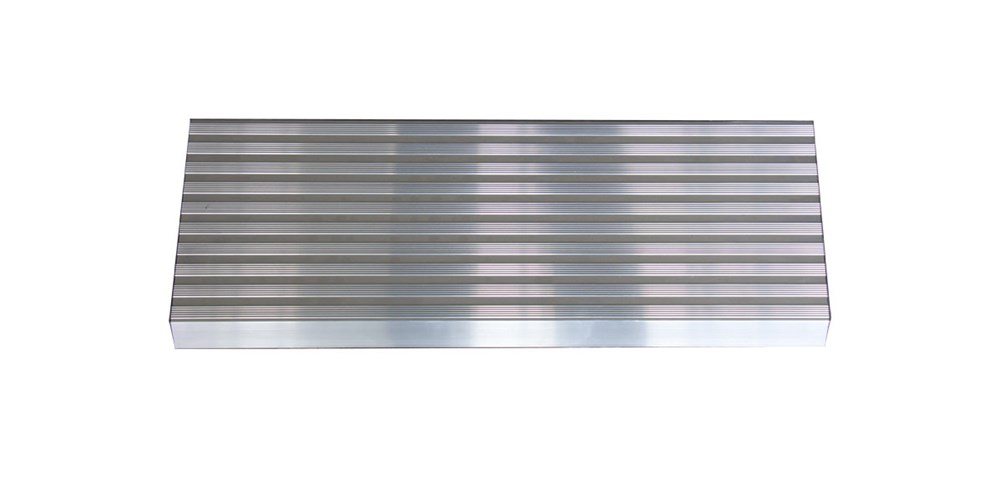

The wide and comfortable ramp is very inclined 55° for easier climbing, also guaranteed by the flat non-slip steps 10 or 20 cm deep and with a distance of only 23 cm from each other.

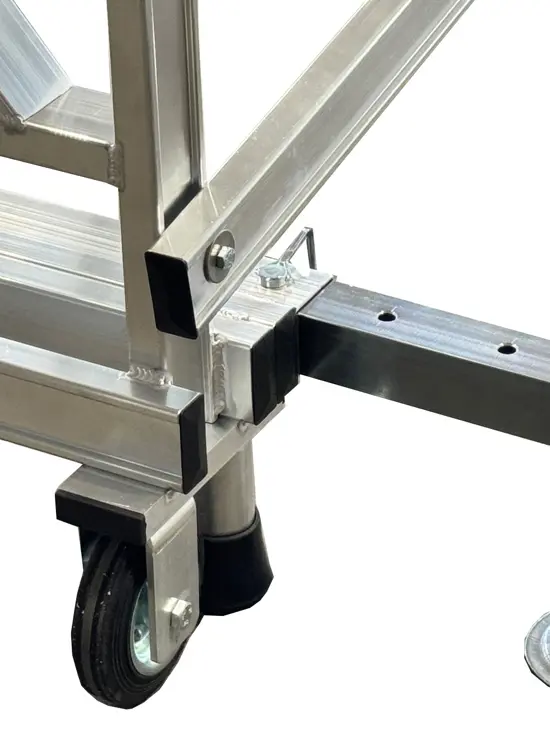

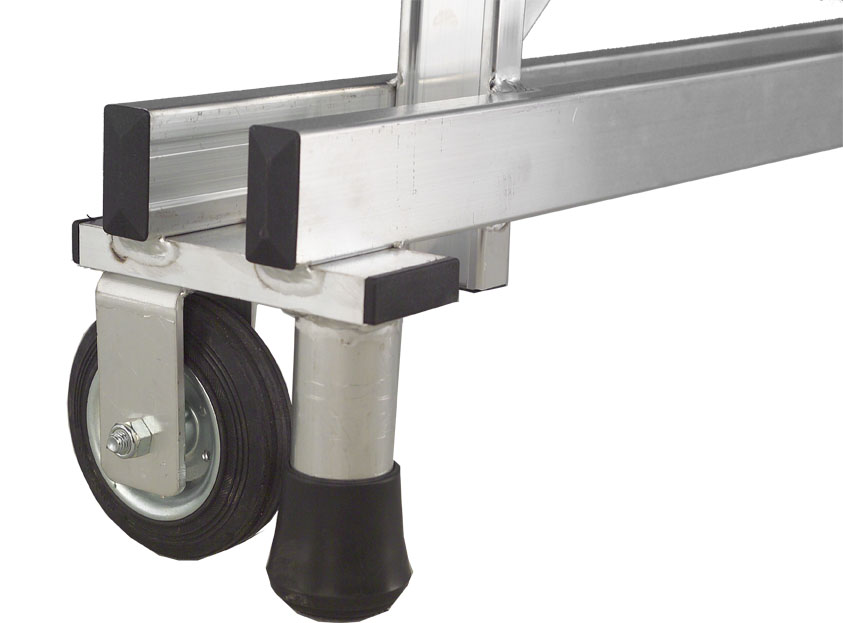

The braking system
It is automatic and is active when the ladder is in place in the working position.

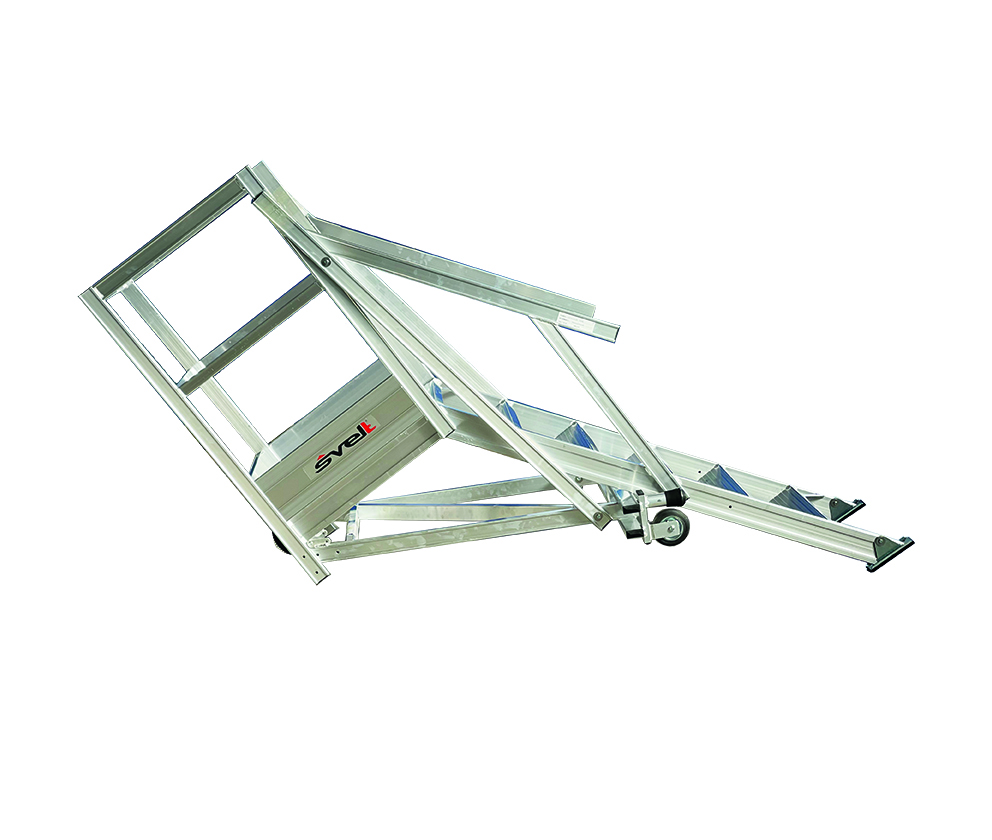

As soon as the ladder is lifted using the special handles for handling, the stop pads are lifted allowing the PVC wheels to slide on the ground.
The ladder must not be moved with people, objects and/or material on board.
The ladder must not be moved with people, objects and/or material on board.
EQUIPMENT AND TECHNICAL CHARACTERISTICS
- Ramp profile: 100x30 mm

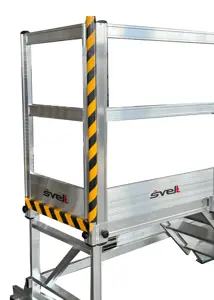

- Bodyguard and handrail height: 100 cm
- Toe height: cm 15
- Ramp width: 65 cm
- Wheels: diam. 125 mm
- Anti-bending crossbars on longer steps

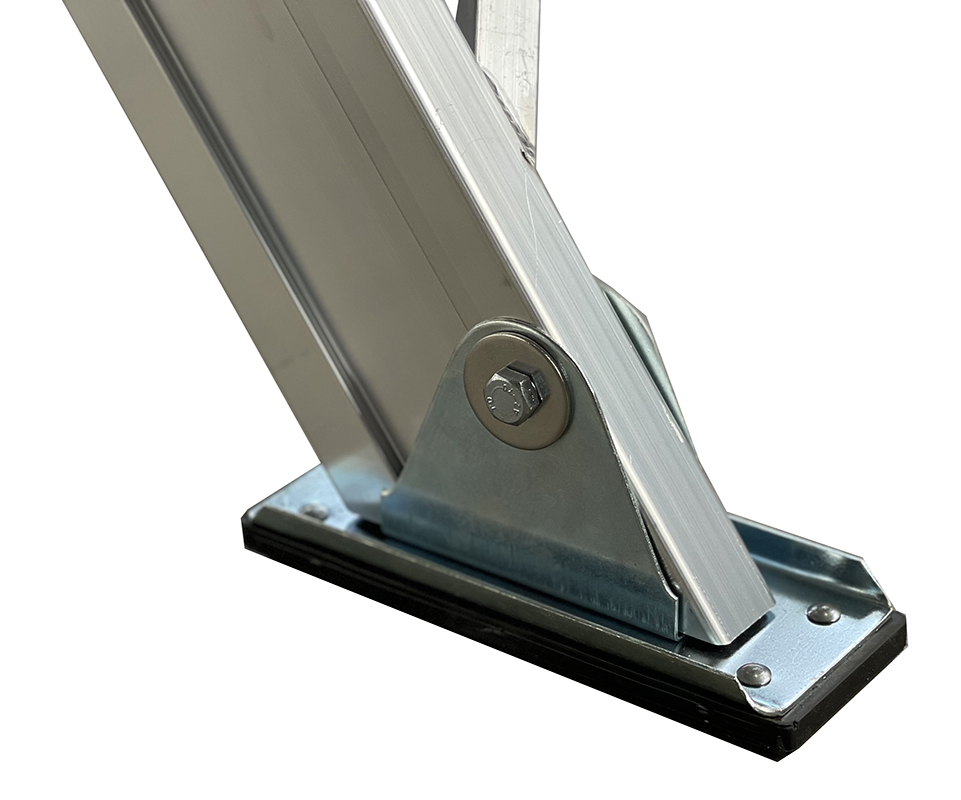

- Ergonomic and oversized non-slip rubber pads for maximum adherence to the ground
- Labels and use and maintenance manual
- Test certificate according to Italian regulations

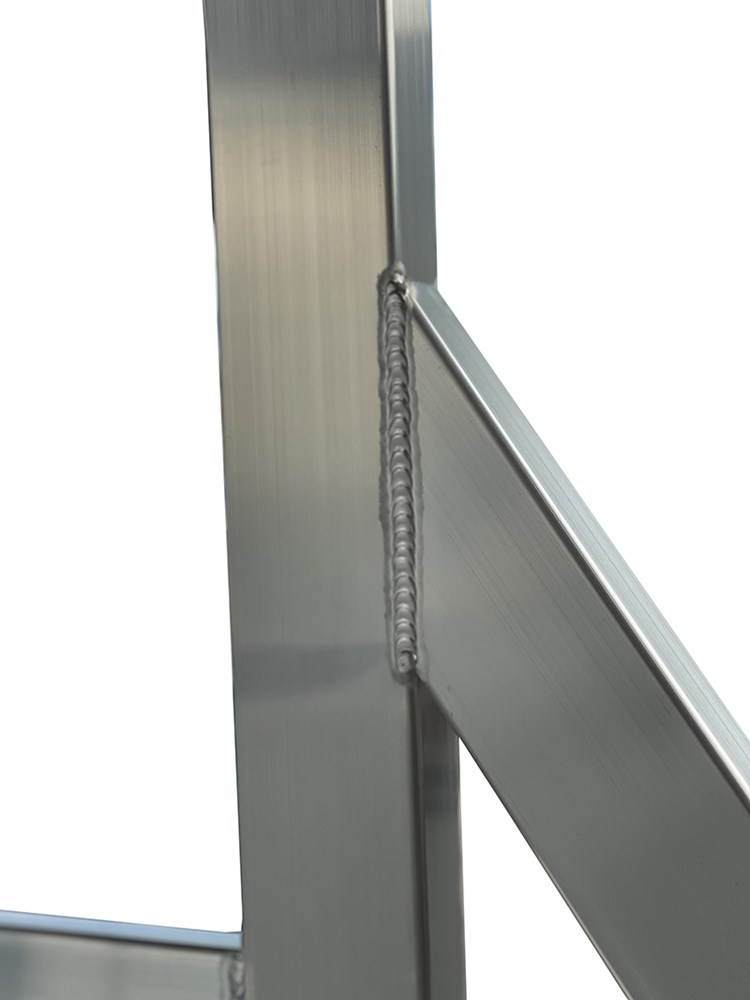

- Certified TIG welding
CODES STEP 100 mm | CODES STEP 200 mm | STEPS n. | HEIGHT PLATFORM m | HEIGHT TOTAL m | HEIGHT WORKING TIME HANDS-ON m | OVERALL DIMENSIONS A EARTH m | WEIGHT KG STEP 100 mm | WEIGHT KG STEP 200 mm |
| SCTORR03 | SCTORR03S | 3 | 0,70 | 1,70 | 2,70 | 1.00x1.27 | 26,00 | 28,00 |
| SCTORR04 | SCTORR04S | 4 | 0,92 | 1,92 | 2,92 | 1.00x1.43 | 29,00 | 32,00 |
| SCTORR05 | SCTORR05S | 5 | 1,15 | 2,15 | 3,15 | 1.00x1.60 | 31,00 | 35,00 |
| SCTORR06 | SCTORR06S | 6 | 1,38 | 2,38 | 3,38 | 1.00x1.75 | 32,00 | 37,00 |
| SCTORR07 | SCTORR07S | 7 | 1,60 | 2,60 | 3,60 | 1.16x1.90 | 34,00 | 40,00 |
| SCTORR08 | SCTORR08S | 8 | 1,85 | 2,85 | 3,85 | 1.16x2.07 | 37,00 | 44,00 |
| SCTORR09 | SCTORR09S | 9 | 2,06 | 3,06 | 4,06 | 1.16x2.23 | 41,00 | 49,00 |
| SCTORR10 | SCTORR10S | 10 | 2,30 | 3,30 | 4,30 | 1.16x2.40 | 44,00 | 53,00 |
| SCTORR11 | SCTORR11S | 11 | 2,53 | 3,53 | 4,53 | 1.32x2.55 | 47,00 | 57,00 |
| SCTORR12 | SCTORR12S | 12 | 2,75 | 3,75 | 4,75 | 1.32x2.70 | 51,00 | 62,00 |
| SCTORR13 | SCTORR13S | 13 | 3,00 | 4,00 | 5,00 | 1.48x2.90 | 53,00 | 65,00 |
| SCTORR14 | SCTORR14S | 14 | 3,20 | 4,20 | 5,20 | 1.48x3.03 | 57,00 | 70,00 |
| SCTORR15 | SCTORR15S | 15 | 3,45 | 4,45 | 5,45 | 1.48x3.20 | 61,00 | 75,00 |
| SCTORR16 | SCTORR16S | 16 | 3,68 | 4,68 | 5,68 | 1.60x3.20 | 66,00 | 81,00 |
| SCTORR17 | SCTORR17S | 17 | 3,91 | 4,91 | 5,91 | 1.60x3.40 | 71,00 | 87,00 |
On request

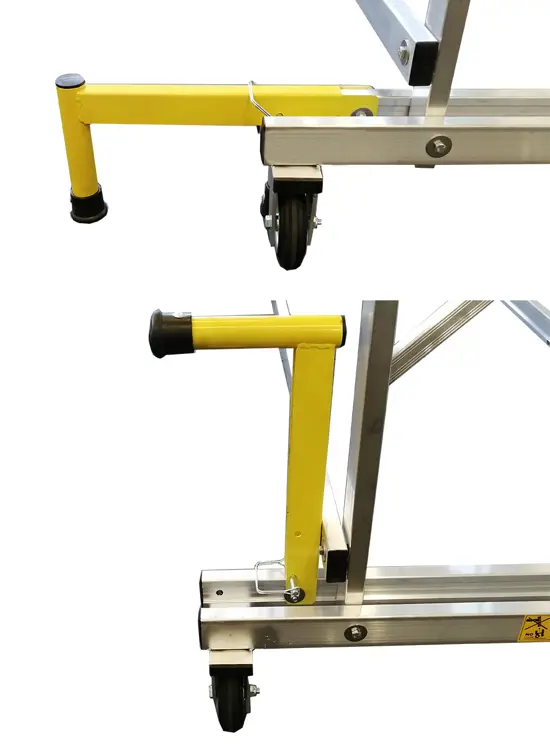

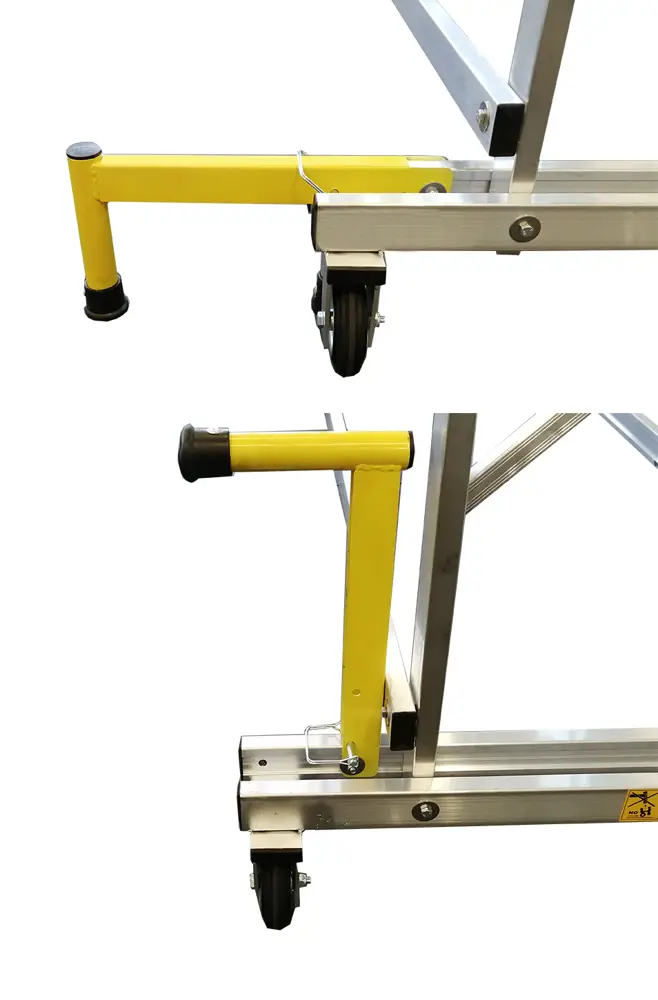

- Auxiliary stabilizer 75 cm x narrow aisles

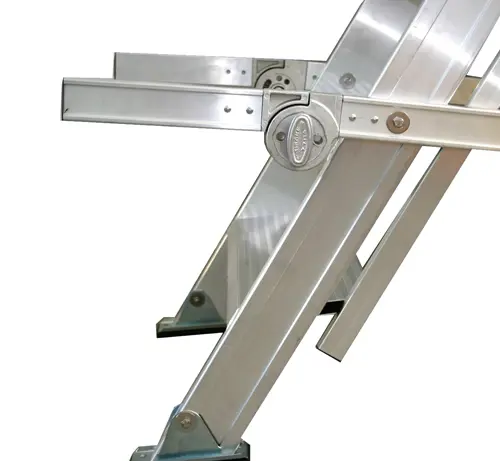

- Additional resealable stabilizer 100 cm can be opened up to 150 cm

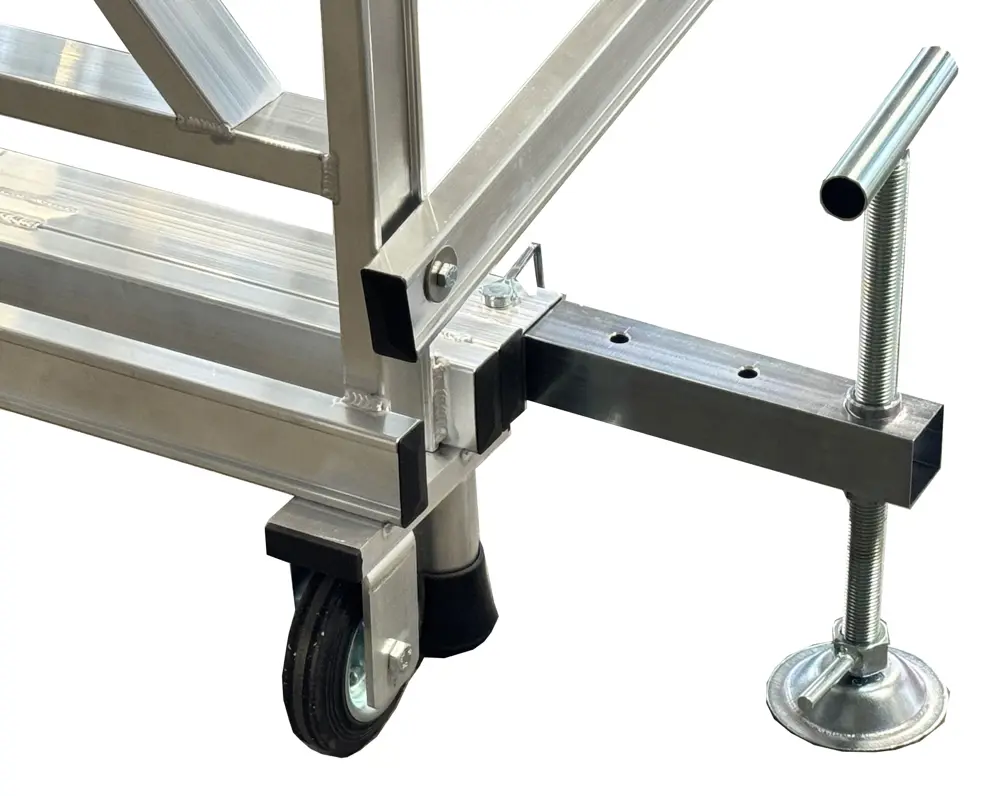

- Telescopic levellers for use on uneven terrain or on uneven terrain

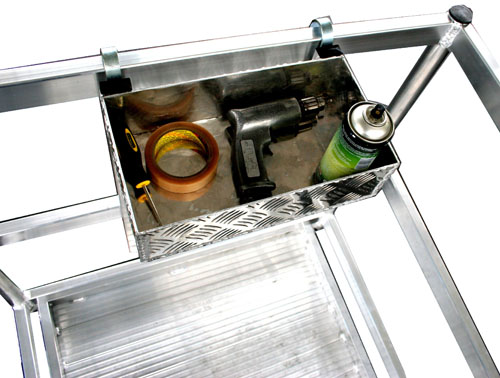

- Tool tray
- 4WDF: kit of 4 self-locking wheels Ø 150 mm with brake (only stairs without ballast)

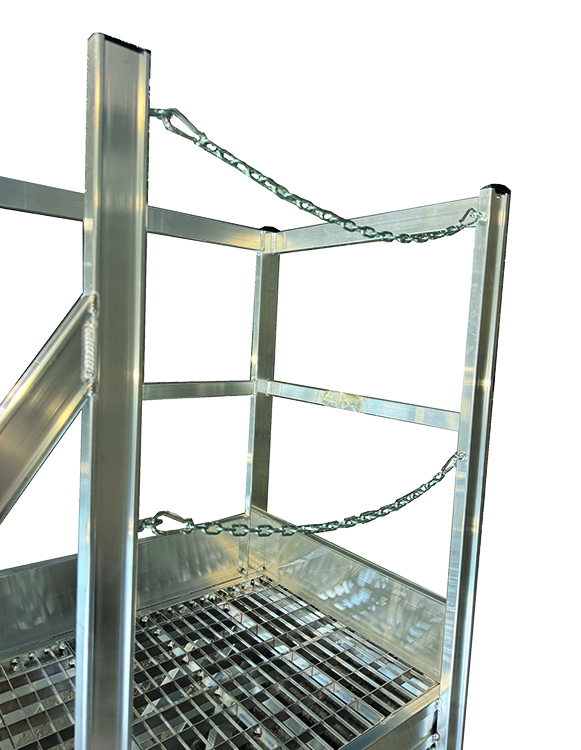

- Possibility of front or side landing with gate or chains

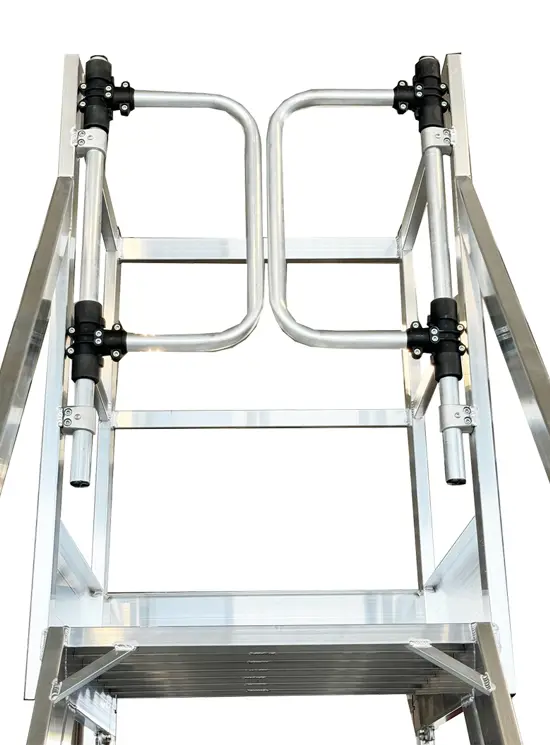

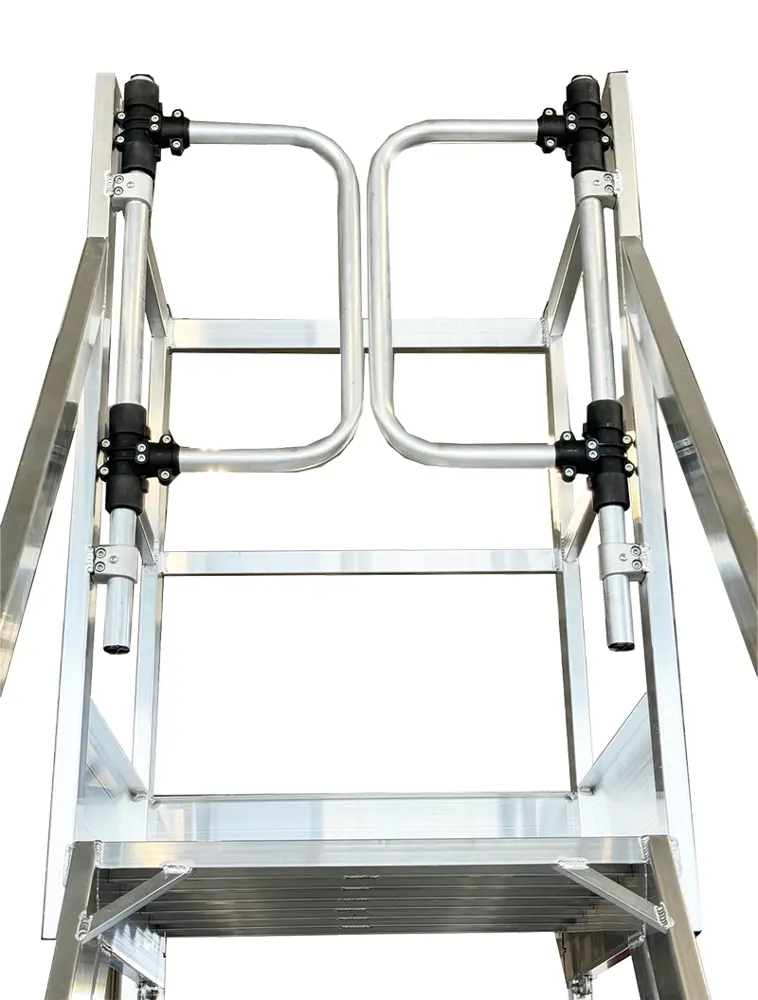

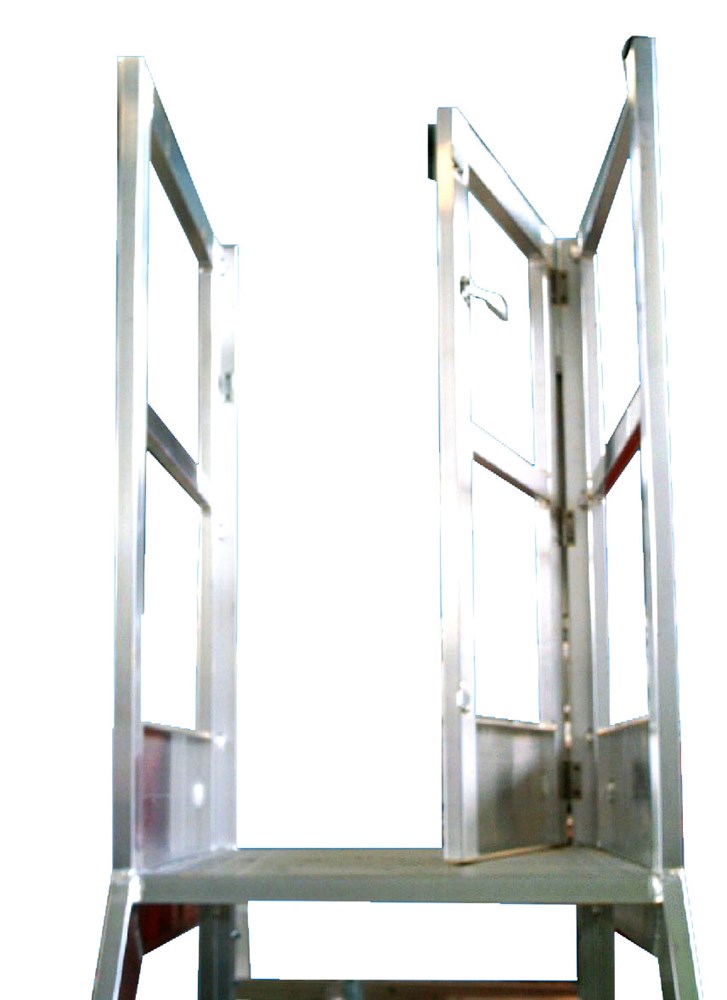

Access gate with self-closing "saloon" doors (not disembarkation)

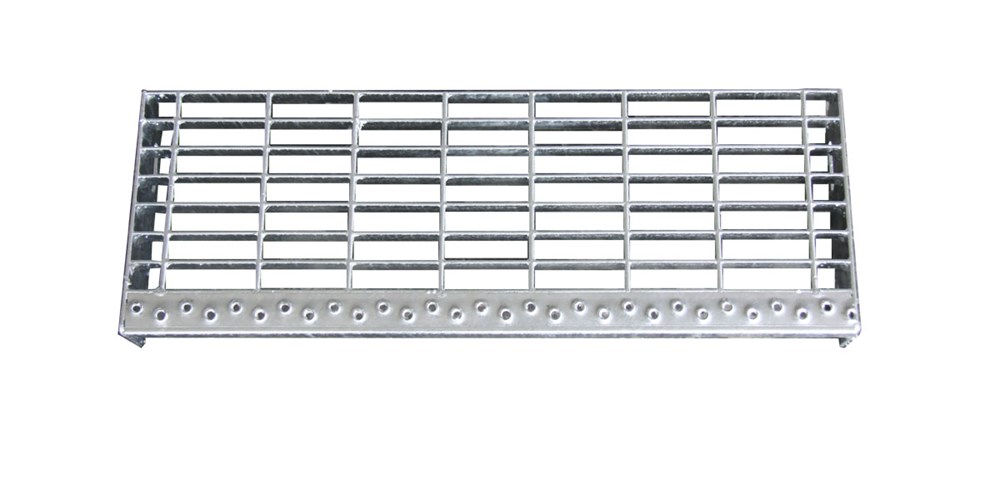

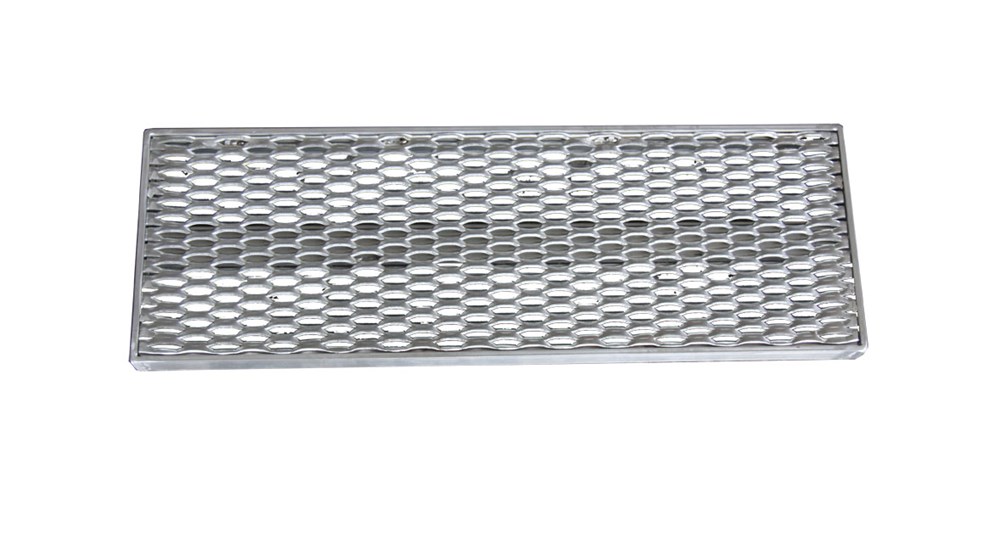

- Grating Steps/Platform (Galvanized Steel)
- Grating Steps/Platform (aluminium)
- 2 foldable handles

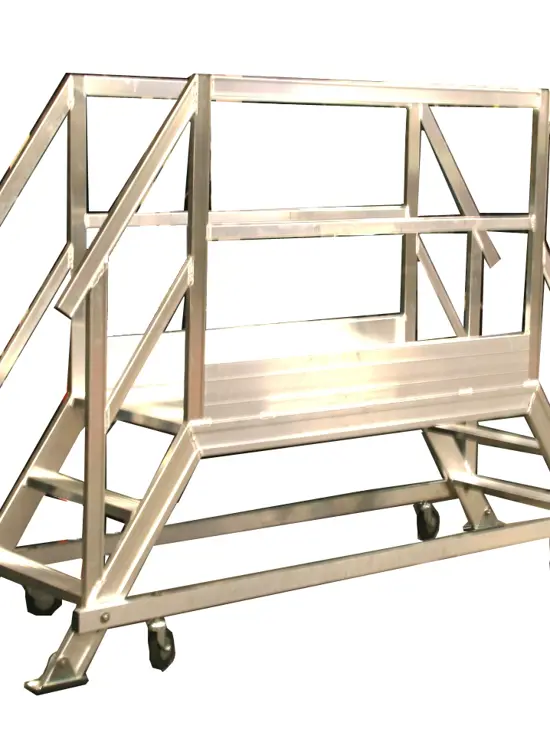

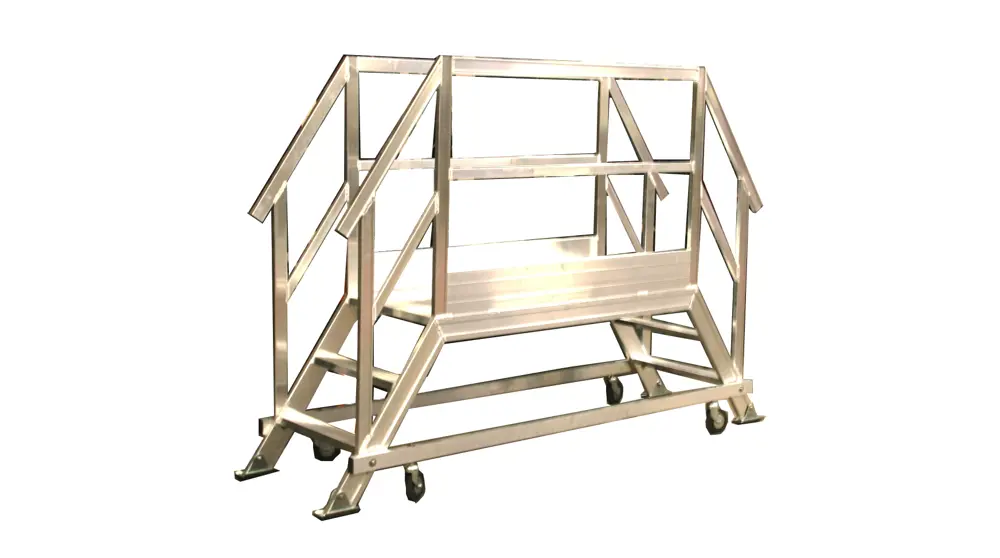

- Turret ladder with double ascent or bridge
- Special sizes
- Telescopic or cantilever platform

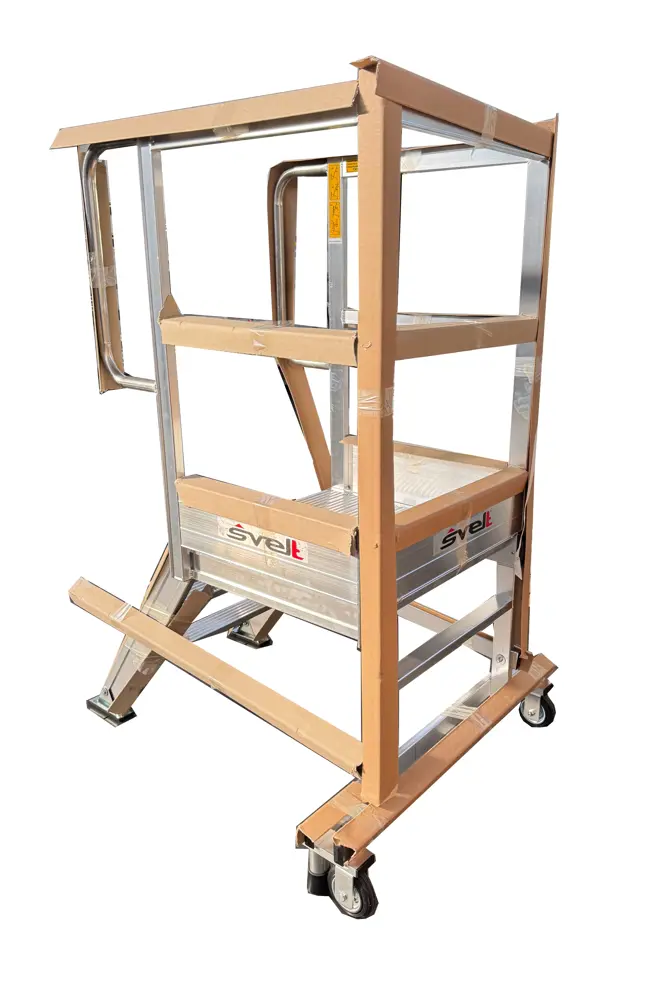

- Special packaging reinforced with protective cartons

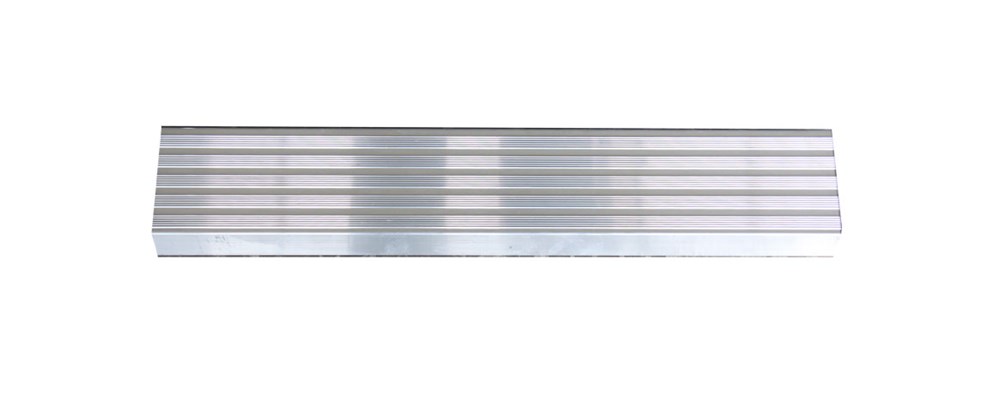

- Steps and/or platform with ANTI-SLIP PROFILES (for use in the presence of oil, water, and other slippery substances)

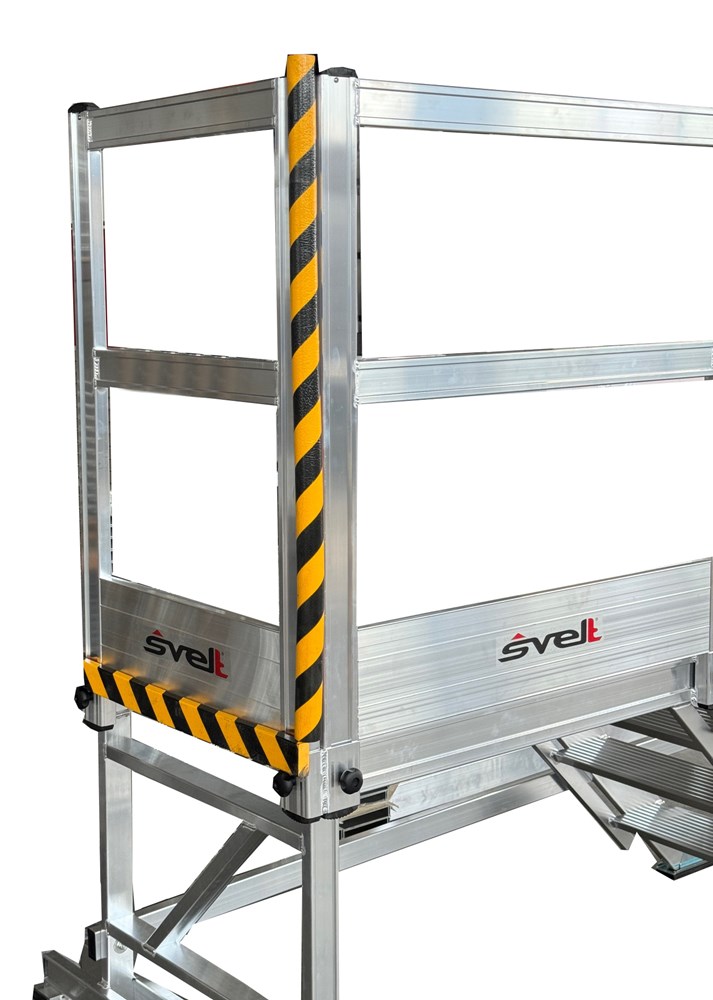

- Bumpers for delicate products (planes, helicopters, trains, buses, etc.)
TESTING YES. PREV. (ON REQUEST)
For this product Svelt provides its certificate of compliance with Italian regulations.
In case you wish to test the staircase with an external engineering company (SI. PREV.), this must be immediately requested from SVELT who will send a quote.
In this case, it is necessary that the test request is made at the same time as that of the staircase.
In this case, the capacity of the ladder cannot exceed 100 kg, since the former ISPELS standard on which the testing is based, does not contemplate tests for higher capacities.
EUROPEAN EN14122 STANDARDS (ON REQUEST)
It is possible to request the ladder with the certificate of compliance with the standard in question, as long as it is integrated into the overall design of a machine.
In this case, our designers will have to:
- Develop an ad hoc project
- Respect the risers and treads of the steps according to the inclination of the ramp (as required by the standard)
- Reinforce the parapets and handrails with specific profiles and centres for the thrust resistance imposed by EN14122
- Declare a capacity that cannot exceed 150kg
- Issue a certificate stating that the product complies with the EN14122 standard.
AVERAGE DELIVERY TIME APPROX. 20/25 WORKING DAYS
