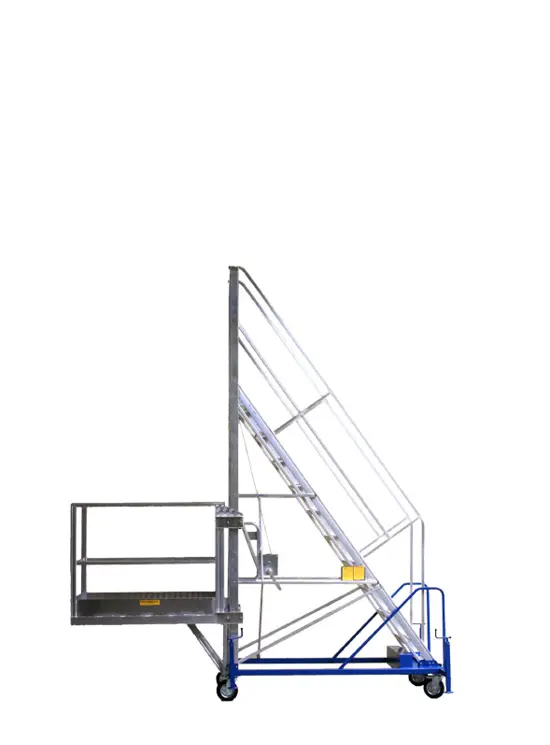

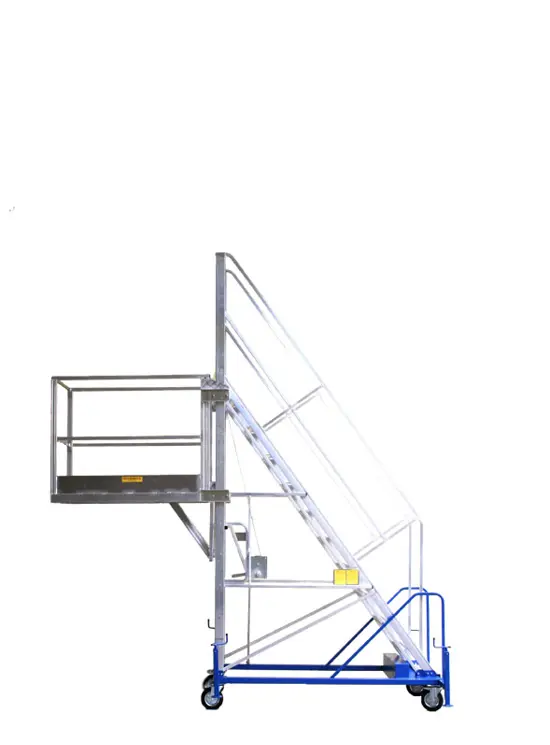

Telescopic turret

H. Work m 5.00

CE Material Lift

It shows the validity of the guarantee in years

It shows the maximum weight capacity of a product

All our products conforms to the standads in force

Suitable for heavy duty

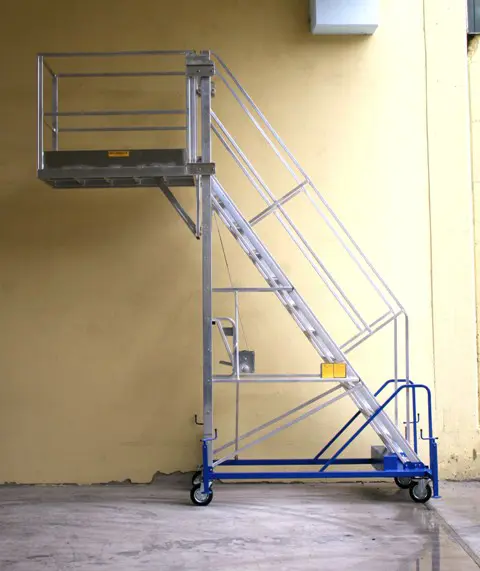

Telescopic cantilever platform

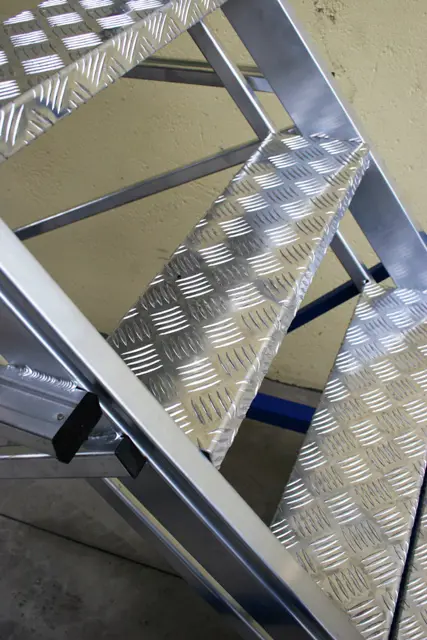

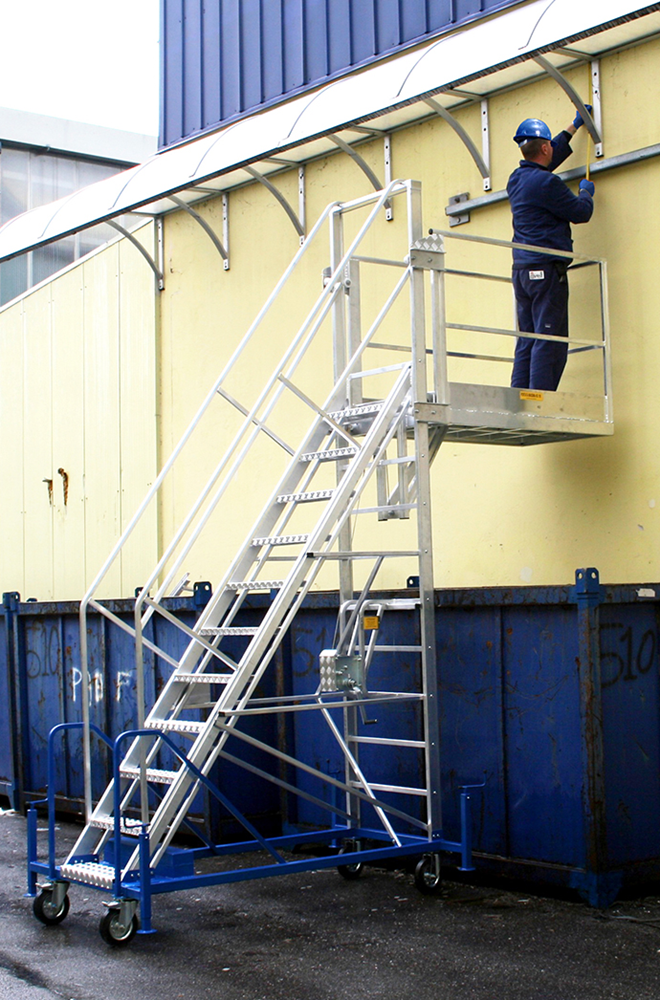

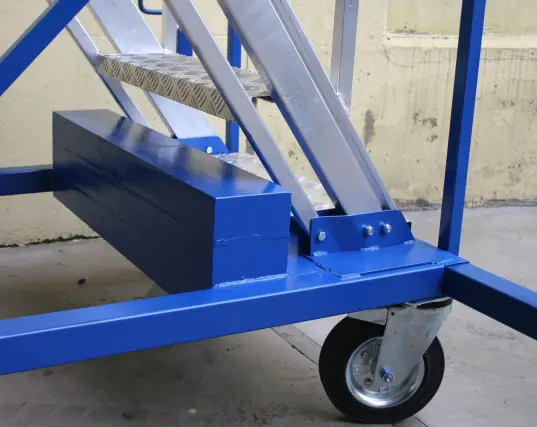

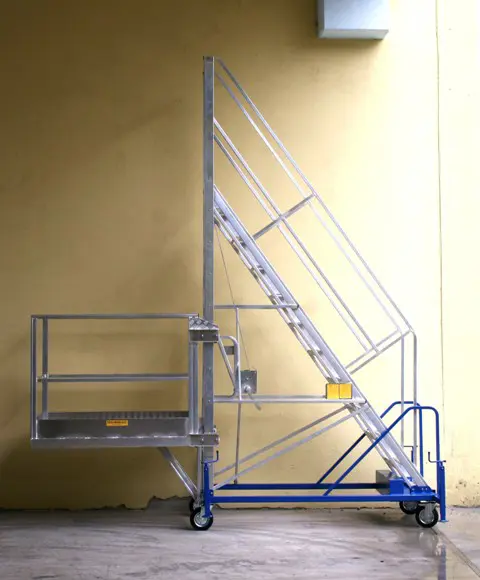

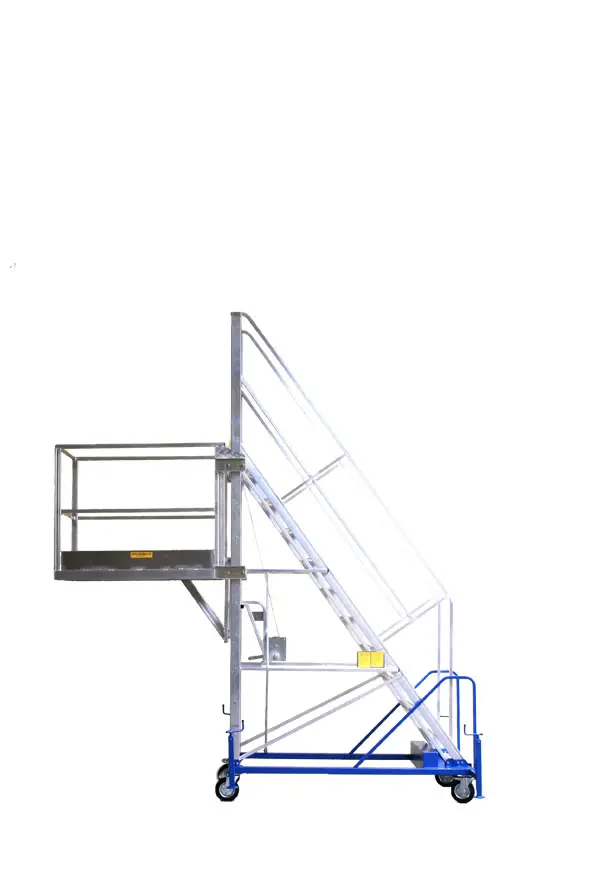

The telescopic "Turret" type ladders are designed to allow safe cantilevered work at different heights adjustable by the operator. The peculiarity of our ladder is that it is ballasted in order to allow the cantilevering of the platform which can easily be raised from a minimum height of 80 cm to a maximum of 300 cm. The painted steel frame supports a ribbed aluminum staircase with a platform complete with parapets on all sides.

Frame width m 0.85
Max width with fully extended stabilizers in situ 1.60 m
Frame length m 2.00
Toe height mm 150

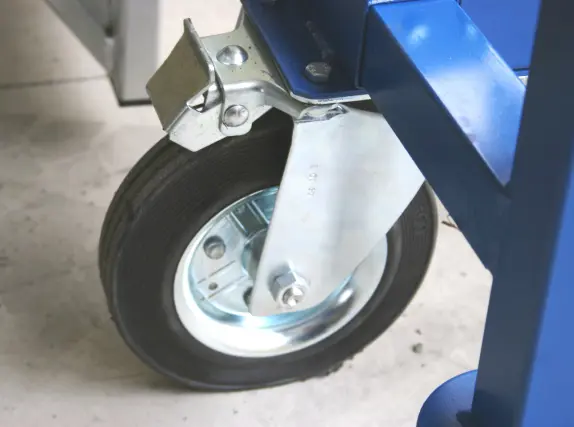

Wheel diameter 200 mm. Rubber pivoting with brake (front)
Wheel diameter 200 mm. Rubber pivoting with positioner (rear)
Transport dimensions (ladder lying down): length 5 m - width 1 m - height 2.5 m
Capacity Kg 150 including one person
Total weight Kg 270

Max height at the floor	m 2.99

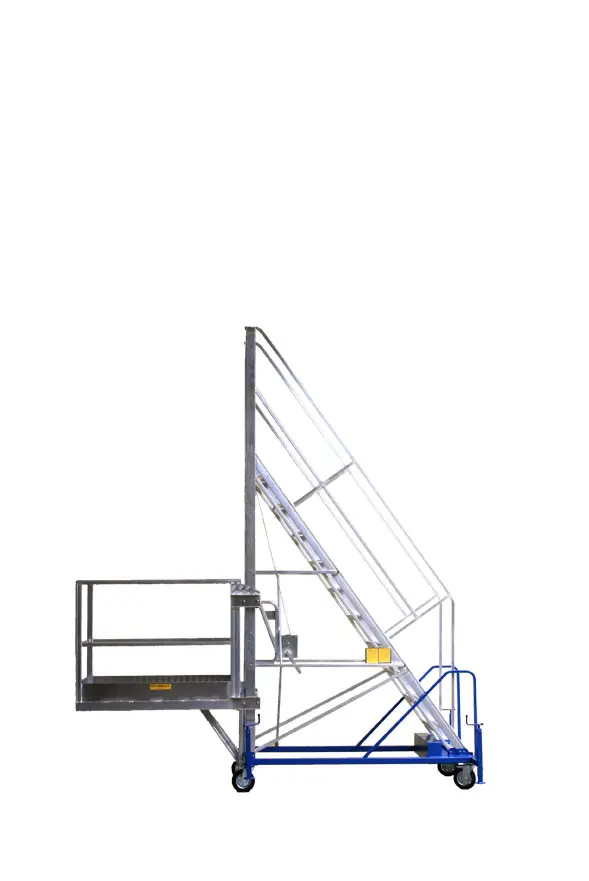

Min height at floor	0.83 m
Overall height	m 4
Platform	m 1.40x0.85
Parapet height	m 1

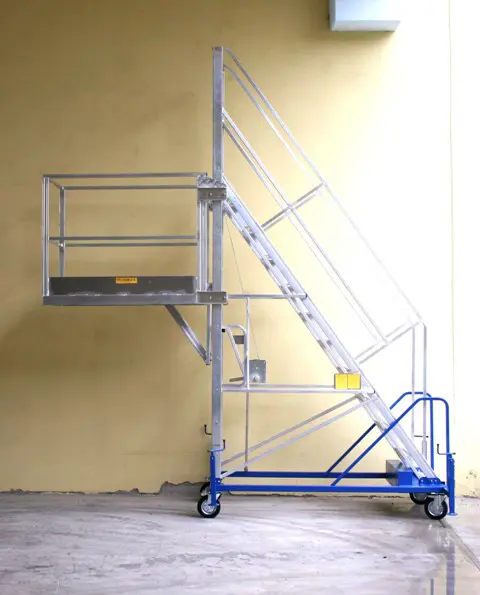

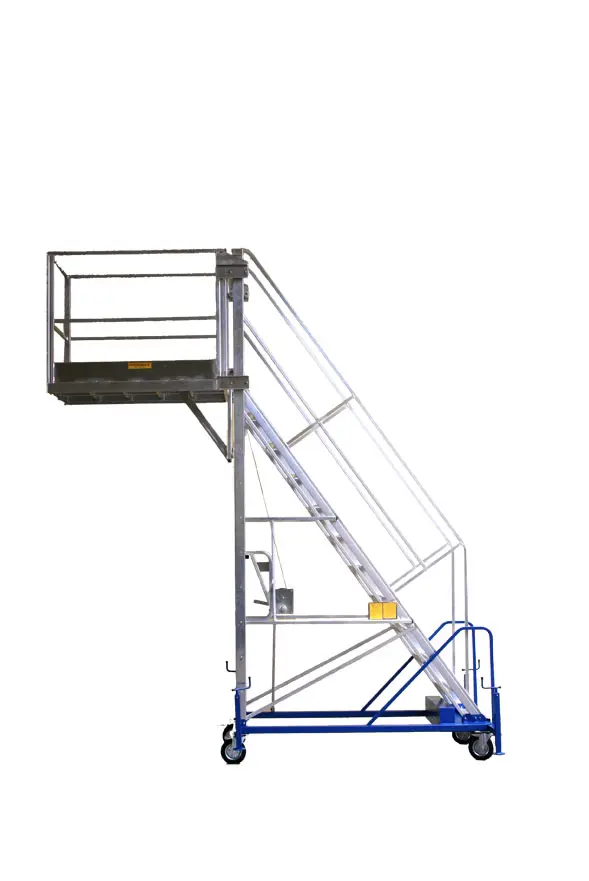

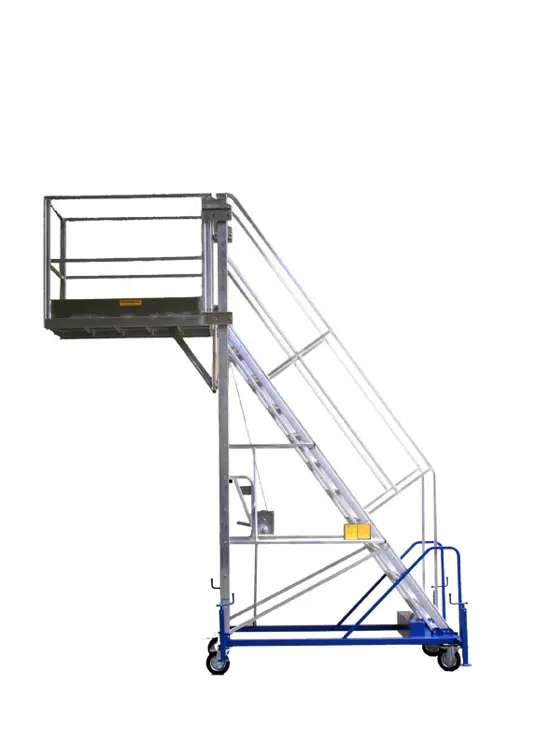

Height telescopically adjustable from 0.80 m up to 3.00 m

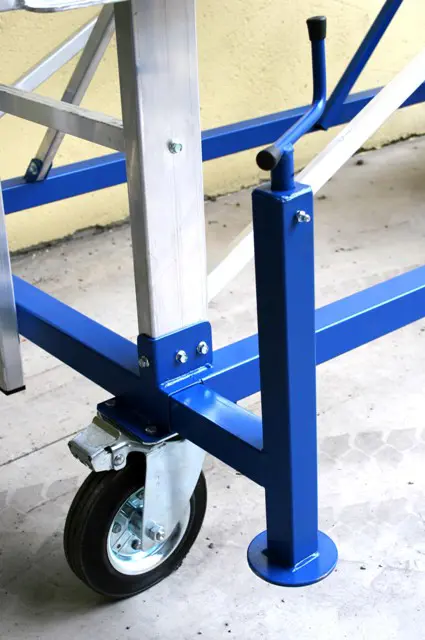

The basic structure (frame) is made of painted steel equipped with 4 solid swivel wheels diam. 200 mm with foot brake
The wheels have diam. 200 mm
The ladder is made of aluminum with telescopic extension adjustable in height

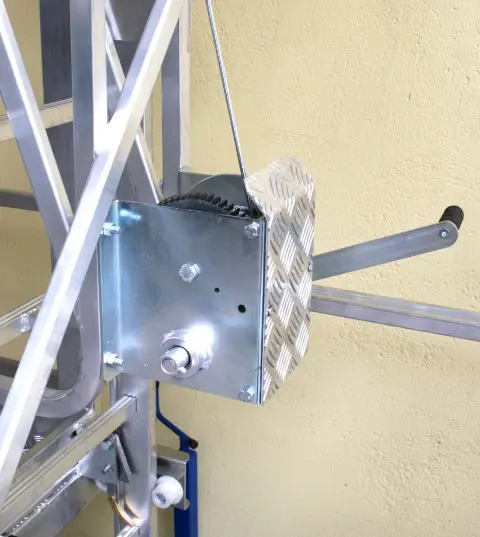

It can be raised and lowered by means of a manual winch equipped with a steel rope
A 2-hook pop-up lock provides mechanical safety in the event of cable breakage

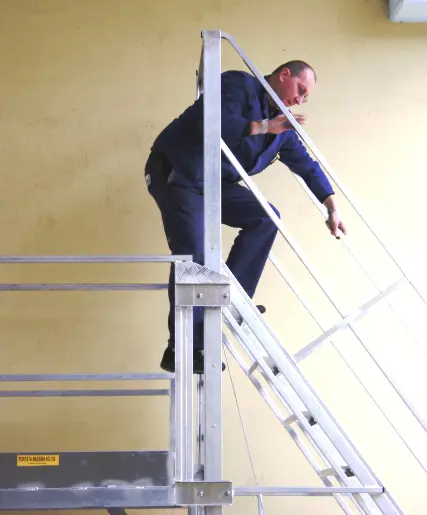

The ladder is equipped with handrails on both sides for comfortable climbing of the operator

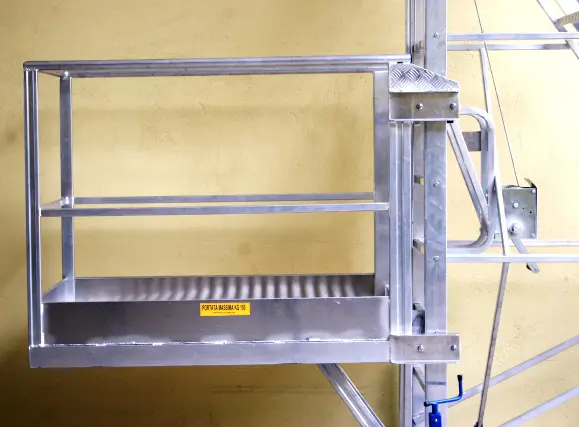

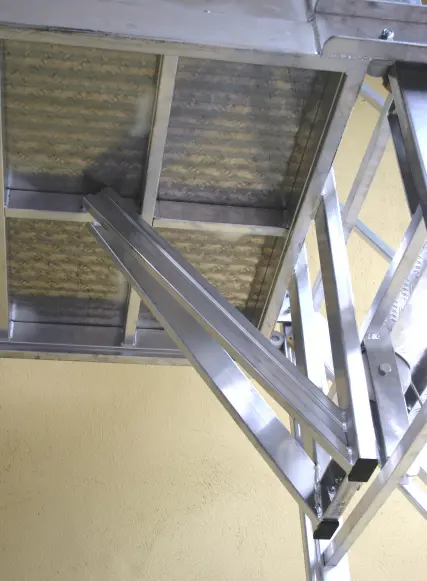

Aluminum platform with toe pad, knee protector and protective railing
Labels and use and maintenance manual
Test certificate according to Italian and European CE regulations

N.B. Handling without people on board. Capacity 1 person max kg 130 + tools kg 20

Special sizes on request

Also available without elevation mechanism, i.e. fixed non-telescopic ladder.
In this case, the CE mark is neither necessary nor applicable.

On request:

Steps and/or platform with ANTI-SLIP PROFILES (for use in the presence of oil, water, and other slippery substances)

Bumpers for delicate products (planes, helicopters, trains, buses, etc.)

DELIVERY TIME APPROX. 90/100 WORKING DAYS
