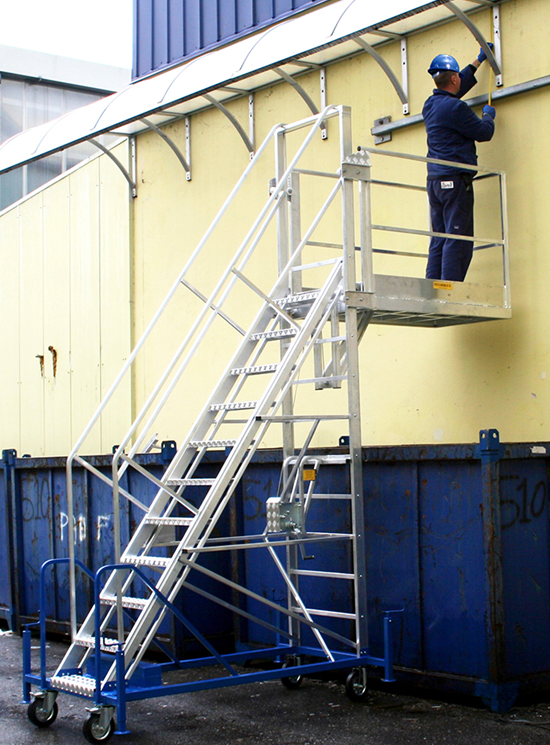

Telescopic platform ladder with outreach

Telescopic platform ladder with outreach

Maximum platform height 3 meters

CE Material Lift

It shows the validity of the guarantee in years

It shows the maximum weight capacity of a product

It shows the number of people who can climb the structure at the same time

All our products conforms to the standads in force

Suitable for heavy duty

Can be fix or telescopic from 0,80 to 3 meters

It is suitable for works at different heights thanks to its telescopic platform system.
It can be lifted and lowered by a very simple and efficient and smooth winch.

Minimum platform height is 80 cm, max is 300 cm.
The steel painted chassis holds a very heavy duty aluminium ladder with guardrails and toe boards on all sides.

STANDARD FEATURES

Adjustable height from m 0,80 to m 3,00
Steel chassis with 4 adjustable levelers, 4 wheels with brakes (2 of which are pivot wheels)
Wheel diameter = 200 mm
Lifting by a manual winch
2 Safety hooks to stop lifting at any desired height
Handrails on both sides of the ladder
Aluminium platform with toe boards and guardrails (1 m)
Stickers and manuals
CE Certification

SPECIAL DIMENSIONS ON DEMAND

TECHNICAL FEATURES

Max platform height m 2,99
Min platform height m 0,83
Total height m 4.00
Chassis width m 0,85
Width with stabilizers m 1,60
Chassis length m 2,00
Platform dimensions m 1,40 x 0,85
Toe boards height mm 150
Guardrail height m 1
Front Wheel diameter mm 200 mm. Rubber pivot wheels with brakes
Rear Wheel diameter mm 200 mm. Rubber pivot wheels with positioner
Dimensions for transport : length m 5 - width m 1 - height m 2,5
Capacity Kg 150 one person included
Total Weight Kg 270
Move without people on board.
Capacity 1 person max 130 kg + tools 20 kg
