Ladder for barrels and vats
Customized height
CE Material Lift
It shows the validity of the guarantee in years
It shows the maximum weight capacity of a product
Suitable for heavy duty
Platform with fixed or telescopic ladder with lateral cantilever exit

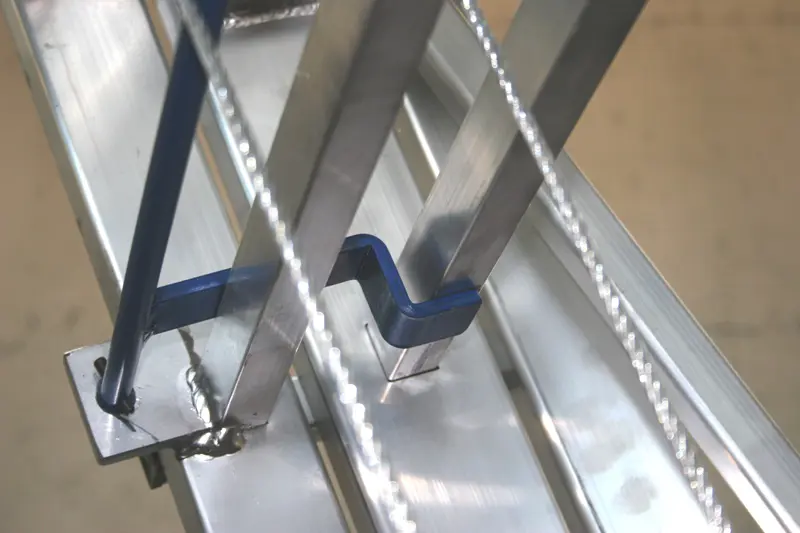

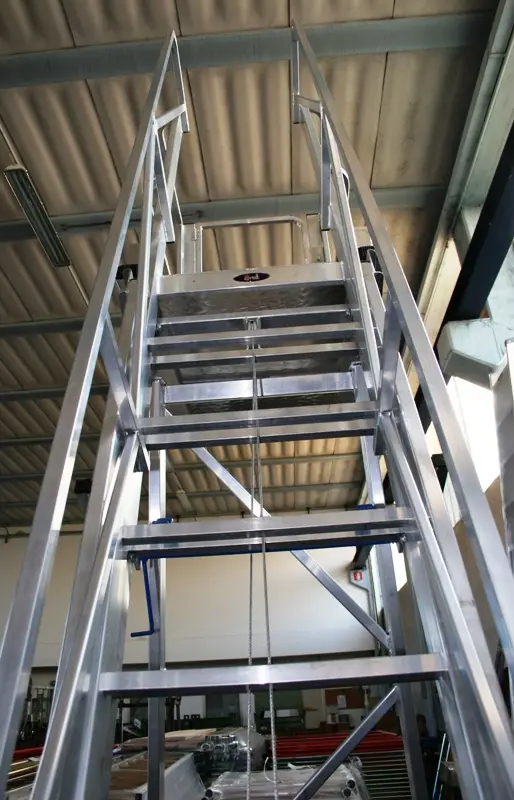

Platform with telescopic or fixed ladder, with rungs, with a climbing section, equipped with an oversized platform, bodyguard and ergonomic handrail. Made of welded ribbed extruded aluminum. The wide and comfortable ramp makes it easy to get on.

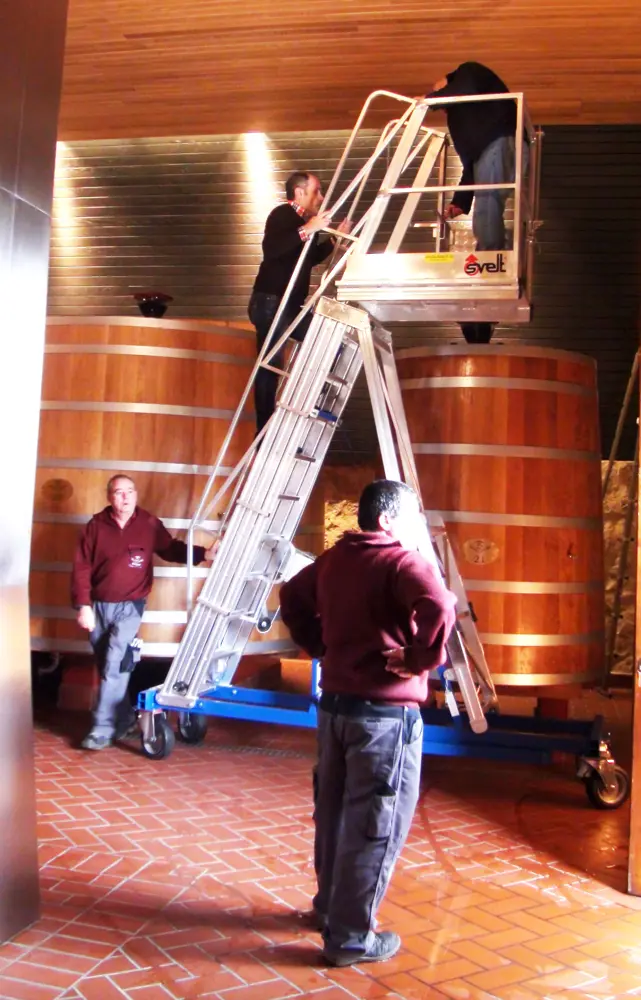

Designed to allow safe access and disembarkation for operators who have to work, empty, clean the vats and barrels of the best-equipped cellars.

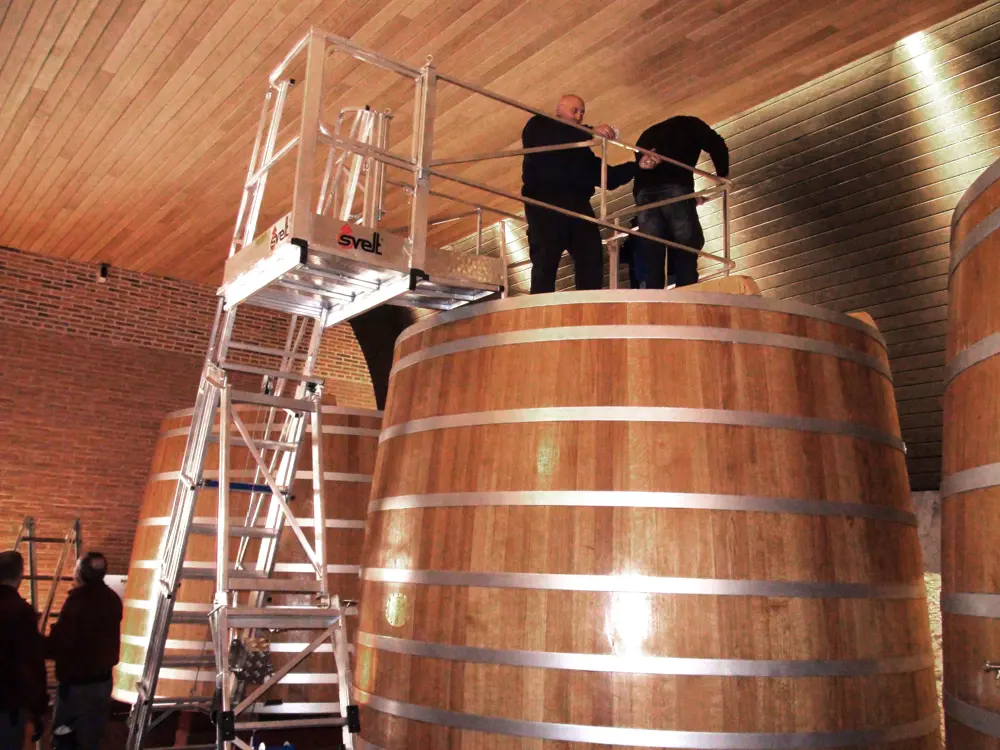

The peculiarity of our ladder is that it allows the lateral cantilevering of the platform above the barrel.
The painted steel frame supports a ribbed aluminum staircase with a platform complete with parapets on all sides and (on request) a front or side landing gate.

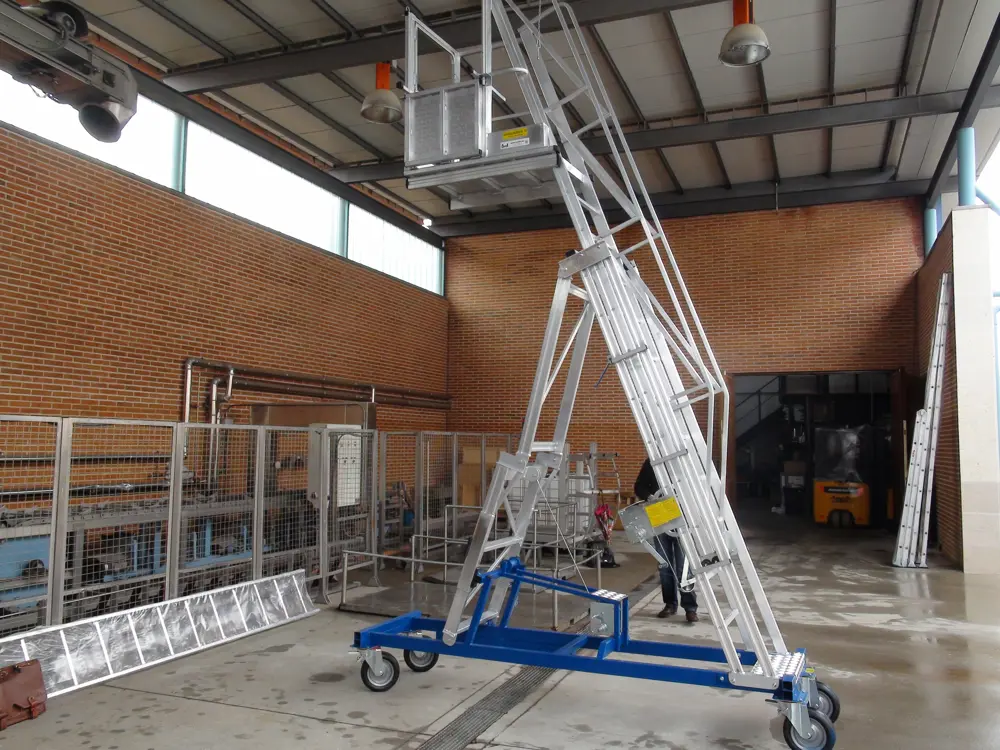

Fixed or telescopically adjustable height from 2.85 m up to 4.00 m (other sizes on request)

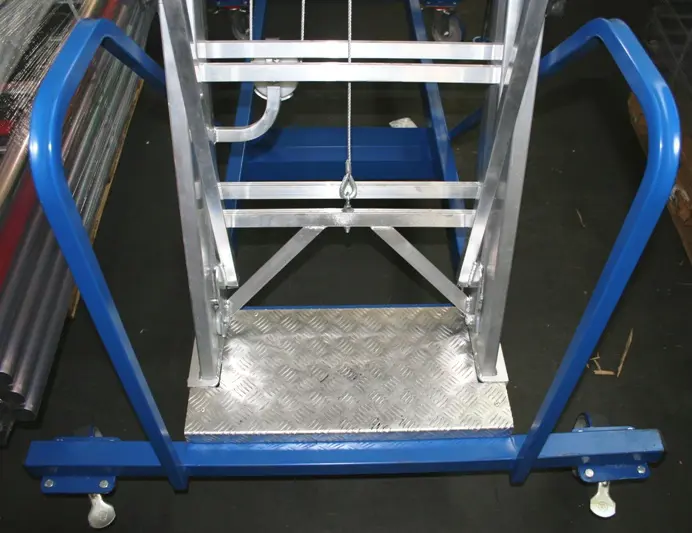

The basic structure (frame) is made of painted steel equipped with 2 levelers (optional) and 4 solid swivel rubber wheels diam. 260 mm with brake (also suitable for gravel).

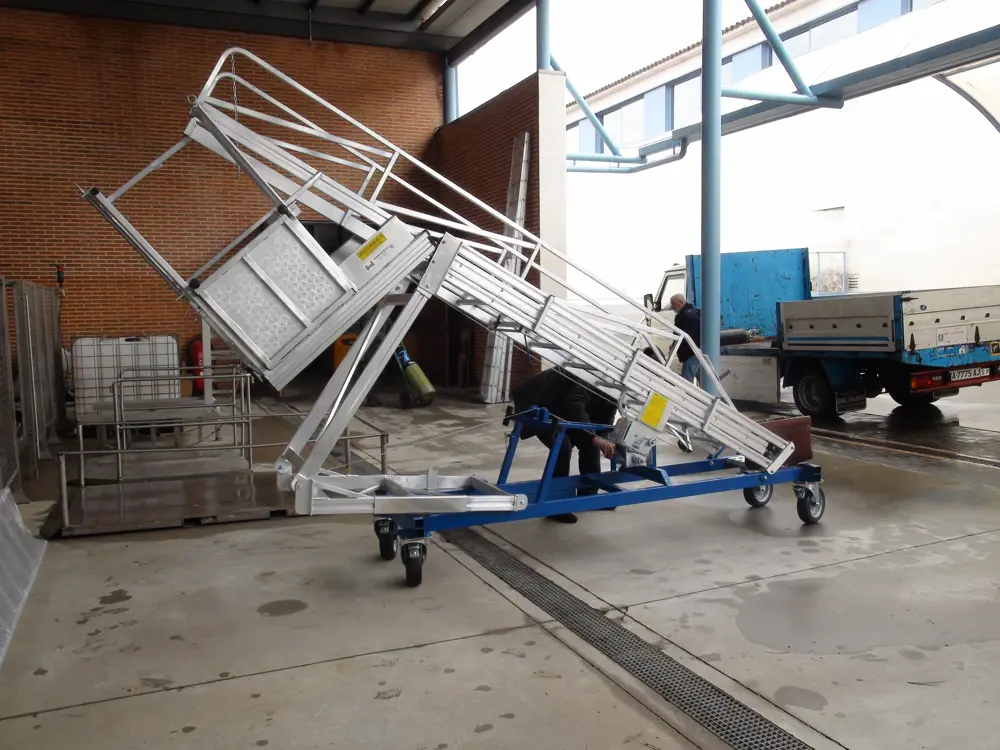

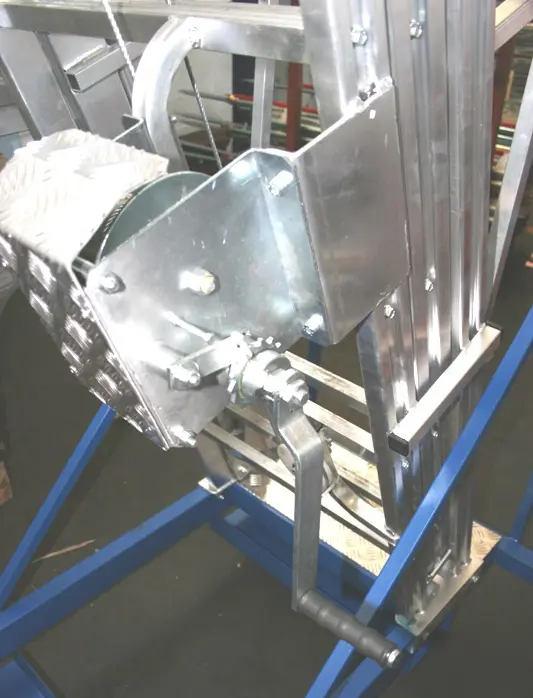

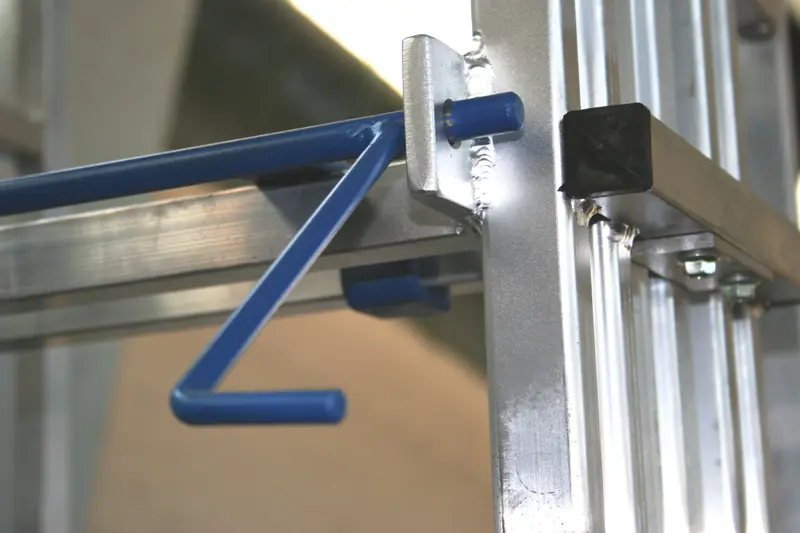

It can be raised and lowered by means of a manual winch equipped with a steel rope. A 2-hook locking pop-up provides the mechanical safety lock (the cable is always unloaded of the weight of the ladder).
The ladder is equipped with handrails on both sides for comfortable climbing of the operator.
Grip points under the forklift frame for possible movement in the yard between one shed and another.

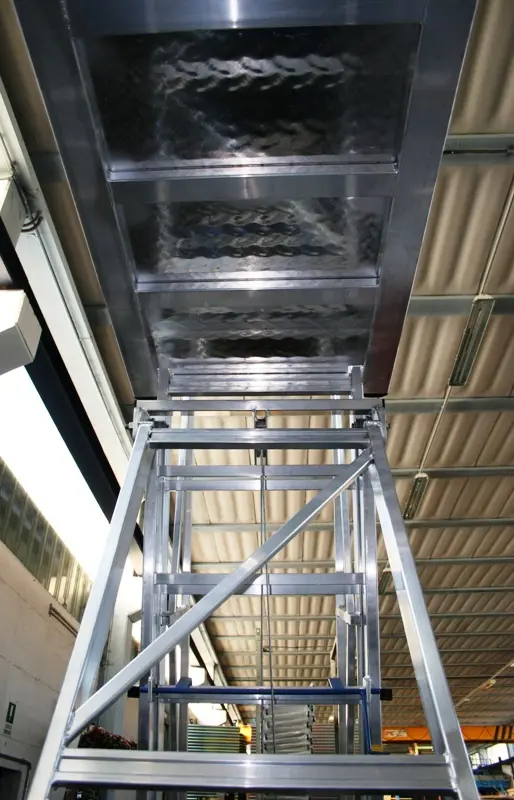

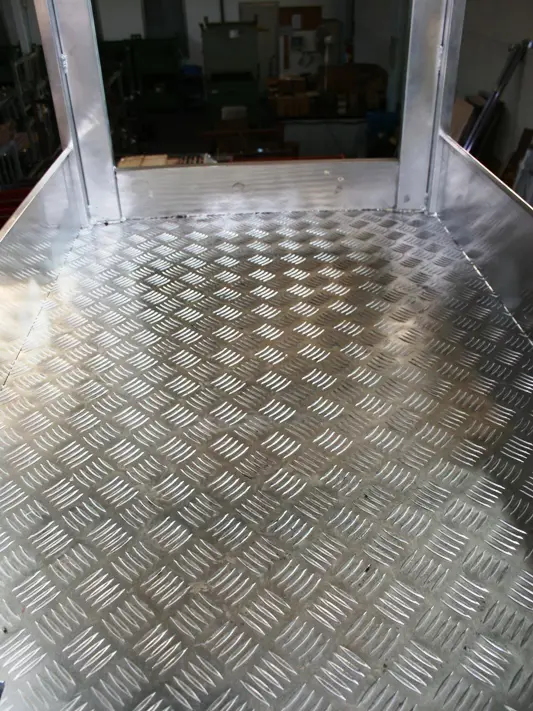

Aluminium platform with toe clip, knee protector and protective parapet with front or side opening and landing gate (on request)

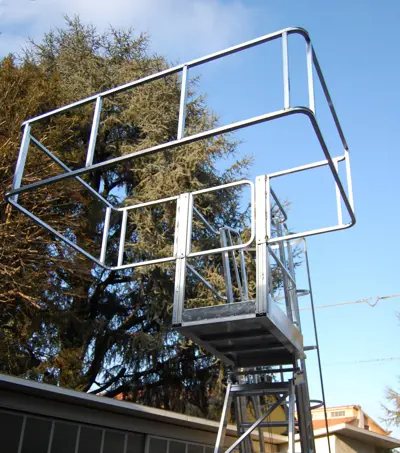

Optional cantilevered protective cage to protect the operator working on the barrel (on request)
STANDARD EQUIPMENT
• Labels and use and maintenance manual
• Test certificate according to Italian and European CE regulations
Designed to allow safe access and disembarkation for operators who have to work, empty, clean the vats and barrels of the best-equipped cellars.
The peculiarity of our ladder is that it allows the lateral cantilevering of the platform above the barrel.
The painted steel frame supports a ribbed aluminum staircase with a platform complete with parapets on all sides and (on request) a front or side landing gate.
Fixed or telescopically adjustable height from 2.85 m up to 4.00 m (other sizes on request)
The basic structure (frame) is made of painted steel equipped with 2 levelers (optional) and 4 solid swivel rubber wheels diam. 260 mm with brake (also suitable for gravel).
It can be raised and lowered by means of a manual winch equipped with a steel rope. A 2-hook locking pop-up provides the mechanical safety lock (the cable is always unloaded of the weight of the ladder).
The ladder is equipped with handrails on both sides for comfortable climbing of the operator.
Grip points under the forklift frame for possible movement in the yard between one shed and another.
Aluminium platform with toe clip, knee protector and protective parapet with front or side opening and landing gate (on request)
Optional cantilevered protective cage to protect the operator working on the barrel (on request)
STANDARD EQUIPMENT
• Labels and use and maintenance manual
• Test certificate according to Italian and European CE regulations
for lifting and moving a maximum load of 20 kg of equipment.
FIXED NON-TELESCOPIC MODELS
Also available without elevation mechanism (fixed non-telescopic ladder).
In this case, the CE mark is neither necessary nor applicable.
Also available without elevation mechanism (fixed non-telescopic ladder).
In this case, the CE mark is neither necessary nor applicable.
N.B. Handling without people on board. Capacity 1 person max kg 130 + tools kg 20
