Truck access ladder

Max platform height 1.68 m

It shows the validity of the guarantee in years

It shows the maximum weight capacity of a product

All our products conforms to the standads in force

Suitable for heavy duty

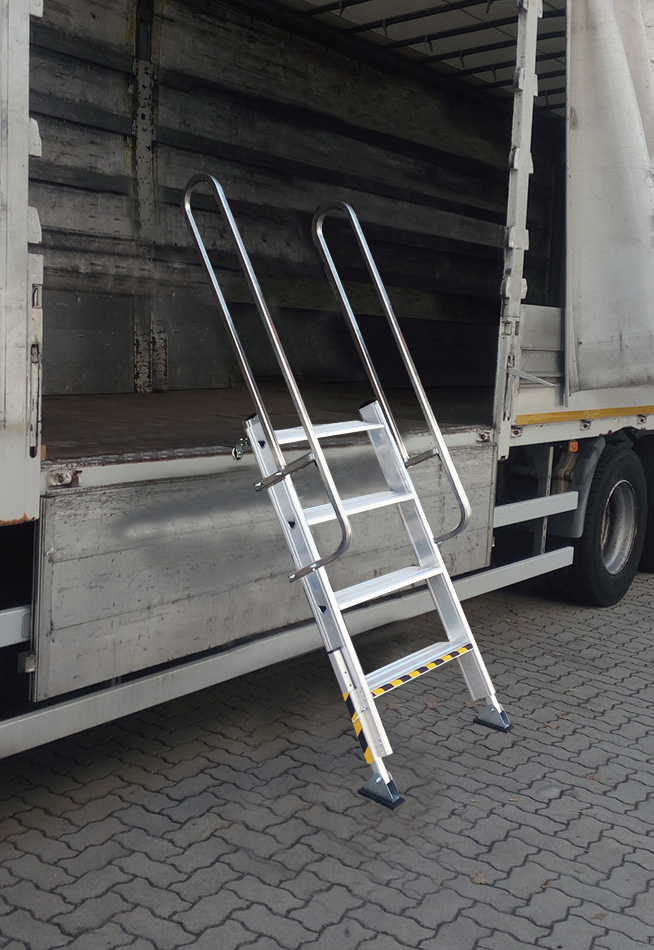

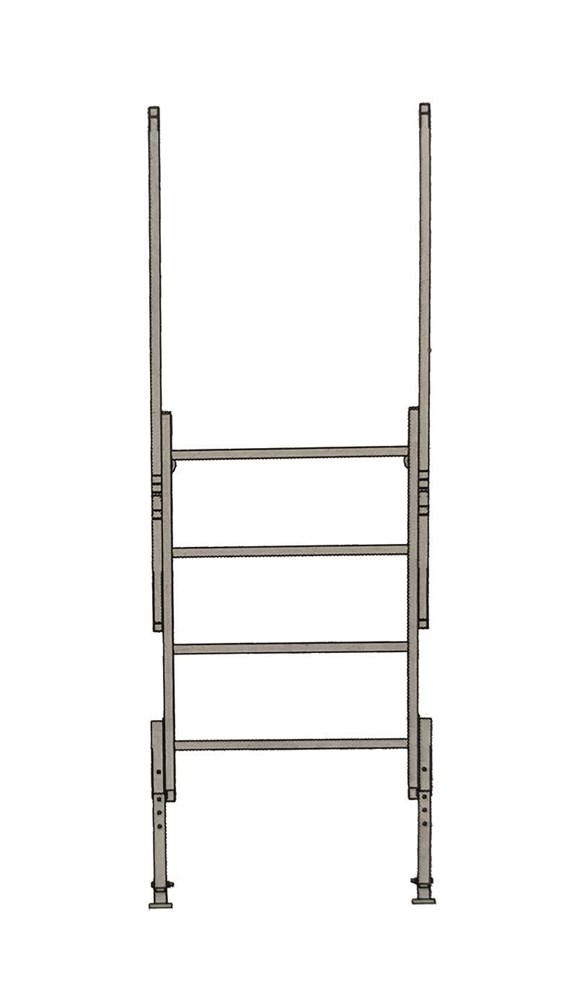

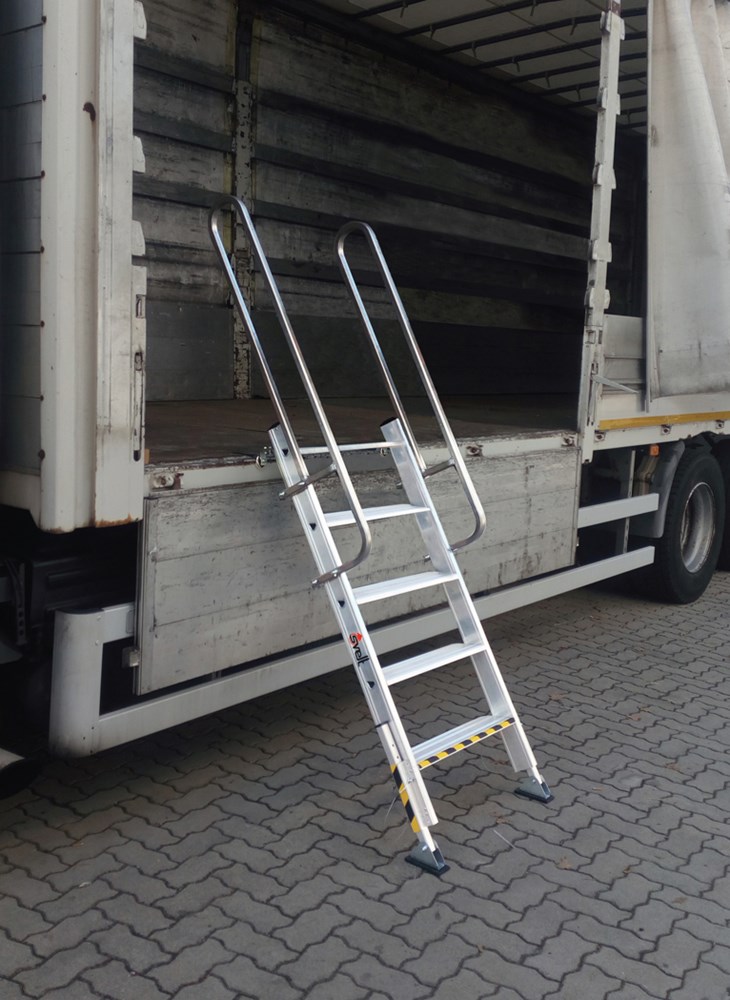

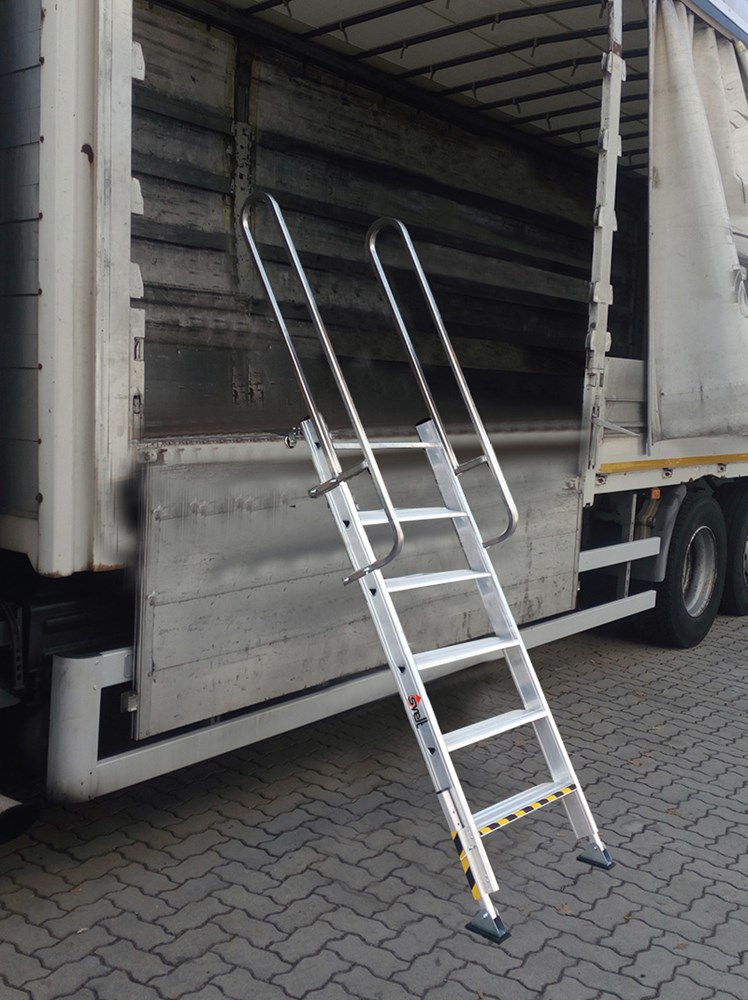

Super-equipped access ladders for trucks with attachment to the side and adjustable feet

Series of professional aluminium ladders for vehicle access.

Ideal for use in logistics, couriers, carriers.

Very light, it is easily transported and installed in a few seconds.

Thanks to 2 special magnets with a capacity of 90 kg each, the ladder is instantly locked on the side of the truck.

It can also be removed in a few seconds.

The ramp is equipped with 130 mm deep knurled flat steps for a very comfortable way up for the operator which increases productivity if he has to go up and down numerous times.

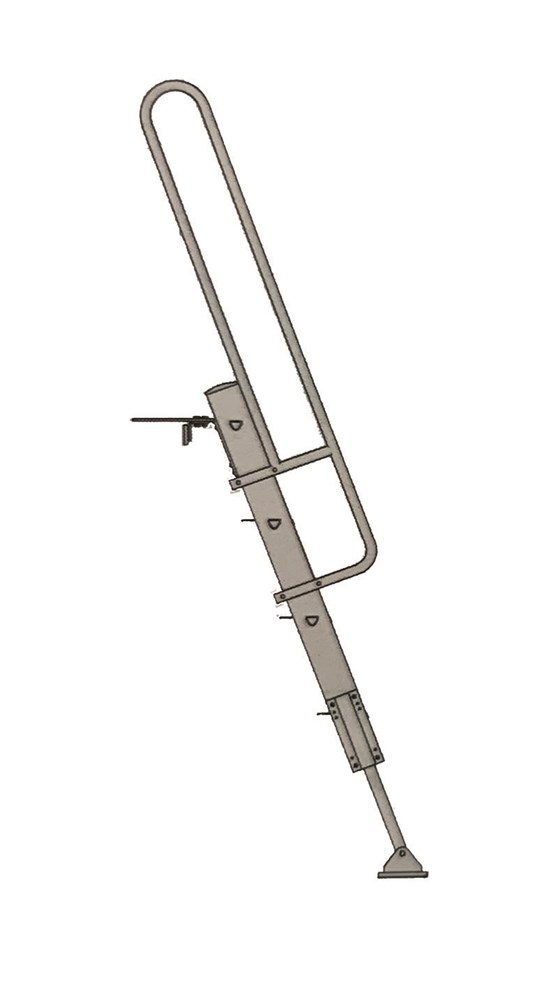

The operator can choose to use one or 2 optional handrails to increase comfort.

SPECIFICATIONS

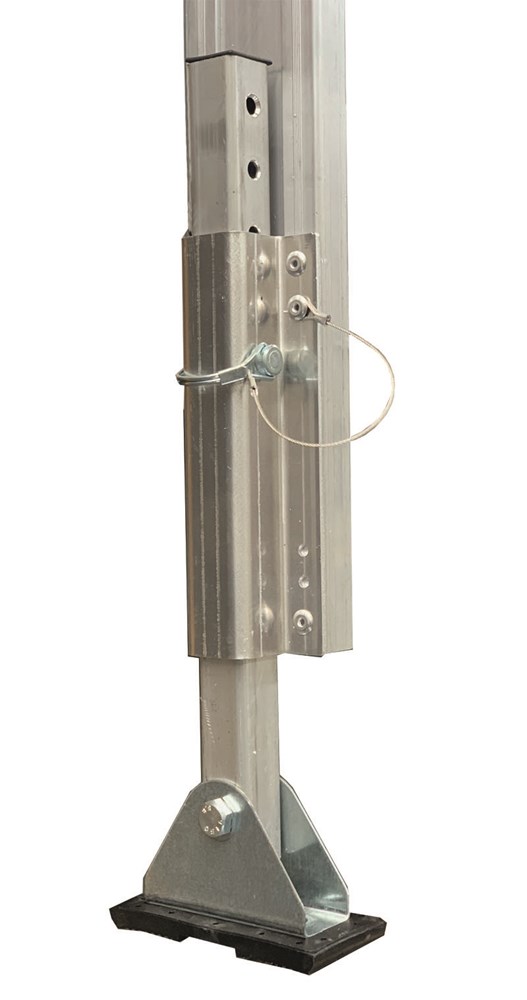

N.2 telescopic legs that adapt to the height of the vehicle, and balance any differences in height, holes, steps
Step depth 130 mm
Maximum width with feet 740 mm

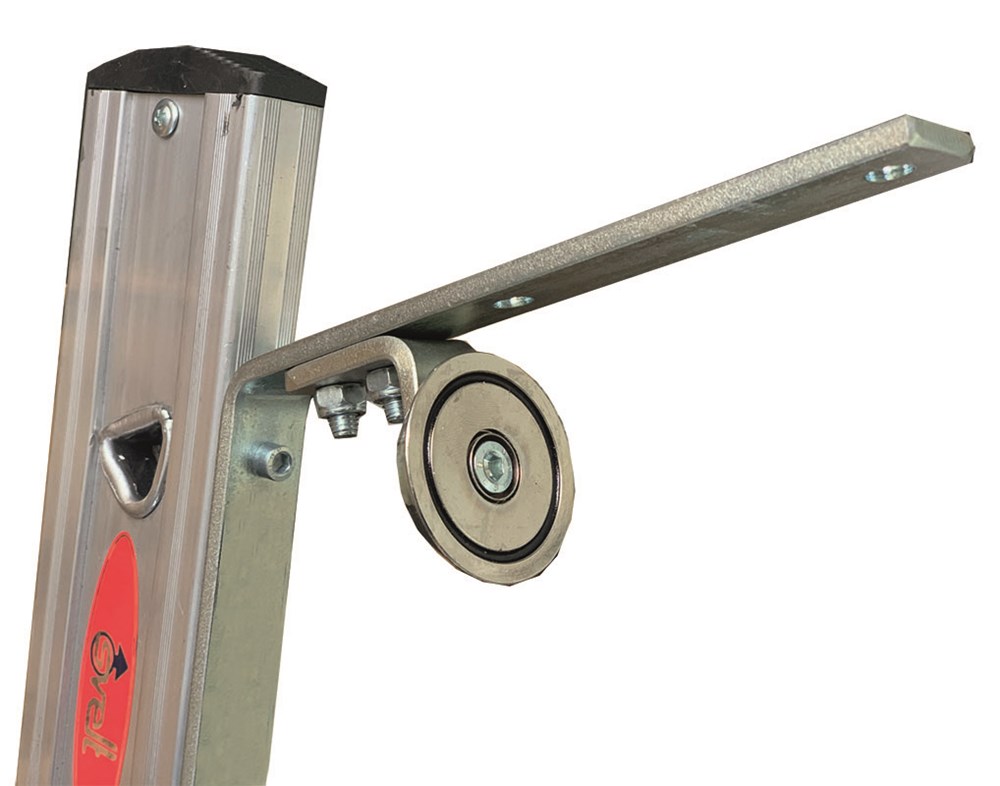

N. 2 instant fixing magnets with a capacity of 90 Kg each.

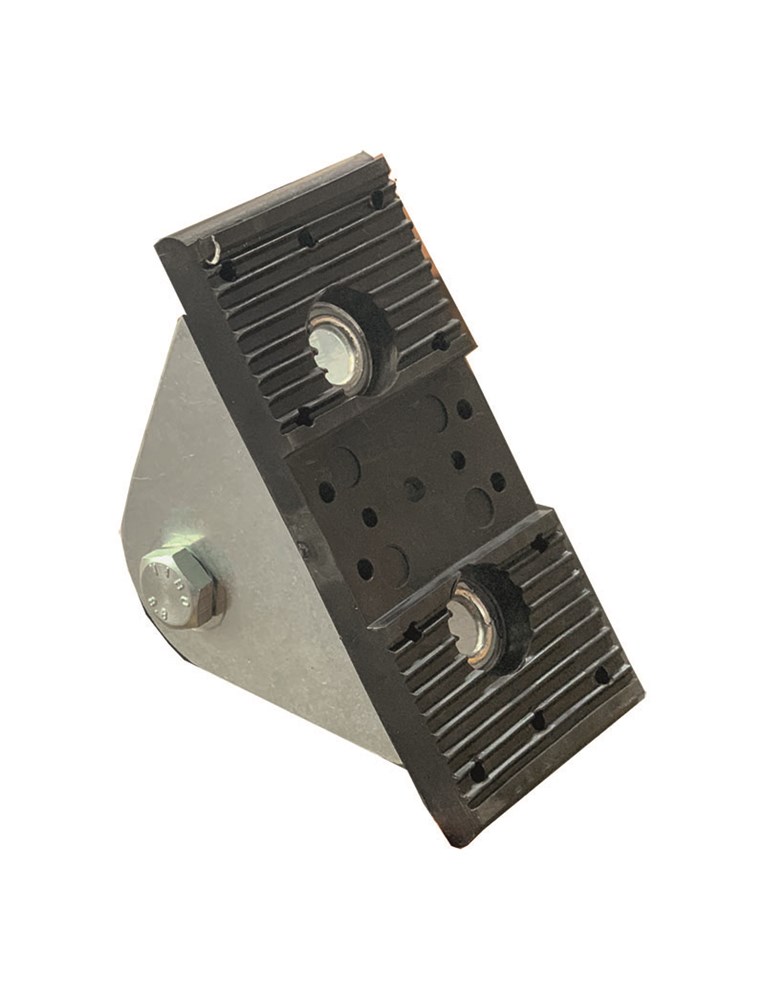

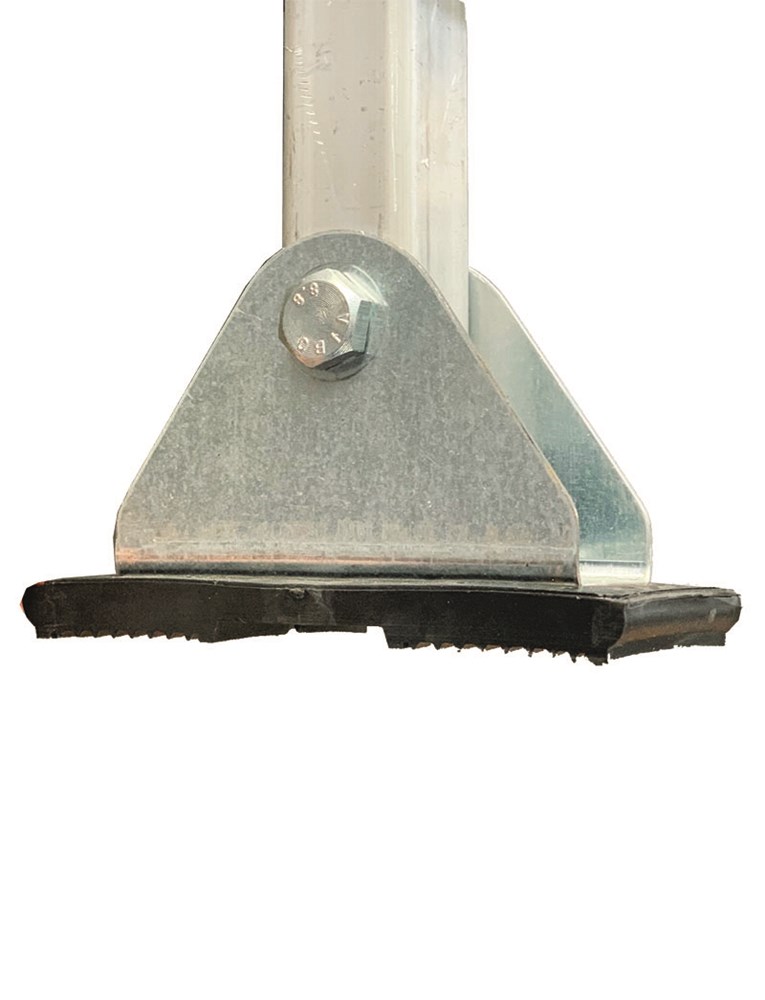

N. 2 non-slip articulated support feet for soil that is not perfectly flat
Capacity Kg 150
Compliant with Italian legislation: Legislative Decree 81/08

Code	STEPS N.	HEIGHT OF SBARCO MIN. m	HEIGHT OF MAX LANDING m	DISTANCE BY THE TRUCK Cm	WEIGHT KG	Description
SACCESCAM4	4	1,03	1,18	60	10,6	TRUCK ACCESS LADDER 4 STEPS	SHOP
SACCESCAM5	5	1,28	1,43	69	13,6	TRUCK ACCESS LADDER 5 STEPS	SHOP
SACCESCAM6	6	1,53	1,68	78	16,6	TRUCK ACCESS LADDER 6 STEPS	SHOP
SACCESCAMCOR	KIT 2 OPTIONAL HANDRAILS (NOT INCLUDED IN THE PRICE OF THE STAIRS)						SHOP
