Truck platform access ladder

Max landing height 2.32 m

It shows the validity of the guarantee in years

It shows the maximum weight capacity of a product

It is shown on products which conform to the European Standard on welding

Suitable for heavy duty

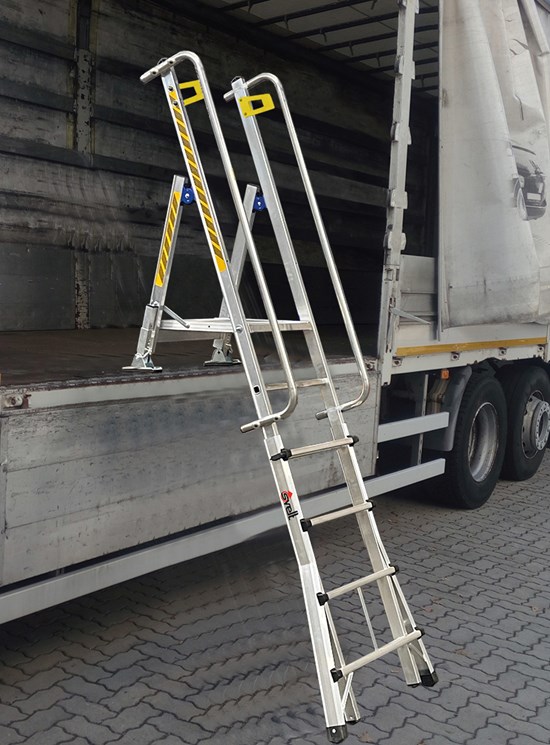

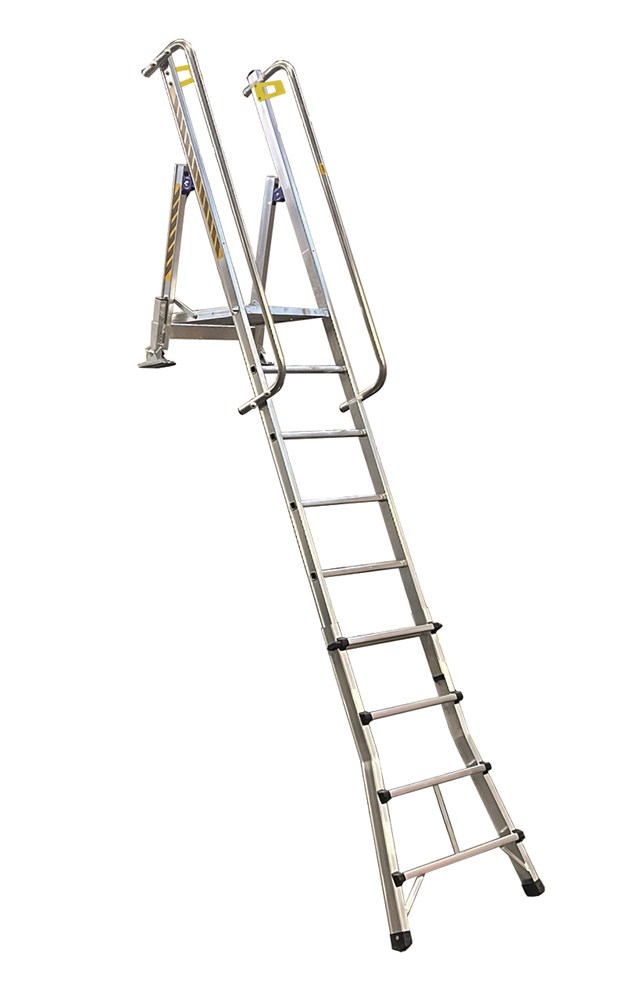

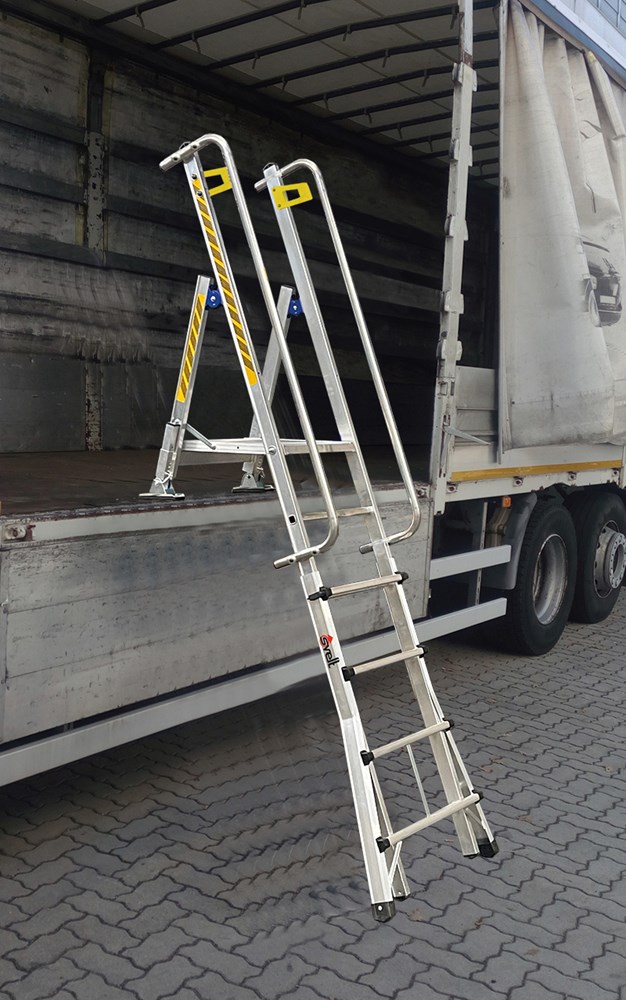

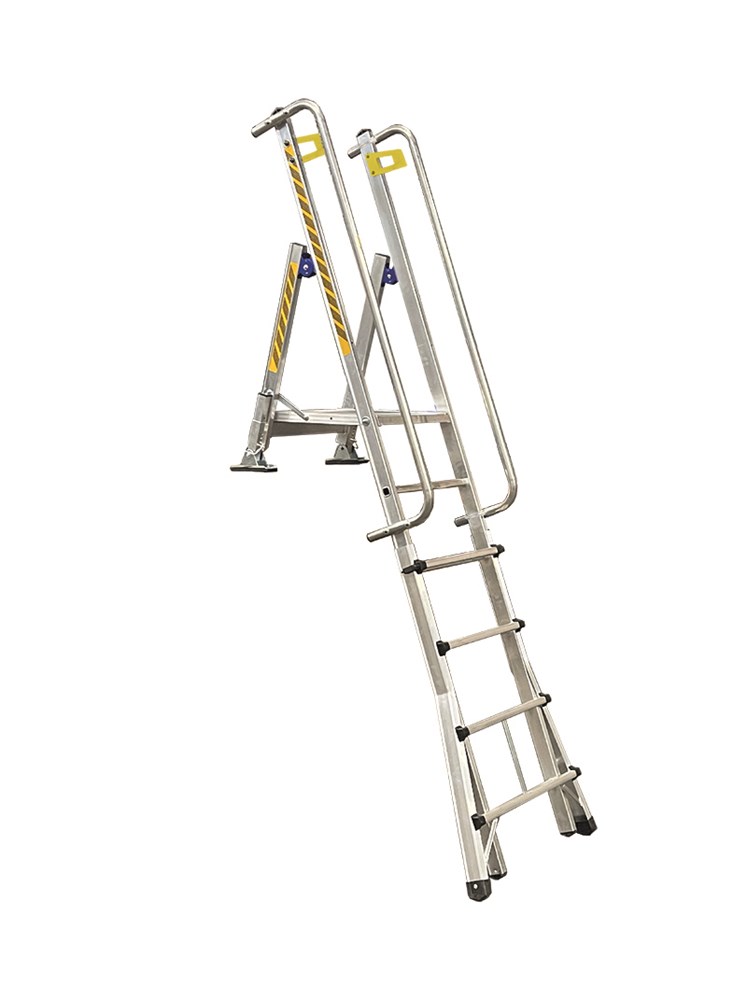

Adjustable telescopic platform ladder for access to trucks

Professional telescopic ladder in ribbed aluminum for access to trucks.
It is adjustable in height every 28 cm.
Lightweight and easy to transport.

Theft can be avoided by leaving it hanging on the crane hooks.

Code	Steps number	Platform height minimum m	Platform height max m	Transport dimensions cm	Closed height m	Weight Kg

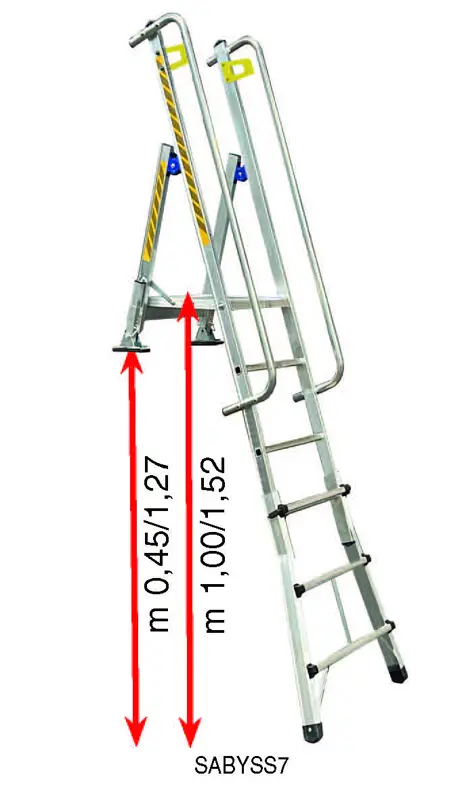

SABYSS7	4+3	1,00	1,52	215x58x23	2,15	12

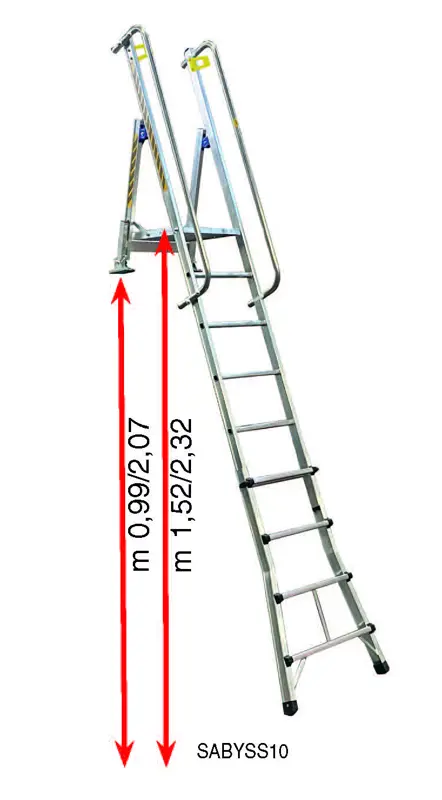

SABYSS10	6+4	1,52	2,32	273x58x23	2,73	15

Supplied with 2 hooks to lift the ladder with the crane and prevent it from being stolen on site or to lock the ladder or secure it for transport.
Supplied with 2 adjustable telesciopic legs of 28 cm in aluminum with jointed support foot.

Technical features

Solid aluminum structure for use on construction site
Vertical adjustment every 28 cm.
Position locking by safety pins
Quick and easy installation
Equipped with non-slip pvc feet
Ascent and descent facilitated by 2 handrails equipped

with screws, packed in packaging, to be screwed on the

first time by the customer (profile Ø 32 mm.)

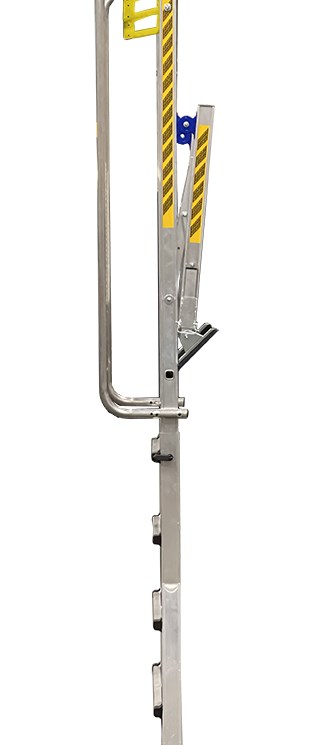

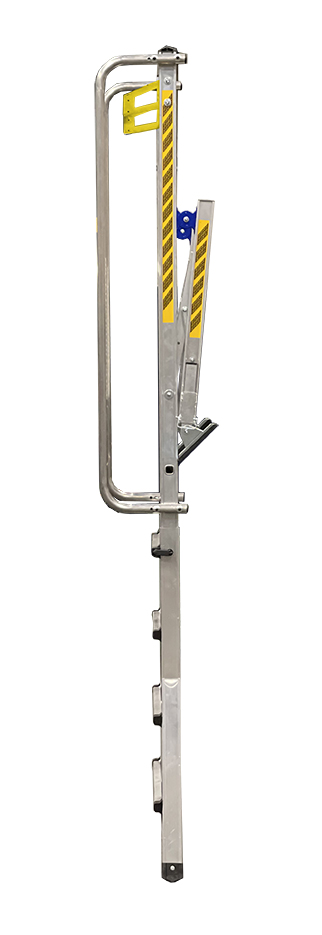

Foldable and light for transport

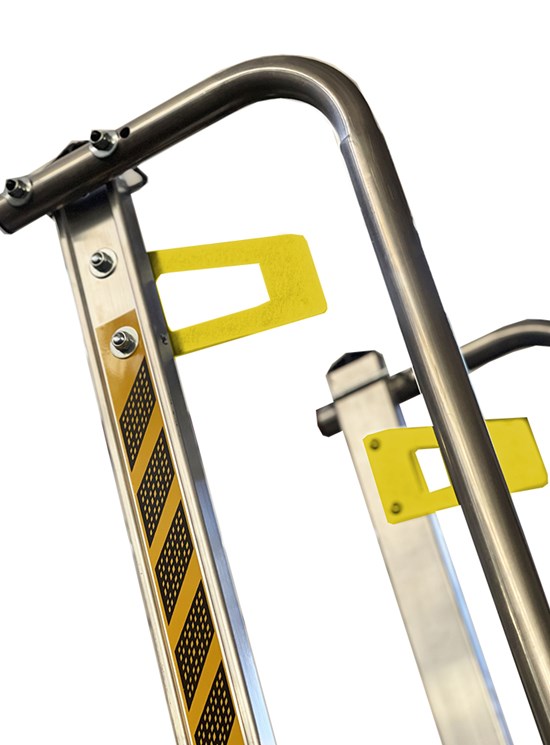

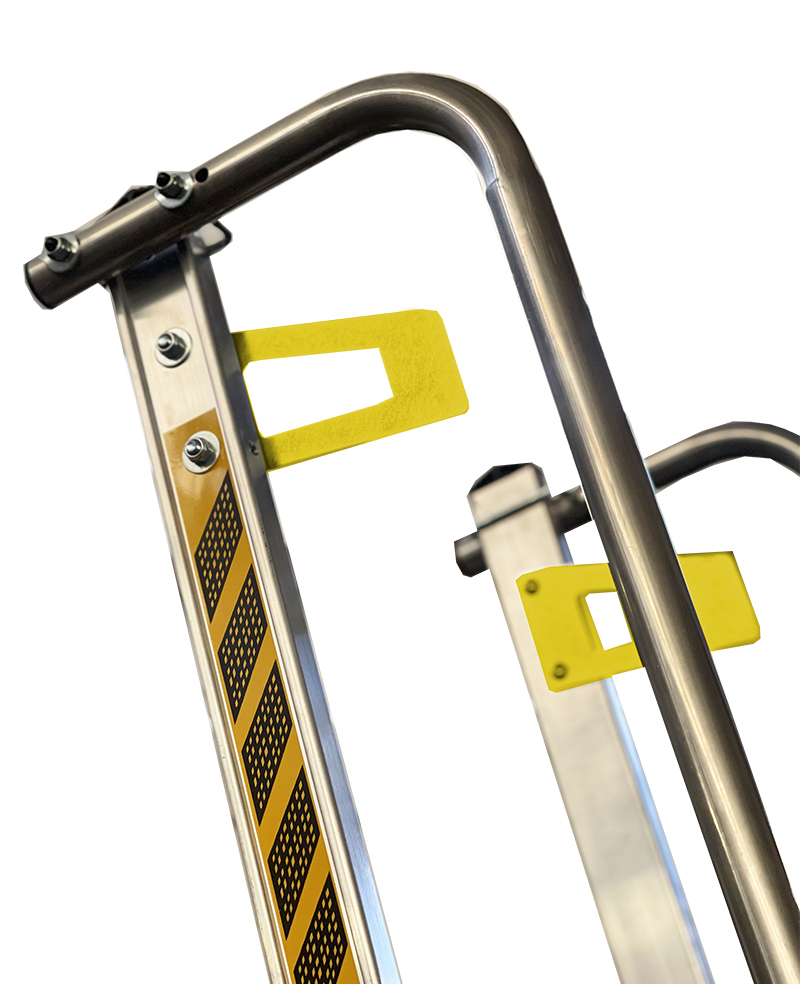

Dedicated crane hooks
Millimeter adjustment of the support feet of the platform from 0 to 28 cm. The ladder is always levelled.
Platform: width 45 cm., length 50 cm.
Ramp width: cm. 52 (with handrails cm. 58)
Non-slip rungs 28x28 mm.
Base width cm. 76
