Bridge ladder for military and civilian vehicles

Made of custom-made aluminium

It shows the validity of the guarantee in years

It shows the maximum weight capacity of a product

It shows the number of people who can climb the structure at the same time

All our products conforms to the standads in force

Suitable for heavy duty

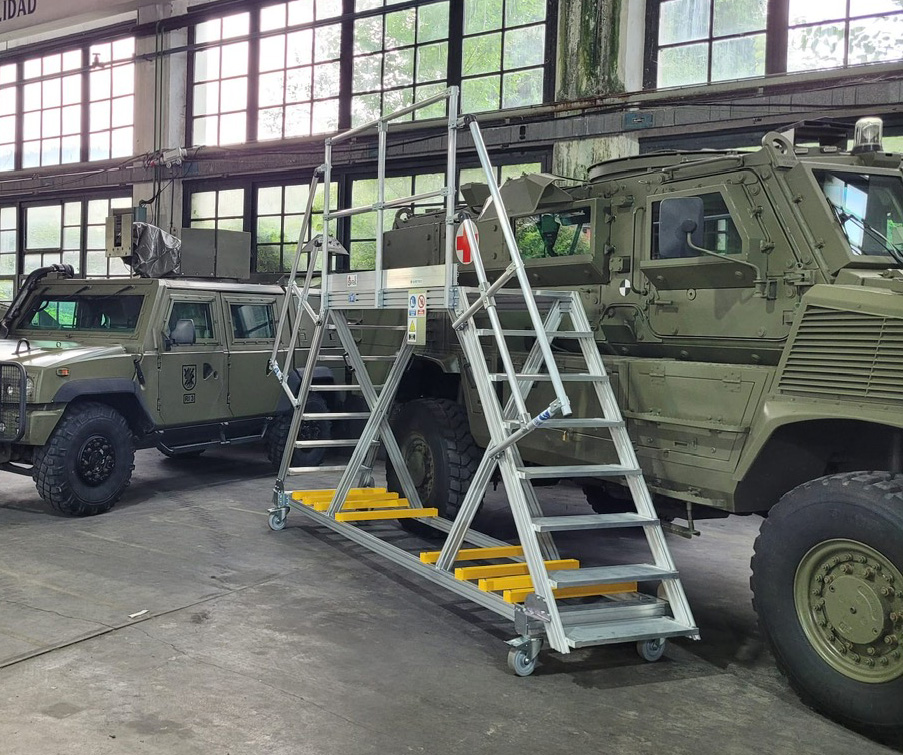

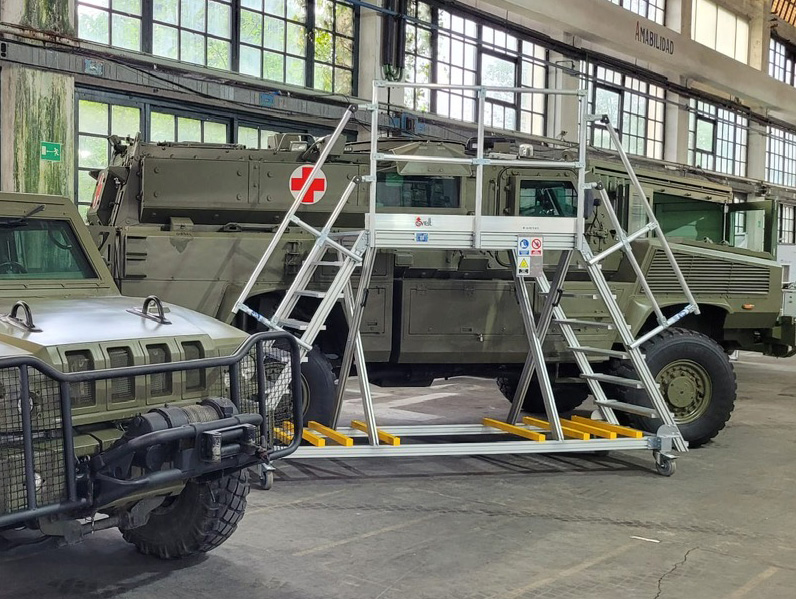

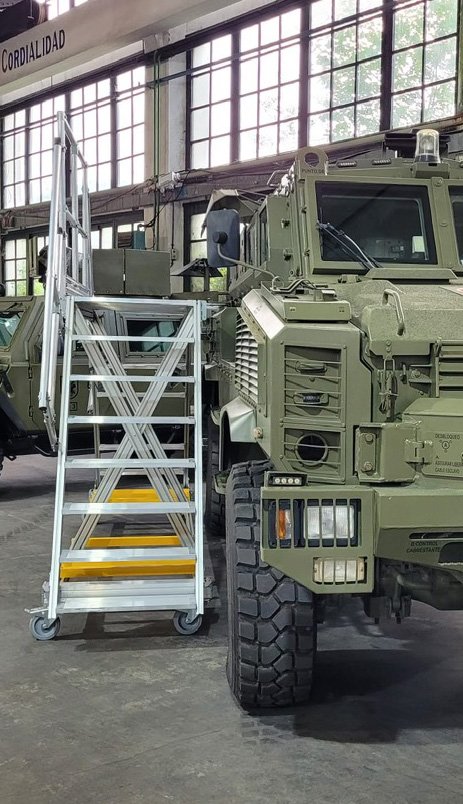

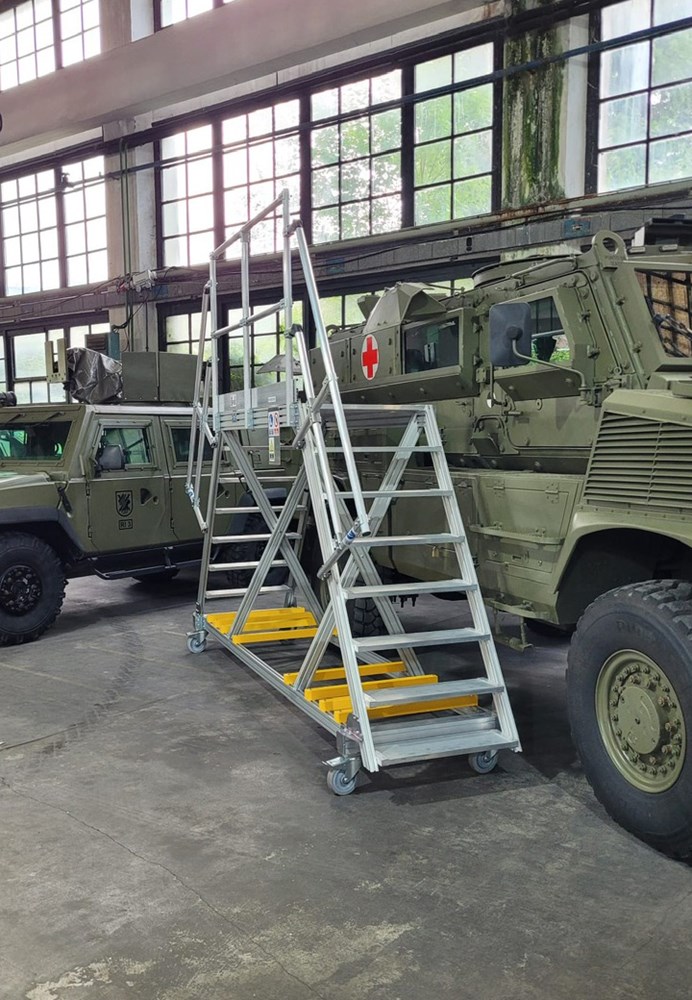

Custom-made double climb bridge ladder for different models of armoured army vehicles and civil defence vehicles

Made of ultra-resistant aluminum , it is ideal for working on the side, front and back of army armored vehicles.

Custom-made platform can be made of extruded aluminum or even grated and draining to allow materials to fall to the ground and not settle.

On the outside, the presence of toe clips and protective bodyguards 1 meter high protect the operator.

The joint plates between the ramp, backrest and platform are made of steel.

To avoid high transport costs, the ladder is supplied disassembled and can be easily assembled on site.

Ramp width 0.60 m (or customized)
Max width (customized)
Toe height mm 150
Parapet height m 1
Wheel diameter 150 mm. Rubber pivoting with brake (or customized)
Capacity 150 kg including one person. Higher flow rates on request.
Custom-made platform height
The climbing ladder is equipped with a handrail on the external side for comfortable climbing of the operator
Aluminum platform with toe pad, knee protector and protective railing on the outer side
Labels and use and maintenance manual
Certified according to Italian regulations.
