Motorized retractable ladder

Maximum standard height m 3

Producted in compliance with the European Standard (2006 ) for ceiling retractable loft ladders. The standard defines tests and sizings

It shows the validity of the guarantee in years

It shows the maximum weight capacity of a product

Suitable for light duty

Steel ceiling or terrace

Made of painted steel, it is equipped with a motor with control that allows electric opening and closing (220 V).

Built to standards and can be opened and closed with a simple movement thanks to the return springs.
They can be installed in 5 minutes. To assemble, simply insert the closed ladder into the hole and lock it at the top with 4 brackets and 4 screws (supplied) that hook the ladder to the slab.

They do not require any masonry work and the assembly can be done directly by the user (with detailed assembly instructions).
The capacity of all ladders is 150 kg.

Useful tips for choosing a staircase:

The hole in the ceiling must be the same measurements as the staircase
The height from floor to ceiling and the height of the floor must be measured
Concrete ceilings have no problems supporting stairs
For wooden ceilings, ask the builder for advice
Drywall structures to be avoided
The stairs do not require periodic maintenance and it is forbidden to lubricate them
It is possible to install the ladder after laying the floors
All stairs are covered by a legal warranty, by R.C.T. insurance and by static verification carried out by a specific technical office
The minimum extraction space to open the ladder is 170 cm (from the trapdoor attachment to the wall in front)

HARMONICA

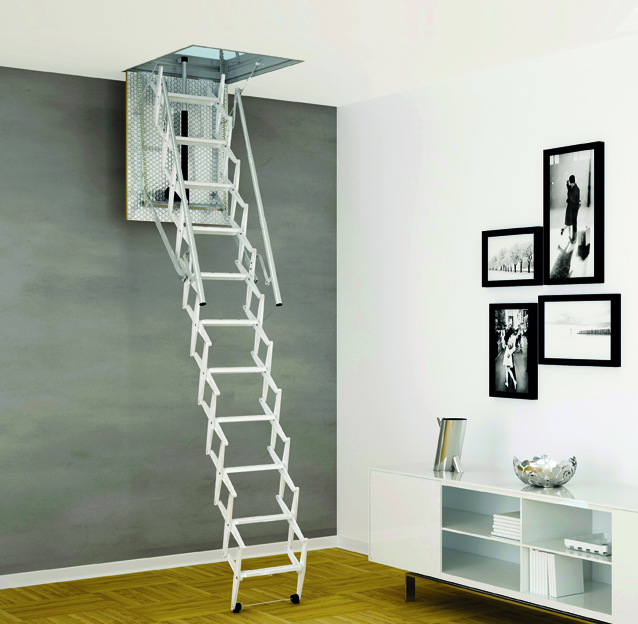

Galvanized steel staircase with 11 steps that opens like an accordion.

The ladder is suitable from 2.80 m up to a maximum ceiling height of 3.00 m and for indoor use.

To adapt the ladder to lower heights, simply dismantle the excess steps. Closed staircase thickness 40 cm.

Standard equipment and technical features:

Telescopic right handrail - Landing handles on the floor - Telescopic opening rod - Lock - Screws and fixing brackets provided for floor thicknesses of 28 cm

Inclination 65° - Sheet metal frame 1.2 mm thick - 1st choice chipboard trapdoor 16 mm thick - Tread steps 10 cm - For standard slabs from 15 to 28 cm

Labels and use and maintenance manual
Shrink packaging
Test certificate according to Italian regulations

TECHNICAL CHARACTERISTICS (MAX CEILING HEIGHT 3.0 m)

HATCH MEASUREMENTS Cm	CODE	DESCRIPTION	MIDURE STEPS (widthxdepth)
70x90 mm	SHARMMOT70X90	SCALE RETR. MOTORIZED HARMONICA 70X90	35x10	SHOP	CUSTOM PATTERN 40 DAYS DELIVERY TIME
70x100 mm	SHARMMOT70X100	SCALE RETR. MOTORIZED HARMONICA 70X100	35x10	SHOP	CUSTOM PATTERN 40 DAYS DELIVERY TIME
70x110 mm	SHARMMOT70X110	SCALE RETR. MOTORIZED HARMONICA 70X110	35x10	SHOP	CUSTOM PATTERN 40 DAYS DELIVERY TIME
70x120 mm	SHARMMOT70X120	SCALE RETR. MOTORIZED HARMONICA 70X120	35x10	SHOP	CUSTOM PATTERN 40 DAYS DELIVERY TIME
70x130 mm	SHARMMOT70X130	SCALE RETR. MOTORIZED HARMONICA 70X130	35x10	SHOP	CUSTOM PATTERN 40 DAYS DELIVERY TIME

N.B. It is strictly forbidden to modify the stairs without authorization. Stairs must not be walled up.

REGULATIONS

ALL RETRACTABLE LADDERS IN THIS SECTION ARE BUILT IN COMPLIANCE WITH THE EUROPEAN STANDARD UNIEN14975:2007
THEY HAVE BEEN SUBJECTED TO FLOW TESTS BY A RECOGNIZED TECHNICAL OFFICE
THE STATIC ALKALINE GALVANIZING PROCESSING CYCLE IS WITHOUT CYANIDE AND HEXAVALENT CHROMIUM
WOODEN PANELS MEET THE REQUIREMENTS IMPOSED BY INTERNATIONAL STANDARDS

N.B.: WE DO NOT PRODUCE CUSTOM-MADE LADDERS/SPECIAL HEIGHTS OR WITH CUSTOM-MADE HATCHES.

THE AVAILABLE SIZES ARE ONLY THOSE INDICATED
