Rubber ladder for roofs and roofs

Modular length 1.60 m

It shows the validity of the guarantee in years

It shows the number of people who can climb the structure at the same time

All our products conforms to the standads in force

Suitable for heavy duty

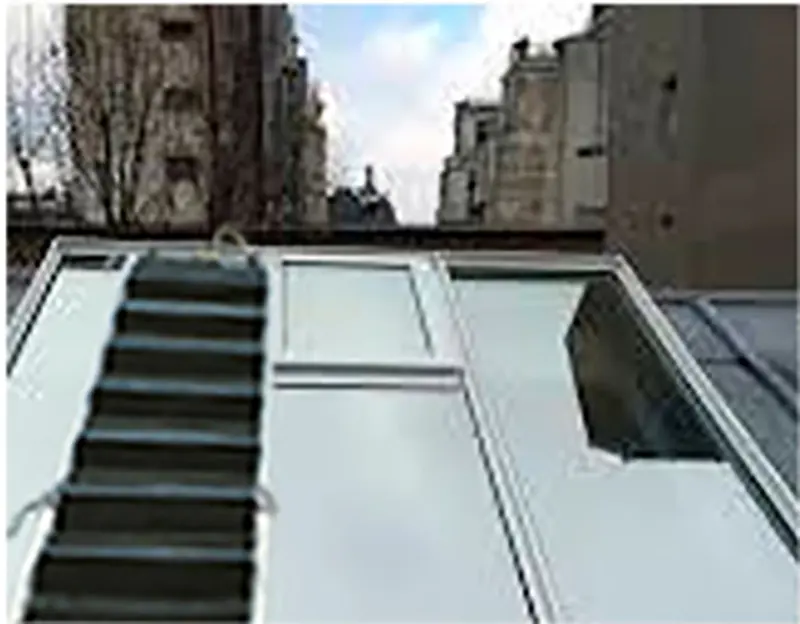

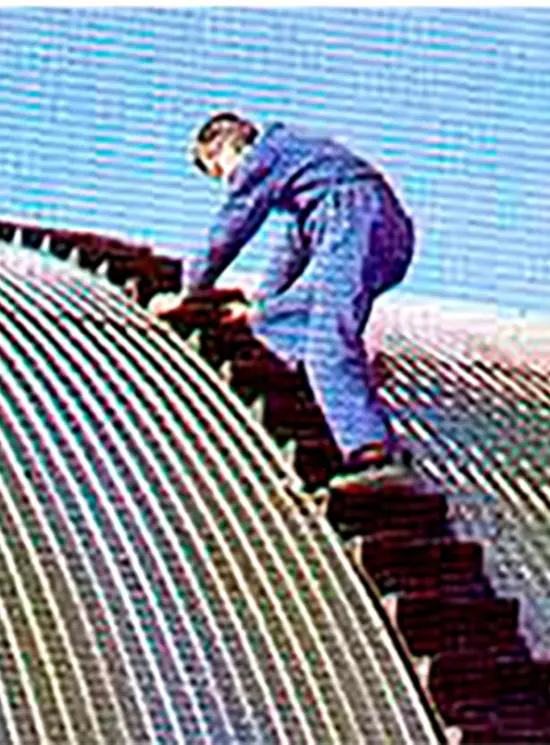

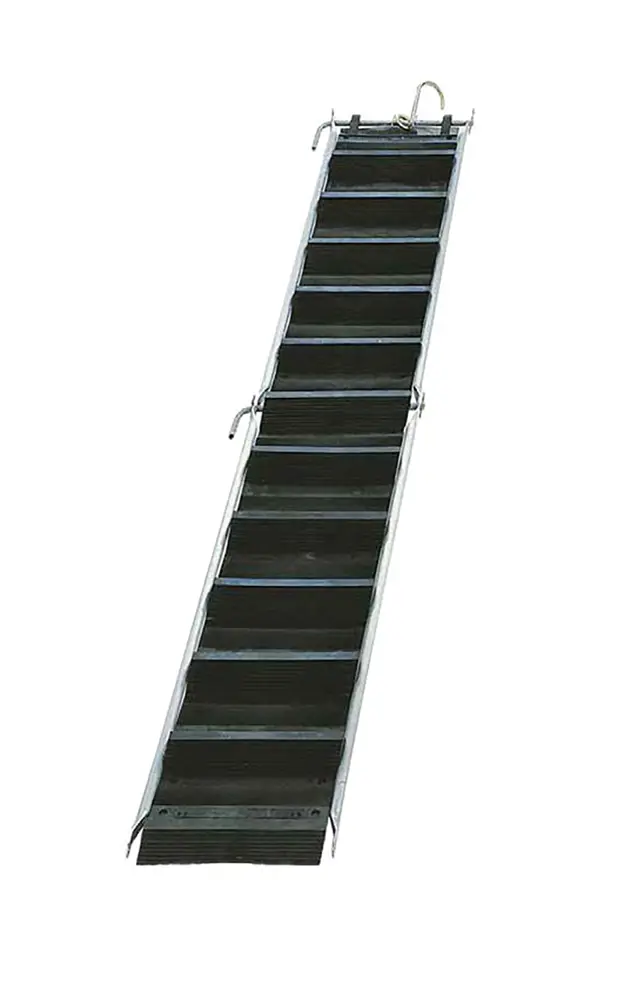

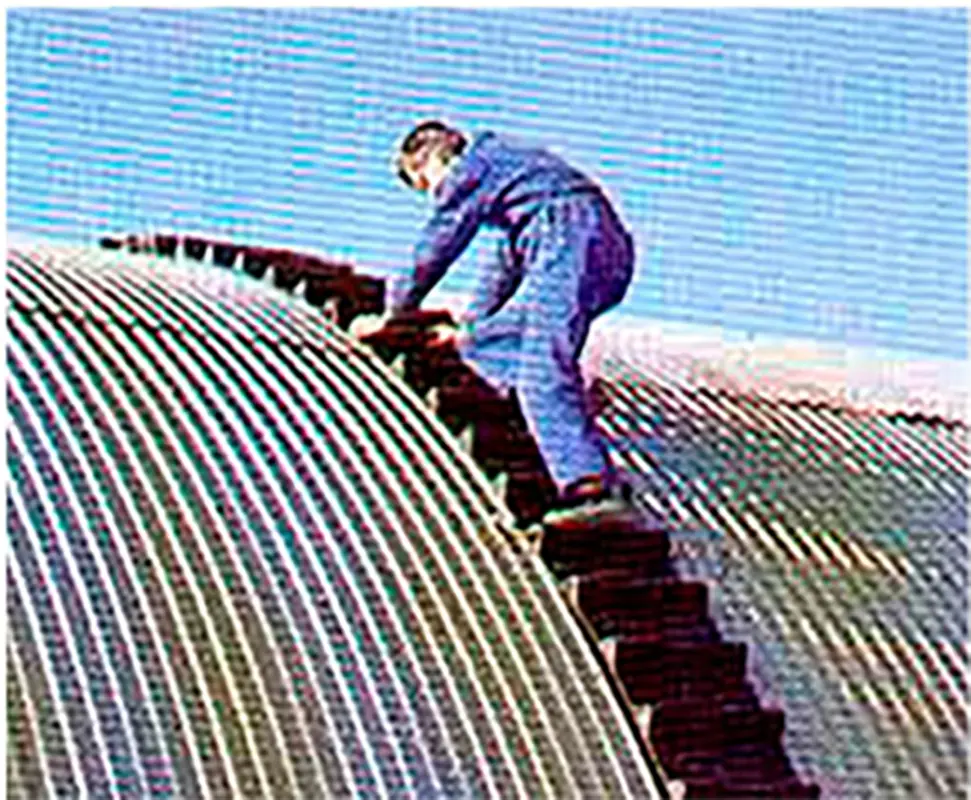

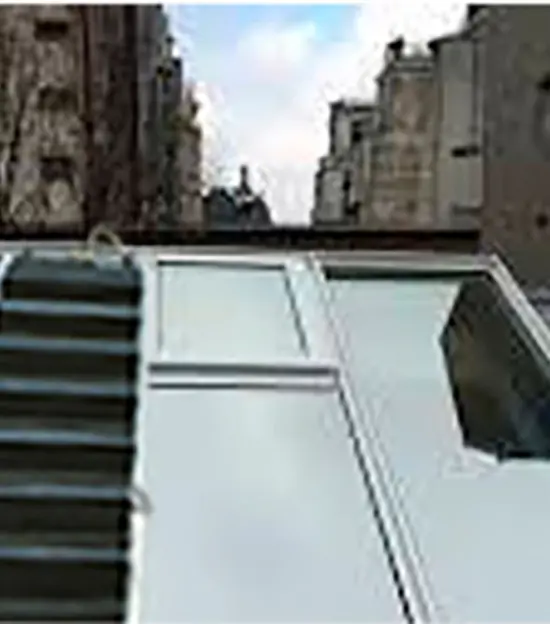

Modular rubber ladder adaptable to the roof profile

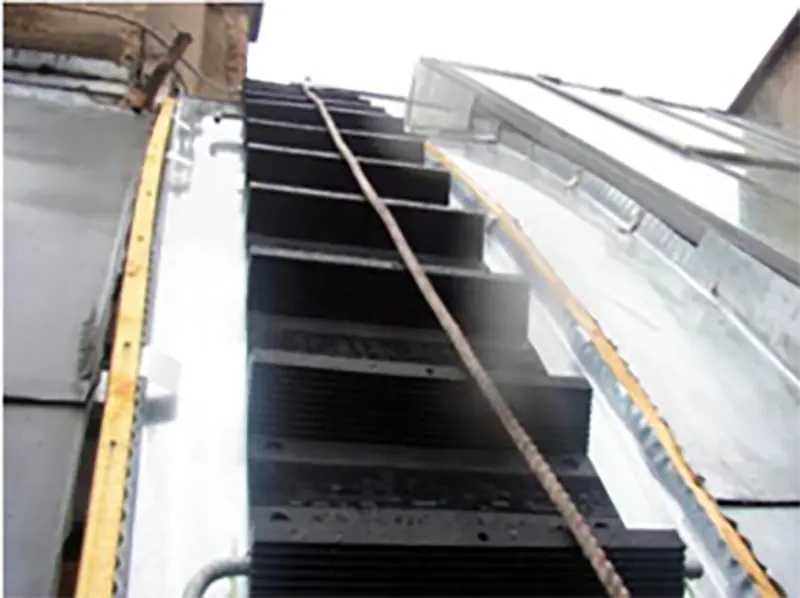

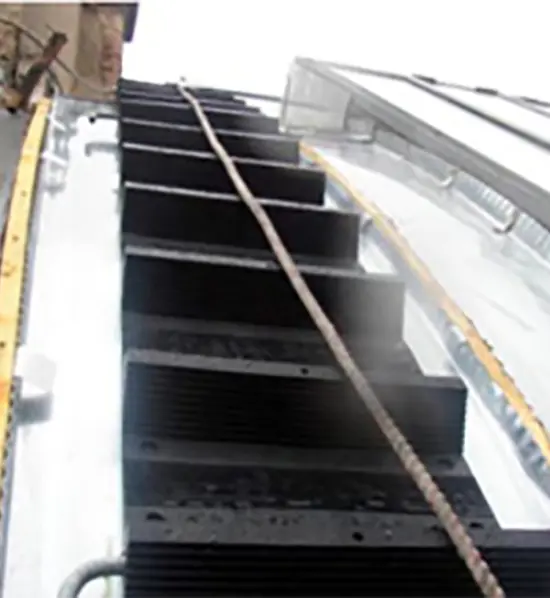

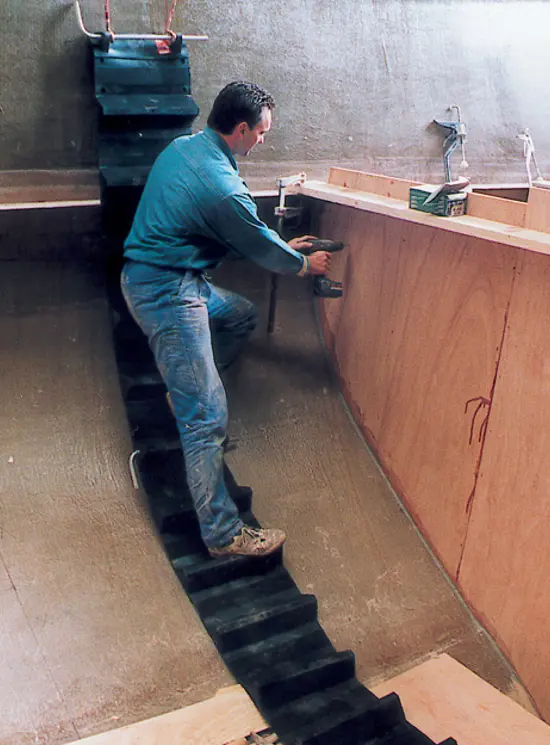

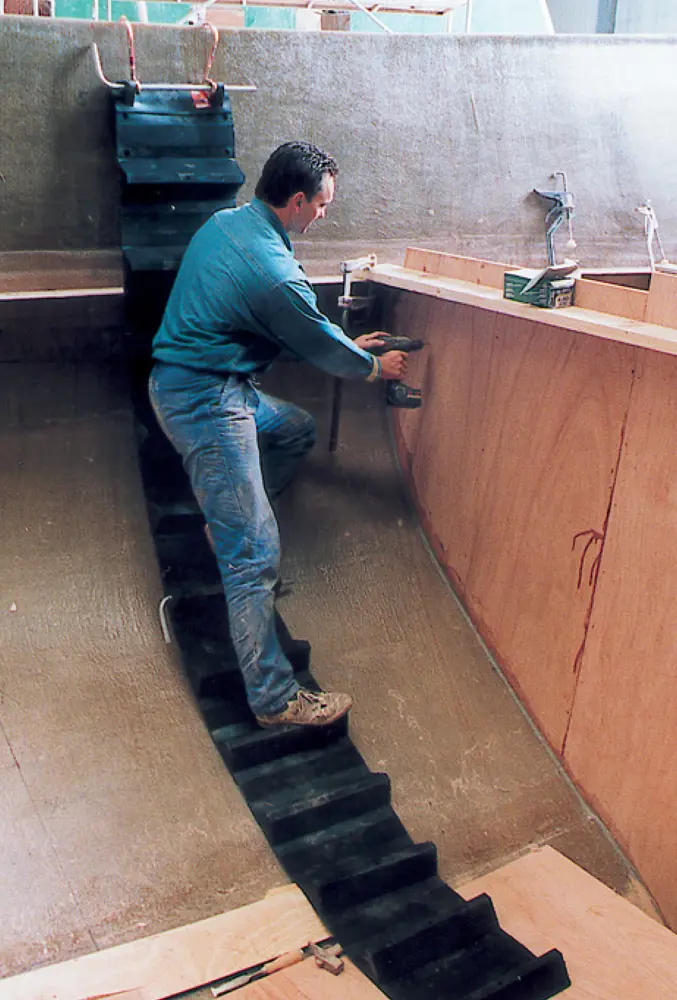

Sectional rubber ladder for access to roofs, tanks, tanks, tanks and cylindrical products.

Number of steps: 6
Each module is 1.60 m long
Maximum number of modules that can be connected: 4 (m 6.40)
Ladder width 40 cm
Module weight Kg 10
Max slope 40°

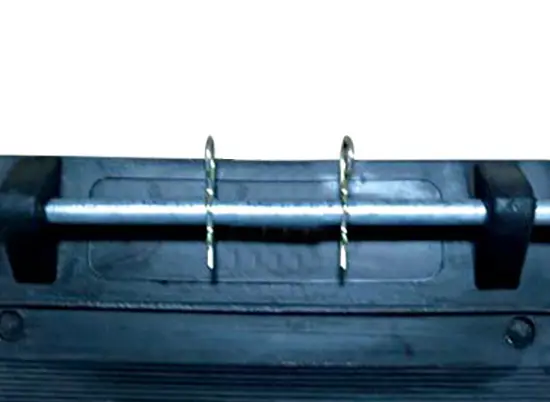

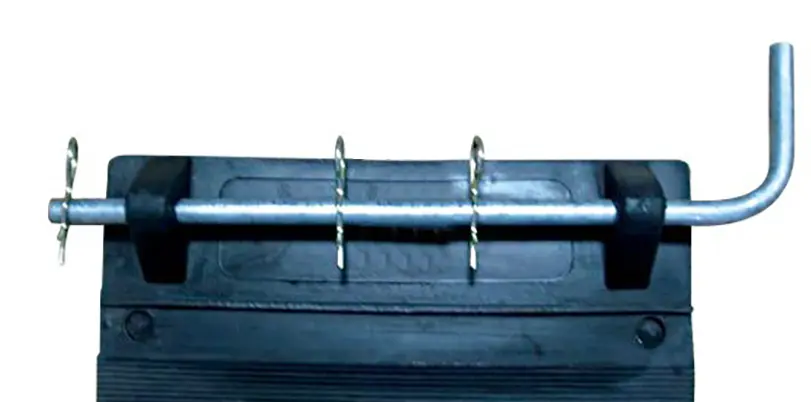

Galvanized steel connection pin between modules diameter 17 mm with 3 galvanized steel safety pins 4 mm
Shrink Packaging
Capacity Kg 130 with max slope 40°

Code	Product	Photo
ESSCRUBBER	Rubber ladder for roofs and roofs		SHOP
ESSCGOMMACOR	Handrail (steel slat) for lateral stiffening		SHOP
ESSCGOMMAANC	Anchor hook		SHOP
ESSCGOMMA3P Maximum number of modules that can be connected: 4 (m 6.40)	Longitudinal connecting pin between two ladder sections		SHOP

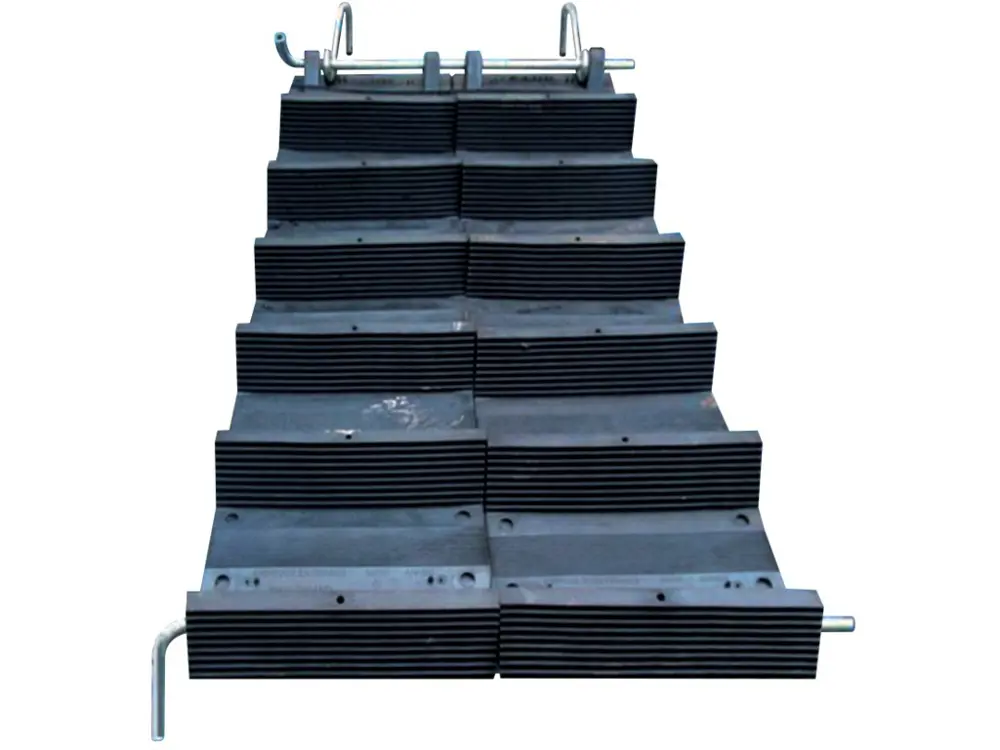

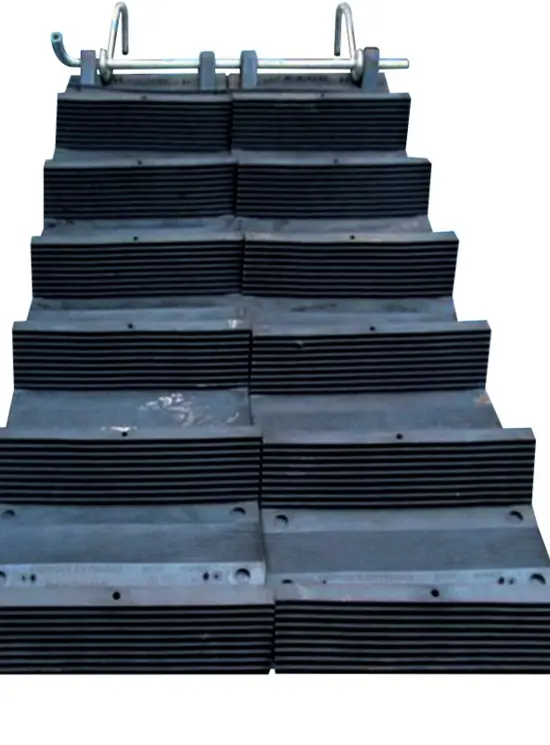

ESSCGOMMA5P	5 Side connection pins between two ladder sections		SHOP

OPTIONAL USEFUL ACCESSORIES

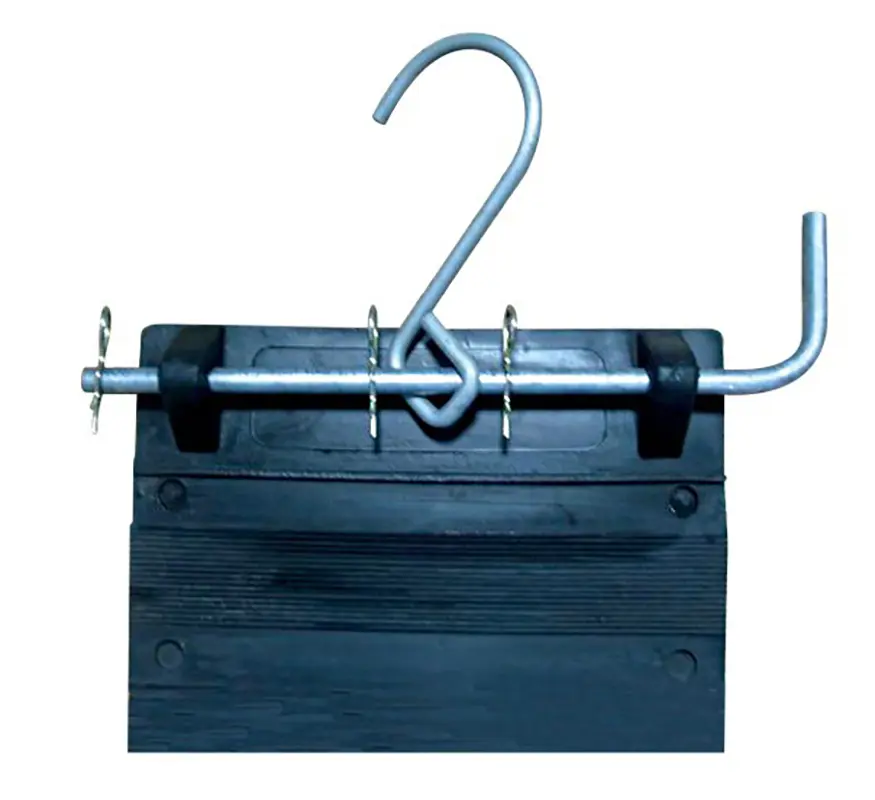

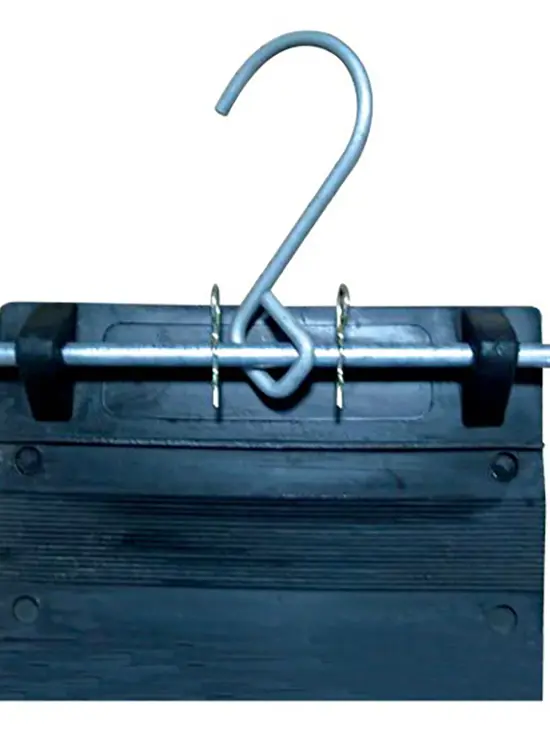

ESSCGOMMAANC: Hook in galvanized steel diameter 12 mm. It facilitates the anchoring of one or more elements to a fixing point.

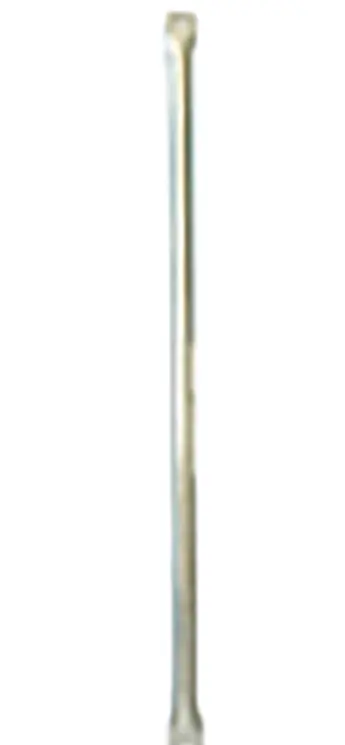

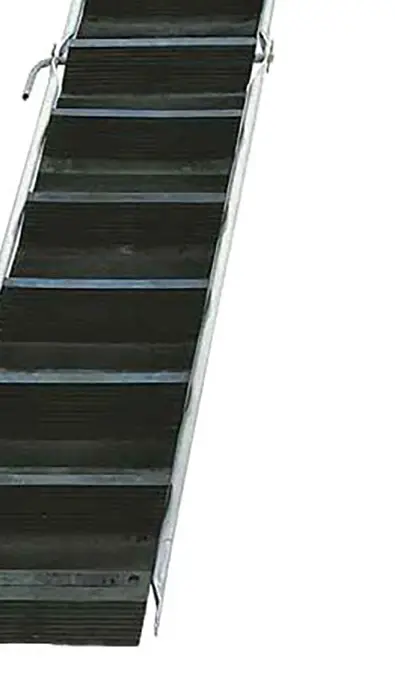

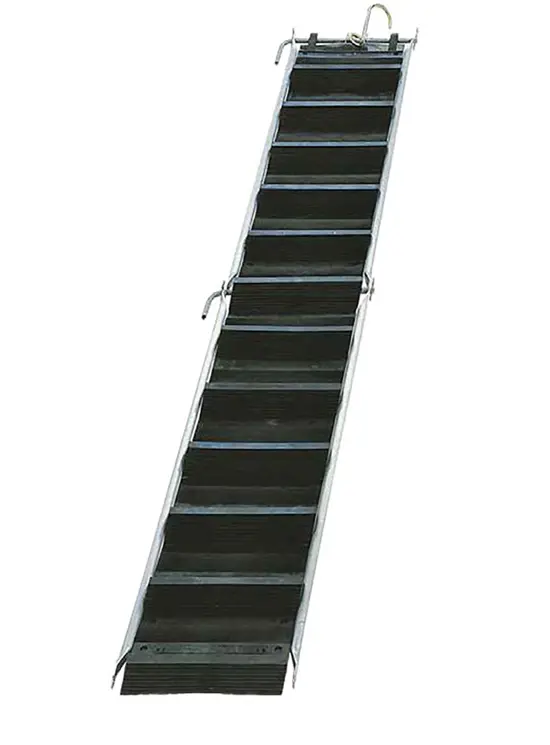

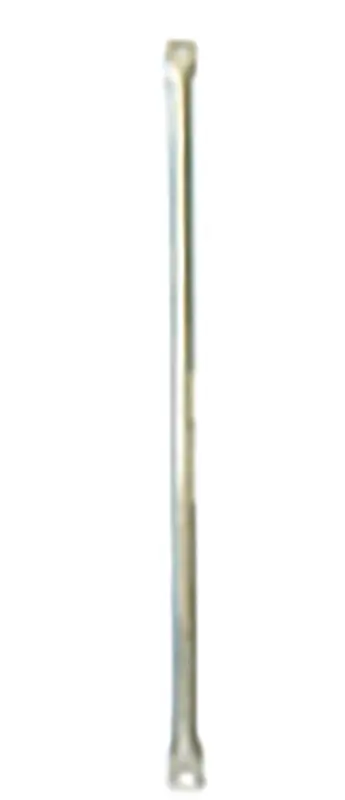

ESSCGOMMACOR: Aluminium reinforcements (the pair) L = 1.55 m Ø 25 mm, stiffen the ladder longitudinally, allow access from the edge of the roof. They can also be used as handrails.
