Day Light
Max landing height m 3.61
It shows the validity of the guarantee in years
It shows the maximum weight capacity of a product
All our products conforms to the standads in force
Suitable for heavy duty
Support ladder and access to mezzanines and mezzanines or roofs. To Italian standards D.LGS81/08

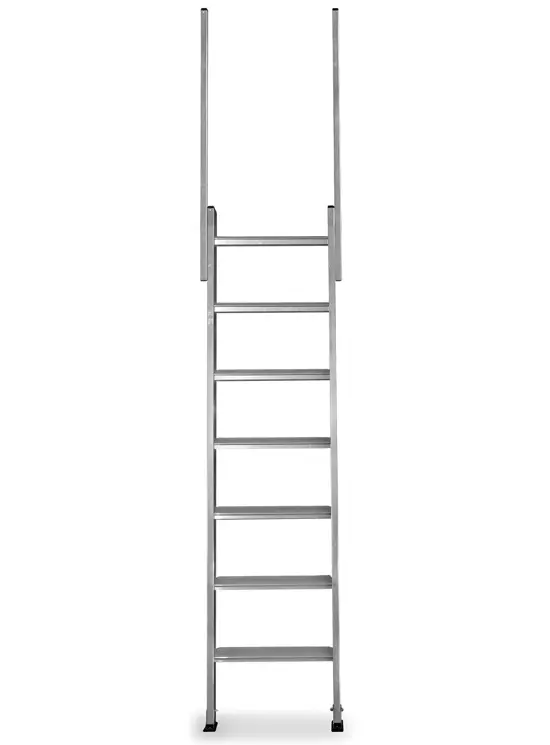

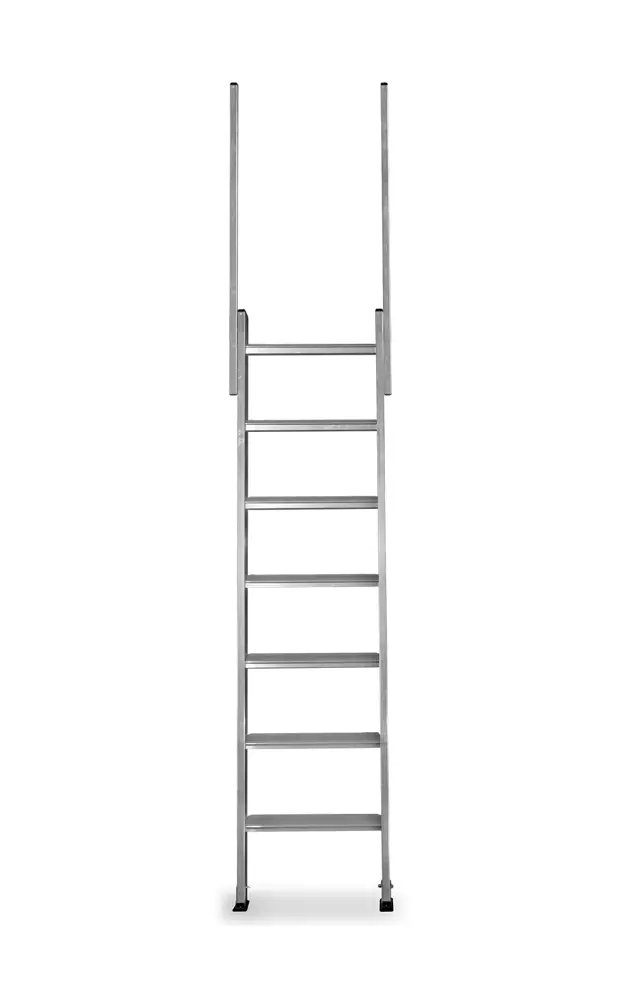

Ladder for mezzanines or for access to any elevated floor.

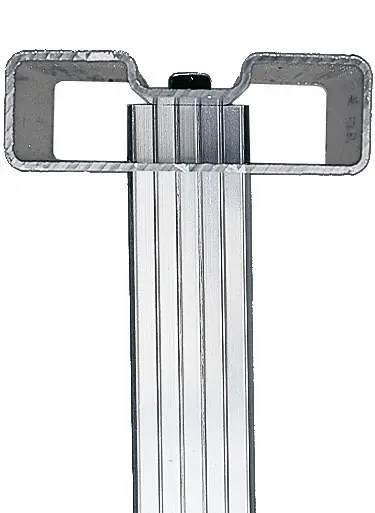

Equipped with landing handles.
It is made of ribbed extruded aluminum.
The pegs are screwed to the uprights.
The upper and lower support pads are made of PVC.
The upper and lower support pads are made of PVC.

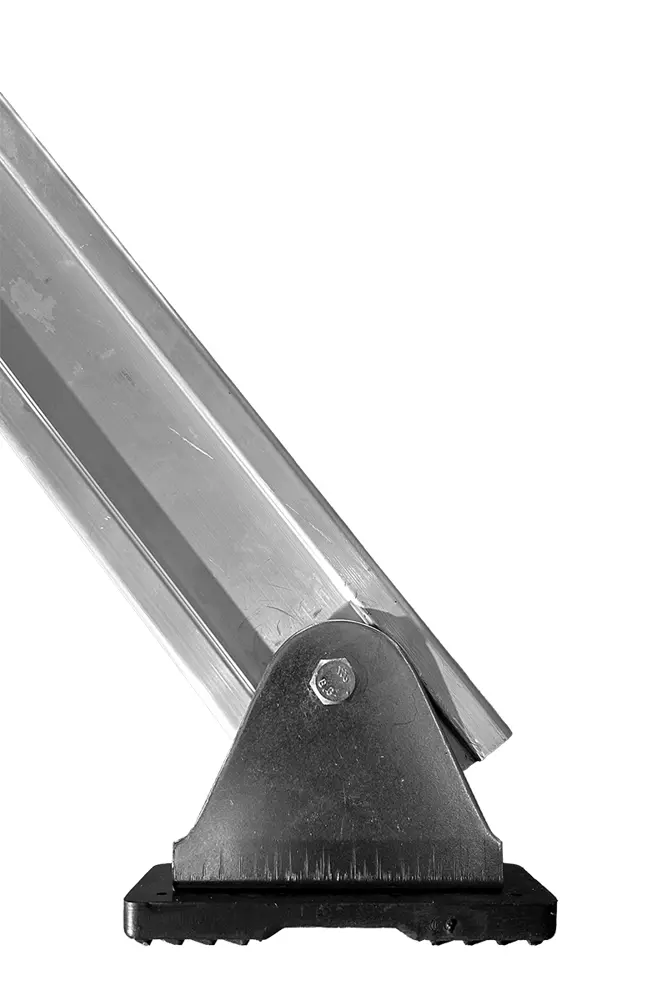

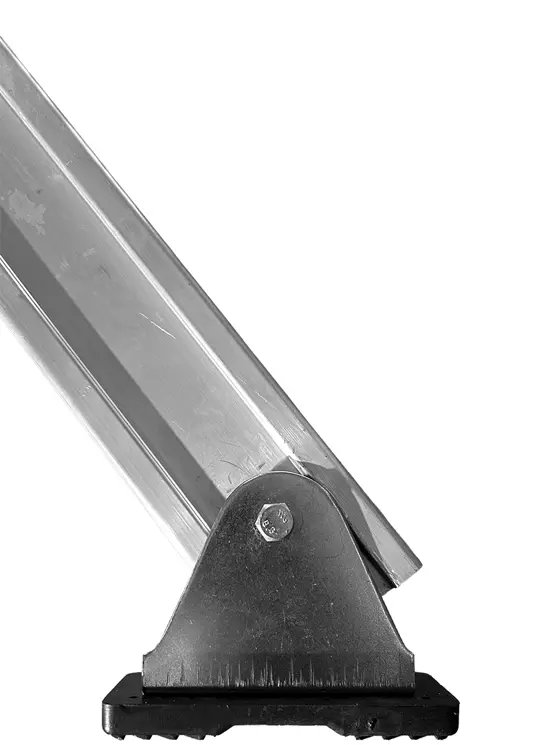

The articulated feet give the ladder great stability.
- Parallel uprights
- Articulated feet
- 100 cm landing handles
- Profile 67x27 mm
- Support angle: 65/75°
- Knurled non-slip rungs mm 25
- Ramp width 50 cm
- Step between steps 28 cm
- Peg depth 2.5 cm
- Thickness of the transport ladder 10 cm
- Labels and use and maintenance manual
- Shrink packaging
- Test certificate according to Italian regulations
On request:
Non-slip covers for the rungs
The rungs of the Giorno Light ladders are non-slip knurled for standard use.
However, ladders can be quite slippery, especially if used in particular environments where the rungs or shoes are in contact with water, grease, oil or other slippery organic material. It is the task of the R.S.P.P. to assess the risks of slipping and decide what countermeasure to adopt to avoid accidents.
In these cases it is extremely important to cover the rungs with our non-slip covers made of fiberglass with built-in aluminum oxide grit.
This makes them almost indestructible and very slip-resistant.
Svelt on request will provide the ladder already with the rungs covered.
It is also possible to order the stair covers already in the customer's possession.
SPECIFICATIONS
| Code | Pegs Number | Height m | Height landing m | Weight Kg | Width of base Cm | Cluttered of transport Cm | SHOP |
| SGIORNOLIGHT08 | 8 | 3,34 | 2,06 | 10,5 | 50 | 239x53x10 | |
| SGIORNOLIGHT09 | 9 | 3,62 | 2,36 | 11 | 50 | 267x53x10 | |
| SGIORNOLIGHT10 | 10 | 3,90 | 2,58 | 12 | 50 | 295x53x10 | |
| SGIORNOLIGHT11 | 11 | 4,18 | 2,83 | 13 | 50 | 323x53x10 | |
| SGIORNOLIGHT12 | 12 | 4,46 | 3,09 | 14 | 50 | 351x53x10 | |
| SGIORNOLIGHT13 | 13 | 4,74 | 3,35 | 15 | 50 | 379x53x10 | |
| SGIORNOLIGHT14 | 14 | 5,02 | 3,61 | 15,5 | 50 | 407x53x10 |
The ladders from 12 to 14 rungs can be ordered exclusively from our Authorized Dealers
