Access ladder for roofs and roofs
Maximum height 8.56 m
It shows the validity of the guarantee in years
It shows the maximum weight capacity of a product
It shows the number of people who can climb the structure at the same time
All our products conforms to the standads in force
Suitable for heavy duty

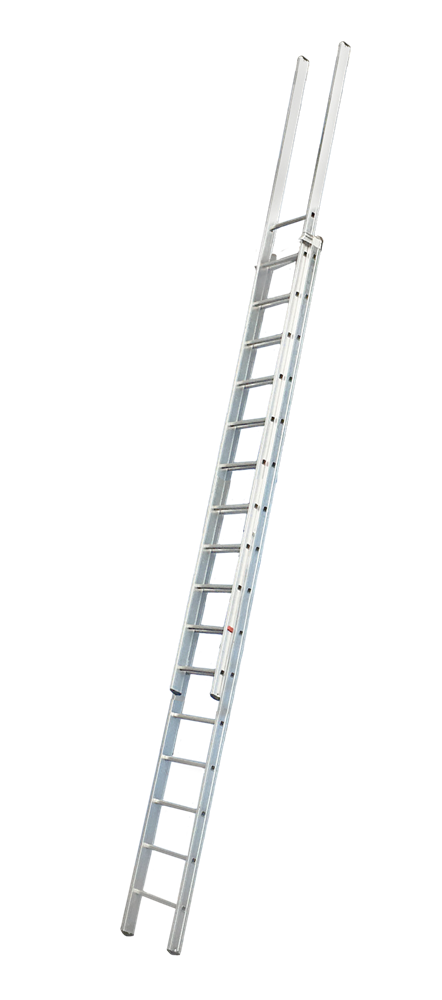

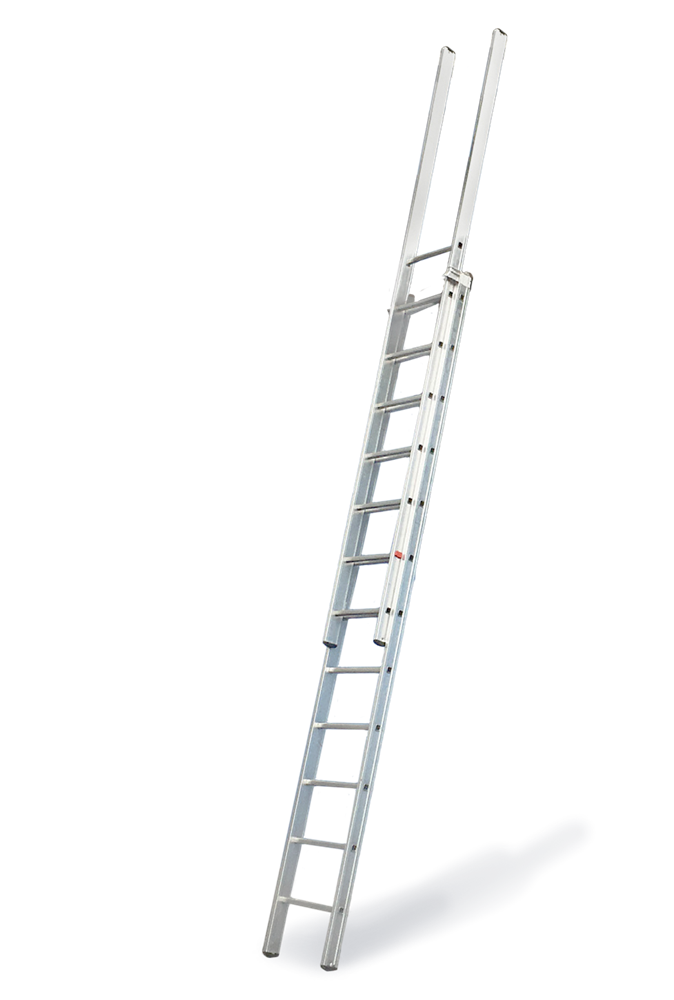

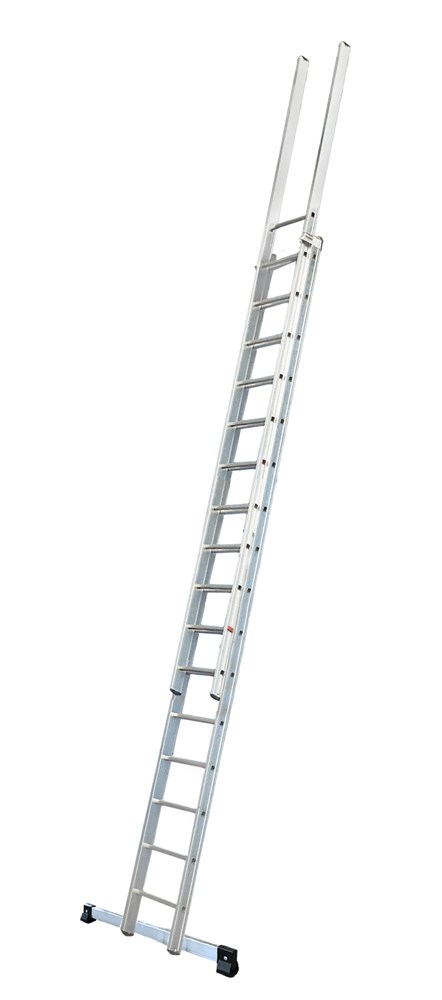

2-section extension ladders with landing handles for convenient access to the roofs

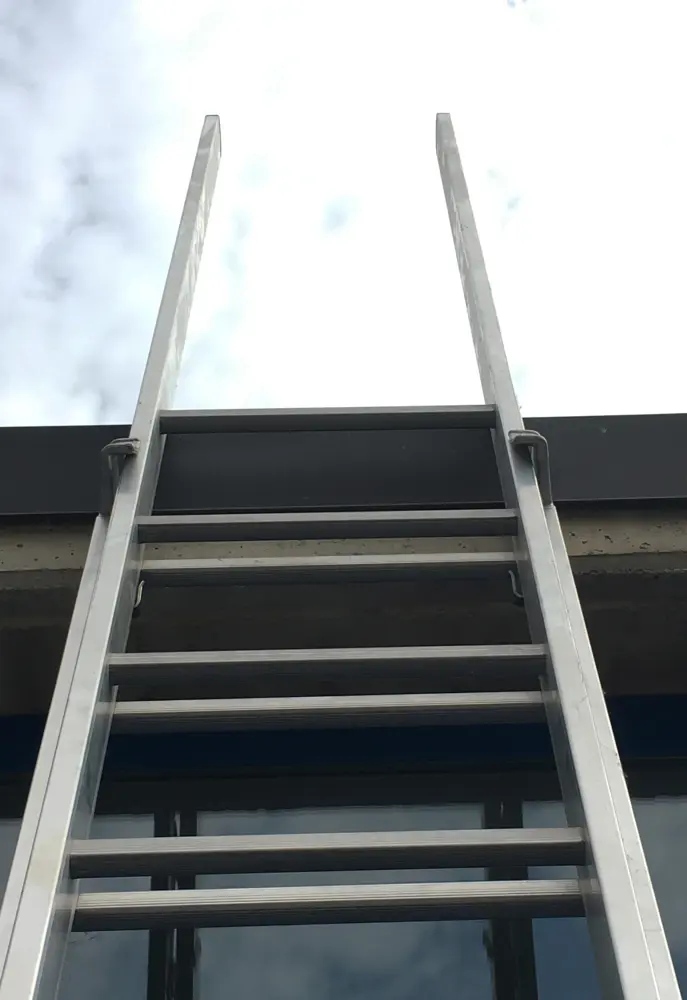

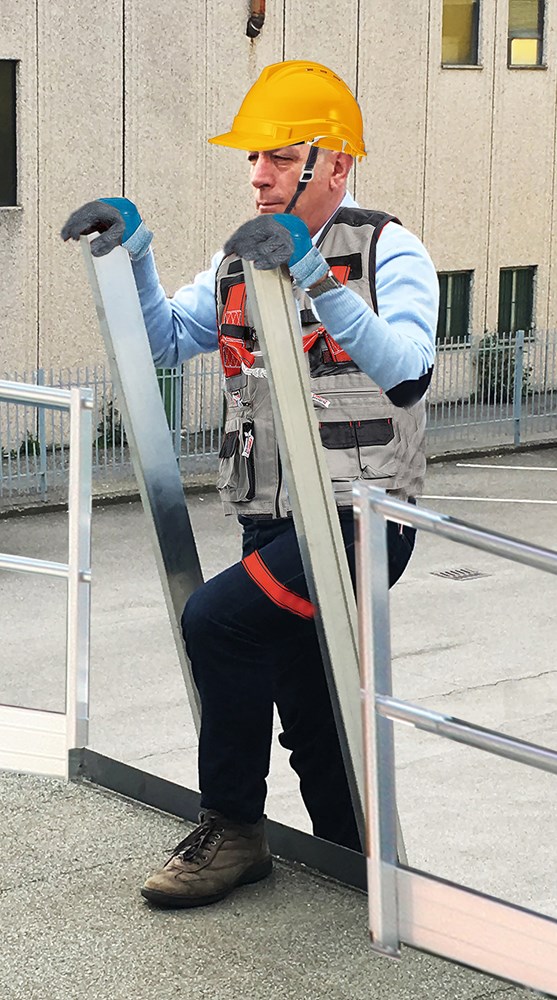

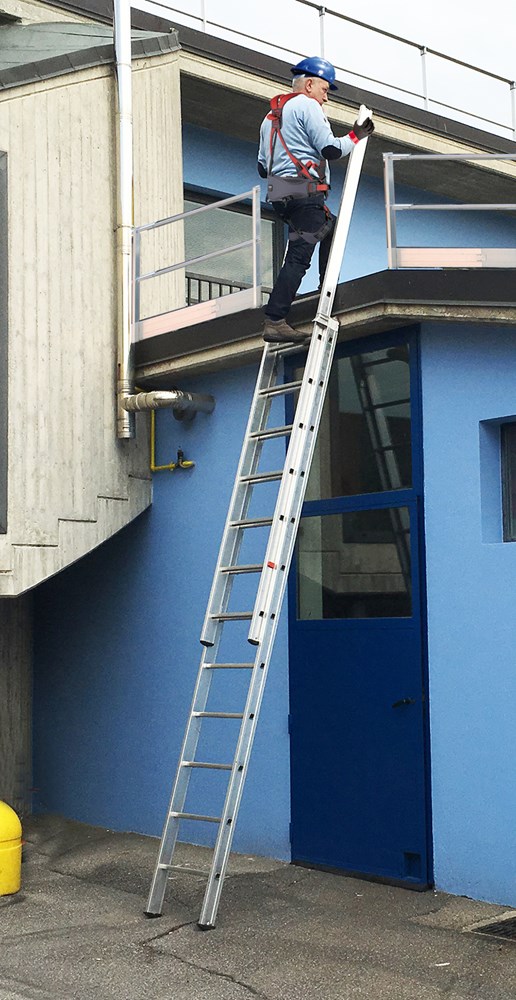

Two-section telescopic ladder for access to roofs, mezzanines and mezzanines. It is characterized by the protection of the upper body that protrudes 1 m. above the last step, so that operators can disembark safely.
Designed for the professional sector, this ladder has been made of extruded aluminum, with a system of recessed rungs that adhere to the uprights thanks to a edging that fixes and secures them on the sides.

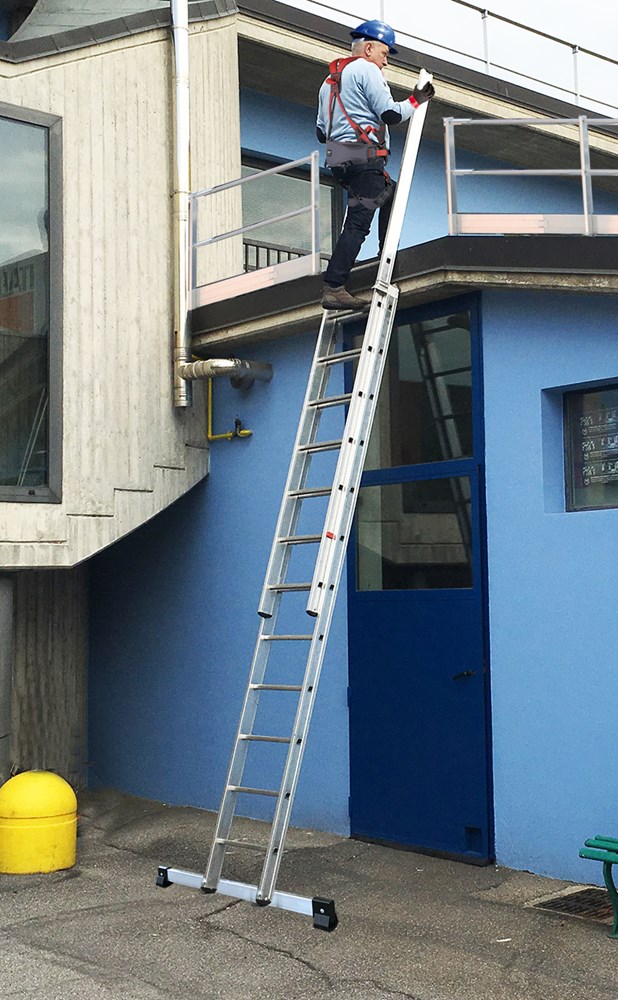

It has also focused on robustness as it reaches significant heights (5 and 7 m.) So the profile of its uprights measures 84 x 27 mm. On request, the ladder can be equipped with a stabilizer at the base, to give it greater stability and improve safety, and a handrail for a better grip of the operators when accessing the floor from above.
Designed for the professional sector, this ladder has been made of extruded aluminum, with a system of recessed rungs that adhere to the uprights thanks to a edging that fixes and secures them on the sides.
It has also focused on robustness as it reaches significant heights (5 and 7 m.) So the profile of its uprights measures 84 x 27 mm. On request, the ladder can be equipped with a stabilizer at the base, to give it greater stability and improve safety, and a handrail for a better grip of the operators when accessing the floor from above.
- Landing handle cm 100
- Reinforced profile 84 x 27 mm
- Rungs section: 27 x 27 mm
- Rubber pads
- Accidental anti-slip device
- Distance between rungs: 28 cm
- Shrink Packaging
SPECIFICATIONS
| CODE | STEPS N° | CLOSED HEIGHT M | MAX LANDING HEIGHT M | EXTENSION HEIGHT M | WEIGHT KG | ||
| SCTETTI12+8 | 12+8 | 3.52 | 5 | 6,34 | 18 |
  |
|
|
SCTETTIC12+8
(with 2 handrails)
|
12+8 | 3,52 | 5 | 6,34 | 24 |
 |
|
|
SCTETTI12+8/S with (with base spreader)
|
12+8 | 3,52 | 5 | 6.34 am | 19 |
  |
|
| SCTETTIC12+8/S with (with
base and 2 handrails)
|
12+8 | 3,52 | 5 | 6,34 | 25 |
 |
|
|
SCTETTI16+12 |
16+12 | 4,74 | 7 | 8,56 | 20 |
 |
|
|
SCTETTIC16+12
(with 2 handrails)
|
16+12 | 4,74 | 7 | 8,56 | 24 |
 |
|
|
SCTETTI16+12/S with (with base spreader) |
16+12 | 4,74 | 7 | 8,56 | 21 |
 |
|
|
SCTETTIC16+12/S with (with
base and 2 handrails)
|
16+12 | 4,74 | 7 | 8,56 | 25 |
 |
The 16+12 steps are available only at authorized dealers.
USEFUL ACCESSORIES:

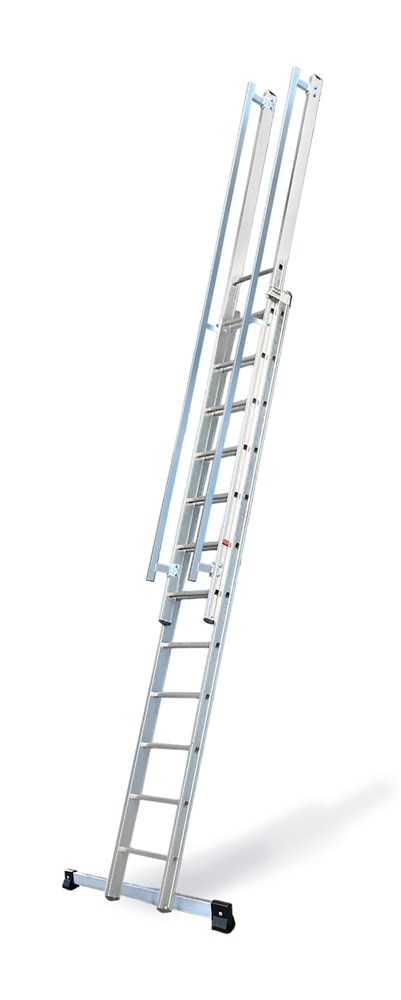

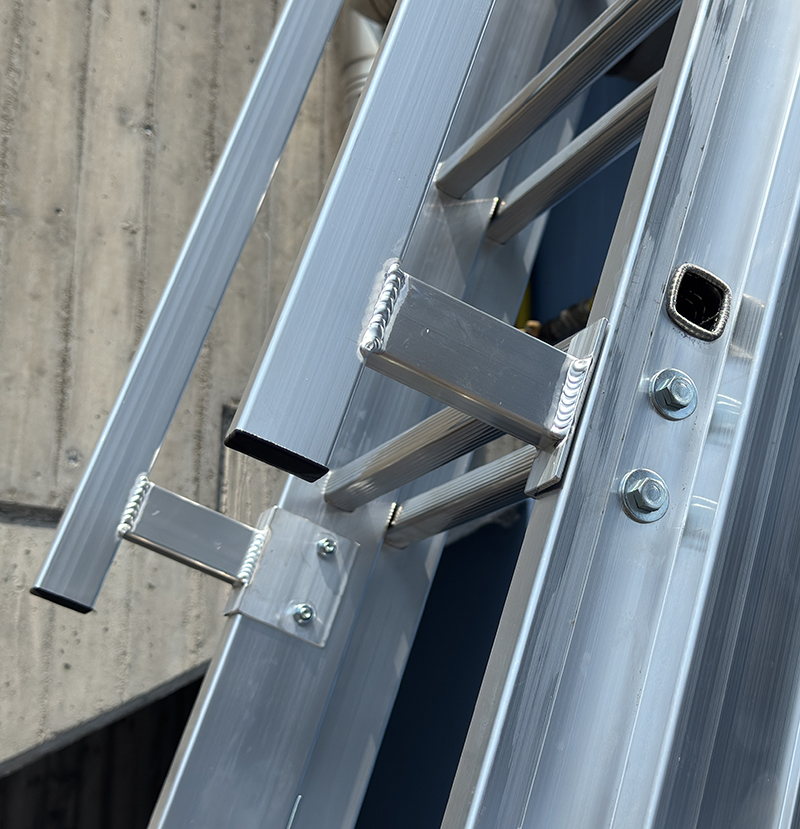

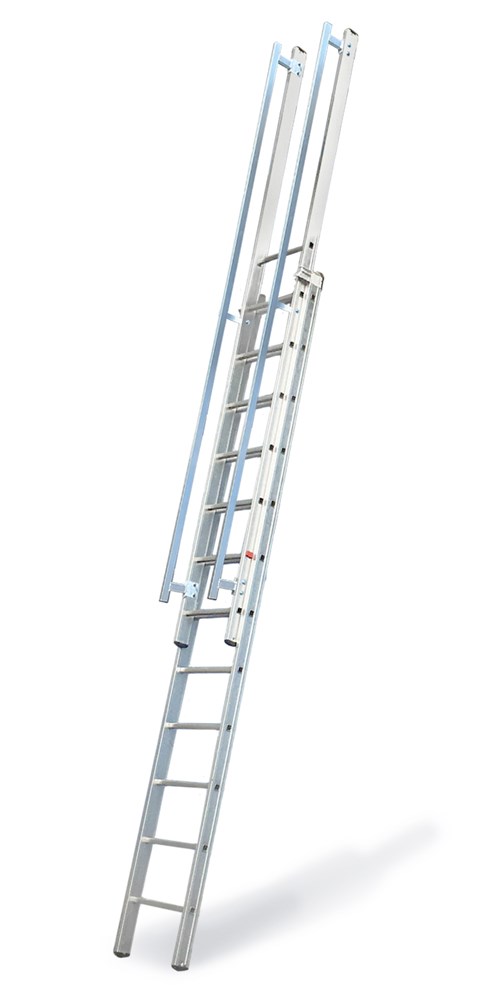

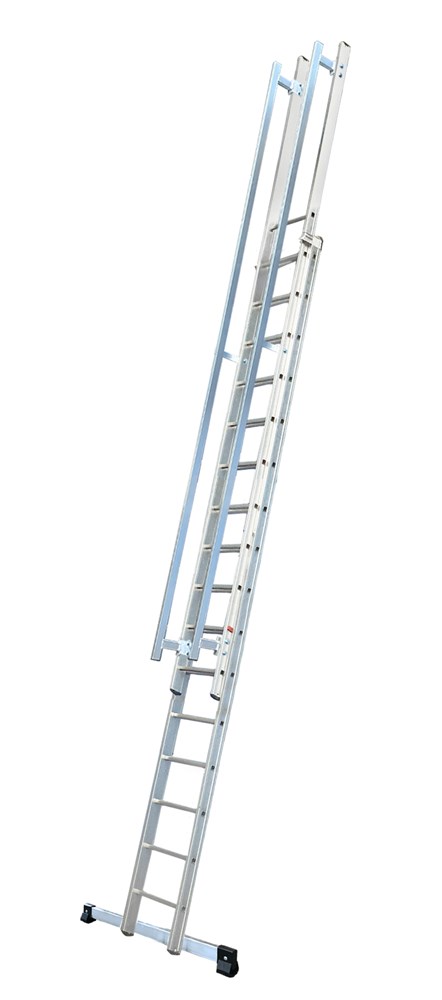

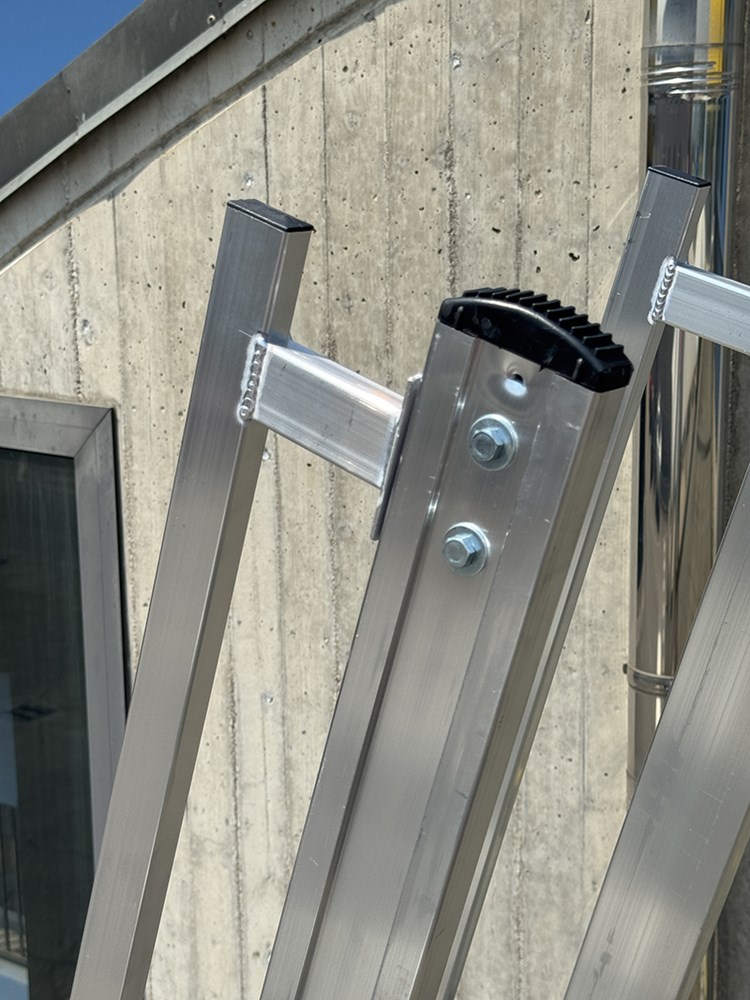

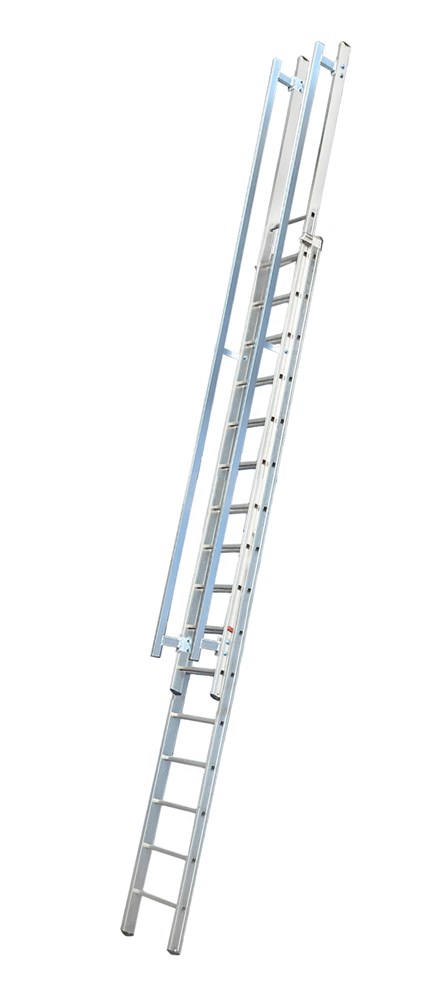

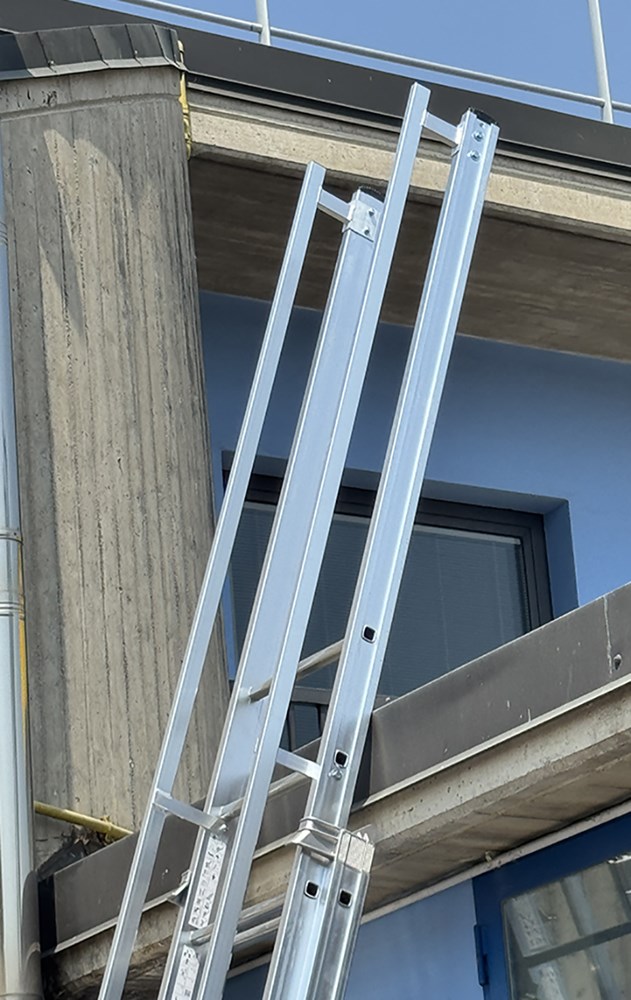

- 2 Aluminum handrails (right and left): cover the entire landing module for a more comfortable and safe climb.
Space between upright and handrail: 90 mm. The ladder comes with the handrails already mounted (screwed).
- SICUR CLIMB - system for attaching the ladder to the wall or eaves
| Code | Description |
What for
order
|
Profile Scale mm | |
| SICURCCLS | LADDER STOPPER SICURCLIMB CLS80 | for concrete roofs or walls (halls) | up to 80 | |
| SICURCGRO | LADDER STOP SICURCLIMB GRONDA80 | for roofs where there is a gutter (houses) | from 67 to 80 | |
| SICURCGRO67 | LADDER STOP SICURCLIMB GRONDA67 | for roofs where there is a gutter (houses) | up to 67 |
- Portable universal stair stop for quick coupling gutters
STAIRSTOP
SPARE

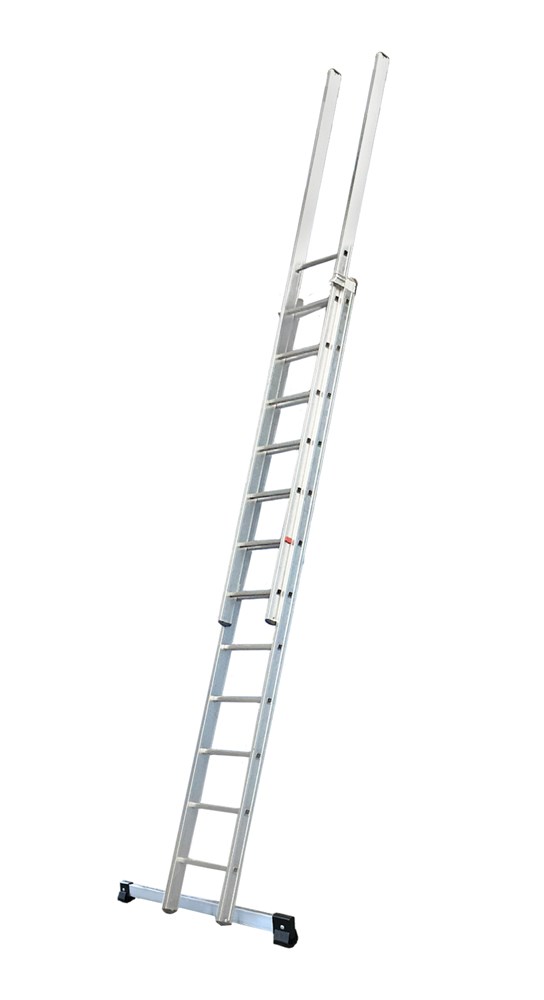

- Aluminium base widener: gives greater stability to the staircase, strengthening its lateral balance.
It is possible to purchase this spare part in case of breakage or loss of the one on the ladder or as an accessory for a ladder without a spreader.
SALLAR28
Non-slip covers for the rungs
The rungs of the access ladders to roofs and roofs are knurled non-slip for standard use.
However, ladders can be quite slippery, especially if used in particular environments where the rungs or shoes are in contact with water, grease, oil or other slippery organic material. It is the task of the R.S.P.P. to assess the risks of slipping and decide what countermeasure to adopt to avoid accidents.
In these cases it is extremely important to cover the rungs with our non-slip covers made of fiberglass with built-in aluminum oxide grit.
This makes them almost indestructible and very slip-resistant.
Svelt on request will provide the ladder already with the rungs covered.
It is also possible to order the stair covers already in the customer's possession.
