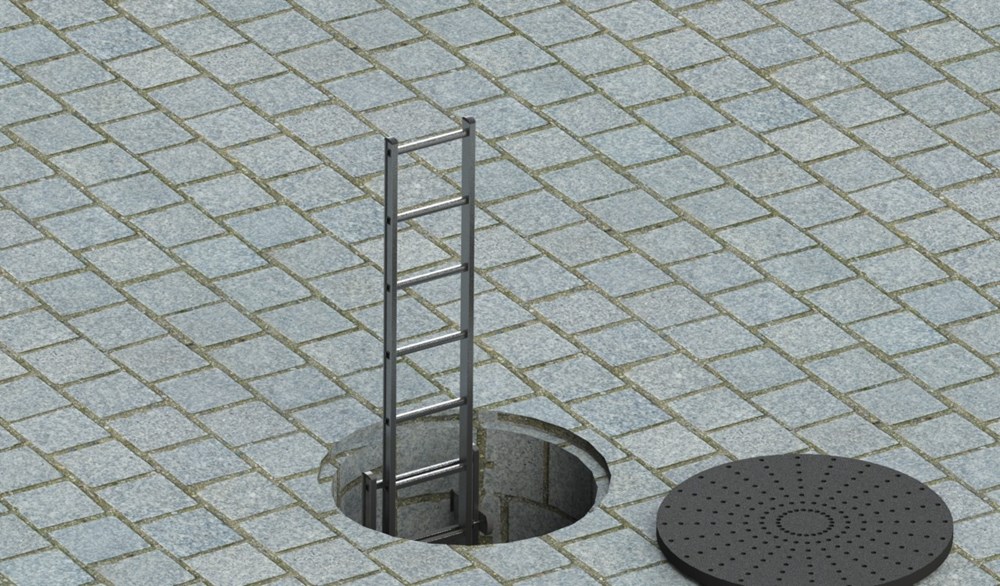

Ladder for wells and manholes

Made of custom-made aluminium

It shows the validity of the guarantee in years

It shows the maximum weight capacity of a product

All our products conforms to the standads in force

Suitable for heavy duty

To be fixed on the wall inside the well or manhole, with or without a safety cage. Equipped with retractable landing handles

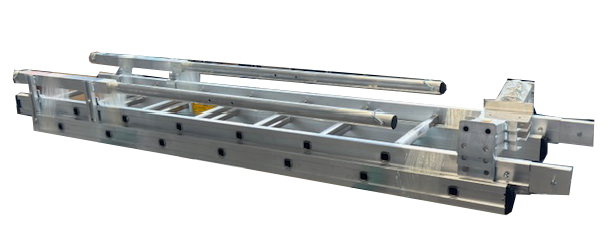

Custom-made aluminum ladders (not ready for delivery).

Fixed and modular aluminum ladder with rungs suitable for access to wells or manholes.
With or without protective cage.

Robust and weather-resistant, it is built with the highest standards of safety and quality to last.

SPECIFICATIONS

Cage on request from: m 2.50 from the ground

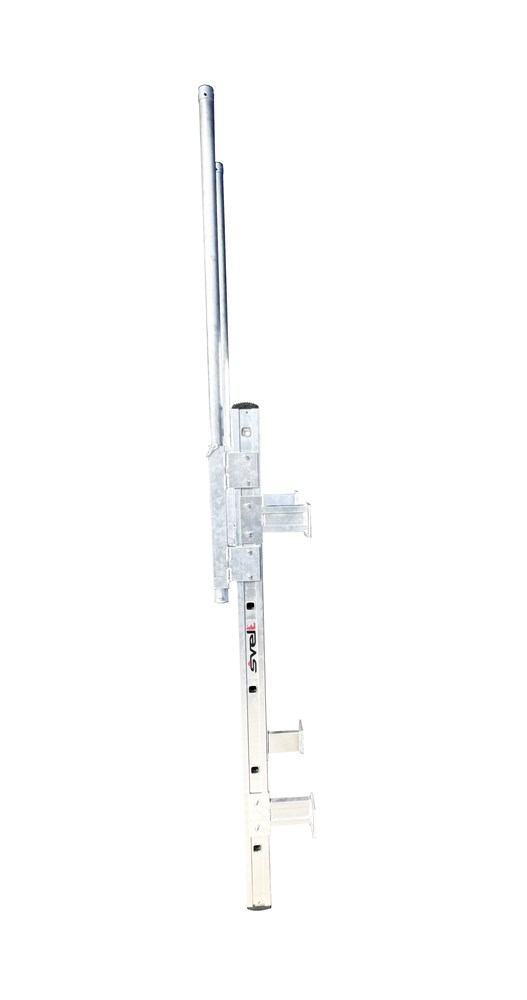

Equipped with anchors for wall fixing by dowels
Distance between rungs and rungs mm 280
Distance between peg and cage cm 60
Distance between rungs and wall 16 cm
Cage diameter 700 mm
Ribbed upright profile mm 84x27
Aluminum construction
Easy assembly
Labels and use and maintenance manual
Test certificate according to Italian regulations

ON REQUEST

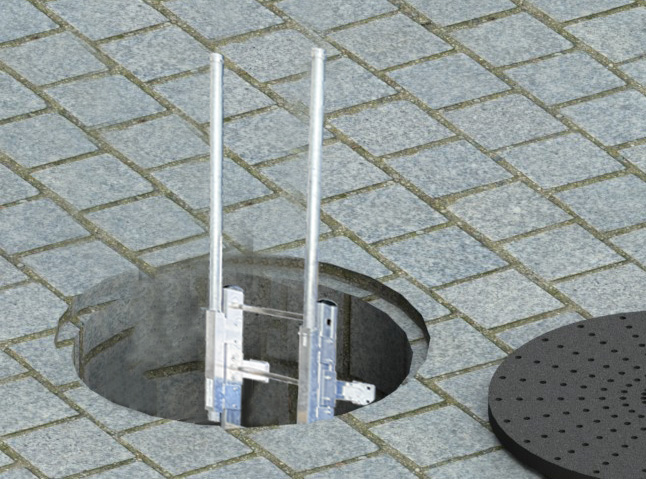

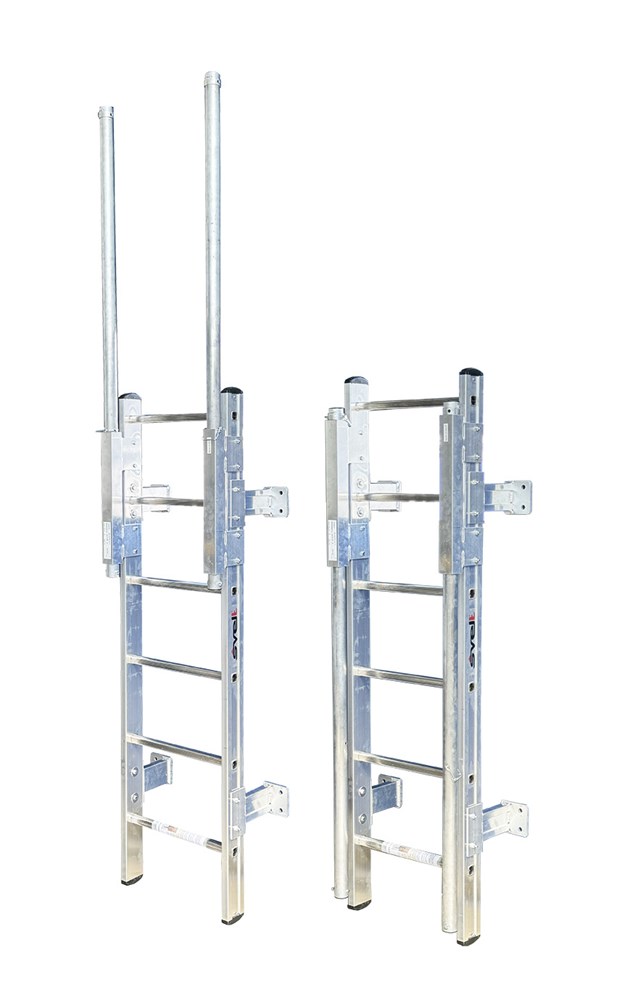

One or 2 ergonomic folding handles convenient for disembarking and operator access

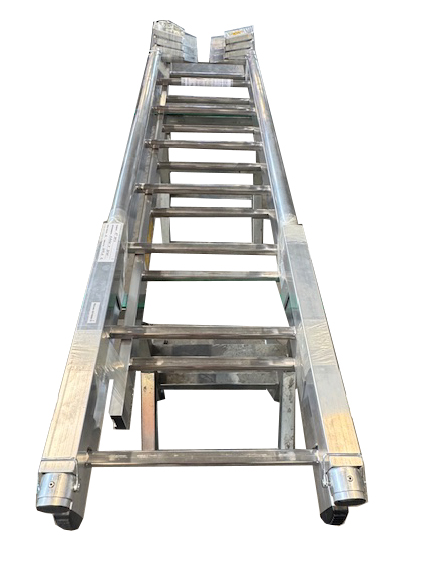

Removable access ladder
Sleeping landing that can be opened for stairs over 10 m if this is not possible (for reasons of space or aesthetics)

the use of the passage form. The landing can be opened from above or below by the operator by means of a special
rope. The landing closes automatically after the operator has passed.

Oversized or telescopic anchors to fix the ladder to the wall with a distance of more than 15 cm (sizes on request)

to distance the ladder from the wall due to obstacles in the wall.

Non-slip covers for the rungs

The rungs of the ladders for shafts or manholes are knurled non-slip for standard use.

However, ladders can be quite slippery, especially if used in particular environments where the rungs or shoes are in contact with water, grease, oil or other slippery organic material. It is the task of the R.S.P.P. to assess the risks of slipping and decide what countermeasure to adopt to avoid accidents.

In these cases it is extremely important to cover the rungs with our non-slip covers made of fiberglass with built-in aluminum oxide grit.

This makes them almost indestructible and very slip-resistant.

Svelt on request will provide the ladder already with the rungs covered.

It is also possible to order the stair covers already in the customer's possession.
