Scaffolding Dingo

m 1,60x0,80 - max hight m 7,60
Warranty 5 years
It shows the validity of the guarantee in years
Flow 200 kg/m2
It shows the maximum weight capacity of a product

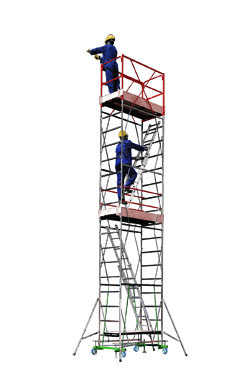

Flow 2 people
It shows the number of people who can climb the structure at the same time
ISO 9000
It is shown on products which conform to the European Standard on welding
European Standards UNIEN 1004
It is the European Standard for ladders
Politecnico MI
It shows that the Politecnico di Milano (Applied-Science Faculty in Milan) has tested a product and certified that it conforms to UNI EN131-1-2-3-4 (ladders), UNIEN14183 (step-stools), UNIEN1004 (scaffolds)
Suitable for heavy duty

Compact dimensions for a max height of 7,60 m

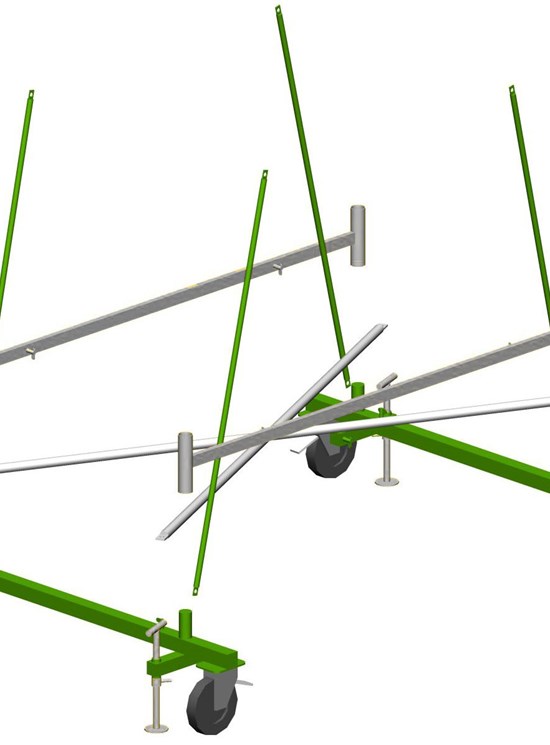

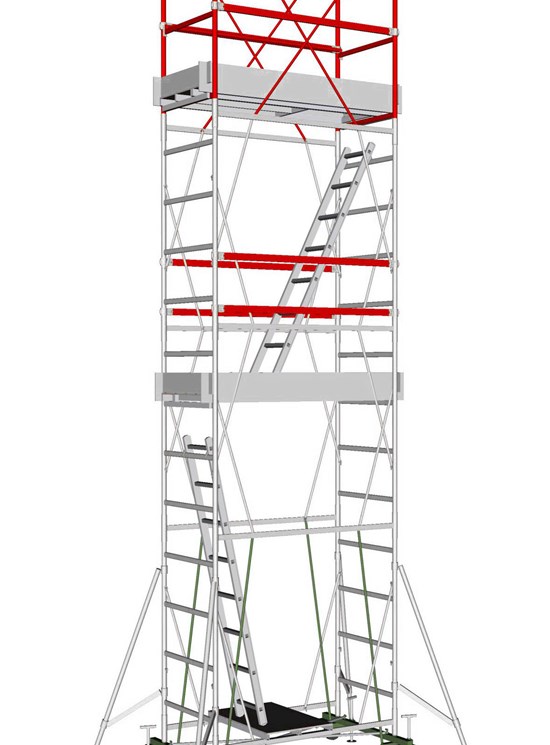

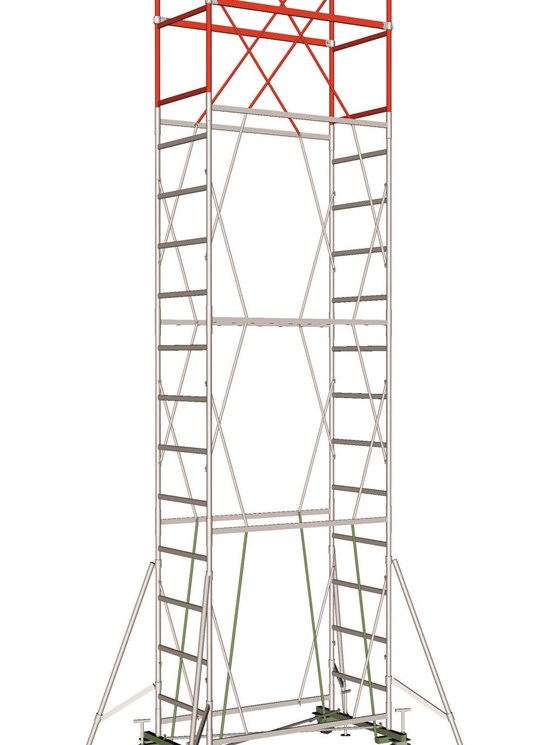

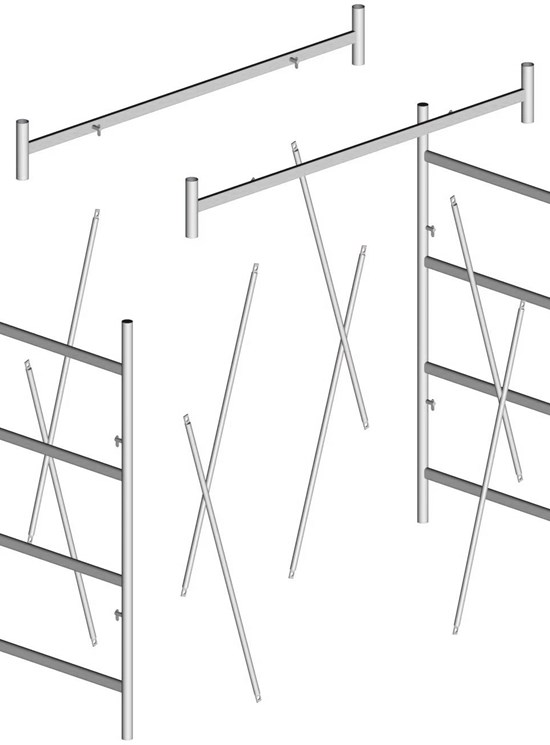

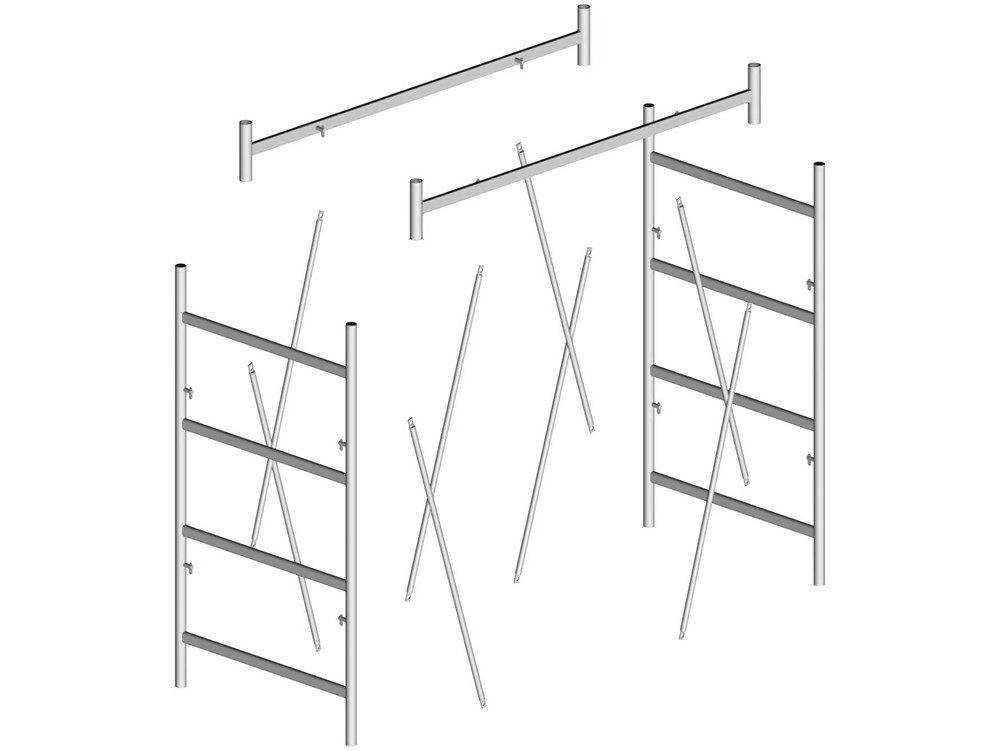

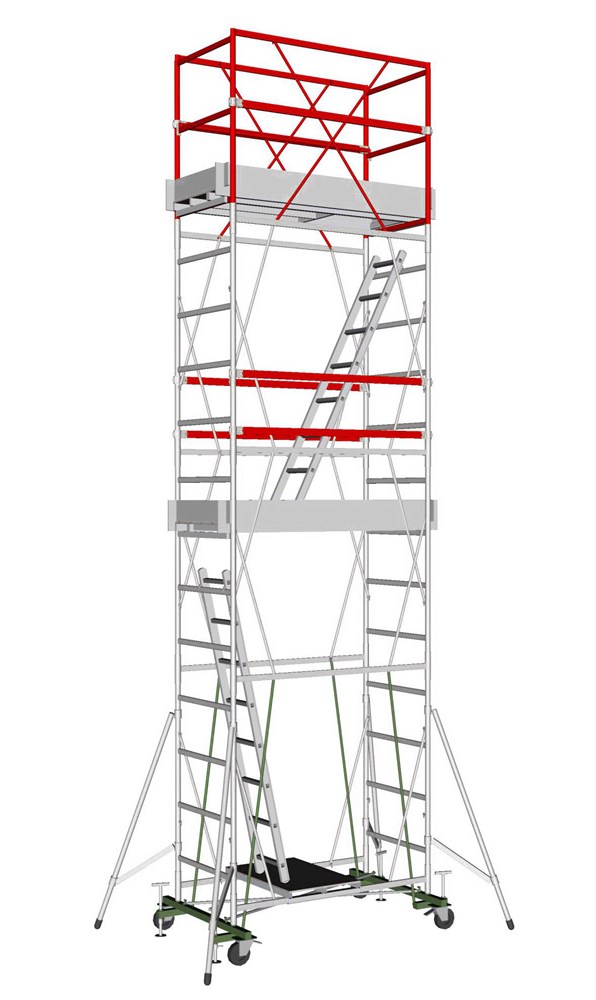

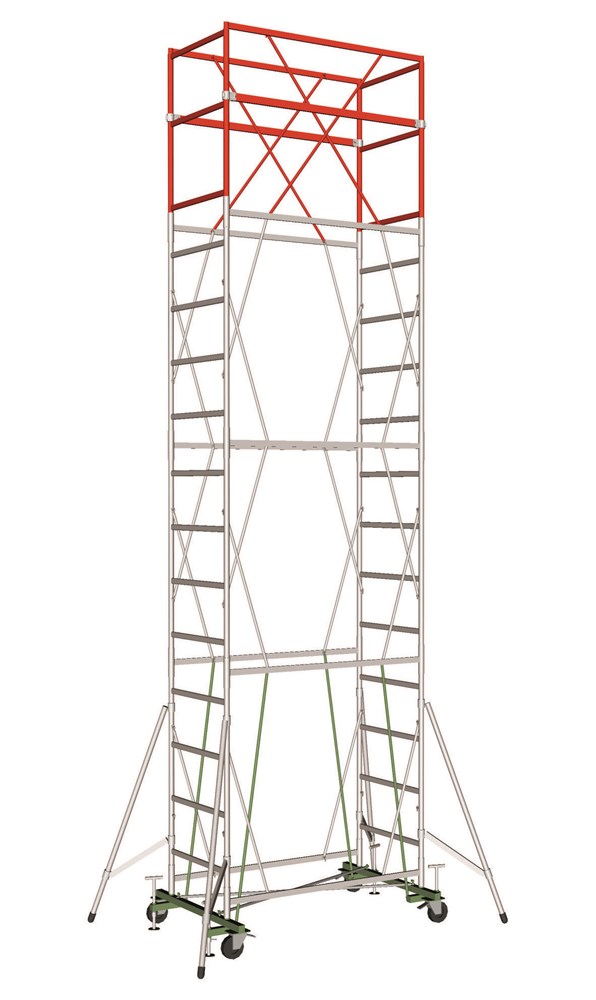

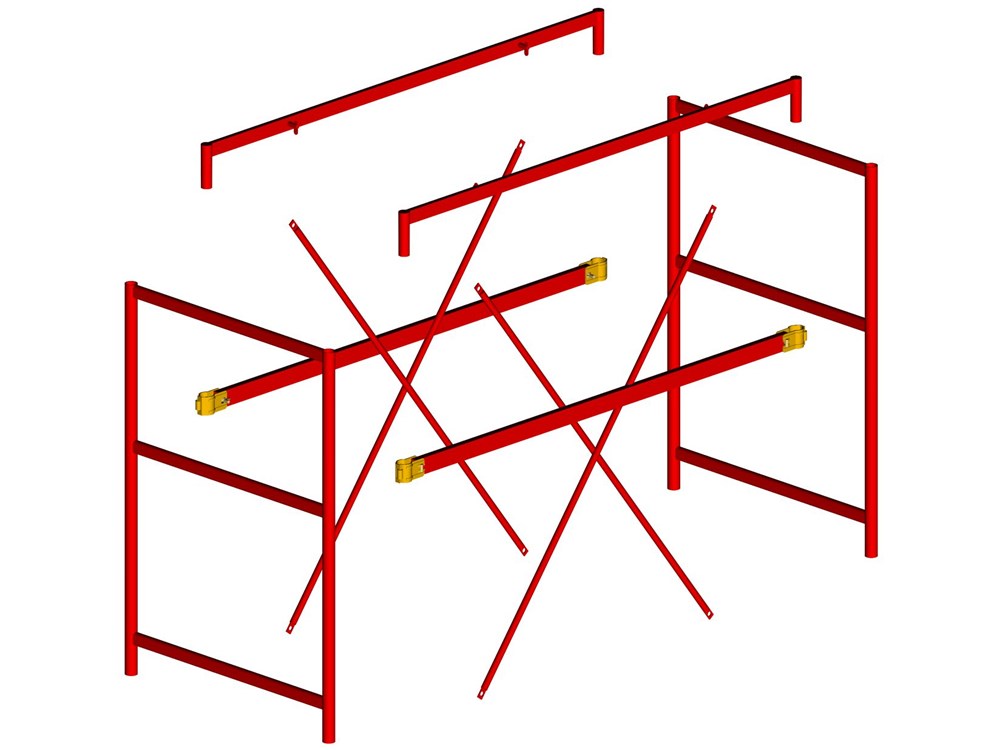

Tower scaffolding system in steel FE360 galvanized against rust.
It is safe to use and easy to assemble.

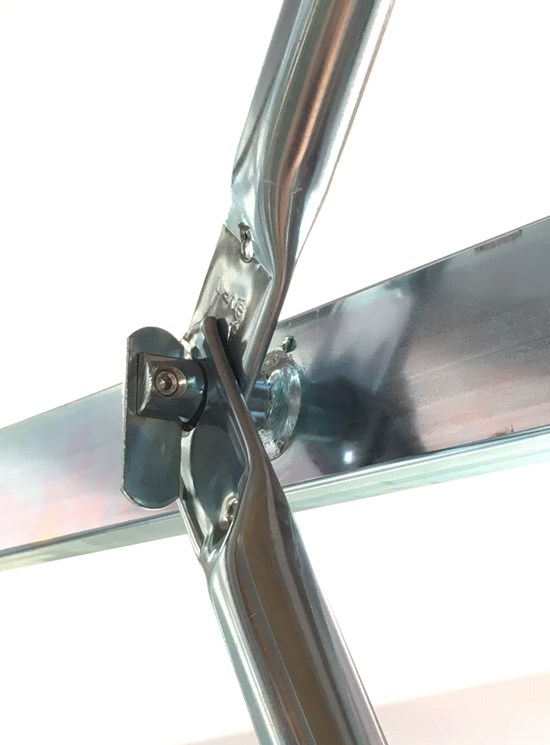

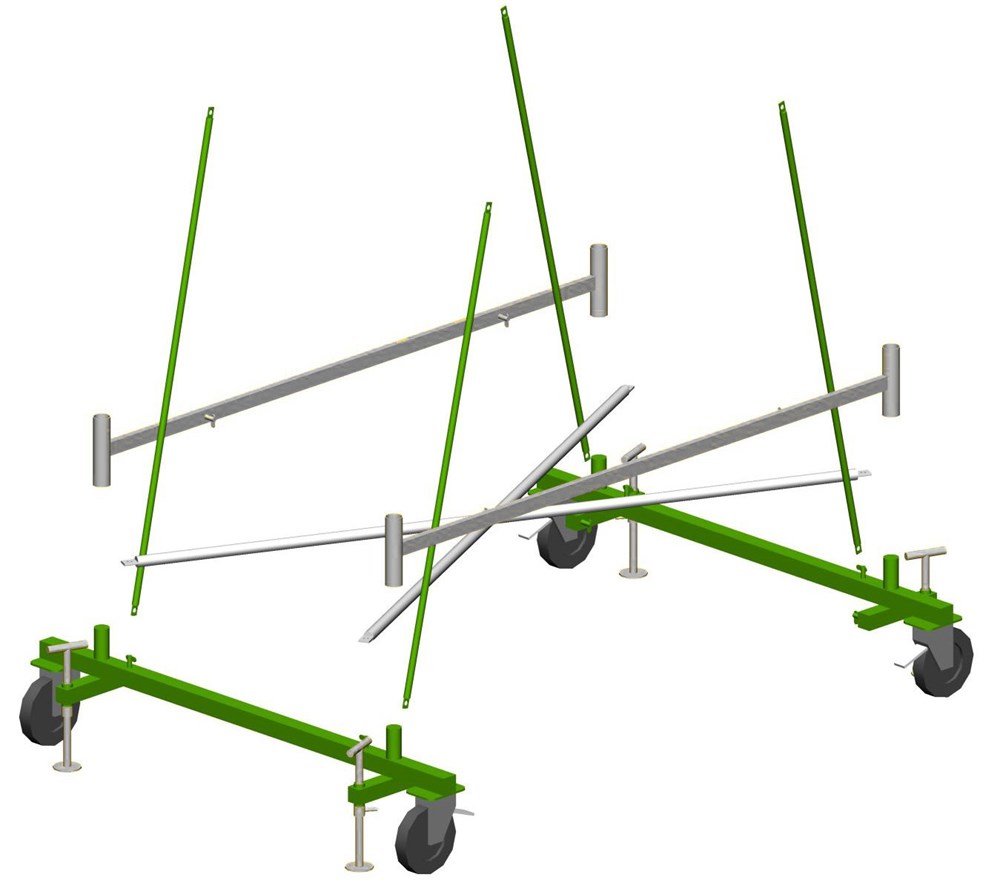

The crossbars create a perfectly static structure with no swaying at all even at great heights.

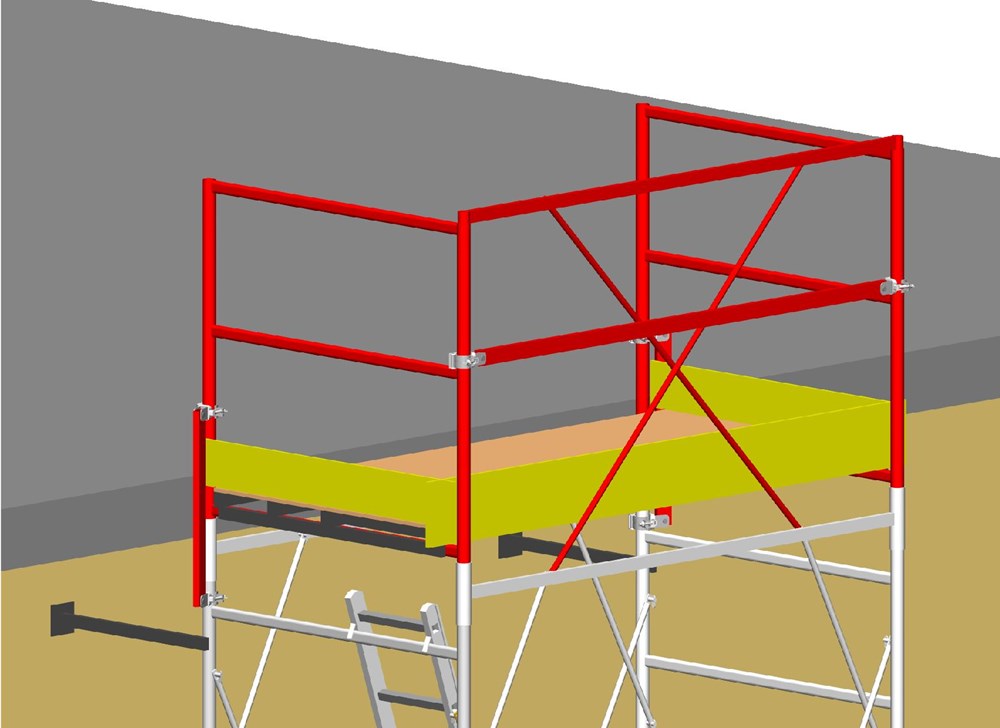

This design leaves a wide open space to work on façade.

TECHNICAL FEATURES
  • Possible heights: 1,90 to 7,60 m
  • Size: 1,60 x 0,80 m
  • Max capacity: kg 200/m² (including 2 persons – excluding platforms and internal ladders)
  • Span: height 1,50 m, weight 24 kg
  • Rules: each tower is equipped with instruction manual and label

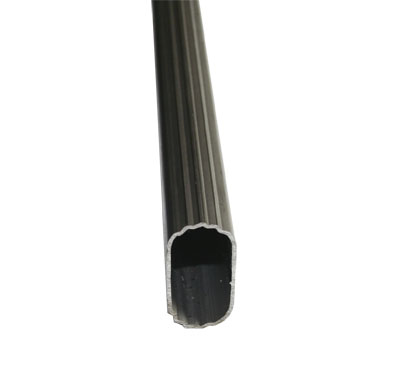

  • Sections in resistant steel Ø 38 mm

OPTIONALS

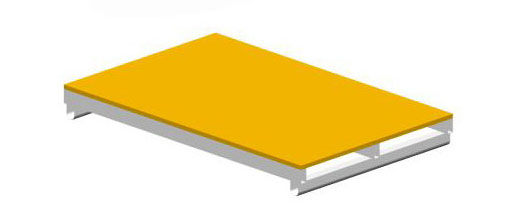

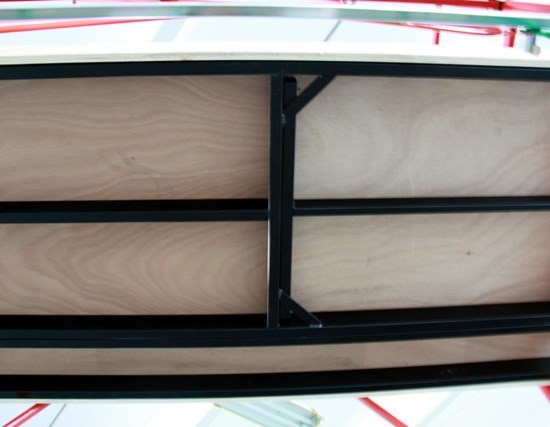

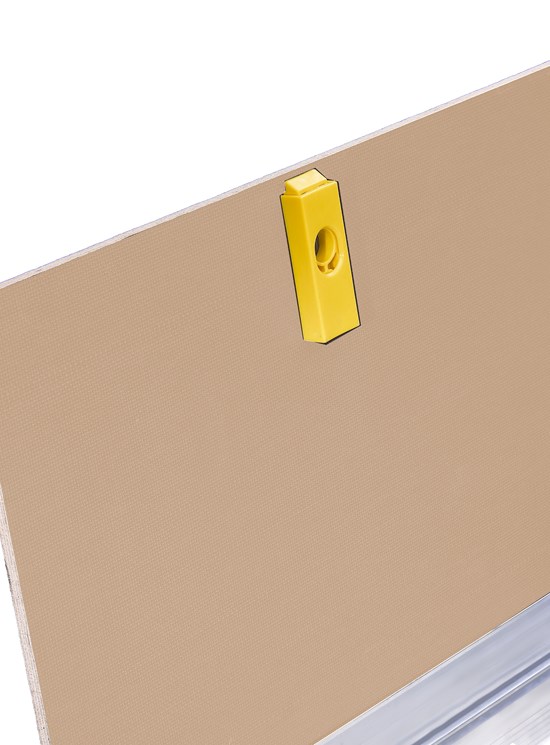

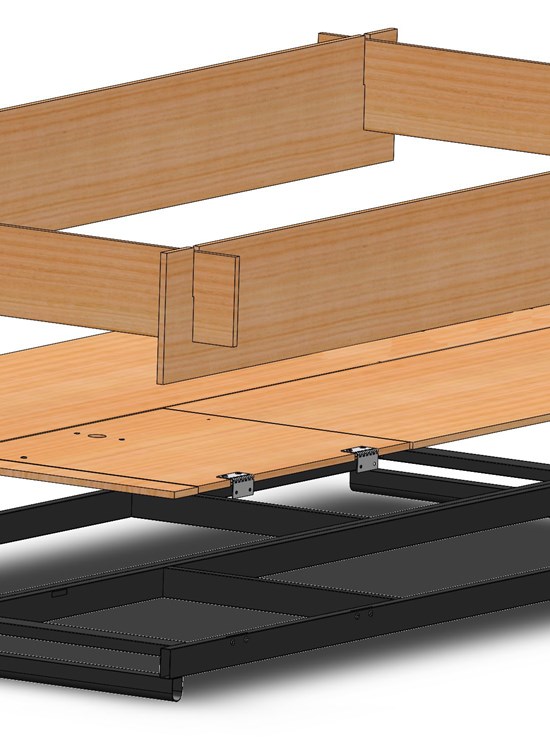

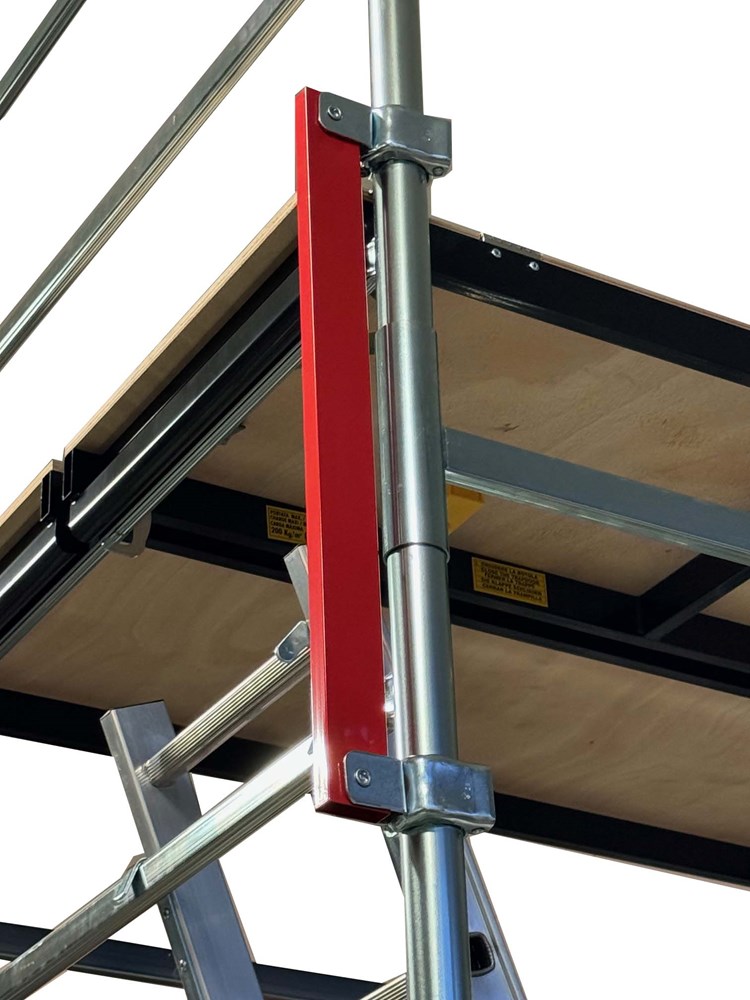

  • Steel/wood working platform with trapdoor
  • Aluminium/wood working platform with trapdoor
  • Base steel/wood half-platform

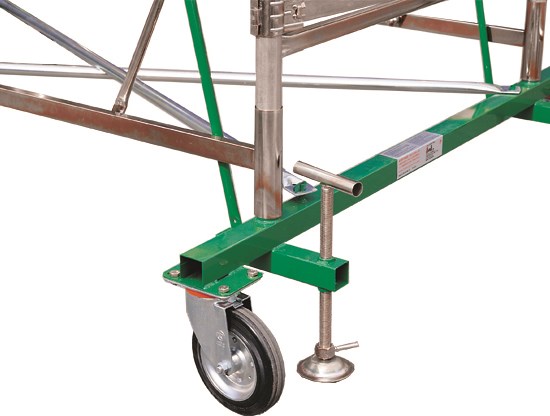

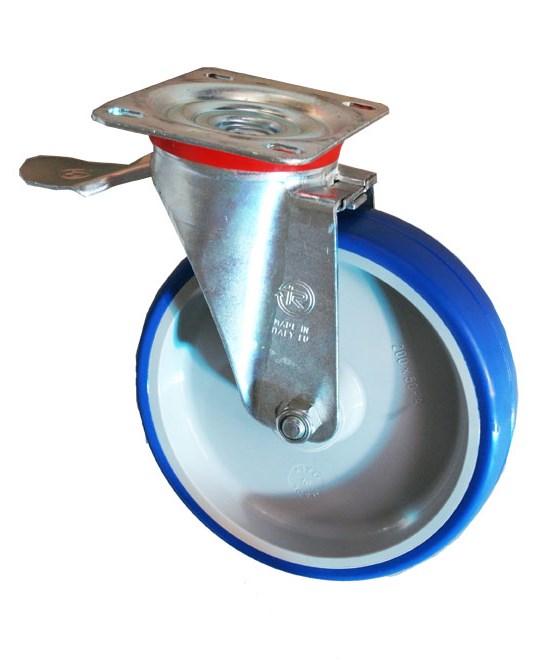

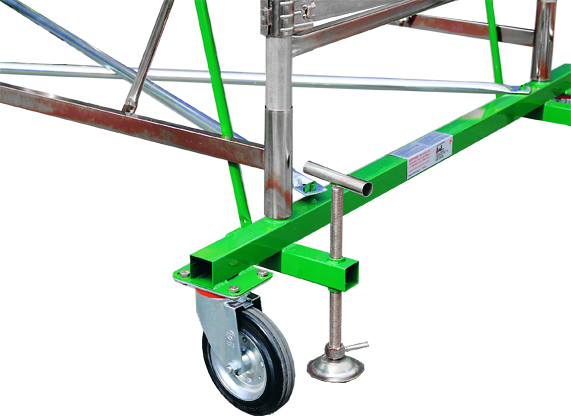

  • Additional brake (castors Ø 150 mm)
  • Castors Ø 200 mm
  • Additional charge for braked castors Ø 200 mm

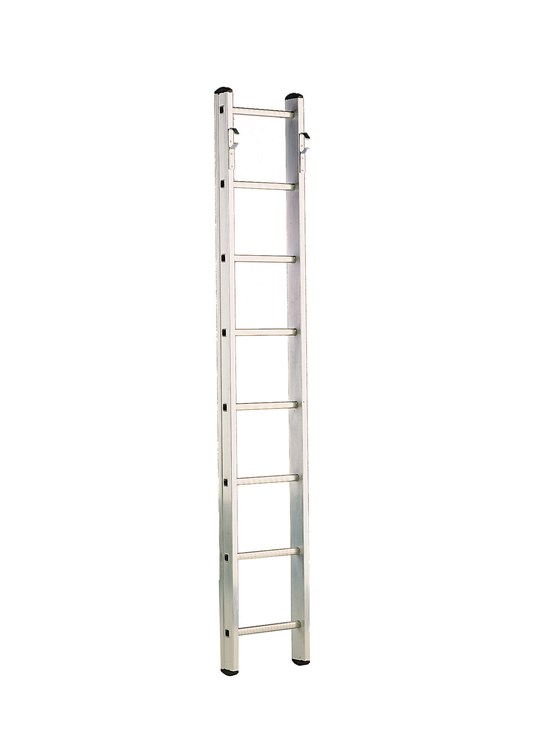

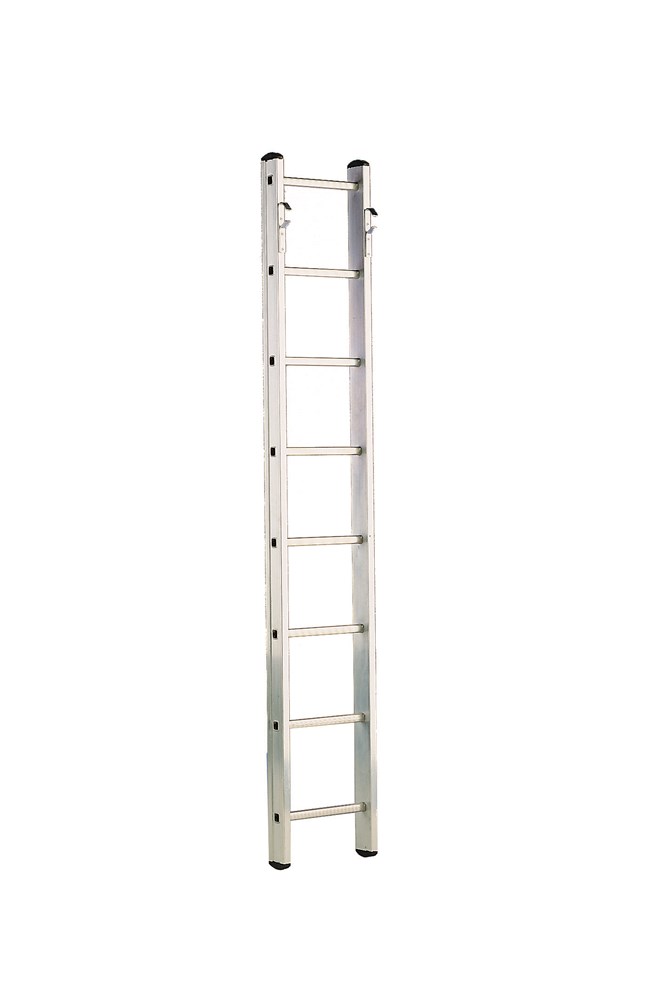

  • Aluminium internal ladder - 1 section 2,20 m, weight 4,0 kg

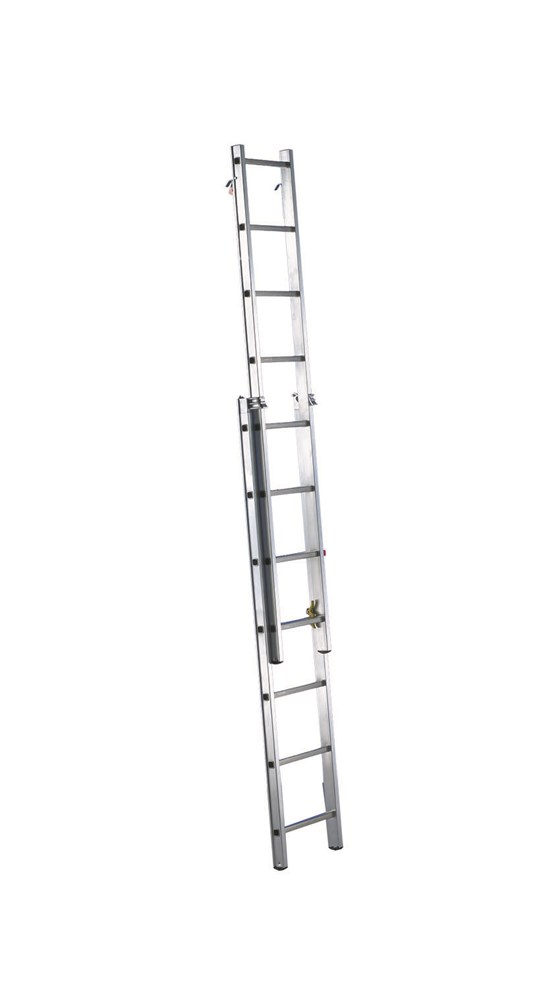

  • Aluminium internal ladder - 2 sections 2,20/3,60 m, weight 7,8 kg

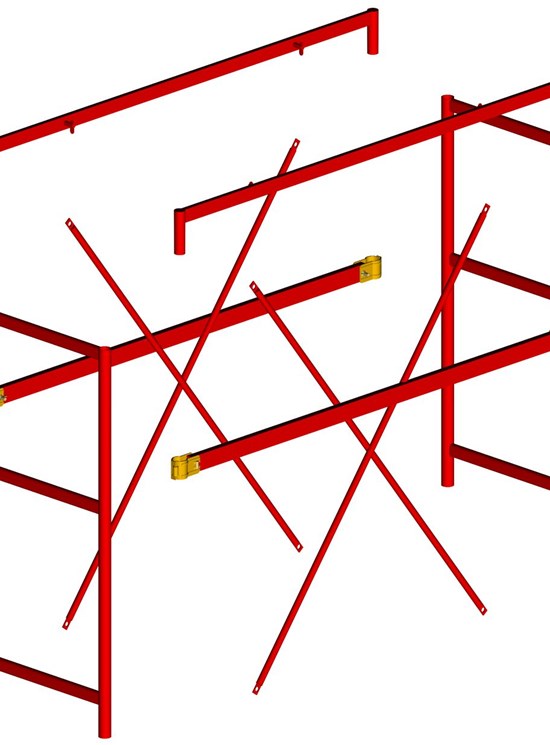

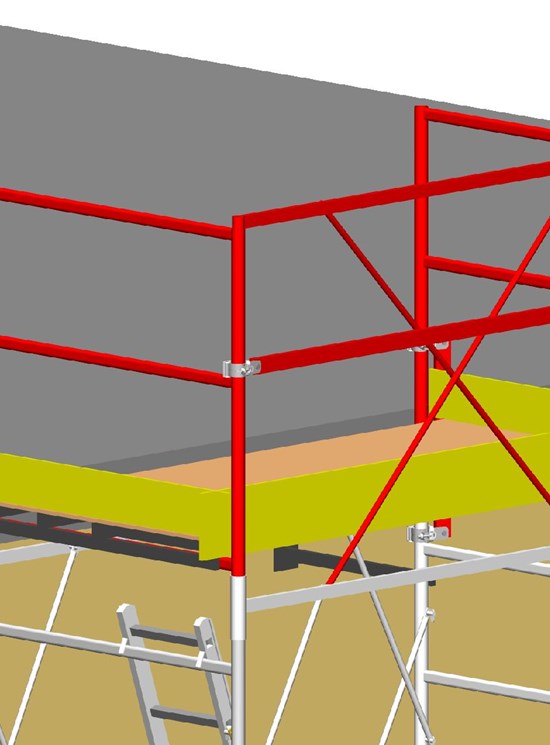

  • 4 safety guardrails compulsory for each intermediate working platform

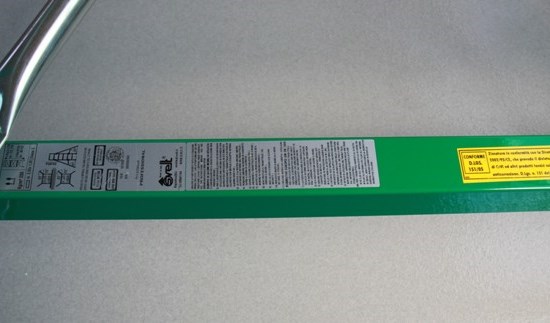

All components are marked with year of production and Svelt logo.
