Scaffolding Cervino
m 1,60x0,70 - max height 5,12 m
It shows the validity of the guarantee in years
It shows the maximum weight capacity of a product
It shows the number of people who can climb the structure at the same time

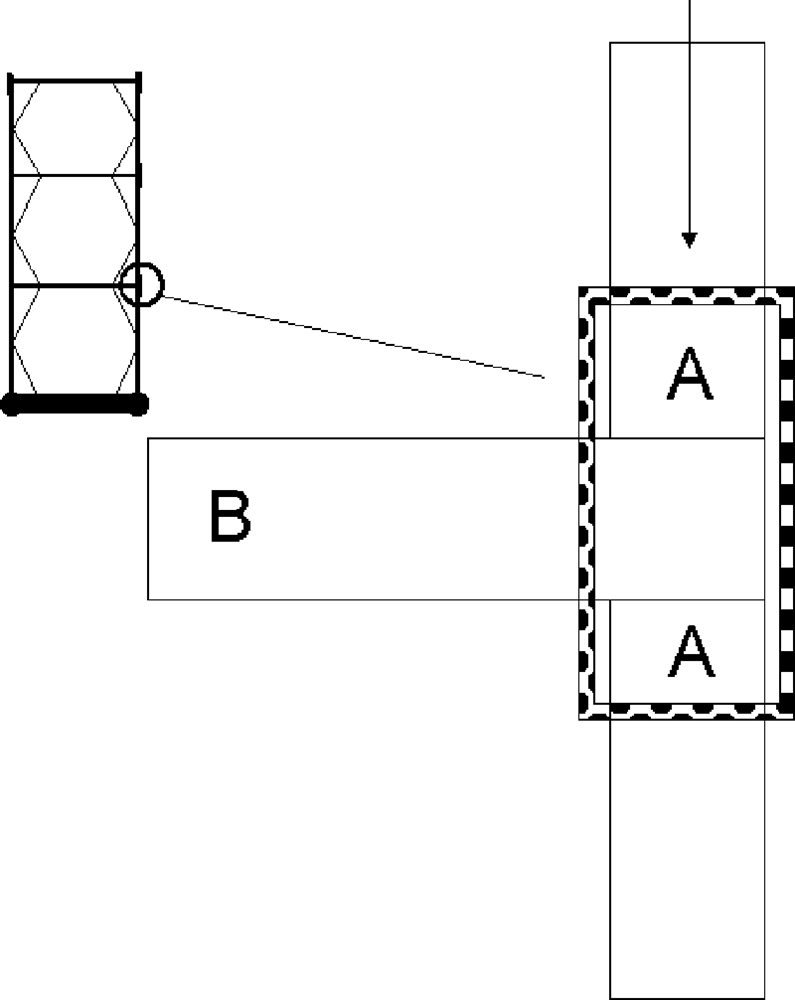

It is shown on products which conform to the European Standard on welding
Suitable for heavy duty
Compact dimensions for a max height of 5,12 m

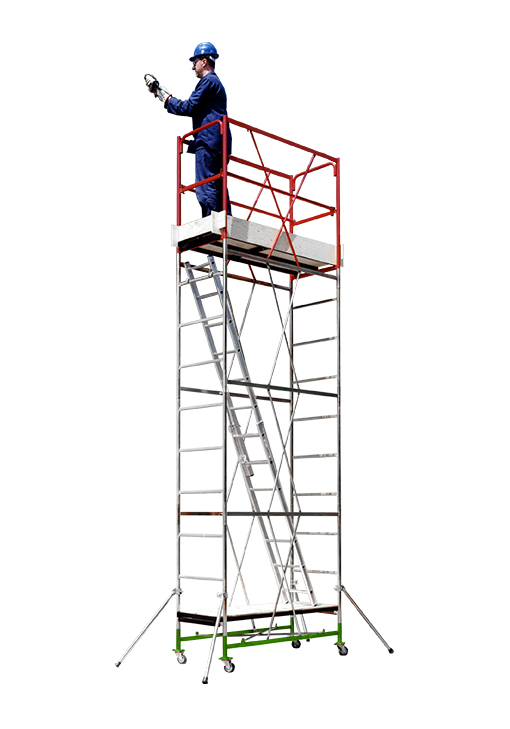

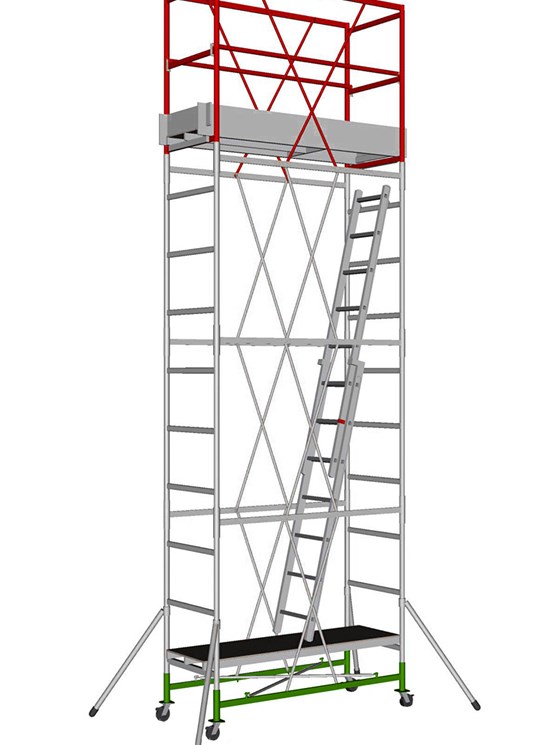

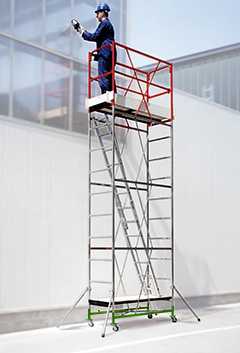

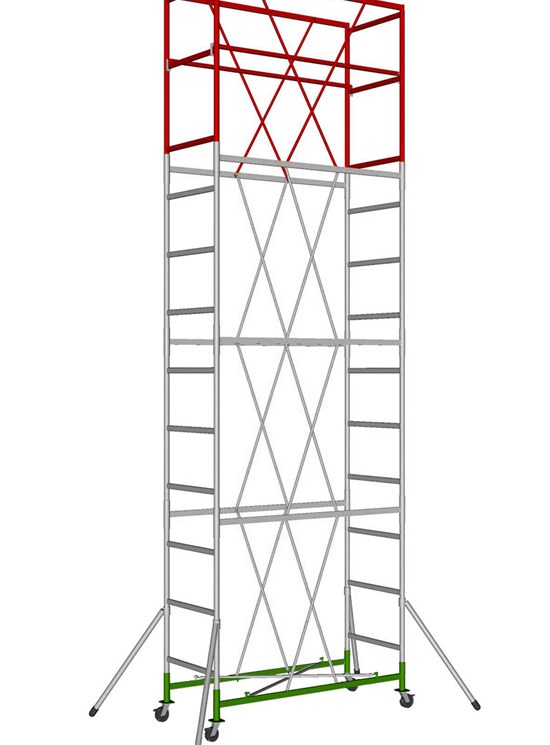

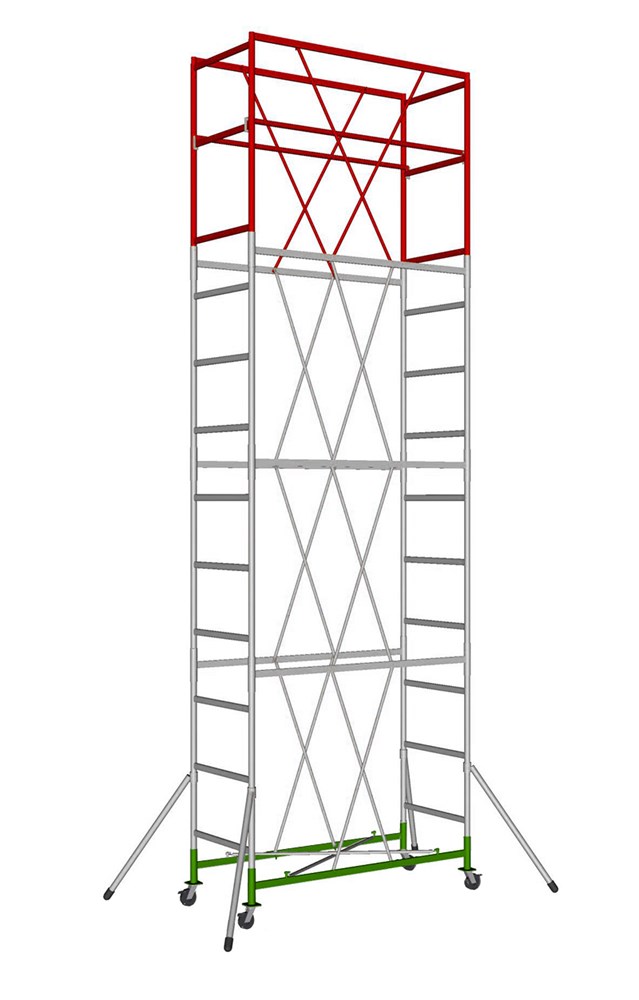

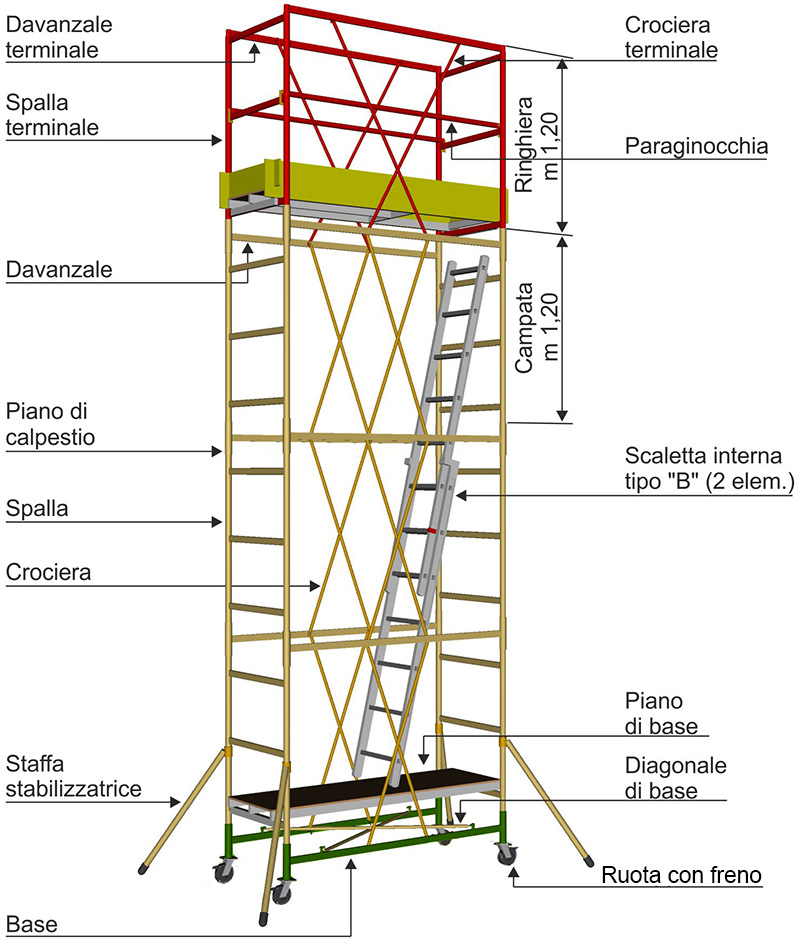

Tower scaffolding system in steel FE360 galvanized against rust.
It is safe to use and easy to assemble.

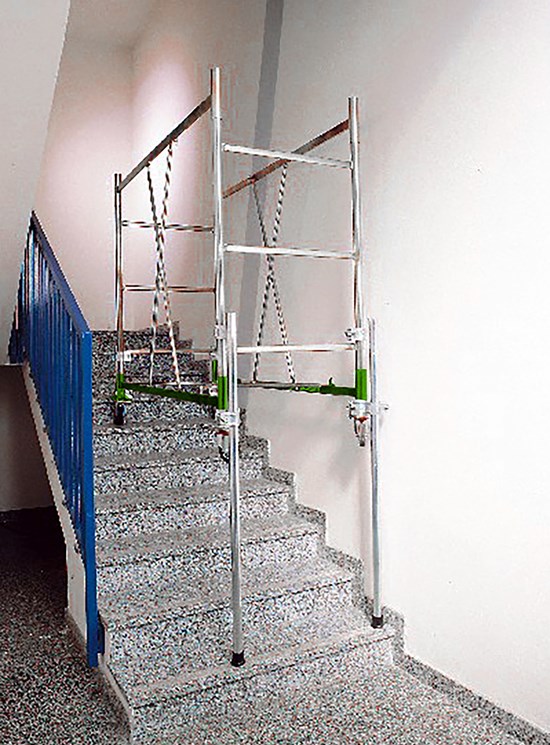

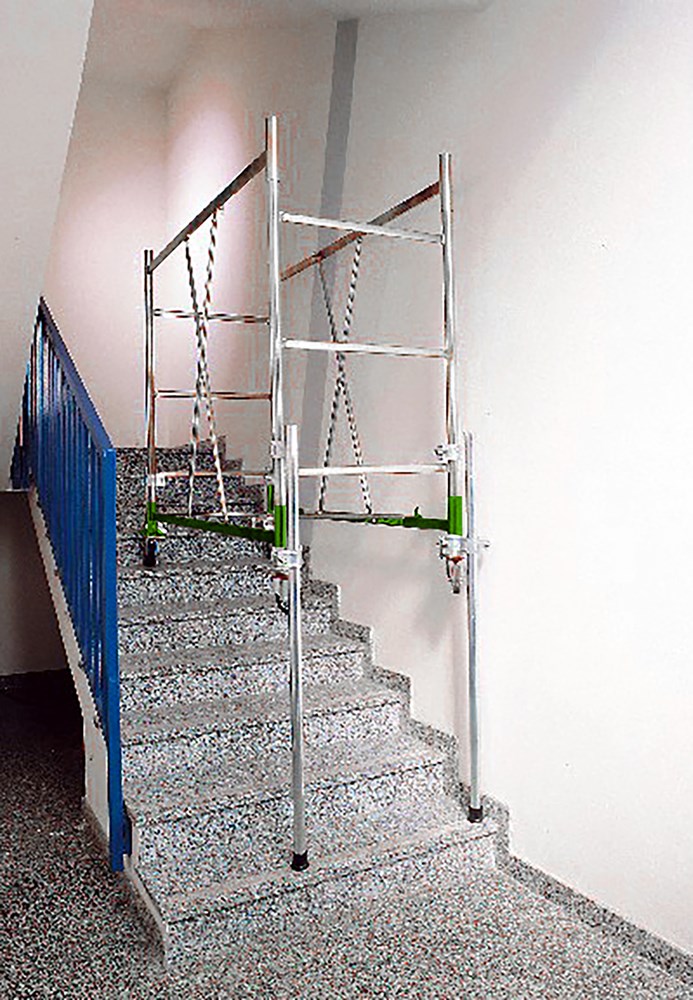

It can be used on stairs by adding 4 optional adjustable legs.

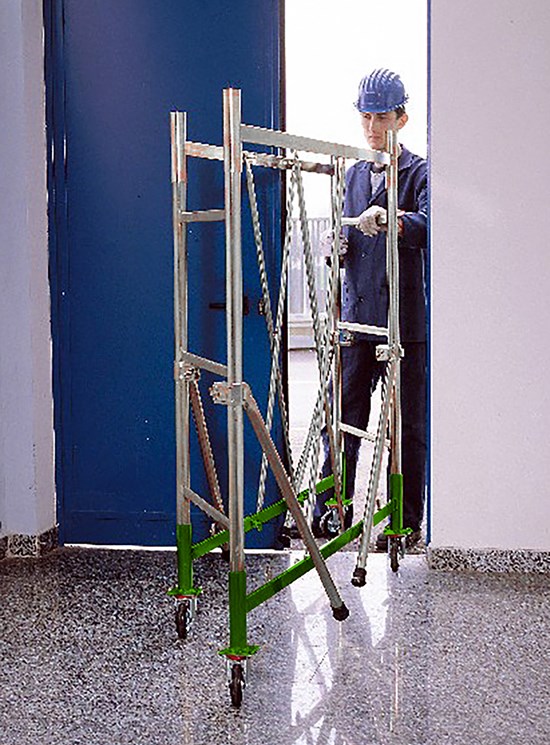

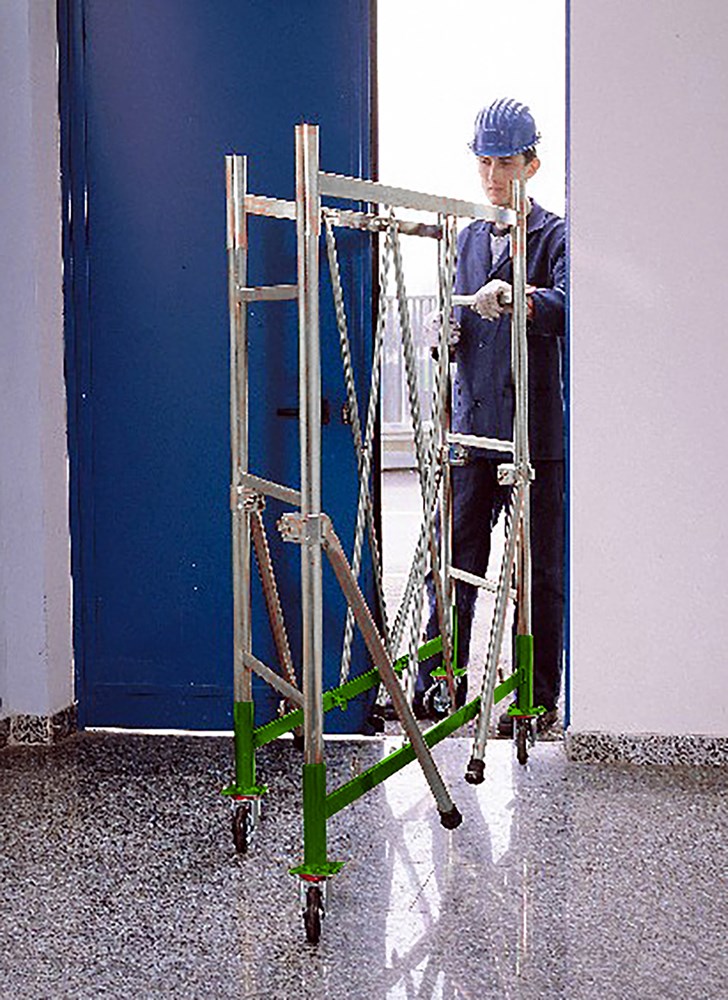

It can be folded to pass through standard doors.
TECHNICAL FEATURES
TECHNICAL FEATURES

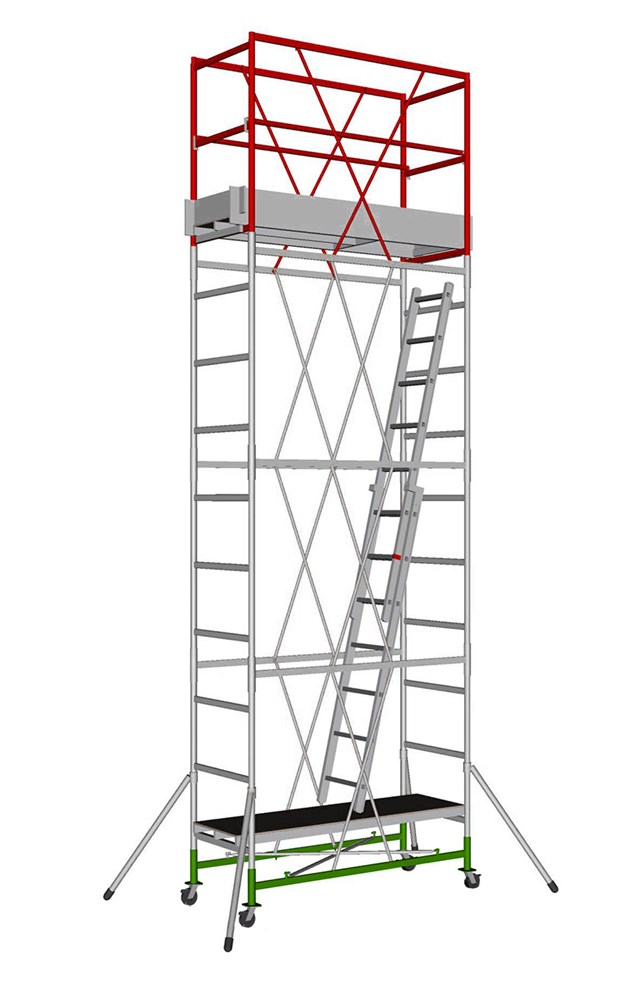

- Possible heights: 1,52 to 5,12 m
- Size: 1,60 x 0,70 m
- Max capacity: kg 150/m² (including 1 person – excluding platforms and internal ladders)

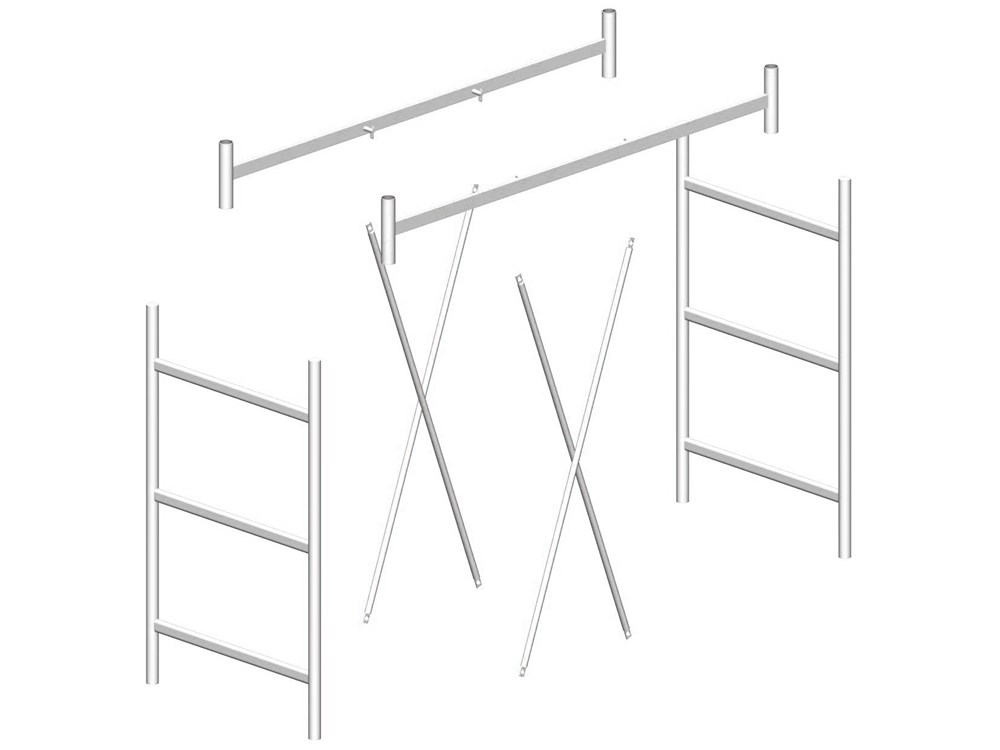

- Span: height 1,20 m, weight 14,40 kg
- Rules: each tower is equipped with instruction manual and label

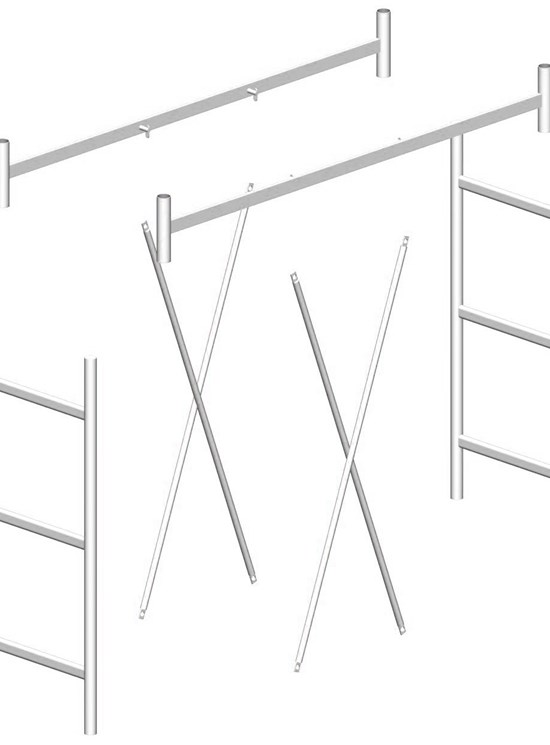

- Sections in resistant steel Ø 38 mm
OPTIONALS

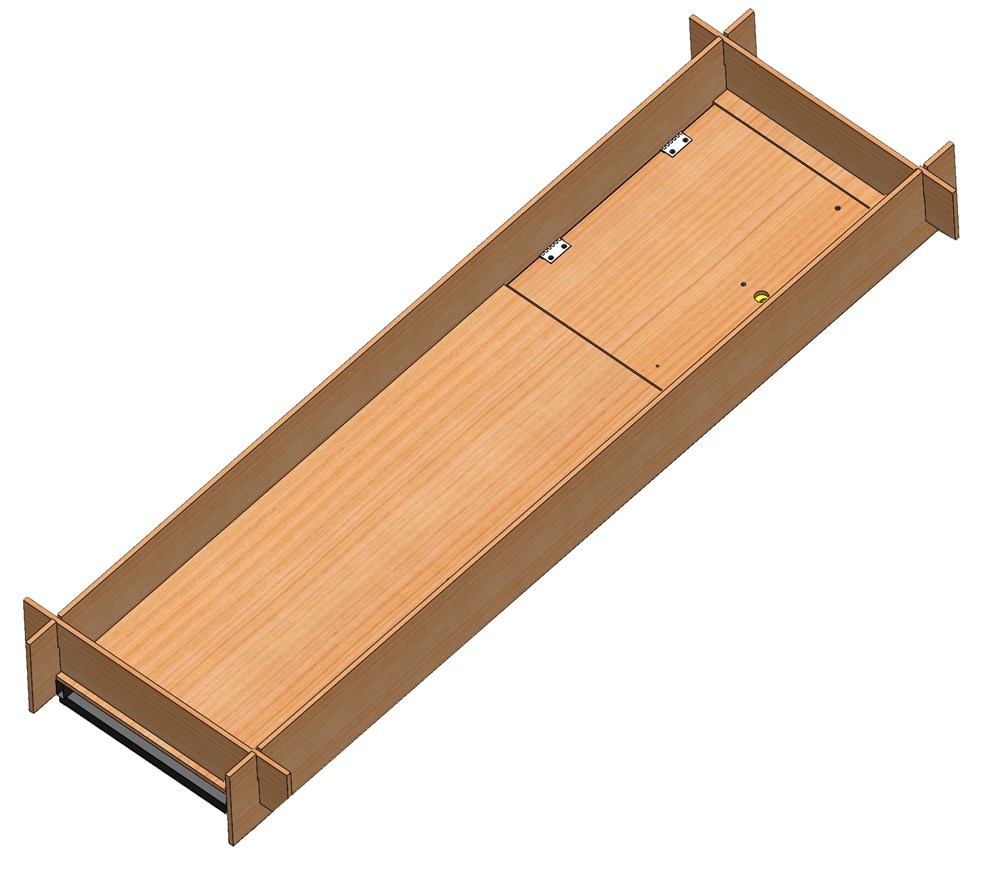

- Steel/wood working platform with trapdoor
- Aluminium/wood working platform with trapdoor
- 4 adjustable legs for work on stairs (max slope 1 m)

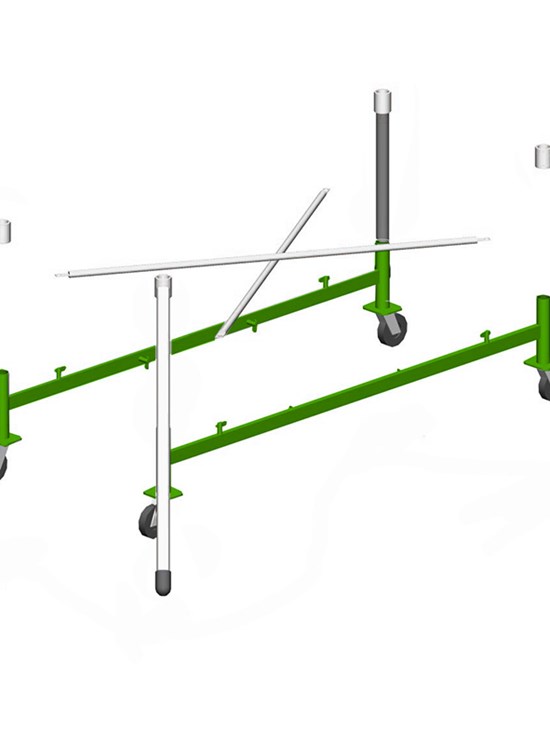

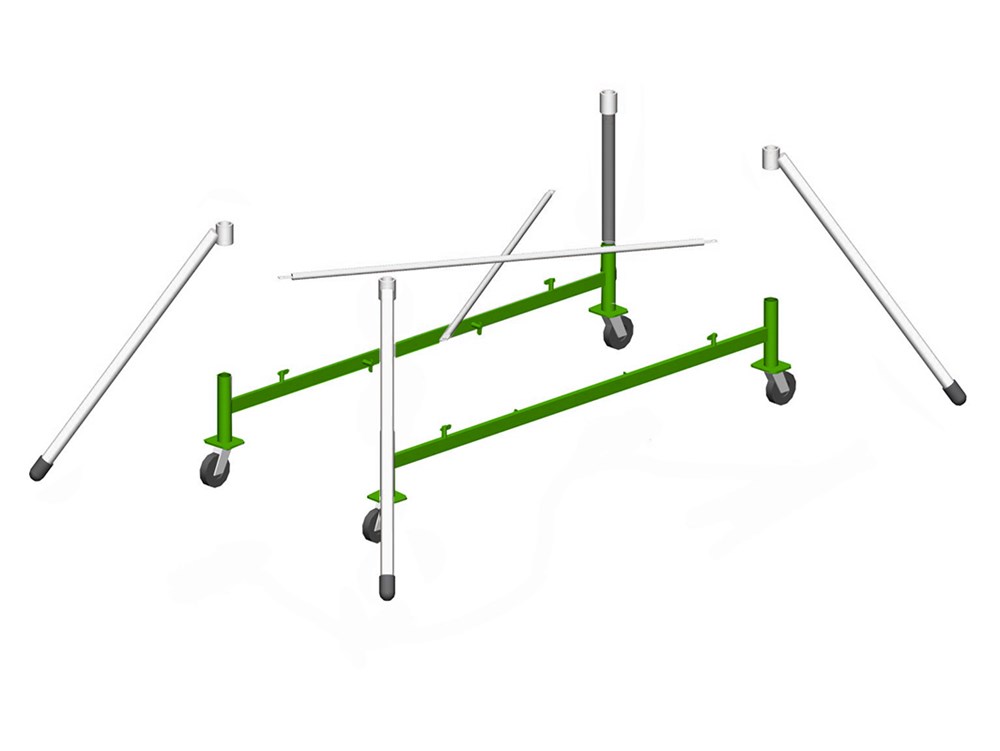

- Additional charge for brake (castors Ø 100 mm)

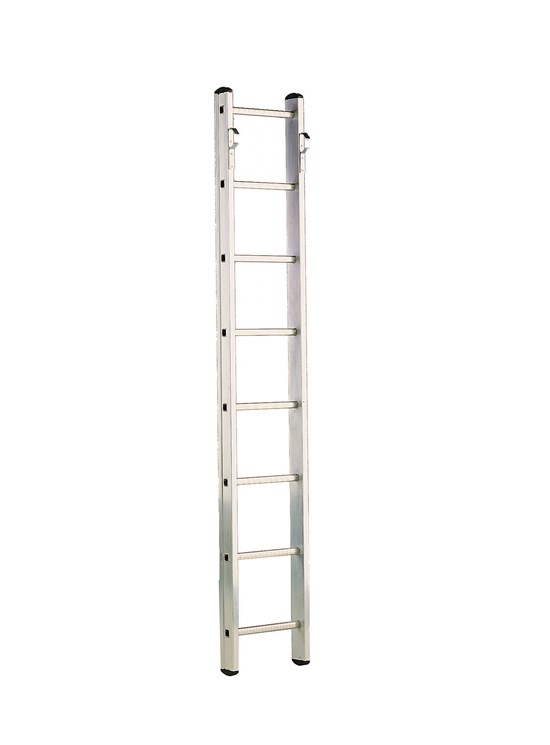

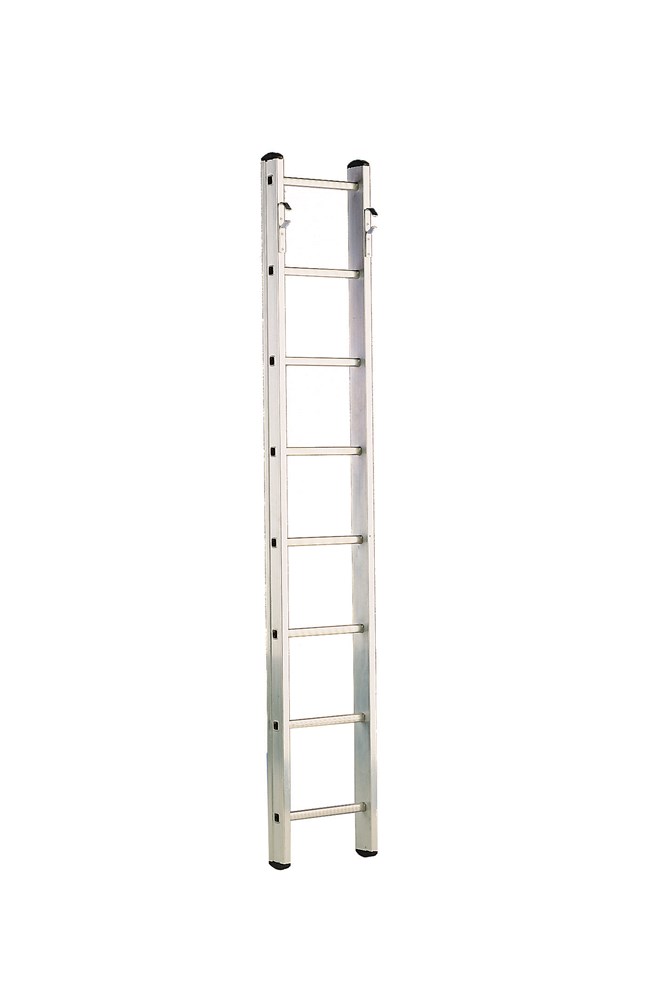

- Aluminium internal ladder - 1 section 2,20 m, weight 4,0 kg

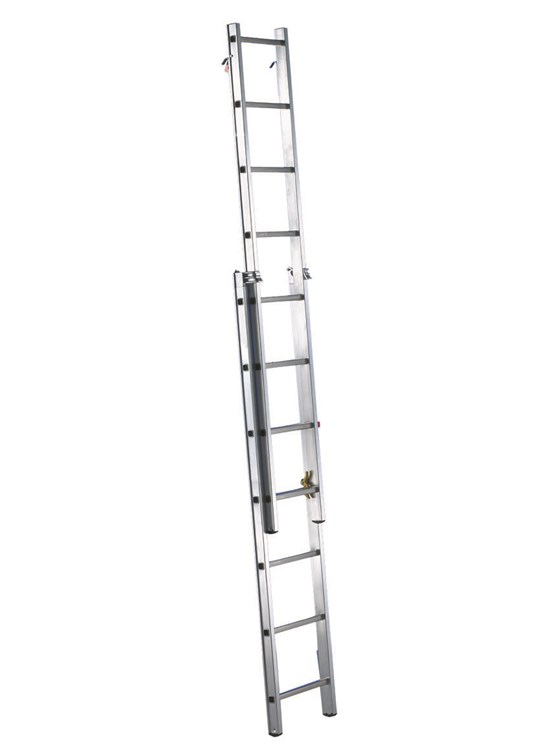

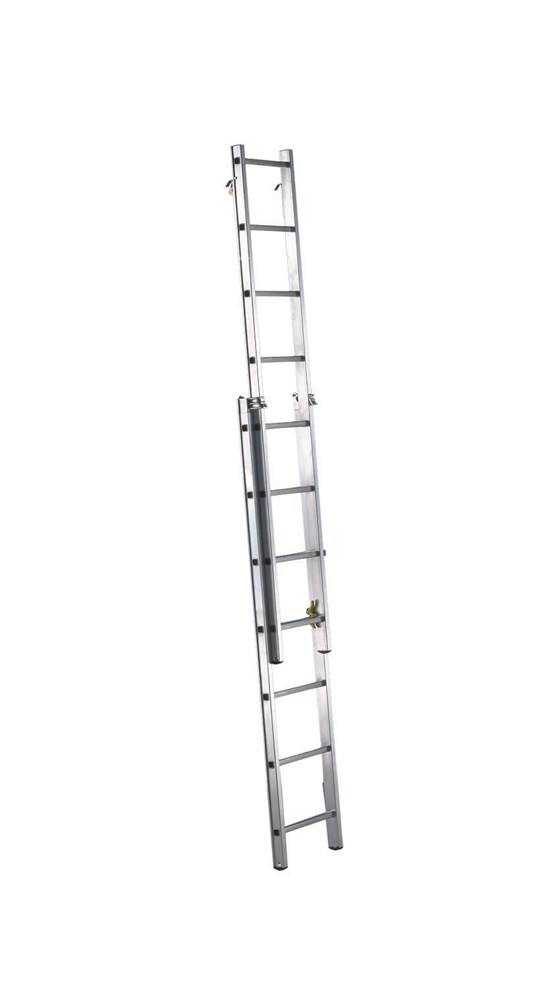

- Aluminium internal ladder - 2 sections 2,20/3,60 m, weight 7,8 kg

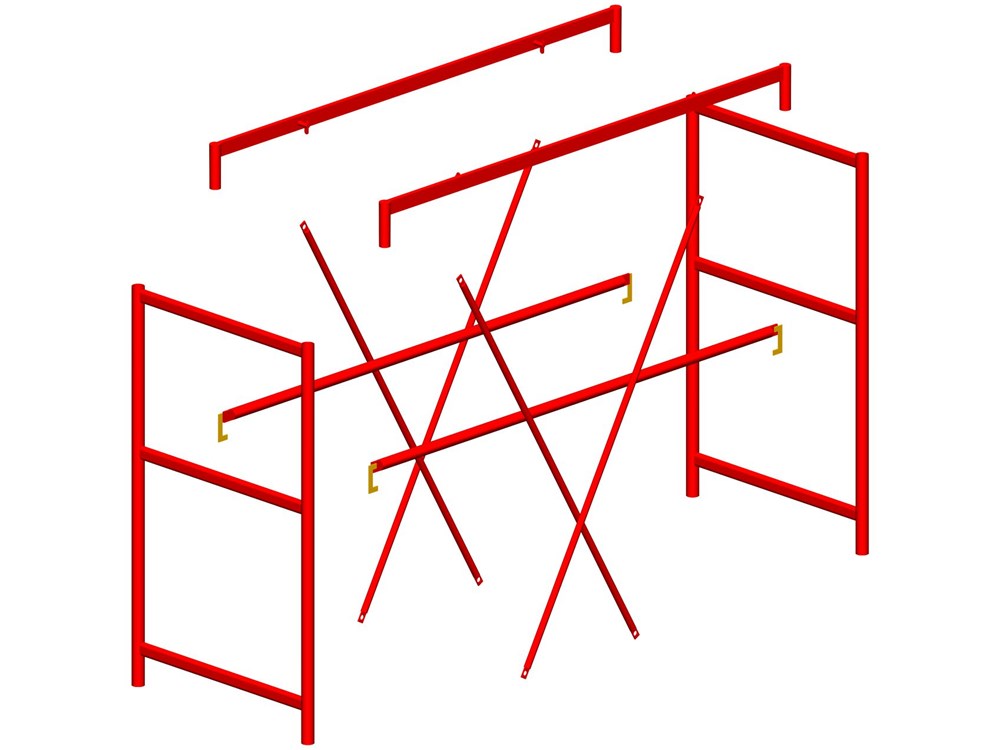

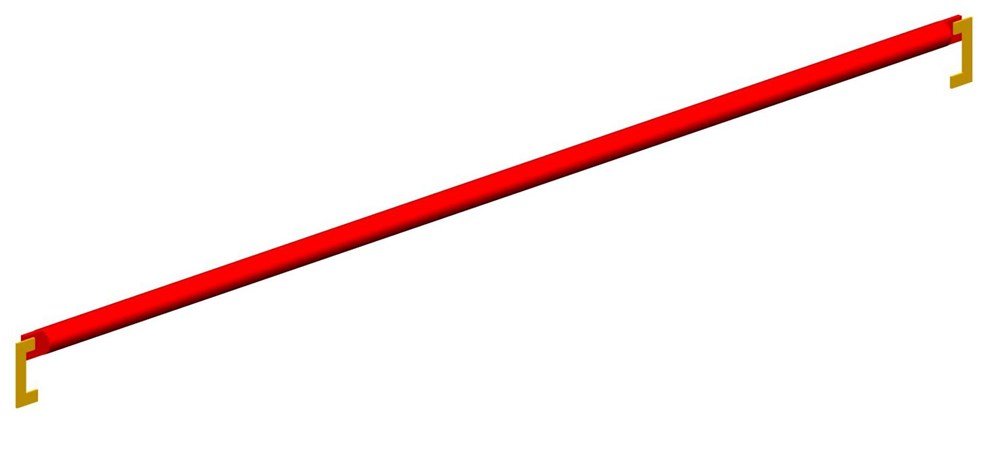

- 2 safety guardrails compulsory for each intermediate working platform
- Base steel/wood platform
- Base aluminium/wood platform
Platform height m | Total height m | Working height m | Stabilizers n. | Span m 1,20 n. | Guardrail protection n. | Sole structure  | Base platform n. | Full platform n. | Single ladder n. | Double ladder n. | FULL OPTIONAL structure + accessories  |
| 0,52 | 1,52 | 2,52 | 4 standard | 1 | - | ACERV152 | - | 1 | - | - | ACERVC152 |
| 1,72 | 2,72 | 3,72 | 4 standard | 1 | 1 | ACERV272 | - | 1 | - | - | ACERVC272 |
| 2,92 | 3,92 | 4,92 | 4 large | 2 | 1 | ACERV392N | 1 | 1 | 1 | - | ACERVC392N |
| 4,12 | 5,12 | 6,12 | 4 large | 3 | 1 | ACERV512N | 1 | 1 | - | 1 | ACERVC512N |
