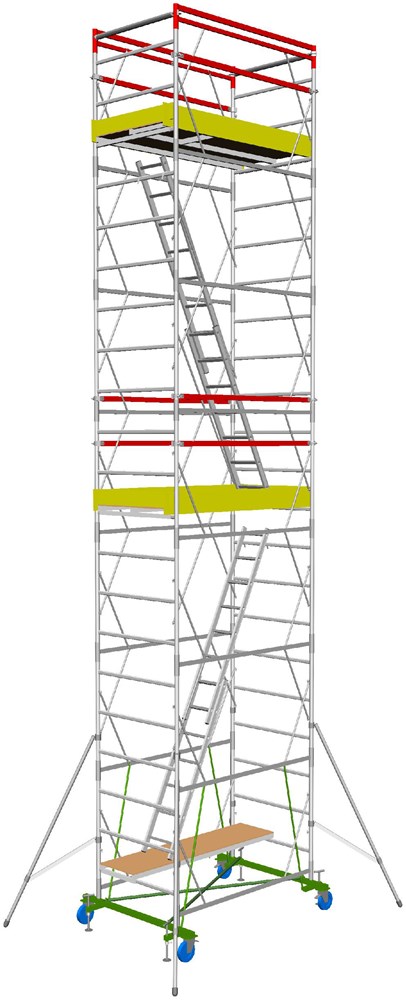

m 2,50x1,20 - max height m 13,70
Suitable for heavy duty
When dimensions are important . Max height 13,70 m

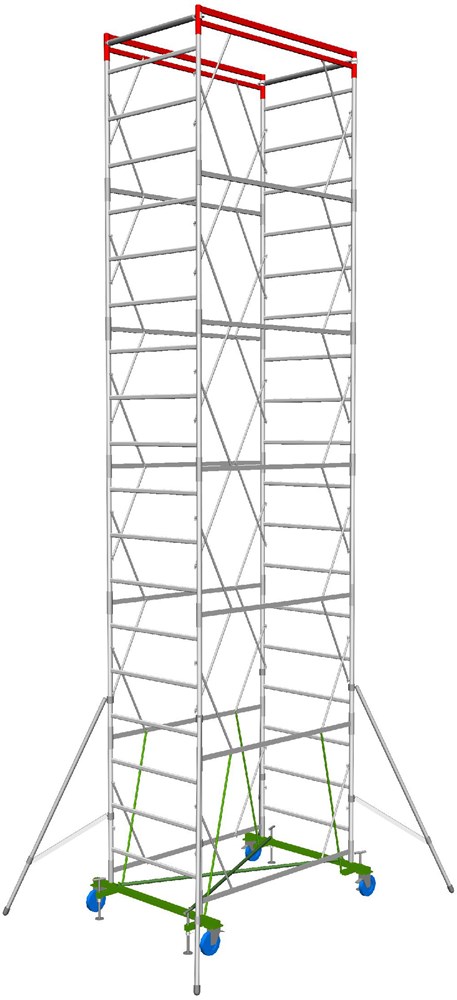

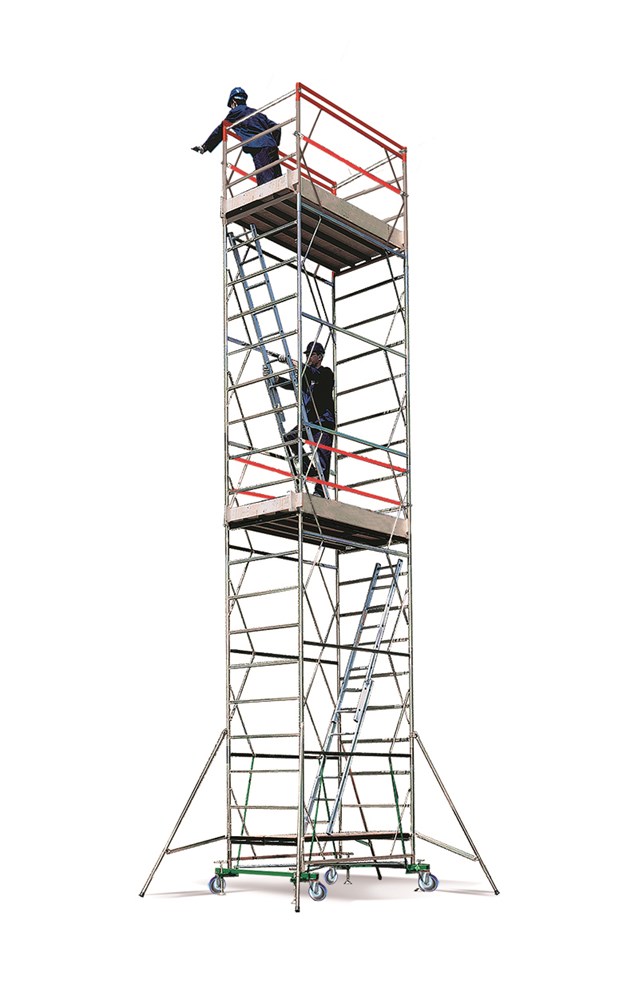

Tower scaffolding system in steel FE360 galvanized against rust. It is safe to use and easy to assemble.

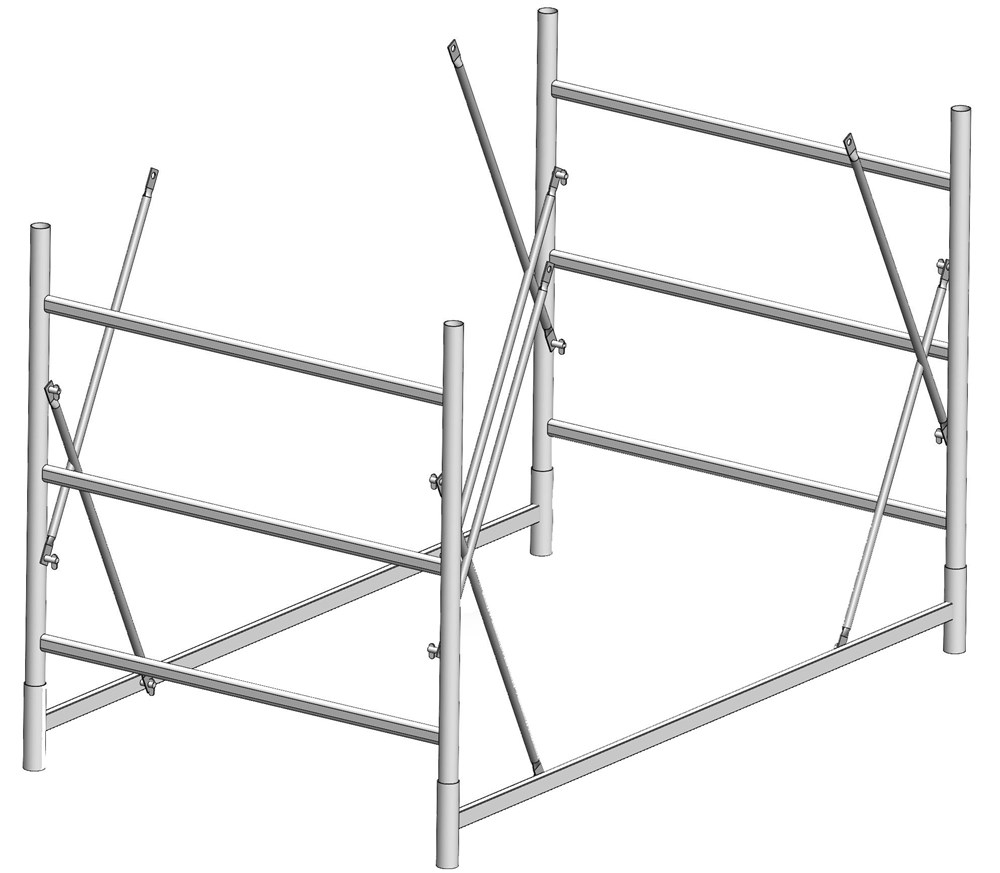

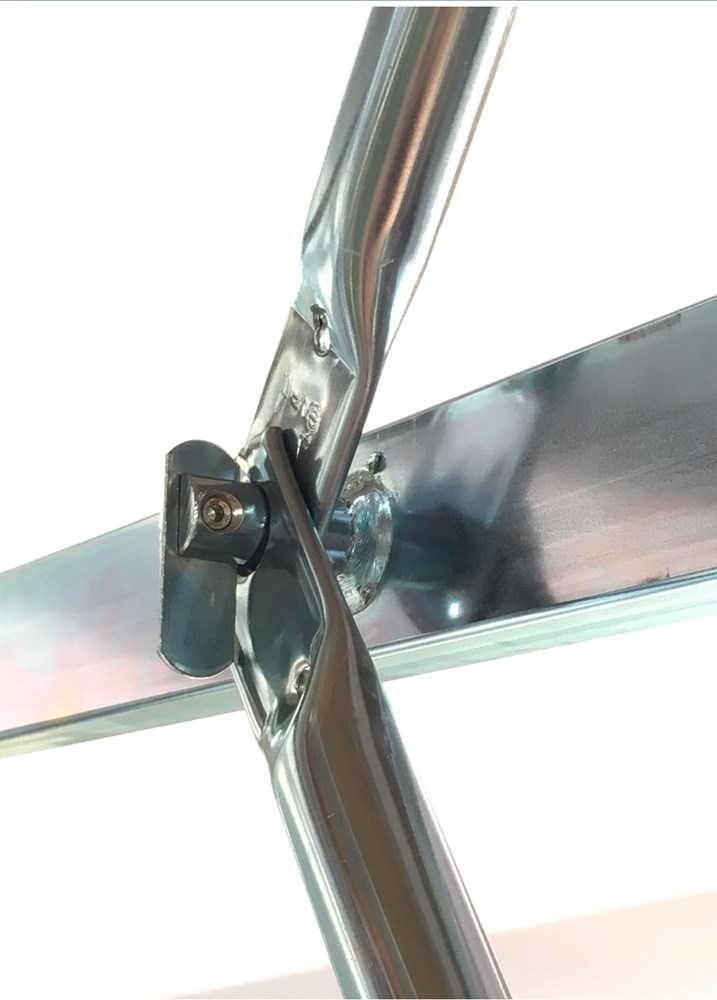

The crossbars create a perfectly static structure with no swaying at all even at great heights.

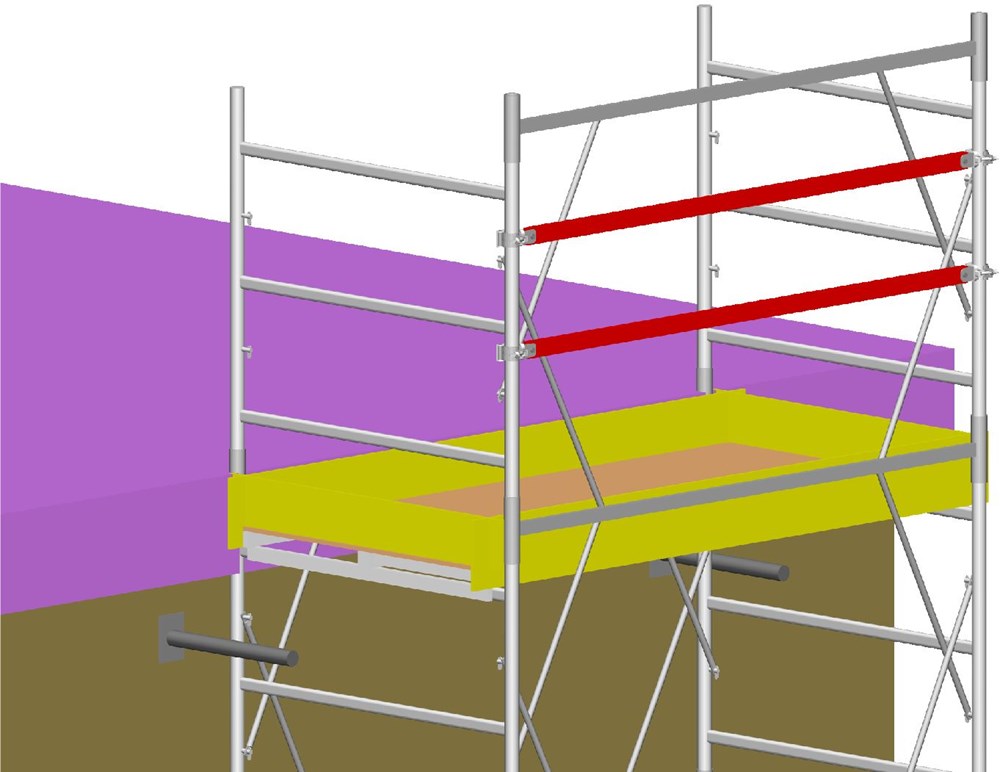

This design leaves a wide open space to work on façade.

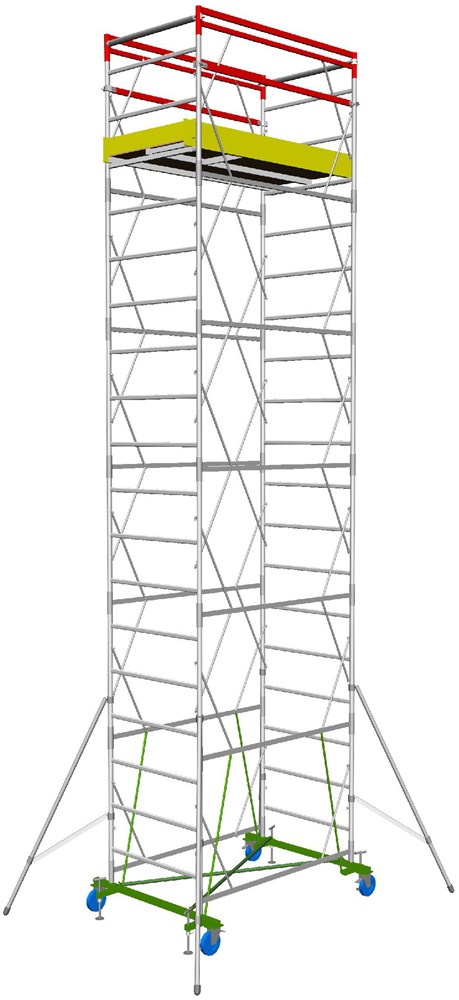

- Possible heights: 1,70 to 13,70 m
- Size: 2,50 x 1,20 m
- Max Capacity: kg 200/ m² (including 2 persons – excluding platforms and internal ladders)
- Span: height 1,20 m, weight 28 kg
- Rules: each tower is equipped with instruction manual and label

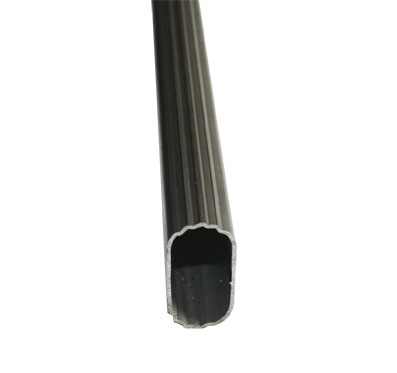

- Sections in resistant steel Ø 45 mm

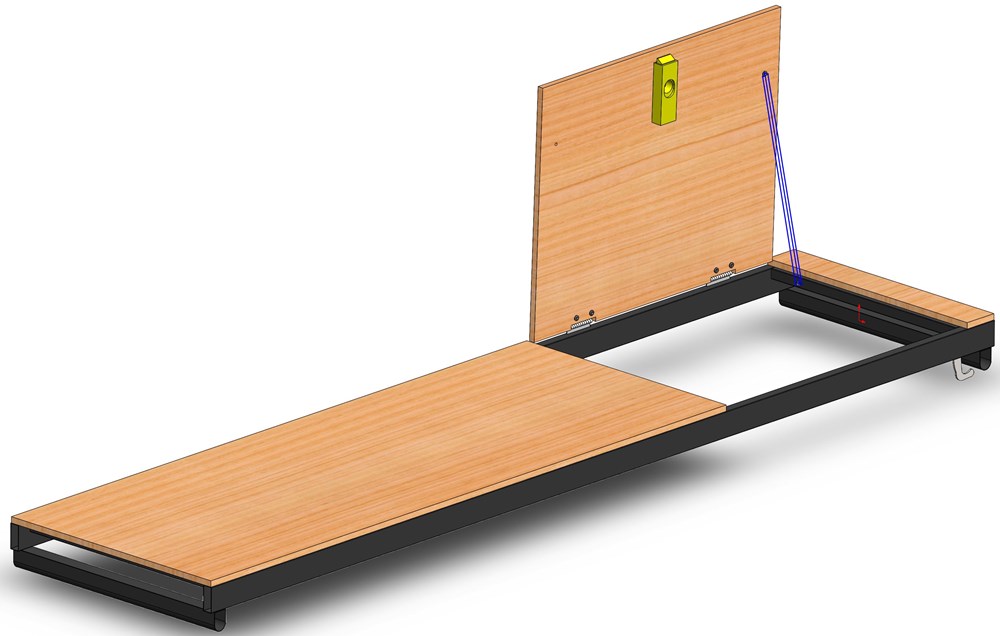

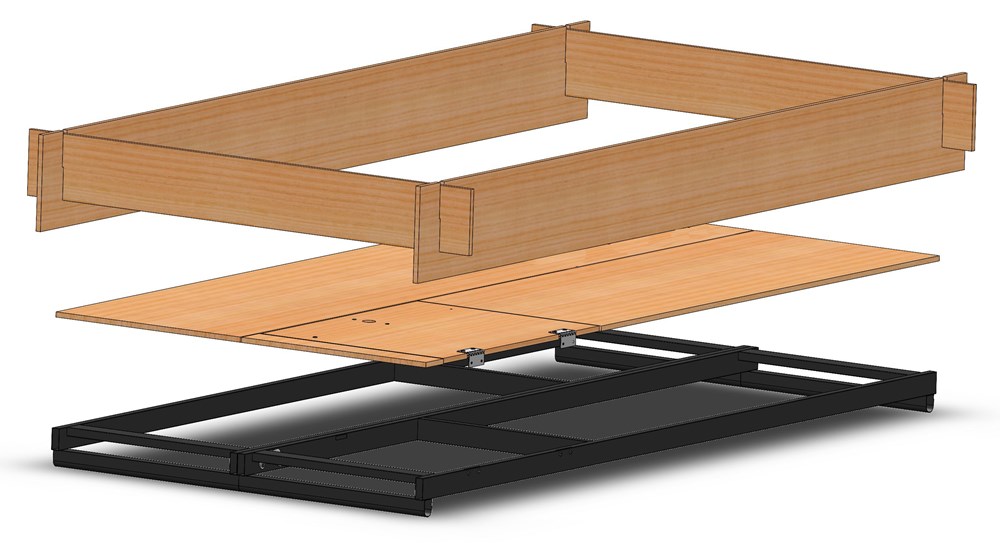

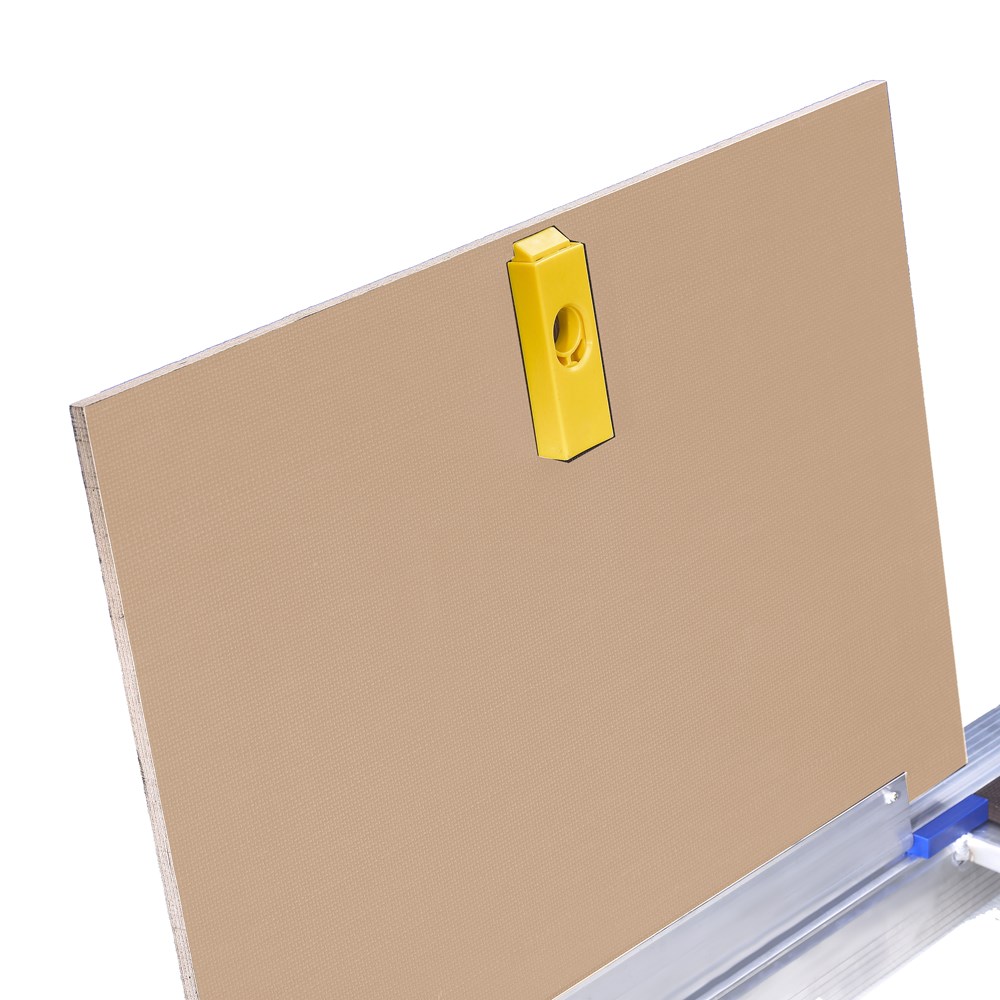

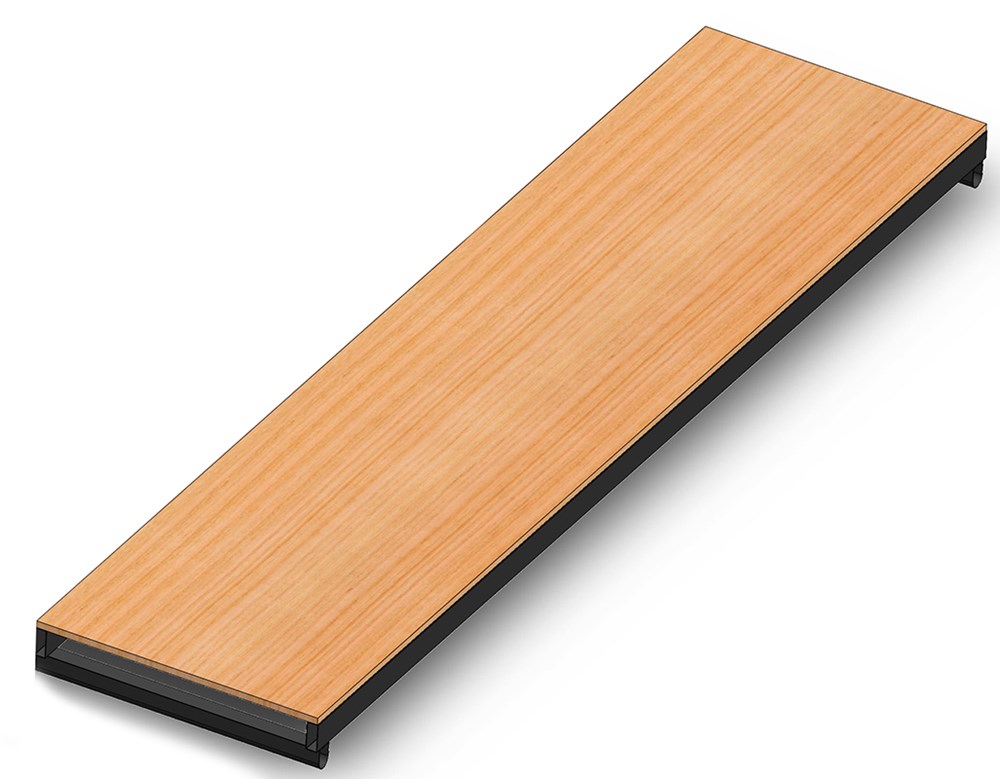

- Steel/wood working platform with trapdoor

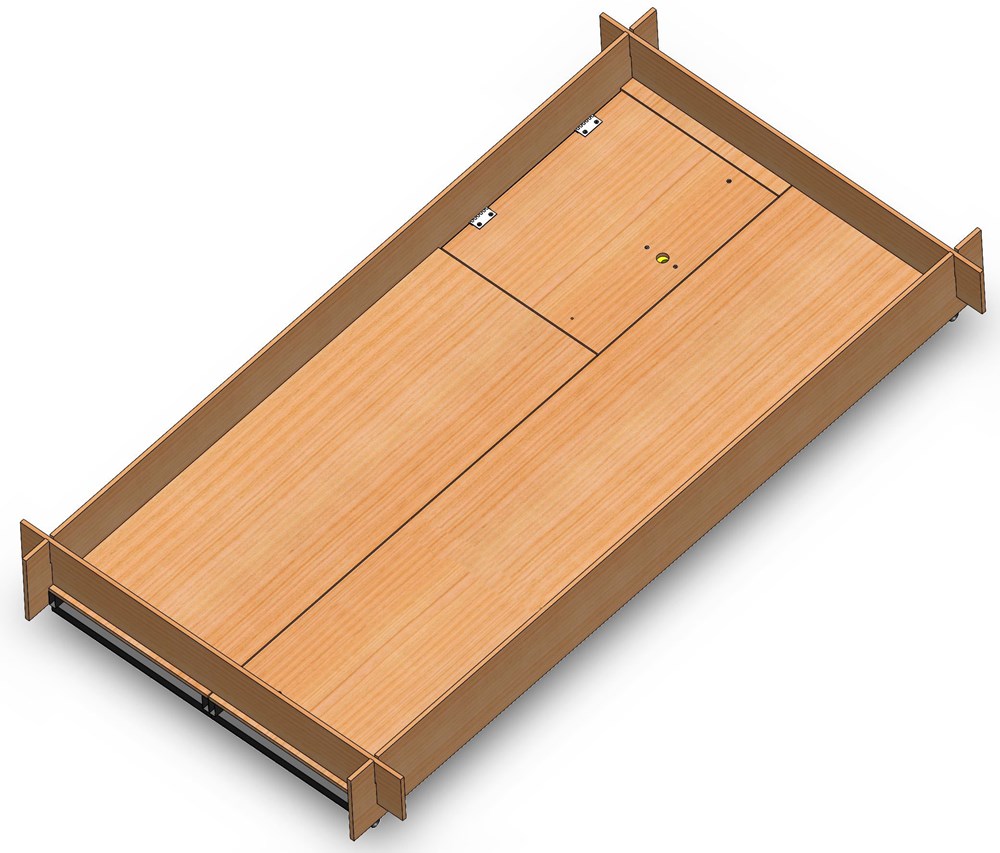

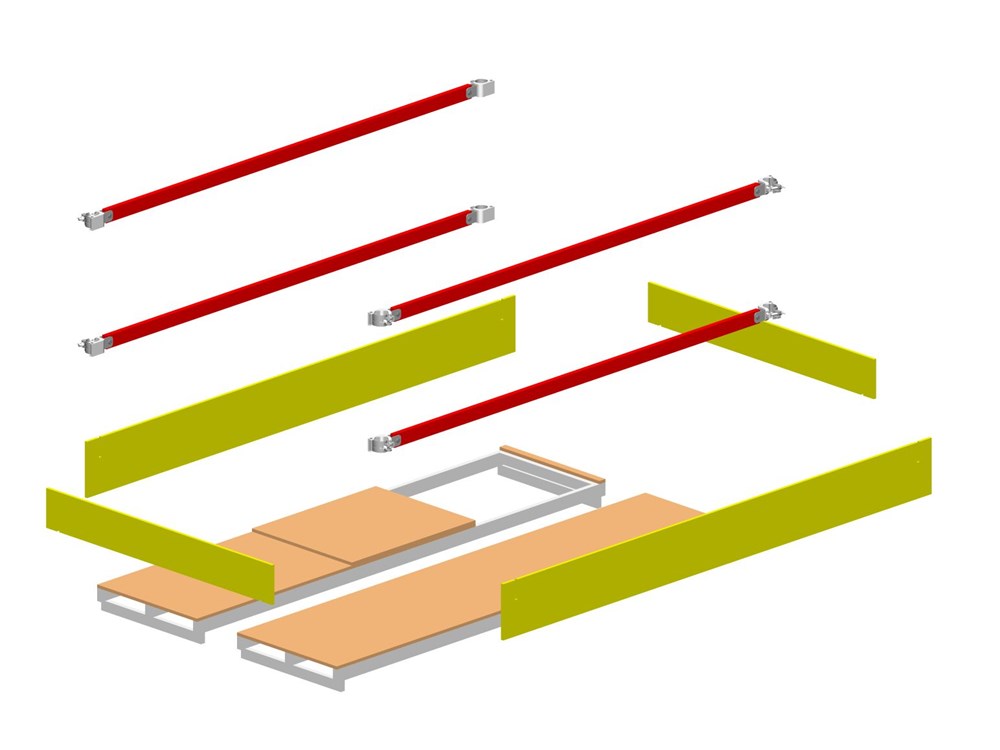

- Aluminium/wood working platform with trapdoor

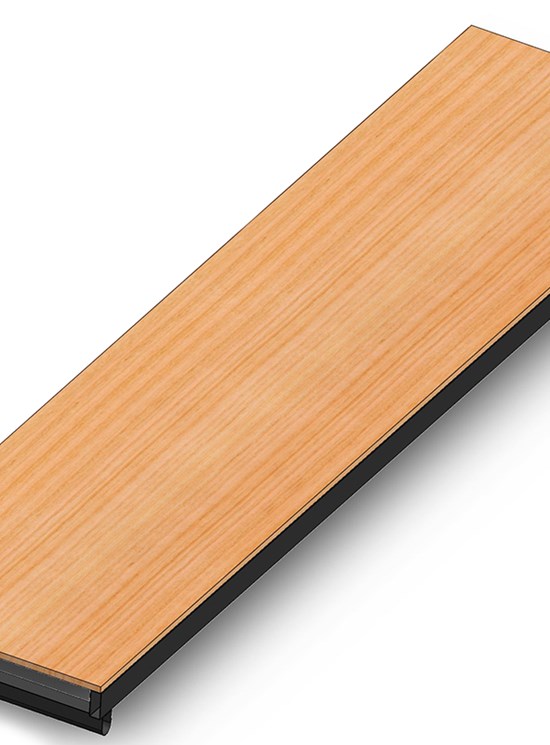

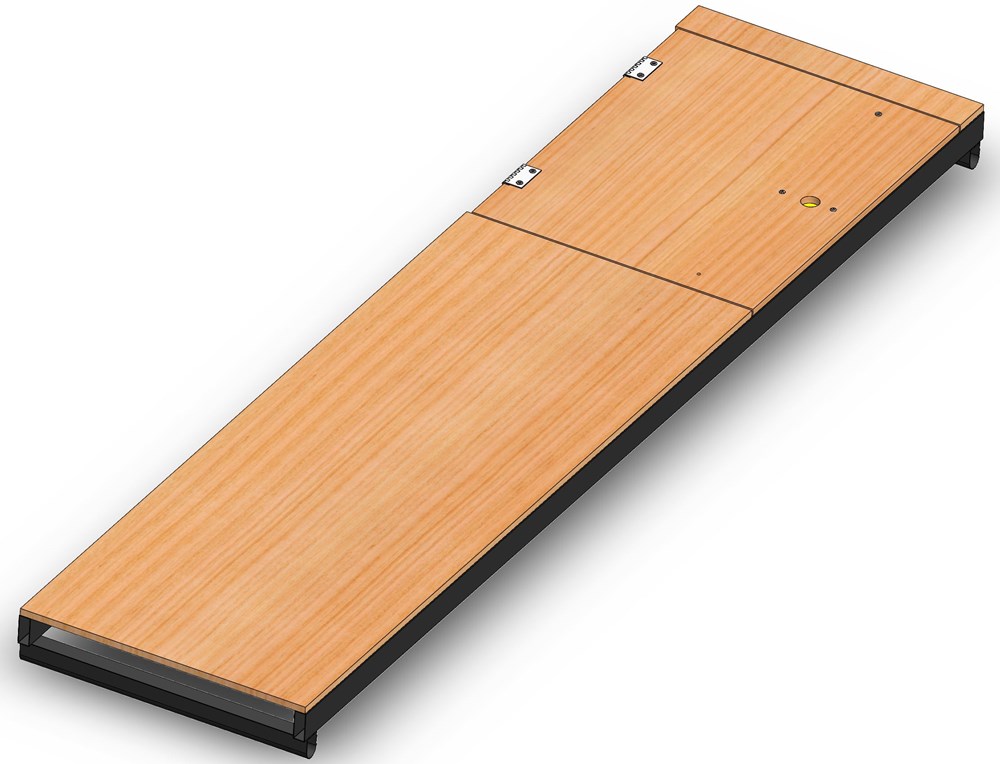

- Base steel/wood half-platform

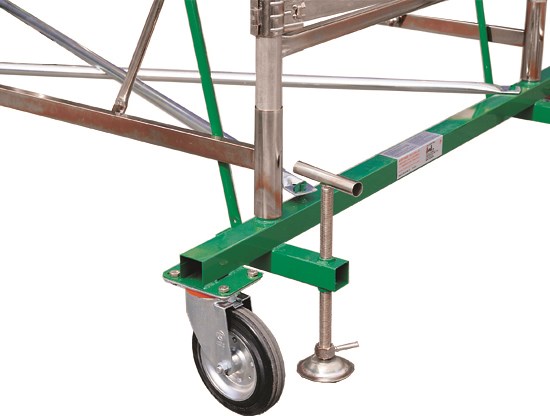

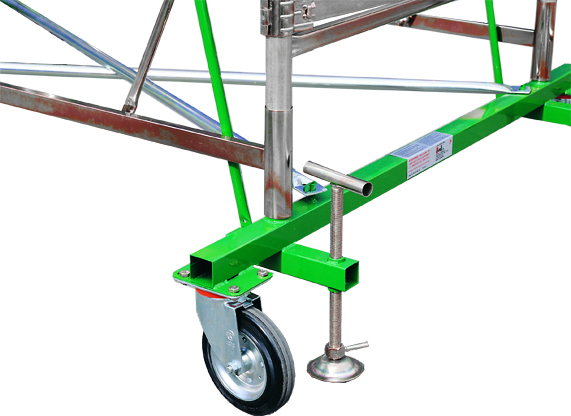

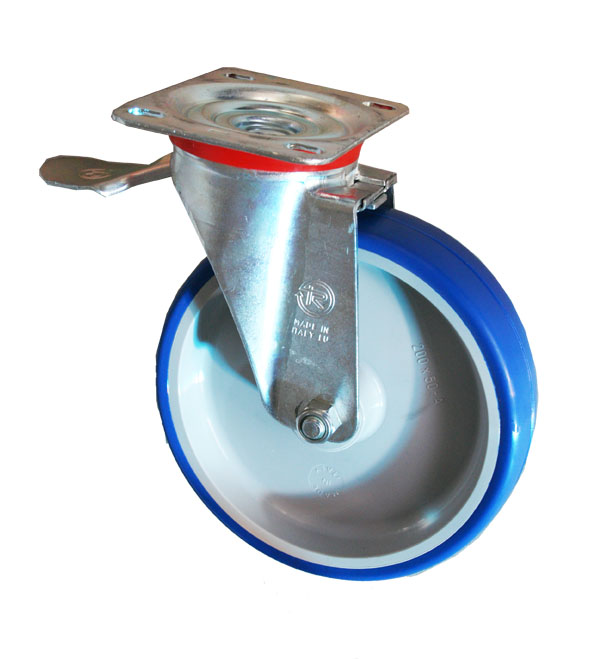

- Additional brake (castors Ø 200 mm)

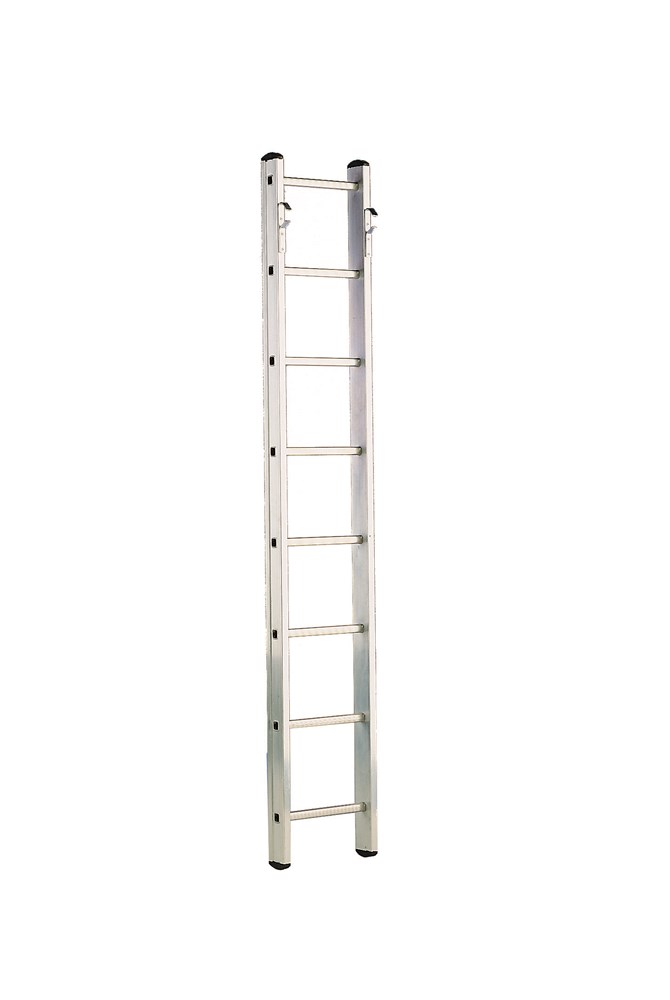

- Aluminium internal ladder - 1 section 2,00 m, weight 3,5 kg
- Aluminium internal ladder - 1 section 2,20 m, weight 4,0 kg

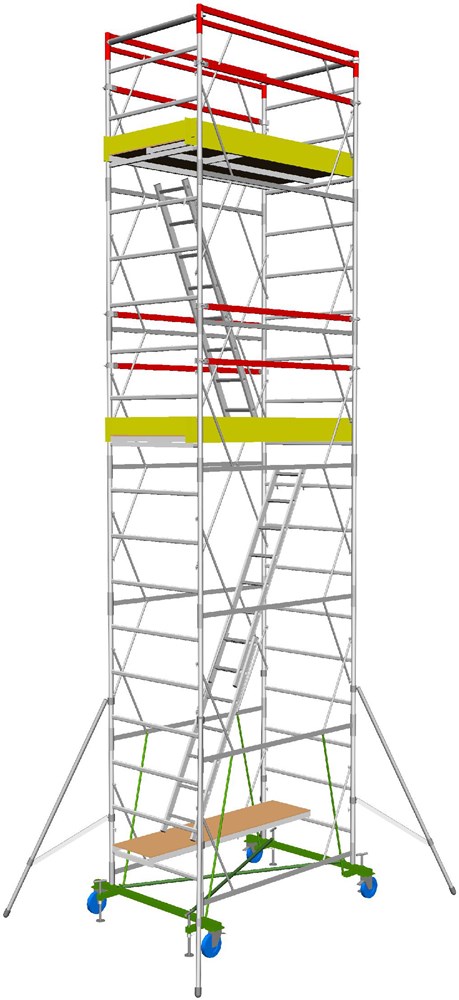

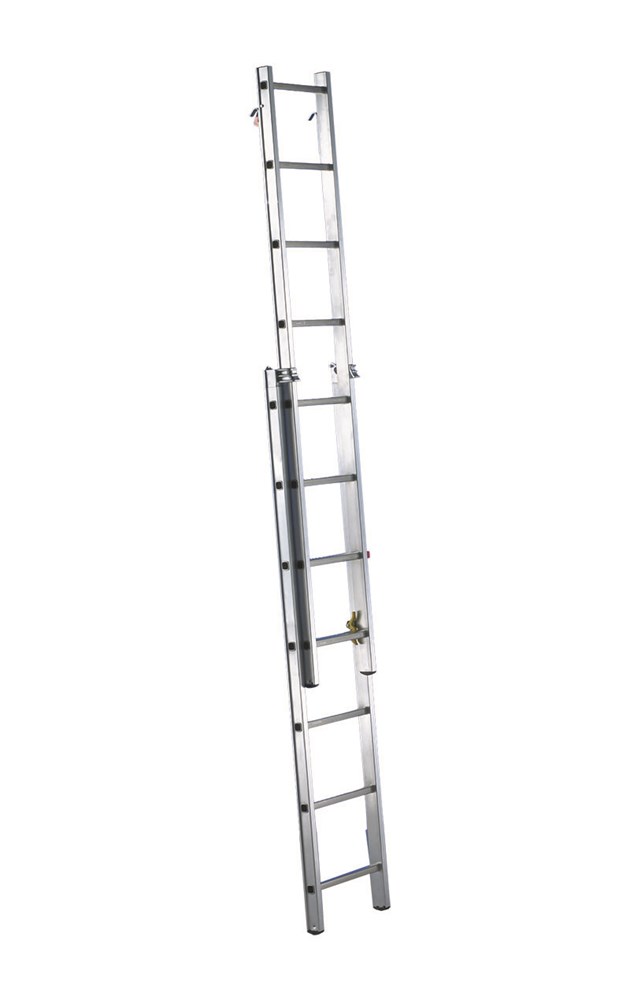

- Aluminium internal ladder - 2 sections 2,20/3,60 m, weight 7,8 kg

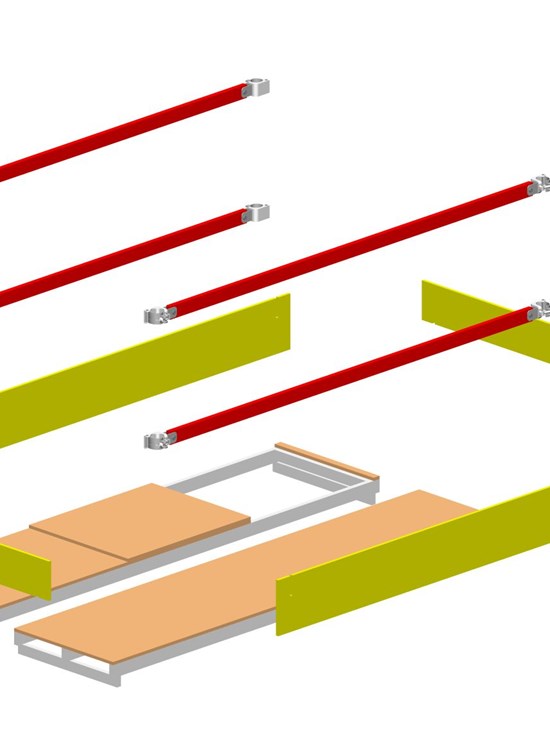

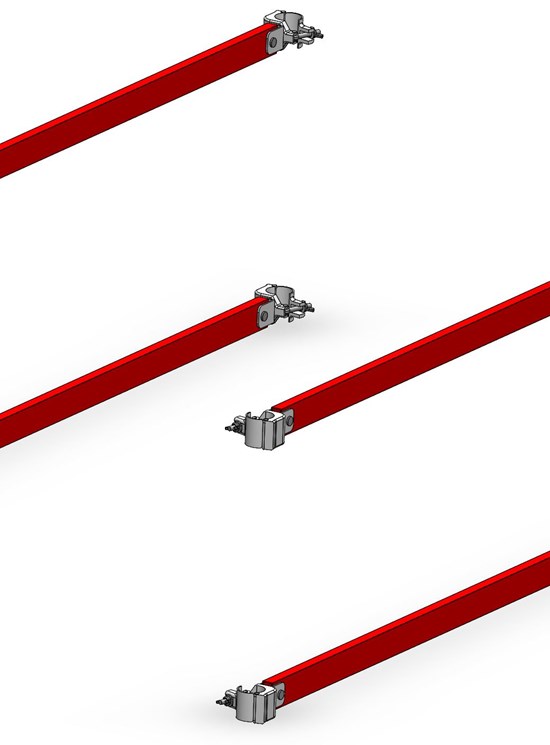

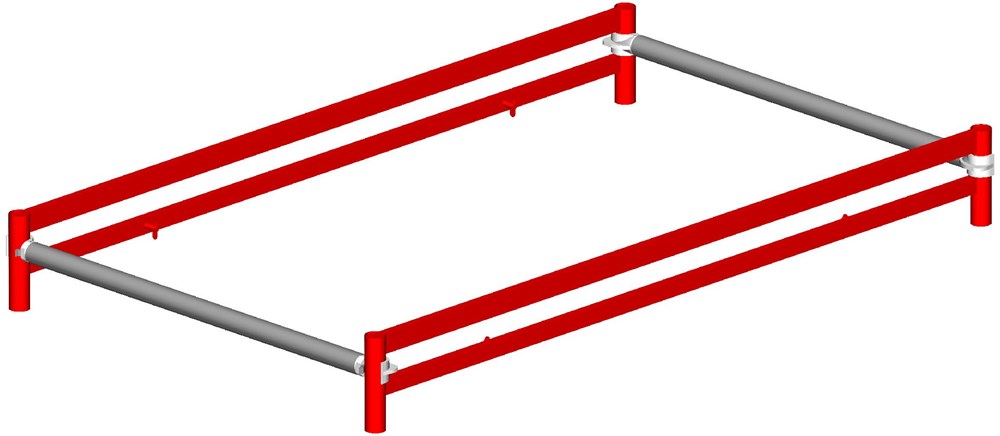

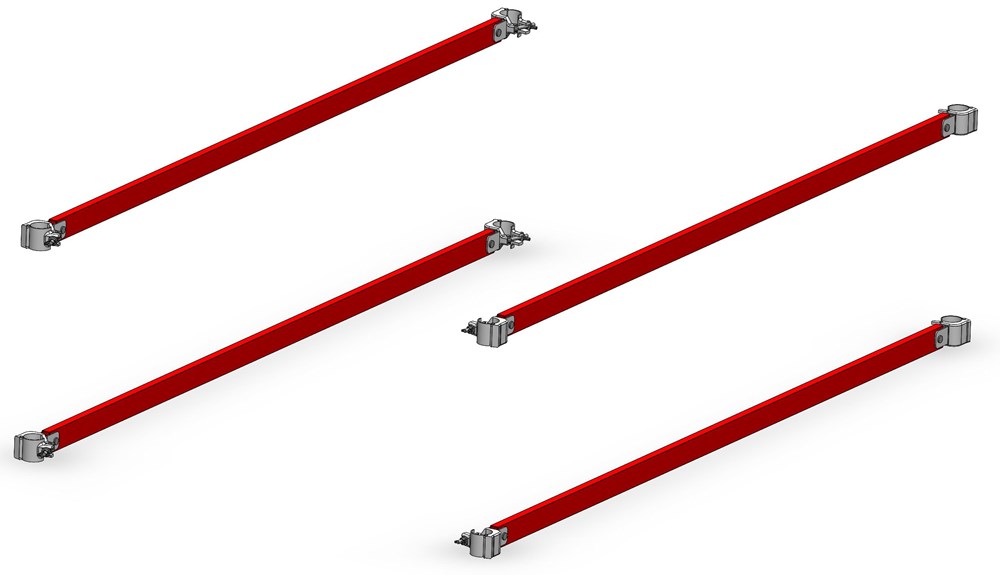

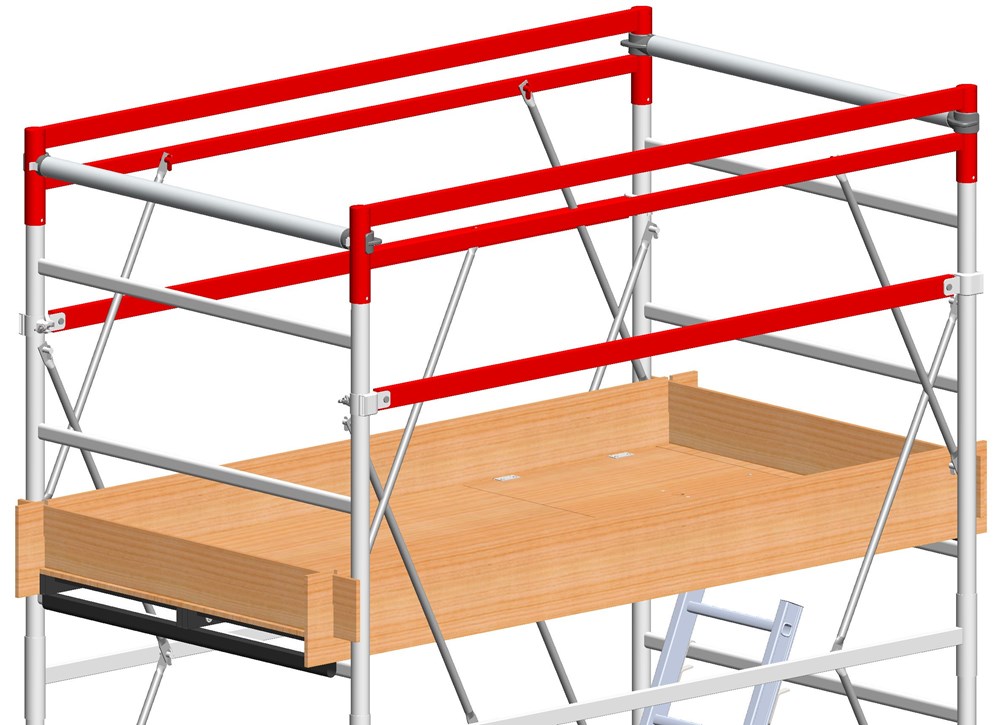

- 4 safety guardrails compulsory for each intermediate working platform
All components are marked with year of production and Svelt logo.
