Tempo Scaffolding for boats

Customized modular dimensions

It shows the validity of the guarantee in years

It shows the maximum weight capacity of a product

All our products conforms to the standads in force

It is shown on products which conform to the European Standard on welding

It is the European Standard for ladders

It shows that the Politecnico di Milano (Applied-Science Faculty in Milan) has tested a product and certified that it conforms to UNI EN131-1-2-3-4 (ladders), UNIEN14183 (step-stools), UNIEN1004 (scaffolds)

Suitable for heavy duty

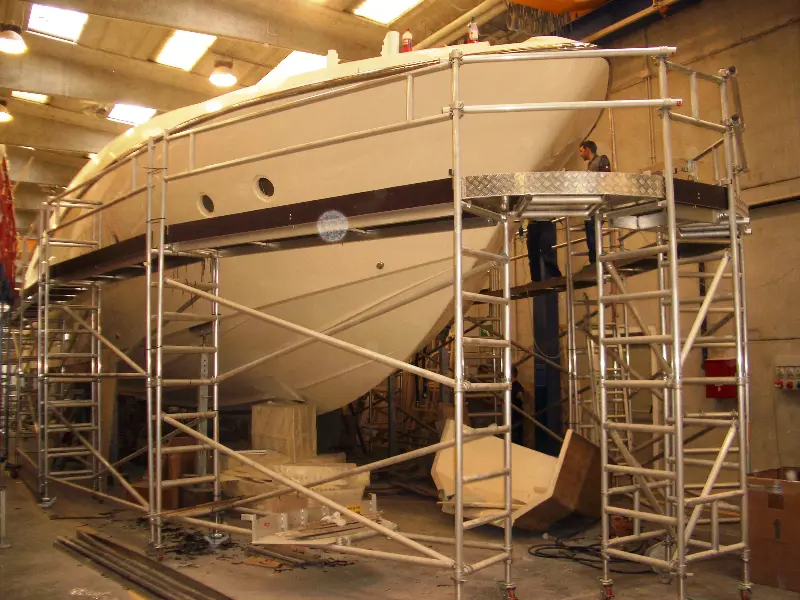

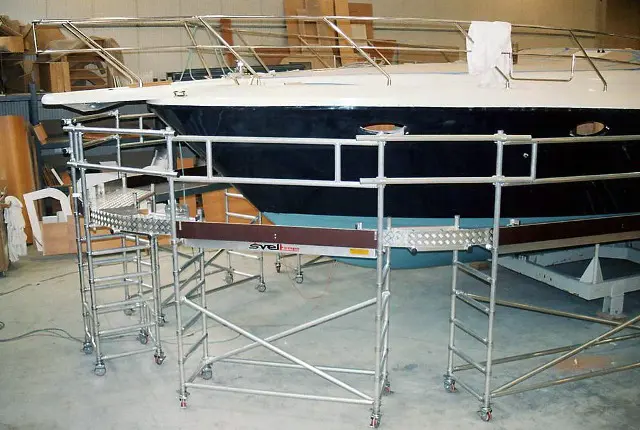

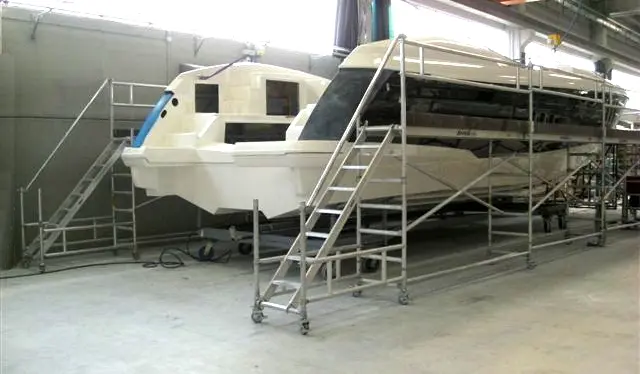

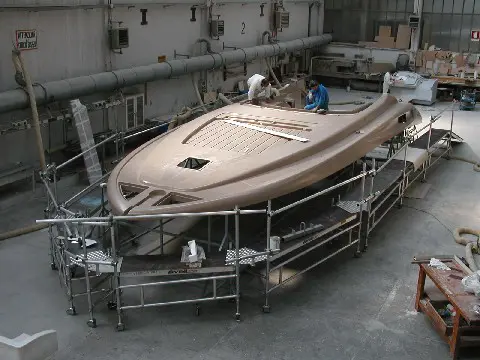

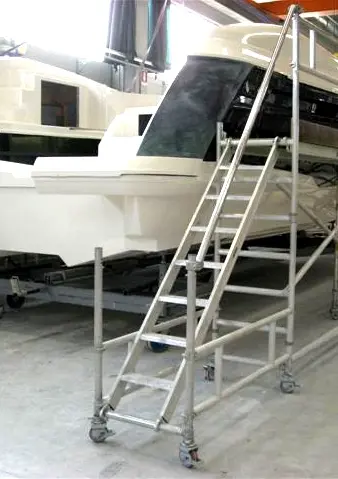

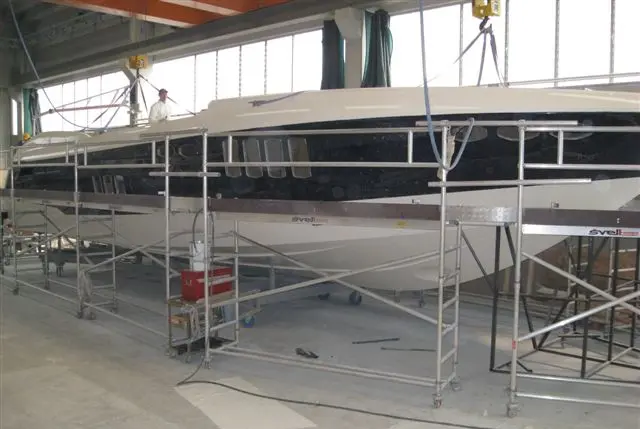

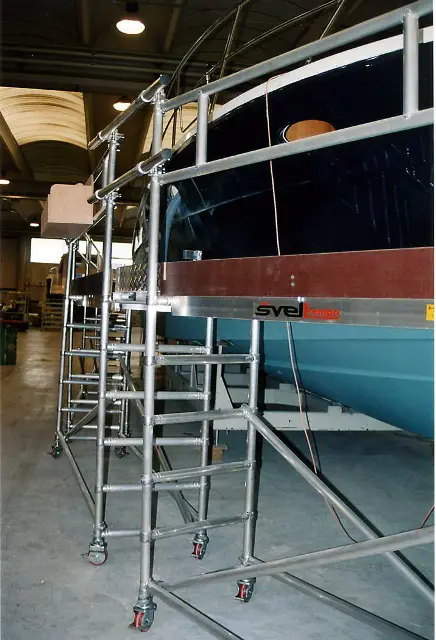

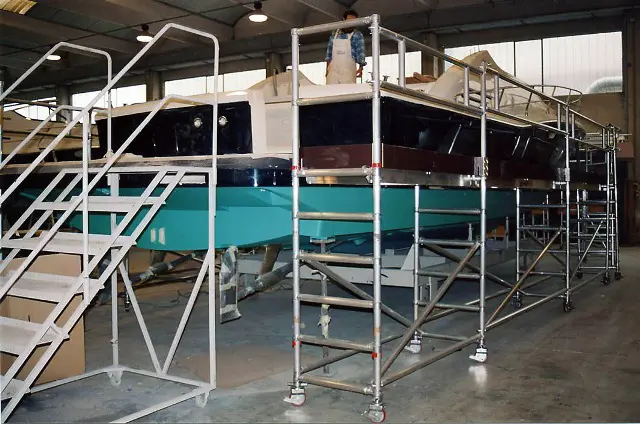

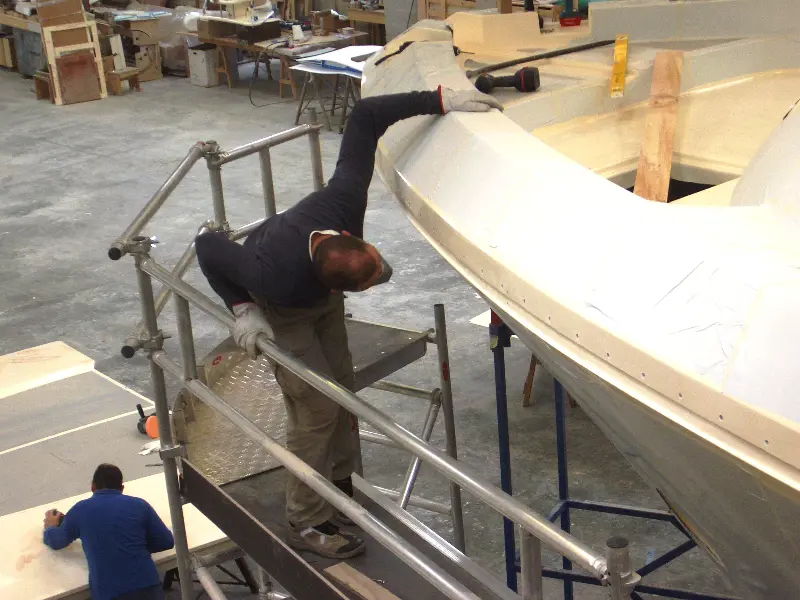

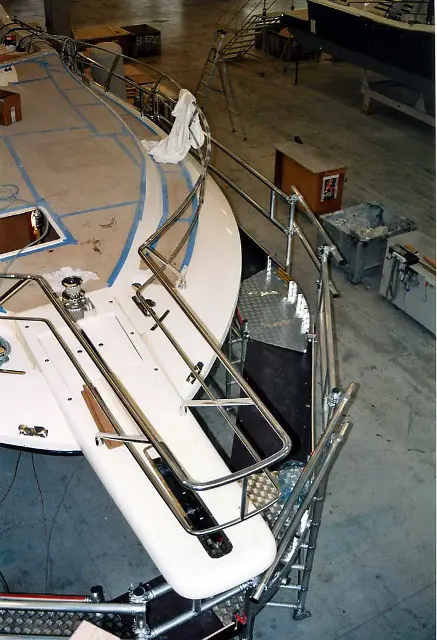

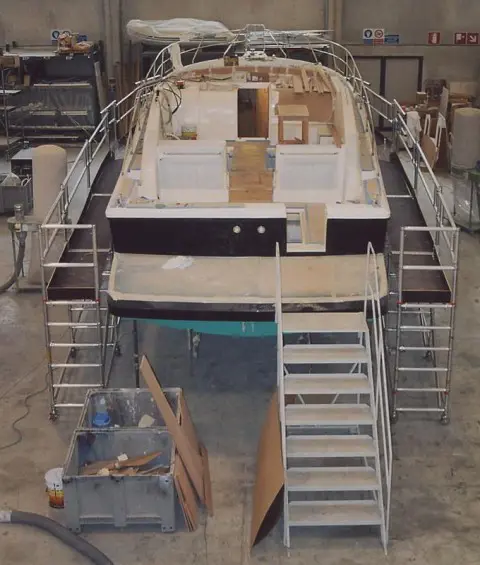

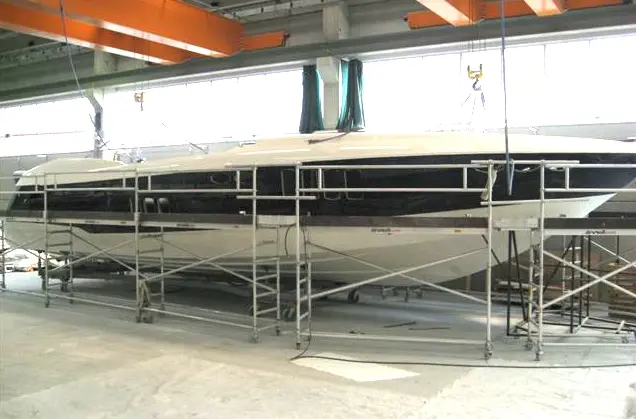

Modular structure of perimeter walkway for boats

Each structure is modular and can be expanded later.
It is ideal for whitewashing and maintenance.

It is made of very light tubular aluminum alloy ø 50 mm with non-slip knurled steps. It is resistant to rust.

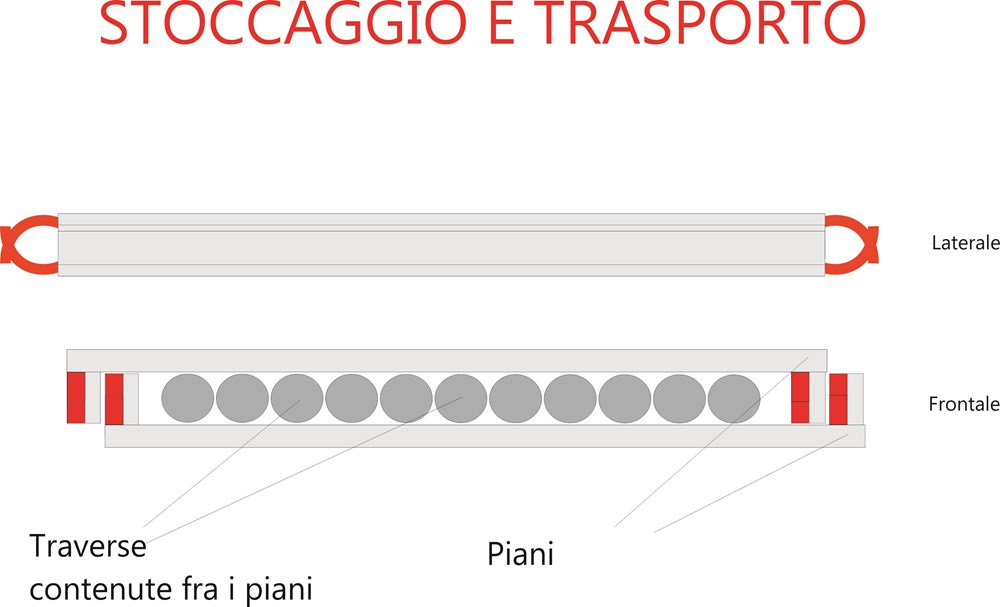

It consists of a few components that make it light, space-saving to transport and easy to assemble in a few minutes and without the need for tools.

TECHNICAL FEATURES

Available widths: 0.74 m
Available modular lengths: 2.00 - 2.30 - 3.00 m
Capacity: Kg 200 / m2 (including 2 people)
Step with knurled steps: 30 cm

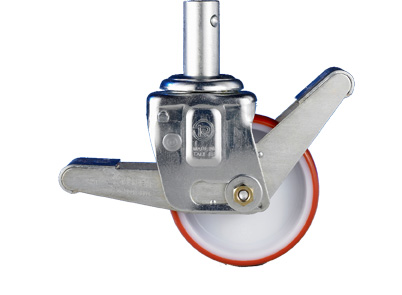

Nylon wheels with anti-fingerprint injected polyurethane cover,
Available wheel diameters: 125 - 150 - 200 mm, equipped with double pedal brake
Adjustable legs available: 15 - 40 - 70 cm
Available frames: n. rungs 3 - 4 - 5 - 6 - 7 (heights on request to the centimeter)
Guarantee: 5 years

Supplied:

Use and maintenance manual and certificate of conformity with current standards.
entification label.Id

ACCESSORIES:

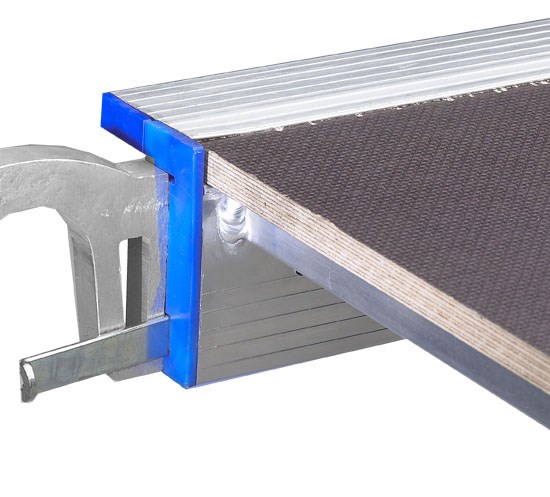

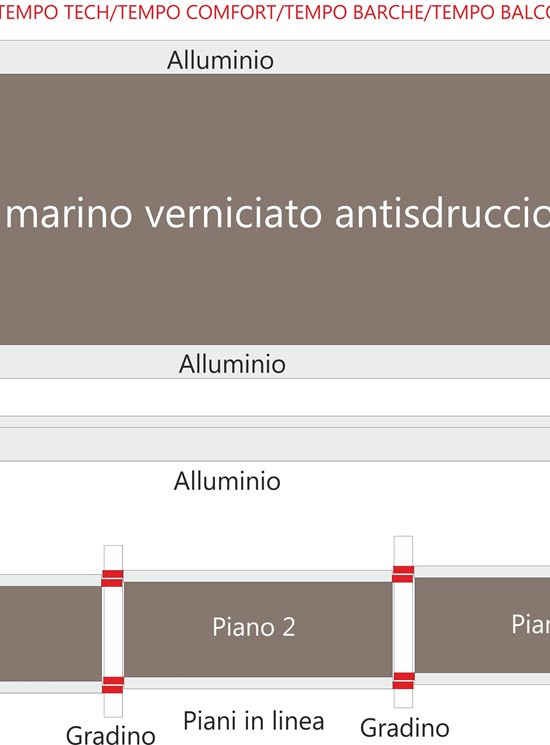

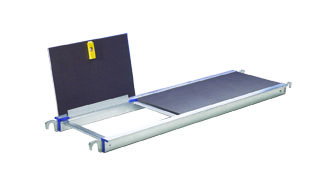

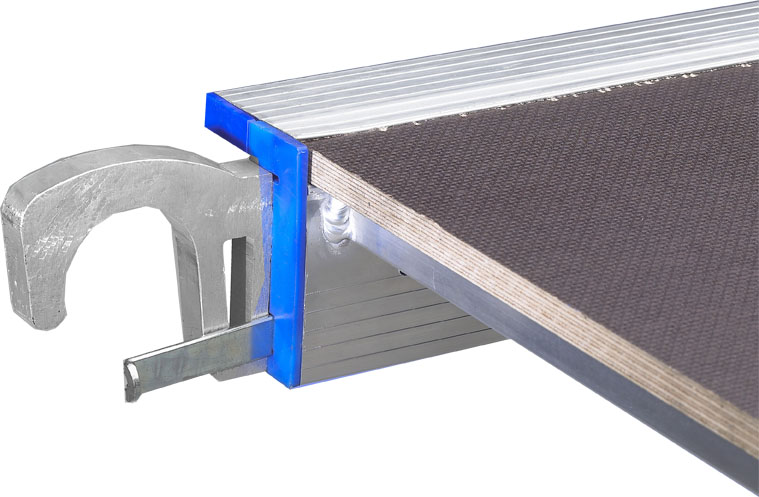

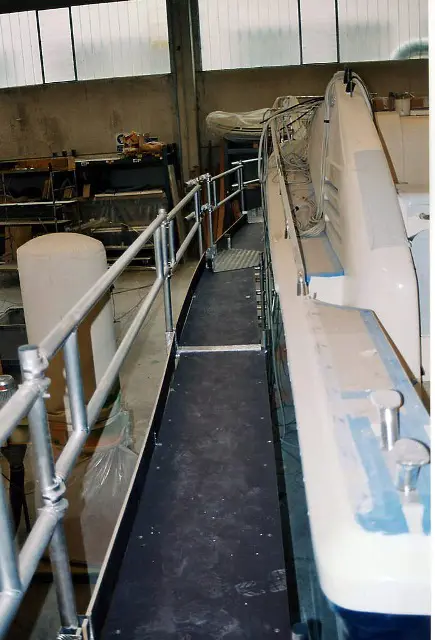

Walking surface with aluminum armor and marine plywood top with foot stopper, trap door and windproof hook.
The wood is painted and non-slip.
For photos and description of accessories, see TEMPO TECH in the Professional Aluminum Scaffolding section.
All components are marked with the year of manufacture and the Svelt logo as required by the European standard.

Catalogo Strutture Speciali per la nautica.pdf (4.6 MB)
