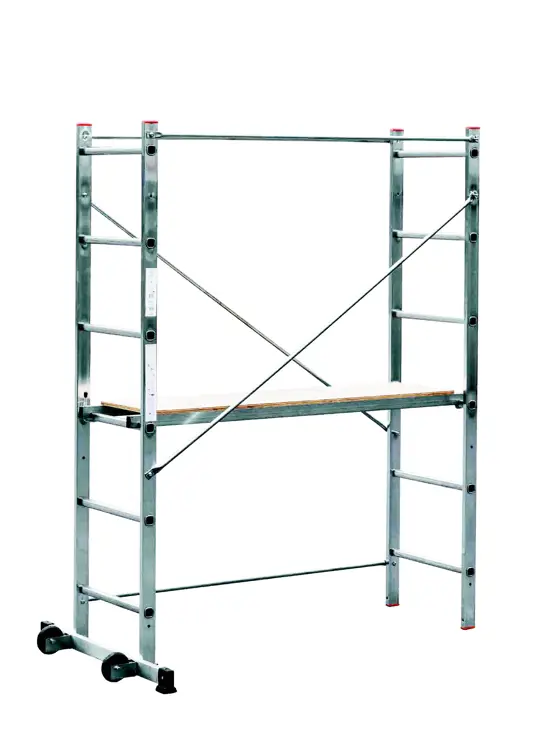

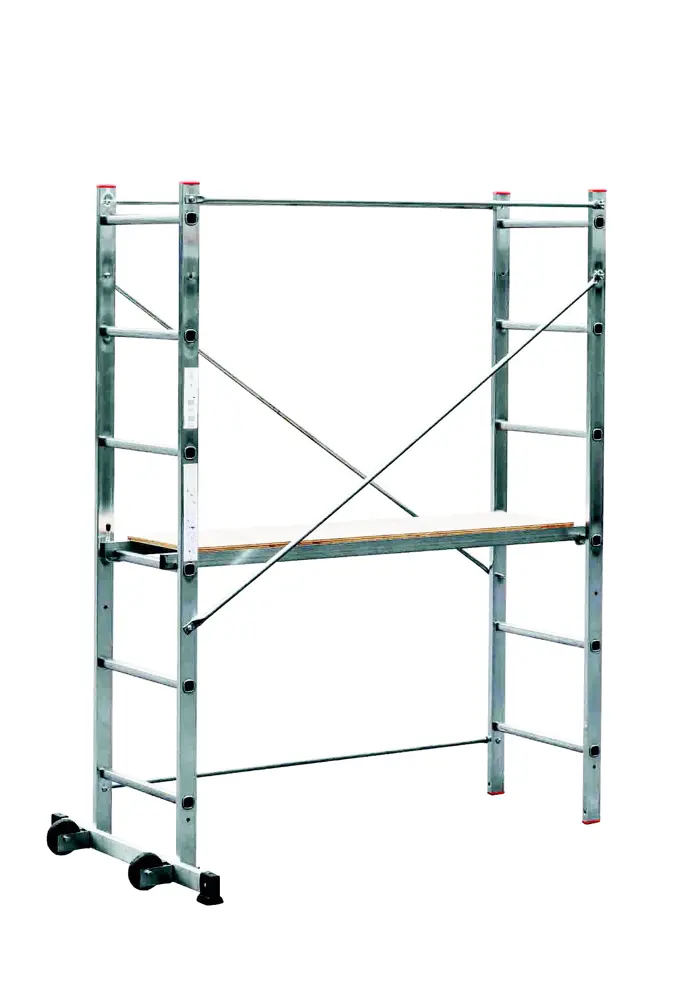

Small scaffolding Rey

m 1,41x0,88x1,82
Garanzia 5 anni
It shows the validity of the guarantee in years
Flow 150 kg
It shows the maximum weight capacity of a product
Flow 1 person
It shows the number of people who can climb the structure at the same time
Compliant D.Leg. 81/08
All our products conforms to the standads in force
LNE
It is shown on products certified by the French quality organization LNE
Suitable for light duty

Small aluminum scaffolding Made in Italy - Height m 1.81

Small aluminum scaffolding for low-altitude work.

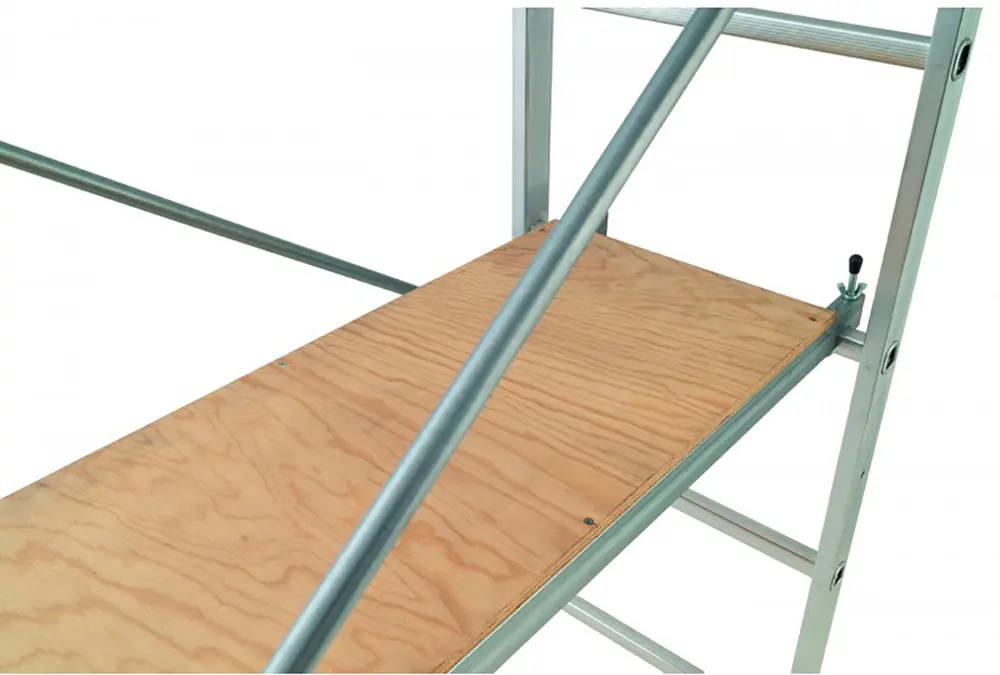

The floor is in Radiata Pine, supported by a shaped tubular aluminum structure.
It is made of very light aluminum and is completely removable.

Two galvanized  steel cross tie rods with upright fixing system complete the scaffolding.

Steel-aluminum mix structure, easy to assemble, ideal for work inside buildings.

Equipped with anti-tilt stabilizer bar.


SPECIFICATIONS
  • Weight: Kg 15,4
  • Maximum scaffolding height: 1.82 m
  • Maximum height at the work surface: 0.87 m
  • Working height (hand): m 2.87
  • Scaffolding dimensions: 1.41x0.88 m (with base widener)
  • Height closed: m 1.82
  • Base spreader cm 88
  • Staircase width 52 cm
  • Solid wheels diameter 100 mm
  • Profile: 50x22 mm
  • Rungs pitch: 30 cm
  • Worktop in radiata pine (useful dimensions 126x35 cm)
  • 2 PVC pads
  • Capacity: 150 kg (including 1 person)

CODE DESCRIPTION EAN
ESREYREY SCAFFOLDING  8012539006288

Equipment:
  • Operation and maintenance manual
  • Identification label

Standards and testing
  • Rey is built in compliance with Legislative Decree 81/2008 for use in the workplace (while being designed for domestic use).
  • The capacity of 150 kg has been positively tested.
  • NF E85-200 certified.
  • As scaffolding, it must only be used with an anchor or restraint system with the aid of a second operator on the ground
  • The scaffolding has been subjected to internal tests including capacity and overturning tests, documented and certified in order to declare its compliance with Legislative Decree 81/2008

      as indicated by the 2022 INAIL technical guide
