Small Multirey scaffolding

m 1.45x0.50 - max height m 2.70

Producted in compliance with the new revision of the European Standard for multi-position transformable ladders with hinges in force from October 2020

It shows the validity of the guarantee in years

It shows the maximum weight capacity of a product

It shows the number of people who can climb the structure at the same time

All our products conforms to the standads in force

Suitable for light duty

Small multi-position scaffolding (4 in 1) in aluminum Made in Italy - Height m 2.70

Small aluminum scaffolding for low-altitude work.

It is made of very light aluminum and is completely removable.

Ideal for DIY and DIY work indoors or outdoors.

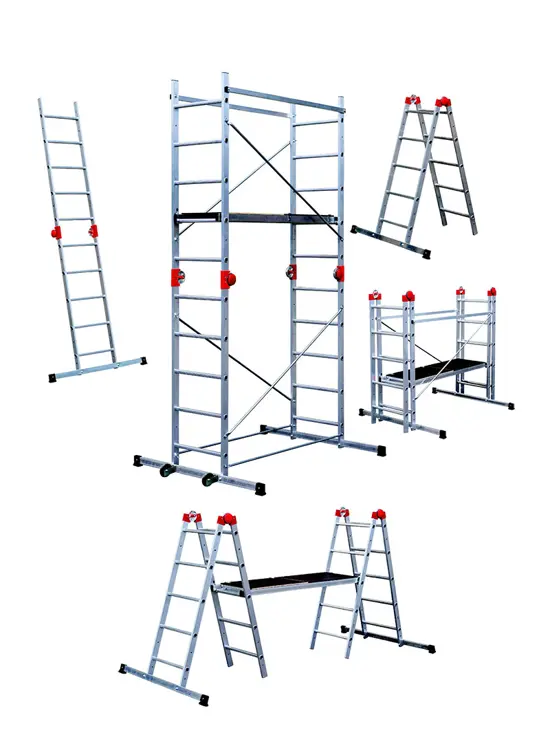

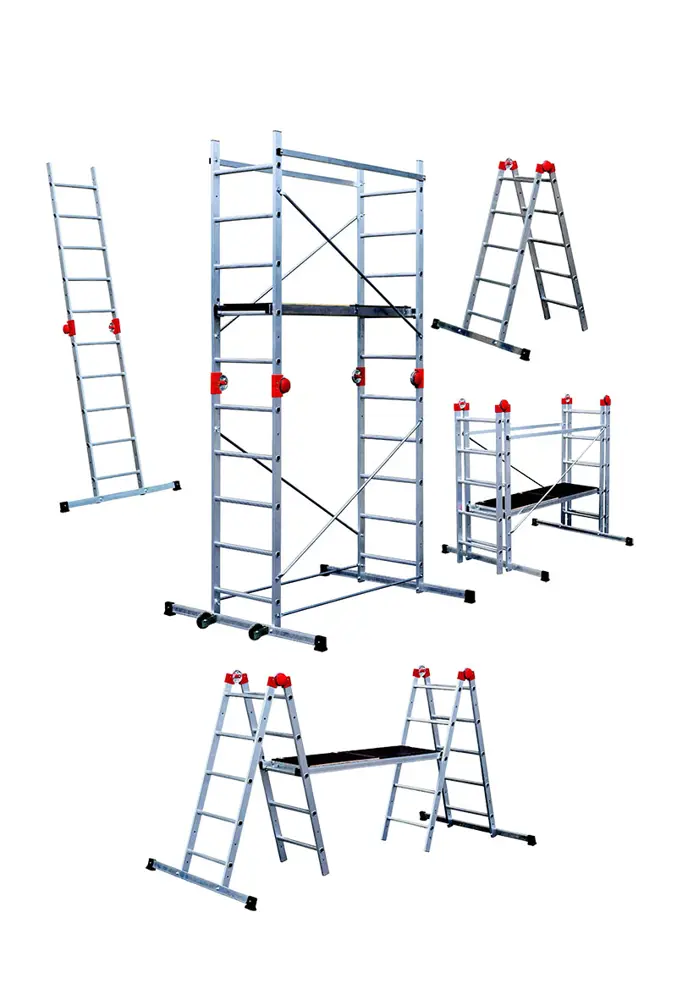

It is a very versatile product, which can be used in four ways:

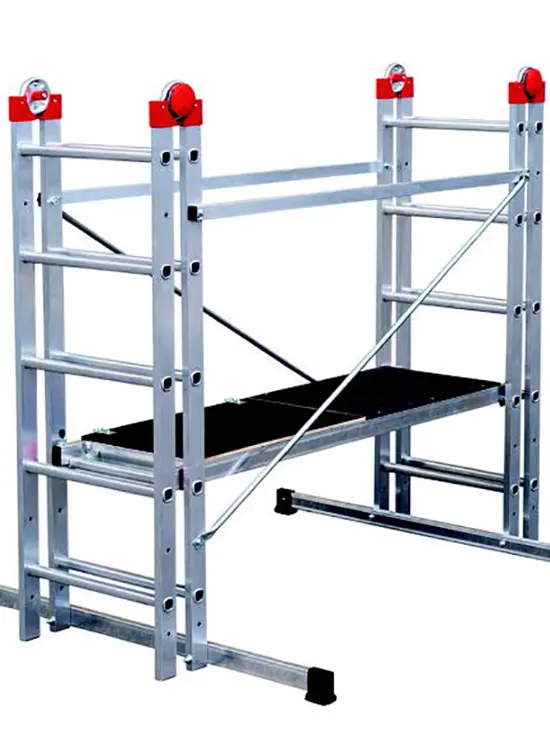

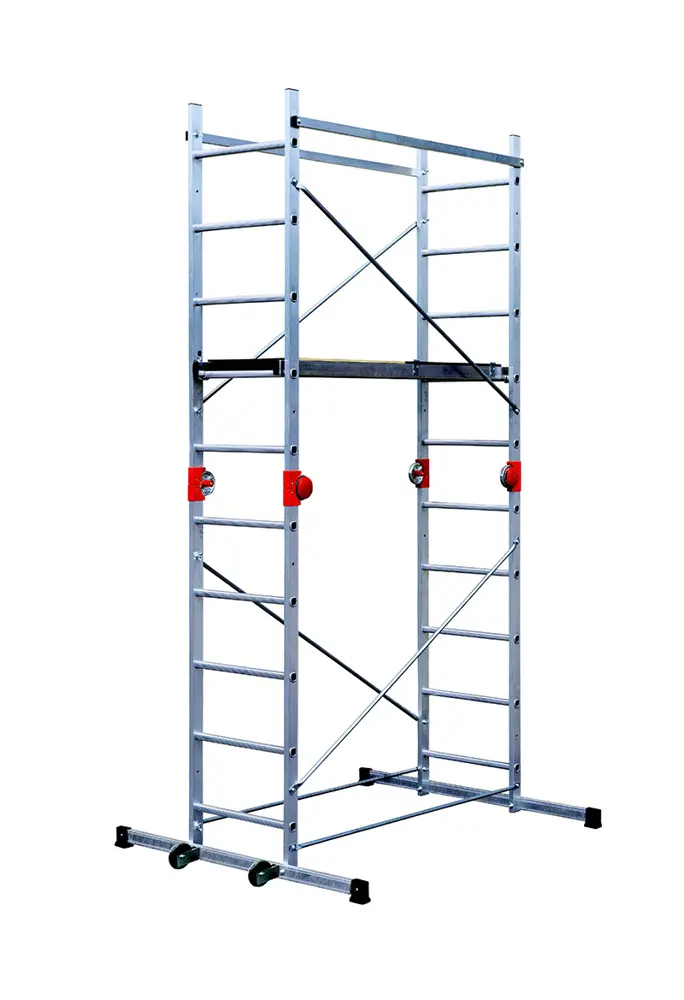

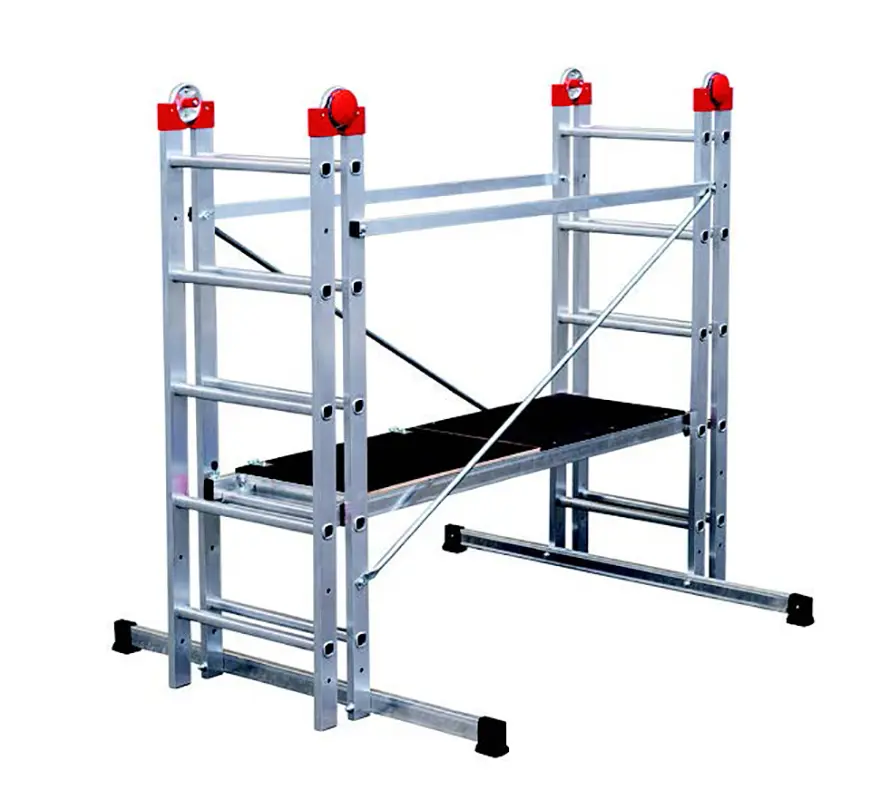

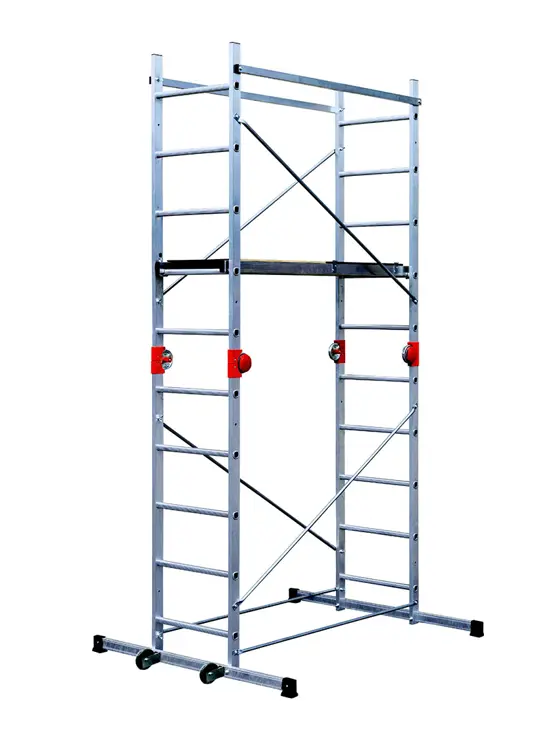

Closed scaffolding

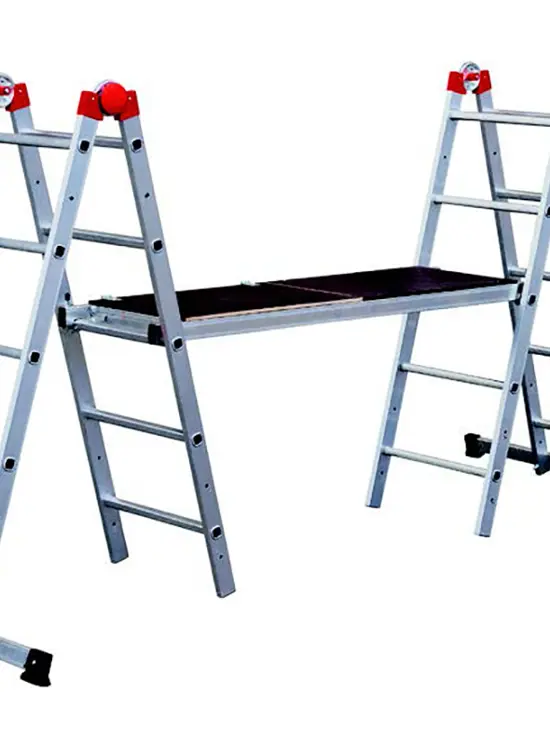

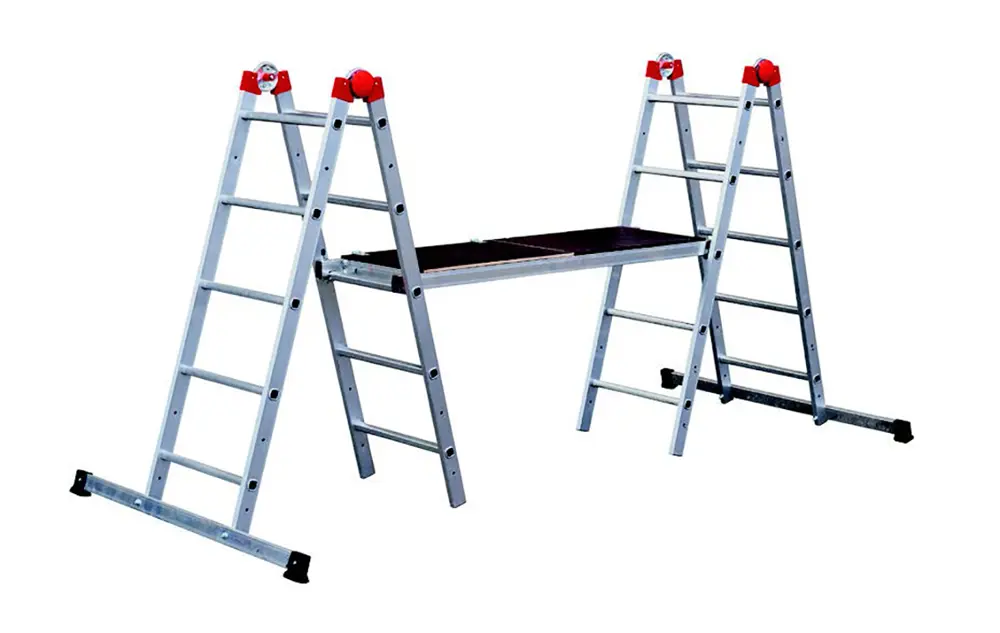

Open scaffolding

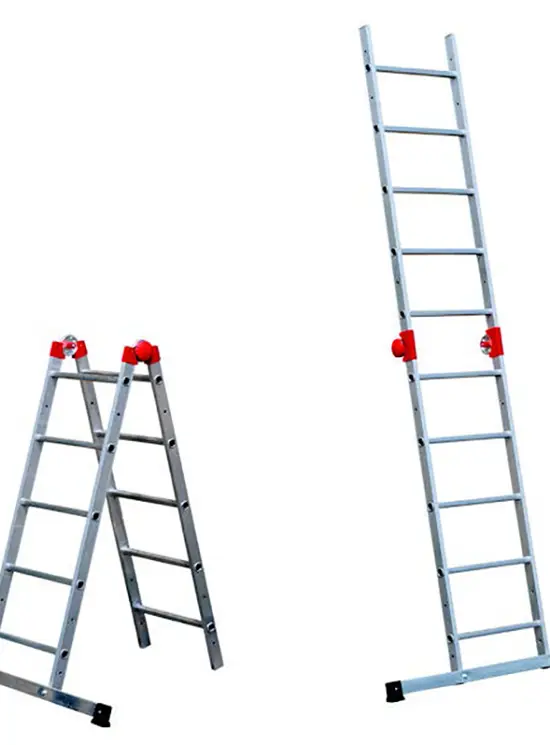

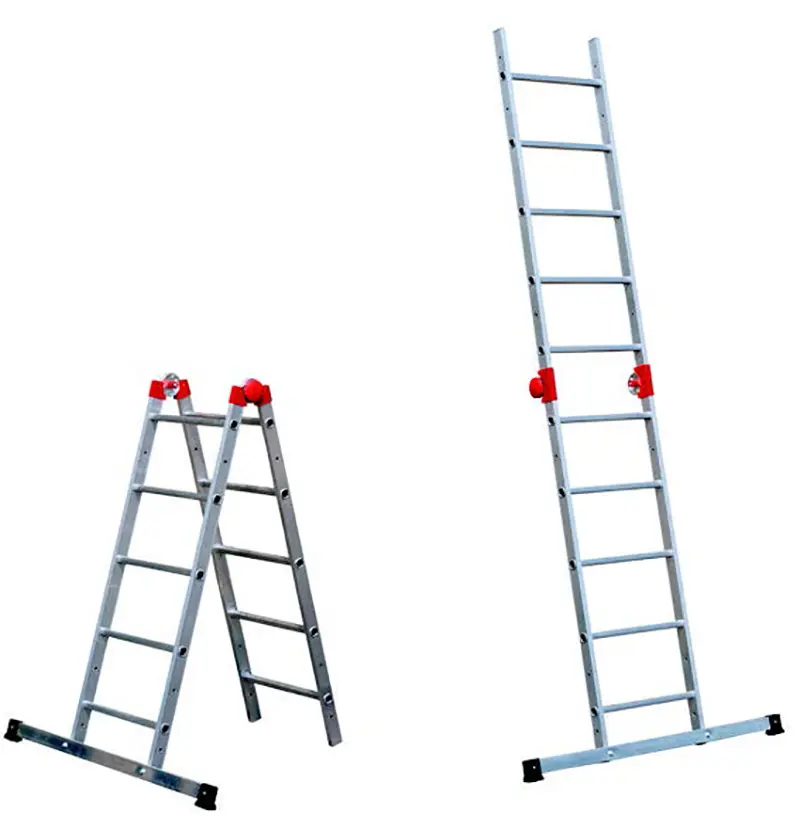

Double ladder
Support ladder

Workbench (no climbing)

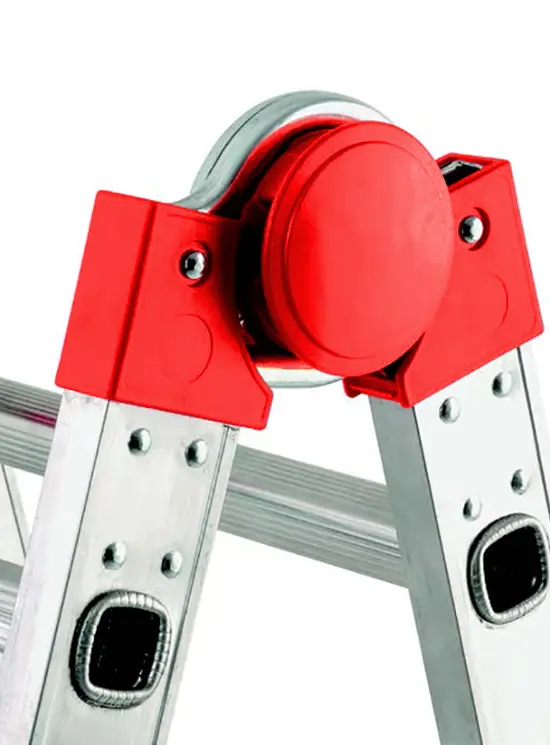

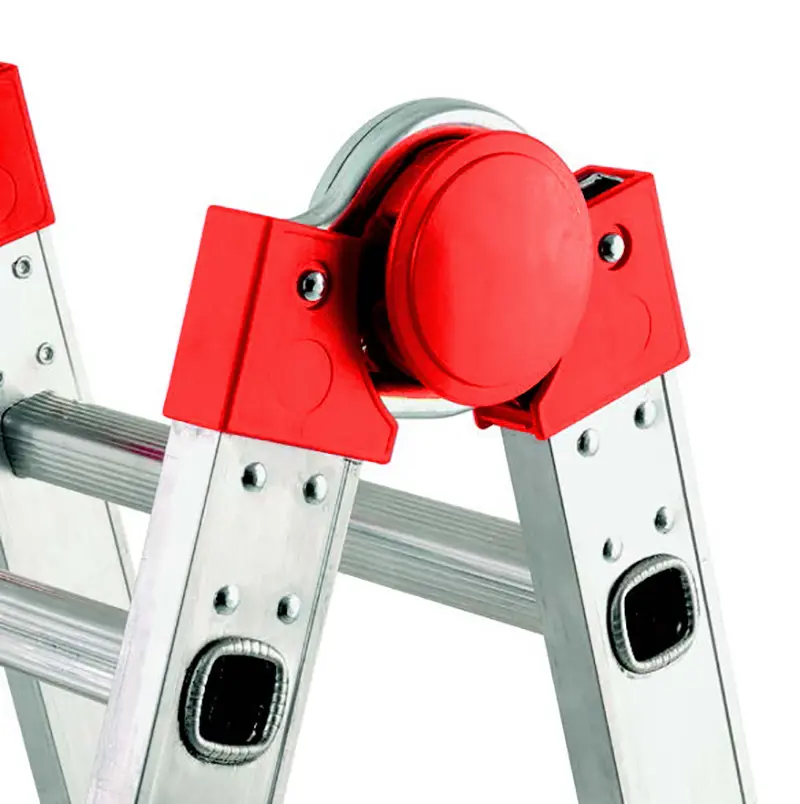

Locking articulation - unlocking in the center of the posts to change working configurations.

4 diagonal and 2 horizontal tie rods in galvanized steel with upright fixing system.

2 horizontal tie rods in rectangular aluminium tube with the function of protecting the user of the scaffolding

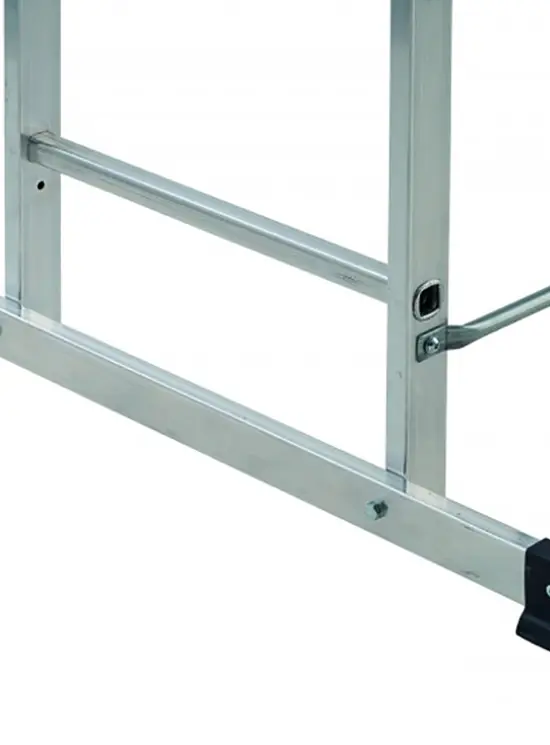

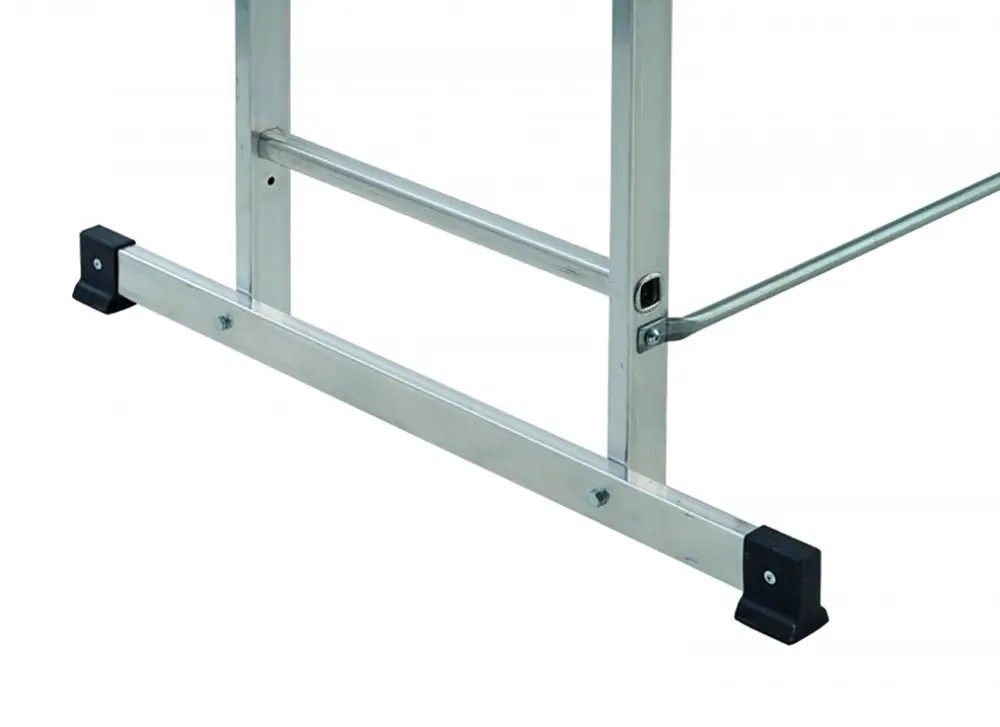

Equipped with anti-tilt base spreaders.

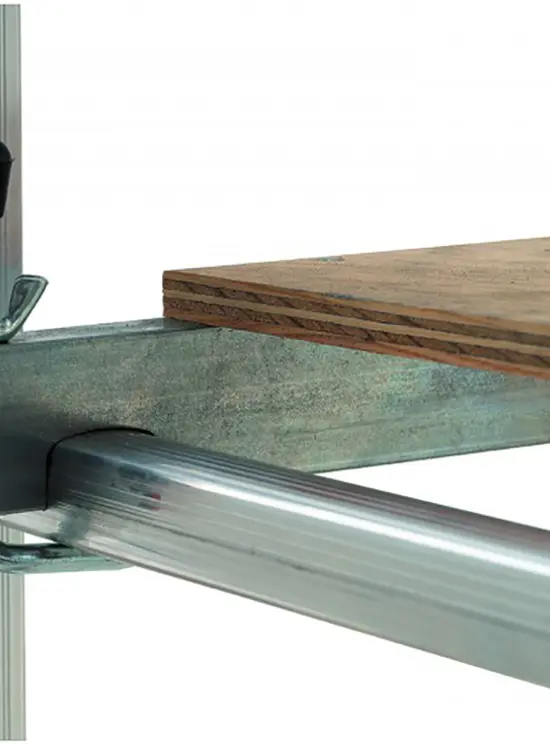

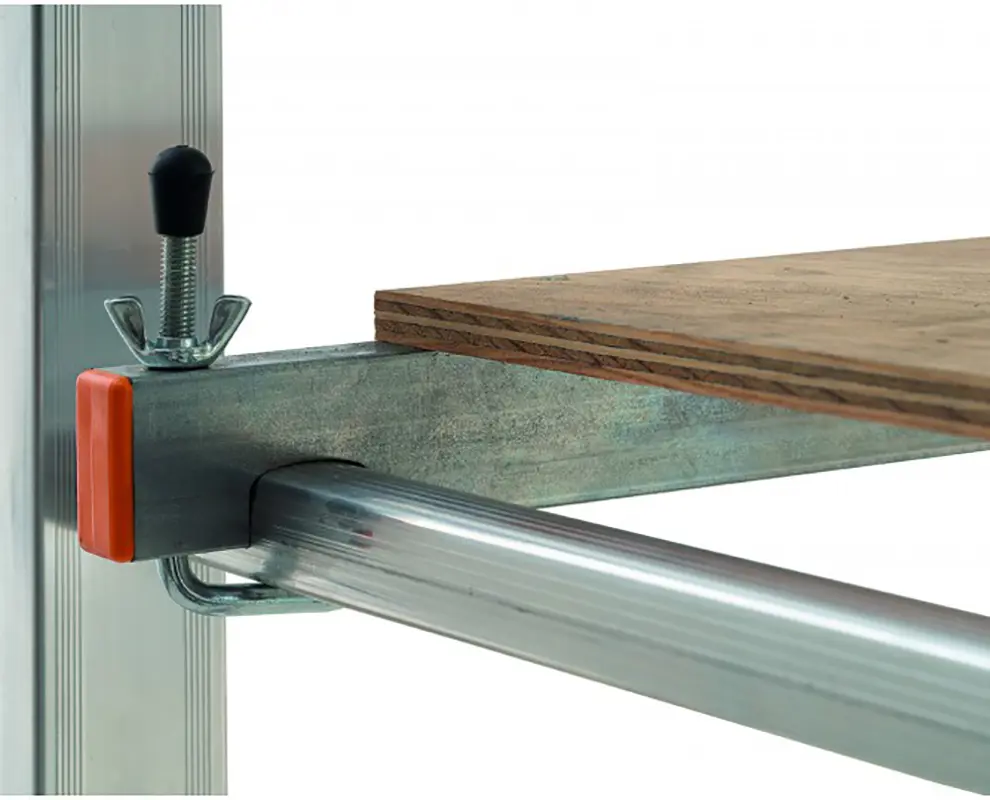

The floor is in Radiata Pine, supported by a shaped tubular aluminum structure.

SPECIFICATIONS

Weight: Kg 25
Maximum scaffolding height: 2.70 m
Maximum height at the work surface: 1.80 m
Working height (hand): m 3.80
Working height (hand) trestle ladder: m 2.70
Working height (hand) wall ladder: m 3.70
Height of trestle ladder: 1.30 m
Wall staircase height: 2.60 m
Closed staircase height: 0.70 m
Closed staircase thickness: 0.14 m
Scaffolding dimensions: 1.45x1.20 m (with base widener)
2 Base spreaders cm 120
2 Solid wheels diameter 100 mm
Staircase width 50 cm
Profile: 50x22 mm
Rungs pitch: 30 cm
Non-slip Eurodeck worktop (usable dimensions 123x45 cm)
2 PVC pads
Capacity: 150 kg (including 1 person)
Shipping footprint m 1.56x0.54x0.30

CODE	DESCRIPTION	EAN
ESMULTIREY	MULTIREY SCAFFOLDING	8012539006295	SHOP

Equipment:

Operation and maintenance manual
Identification label

Standards and testing

Multirey is built in compliance with Legislative Decree 81/2008 for use in the workplace (while being designed for domestic use).
The capacity of 150 kg has been positively tested.
As scaffolding, it must only be used with an anchor or restraint system with the aid of a second operator on the ground
The scaffolding has been subjected to internal tests including capacity and overturning tests, documented and certified in order to declare its compliance with Legislative Decree 81/2008
as indicated by the 2022 INAIL technical guide
