Scaffolding Time

m 1,04x0,46

It shows the validity of the guarantee in years

It shows the maximum weight capacity of a product

It shows the number of people who can climb the structure at the same time

All our products conforms to the standads in force

Ecoline brand name is the right answer to a rising demand for ladders and scaffoldings for both domestic and DIY use. Ecoline series respects all the safety requirements according to the laws in force

Suitable for light duty

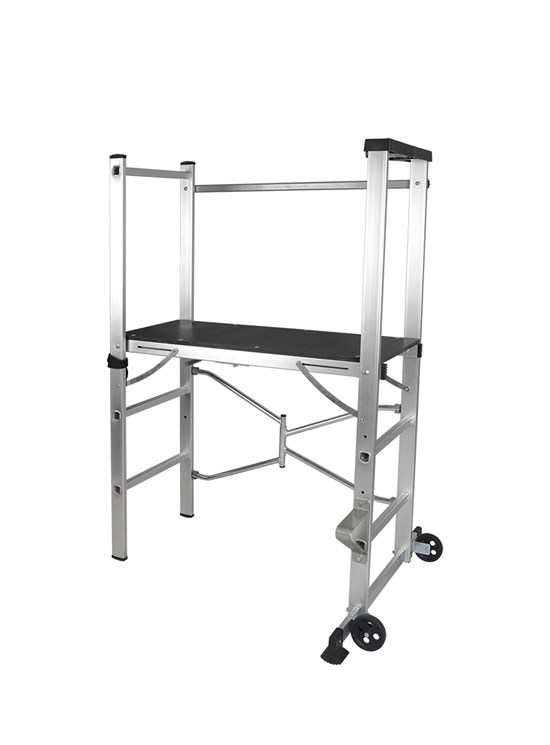

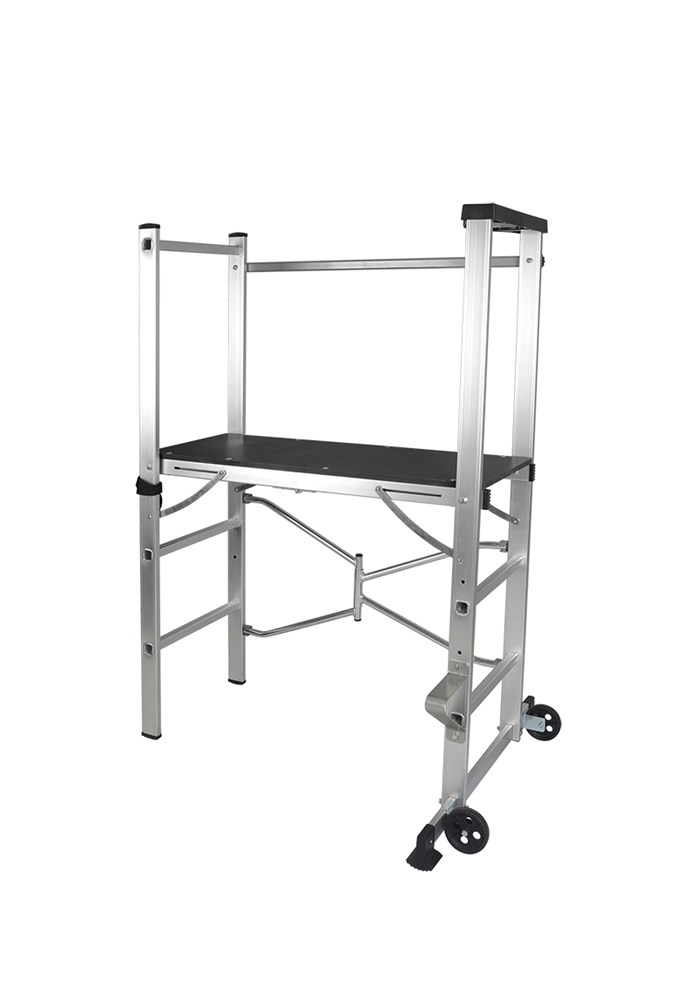

Aluminum scaffolding always ready for use, opens in seconds - Height 1.55 m

AVAILABLE FROM MAY 2020

Small scaffold designed for light duty and DIY.

Pre-assembled, it can be opened with a gesture and is ready for use in a few seconds.

It is built in very light aluminium. It moves very easily thanks to PVC wheels and passes through standard doors and aisles.

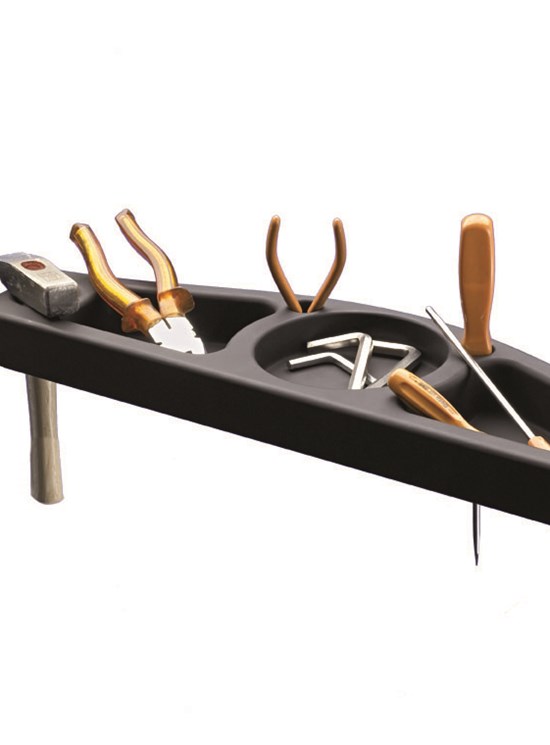

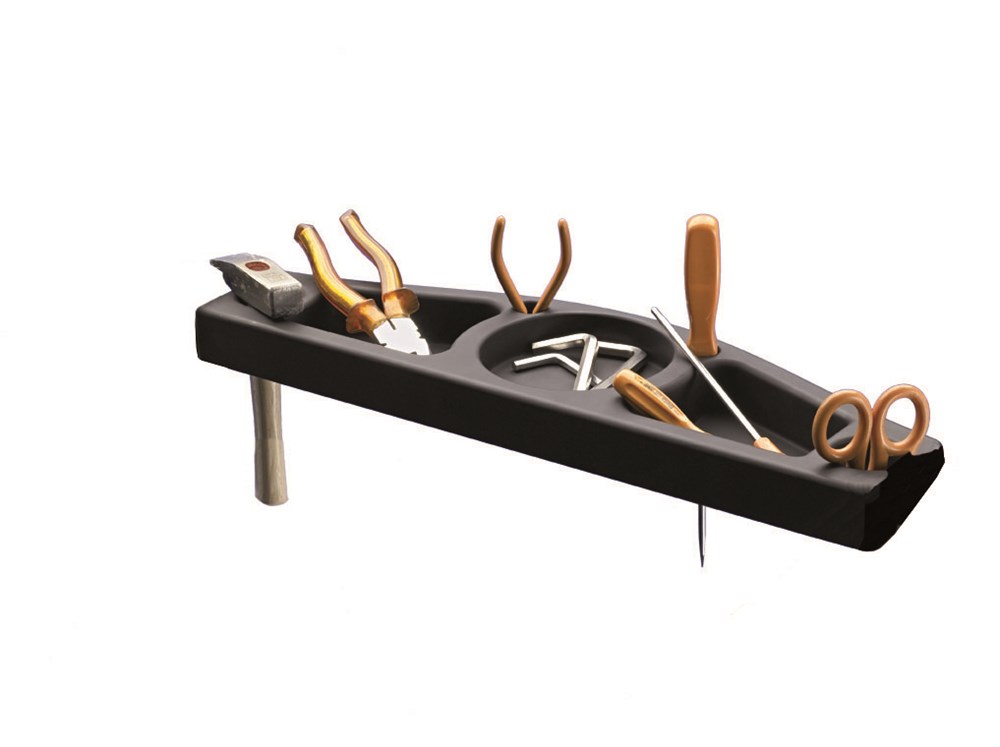

Equipped with integrated tool holder, it is perfect for artisans and DIY enthusiasts.

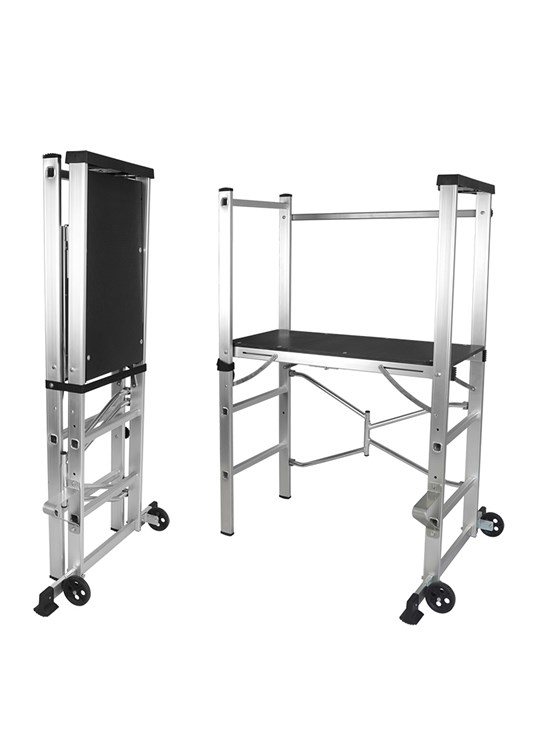

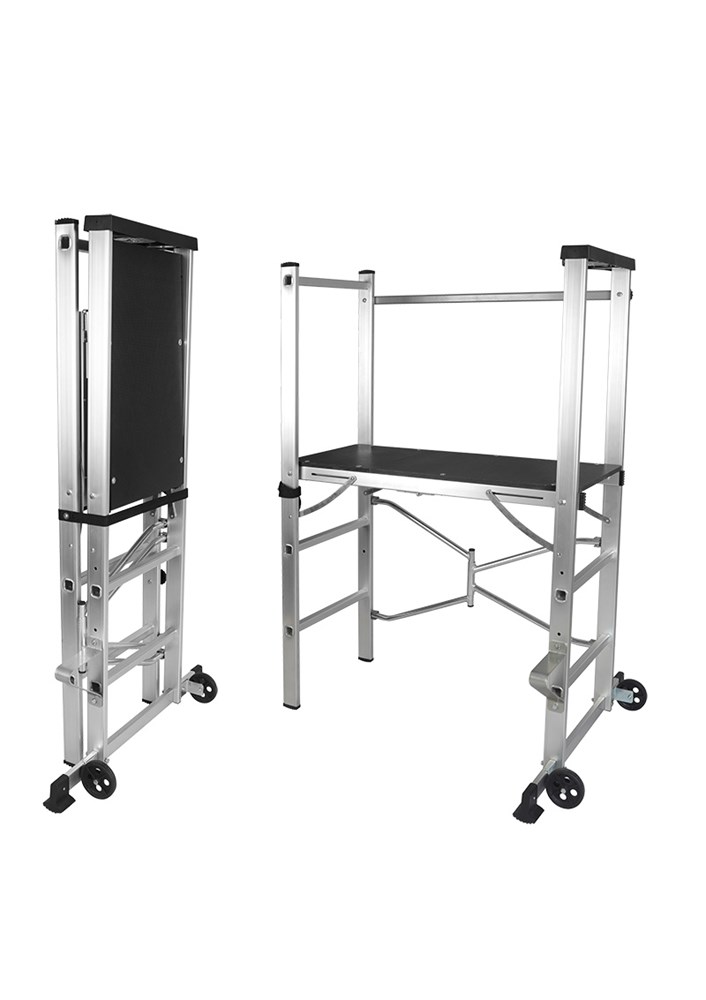

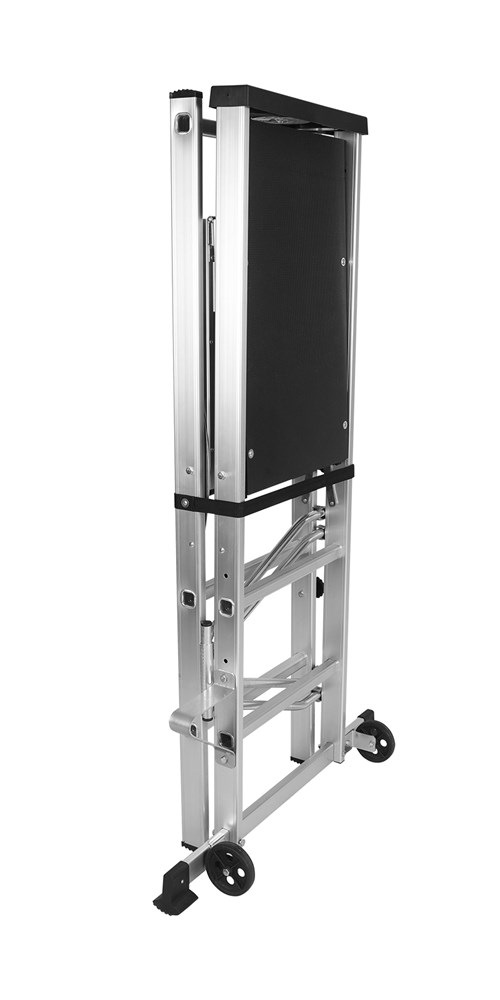

Once folded, it takes up minimal space for both transport and storage.

Equipped with a fixing strap when closed and an external climbing rung.

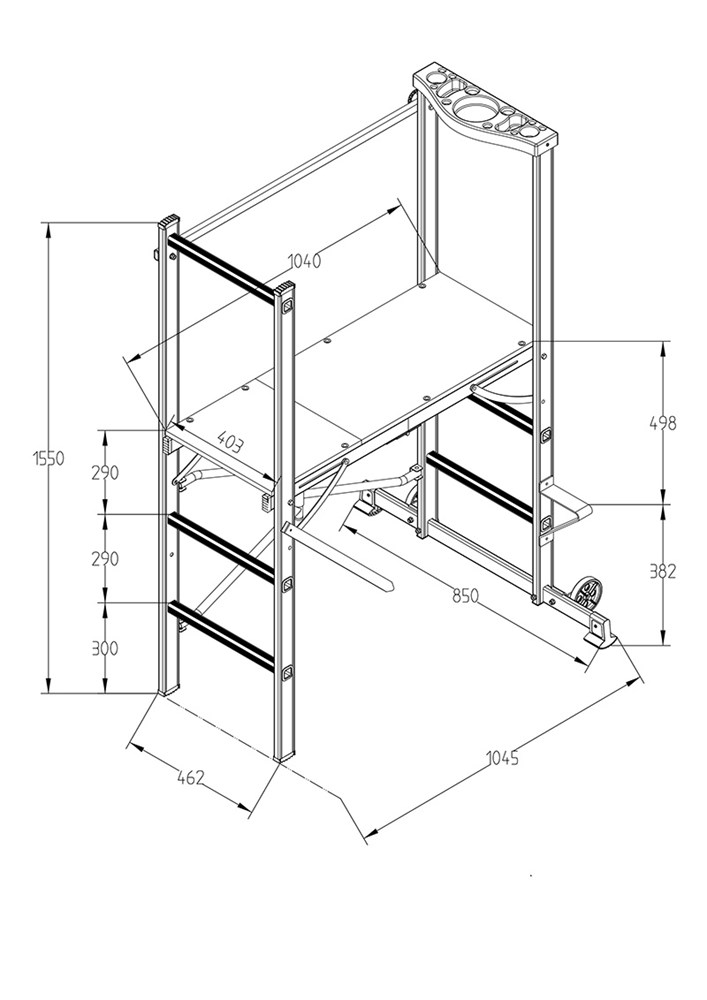

Technical features

Base dimensions: m 1,04x0,46 Base stabilizer: cm 85
Total height: m 1,55
Max working height: m 2,88
Max platform height: m 0,88
Height: kg 13
Capacity: kg 150 (including 1 person)
Profile: mm 50 x 20
PVC wheels diameter: mm 100
Distance between rungs: cm 29
Working platform: in wood with aluminum, support rails (useful surface 40 x 104 cm)
Each scaffold is equipped with instruction manual and labels
Thermo-shrinkable plastic package with showcard

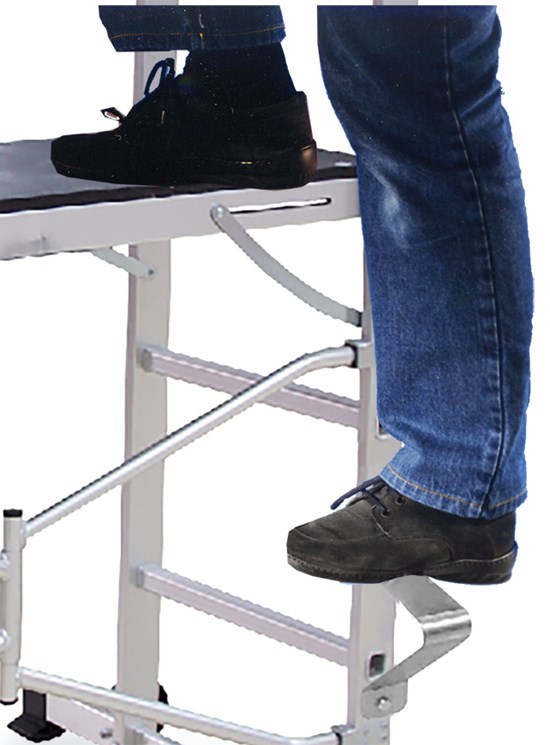

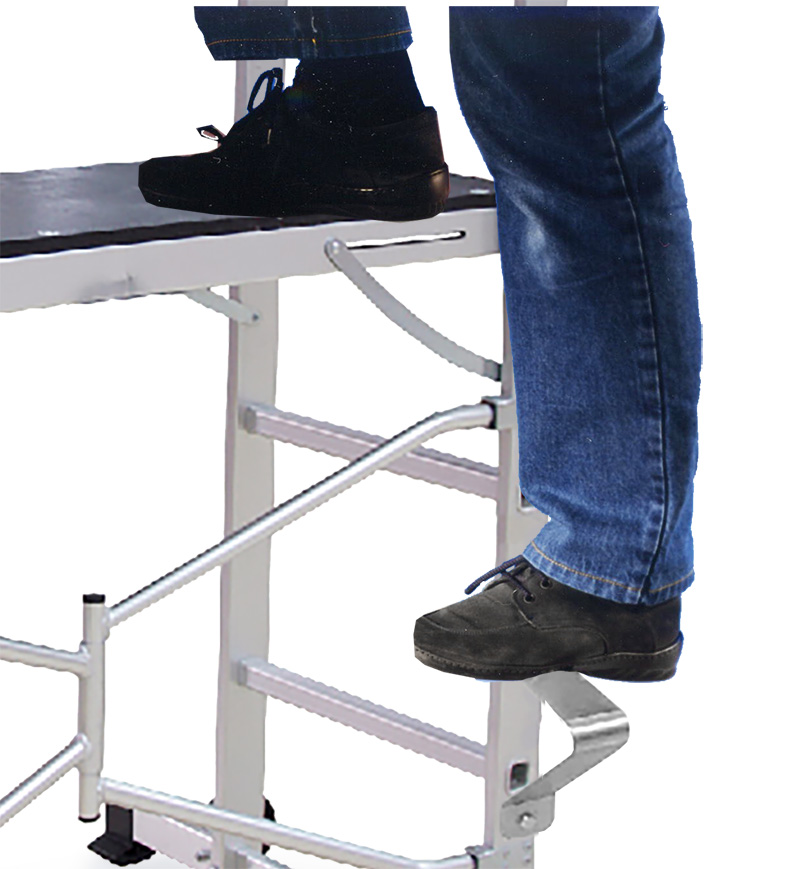

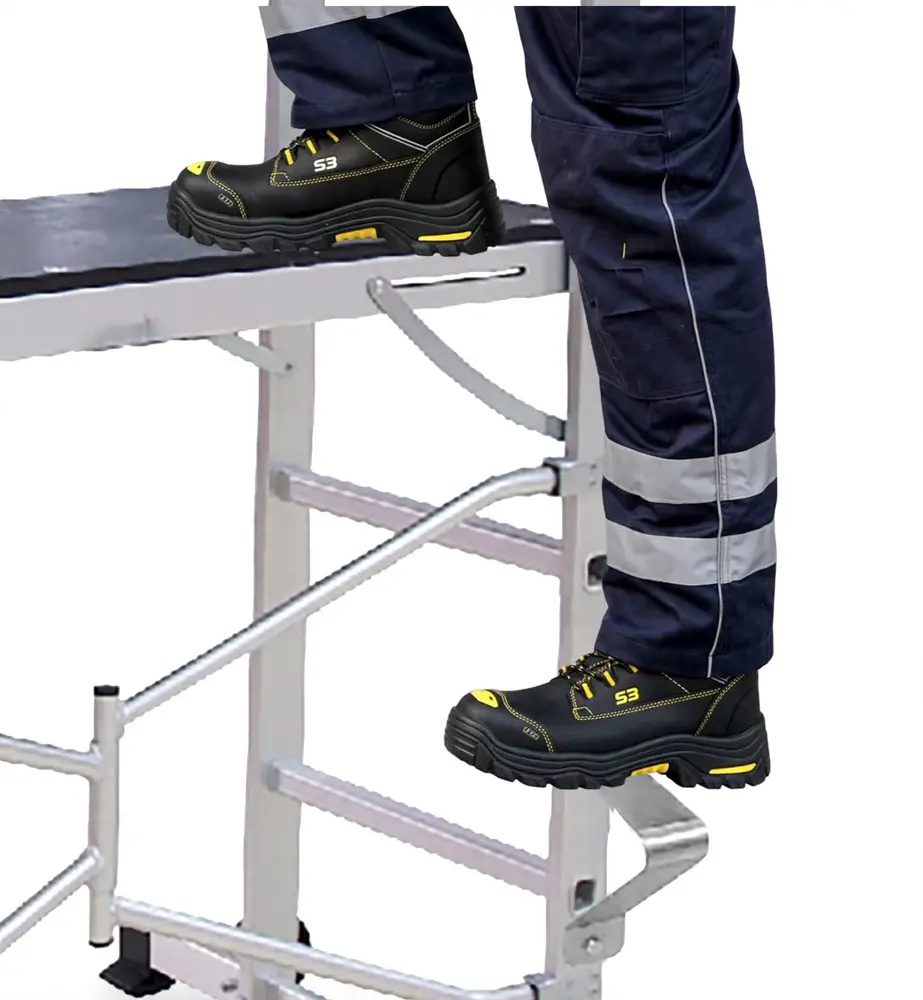

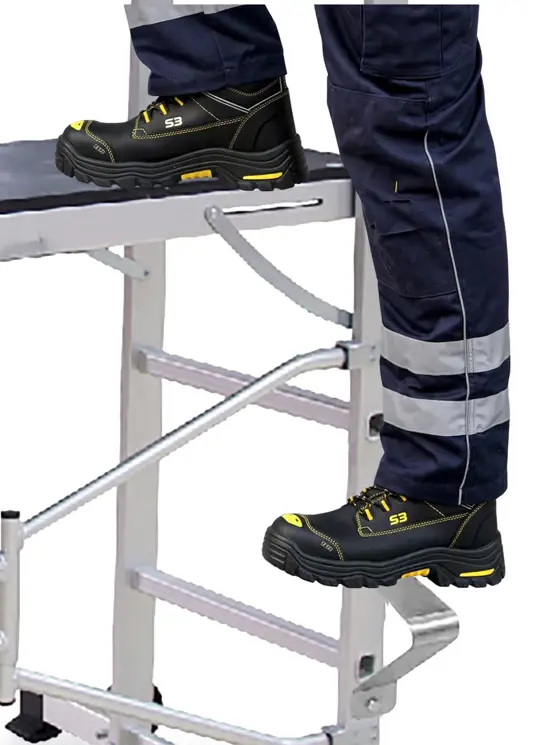

External rung for easy climbing
Use and maintenance manual
Identification label

PACKAGING

The packaging takes into account the convenience of storage and display of the retailer.
Each piece of equipment is packed in shrink wrap with a presentation poster so that the displayed product is presented on its own.
