Scaffolding Tempo Lift

m 0,74-1,05-1,35 - max height m 20,00

It shows the validity of the guarantee in years

It shows the maximum weight capacity of a product

It is shown on products which conform to the European Standard on welding

Suitable for heavy duty

Professional aluminum scaffolding for lift shafts

Quick assembly professional aluminum scaffolding for lift shafts.

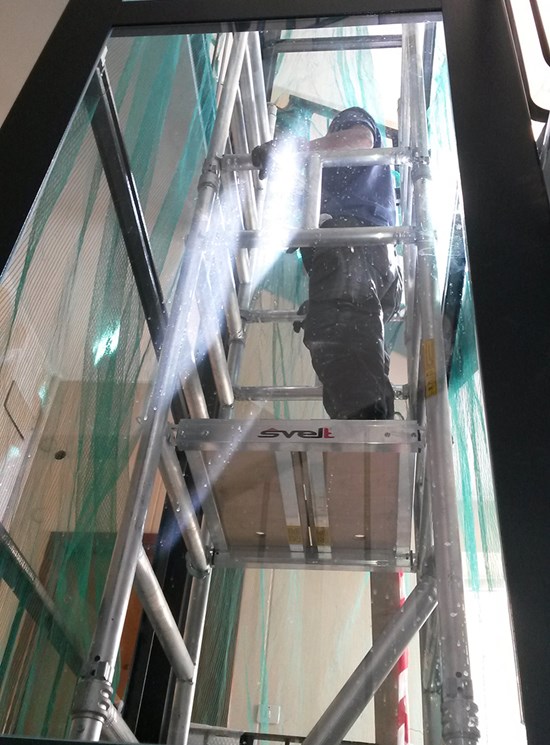

This is an ultra-compact variant of the TEMPO scaffolding that allows the operator to assemble and disassemble the scaffolding inside the lift shafts.
The operator can also assemble the structure by himself as the components are compact and light.
The customer can purchase a number of passageways proportional to the number of stops on the floors of the building.
In this way, various operators can access the scaffolding at different levels. Ideal for professional use by those who require maximum safety and rapid assembly.
In very light aluminum profile (50x1.5 mm).
Few components make it light, not bulky to carry and easy to assemble in minutes.
It is unassailable by rust.

TECHNICAL FEATURES:

4 braked castors Ø 150 mm
4 adjustable legs 400 mm
Frames and braces according to the required height
Platform equipped with guardrails max each m 3.90 of tower height
Each scaffold is equipped with instruction manual and safety labels
The manual includes also the compliance certificate
Intermediate and top passage frames to access floors
Anchoring with clamps (at least 2 each 4 meters)

DIMENSIONS

Width 0.74 m x length 0.74 / 1.05 / 1.35 / 1.60 / 2.00 m
Width 1.05 m x lengths 0.74 / 1.05 / 1.35 / 1.60 / 2.00 m
Width 1.35 m x lengths 0.74 / 1.05 / 1.35 / 1.60 / 2.00 m

All components are marked with year of production and Svelt logo.

EQUIPMENT ON REQUEST

Intermediate passage abutments and terminal for access to the floors.
Anchorage with clamp (at least 2 every 4 meters of scaffolding).

BENEFITS:

It allows the scaffolding to be assembled/disassembled quickly in total safety even by one person
Allows convenient access from any lift stop to the floor via the "PASS THROUGH" frames

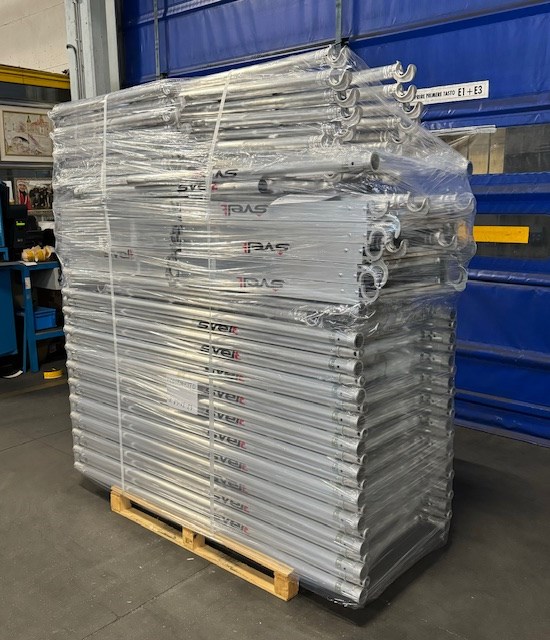

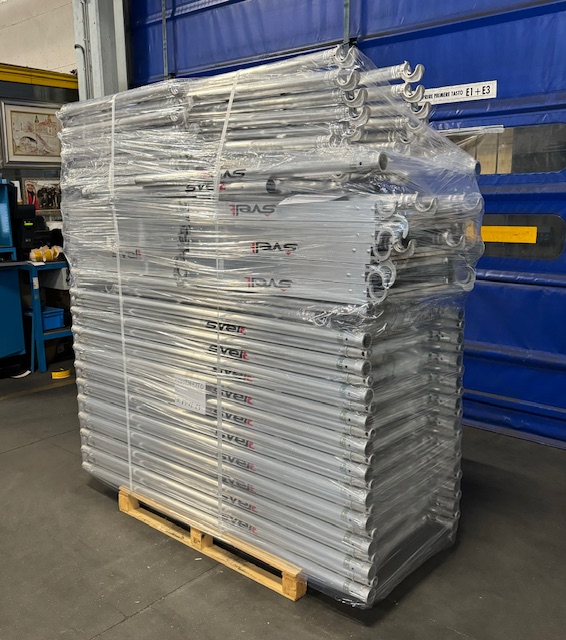

Convenient to carry, it has small size and weight
Various overall dimensions allow it to be used in all lift shafts up to a maximum height of 20.80 meters
The anchoring system with adjustable clamps and contrast bars allows the structure to be fixed even in the presence of obstacles and irregular protrusions or walls

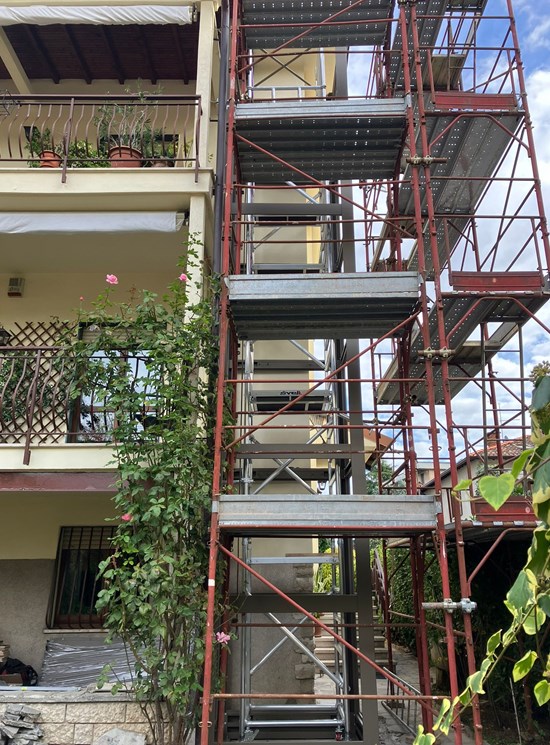

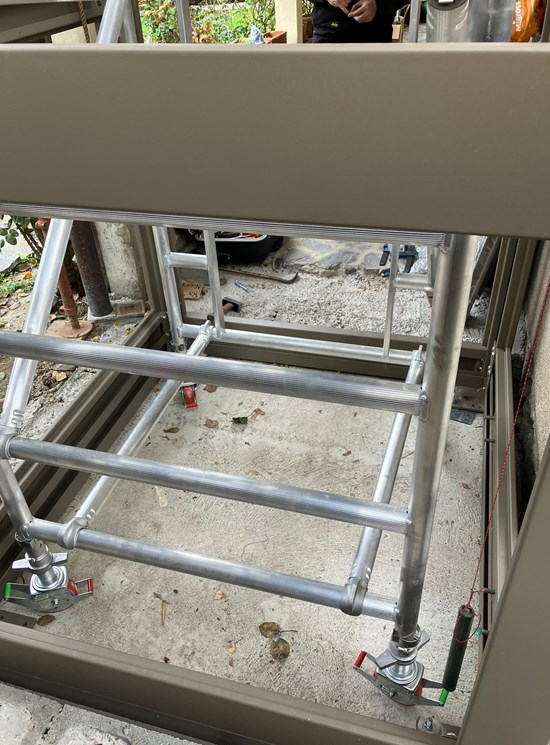

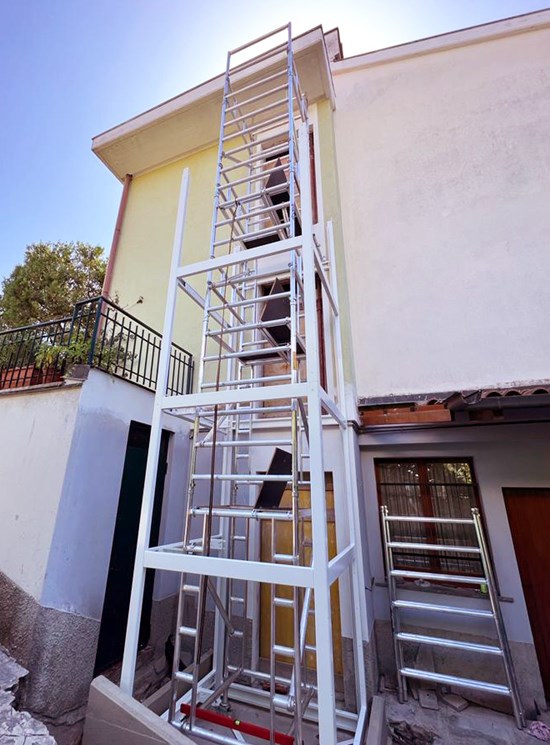

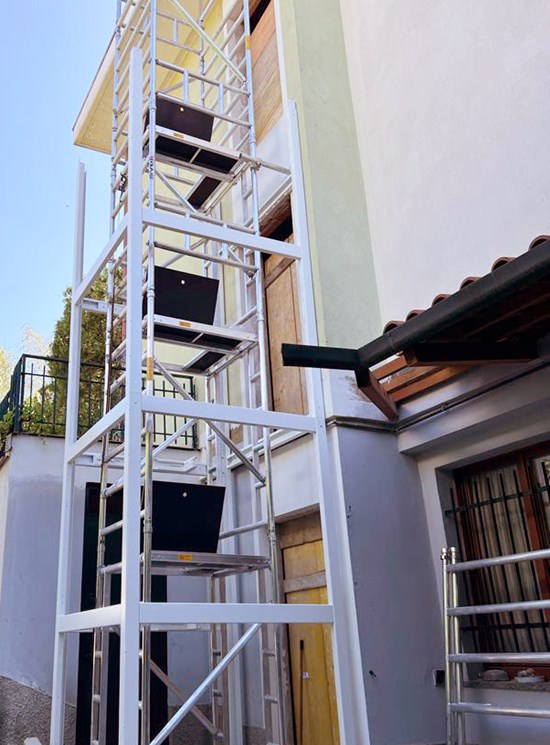

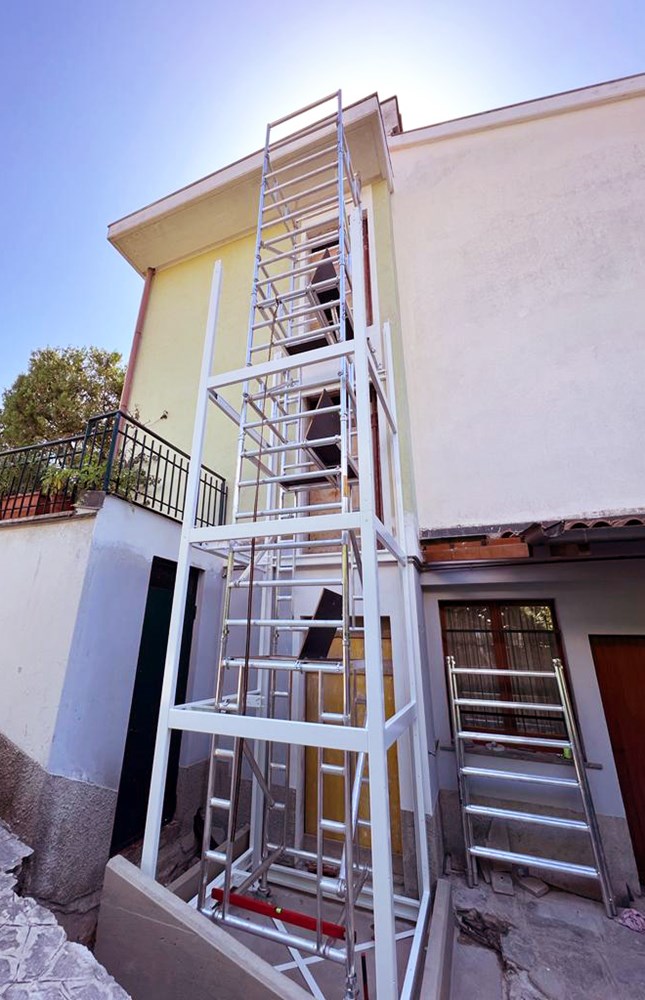

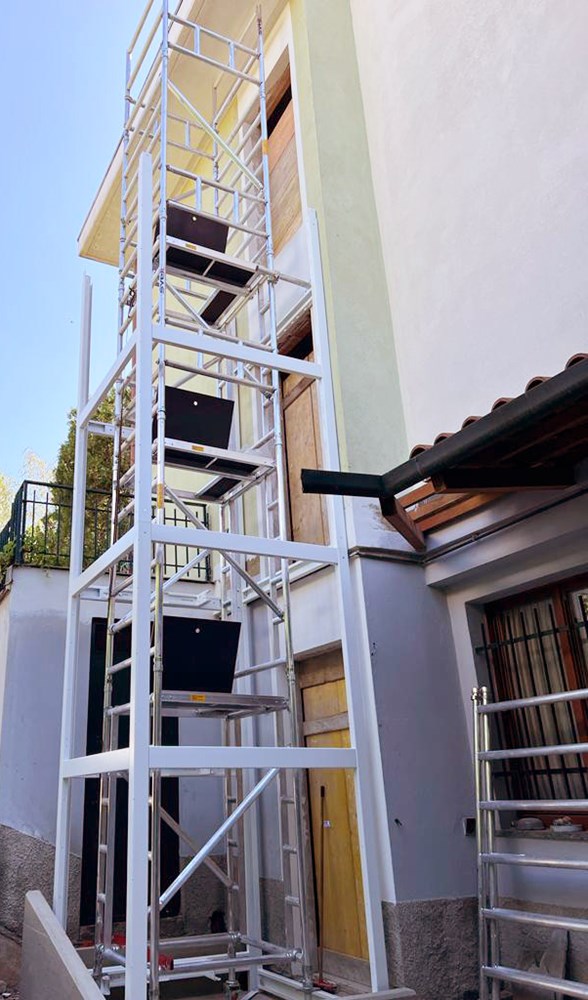

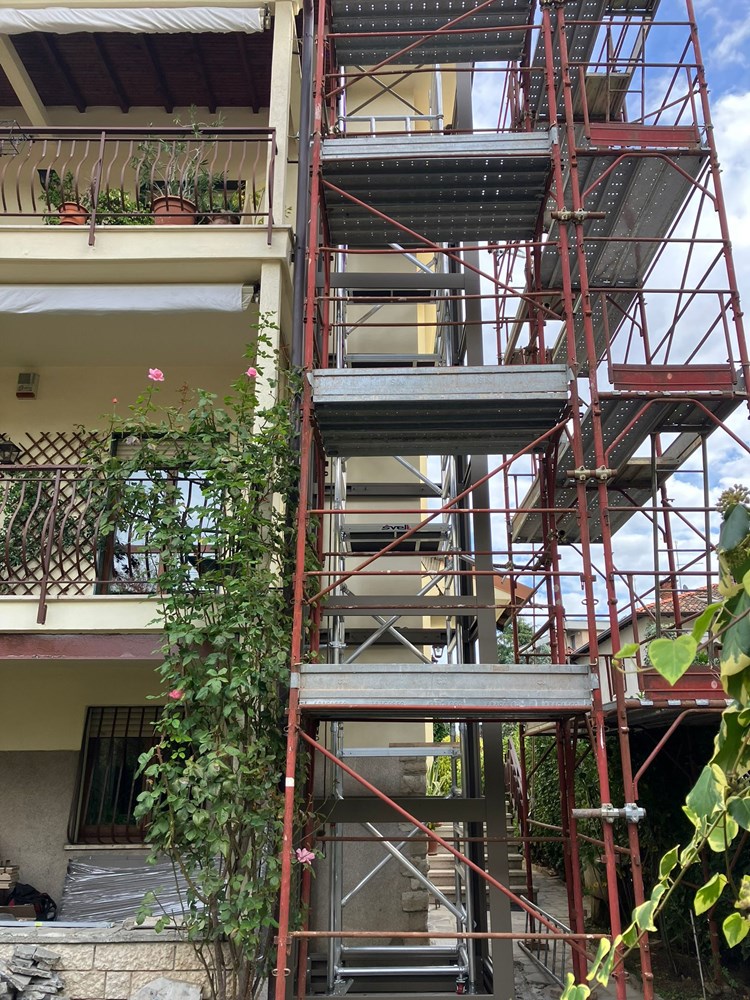

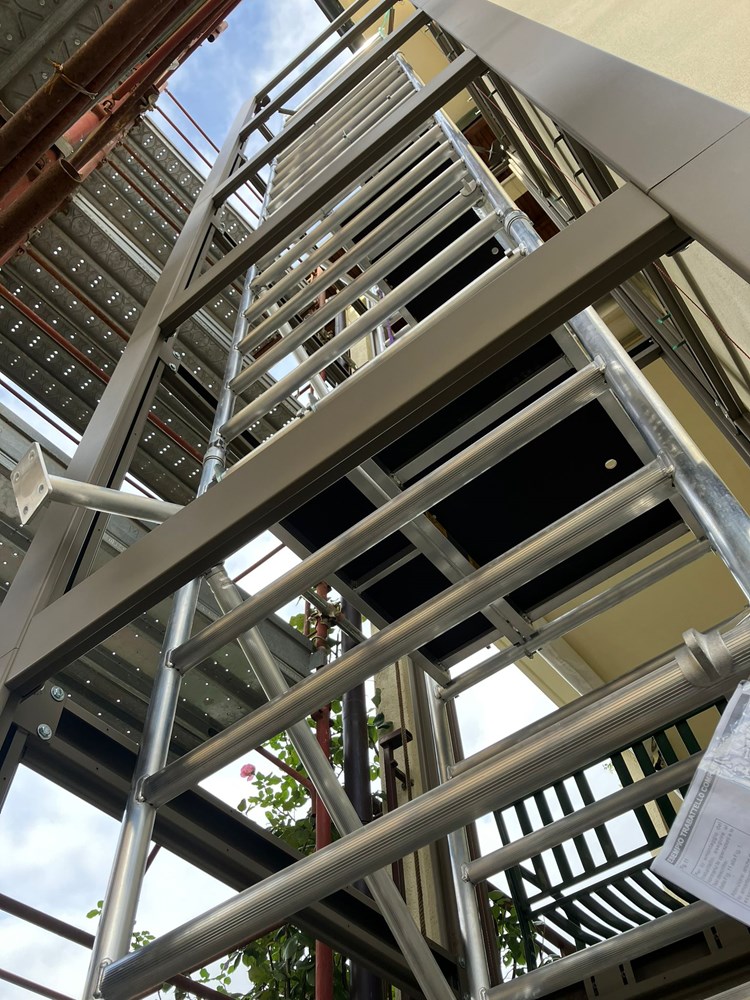

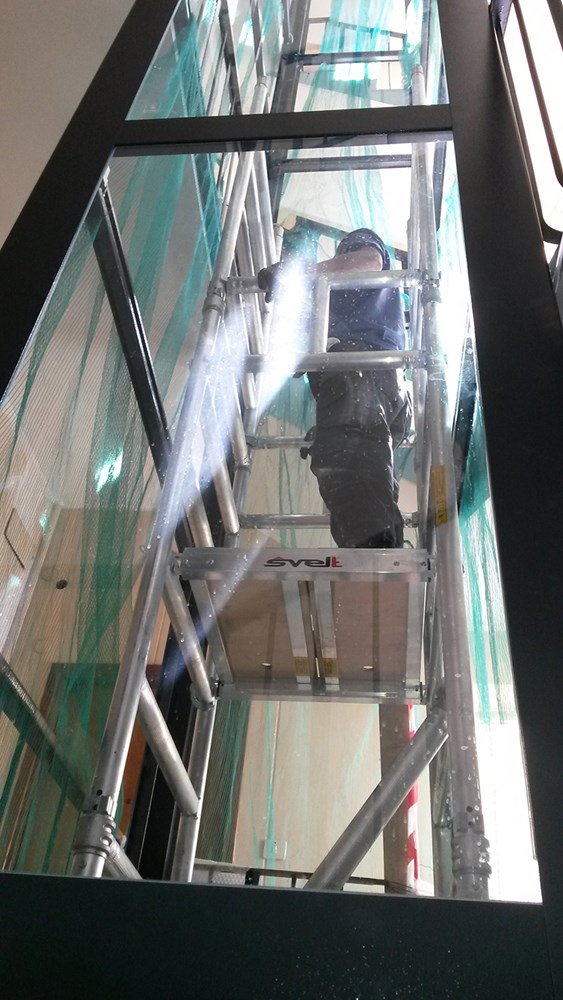

THE WELCOME CONGRATULATIONS FROM A SPECIALIZED COMPANY (see the first 4 photos):

11/11/2022

"Good morning,

Imagining that you are aware of the goodness of your product,

however we would like to congratulate your company for the TEMPOLIFT product, which we recently purchased.

We are using it for the installation of a new plant in Bergamo and, despite the normal doubts related to the first use,

that already from the next time we will no longer have, speeding up assembly times and avoiding some errors,

confirmed what we hoped to obtain from this product: work safety, ease of handling, simplicity of assembly.

Indeed, it seems that whoever designed it has studied all the various problems that our fitters face.

So thank you and congratulations.

Sincerely".

Luca Brischetto

CEO

NUOVA BREMI ASCENSORI SRL
