ALUMINIUM WALKWAYS PASSATEMPO

It shows the validity of the guarantee in years

Suitable for heavy duty

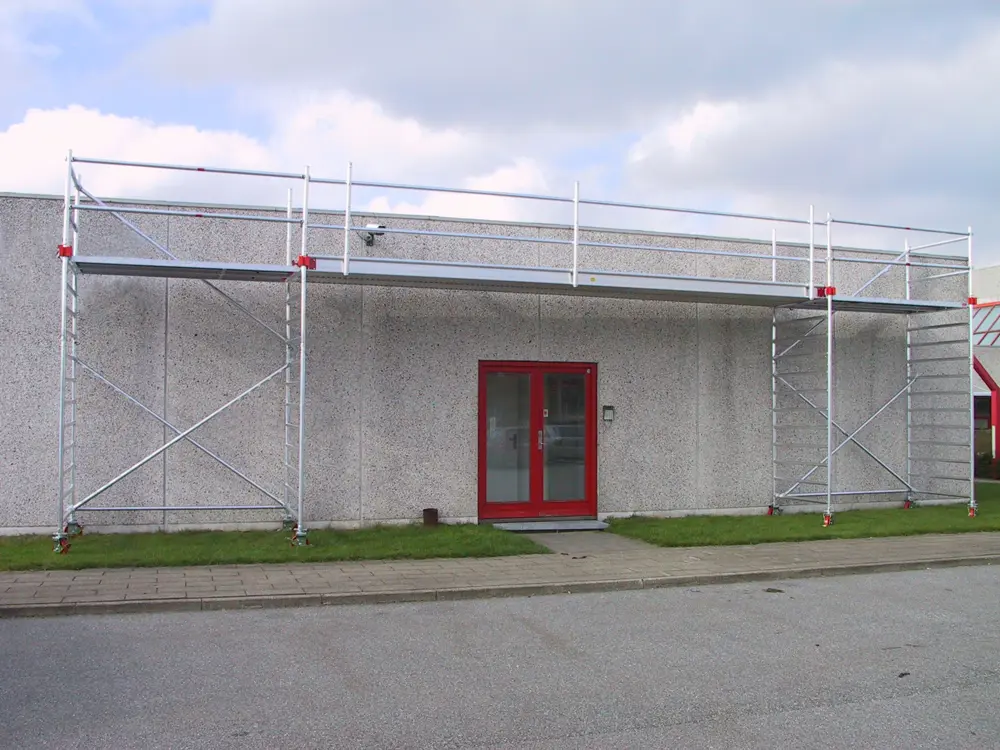

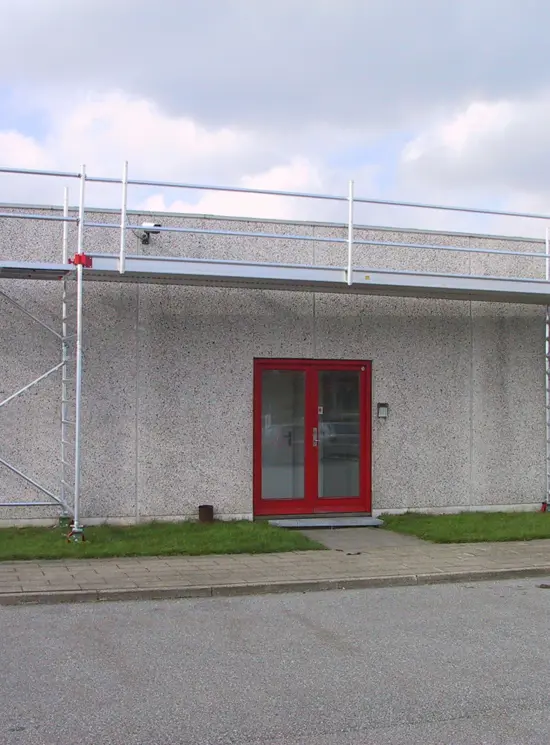

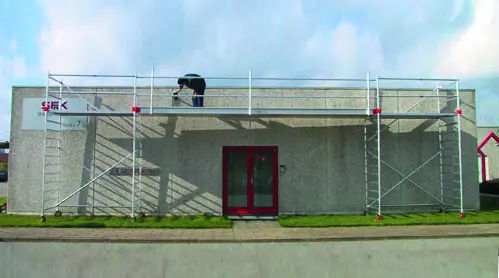

Suspended walkways between two scaffoldings TEMPO

Aluminium gangways with lengths from 4 to 8 m.

They can remain suspended between two supports or scaffolding.

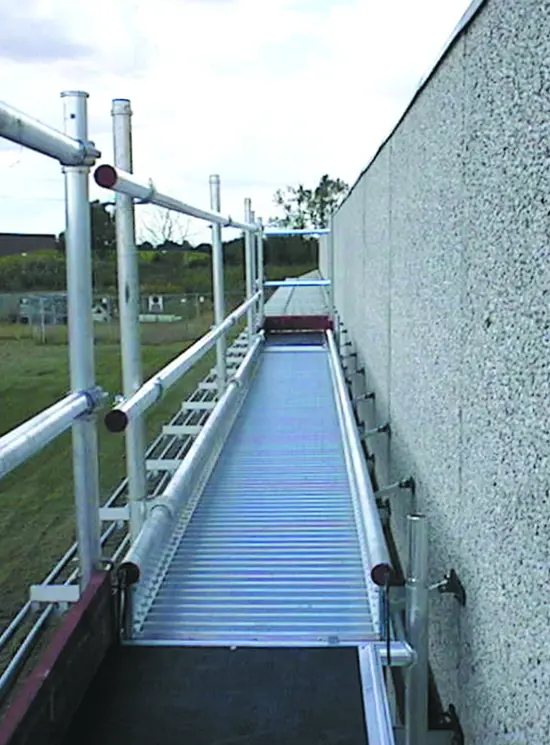

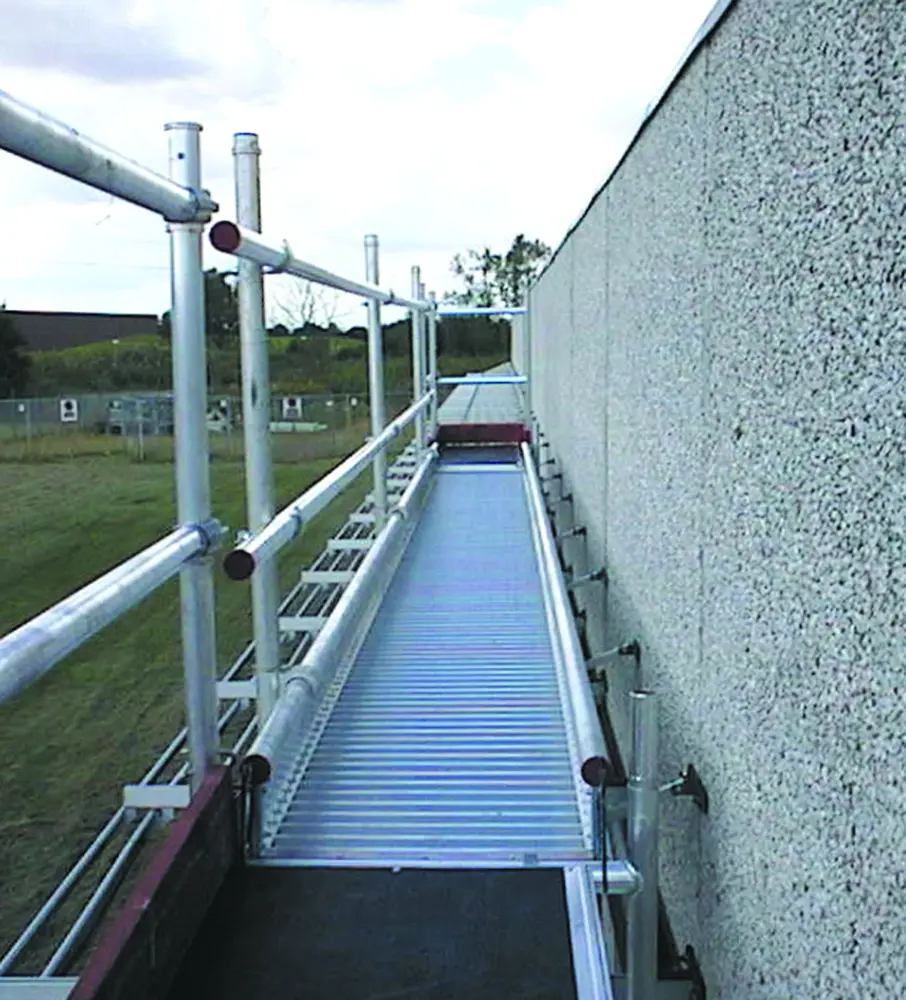

Lightweight and easy to handle, they can be joined together to form a single deck or be turned upside down to become a single walkway with an integrated toeboard.

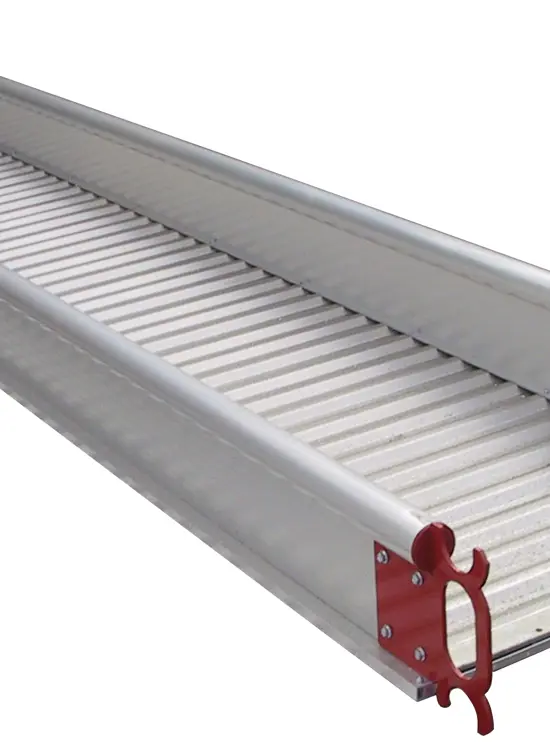

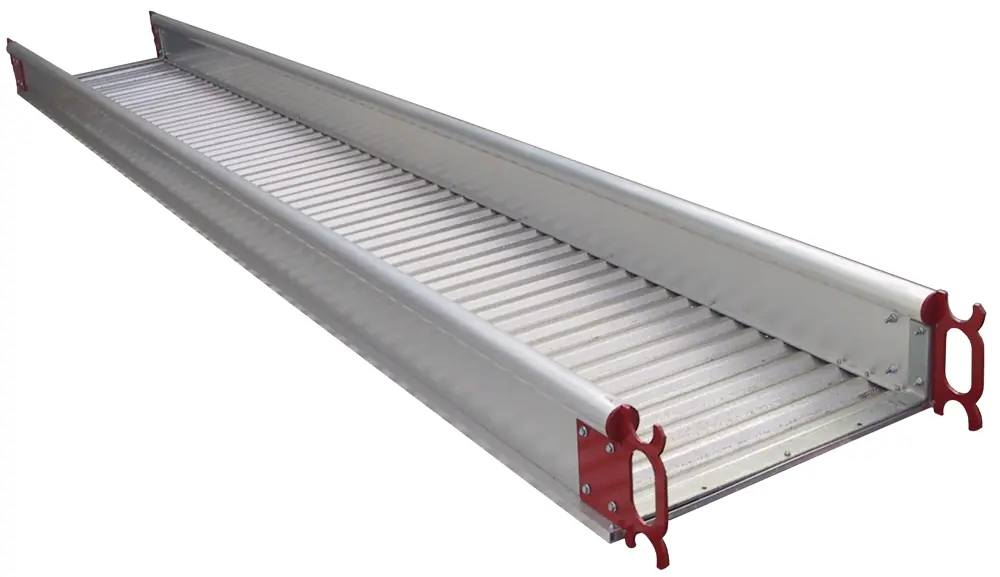

Each gangway is equipped with steel hooks at the ends to be mounted on Ø 50 mm tubes (Tempo scaffolding).

It only takes a few minutes to obtain a solid, light walkway that is resistant to rust.

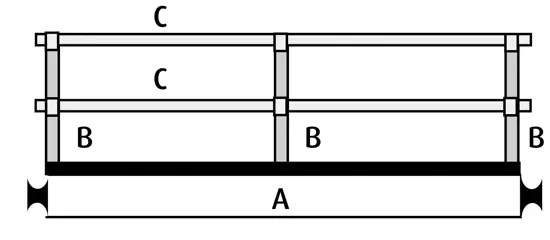

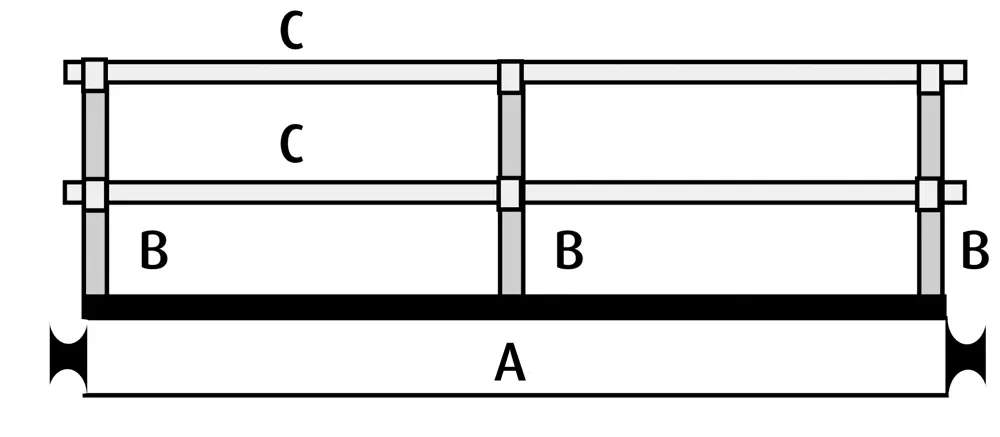

The parapet set is quick to assemble and consists of 2 B posts and 2 C handrails on each side (except for the BR06, BR07 and BR08 models which have 3 posts).

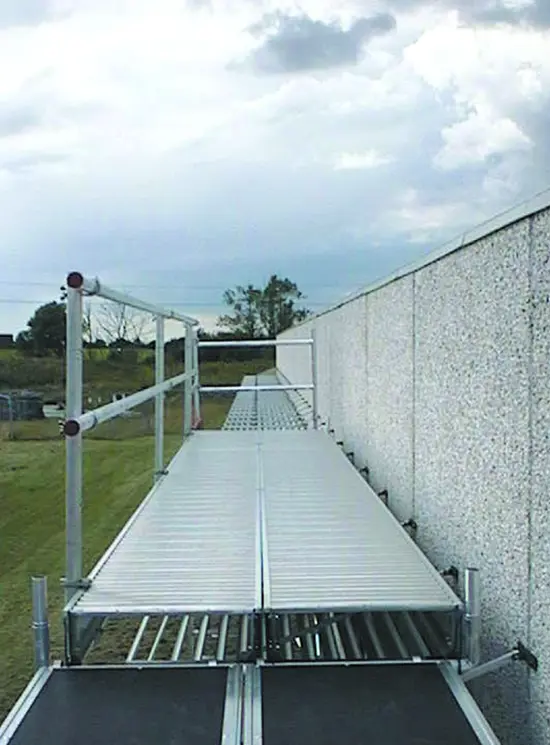

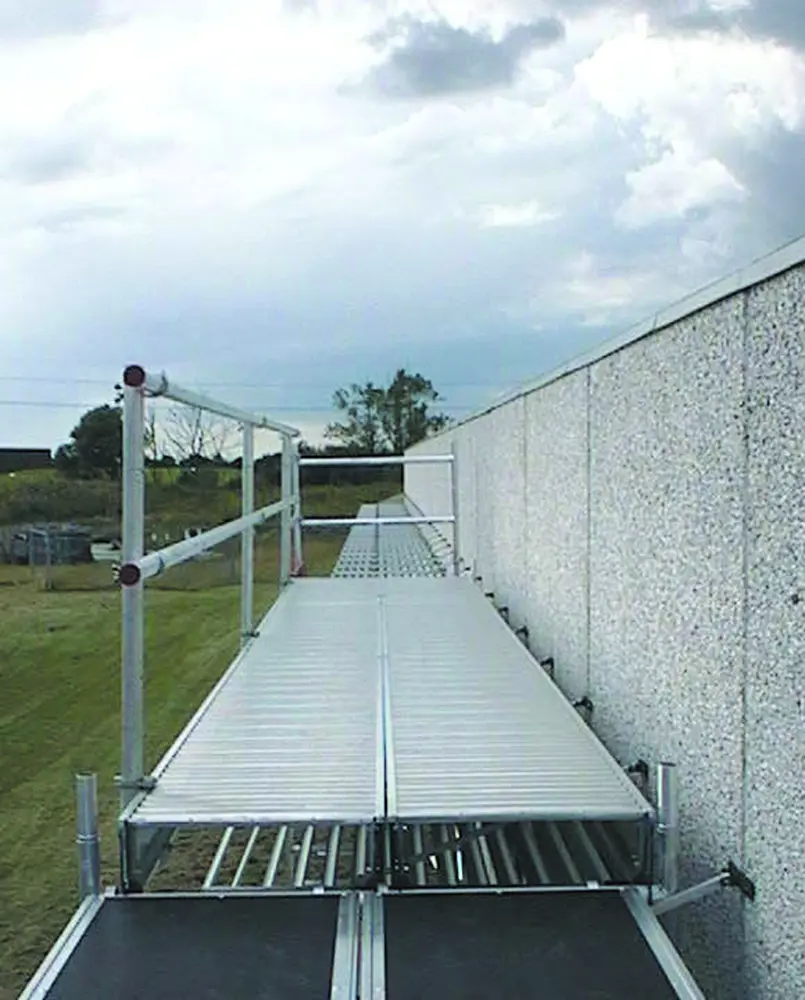

Placed side by side, they create a single plane of the desired width.
In this case, there are 2 options for toe clips:
1) A set of 4 shockproof red plastic supports mounted on the perimeter posts is used. The toe boards can be inserted inside the supports by the operator.
2) On request, aluminium toe clips complete with fixing supplied by SVELT can be ordered:

Pastime walkway toe strap (only necessary with walkway in reverse use and parapet on each side):
• 4.00   m (with 2 toe supports) per side
• 5.00   m (with 2 toe supports) per side
• 6.00   m (with 3 toe supports) per side

SPECIFICATIONS

Profile height 190 mm
External width 605 mm
Maximum capacity concentrated at the center 1.8KN (180 kg)
Maximum total capacity 250 kg (including 2 people)
Maximum gradient 15/20%

MODELS
REF.	Length (m)	KG
TPASBRO4	4	30
TPASBRO5	5	40
TPASBRO6	6	48
TPASBRO7	7	54
TPASBRO8	8	66
Railings (1 Side)
REF.	Length (m)	KG
TPAR1BRO4GH	2xB + 2xC of 4 m	10
TPAR1BRO5GH	2xB + 2xC of 5 m	14
TPAR1BRO6GH	3xB + 2xC of 6 m	17
TPAR1BRO7GH	3xB + 2xC of 7 m	20
TPAR1BRO8GH	3xB + 2xC of 8 m	23
