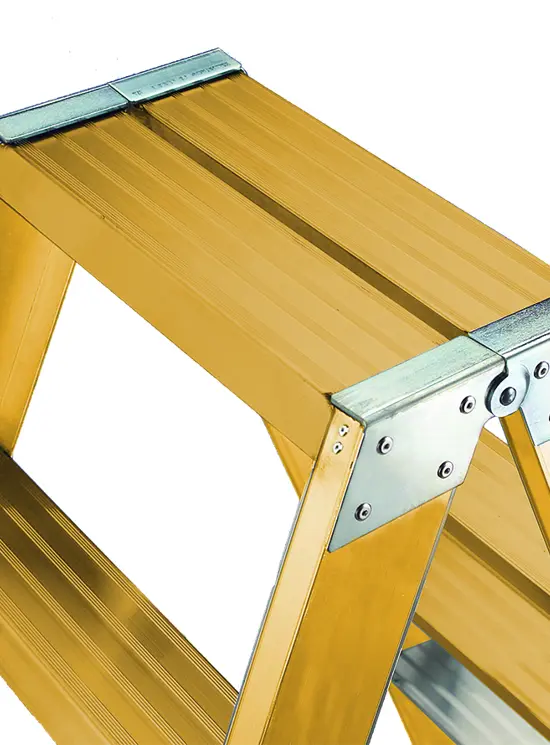

PUNTO FIBRA 100% FIBERGLASS

Max height m 1.00

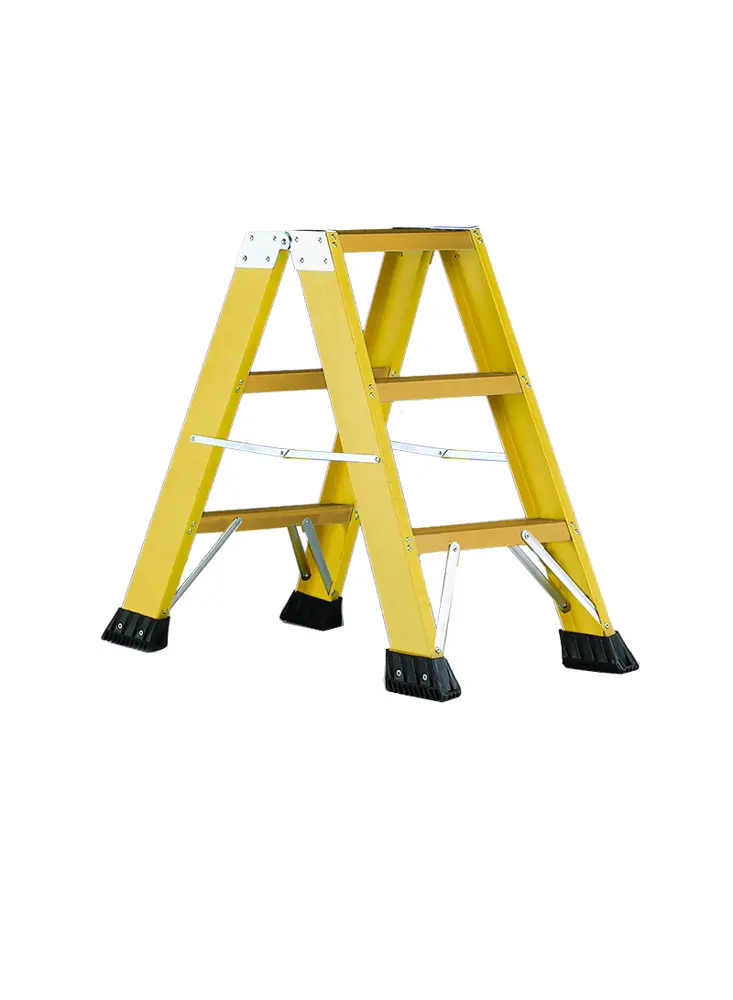

100% GRP double ladder with GRP steps with two climbing sections

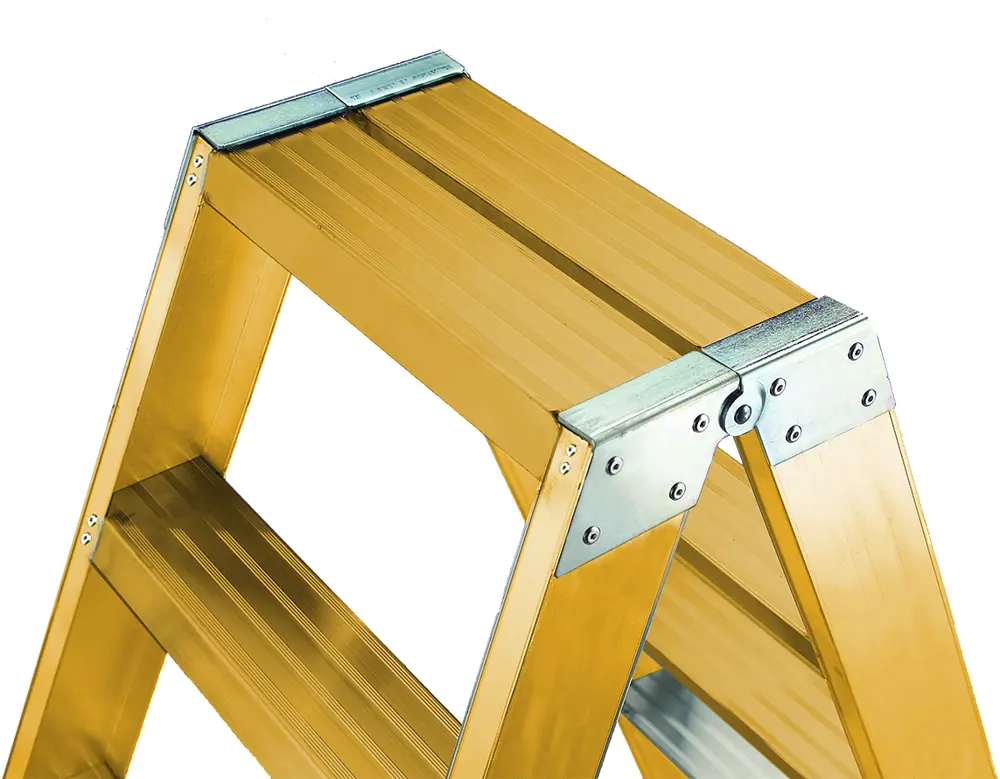

These are ladders with uprights and steps in dielectric fiberglass, for professional use, built by riveting the steps to the uprights with 8 rivets per step.

A system that permanently fixes the steps to the uprights and avoids the oscillation effect that ladders encounter over time with the steps riveted with fewer rivets.

The PUNTO 100% FIBERGLASS ladder is produced in accordance with the requirements of Legislative Decree 81/2008.
The product can be certified on request according to EN131 standards for quantity orders.
It is suitable for operators who find themselves working near cables, sockets or other sources of electricity, magnetics, food and pharmaceutical companies where aluminum and steel cannot be used.

All metal components are made of stainless steel.

SPECIFICATIONS

Platform dimensions: 37 x 18 cm
Step depth: 8 cm
Distance between steps: 25 cm
Thickness (closed): 19 cm
For low-voltage power lines (1000 V AC/1500 V DC)
C-shaped uprights 82x27 mm
Rigid stainless steel bars anti-opening/closing

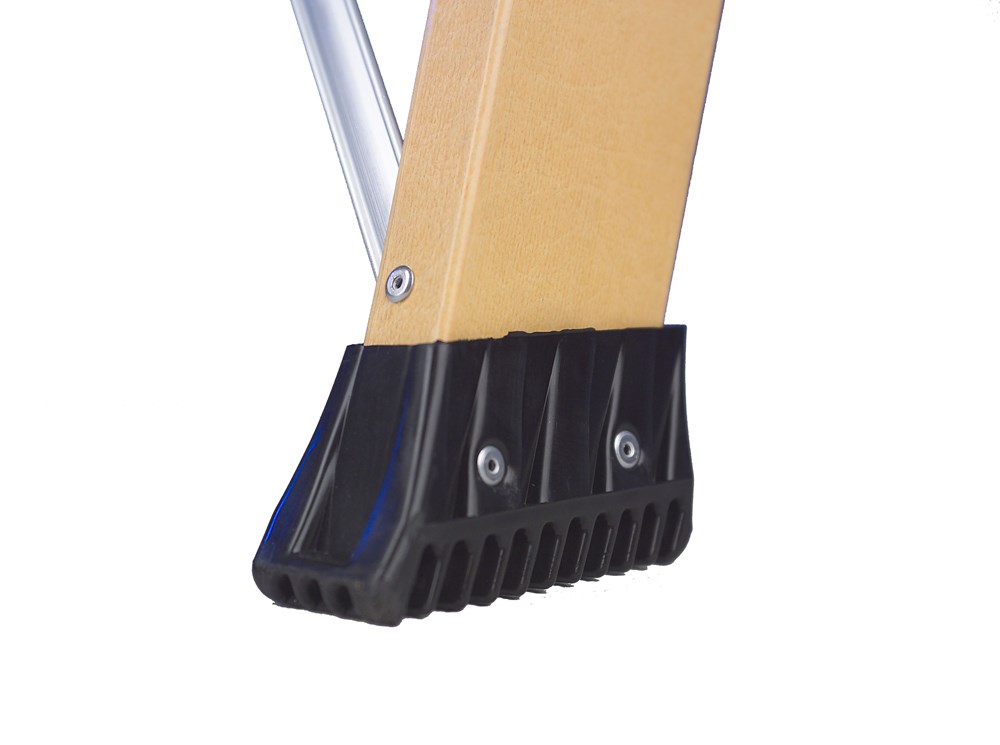

Oversized ergonomic pads in non-slip PVC
Reinforcement bars on the steps
Labels and use and maintenance manual
Shrink packaging
Test certificate according to Italian regulations D.LGS.81/2008

Steps no.	COD.	Closed height	Platform height	Working height	Ancho total	WEIGHT kg
2	SVETV6F02	0,57	0,5	2,5	44,1	4,6
3	SVETV6F03	0,78	0,7	2,7	46,5	6,1
4	SVETV6F04	0,98	0,9	2,9	48,5	7,6
5	SVETV6F05	1,2	1,1	3,1	50,5	10

It is advisable to equip yourself with parapets

For available accessories see PUNTO

PUNTO FIBRA is a special product not ready for delivery. A 30% deposit is required for the order.
