OVERSIZED MEGA PLATFORM AND GUARDRAILS

Max height m 1

This product has successfully passed the test of the German quality control body TÜV according to the European Standard on ladders

It shows the validity of the guarantee in years

It shows the maximum weight capacity of a product

All our products conforms to the standads in force

It is the European Standard for ladders

Suitable for heavy duty

Screwed Industrial Stool with 40 cm deep platform, parapets, wide steps and customizable with various optional accessories

Professional stool with 2 to 4 steps in extruded aluminum with a climbing section.

It is supplied super-compact disassembled for shipping and can be assembled by the operator with the supplied hardware kit.

Ideal for use on workshop machinery and for access to loading floors.

The base is widened for maximum stability.

It is rust-proof.

Oversized 40 cm platform (extendable by estimate with multiples of 20 cm)
Standard non-slip steps 20 cm deep (extruded aluminium or draining grating)
Backrest perpendicular to the ground for maximum adherence to the wall
Non-slip pvc feet

Labels and use and maintenance manual
Test certificate according to European UNIEN14183 regulations
Test certificate according to Italian regulations Legislative Decree 81/2008
Capacity 150 Kg
5-year warranty
Made in Italy

European Standard UNIEN14183:

The operator can also stand on the platform without bodyguards or handrails (optional).

MEGA PLATFORM WITH EXTRUDED STEPS

2 to 4 steps
Available widths 50/60/80 cm

MEGA OVERSIZED PLATFORM DRAINING GRATING STEPS

For use in the presence of materials that must fall to the ground and not stop on the step.
2 to 4 steps
Available widths 50/60/80 cm

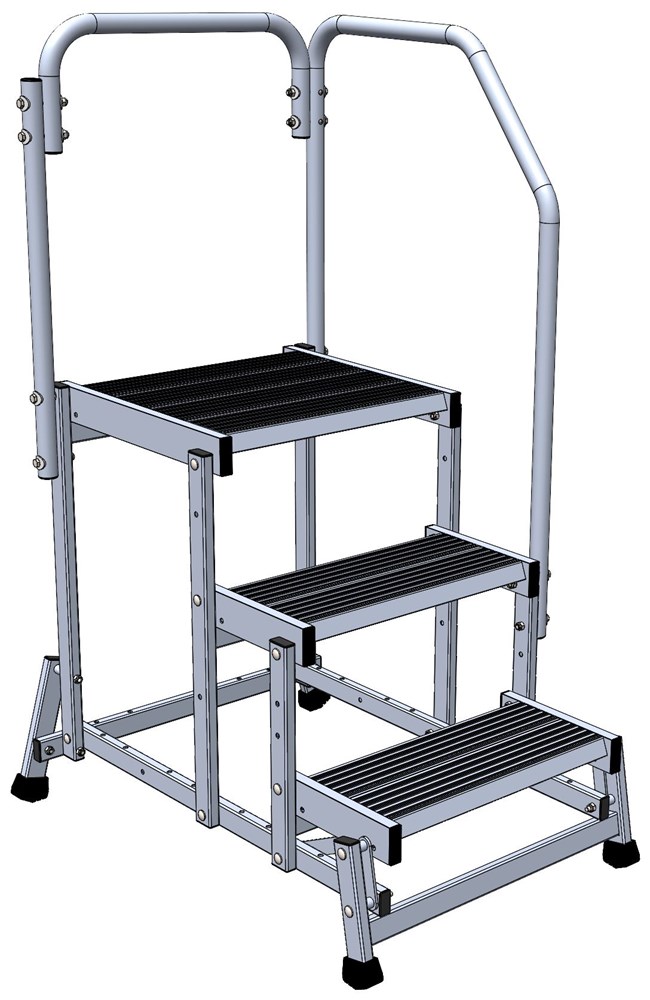

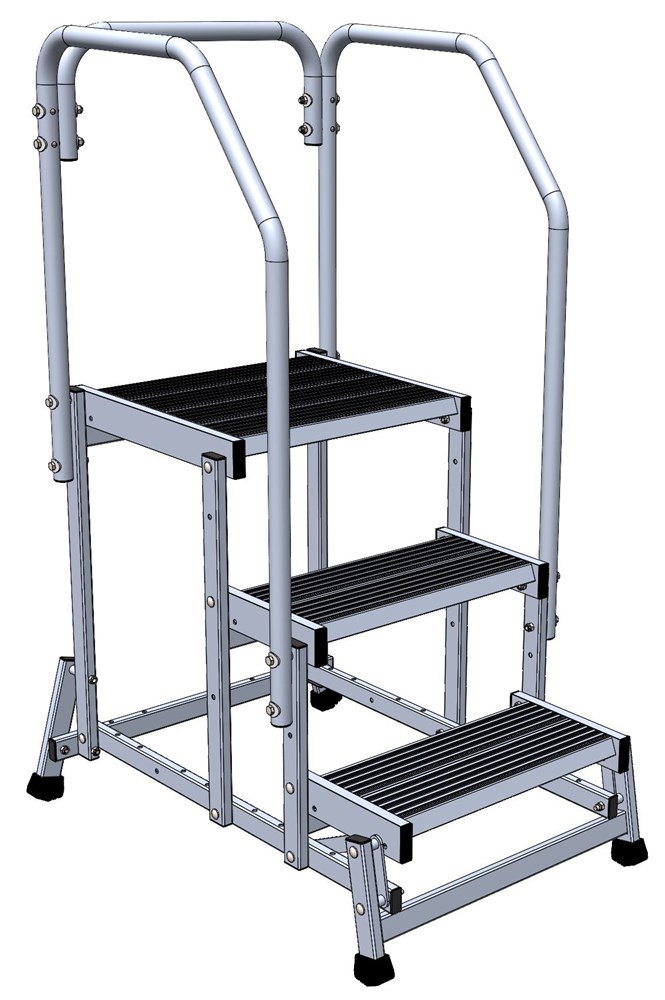

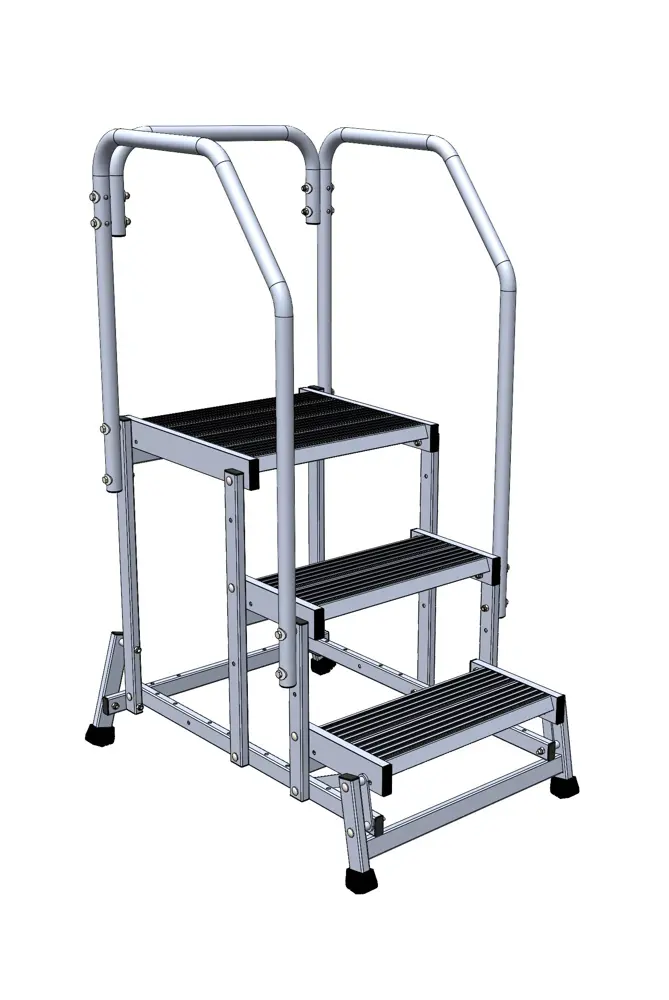

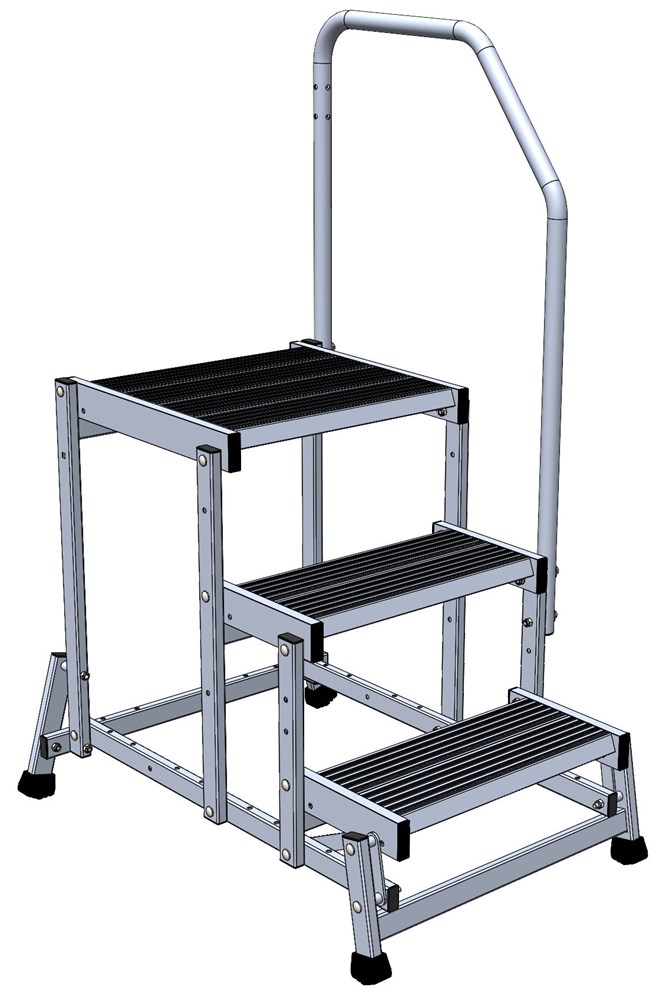

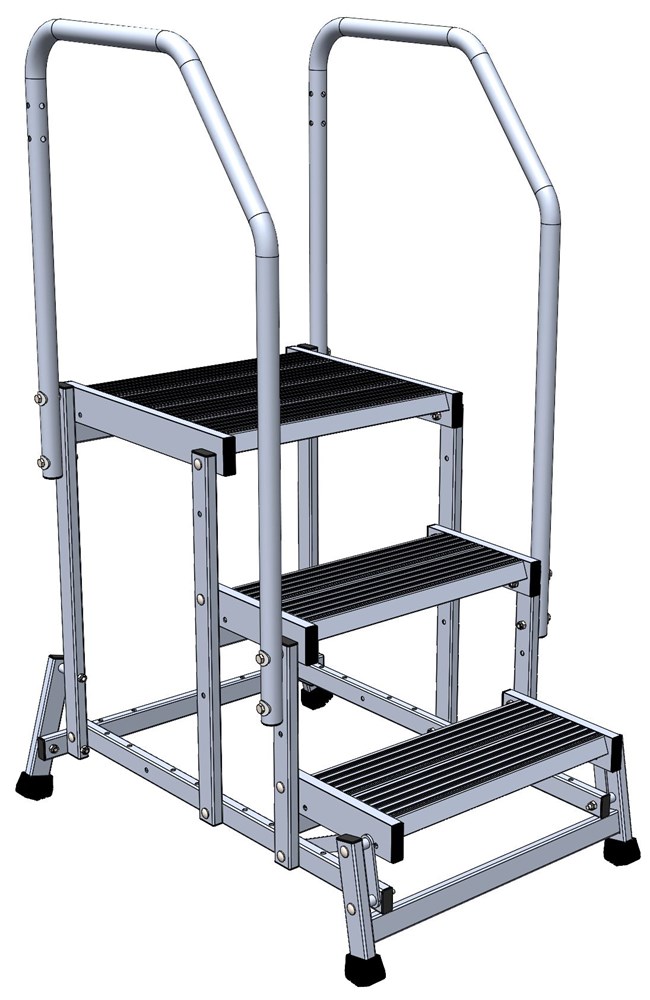

MEGA OVERSIZED PLATFORM (EXTRUDED OR GRATED STEPS) WITH HANDRAILS AND 60 CM PARAPET

AVAILABLE TYPES: from 2 to 4 steps, 50/60/80 cm wide, can be ordered with 1 or 2 handrails and with front parapet

MEGA       MEGA       MEGA MEGA
1 HANDRAIL 2 HANDRAILS       1 HANDRAIL + RAILING    2 HANDRAILS + RAILING
(FRONT LANDING)    SIDE LANDING (DS. O Left.) (WITHOUT LANDING)

On request on all models:

Stool assembled by the manufacturer (except handrails and railings supplied disassembled). For the code, add an M to the table codes.

Spare parts on all models

Description	Code
Mega side handrail with platform depth 20 cm 2 steps (right/left are the same)	SMEGACORR20
Mega side handrail with platform depth 20 cm 3 and 4 steps (right/left are the same)	SMEGACORR21
Mega side handrail with platform depth 40 cm 2 steps (right/left are the same)	SMEGACORR40
Mega side handrail with platform depth 40 cm 3 and 4 steps (right/left are the same)	SMEGACORR41
Front parapet width 50 cm	SMEGAPAR50
Front parapet width 60 cm	SMEGAPAR60
Front parapet width 80 cm	SMEGAPAR80

MEGA SPECIAL ON REQUEST

On request, using standard material, it can also be structured in various tailor-made configurations:

MEGA "LONG" MEGA "STAGE" MEGA "BRIDGE"

ULTRA-COMPACT PACKAGING

Example: MEGA packaging with 2 steps with handrail and oversized platform

Description	Code	Image

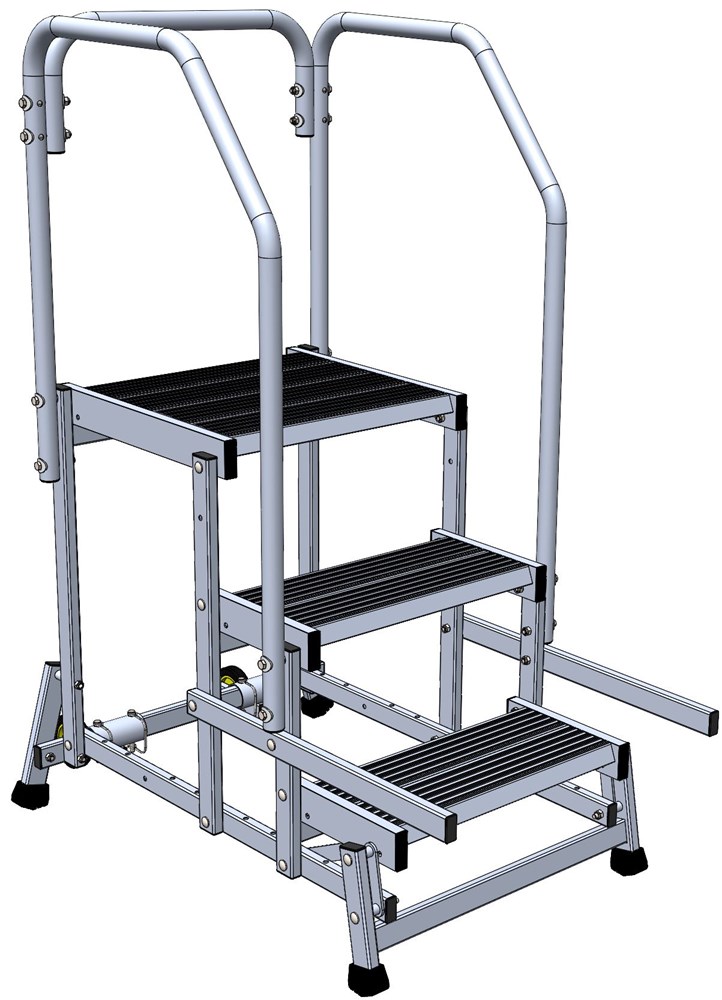

Kit of 2 handles and 2 side/front wheels Ø 80 mm for long journeys The wheels are swivel so that they can also be approached from the front	SMEGARUOTE
