MEGA OVERSIZED PLATFORM

Max height m 1
EN131 TESTED BY TÜV
This product has successfully passed the test of the German quality control body TÜV according to the European Standard on ladders
Garanzia 5 anni
It shows the validity of the guarantee in years
Flow 150 kg
It shows the maximum weight capacity of a product
Compliant D.Leg. 81/08
All our products conforms to the standads in force
European Standards EN 14183
It is the European Standard for ladders
Suitable for heavy duty

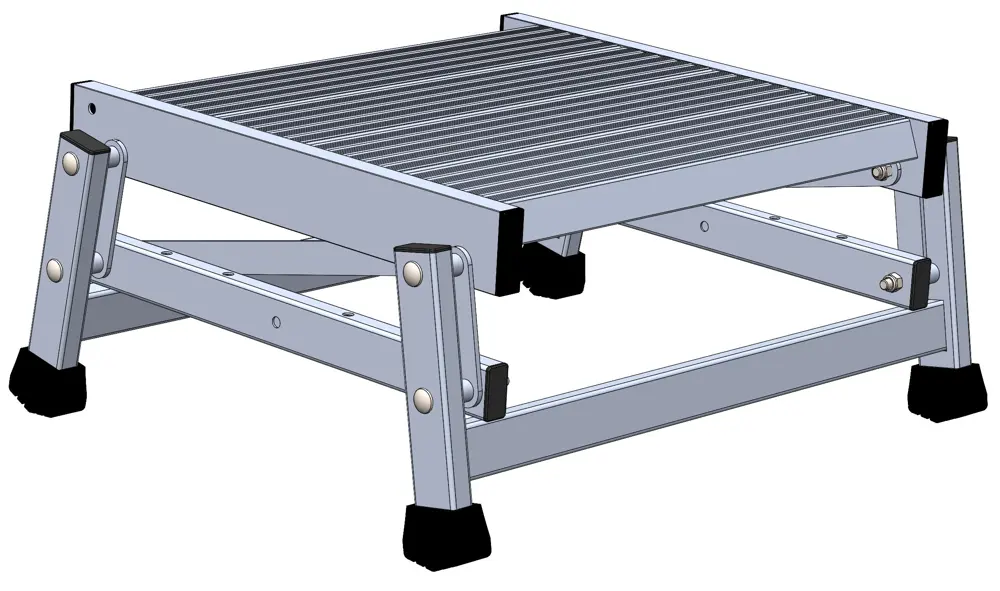

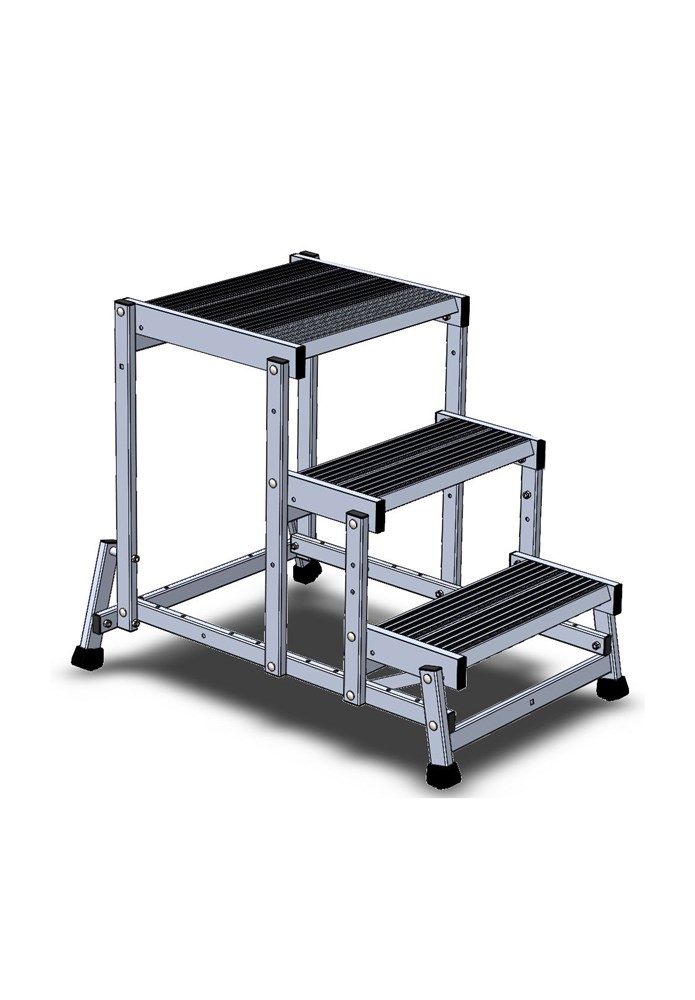

Screwed Industrial Stool with increased platform of 40 cm depth, wide steps and customizable with various optional accessories

Professional stool with 1 to 4 steps in extruded aluminum with a climbing section.

It is supplied super-compact disassembled for shipping and can be assembled by the operator with the supplied hardware kit.

Ideal for use on workshop machinery and for access to loading floors.

The base is widened for maximum stability.

It is rust-proof.


  • Oversized platform of 40 cm (extendable on request with multiples of 20 cm)
  • Standard non-slip steps 20 cm deep (extruded aluminium or draining grating)
  • Backrest perpendicular to the ground for maximum adherence to the wall
  • Non-slip pvc feet
  • Labels and use and maintenance manual
  • Test certificate according to Italian regulations Legislative Decree 81/2008
  • Test certificate according to European UNIEN14183 regulations
  • Capacity 150 Kg
  • 5-year warranty
  • Made in Italy



European Standard UNIEN14183:

  • The operator can also stand on the platform without bodyguards or handrails (optional).

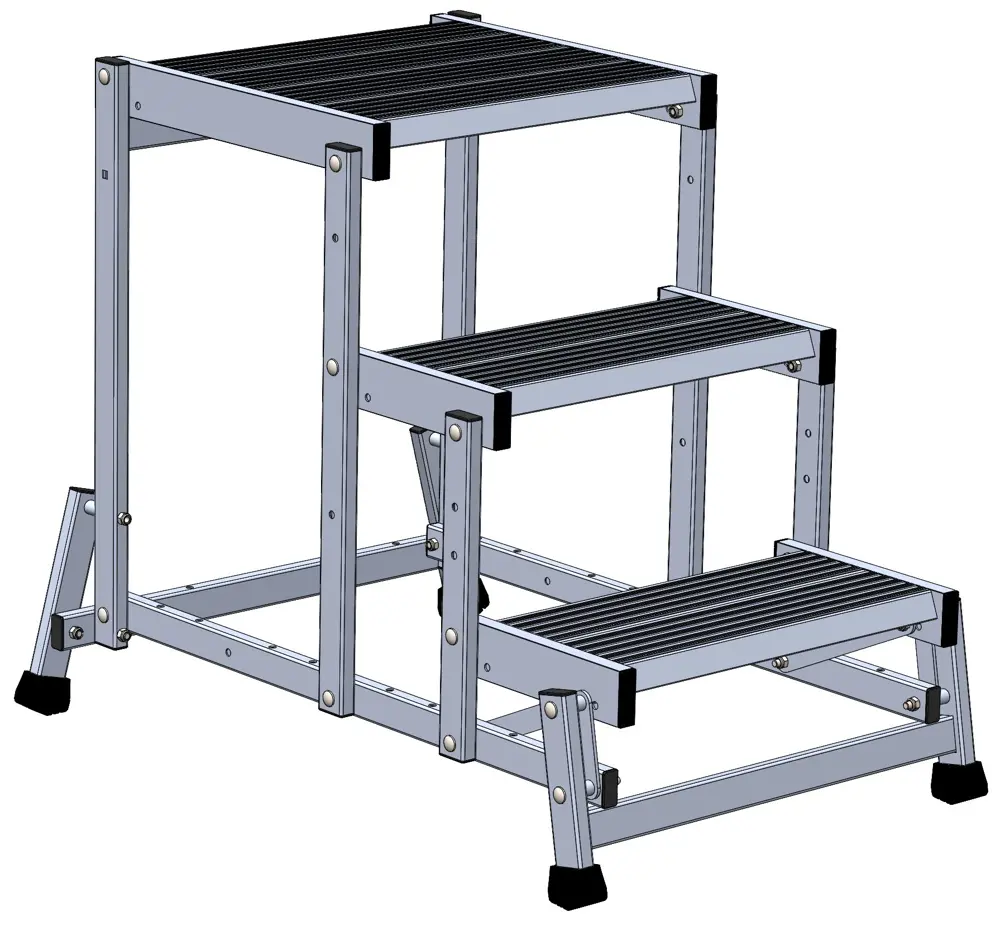

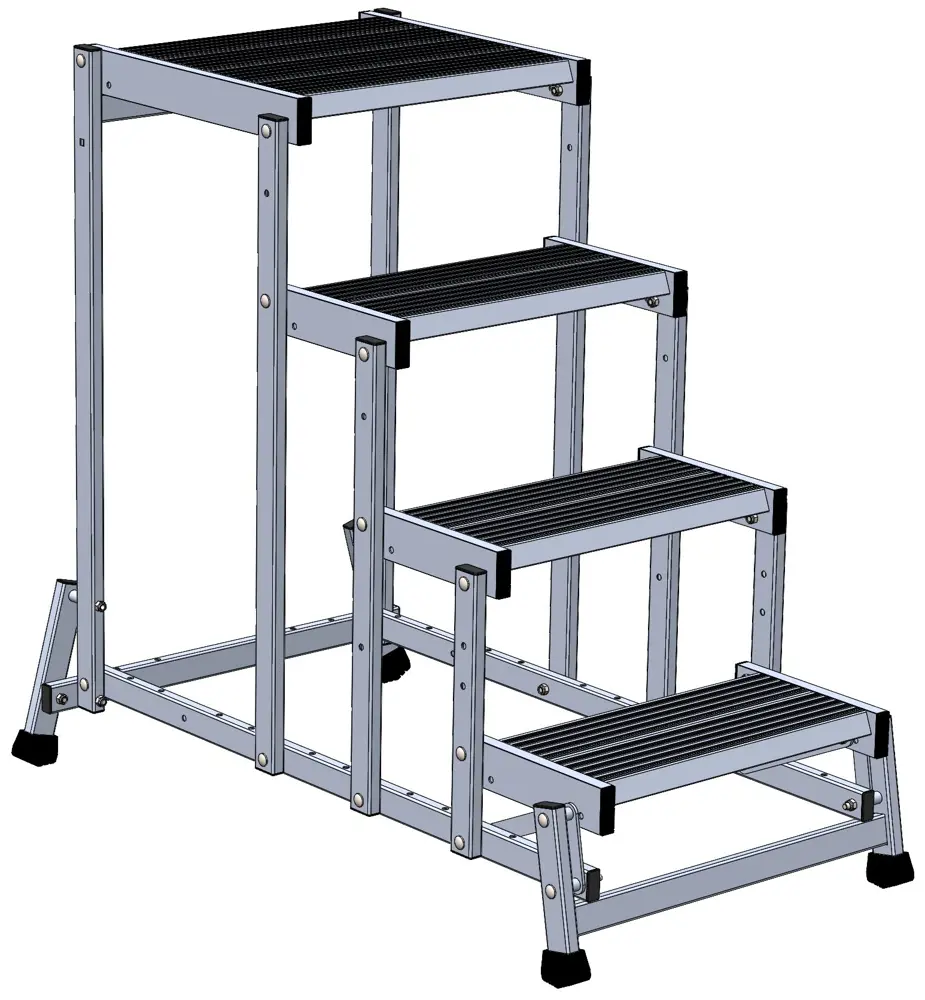

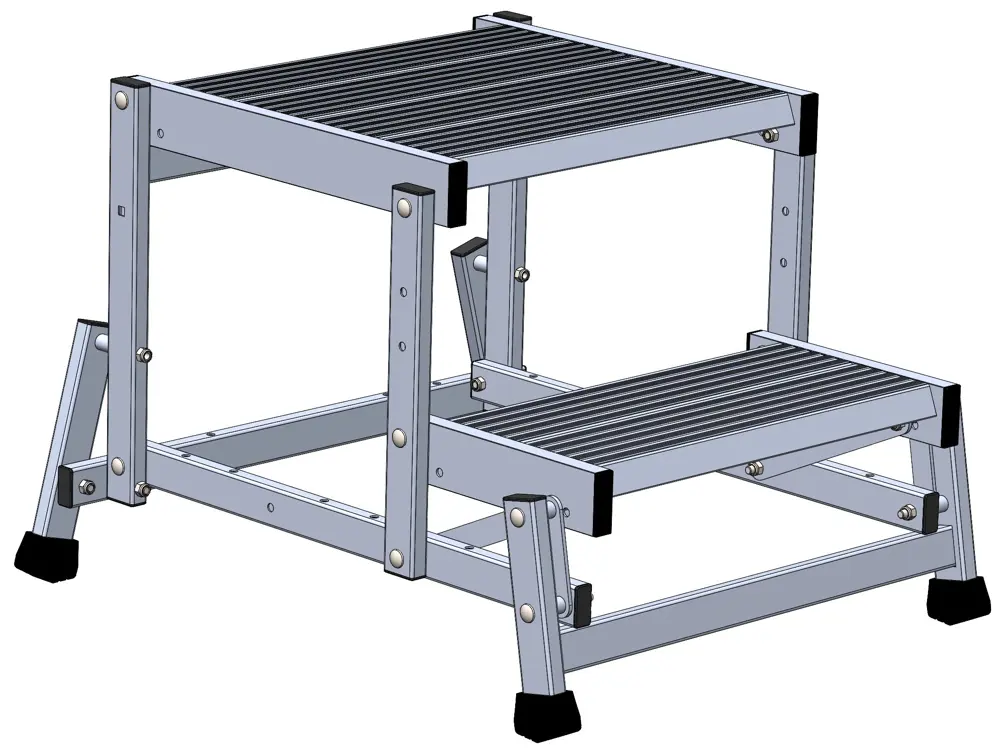

MEGA PLATFORM WITH EXTRUDED STEPS

  • 1 to 4
  • Available widths 50/60/80 cm

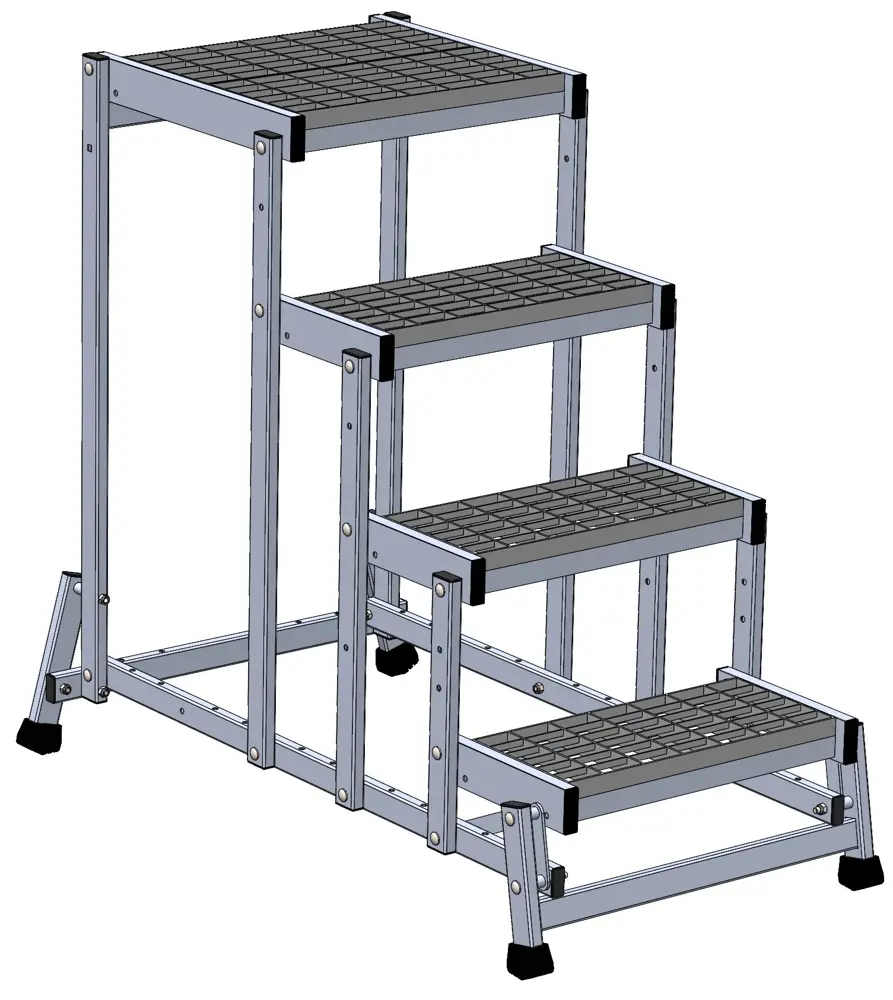

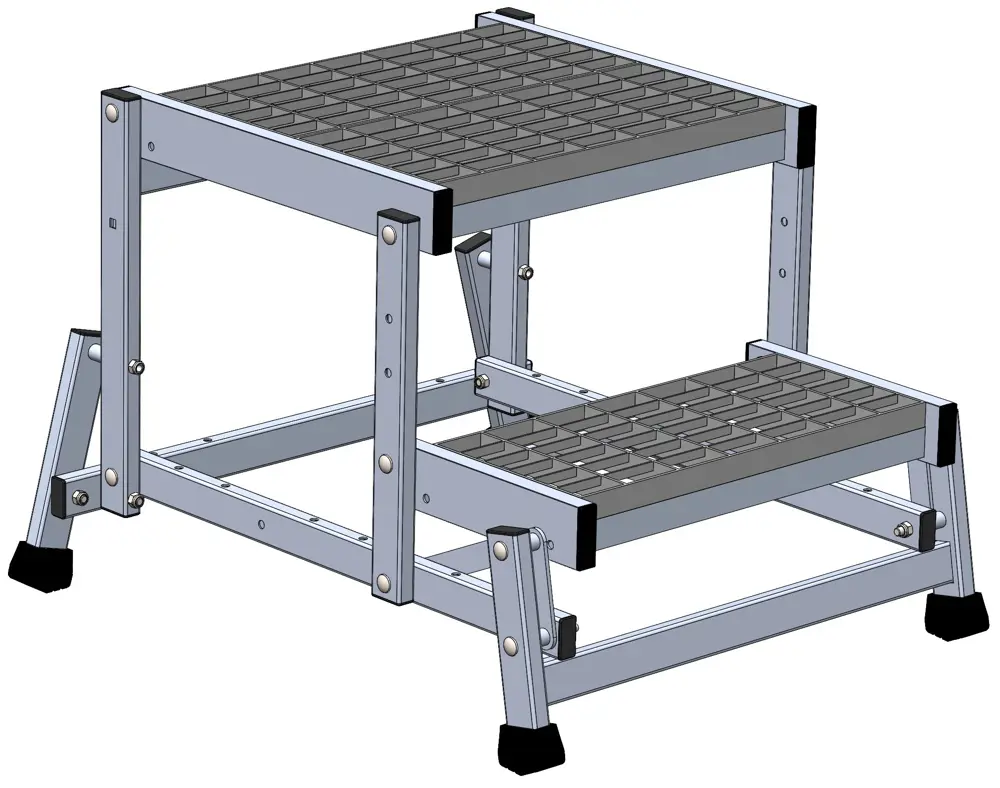

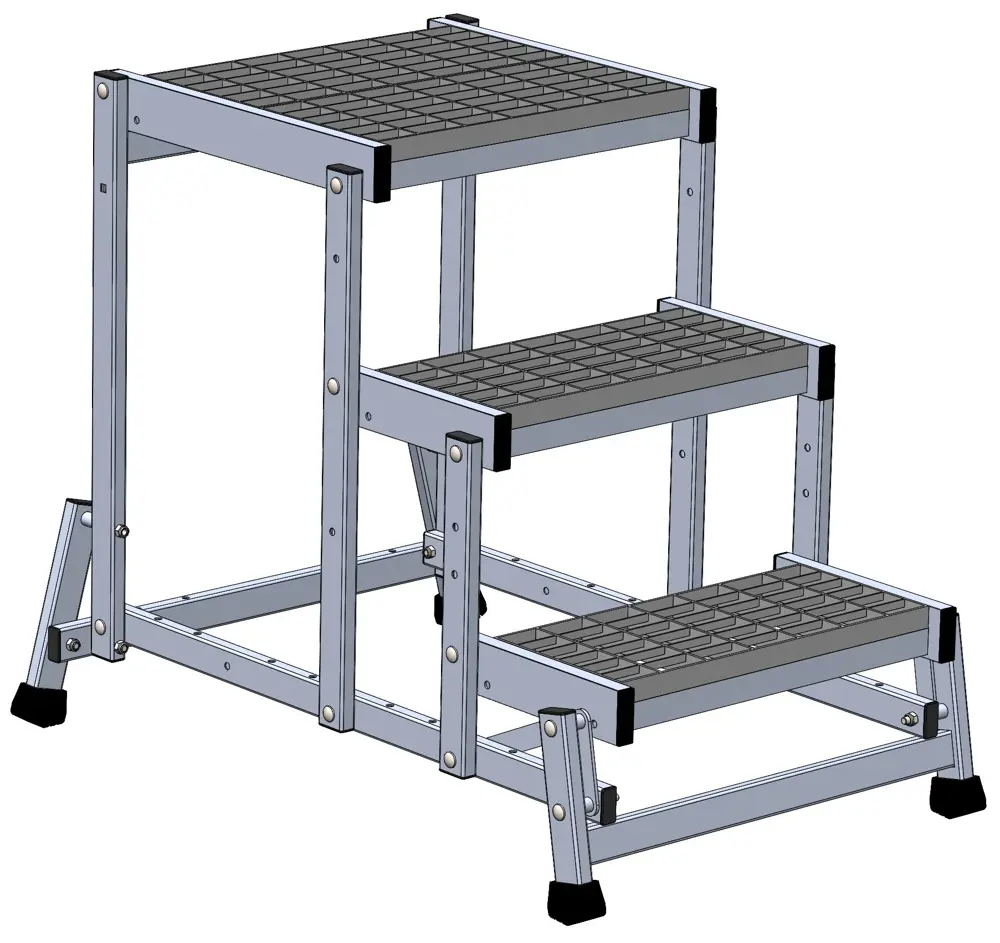

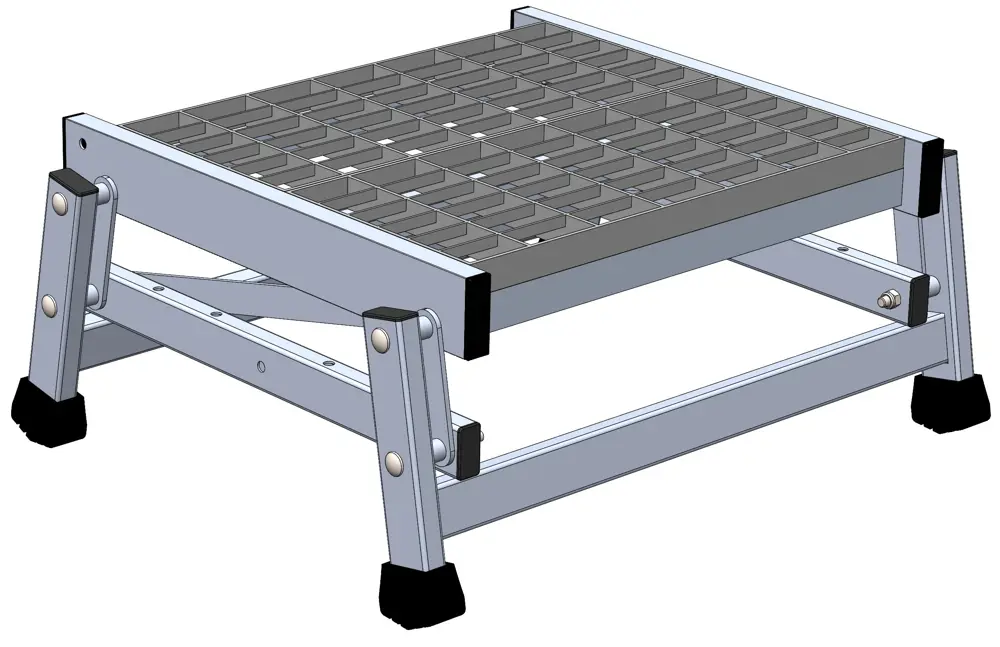

MEGA OVERSIZED PLATFORM DRAINING GRATING STEPS

  • For use in the presence of materials that must fall to the ground and not stop on the step.
  • 1 to 4 steps
  • Available widths 50/60/80 cm

MEGA PRICE LISTS WITH INCREASED PLATFORM:

MEGA PLATFORM INCREASED RAMP WIDTH 50 CM (WITHOUT HANDRAILS/PARAPET)

Steps

n.

Height

platform



m

Height of

work

m

Cluttered

basic

Cm

STEP

GRILLED

Cod.

STEP

EXTRUDED

Cod.

Base width

Cm

Weight

Kg

10,252,2550SMEGA150GPSMEGA150P544,5
20,502,5074SMEGA250GPSMEGA250P637,4
30,752,7598SMEGA350GPSMEGA350P6310,1
41,003,00124SMEGA450GPSMEGA450P6313


MEGA PLATFORM INCREASED RAMP WIDTH 60 CM (WITHOUT HANDRAILS/PARAPET)

Steps

n.

Platform height



m

Working height

m

Cluttered

basic

Cm

STEP

GRILLED

Cod.

STEP

EXTRUDED

Cod.

Base width

Cm

Weight

Kg

10,252,2550SMEGA160GPSMEGA160P695,2
20,502,5074SMEGA260GPSMEGA260P798,6
30,752,7598SMEGA360GPSMEGA360P7911,6
41,003,00124SMEGA460GPSMEGA460P7915


MEGA PLATFORM INCREASED RAMP WIDTH 80 CM (WITHOUT HANDRAILS/PARAPET)



Steps

n.



Platform height



m


Working height

m


Cluttered

basic

Cm

STEP

GRILLED

Cod.

STEP

EXTRUDED

Cod.


Base width

Cm




Weight

Kg

10,252,2550SMEGA180GPSMEGA180P896,2
20,502,5074SMEGA280GPSMEGA280P9910,1
30,752,7598SMEGA380GPSMEGA380P9913,7
41,003,00124SMEGA480GPSMEGA480P9917,6


On request on all models:


DescriptionCodeImage
Kit of 2 handles and 2 side/front wheels Ø 80 mm for long journeys

The wheels are swivel so that they can also be approached from the front



SMEGARUOTE










Spare parts on all models

DescriptionCode

Mega side handrail with platform depth 20 cm

2 steps

(right/left are the same)

SMEGACORR20

Mega side handrail with platform depth 20 cm

3 and 4 steps

(right/left are the same)

SMEGACORR21

Mega side handrail with platform depth 40 cm

2 steps

(right/left are the same)

SMEGACORR40

Mega side handrail with platform depth 40 cm

3 and 4 steps

(right/left are the same)

SMEGACORR41
Front railing 50 cm wideSMEGAPAR50

Front railing width

 cm 60

SMEGAPAR60

Front railing width

 cm 80

SMEGAPAR80

MEGA SPECIAL ON REQUEST

On request, using standard material, it can also be structured in various tailor-made configurations:



       MEGA "LONG"                      MEGA "STAGE"                MEGA "BRIDGE"

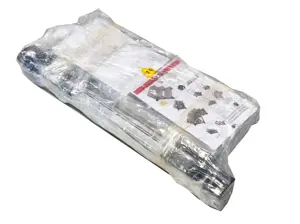

ULTRA-COMPACT PACKAGING
Example: MEGA packaging with 3 steps with oversized platform

Do you need more information?
Our experience is at your service to support you and recommend the right product.
One of our experts will contact you without any obligation.
