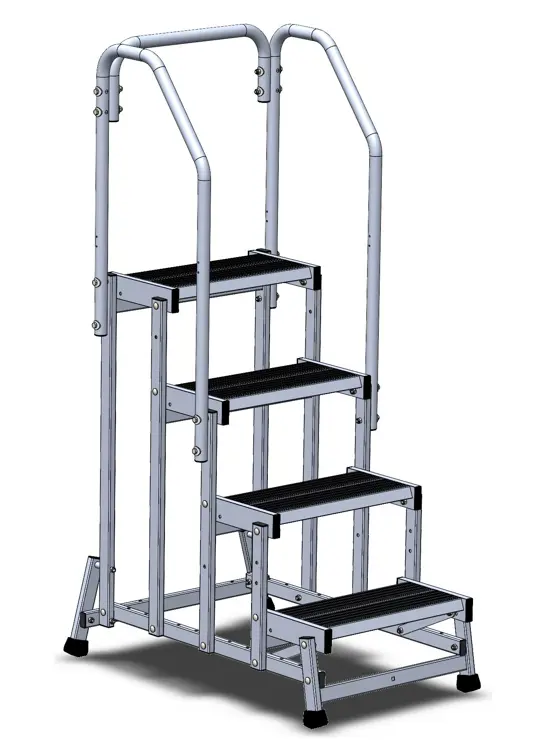

MEGA with guardrails

Max height m 1

This product has successfully passed the test of the German quality control body TÜV according to the European Standard on stools

It shows the validity of the guarantee in years

It shows the maximum weight capacity of a product

All our products conforms to the standads in force

Suitable for heavy duty

Screwed Industrial Stool with wide steps and parapets, customizable with various optional accessories

Professional stool with 2 to 4 steps in extruded aluminum with a climbing section.

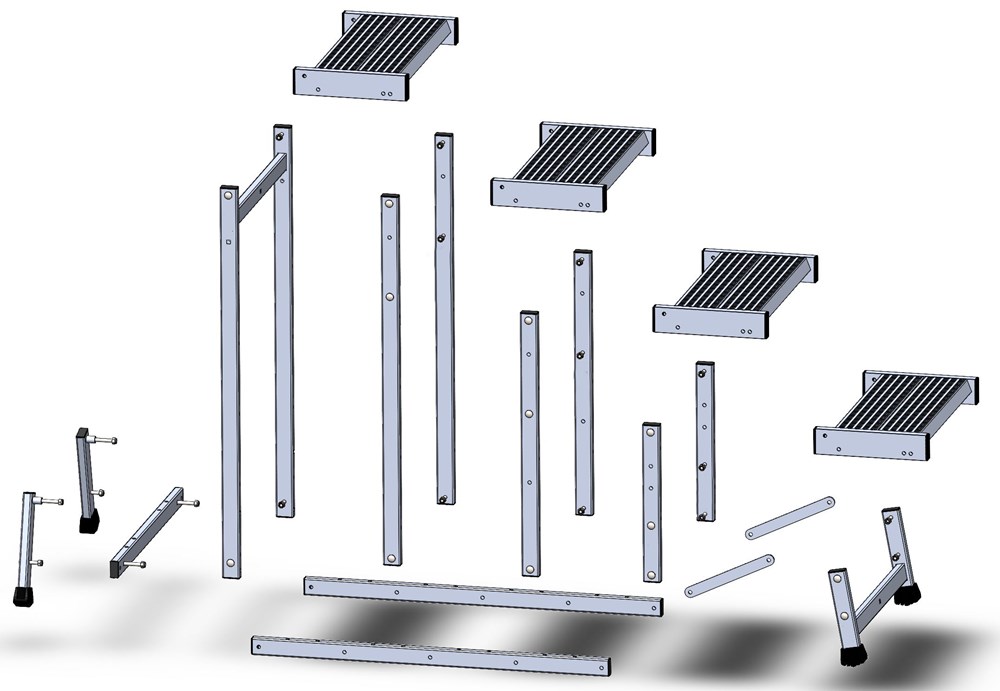

It is supplied super-compact disassembled for shipping and can be assembled by the operator with the supplied hardware kit.

Ideal for use on workshop machinery and for access to loading floors.

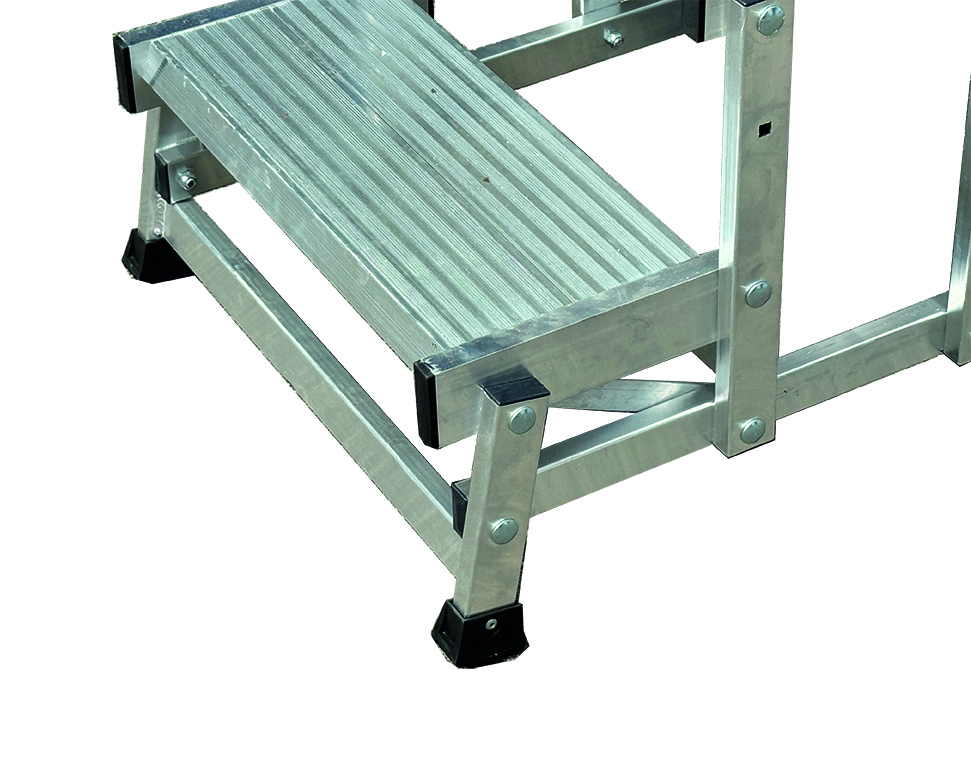

The base is widened for maximum stability.

It is rust-proof.

Assembly by the customer (on request we provide the stool already assembled).

Standard non-slip steps 20 cm deep (extruded or grated aluminium)
Backrest perpendicular to the ground for maximum adherence to the wall
Non-slip pvc feet

Labels and use and maintenance manual
Test certificate according to European UNIEN14183 regulations
Test certificate according to Italian regulations Legislative Decree 81/2008
Capacity 150 Kg
5-year warranty
Made in Italy

European Standard UNIEN14183:

Mega 2 and 3 gr.: the operator can stand on the last step even without a bodyguard (optional).
Mega 4 gr.: the operator can stand on the last step only with the use of the 60 cm bodyguard

(mandatory for the European standard, optional for the Italian standard).

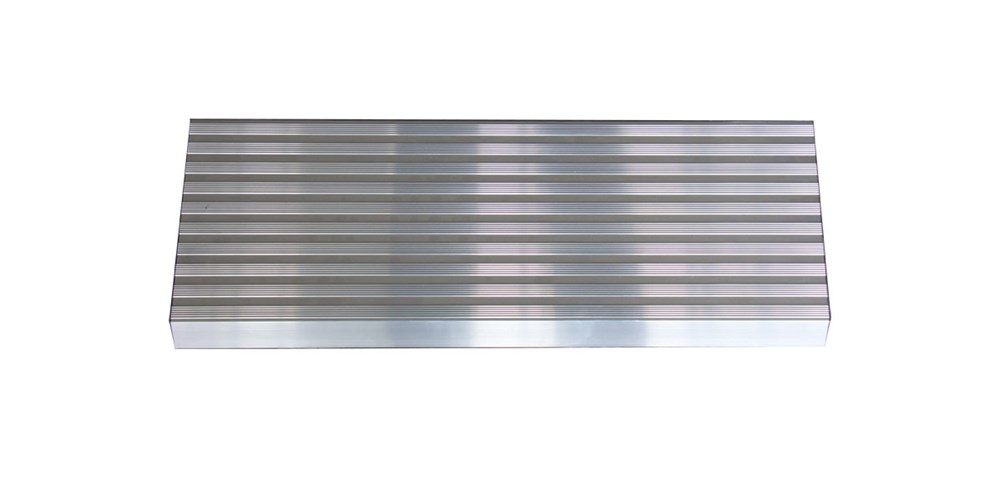

EXTRUDED MEGA STEPS

2 to 4 steps
Available widths 50/60/80 cm

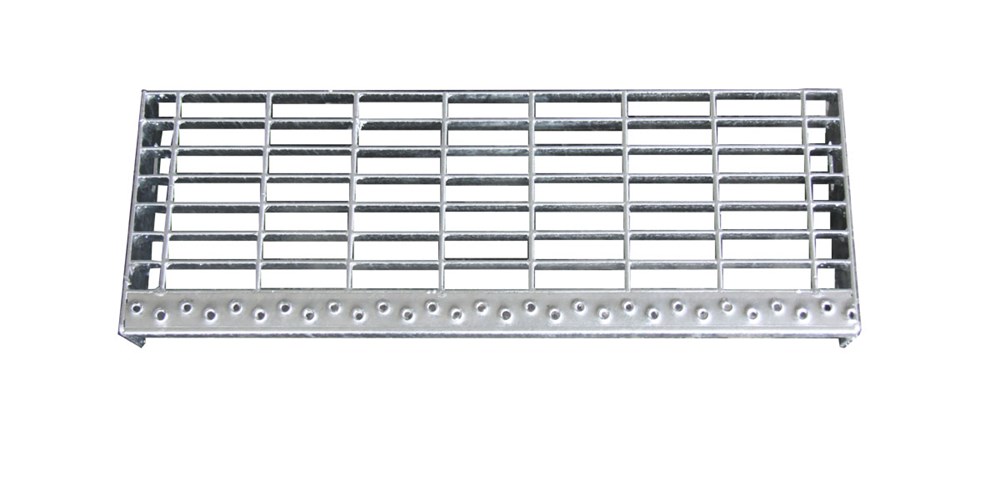

MEGA DRAINING GRATING STEPS

For use in the presence of materials that must fall to the ground and not stop on the step.
2 to 4 grating steps
Available widths 50/60/80 cm

AVAILABLE TYPES: from 2 to 4 steps, 50/60/80 cm wide, can be ordered with 1 or 2 handrails and with front parapet

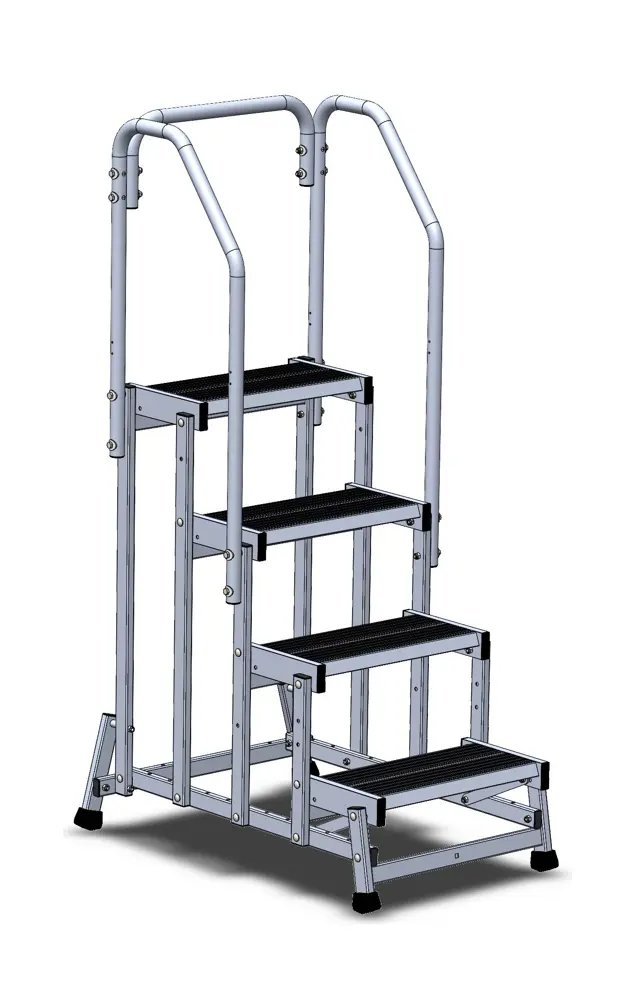

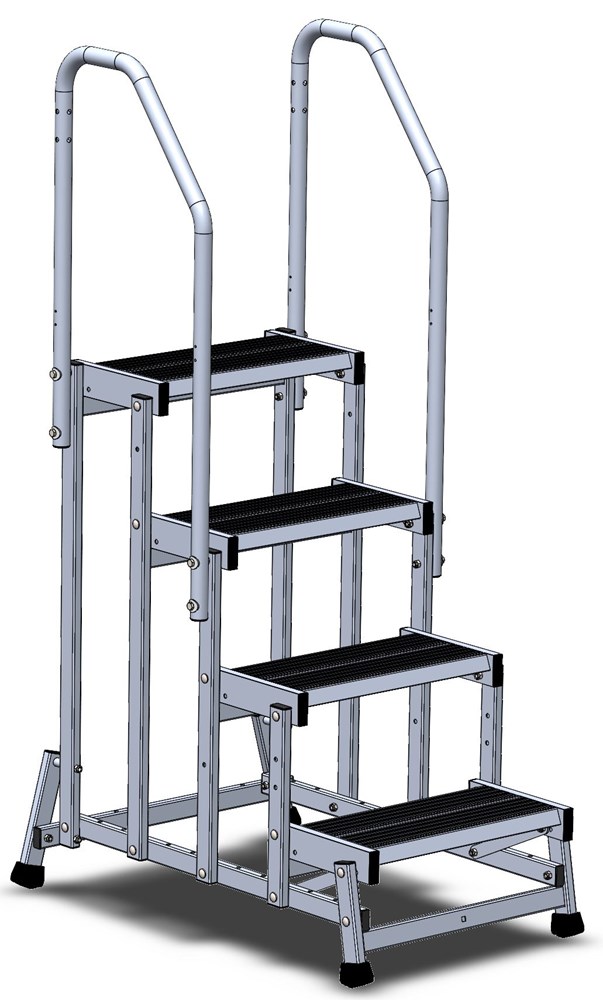

MEGA MEGA MEGA

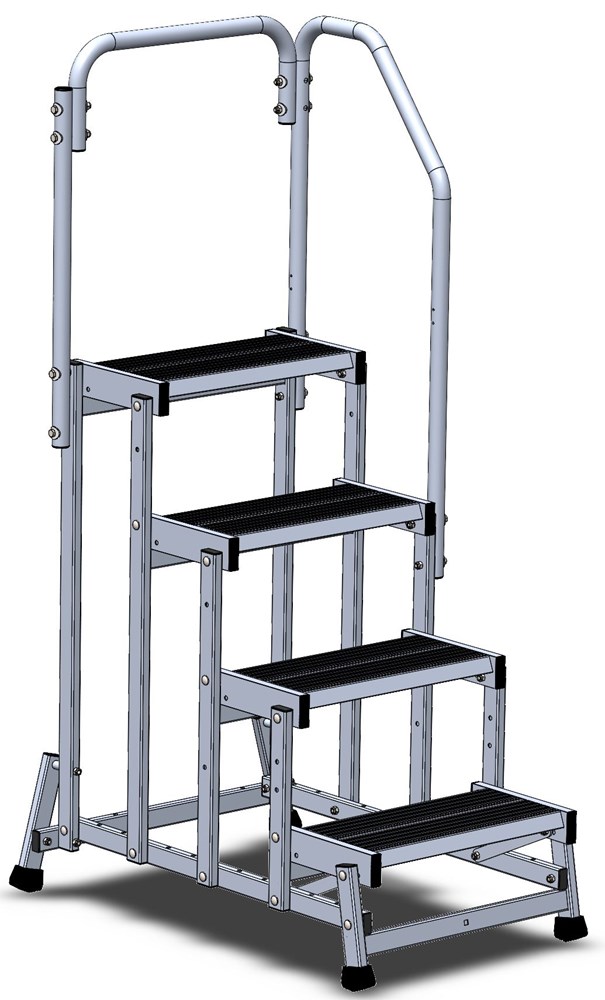

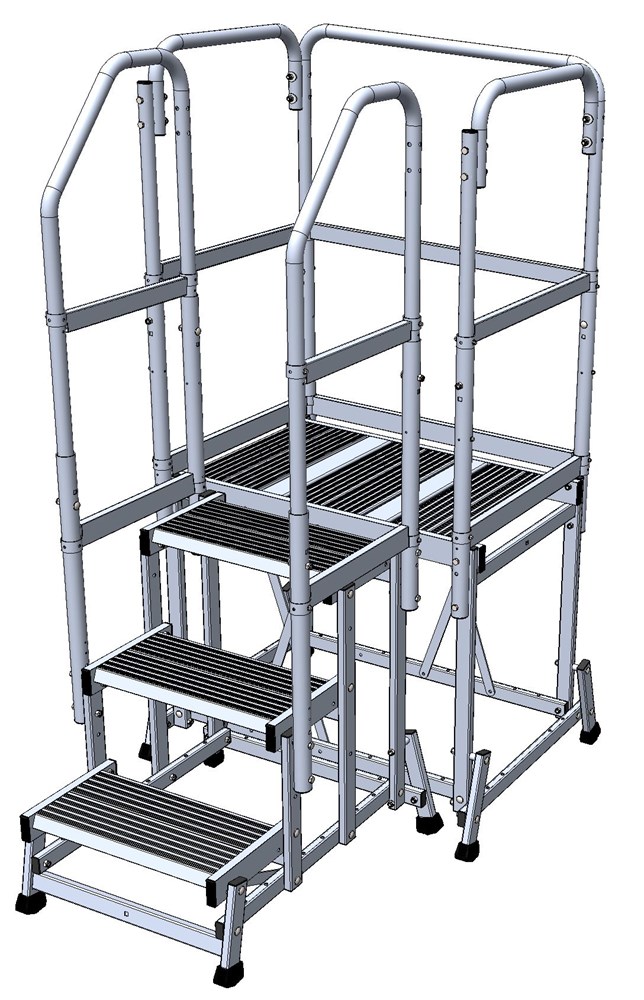

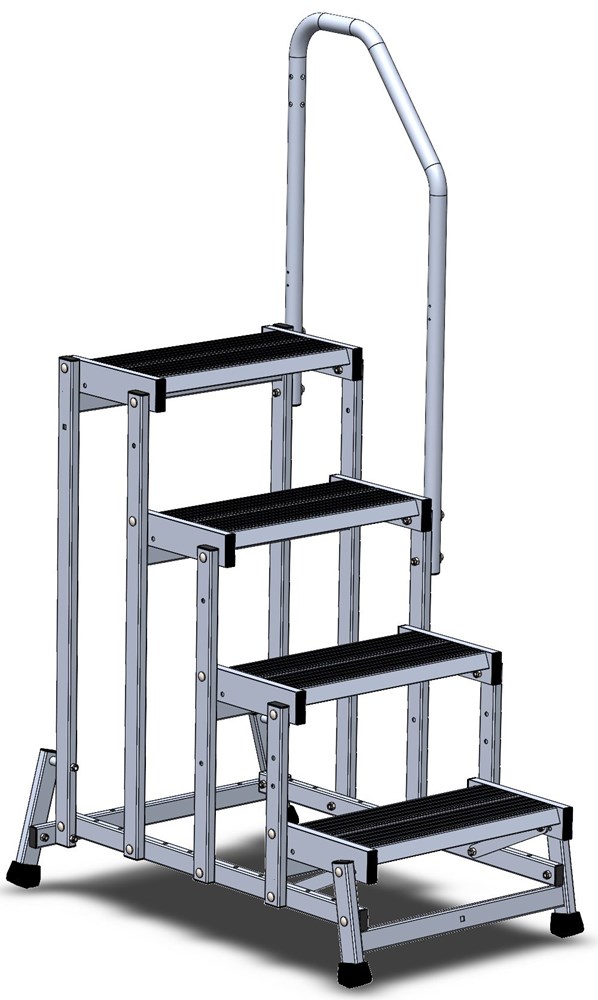

1 HANDRAIL 2 HANDRAILS 2 HANDRAILS + PARAPET

FRONTAL DISEMBARKATION (WITHOUT LANDING)

MEGA PRICE LISTS WITH HANDRAILS AND/OR PARAPET:

MEGA + 1 HANDRAIL RAMP WIDTH 50 CM

MEGA + 1 HANDRAIL RAMP WIDTH 60 CM

MEGA + 1 HANDRAIL RAMP WIDTH 80 CM

MEGA + 2 HANDRAILS RAMP WIDTH 50 CM

MEGA + HANDRAILS RAMP WIDTH 60 CM

MEGA + 2 HANDRAILS RAMP WIDTH 80 CM

MEGA + 2 HANDRAILS + PARAPET RAMP WIDTH 50 CM

MEGA + 2 HANDRAILS + PARAPET RAMP WIDTH 60 CM

MEGA + 2 HANDRAILS + PARAPET RAMP WIDTH CM 80

On request on all models:

Stool assembled by the manufacturer (except handrails and railings supplied disassembled). For the code, add an M to the table codes.
Mega with oversized platform (depth 40 cm)
Mega with oversized platform (depth 40 cm), with handrails and parapet

Spare parts on all models

Description	Code
Mega side handrail with platform depth 20 cm 2 steps (right/left are the same)	SMEGACORR20
Mega side handrail with platform depth 20 cm 3 and 4 steps (right/left are the same)	SMEGACORR21
Mega side handrail with platform depth 40 cm 2 steps (right/left are the same)	SMEGACORR40
Mega side handrail with platform depth 40 cm 3 and 4 steps (right/left are the same)	SMEGACORR41
Front parapet width 50 cm	SMEGAPAR50
Front parapet width 60 cm	SMEGAPAR60
Front parapet width 80 cm	SMEGAPAR80

MEGA SPECIAL ON REQUEST

On request, using standard material, it can also be structured in various tailor-made configurations:

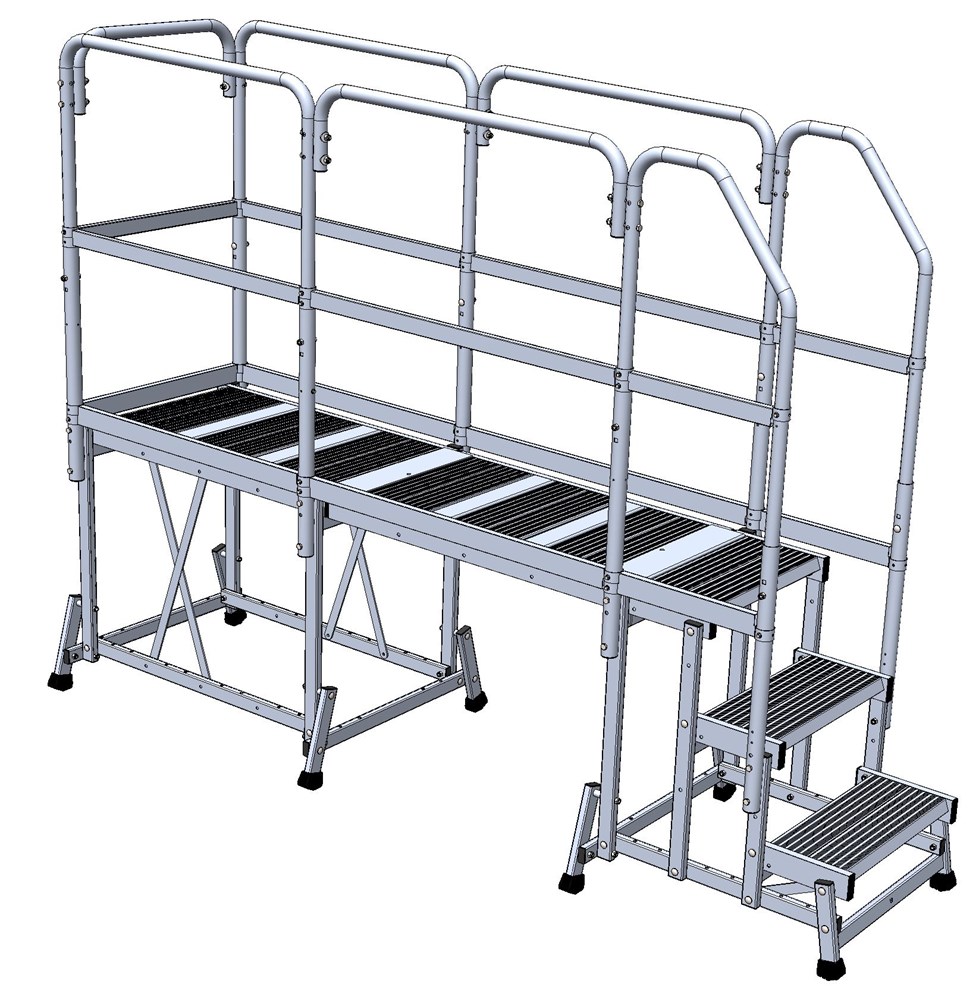

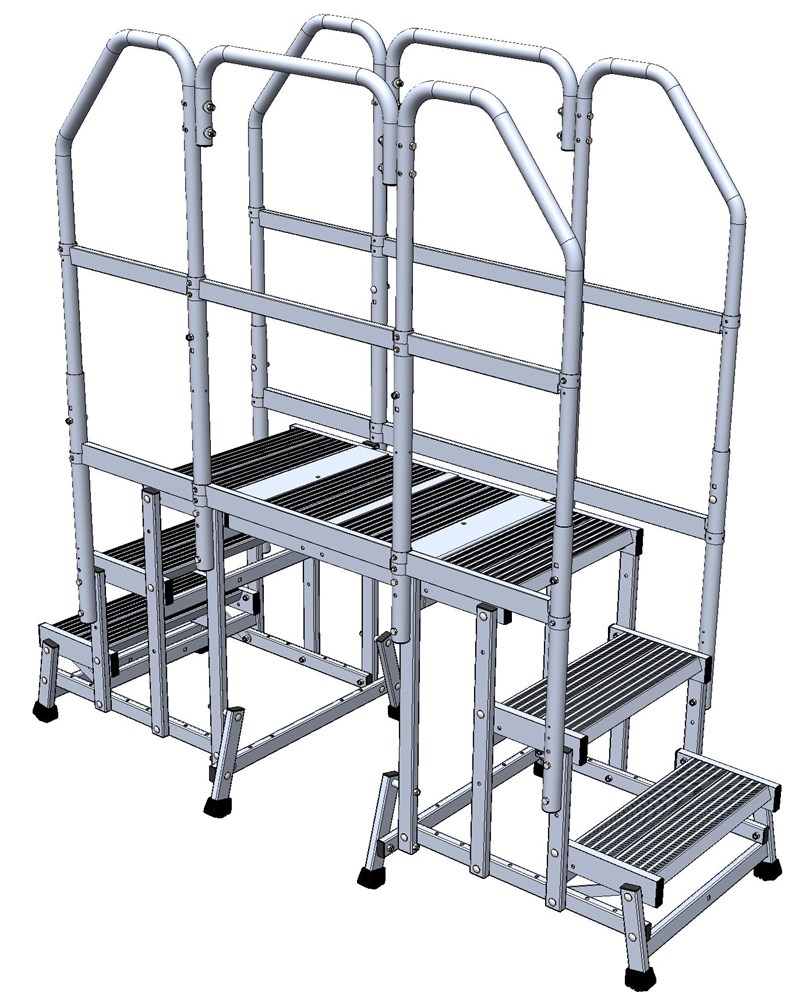

MEGA "LONG" MEGA "STAGE" MEGA "BRIDGE"

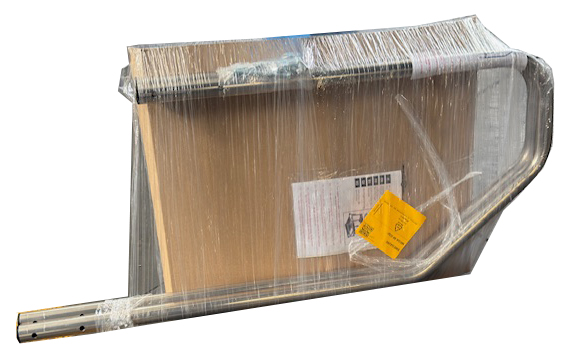

ULTRA-COMPACT PACKAGING

Example: MEGA packaging with 3 steps with handrail

Steps n.	Platform height m	Working height m	Length of cluttered basic Cm	STEPS GRILLED Cod.	STEPS EXTRUDED Cod.	Base width Cm	Weight Kg
2	0,50	2,50	54	SMEGA250GC	SMEGA250C	63	7
3	0,75	2,75	78	SMEGA350GC	SMEGA350C	63	11
4	1,00	3,00	104	SMEGA450GC	SMEGA450C	63	12,6

Steps n.	Platform height m	Working height m	Length of cluttered basic Cm	STEPS GRILLED Cod.	STEPS EXTRUDED Cod.	Base width Cm	Weight Kg
2	0,50	2,50	54	SMEGA260GC	SMEGA260C	79	7,8
3	0,75	2,75	78	SMEGA360GC	SMEGA360C	79	10,9
4	1,00	3,00	104	SMEGA460GC	SMEGA460C	79	14,2

Steps n.	Platform height m	Working height m	Length of cluttered basic Cm	STEPS GRILLED Cod.	STEPS EXTRUDED Cod.	Base width Cm	Weight Kg
2	0,50	2,50	54	SMEGA280GC	SMEGA280C	99	9
3	0,75	2,75	78	SMEGA380GC	SMEGA380C	99	12,6
4	1,00	3,00	104	SMEGA480GC	SMEGA480C	99	16,4

Steps n.	Platform height m	Working height m	Length of cluttered basic Cm	STEPS GRILLED Cod.	STEPS EXTRUDED Cod.	Base width Cm	Weight Kg
2	0,50	2,50	54	SMEGA250GC2	SMEGA250C2	63	8
3	0,75	2,75	78	SMEGA350GC2	SMEGA350C2	63	12
4	1,00	3,00	104	SMEGA450GC2	SMEGA450C2	63	13,6

Steps n.	Platform height m	Working height m	Length of cluttered basic Cm	STEPS GRILLED Cod.	STEPS EXTRUDED Cod.	Base width Cm	Weight Kg
2	0,50	2,50	54	SMEGA260GC2	SMEGA260C2	79	8,8
3	0,75	2,75	78	SMEGA360GC2	SMEGA360C2	79	11,9
4	1,00	3,00	104	SMEGA460GC2	SMEGA460C2	79	15,2

Description	Code	Image

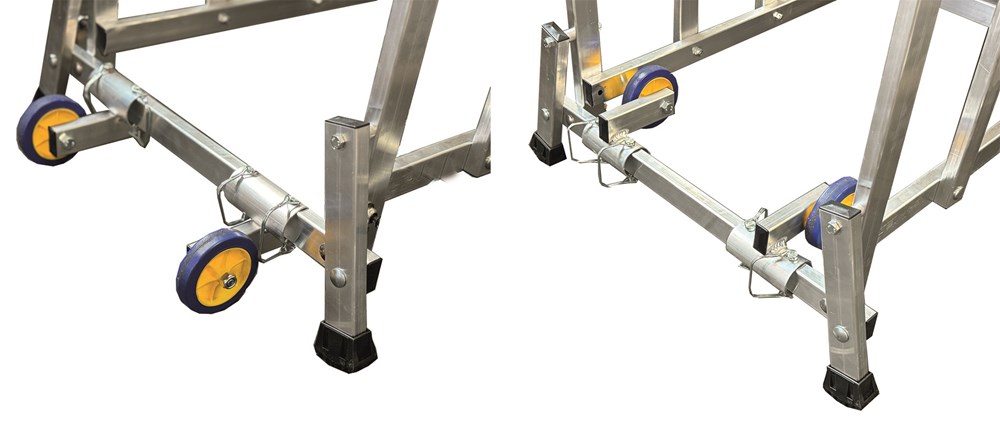

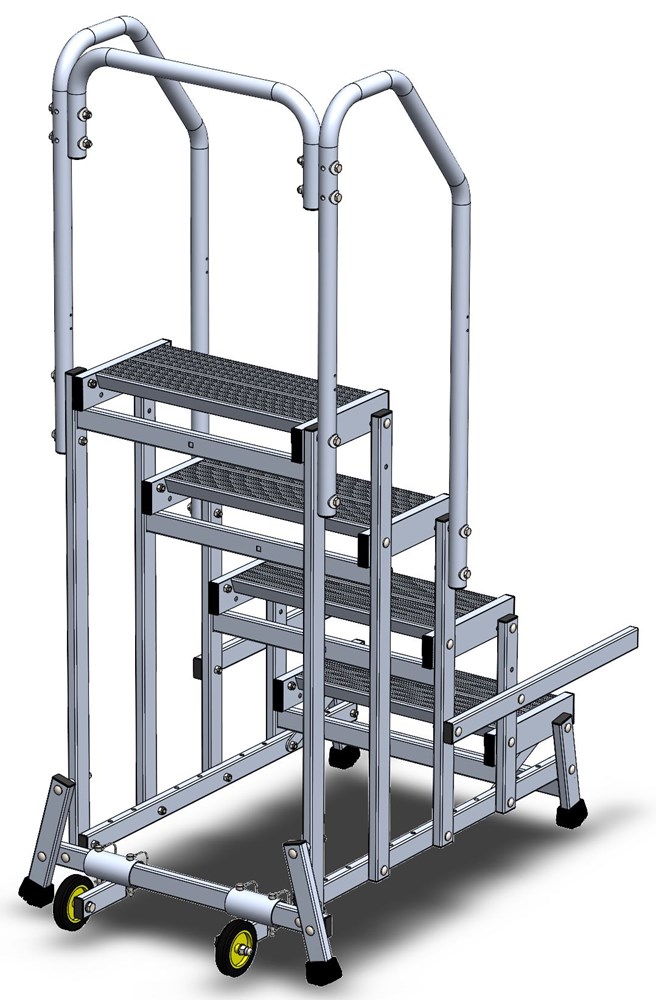

Kit of 2 handles and 2 side/front wheels Ø 80 mm for long journeys The wheels are swivel so that they can also be approached from the front	SMEGARUOTE
