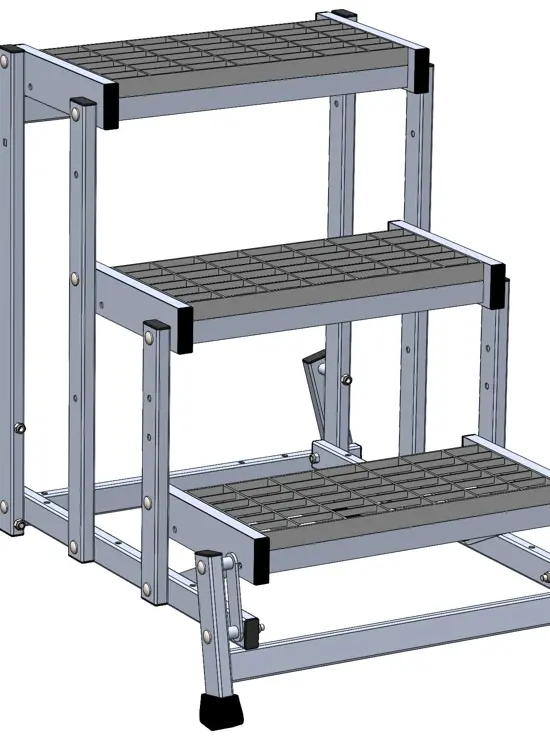

Mega

Max height m 1

This product has successfully passed the test of the German quality control body TÜV according to the European Standard on ladders

It shows the validity of the guarantee in years

It shows the maximum weight capacity of a product

All our products conforms to the standads in force

It is the European Standard for ladders

Suitable for heavy duty

Industrial stool with wide steps and customizable with various optional accessories

One- sided professional stool with 1 to 4 steps in extruded aluminium.

It is supplied super-compact and disassembled for easy transportation and can be assembled by the operator using the supplied hardware kit.

Ideal for use on machinery in the workshop and for accessing loading platforms.

The base is widened for maximum stability.

It is rust-proof.

Assembly by the customer (we can supply the stool already assembled upon request).

Standard 20cm deep non-slip steps (extruded or draining aluminium)

Non-slip PVC feet
Labels and use and maintenance manual
Test certificate according to Italian Legislative Decree 81/2008 and European UNIEN14183 regulations
It can be composed as desired with 48 different configurations.

European Standard UNIEN14183:

Mega 2 and 3 steps: the operator can stand on the last step even without a guardrail (optional).
Mega 4 steps (increased platform depth > 40 cm): the operator can stand on the platform even without a guardrail (optional).
Mega 4 steps (standard last step depth 20 cm): the operator can stand on the last step only using the 60 cm guardrail (mandatory according to the European standard, optional according to the Italian standard).

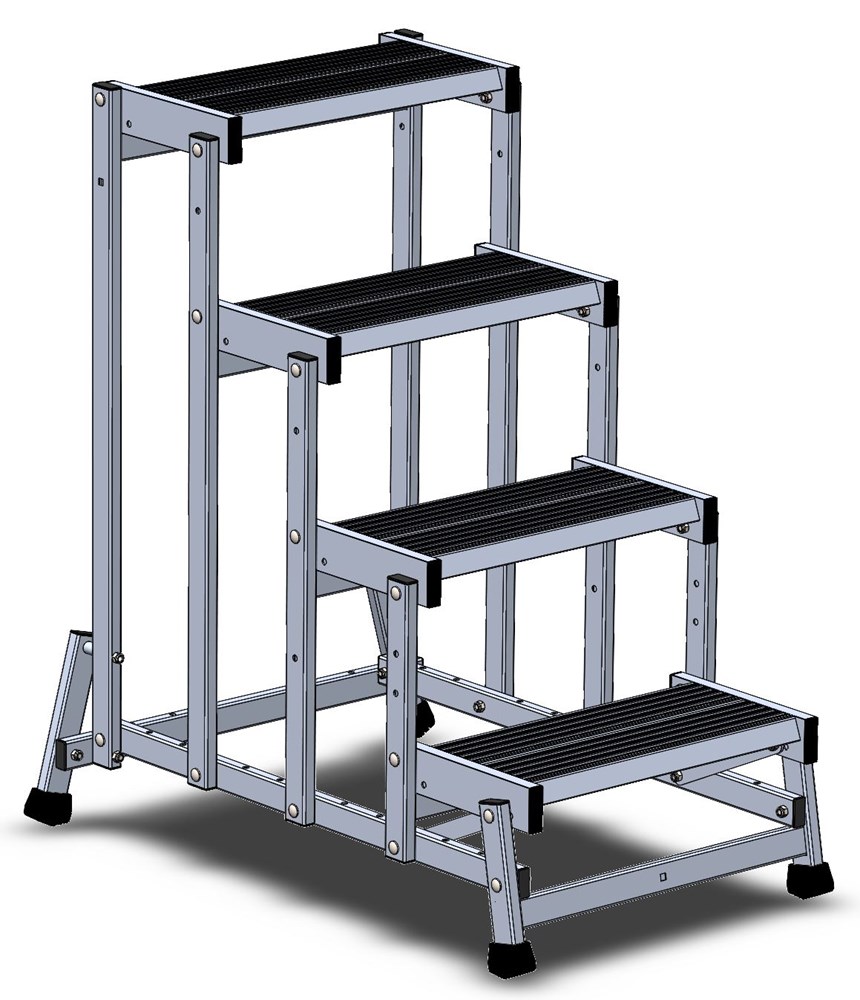

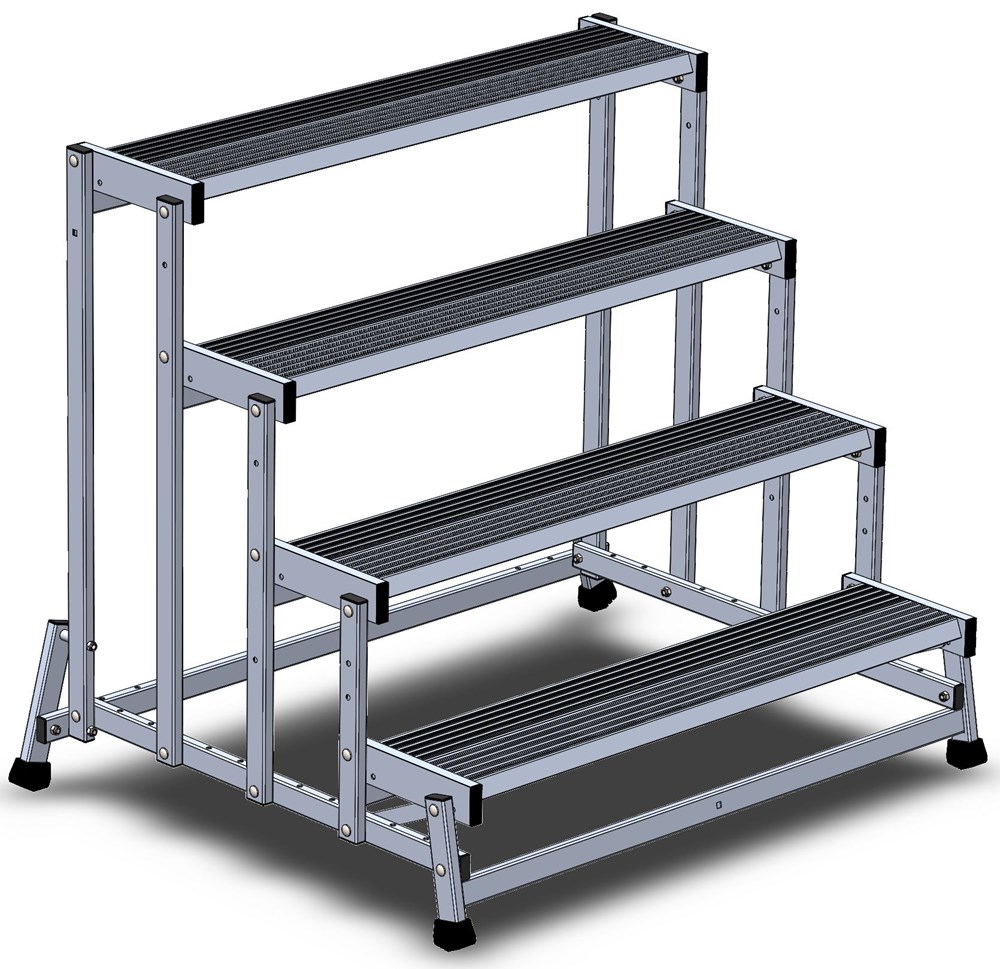

MEGA STANDARD

1 to 4 extruded steps
Available widths cm 50/60/80

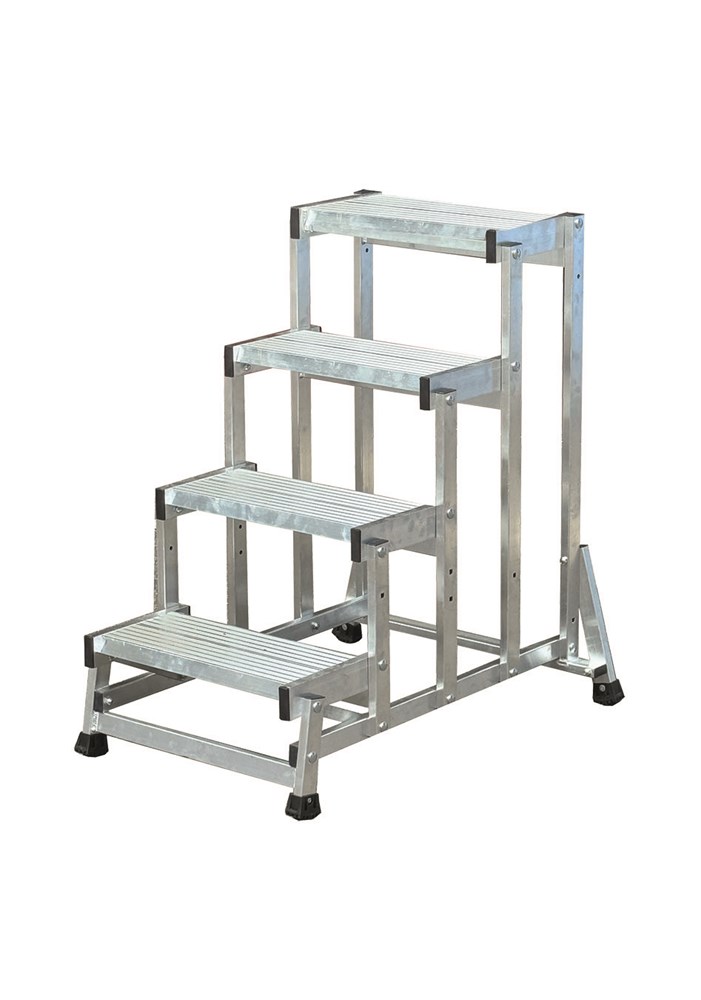

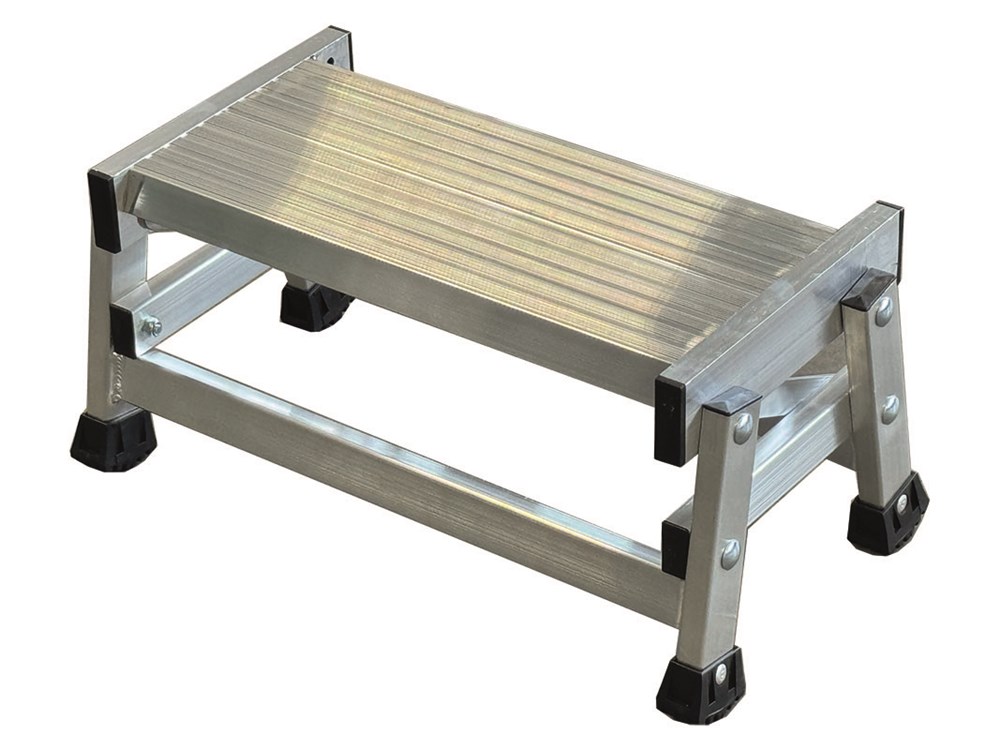

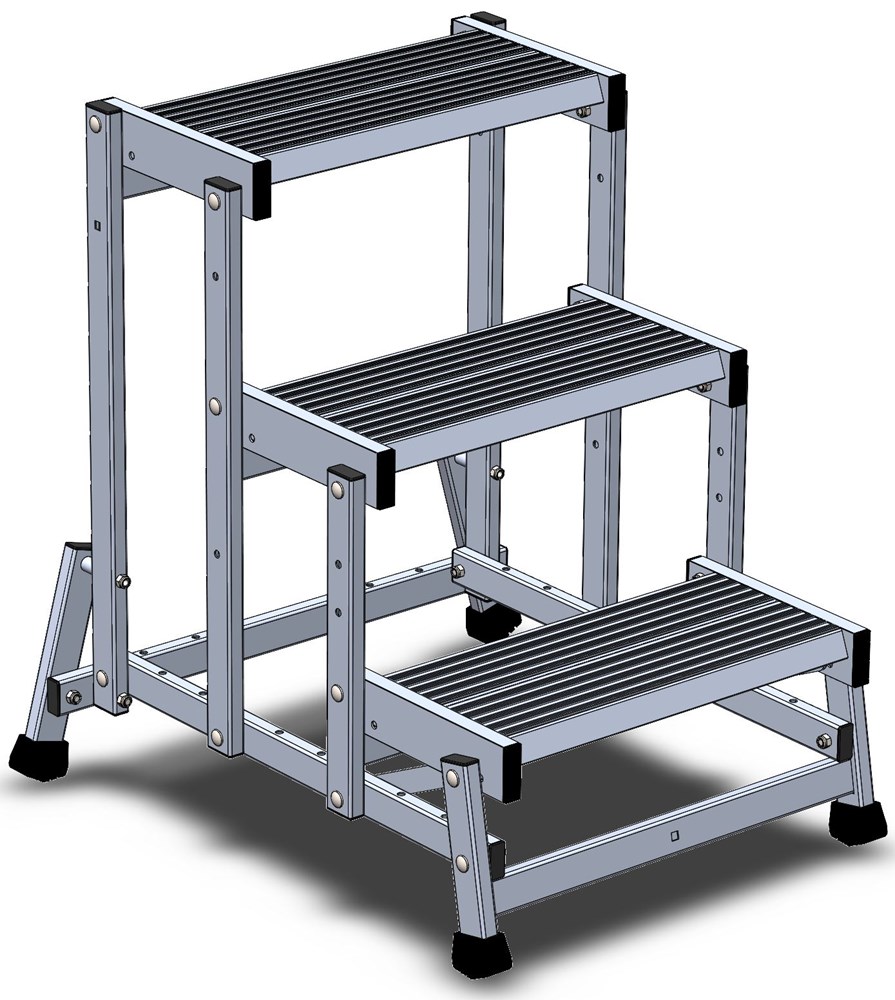

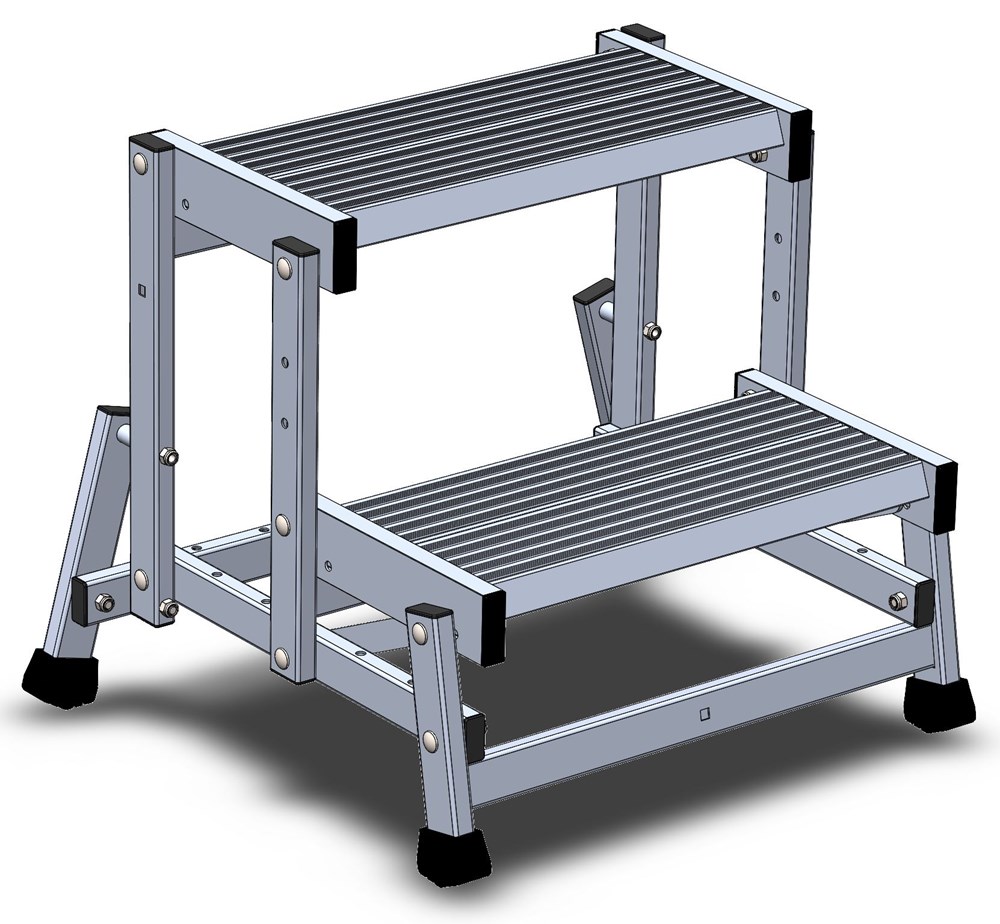

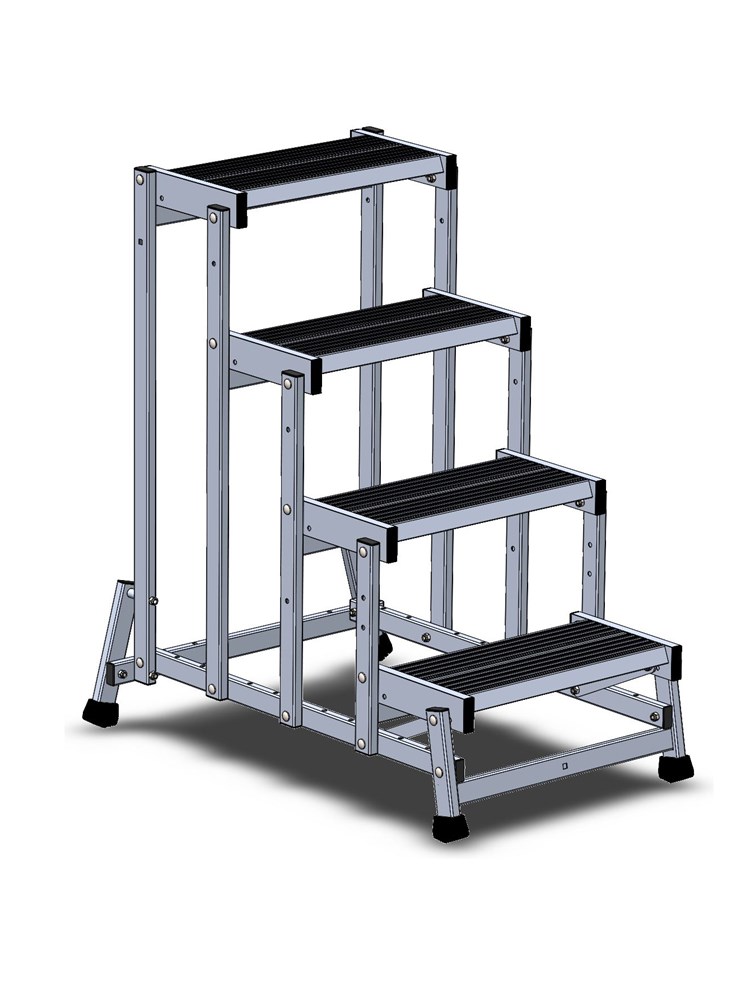

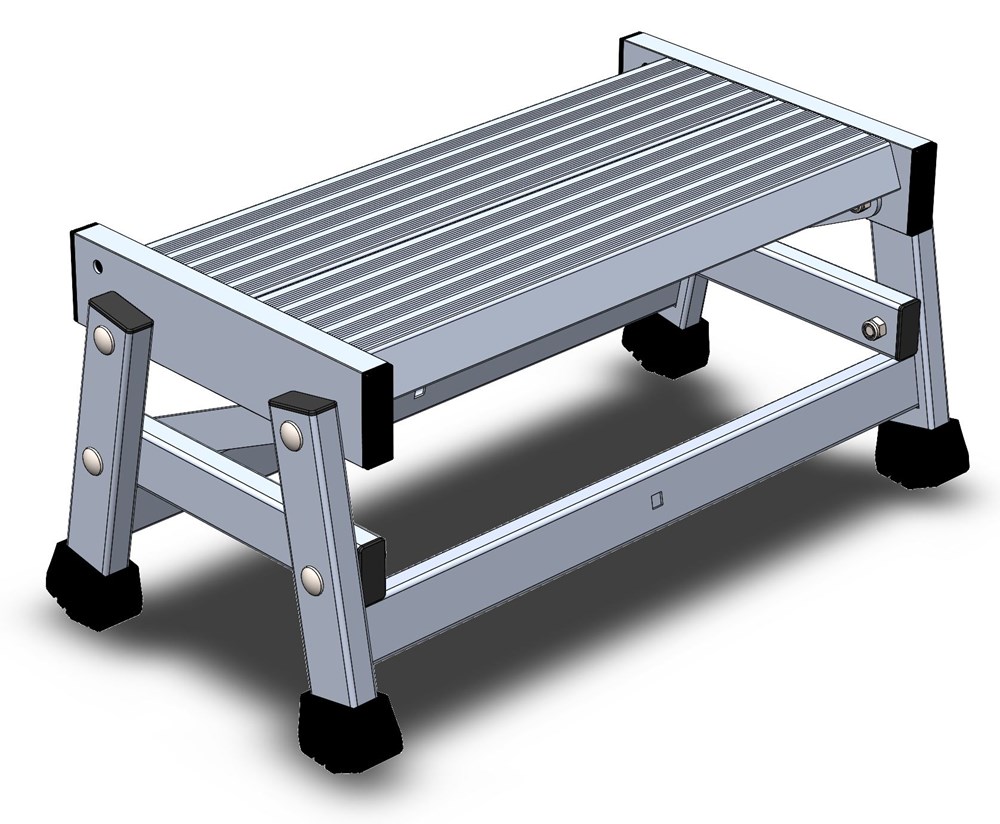

MEGA 1 STEP MEGA 2 STEPS MEGA 3 STEPS MEGA 4 STEPS STANDARD STEPS IN EXTRUDED ALUMINIUM

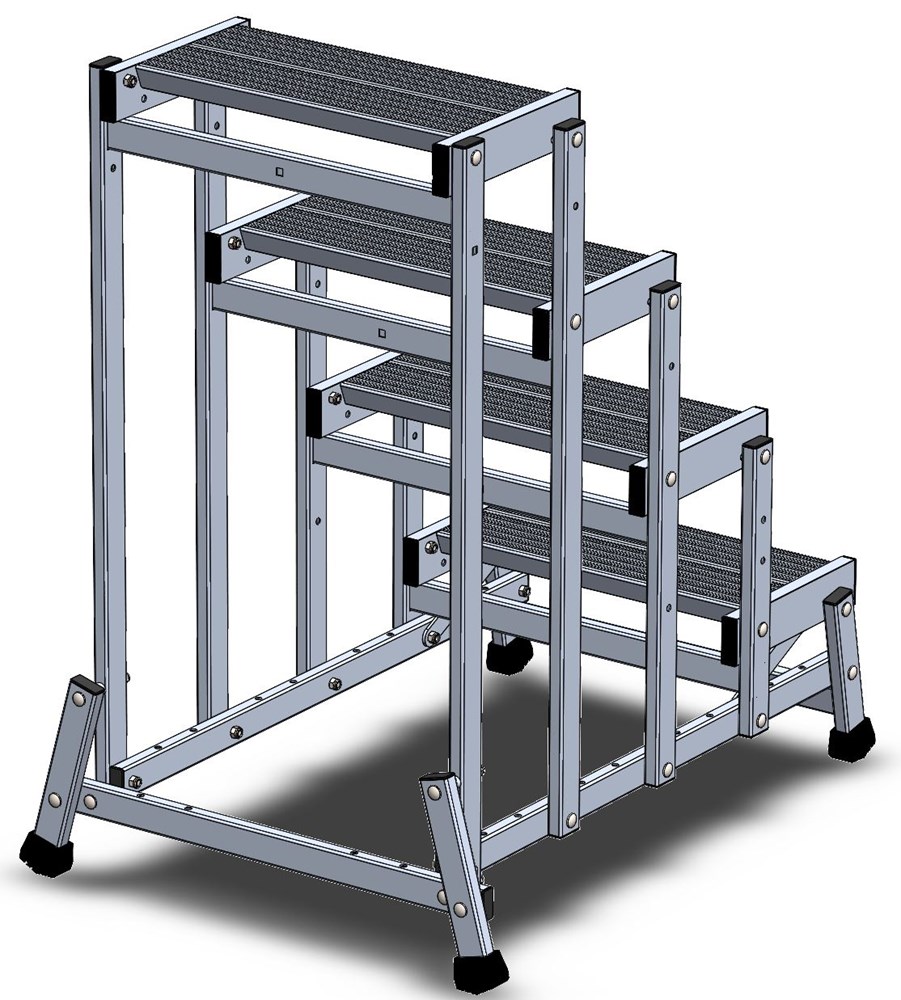

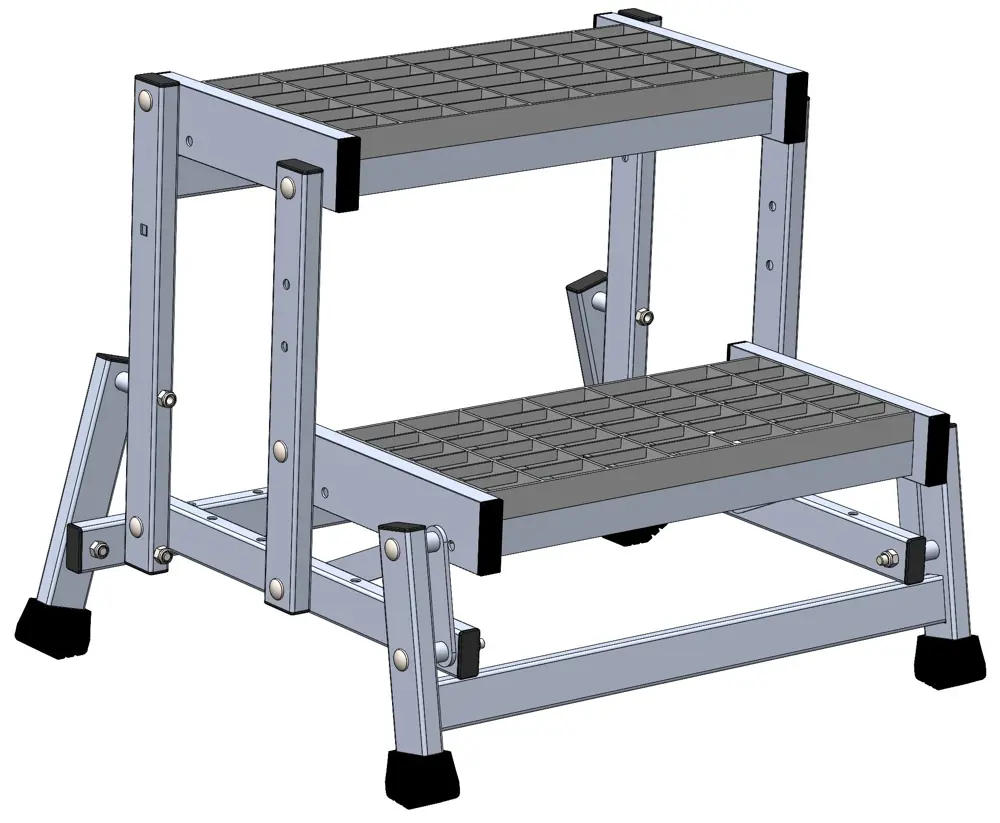

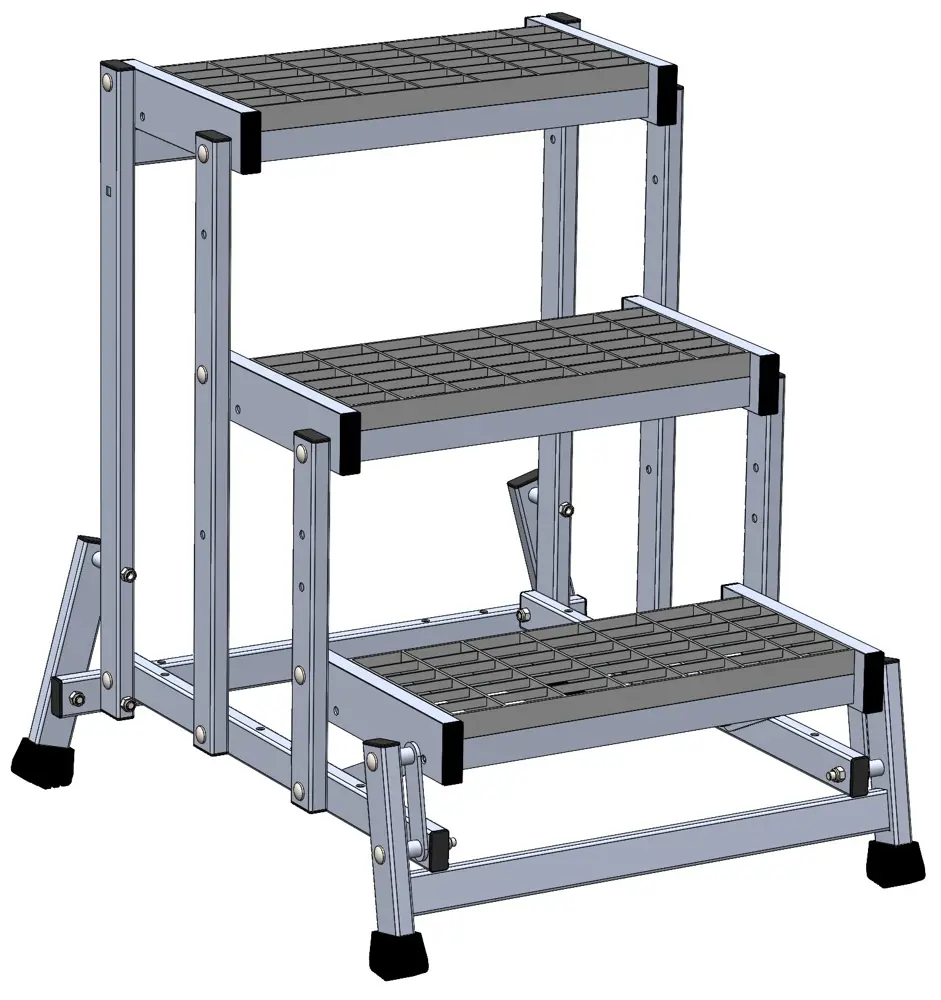

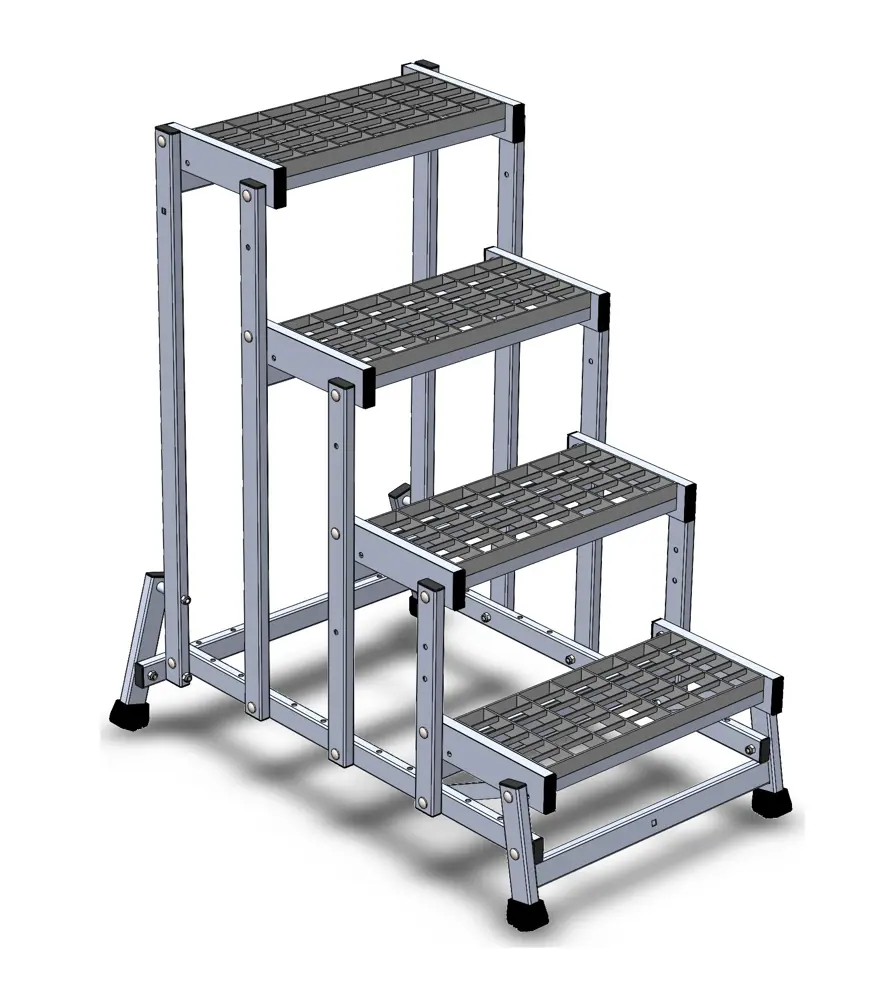

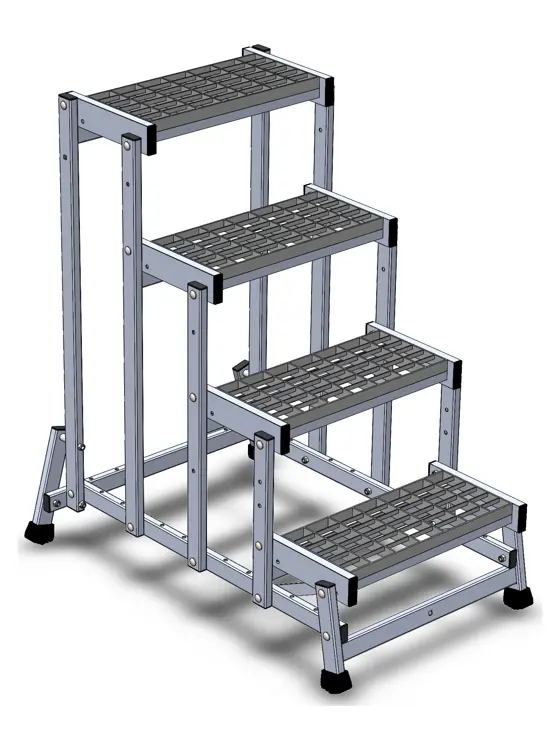

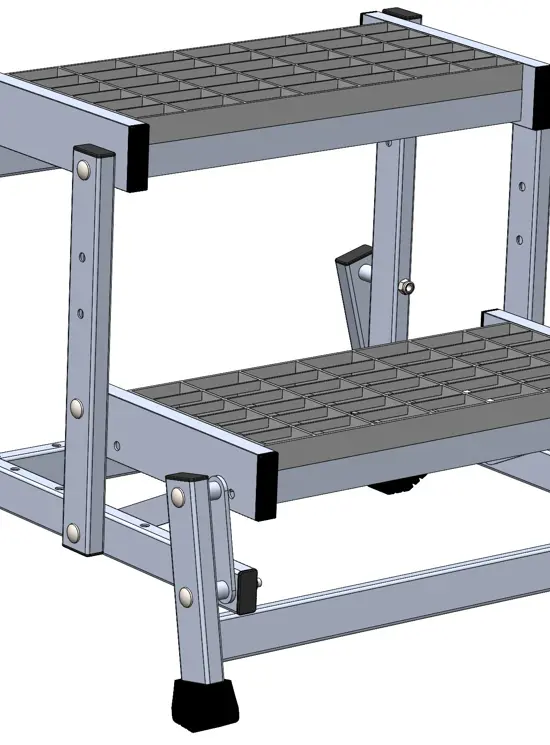

MEGA "G" DRANING

It can also be ordered with draining aluminium steps for use in presence of materials that must fall to the ground and not stop on the step.

From 1 to 4 grid steps
Available widths cm 50/60/80 cm

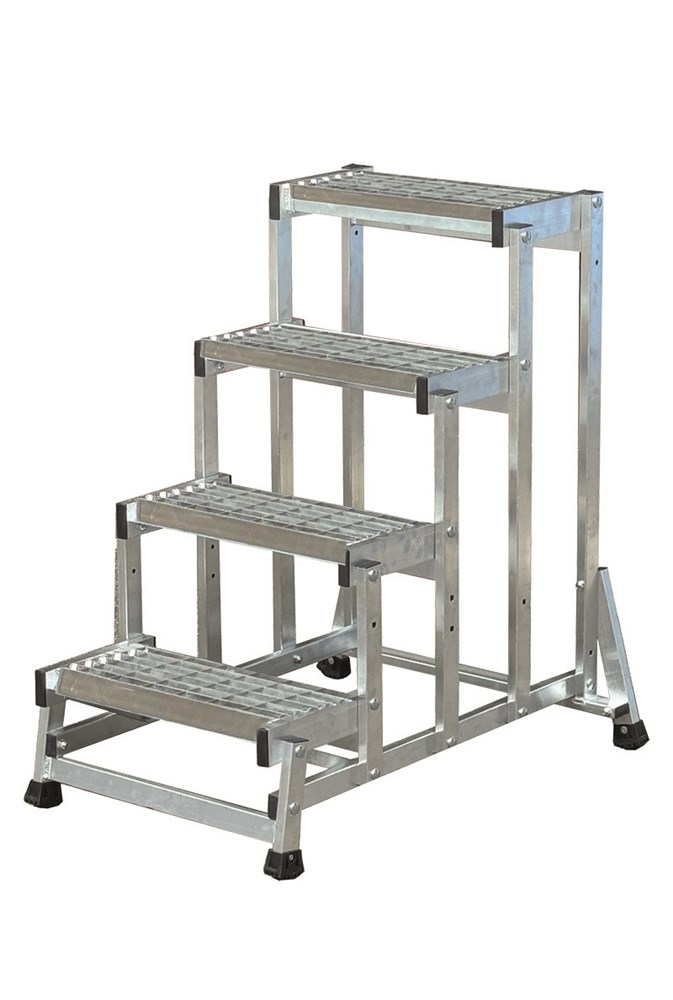

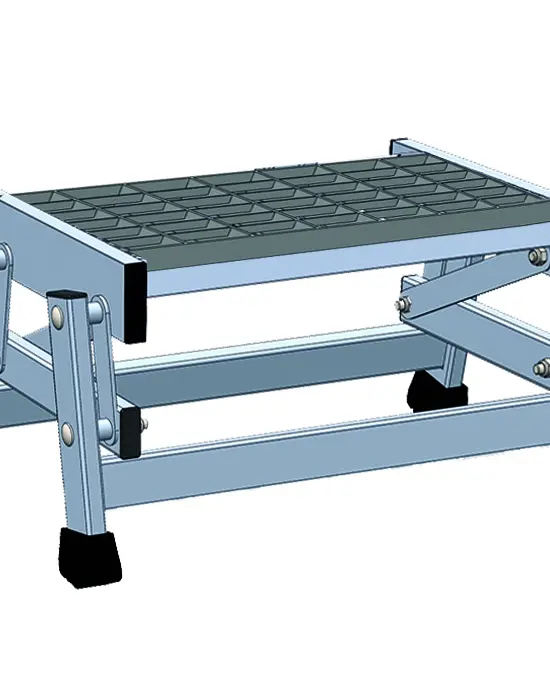

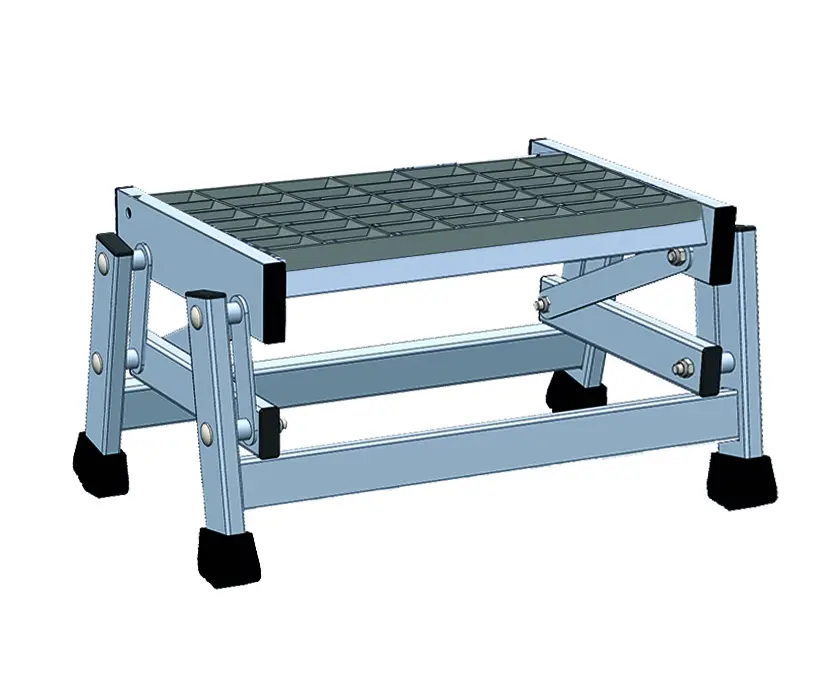

MEGA "G" 1 STEP MEGA "G" 4 STEPS RAINING ALUMINIUM STEPS

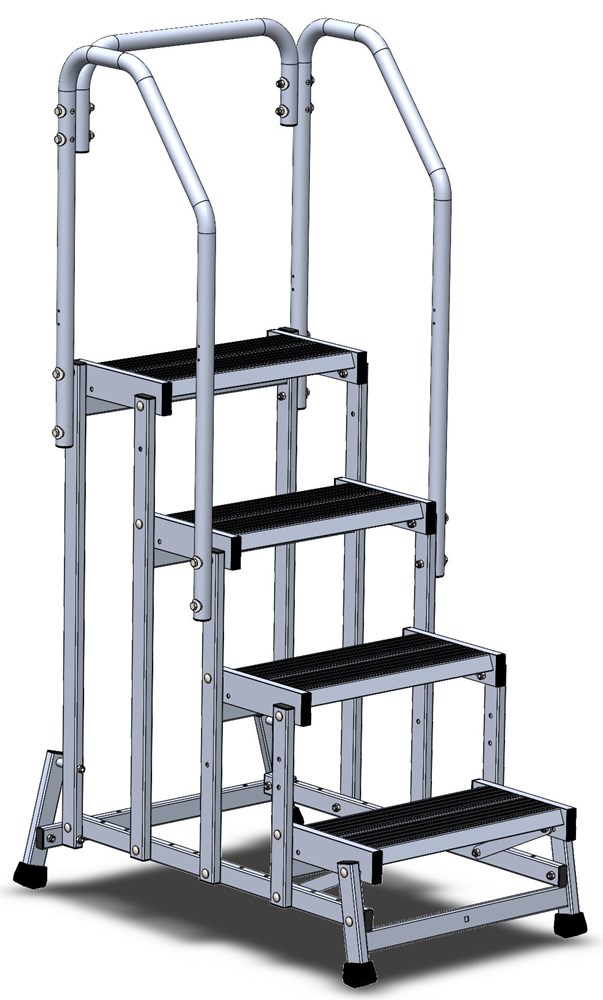

MEGA STANDARD OR DRAINING WITH HANDRAILS AND 100 CM GUARDRAIL

From 2 to 4 steps can be ordered with 1 or 2 handrails and with front guardrail

MEGA MEGA MEGA

1 HANDRAIL 2 HANDRAILS 2 HANDRAILS + GUARDRAIL

FRONT EXIT (NO EXIT)

PRICE LISTS:

MEGA WITHOUT HANDRAILS AND GUARDRAIL

No. of steps n.	Platform height m	Working height m	Base overall length cm	Width ramp cm 50 Code .	Width ramp cm 50 Code	Width ramp cm 50 Code	Weight kg	Width ramp cm 60 Cod.	Width ramp cm 60 Cod.	length base cm	Weight kg	Width ramp cm 80 Cod.	Width ramp cm 80 Cod.	Base width cm	Weight kg
1	0,25	2,25	30	SMEGA150G	SMEGA150	54	2,9	SMEGA160G	SMEGA160	69	3,3	SMEGA180G	SMEGA180	89	4
2	0,50	2,50	54	SMEGA250G	SMEGA250	63	6	SMEGA260G	SMEGA260	79	6,8	SMEGA280G	SMEGA280	99	8
3	0,75	2,75	78	SMEGA350G	SMEGA350	63	10	SMEGA360G	SMEGA360	79	9,9	SMEGA380G	SMEGA380	99	11,6
4	1,00	3,00	104	SMEGA450G	SMEGA450	63	11,6	SMEGA460G	SMEGA460	79	13,2	SMEGA480G	SMEGA480	99	15,4

MEGA + 1 HANDRAIL

No. of steps	Platform height m	Working height m	Overall length base cm	Width ramp cm 50 Code	Width ramp cm 50 Code	Base width cm	Weight kg	Width ramp cm 60 Code	Width ramp cm 60 Code	Base width cm	Weight kg	Width ramp cm 80 Code	Width ramp cm 80 Code	Base width cm	Weight Kg
2	0,50	2,50	54	SMEGA250GC	SMEGA250C	63	7	SMEGA260GC	SMEGA260C	79	7,8	SMEGA280GC	SMEGA280C	99	9
3	0,75	2,75	78	SMEGA350GC	SMEGA350C	63	11	SMEGA360GC	SMEGA360C	79	10,9	SMEGA380GC	SMEGA380C	99	12,6
4	1,00	3,00	104	SMEGA450GC	SMEGA450C	63	12,6	SMEGA460GC	SMEGA460C	79	14,2	SMEGA480GC	SMEGA480C	99	16,4

MEGA + 2 HANDRAILS

No. of steps n.	Platform height m	Working height m	Overall length base cm	Width ramp cm 50 Cod.	Width ramp cm 50 Cod.	Base width cm cm	Weight kg	Width ramp cm 60 Cod.	Width ramp cm 60 Cod.	Base width cm	Weight kg	Width ramp cm 80 Cod.	Width ramp cm 80 Cod.	Base width cm	Weight Kg
2	0,50	2,50	54	SMEGA250GC2	SMEGA250C2	63	8	SMEGA260GC2	SMEGA260C2	79	8,8	SMEGA280GC2	SMEGA280C2	99	10
3	0,75	2,75	78	SMEGA350GC2	SMEGA350C2	63	12	SMEGA360GC2	SMEGA360C2	79	11,9	SMEGA380GC2	SMEGA380C2	99	13,6
4	1,00	3,00	104	SMEGA450GC2	SMEGA450C2	63	13,6	SMEGA460GC2	SMEGA460C2	79	15,2	SMEGA480GC2	SMEGA480C2	99	17,4

MEGA + 2 HANDRAILS + AND GUARDRAIL RAMP WIDTH CM 60

No. of steps	Platform height m	Working height m	Overall length base cm cm	Width ramp cm 50 Cod.	Width ramp cm 50 Cod.	Base width cm	Weight Kg	Width ramp cm 60 Cod.	Width ramp cm 60 Cod.	Base width cm	Weight Kg	Width ramp cm 80 Cod.	Width ramp cm 80 Cod.	Base width cm	Weight Kg
2	0,50	2,50	54	SMEGA250GC3	SMEGA250C3	63	9	SMEGA260GC3	SMEGA260C3	79	9,8	SMEGA280GC3	SMEGA280C3	99	11
3	0,75	2,75	78	SMEGA350GC3	SMEGA350C3	63	13	SMEGA360GC3	SMEGA360C3	79	12,9	SMEGA380GC3	SMEGA380C3	99	14,6
4	1,00	3,00	104	SMEGA450GC3	SMEGA450C3	63	14,6	SMEGA460GC3	SMEGA460C3	79	16,2	SMEGA480GC3	SMEGA480C3	99	18,4

On demand for each model:

Stool assembled by the manufacturer (except for handrails and guardrails supplied disassembled). To obtain the code, add an M to the codes in the tables.
Mega with increased platform (depth 40 cm) (extendable in increments of 20 cm)
Mega with increased platform (depth 40 cm), with handrails and guardrail

Descriptione	Code	Picture

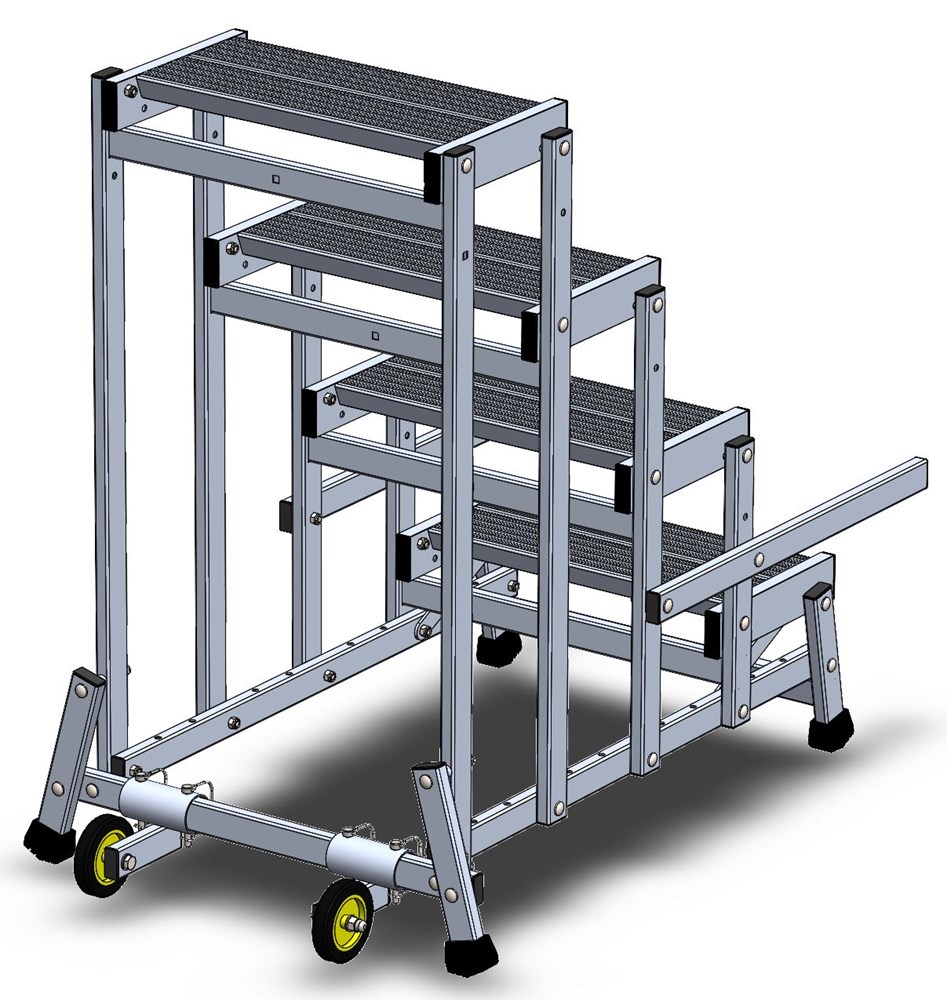

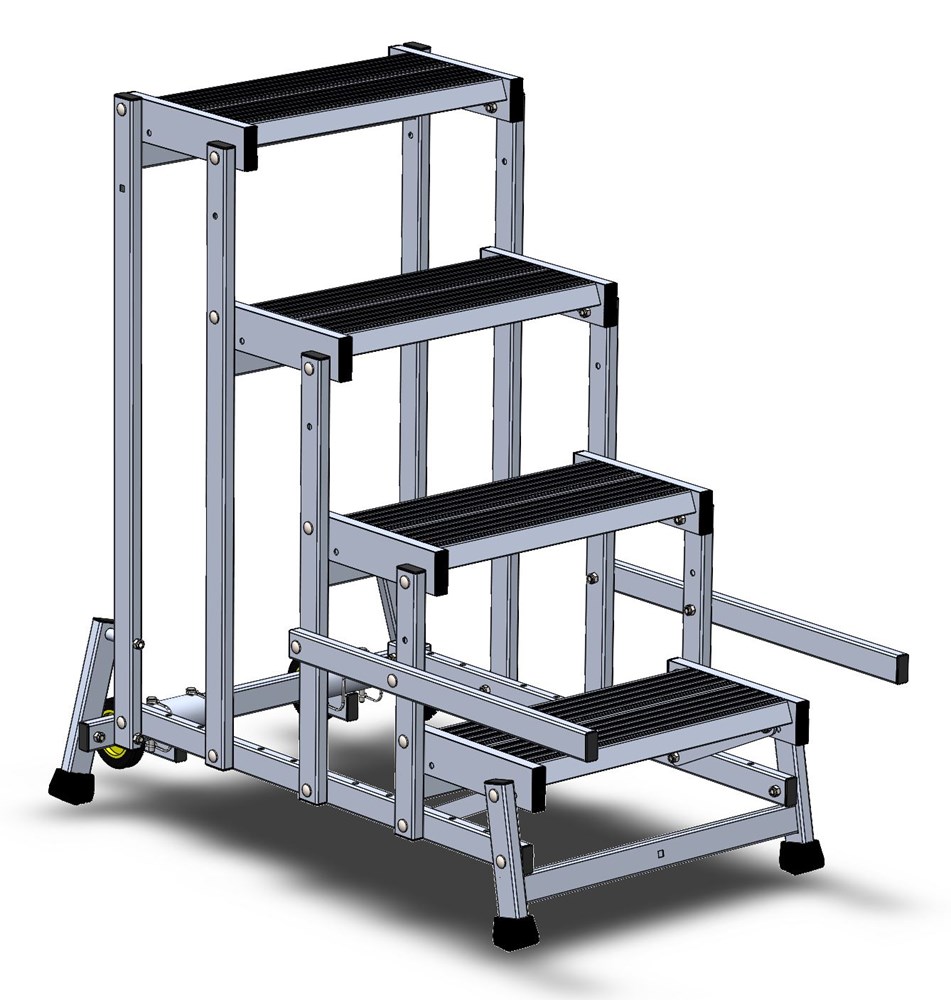

Kit 2 handles and 2 lateral/front wheels Ø 80 mm for long movements. The wheels are swivel so that they can be placed close to the wall even from the front.	SMEGARUOTE

Spare parts for all models

Description	Code
Side handrail Mega with platform depth 20 cm 2 steps (rh/sh are the same)	SMEGACORR20
Side handrail Mega with platform depth 20 cm 3 and 4 steps (rh/sh are the same)	SMEGACORR21
Side handrail Mega with platform depth 40 cm 2 steps (rh/sh are the same)	SMEGACORR40
Side handrail Mega with platform depth 40 cm 3 and 4 steps (rh/sh are the same)	SMEGACORR41
Front guardrail width 50 cm	SMEGAPAR50
Front guardrail width 60 cm	SMEGAPAR60
Front guardrail width 80 cm	SMEGAPAR80

MEGA SPECIAL ON REQUEST

On demand, using standard materials, it can also be structured in various custom configurations:

MEGA "LUNGO" MEGA "PALCO" MEGA "PONTE"

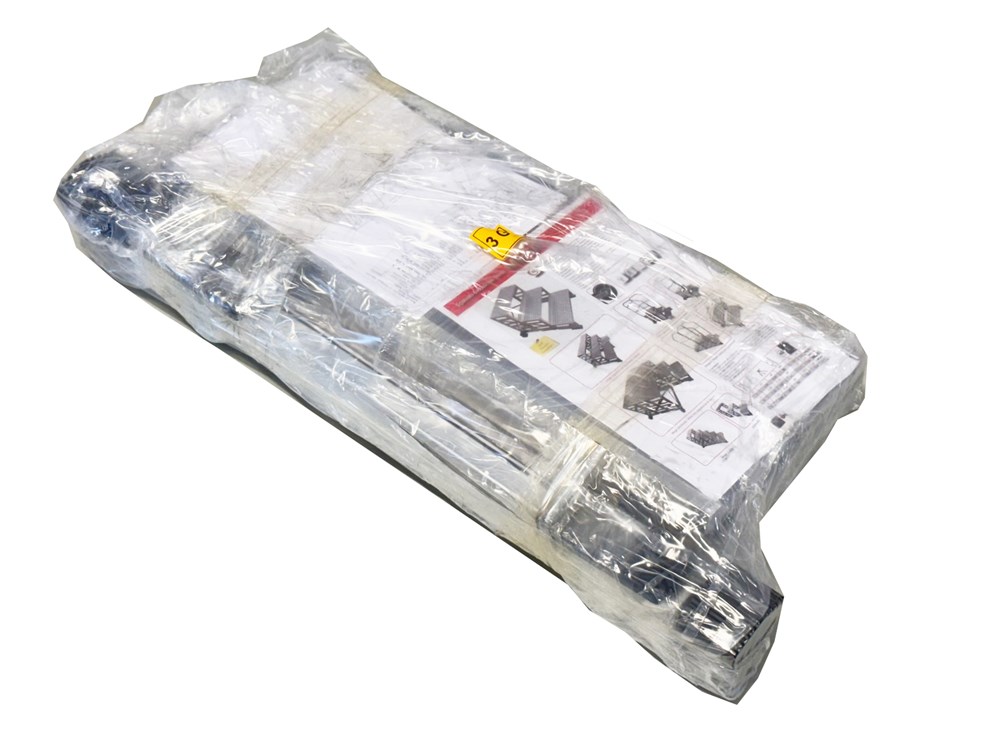

ULTRA-COMPACT PACKAGING

Example: packaging MEGA 3 steps with handrail
