Stepstool karo PP

max height m 1,00

It shows the validity of the guarantee in years

It shows the maximum weight capacity of a product

It is shown on products which conform to the European Standard on welding

Suitable for heavy duty

Professional single-sided stepstool suitable to access and maintain machineries, vehicles or loading platforms, the 20 cm deep flat steps are comfortable, wide and non-slip,

Stools for industrial maintenance and vehicle access with 4 anti-fingerprint wheels with a diameter of 150 mm and brakes

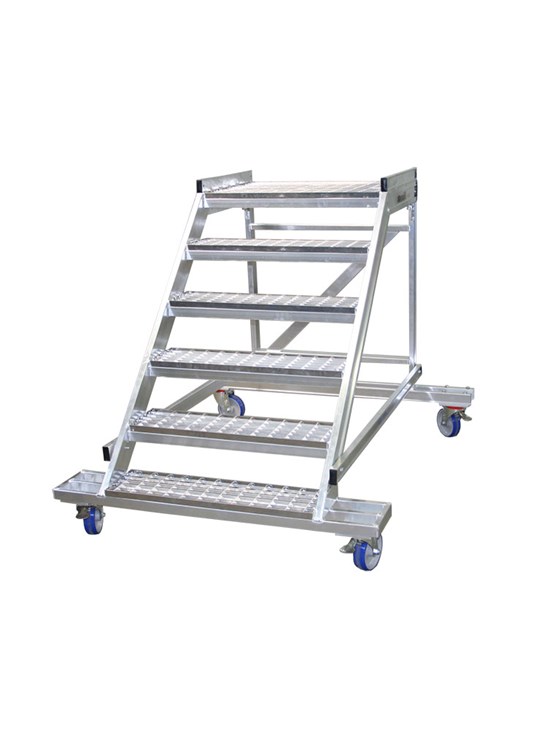

Professional single-sided stepstool suitable to access and maintain machineries, vehicles or loading platforms.
Ikaro is a series of heavy duty access equipments made of high performance extruded ribbed aluminium welded with TIG system.

The user can choose the desired width and height according to his requirements.

The non-skid flat steps are comfortable and large.

It is easy to mount thanks to the inclination of 45° of the climbing ramp and to the optional handrails.

Ikaro is foldable and packed in thermo-shrinkable plastic.
The operator can choose the width and height suitable for their access needs.
The 20 cm deep flat steps are comfortable, wide and non-slip.
The platform can be equipped on request with railings on 2 sides (for front landing) or on 3 sides.
The operator can go up with "hands free" and go down even with the front facing the landing.

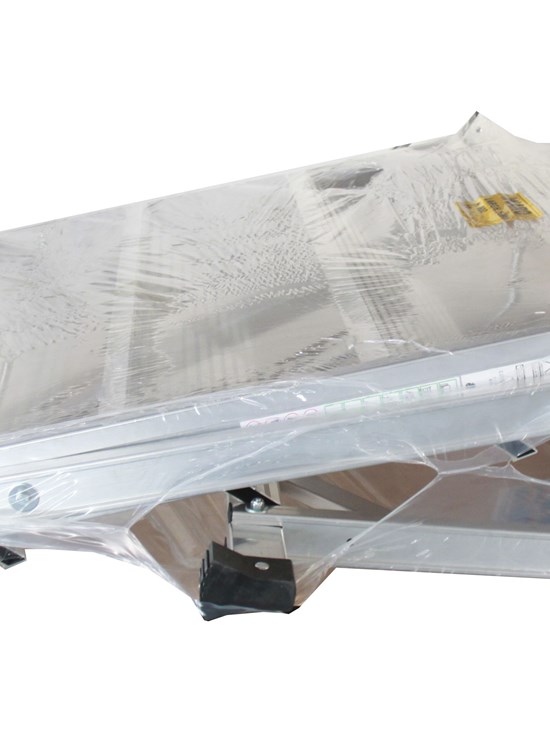

IKARO is packed in shrink wrap.

On request (see tables below)

Models with 2 to 5 steps (platform included) can be chosen for a platform height ranging from 40 to 100 cm from the ground.
The width of the ramp and platform can be requested from 60, 80 or 100 cm.
The landing platform depth is available from 40 or 60 cm
All models can be requested without railings or even with railings on all sides of the platform, with front, left or right side landing.

(only if equipped with a 60 cm platform).

Each version can be requested with steps and platform in aluminum grating (for sand, lime, cement, snow, mud or other materials to drain)
All models up to 5 steps comply with the European Standard UNIEN14183.

IKARO INTERNATIONAL.pdf (1.5 MB)
