Punto S FULL OPTIONAL

max height m 0,92

It shows the validity of the guarantee in years

It shows the maximum weight capacity of a product

It is shown on products which conform to the European Standard on welding

It is the European Standard for ladders

Suitable for heavy duty

Double sided aluminium stepstool with ergonomic platform hight from m 0,40 to 1 maccessories,

ALL THE PUNTO S RANGE OF PRODUCTS CAN BE USED UP TO THE PLATFORM ACCORDING TO EN14183

Professional double sided aluminium stepstool with flat steps.

Punto S is tested with the European Standard UNIEN14183.

The operator can stand on the last steps or on the platform even without the guardrail.

Steps	from 2 to 5
Platform hight	from m 0,40 to m 1
Working hight	from m 2,40 to m 3
Weight	from kg 3,60 to kg 6,6
Capacity	150 kg
Folded thikness	cm 22
Steps distance	cm 20

2 devices block any accidental opening: anti opening/closing rigid bars and hinges in galvanized steel
Ergonomic reinforced non-skid rubber feet
Non-skid aluminium steps 8 cm
Distance between steps 20 cm
Thickness when closed 22 cm
Top platform 20x39 cm
Ribbed frame and supports under the longest steps
Label and instructions for assembly and use
Thermo-shrinkable plastic package with showcard

European Standard EN14183.

The Punto series is tested with the EN14183 European standard.
The operator can step on the last steps or on the platform even in the absence of the guardrail.
The platform is considered in the number of steps.

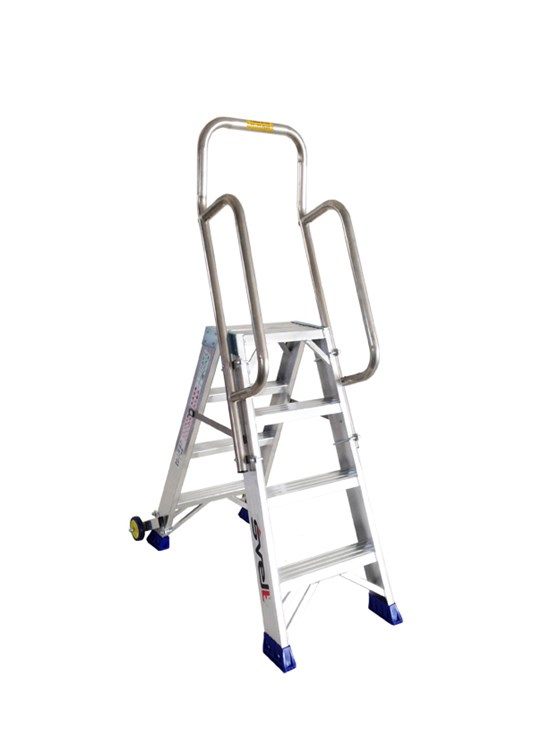

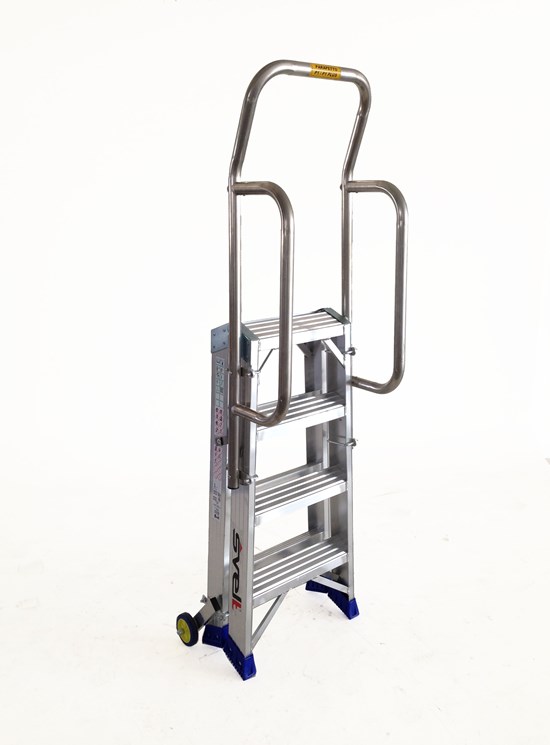

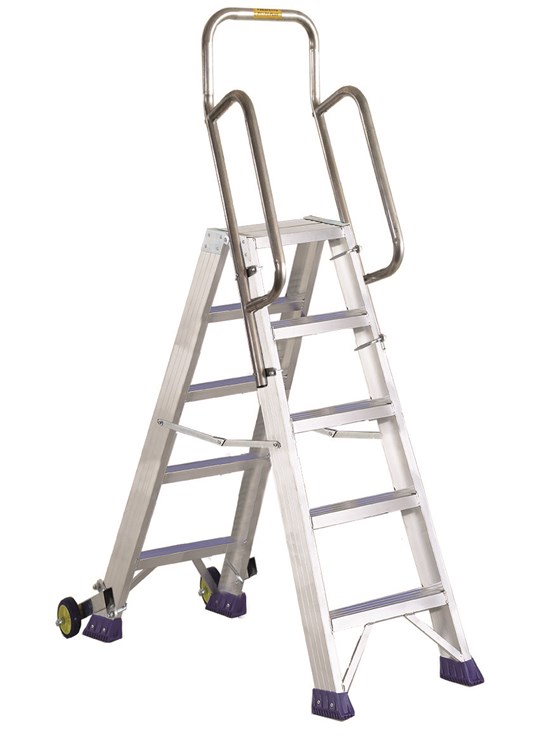

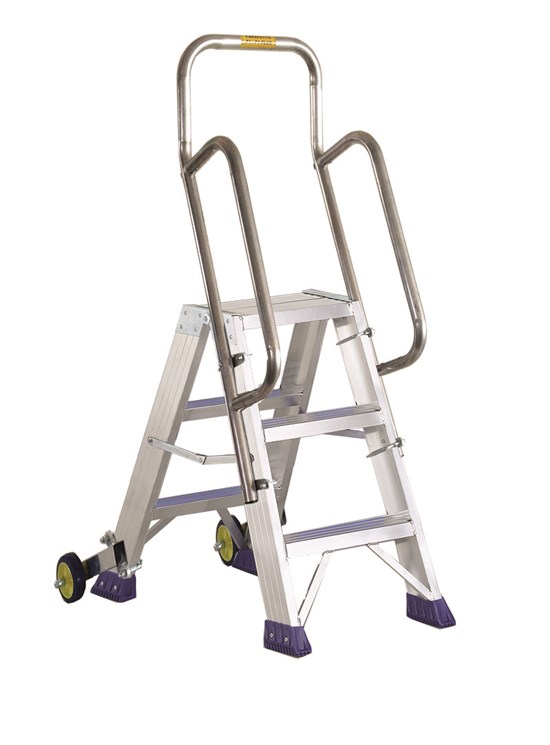

The full optional version include:

N° 1 Guardrail
N° 2 Handrails integrated with the guardrail
N° 2 Wheels

Accessories available for Punto S

Guardrail (it can be integrated with the special handrails).
2 Special handrails. They can be integrated with the guardrail.
2 Standard handrails. They can be used just without a guardrail.
Wheel kit (2 or 4)

These accessories allow a comfortable and safe professional use.
With the optional aluminum guardrail it is possible to use the stool with a valid support and a feeling of safety and comfort that increase productivity.

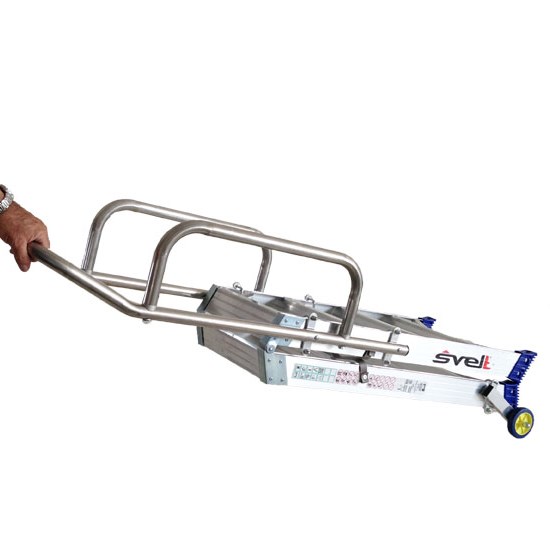

The wheels (2 or 4) allow you to move the stool quickly in order to save time and effort.

The handrails allow a comfortable grip during the climb.

The optional accessories are supplied in kits to be mounted on the stool.
These accessories are universal for stools or ladders with profile 80 x 20 mm.
There is no need for the stools to be prepared with holes.
The accessories are mounted with screws and nuts without drilling the profile.
It is therefore not necessary to order the accessories together with the ladder or the stool but they can also be ordered later.
Anyone can apply the accessories on products already in their possession.

Suitable accessories for range:
Punto - P1 - V6
