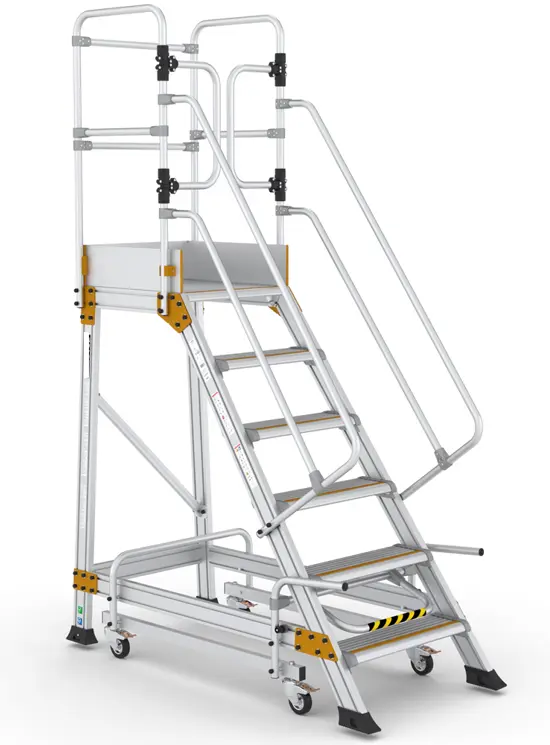

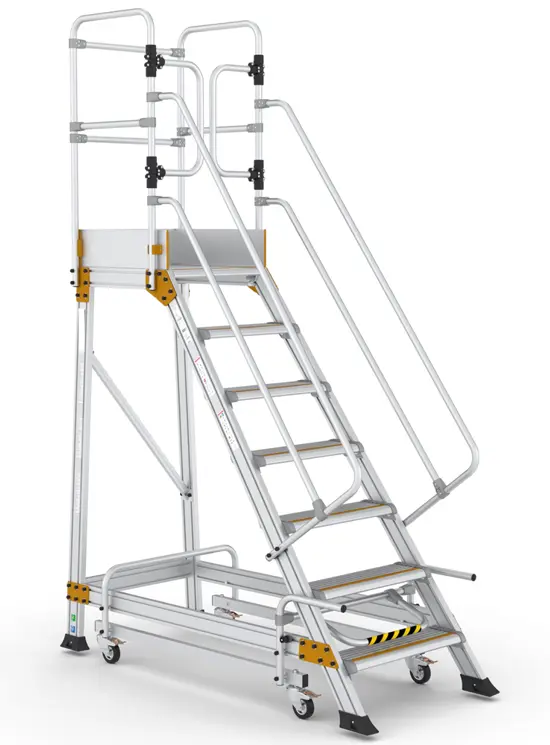

Scala Palco Safe

Max height 1.75 m

Producted in compliance with the European Standard for mobile platform ladders

This product has successfully passed the test of the German quality control body TÜV according to the European Standard on ladders

It shows the validity of the guarantee in years

It shows the maximum weight capacity of a product

All our products conforms to the standads in force

Suitable for heavy duty

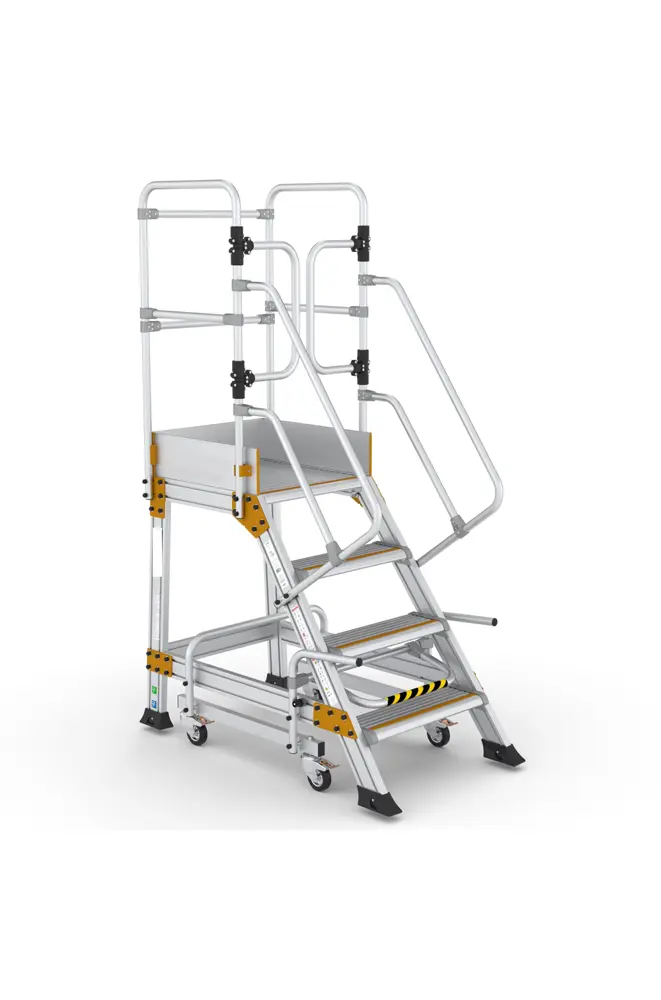

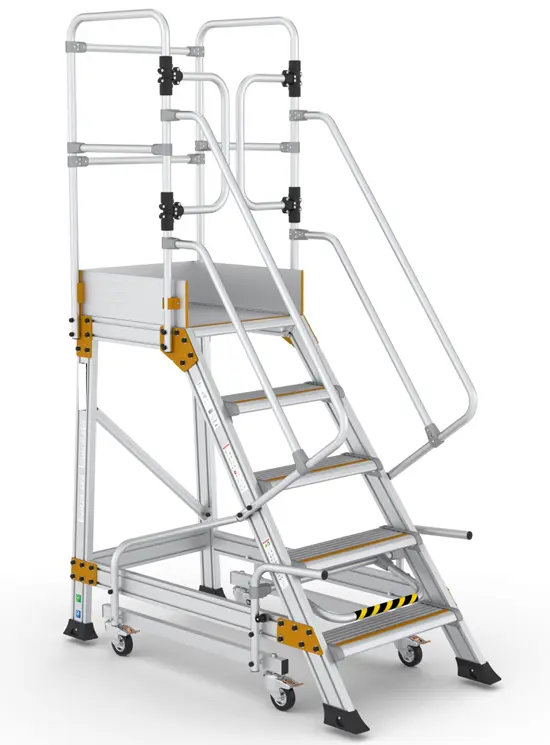

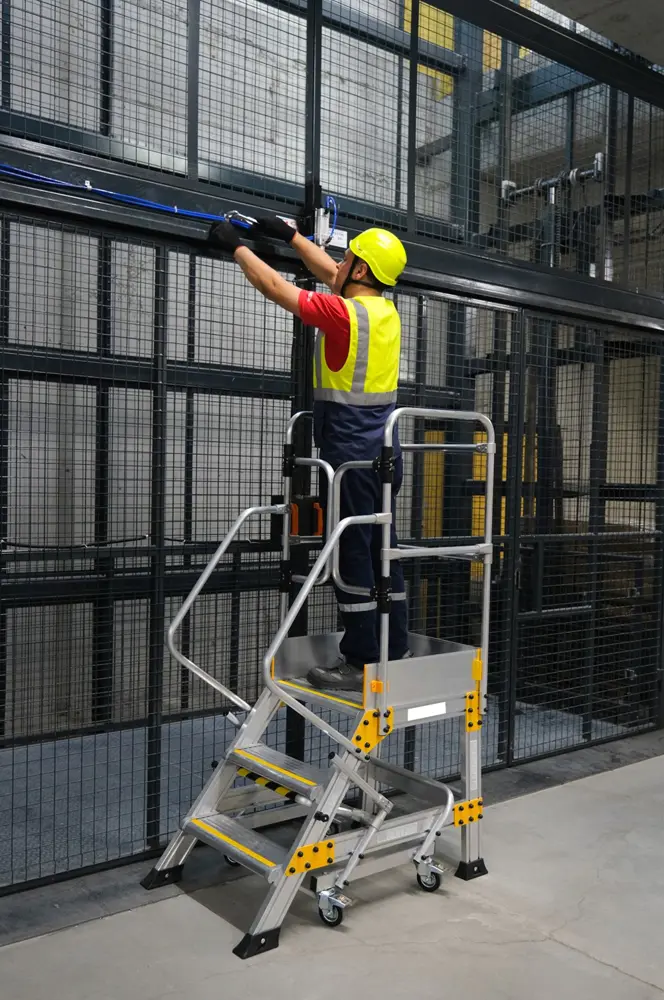

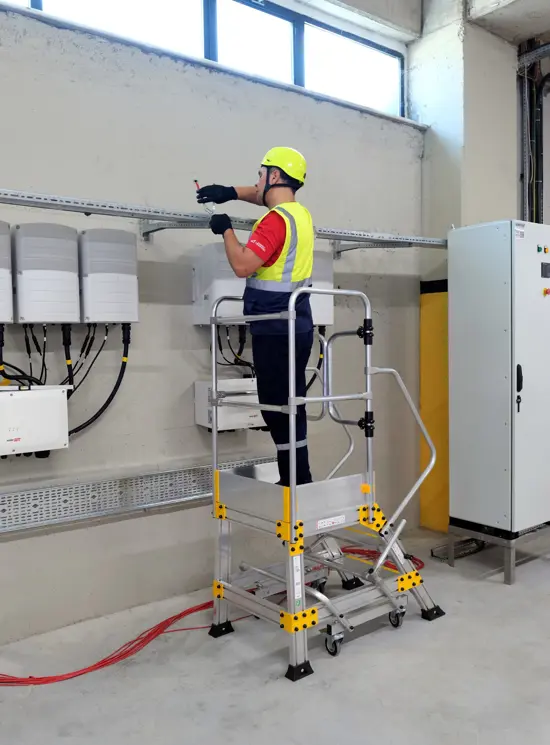

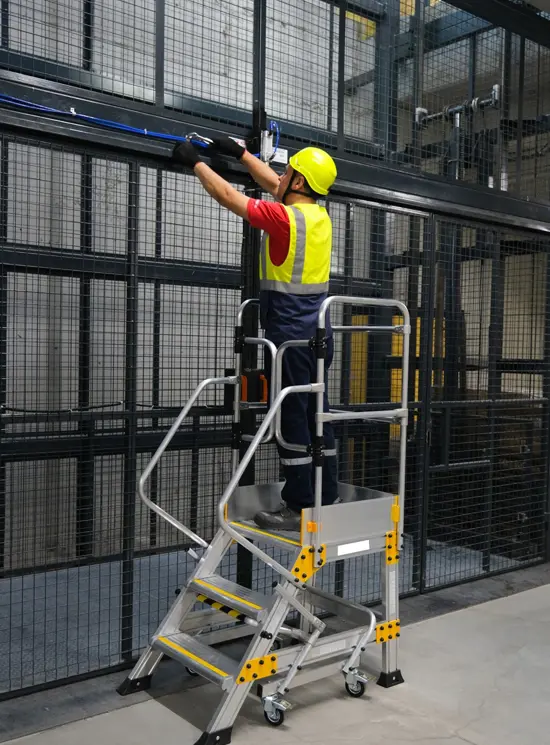

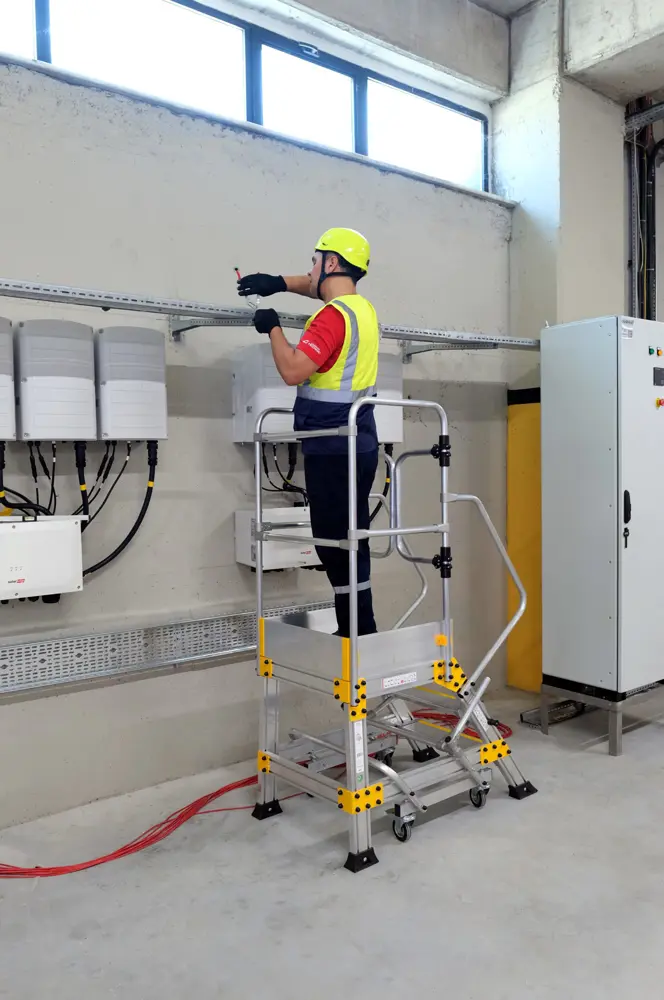

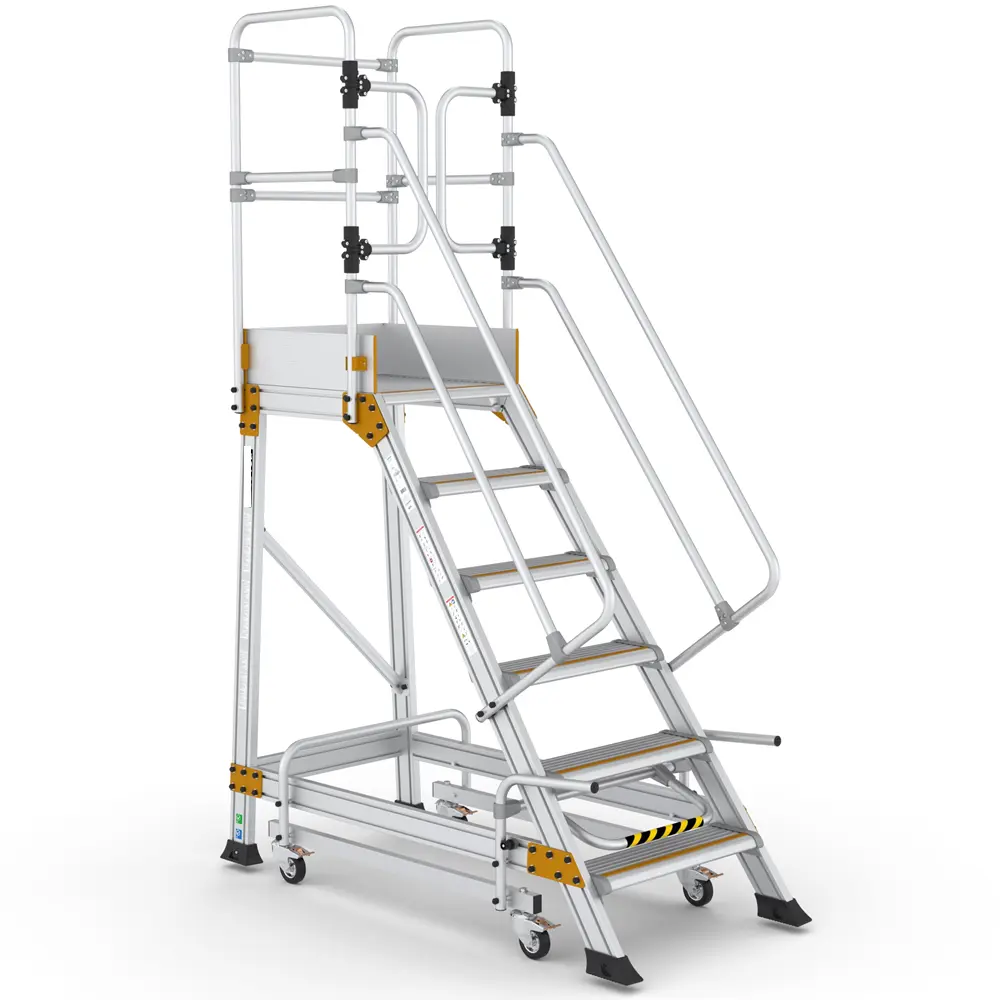

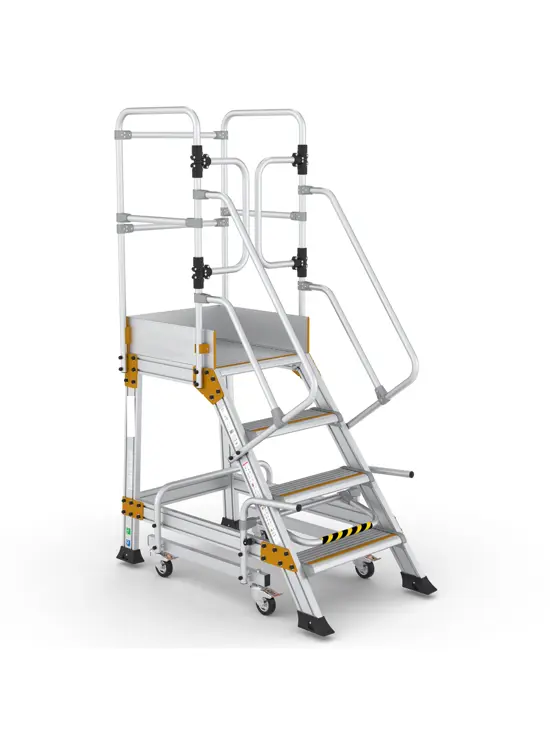

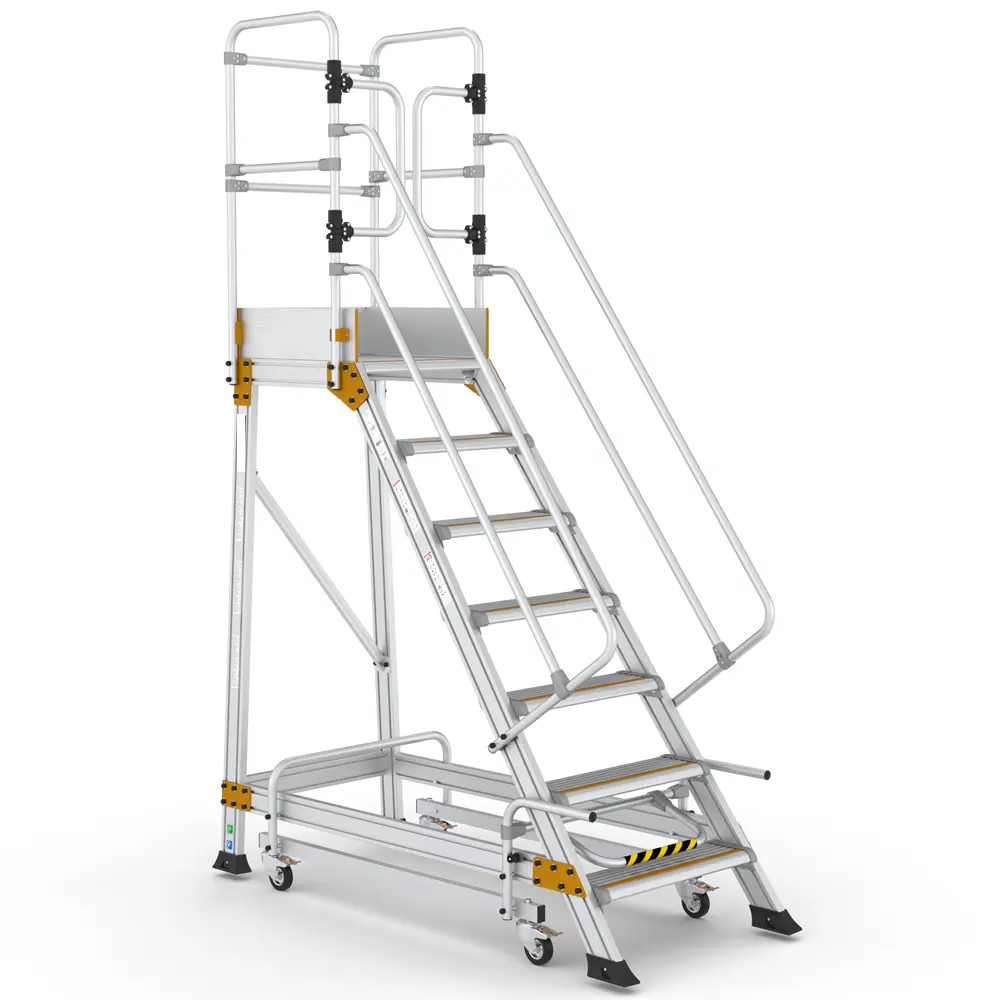

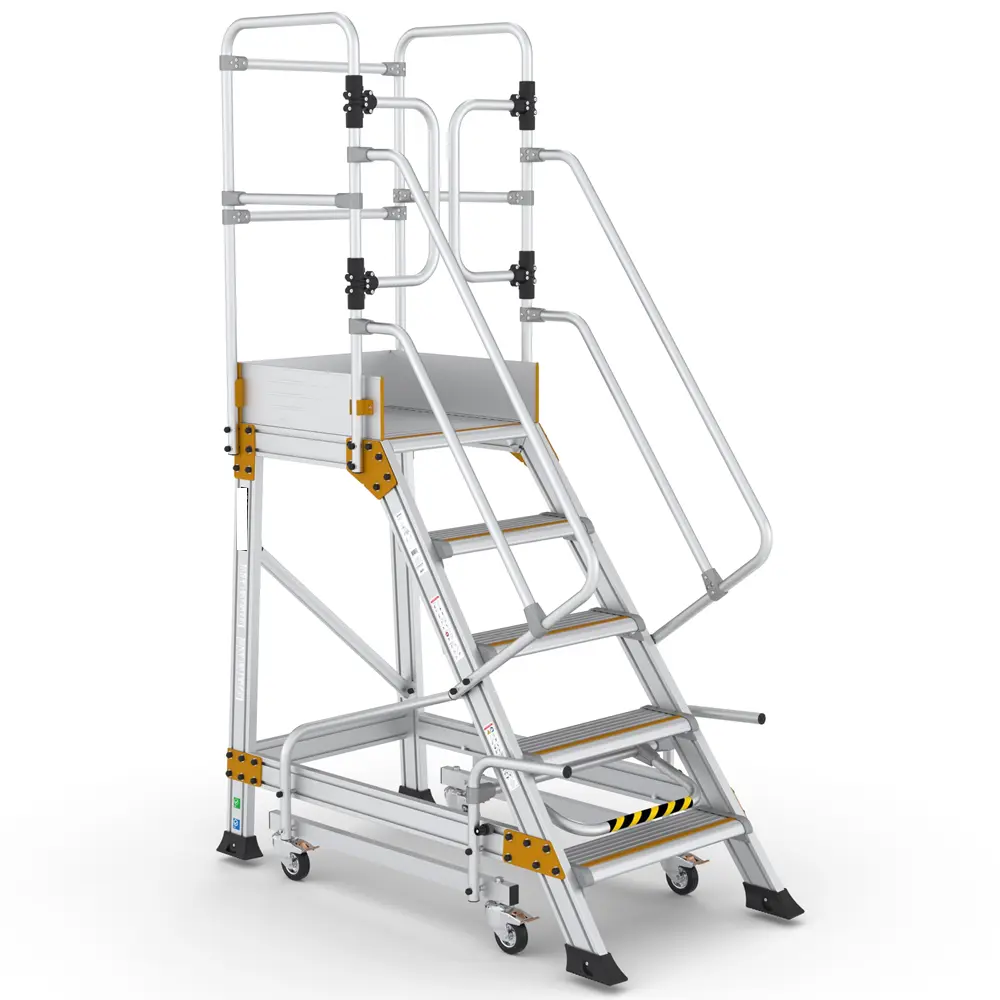

Step stage ladder with SICURBLOCK movement system (4 wheels on manual lever trolley)

Professional ladder with steps to a climbing section.

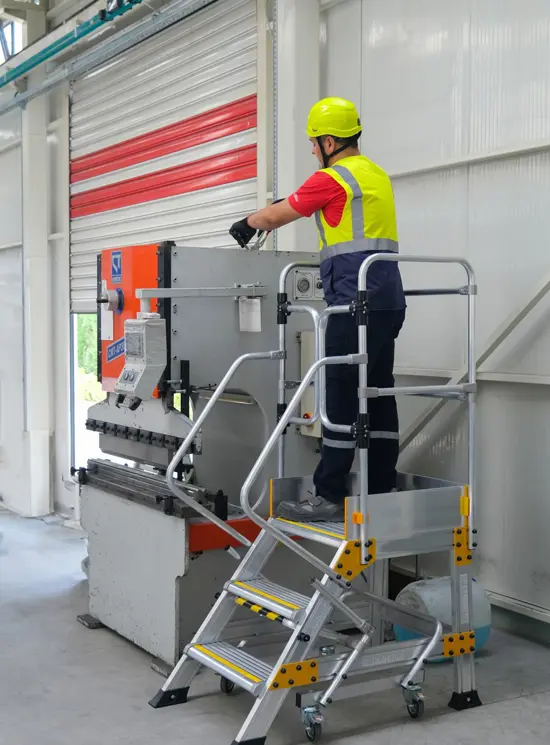

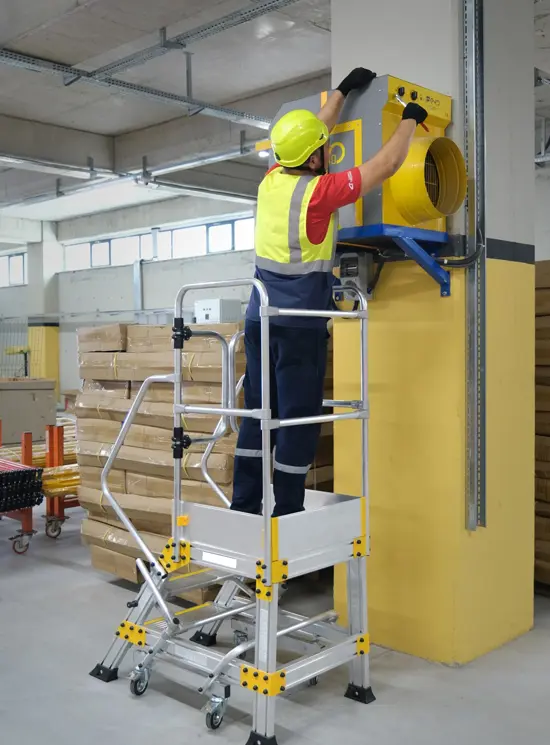

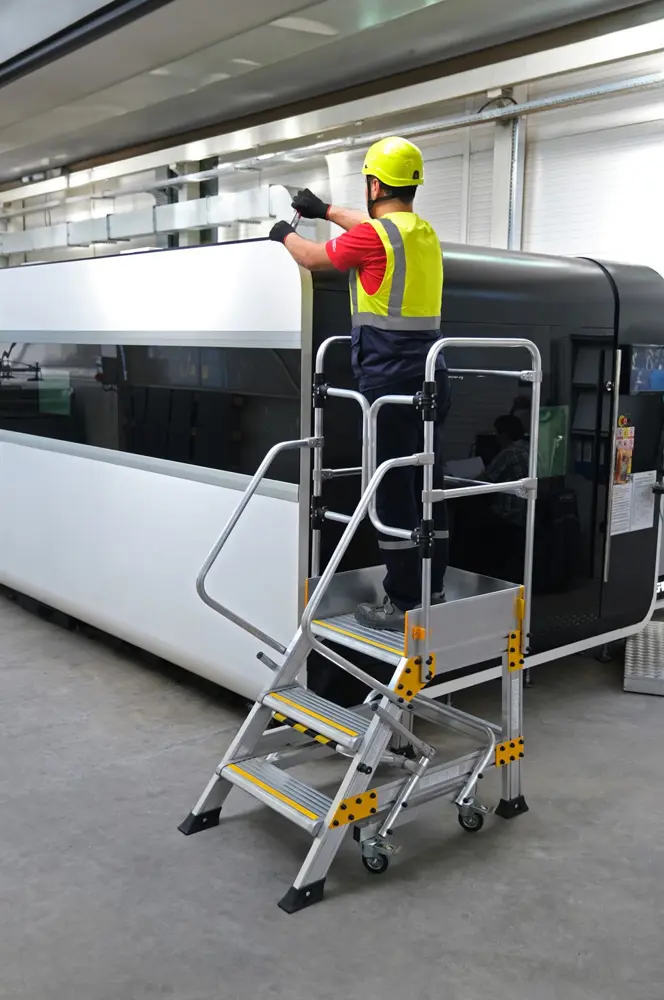

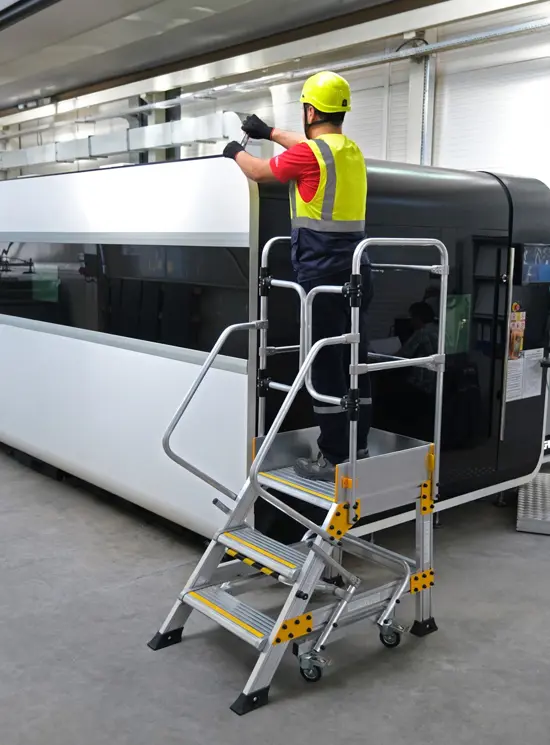

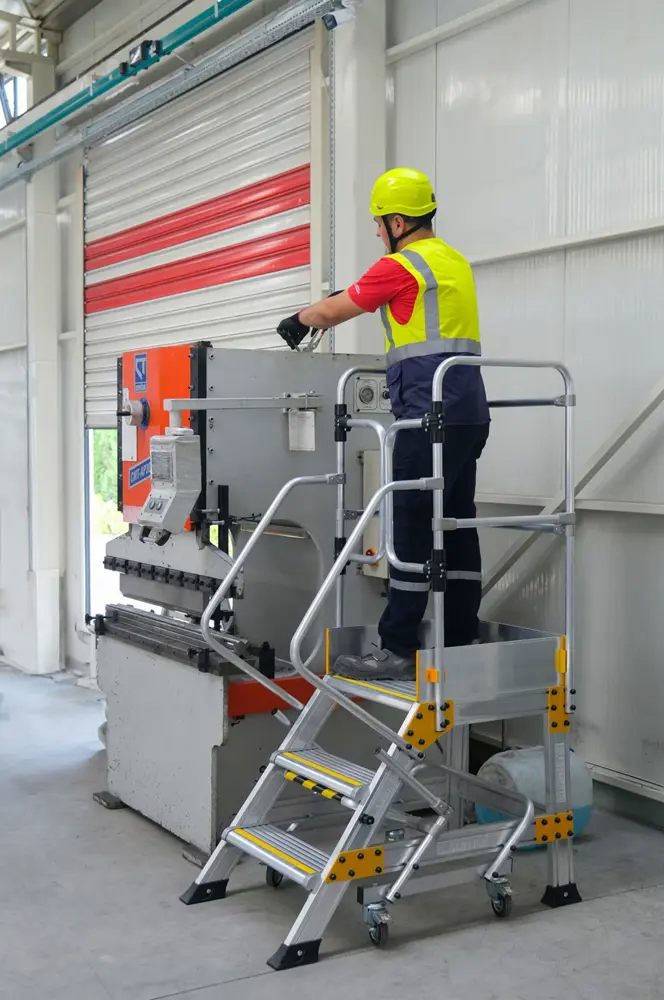

Made of aluminum , it is ideal for use on machinery in the workshop and for access to loading floors.

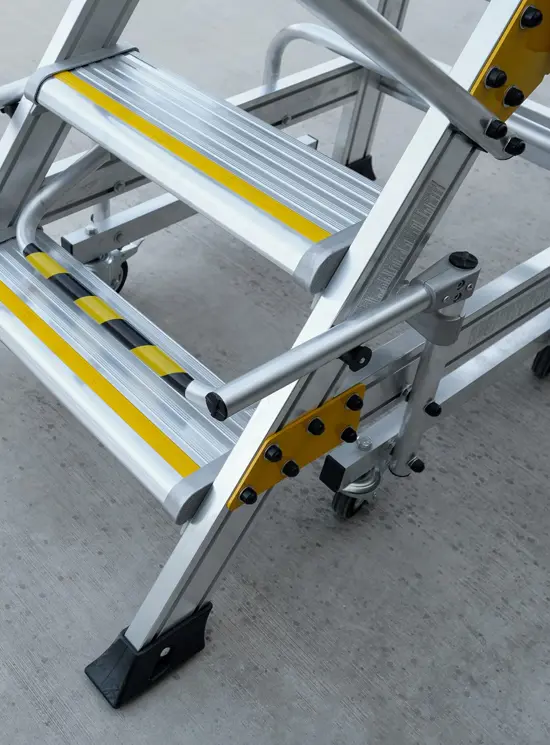

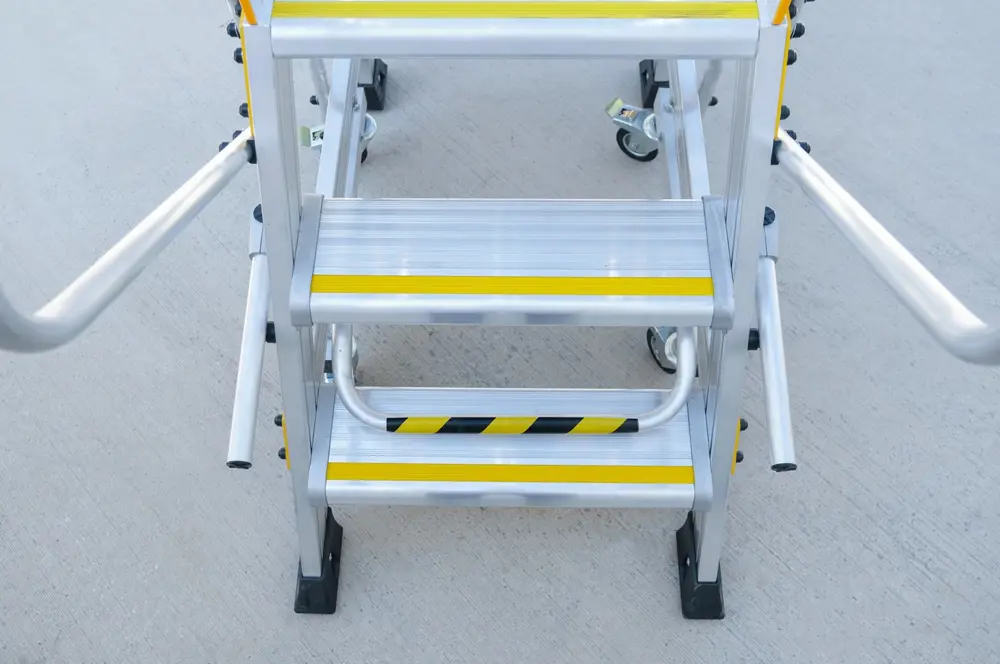

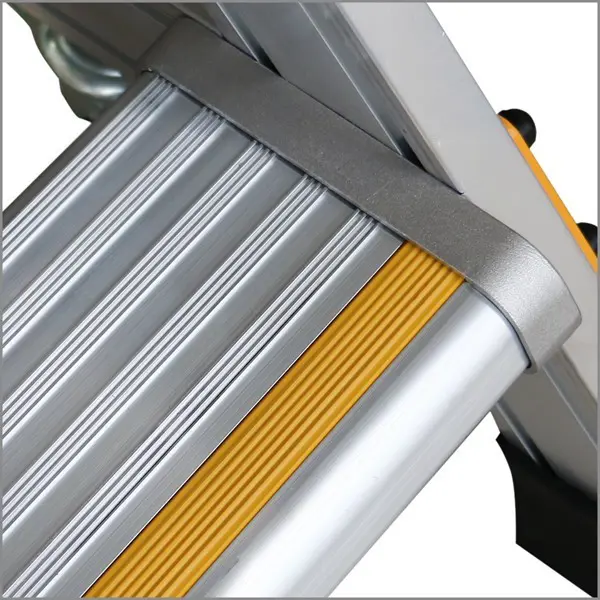

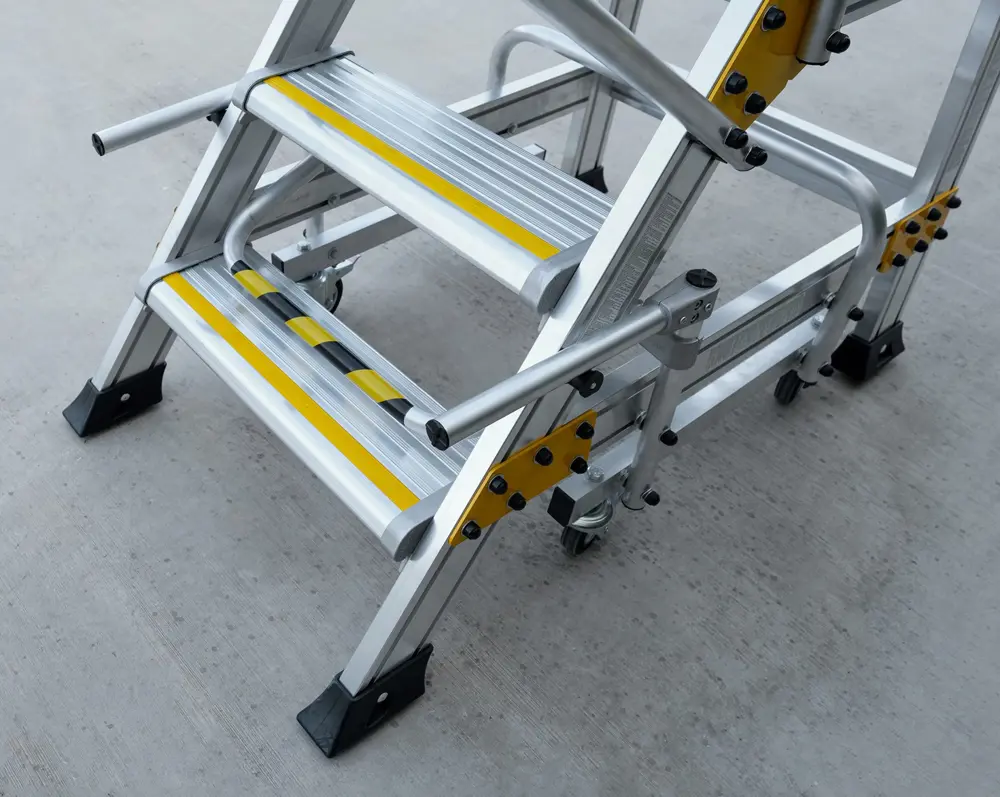

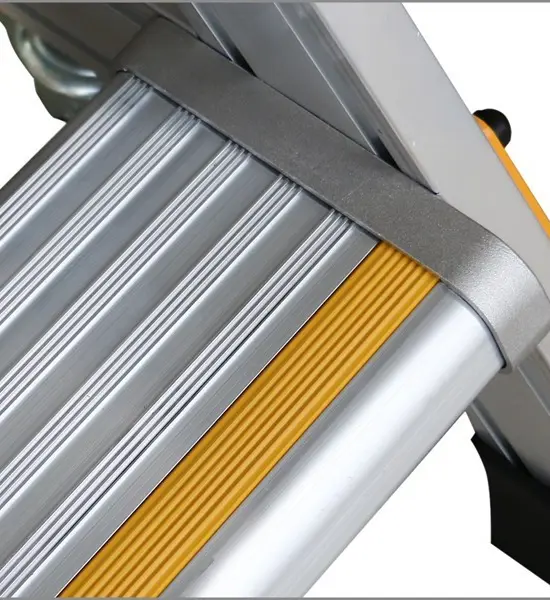

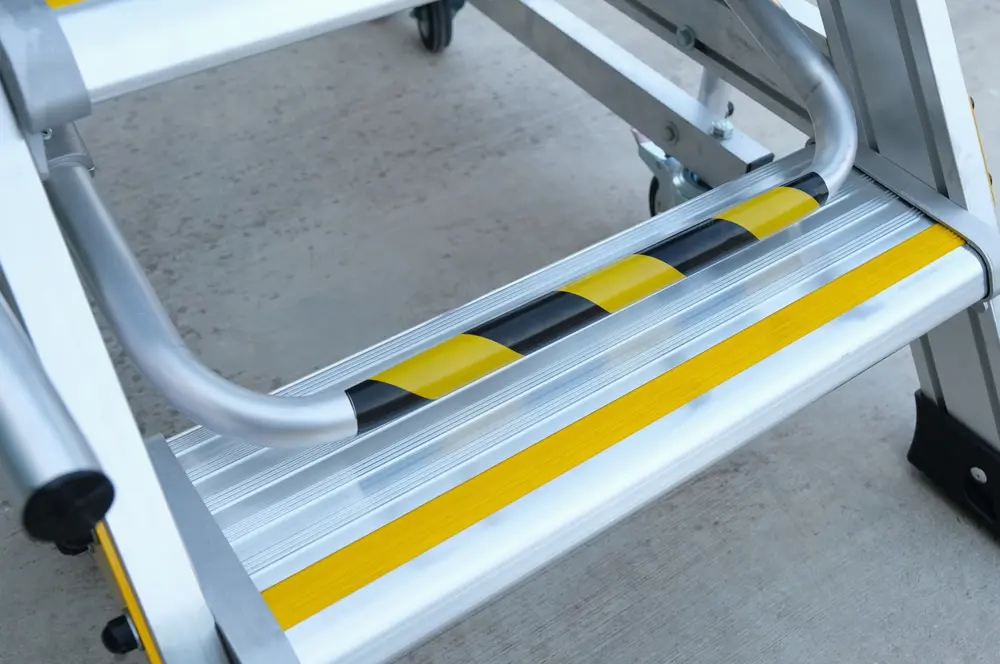

Wide flat steps 180 mm deep non-slip.

The base is flared with an extremely wide support on the ground that gives it great stability and comfort of use.

It is rust-proof.

SICURBLOCK braking system

The Sicurblock self-braking safety system allows you to move the ladder on 4 swivel wheels and lock it with a gesture in the working position.

It consists of a manual lever that allows the operator to activate the base frame equipped with wheels when movement is necessary.
When the lever trolley is deactivated, the feet of the ladder rest on the ground and make the stool stable and ready for the operator to climb.

The ladder must not be moved with people, objects and/or material on board.

European Standards EN131/7 (certified by TUV) and Italian Standards Legislative Decree 81/08
360° protection

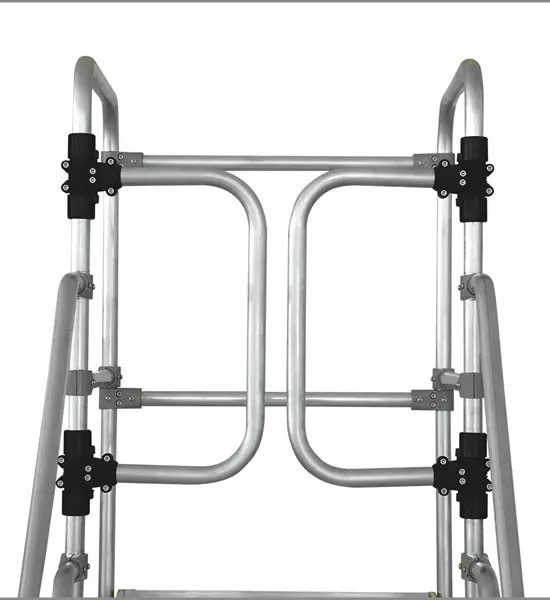

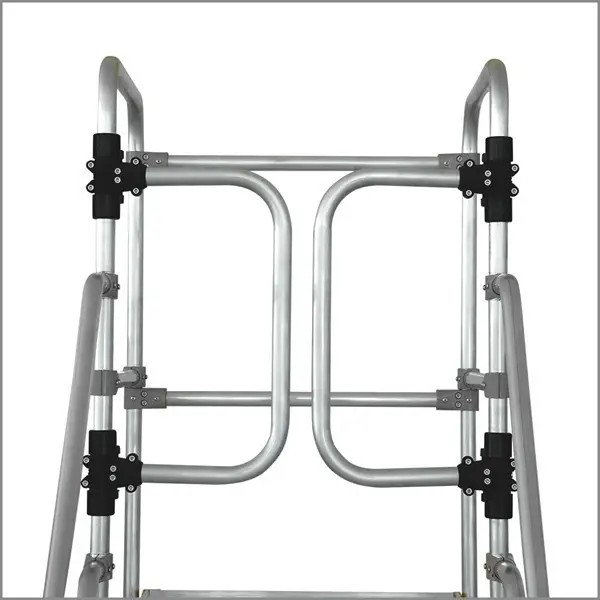

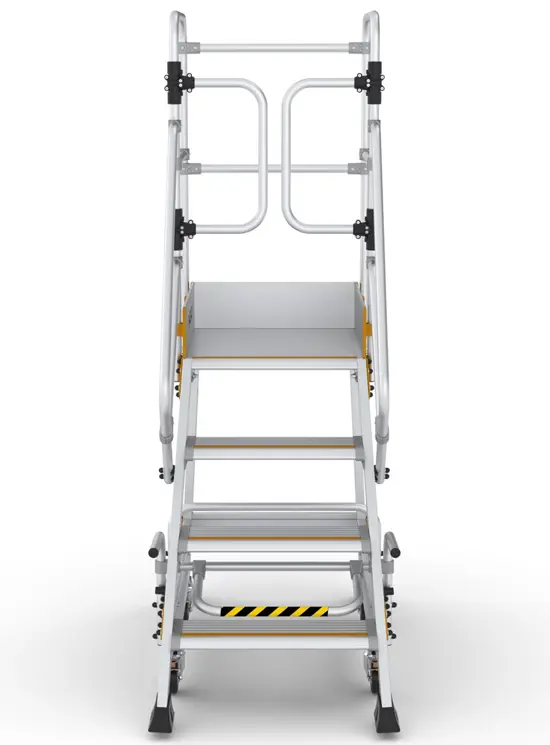

Equipped with a safety gate
Distance / depth of steps 300/180 mm
4 spring wheels diameter 100 mm equipped with brake
Toe clips cm 20

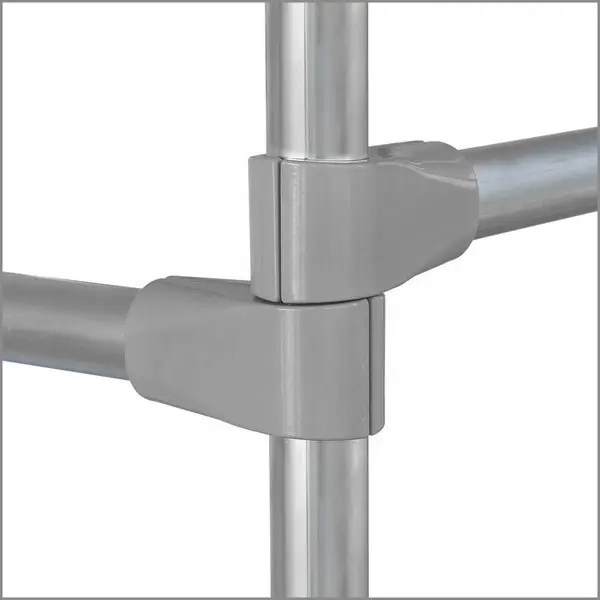

Handrails included
Parapet height 1000 mm

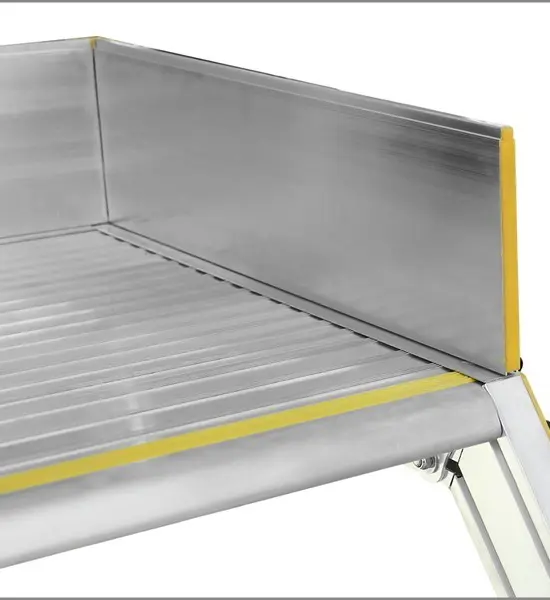

Platform dimensions mm 600x610 (width xl.)

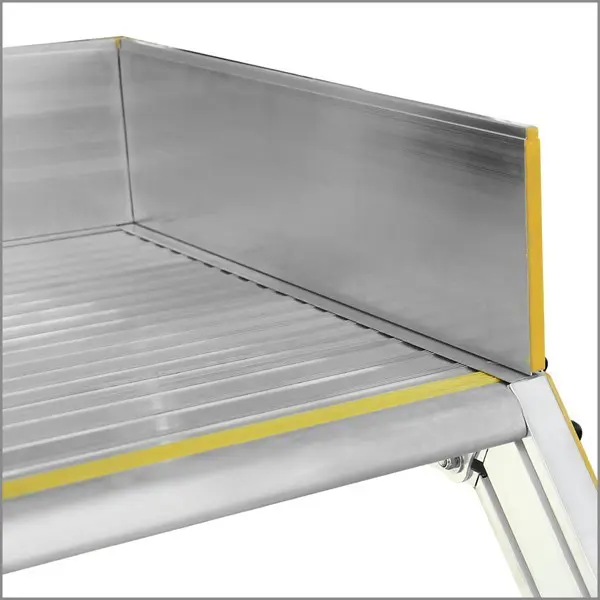

Aluminum platform
Professional use capacity Kg 150

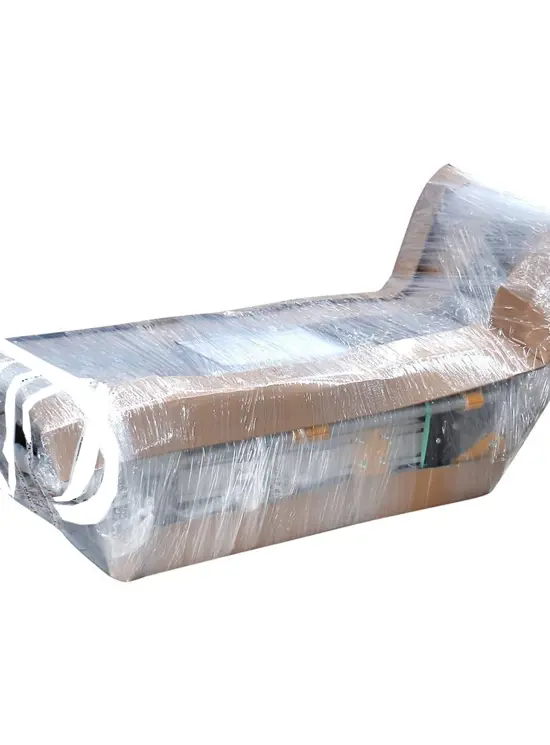

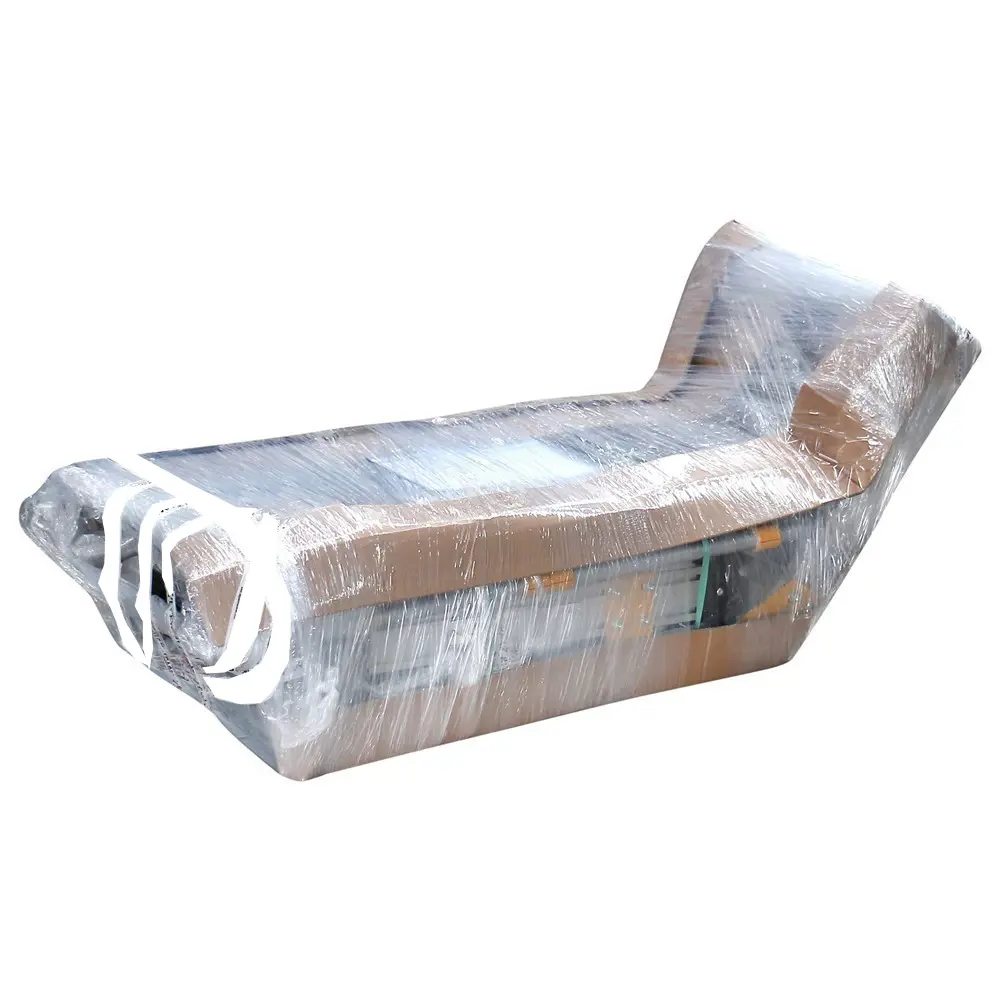

Special reinforced packaging for courier shipping
The ladder is shipped disassembled

SPECIFICATIONS

Cod.	Steps no.	Platform height cm	Total height cm	Working height cm	Floor space cm	Weight Kg
SPALCOSAFE2	2+platform	0,75	175	2,75	75x118 mm	45,6	SHOP
SPALCOSAFE3	3+platform	100	210	300	78х136	51,20	SHOP
SPALCOSAFE	4+platform	125	235	325	81х154	57,00	SHOP
SPALCOSAFE5	5+platform	150	260	350	83х172	62,20	SHOP
SPALCOSAFE6	6+platform	175	285	375	86х190	67,20	SHOP
