Bridge

Max height m 2.57

It shows the validity of the guarantee in years

It shows the maximum weight capacity of a product

It shows the number of people who can climb the structure at the same time

All our products conforms to the standads in force

It is shown on products which conform to the European Standard on welding

Suitable for heavy duty

Climbing ladders and passage on roofs

Professional bridge ladder with clear space under the platform for climbing over lines on roofs or passing through fixed obstacles.

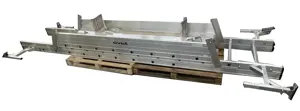

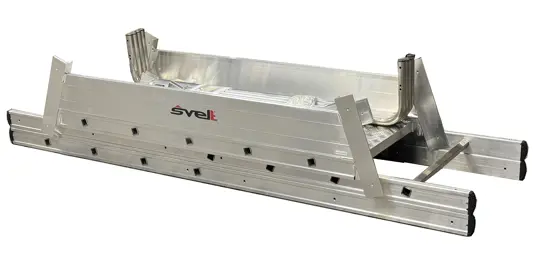

It is made of extruded aluminum welded by TIG and is delivered disassembled with a very small shipping footprint.

STANDARD EQUIPMENT

Toe clips on the 2 long sides (toe clip height 15 cm)
Double handrails on both sides of the ascent

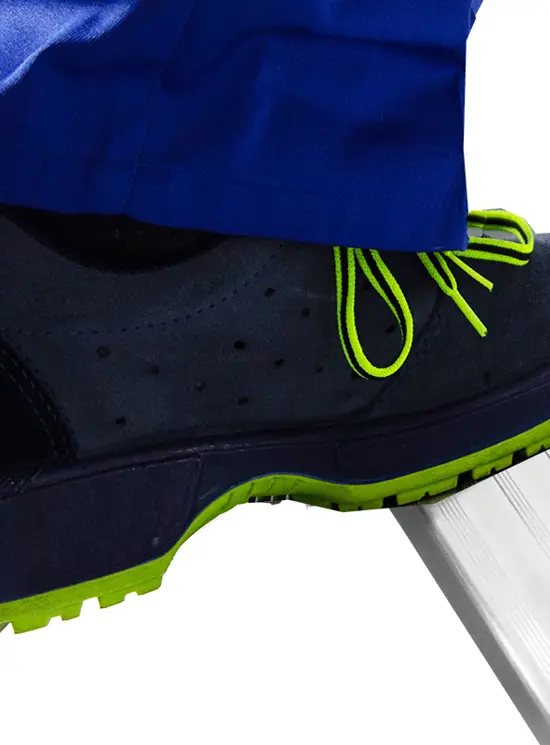

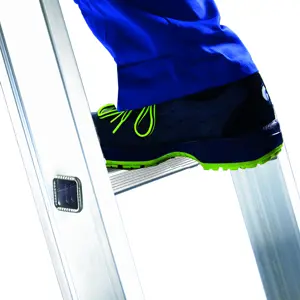

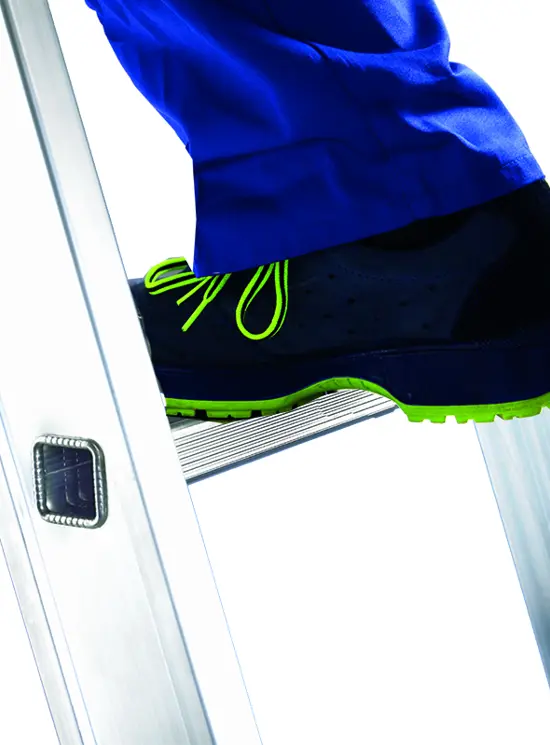

Ergonomic non-slip flat rungs under the foot (30x30 mm)

Safety bodyguard height on 2 sides long m 1
Boxed upright profile 84x27
Worktop in almond-plated aluminium

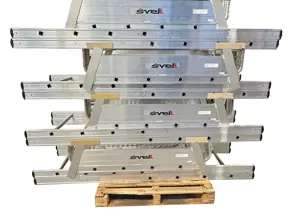

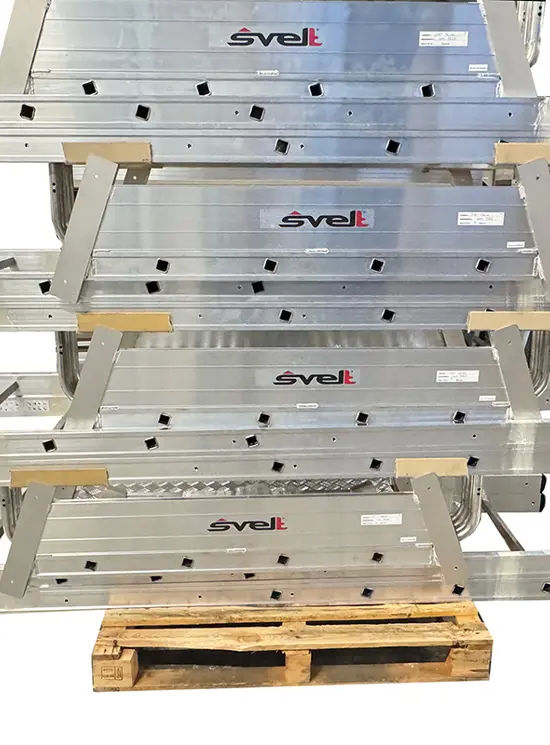

Packaging on pallets with shrink protection
Assembly and use and maintenance manual

PRE-DRILLED FLOOR SUPPORT PLATES

4 Pre-drilled plates for floor fixing. Mounting screws supplied.

Steps no.	Platform height mm	Clear clearance under the platform mm	Working height mm	Length 1000 мм	Length 1300 мм	Length 1600 мм	Length 1900 мм	Length 2200 мм	Length 2500 мм	Length 2800 мм	Length 3100 мм
2	552	486	2552	SBRIDGE22/100	SBRIDGE22/130	SBRIDGE22/160	SBRIDGE22/190	SBRIDGE22/220	SBRIDGE22/250	SBRIDGE22/280	SBRIDGE22/310
3	834	768	2834	SBRIDGE23/100	SBRIDGE23/130	SBRIDGE23/160	SBRIDGE23/190	SBRIDGE23/220	SBRIDGE23/250	SBRIDGE23/280	SBRIDGE23/310
4	1116	1050	3116	SBRIDGE24/100	SBRIDGE24/130	SBRIDGE24/160	SBRIDGE24/190	SBRIDGE24/220	SBRIDGE24/250	SBRIDGE24/280	SBRIDGE25/310
5	1398	1332	3398	SBRIDGE25/100	SBRIDGE25/130	SBRIDGE25/160	SBRIDGE25/190	SBRIDGE25/220	SBRIDGE25/250	SBRIDGE25/280	SBRIDGE25/310
6	1680	1614	3680	SBRIDGE26/100	SBRIDGE26/130	SBRIDGE26/160	SBRIDGE26/190	SBRIDGE26/220	SBRIDGE26/250	SBRIDGE26/280	SBRIDGE26/310
7	1962	1896	3962	SBRIDGE27/100	SBRIDGE27/130	SBRIDGE27/160	SBRIDGE27/190	SBRIDGE27/220	SBRIDGE27/250	SBRIDGE27/280	SBRIDGE27/310
8	2244	2178	4244	SBRIDGE28/100	SBRIDGE28/130	SBRIDGE28/160	SBRIDGE28/190	SBRIDGE28/220	SBRIDGE28/250	SBRIDGE28/280	SBRIDGE28/310
9	2526	2460	4526	SBRIDGE29/100	SBRIDGE29/130	SBRIDGE29/160	SBRIDGE29/190	SBRIDGE29/220	SBRIDGE29/250	SBRIDGE29/280	SBRIDGE29/310
10	2808	2742	4808	SBRIDGE210/100	SBRIDGE210/130	SBRIDGE210/160	SBRIDGE210/190	SBRIDGE210/220	SBRIDGE210/250	SBRIDGE210/280	SBRIDGE210/310

On request

BRIDGE/P with 8 cm flat steps

BRIDGE/T with 4 telescopic levellers

Custom-made cantilevered ramps

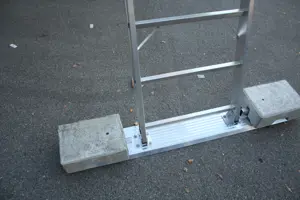

Ground support with spreader specially designed to stabilize the ladder by supporting the special weights to avoid fixing it to the ground by means of dowels.
The same support can also be supplied with special holes to fix the ladder to the floor.

Special tailor-made sizes

N.B.: The BRIDGE ladder is designed for climbing over an obstacle and passing the operator from one side to the other, for example of a production line.

The BRIDGE ladder is not designed for working at height.

If the ladder is used for work at height, send an email to ufficiotecnico@svelt.it to check its feasibility and the necessary changes based on the required dimensions (height and platform length) and the type of work to be carried out.

Non-slip covers for the rungs

The rungs of the BRIDGE ladders are non-slip knurled for standard use.

However, ladders can be quite slippery, especially if used in particular environments where the rungs or shoes are in contact with water, grease, oil or other slippery organic material. It is the task of the R.S.P.P. to assess the risks of slipping and decide what countermeasure to adopt to avoid accidents.

In these cases it is extremely important to cover the rungs with our non-slip covers made of fiberglass with built-in aluminum oxide grit.

This makes them almost indestructible and very slip-resistant.

Svelt on request will provide the ladder already with the rungs covered.

It is also possible to order the stair covers already in the customer's possession.

Click to learn more

AVERAGE DELIVERY TIME APPROX. 15 WORKING DAYS
