Ponte

max height m 1,92

Producted in compliance with the European Standard for mobile platform ladders

It shows the validity of the guarantee in years

It shows the maximum weight capacity of a product

It is the European Standard for ladders

Suitable for heavy duty

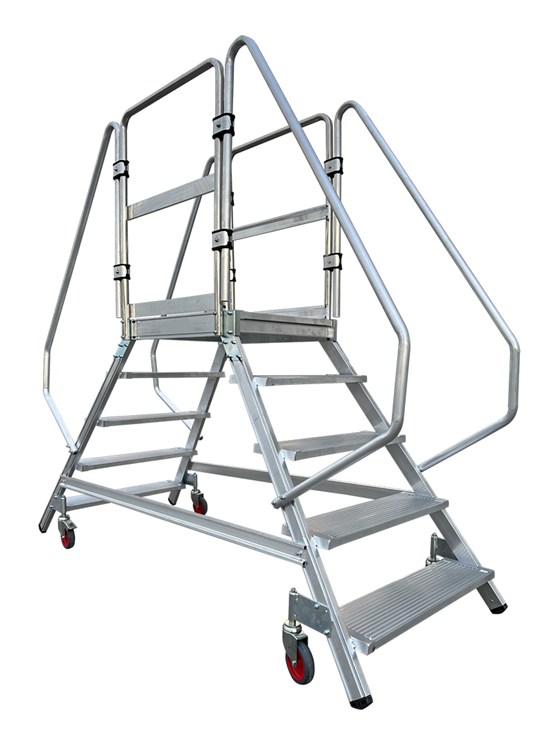

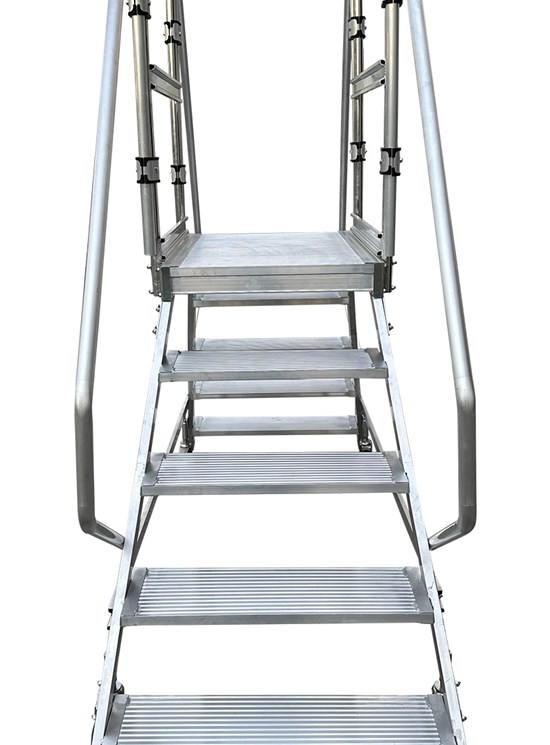

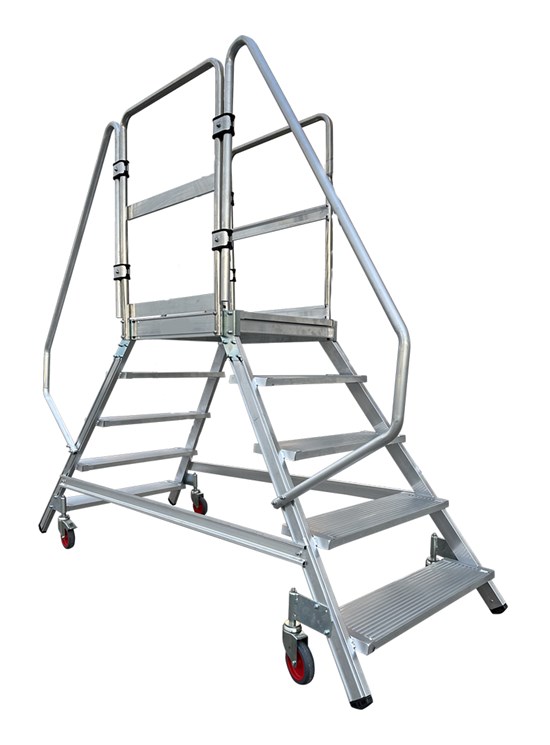

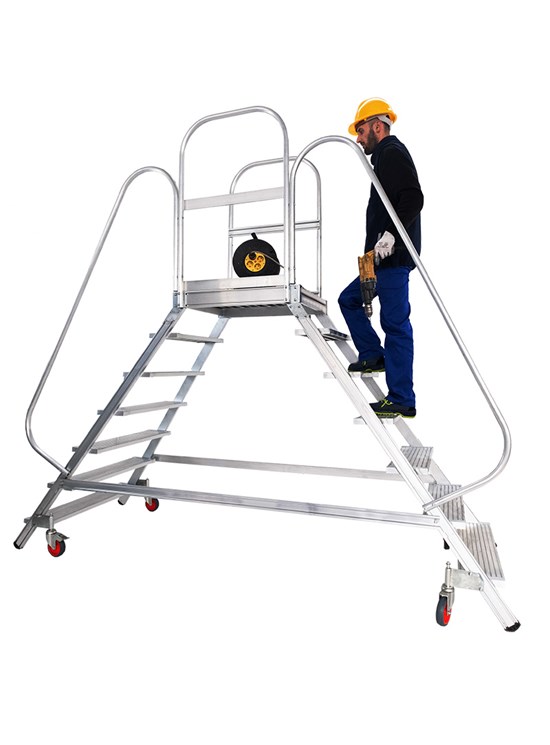

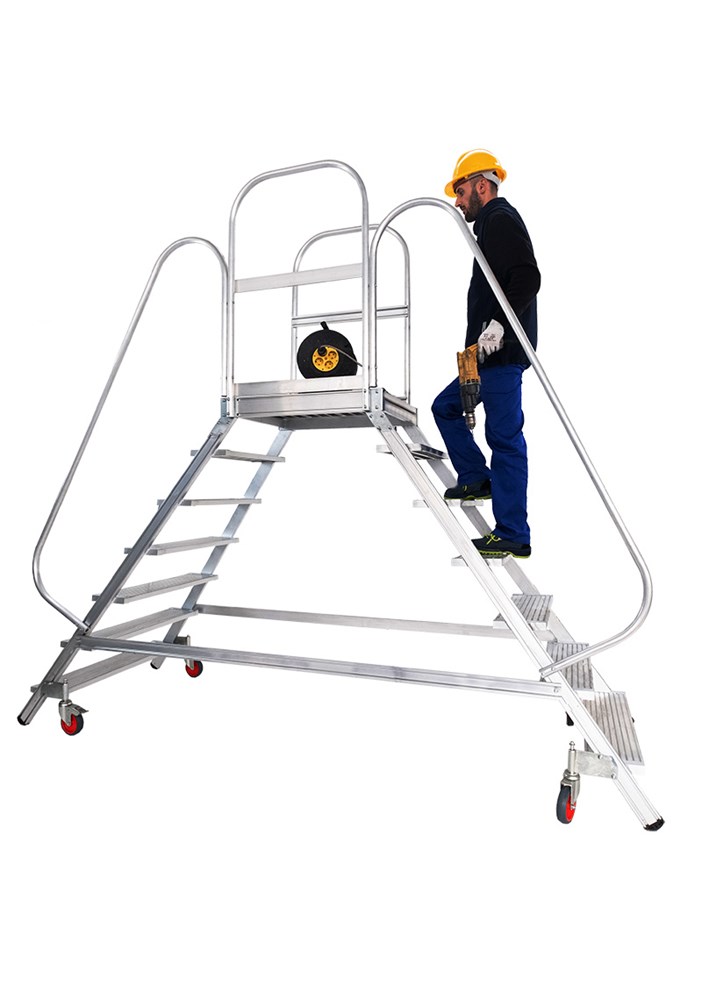

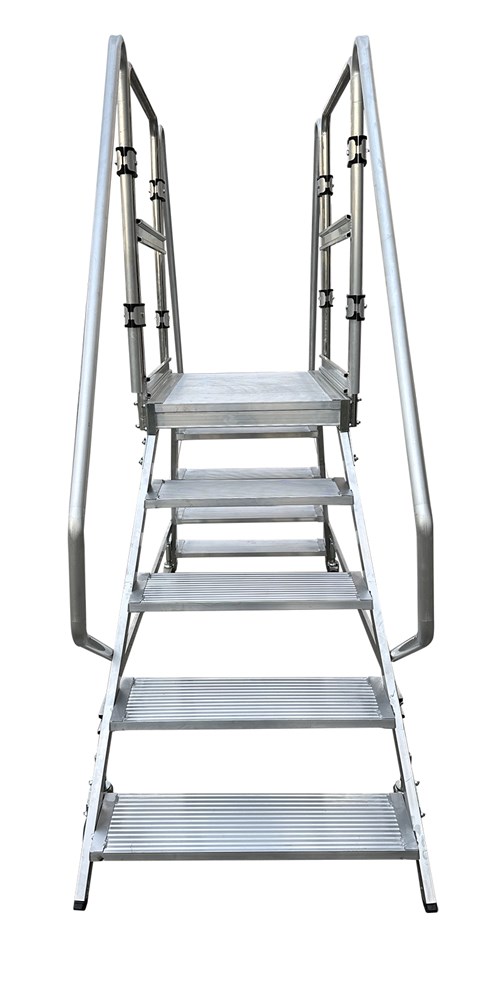

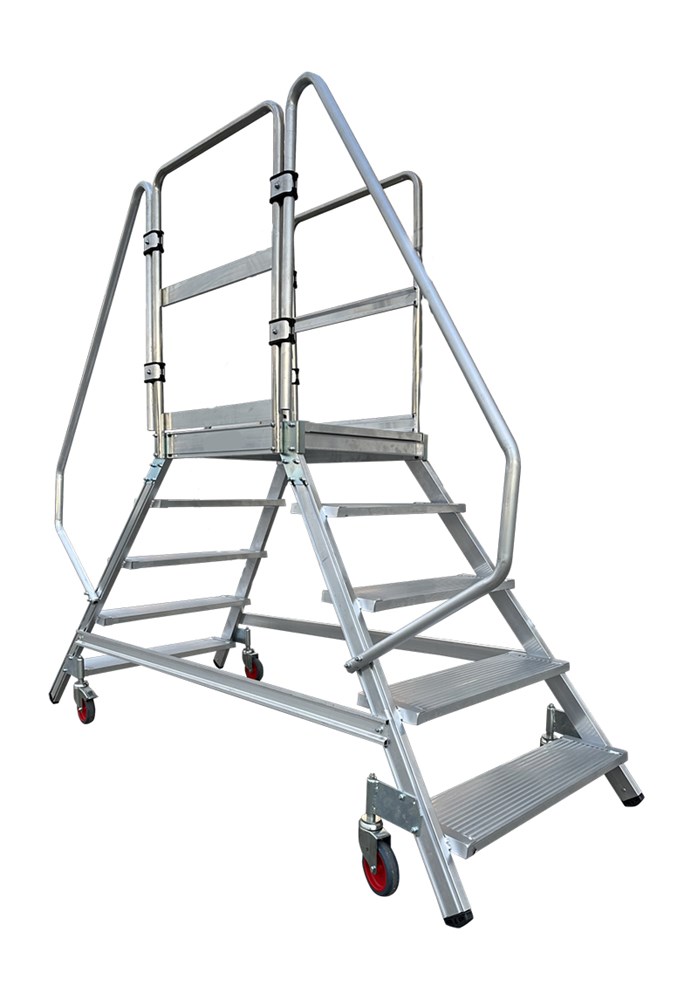

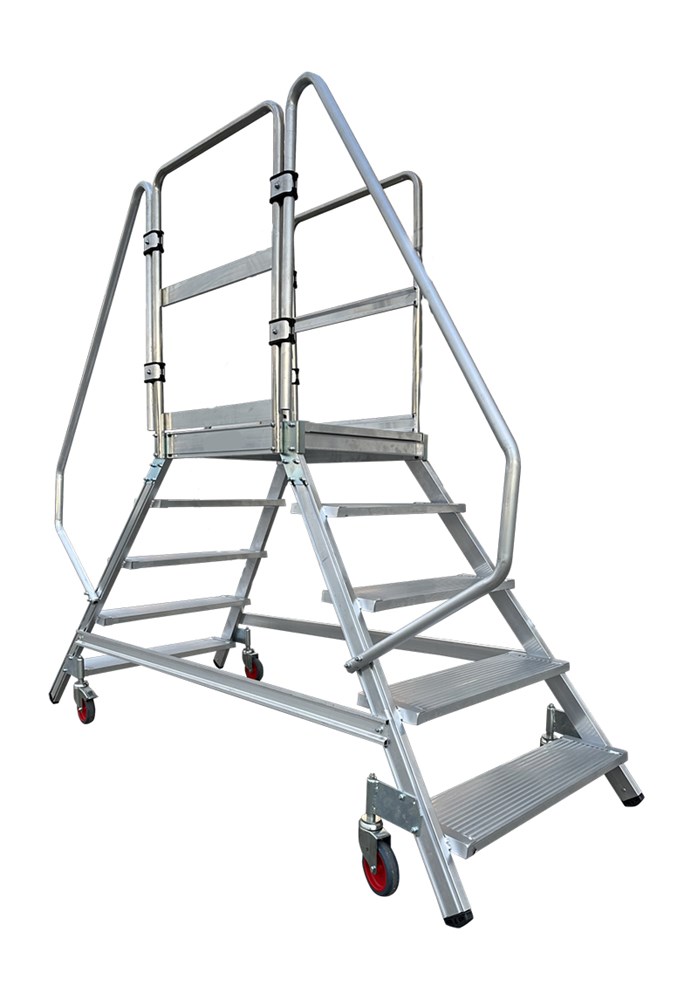

Double-sided platform ladder with reinforced steps and 4 wheels

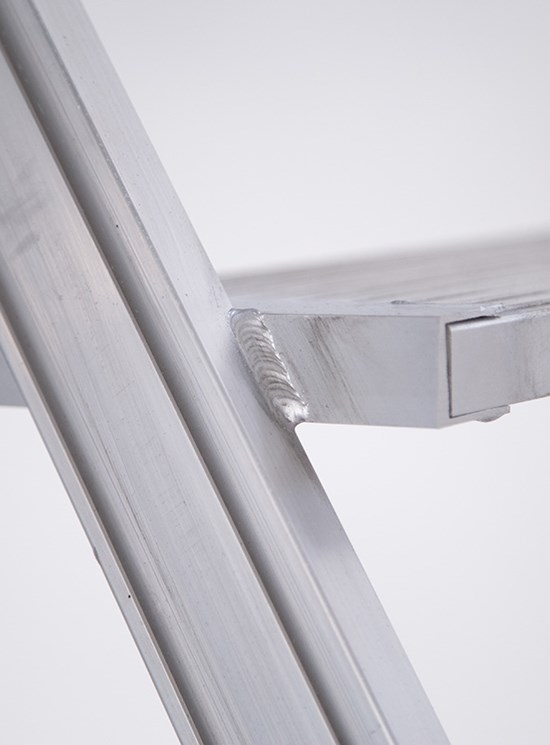

Double sided ladder with platform (60x80 cm), guardrail and handrail (option) made of extruded ribbed aluminium rectangular tube side-rails.

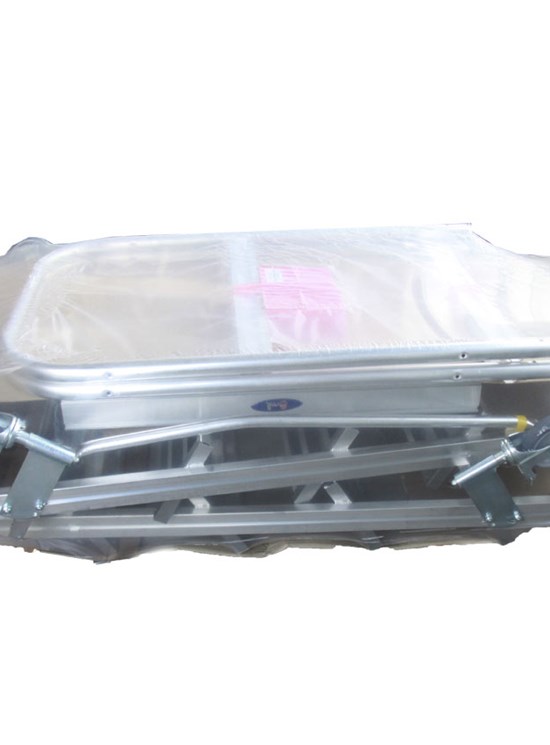

The ladder comes in disassembled parts (for freight costs reasons) and can be easily assembled thanks to the detailed instructions manual.

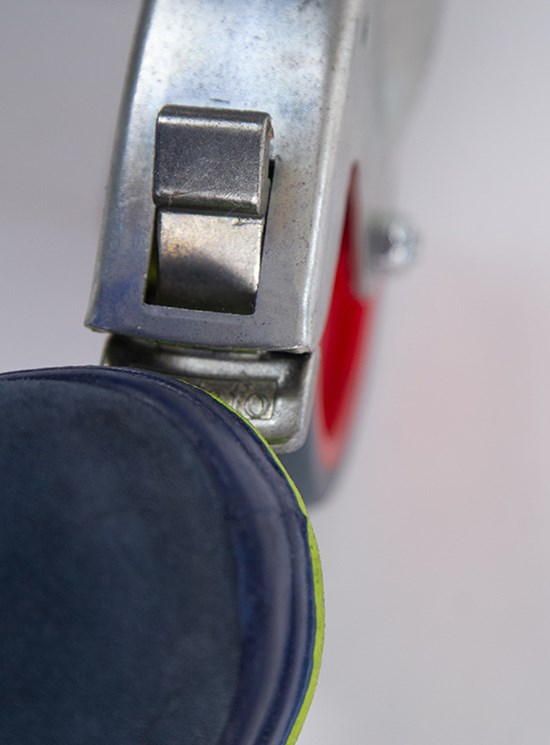

BRAKING SYSTEM
It is active when the operator is on the ladder in the working position.
It is deactivated as soon as the operator descends the ladder and stay on the floor.
The ladder must be braked before climbing for additional safety (2 wheels are with brake)
However, the ladder must not be handled with people, objects and / or material on board.

TECHNICAL FEATURES

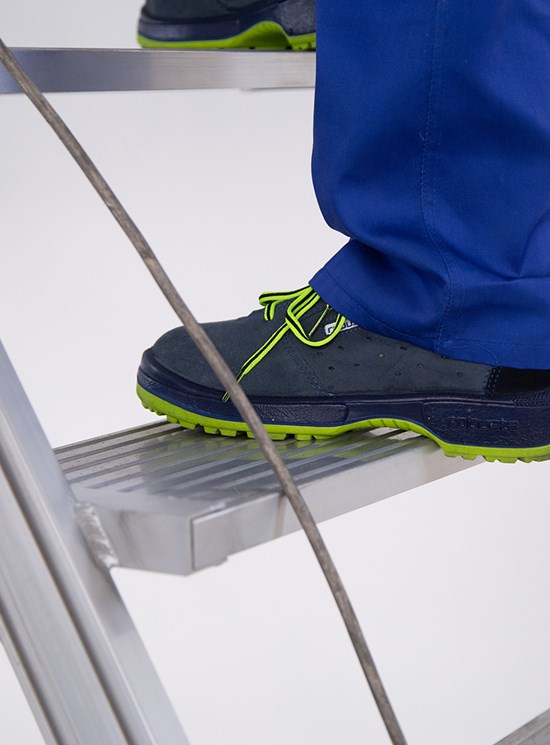

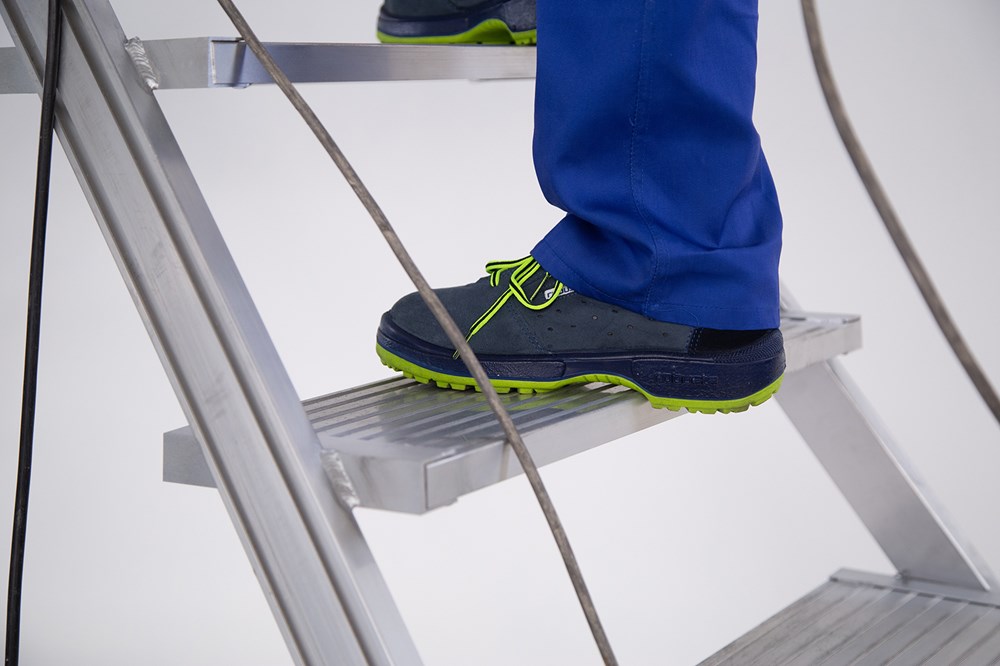

Rung depth: 20 cm
Capacity 150 kg
Ramp profile: 58x25 mm
Distance between steps: 23 cm
Toeboard height 6 cm
Large platform 60x80 cm
Ramp width: 60 cm
Ramp inclination: 55°

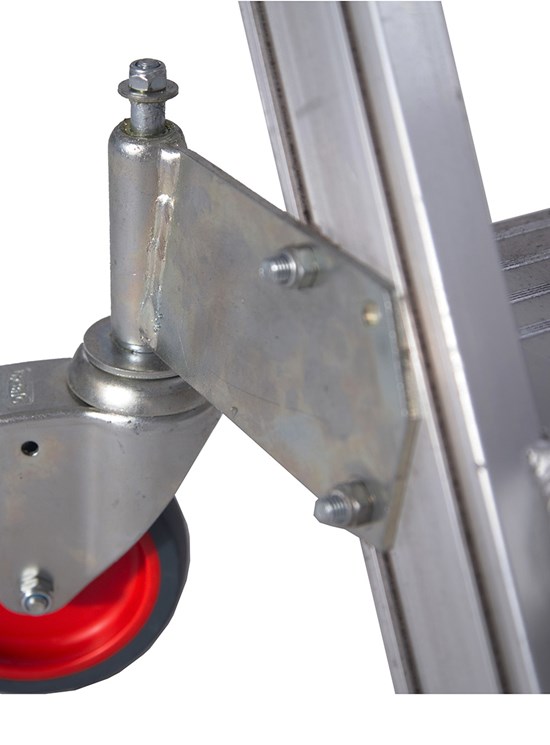

Self braking wheels Ø 125 mm
No. of rungs: 4 to 8
Platform height: 0,96 m to 1,92 m

STANDARD PARTS

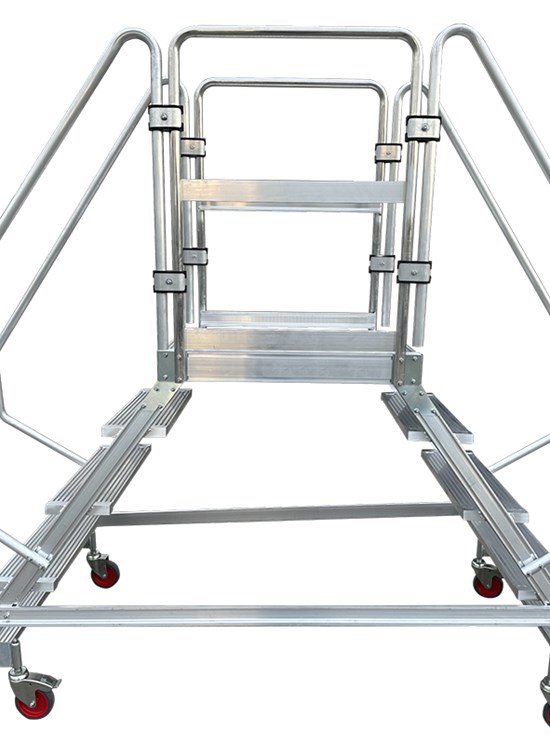

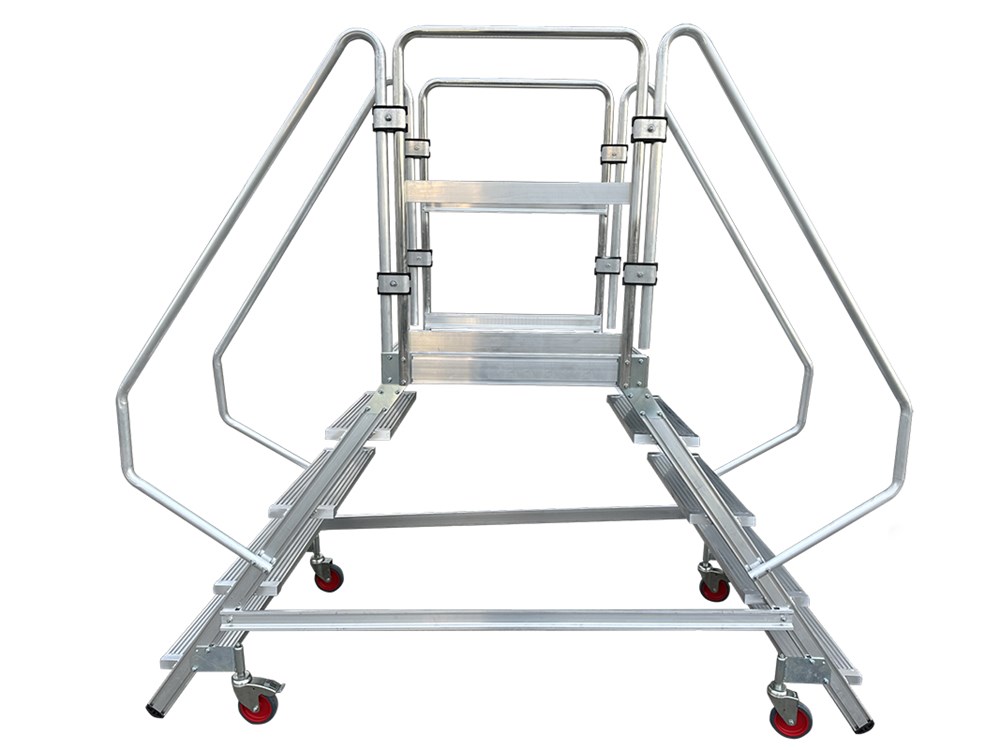

Guardrail on the two free sides
Toeboards
2 wheels with brake + 2 without brake
Label and instructions for assembly and use

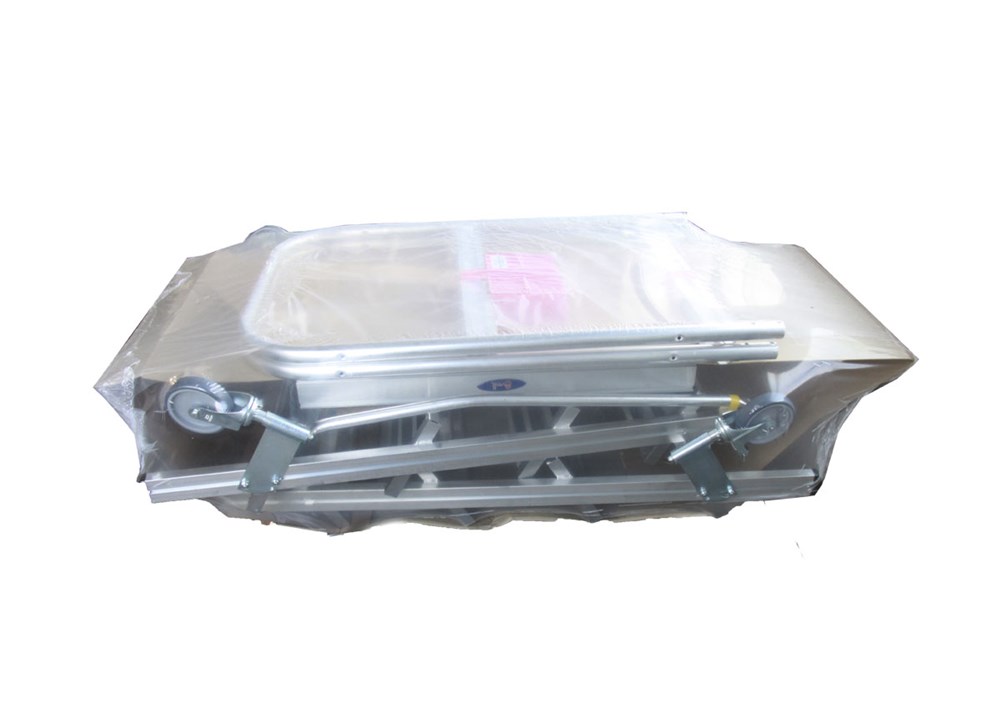

Thermo-shrinkable plastic package with showcard

On request:

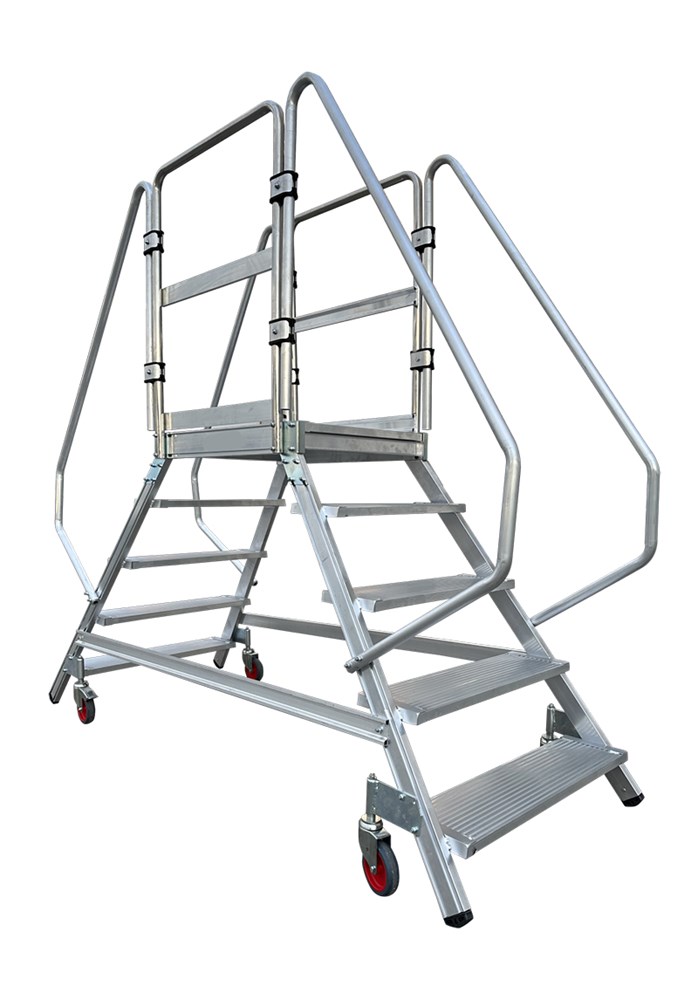

Additional ramp handrail
Pre-assembled ladder

IMPORTANT: If working platform height is more than 1 m, handrail is compulsory on each side
