Marea Tech

max height m 2,28

It shows the validity of the guarantee in years

It shows the maximum weight capacity of a product

It is the European Standard for ladders

It shows that the Politecnico di Milano (Applied-Science Faculty in Milan) has tested a product and certified that it conforms to UNI EN131-1-2-3-4 (ladders), UNIEN14183 (step-stools), UNIEN1004 (scaffolds)

Suitable for heavy duty

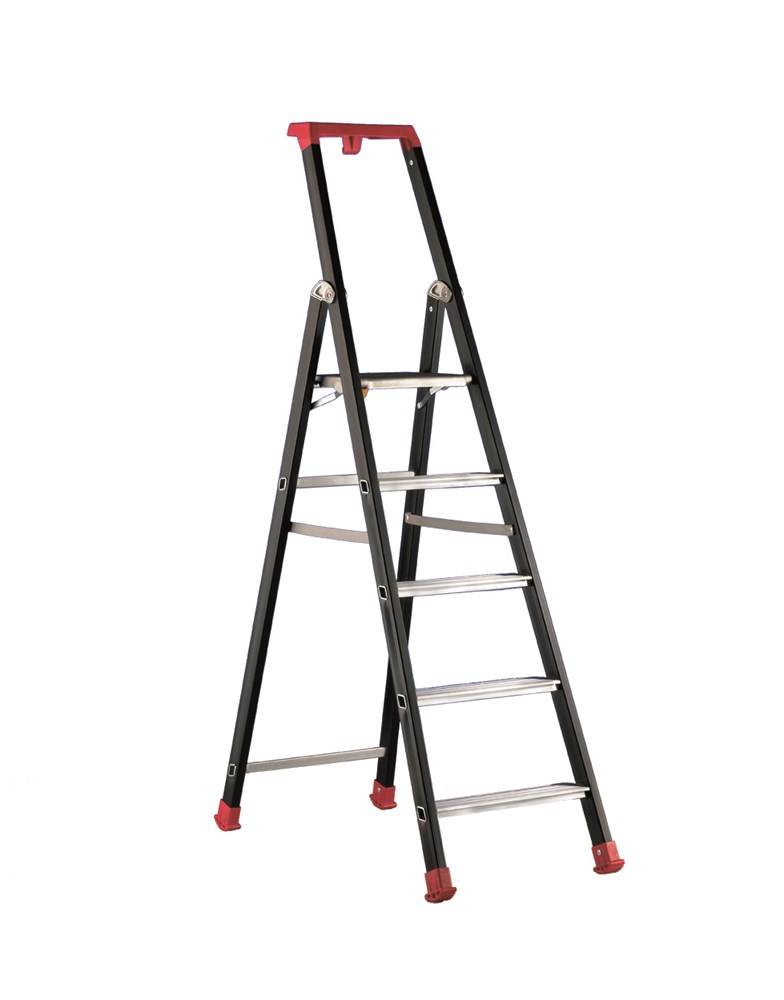

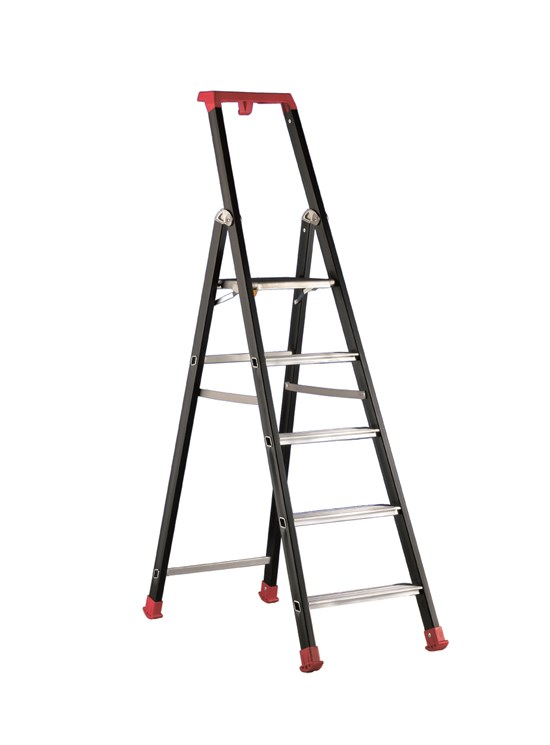

Anodised aluminium single sided stepladder, guardrail height 60 cm, platform dimensions 30 x 26 cm

Stepladder suitable for DIY and house intensive use.
Made of high resistant extruded anodised aluminium alloy studied in order not to soil hands. The extruded, anodised rectangular (50x25 mm) aluminium frames are ergonomic for easy gripping .
It complies to European Standard EN131. Ergonomic anti opening hinges in light die-cast aluminium give further stability to the whole structure.

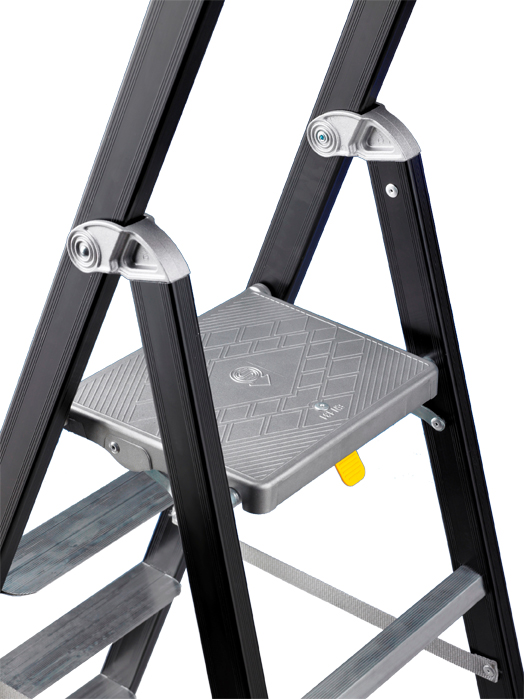

Extruded, die-cast aluminium platform for a very technological design.

TECHNICAL FEATURES
• Frame profile 50x25 mm
• Platform dimensions 30 x 26 cm
• Guardrail height 60 cm
• Distance between steps 25 cm

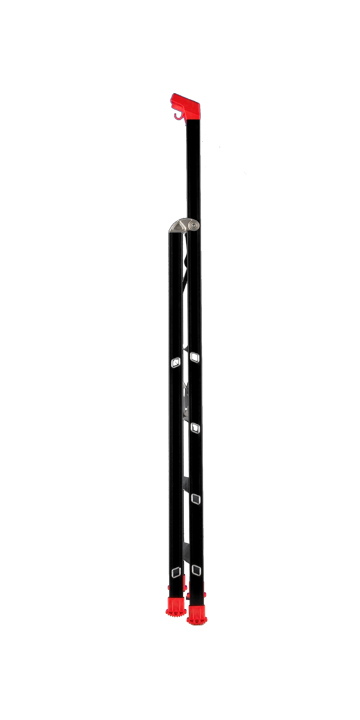

• Thickness when closed 14 cm
• Non-skid steps 8 cm
• No. of rungs: 3 to 10
• Platform height: 0,66 m to 2,28 m

STANDARD PARTS

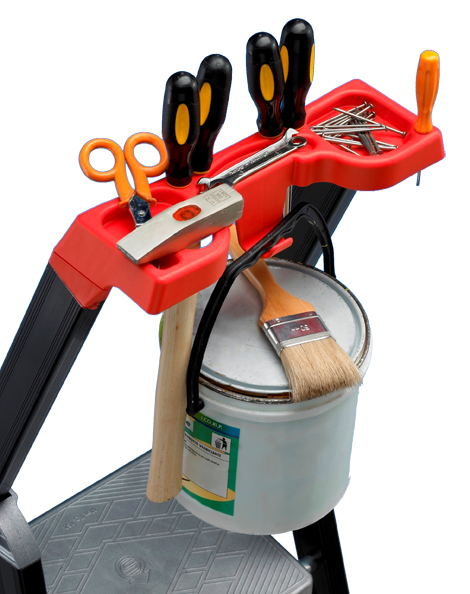

• Provided with toolbox and bucket hook

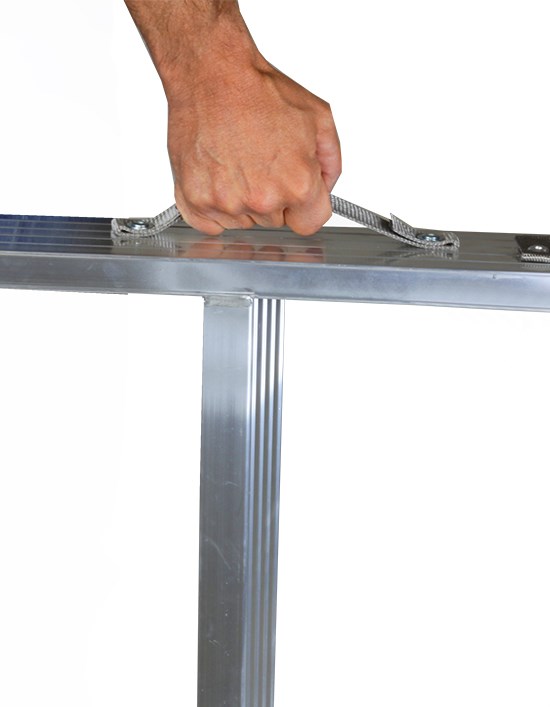

• Provided with handle for easy ladder climbing

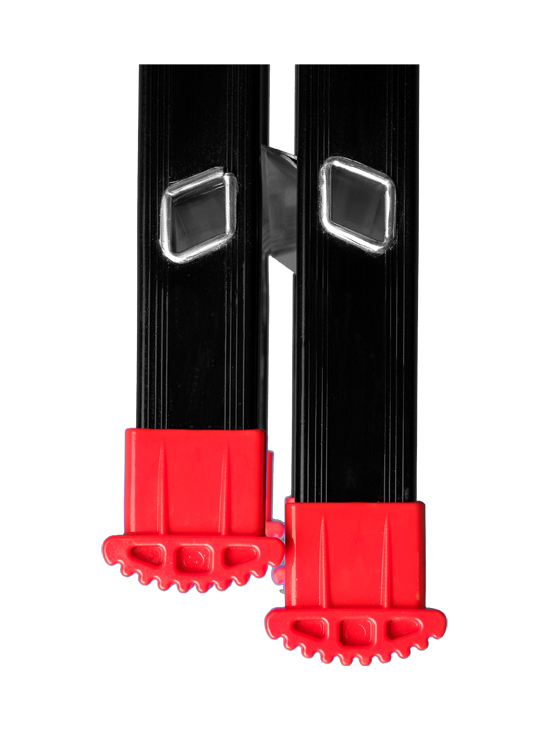

• Reinforced non-skid rubber feet
• Anti-opening nylon straps
• 2, 3 or 4 small extra reinforcements to the back (according to ladder dimension)
• Label and instructions for assembly and use
• Thermo-shrinkable plastic package with showcard

Catalogo serie Marea.pdf (988.8 KB)
