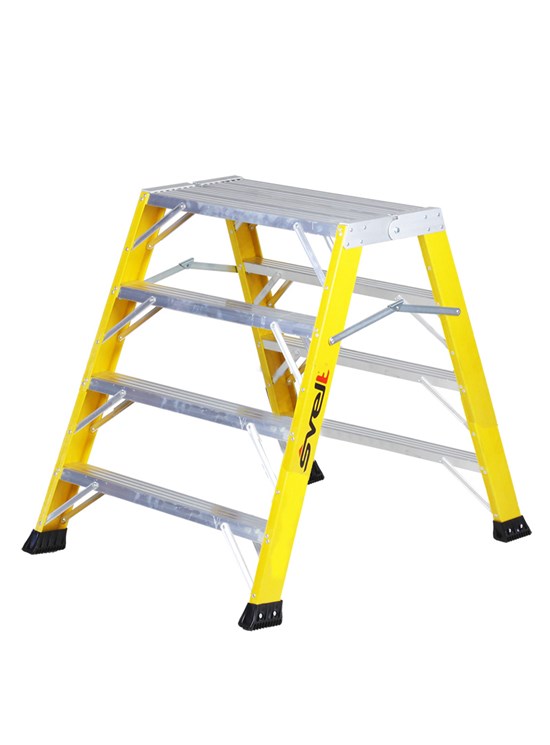

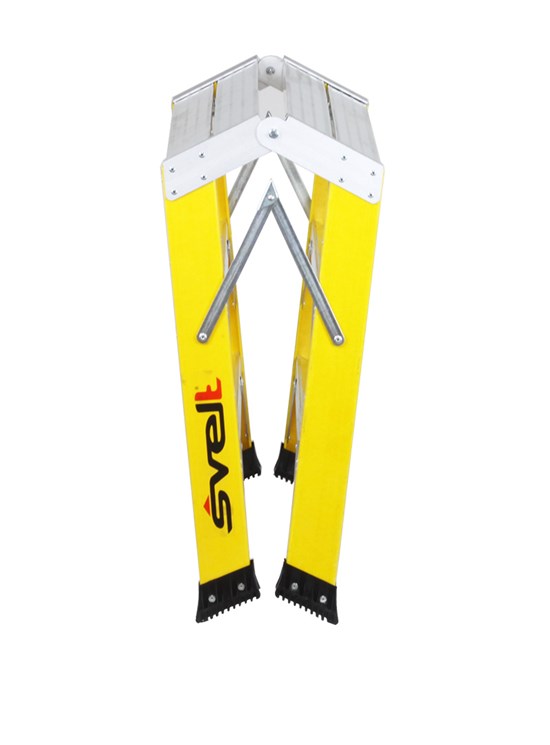

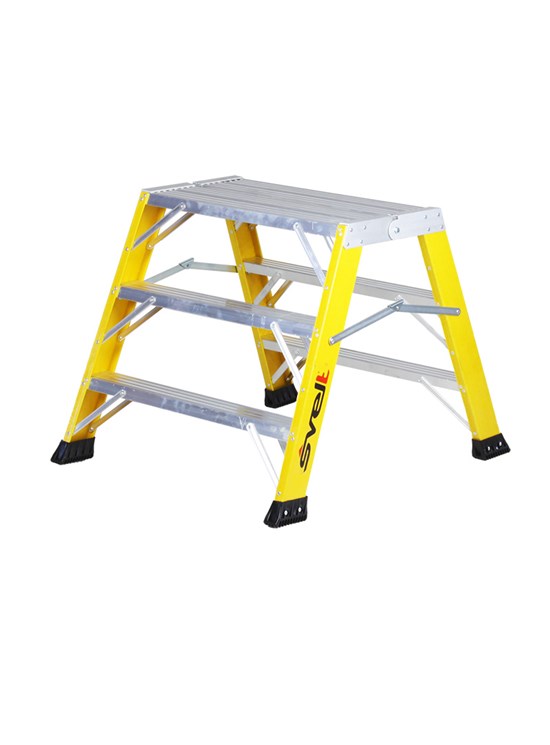

Punto Large Plus V
max height m 1,00
Suitable for heavy duty
Double sided electrically isolated fiberglass stepstool
These are stools with fiberglass stiles and steps in extruded ribbed aluminum, for professional use, built by riveting the steps to the stiles with 8 rivets per step.
A system that permanently fixes the steps to the stiles and avoids the oscillation effect that over time the stool meet whose steps are riveted with fewer rivets.
The product can be certified on request to EN14183 standards for quantity orders.

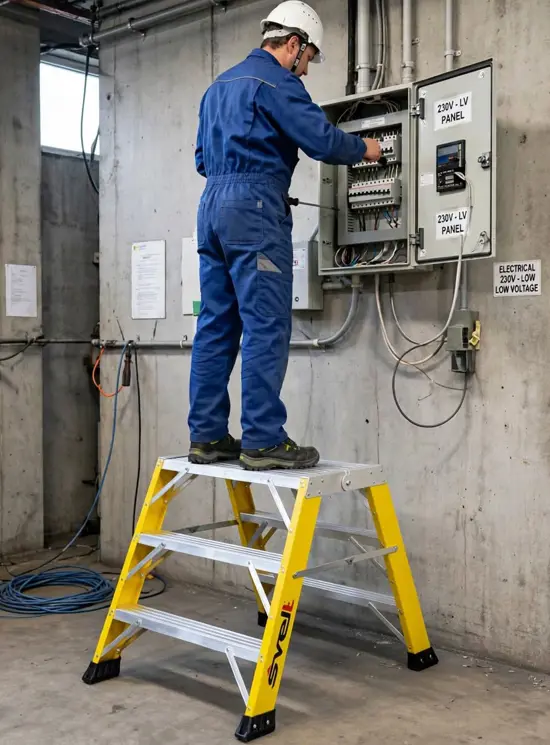

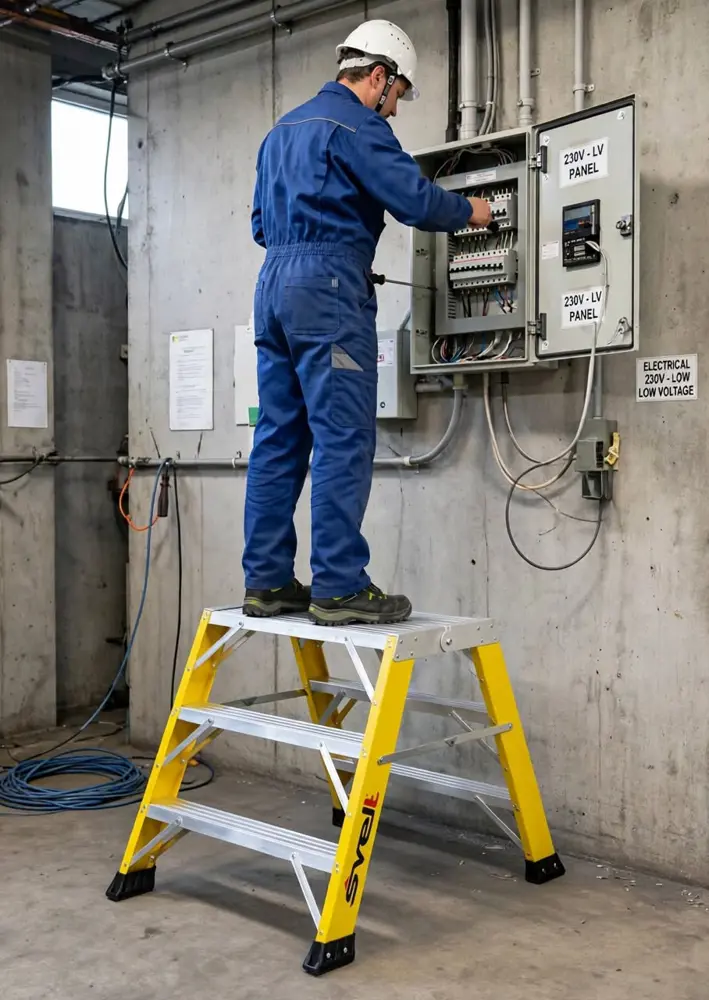

They are suitable for operators who work near cables, sockets or other sources of electricity.
The product can be certified on request to EN14183 standards for quantity orders.
They are suitable for operators who work near cables, sockets or other sources of electricity.
| Steps number | da 2 a 5 |
| Platform hight | da m 0,40 a m 1 |
| Folded hight | da m 0,52 a m 1,14 |
| Working hight | da m 2,40 a m 3 |
- Distance between the steps 20 cm
- 8 cm non-slip flat steps
- C-stiles 82x27 mm

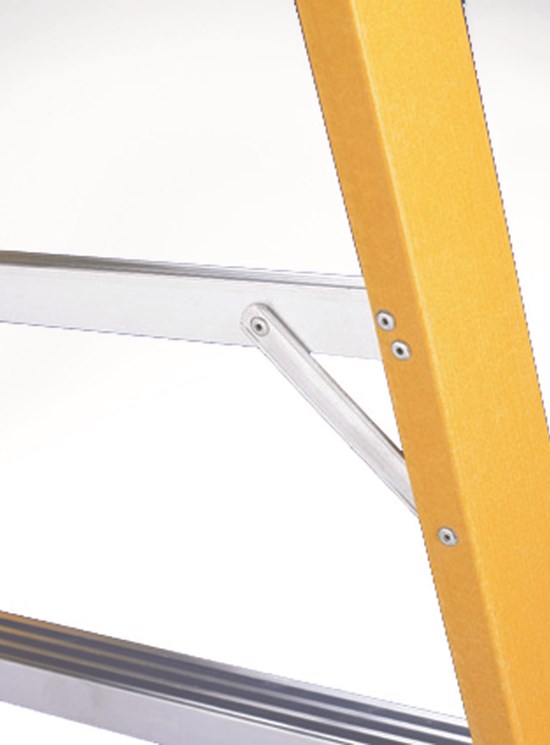

- Rigid bars in galvanized steel anti-opening / closing

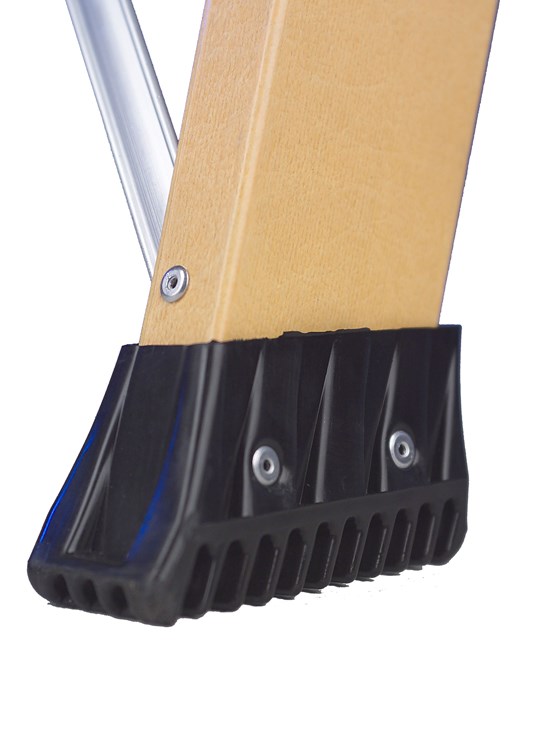

- Ergonomic oversized pads in non-slip PVC
- Reinforcement bars on the steps
- Labels and user and maintenance manual
- Shrink packaging
The platform is considered as a step in the steps number.
On request on Punto Large Plus V
- Guardrail combined with n°2 60 cm handrails
- Two wheels kit
- Standard guardrail
- Standard handrails
These accessories allow a comfortable and safe professional use:
- With the optional aluminum guardrail it is possible to use the stool with a valid support and a feeling of safety and comfort that increase productivity.
- The shift wheels (2 or 4) allow you to move the stool quickly in order to save time and effort.
- The handrails allow a comfortable grip during the climb.
These accessories are supplied in kits to be mounted on the stool.
These accessories are universal for stools with profile 80 x 20 mm.
There is no need for stools to be prepared with holes.
The accessories are mounted with screws and nuts without drilling the stool profile.
It is therefore not necessary to order the accessories together with the stool but they can also be ordered later.
Anyone can apply the accessories on products already in their possession.
These accessories are universal for stools with profile 80 x 20 mm.
There is no need for stools to be prepared with holes.
The accessories are mounted with screws and nuts without drilling the stool profile.
It is therefore not necessary to order the accessories together with the stool but they can also be ordered later.
Anyone can apply the accessories on products already in their possession.
EUROPEAN STANDARD CEI EN 50528:
The V1 fiberglass ladder complies with Standard EN 50528 which concerns ladders used for work on low voltage live parts such as making connections, work on supports and switching operations.
These ladders are also used for preliminary operations for live work such as checking the voltage, earthing and short-circuiting, etc.
The purpose of this Standard is to provide ladders that have two main functions: access to the parts of the system on which work must be done and protect the worker from electrical risks by providing the level of insulation and maintaining a safety distance between the operator and the potentially live parts of the system.
It concerns insulating ladders for use on low voltage systems or in their proximity.
This Standard, which complies with EN 61477, must be used in accordance with Standards EN 50110-1 and EN 50110-2.
This Standard is published by CEI in English only as it is particularly aimed at specialized sectors.
This Standard remains applicable until 29-04-2027.
The tests are carried out with an electric charge of 36,000 Volts for one minute.
These ladders are also used for preliminary operations for live work such as checking the voltage, earthing and short-circuiting, etc.
The purpose of this Standard is to provide ladders that have two main functions: access to the parts of the system on which work must be done and protect the worker from electrical risks by providing the level of insulation and maintaining a safety distance between the operator and the potentially live parts of the system.
It concerns insulating ladders for use on low voltage systems or in their proximity.
This Standard, which complies with EN 61477, must be used in accordance with Standards EN 50110-1 and EN 50110-2.
This Standard is published by CEI in English only as it is particularly aimed at specialized sectors.
This Standard remains applicable until 29-04-2027.
The tests are carried out with an electric charge of 36,000 Volts for one minute.
