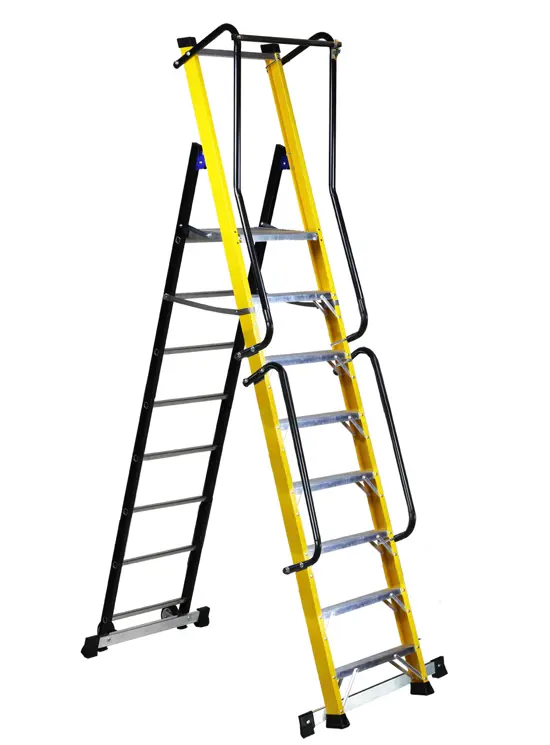

Moby Fibra

Name: Moby Fibra
Brand: Svelt

max height m 2,03

Suitable for heavy duty

In fiberglass for intensive use with 2 wheels, handrails, platform and increased width

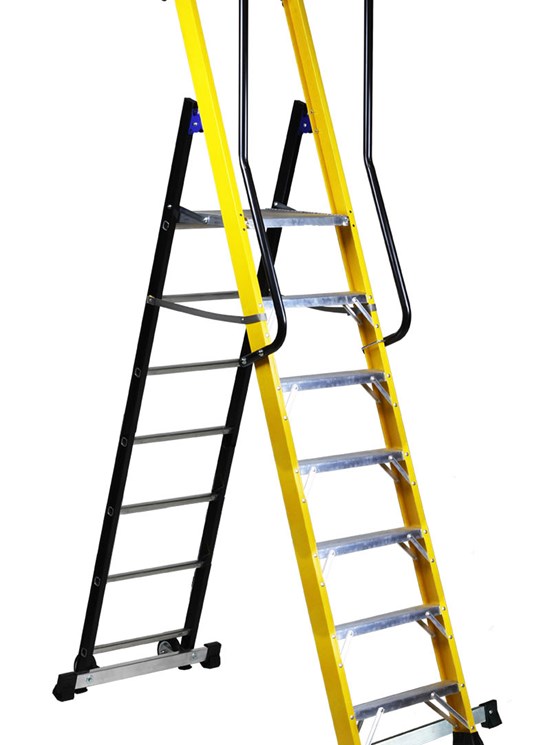

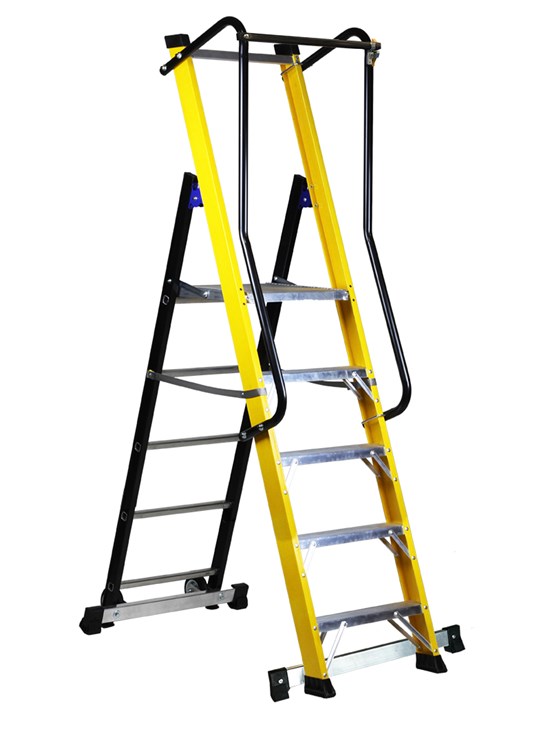

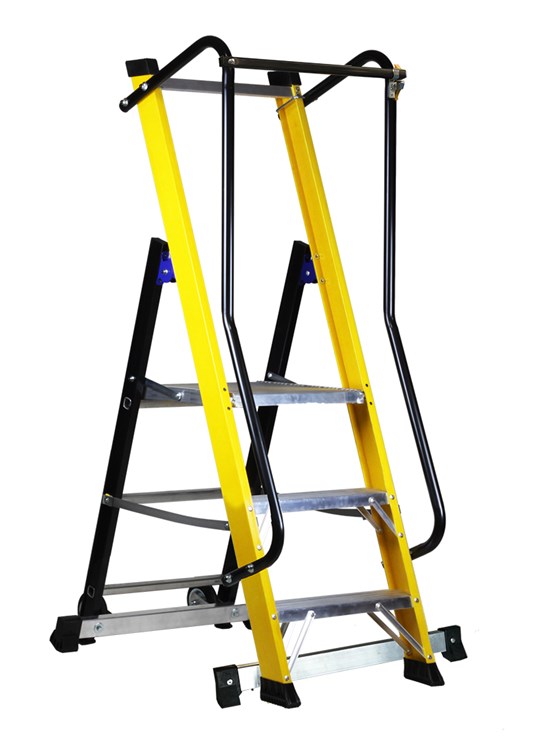

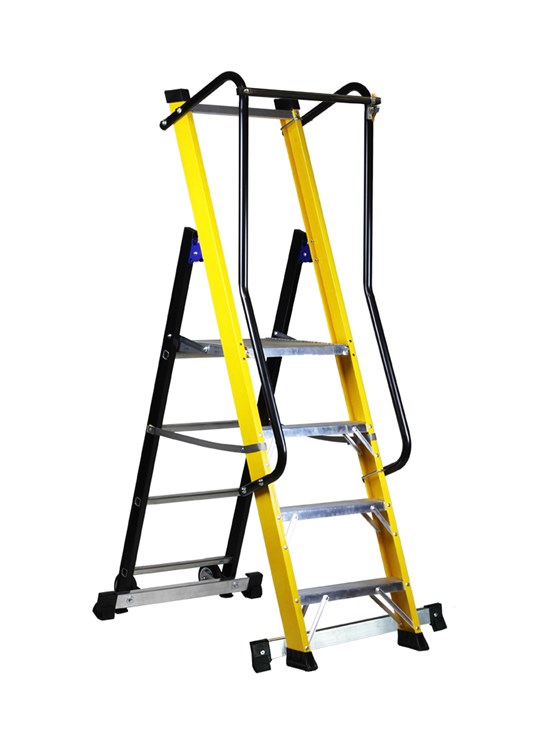

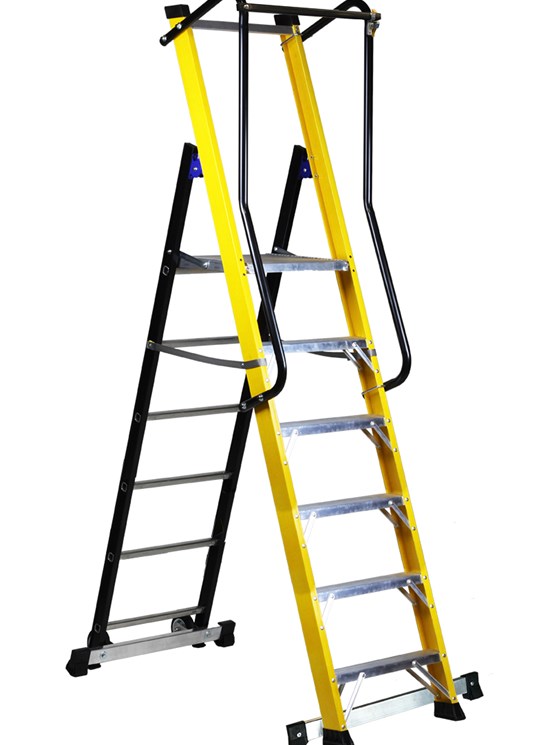

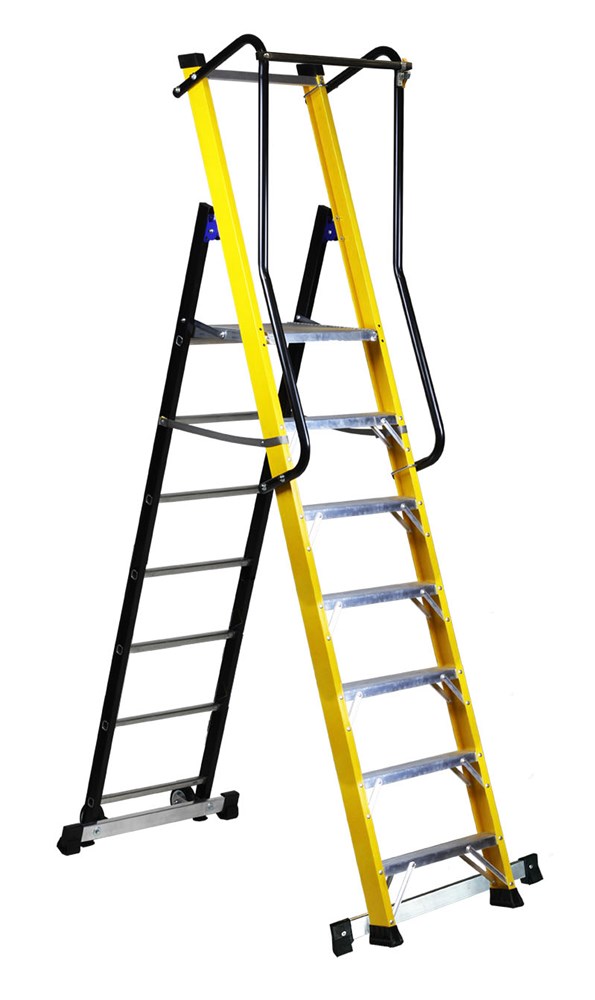

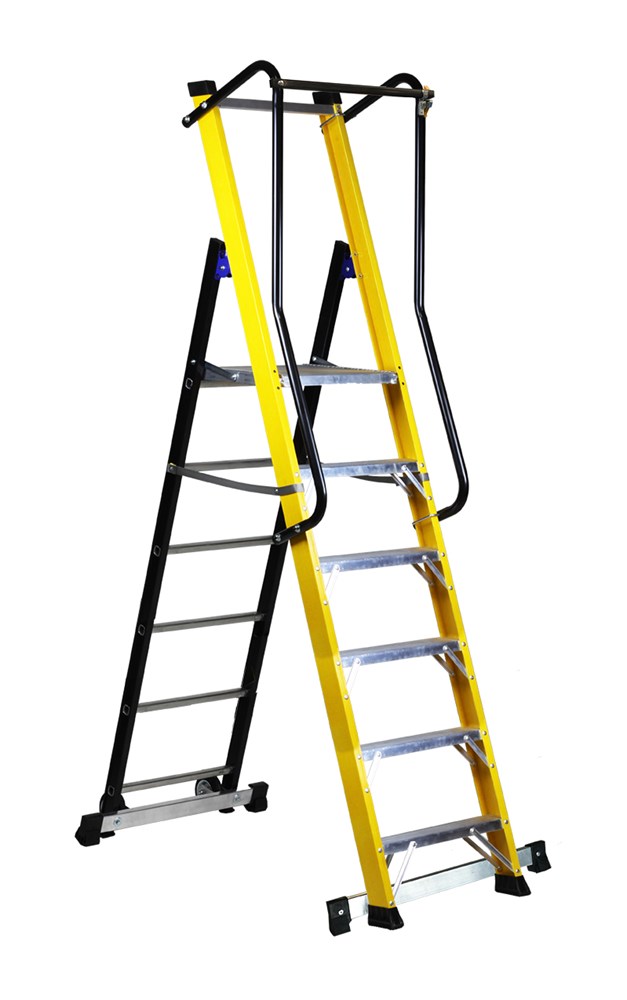

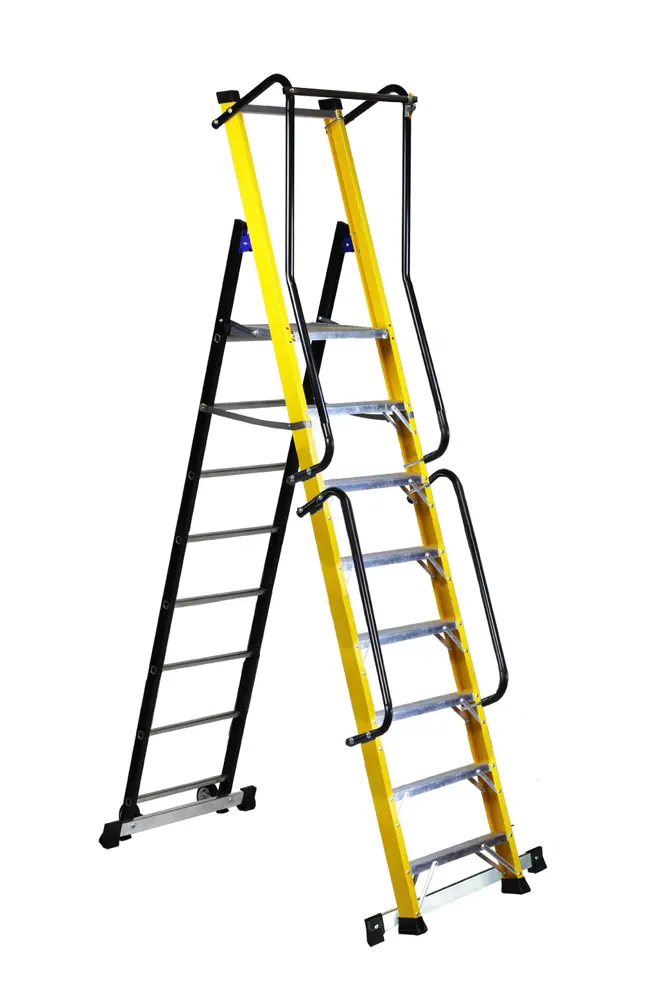

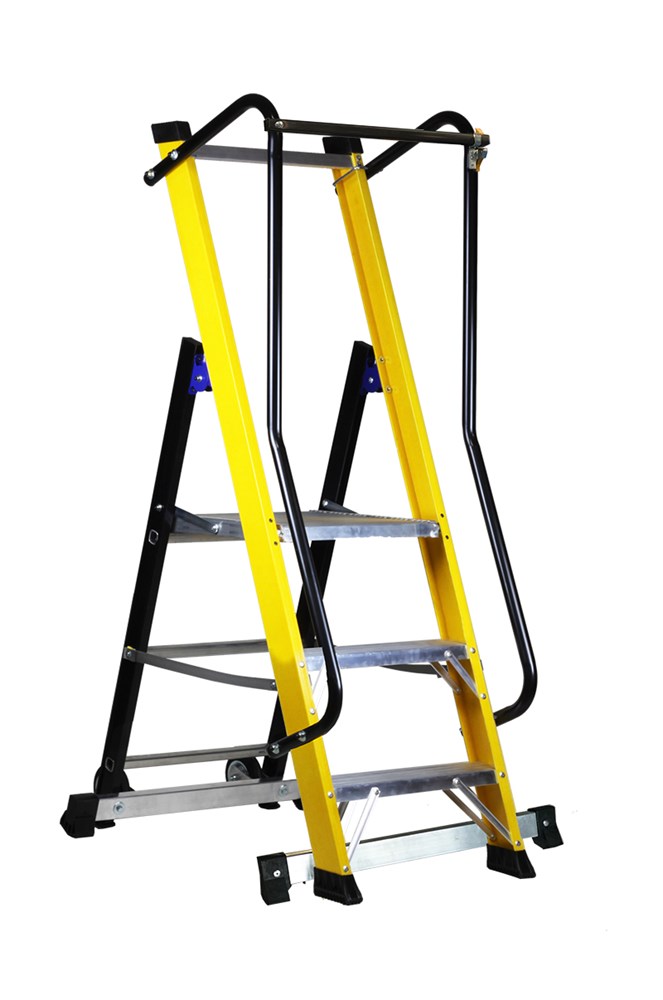

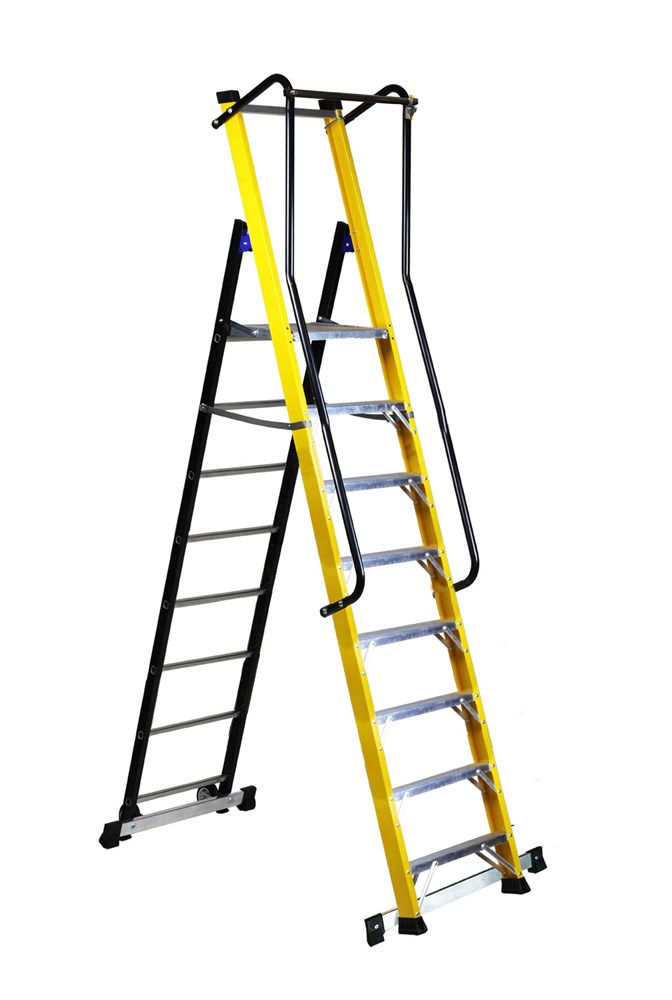

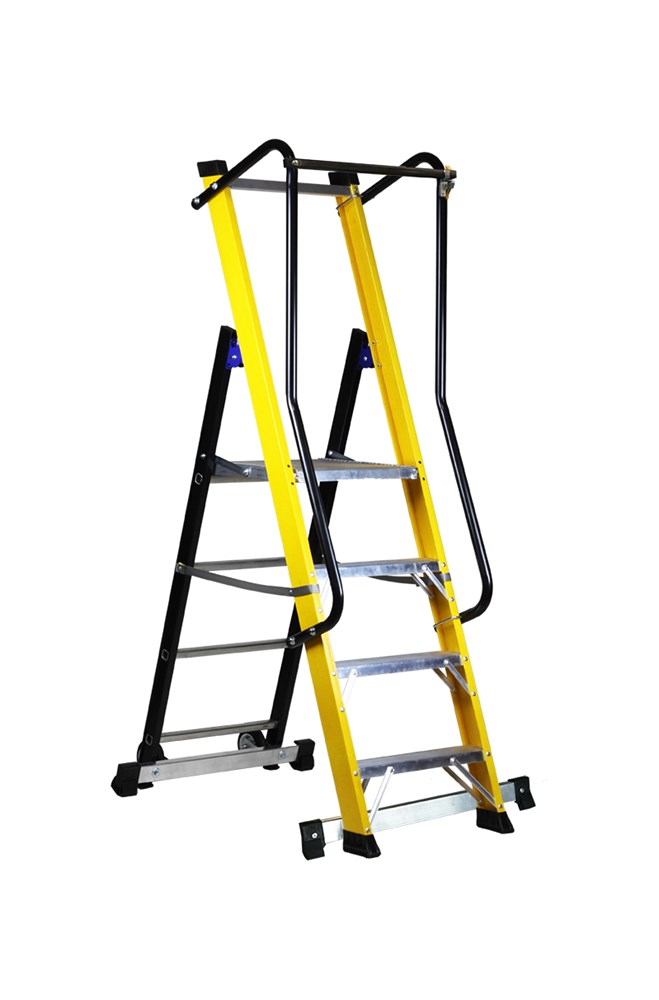

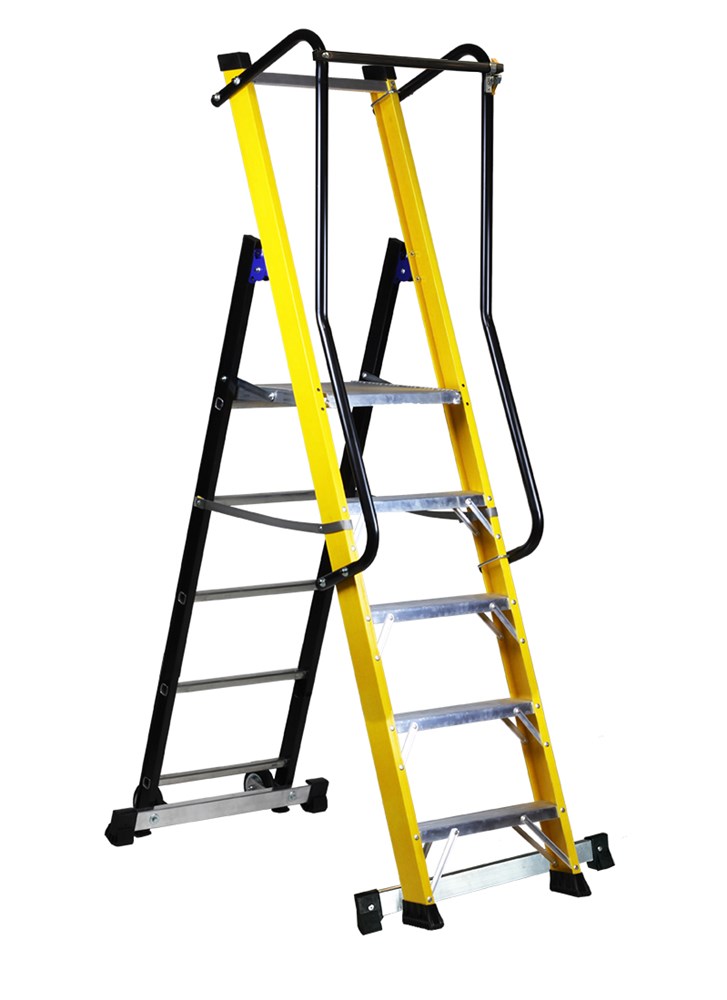

Mobile platform ladder in FIBERGLASS.

Electrically insulated heavy-duty ladder designed for operators who work near cables, sockets or other sources of electricity (low voltage).

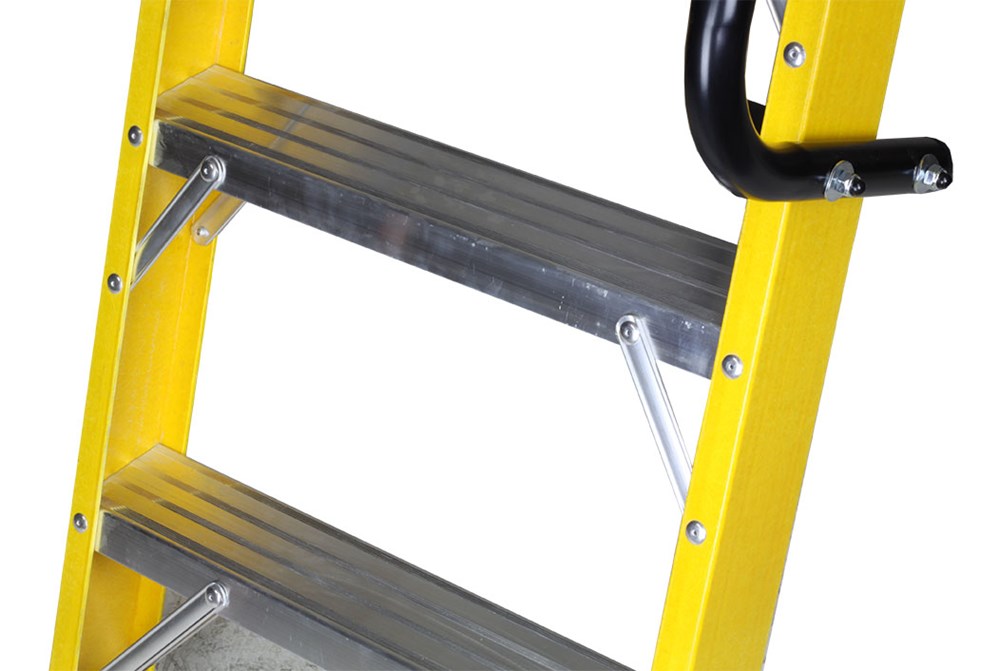

The fiberglass stiles offer electrical insulation and the non-slip knurled aluminum steps give the ladder lightness and maneuverability.
The painted handrails do not dirty the operator’s hands. They are supplied disassembled in the packaging.

Suitable for working on low voltage power lines.

Also particularly suitable for datacenter work.

Code	Number of steps	Platform hight m	Total hight m	Working hight m	Stabilizer lenght cm	Weight Kg	Folded height m
SMOBYF103	3	0,76	1,64	2,76	79	14,5	1,79
SMOBYF104	4	1,00	1,89	3,00	79	16,1	2,07
SMOBYF105	5	1,27	2,15	3,27	79	17,5	2,35
SMOBYF106	6	1,53	2,41	3,53	79	18,7	2,63
SMOBYF107	7	1,80	2,68	3,80	79	21,4	2,92
SMOBYF108	8	2,07	2,95	4,07	79	22,6	3,20

Reinforced aluminum platform (cm 43x44) with accidental antiopening system
Ergonomic reinforced non-skid rubber feet

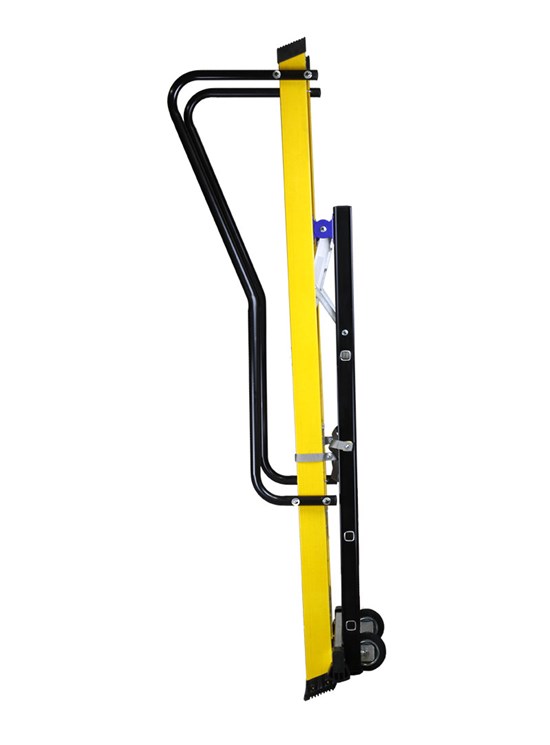

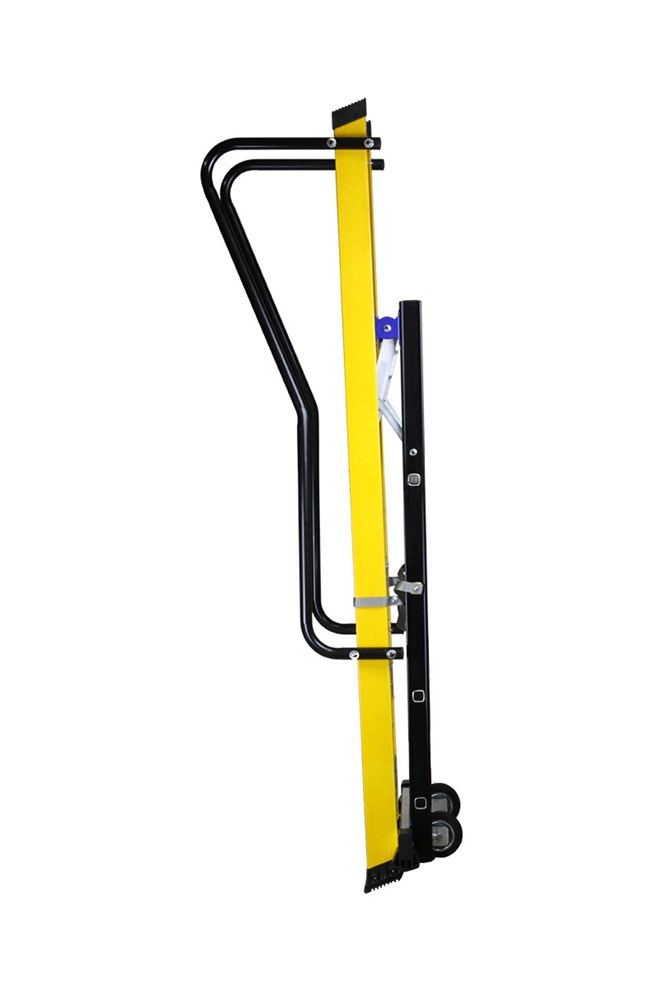

Folded thikness cm 60
Steps distance cm 26

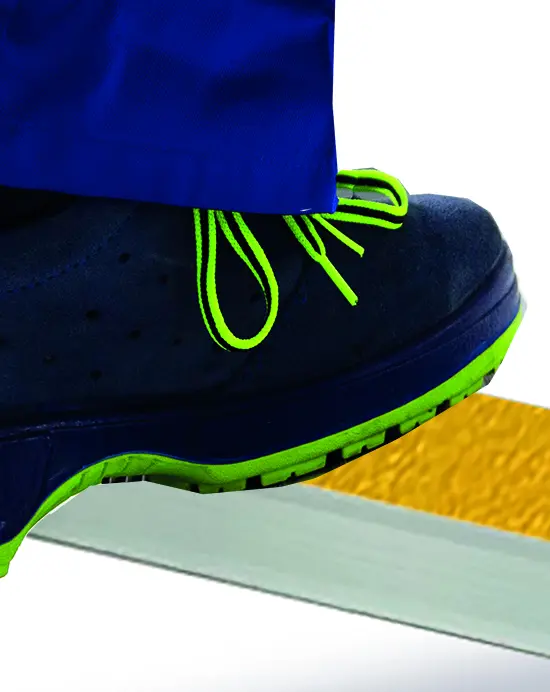

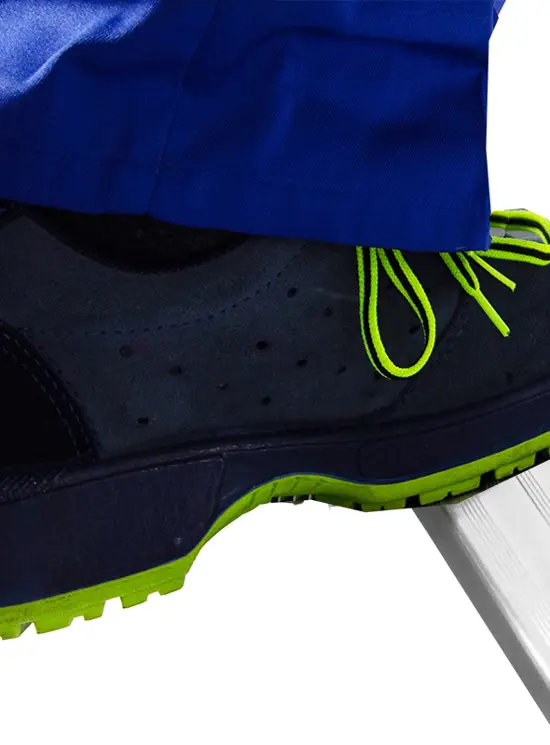

Non-skid steps: depth mm 80; distance mm 260

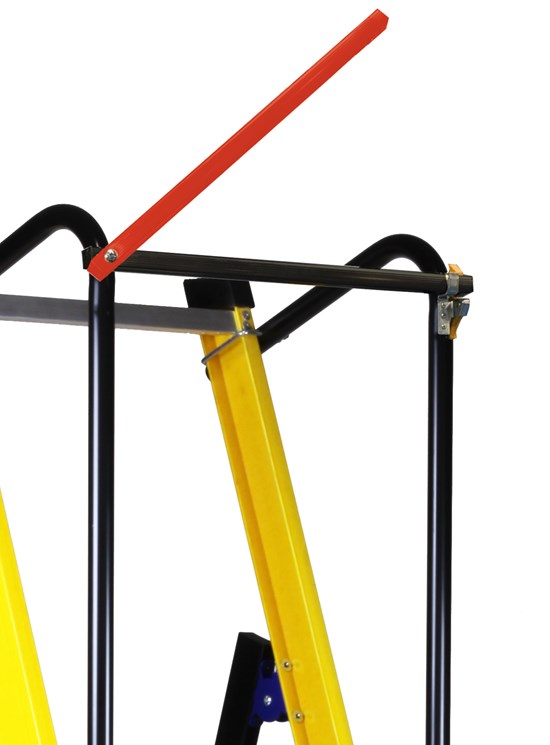

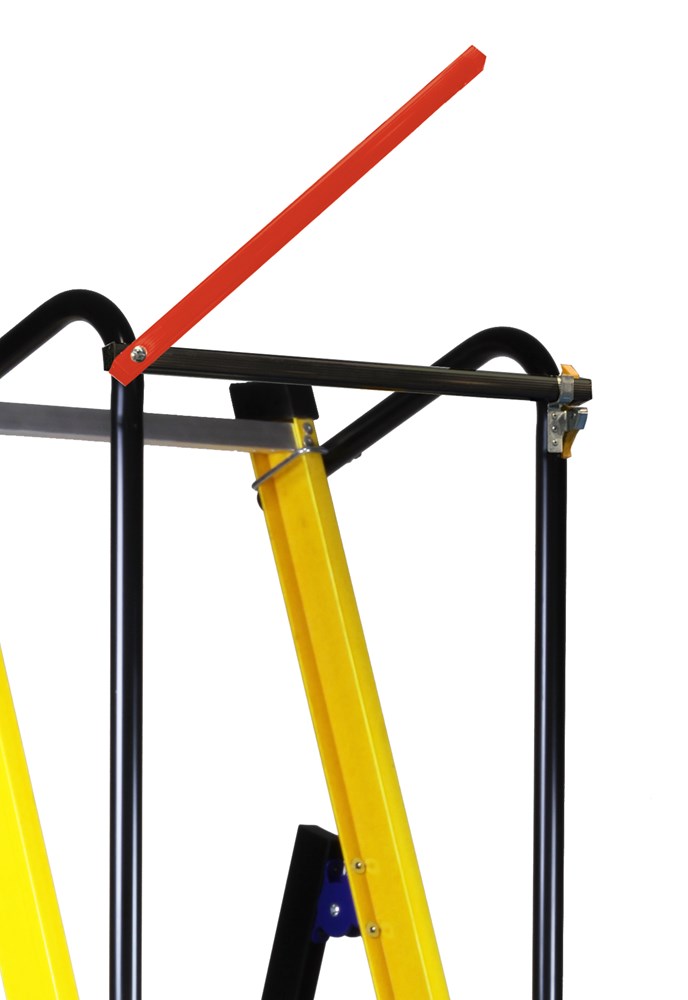

Guardrail cm 80 on all 4 sides
Screwed stabilizer
Anti-opening safety straps

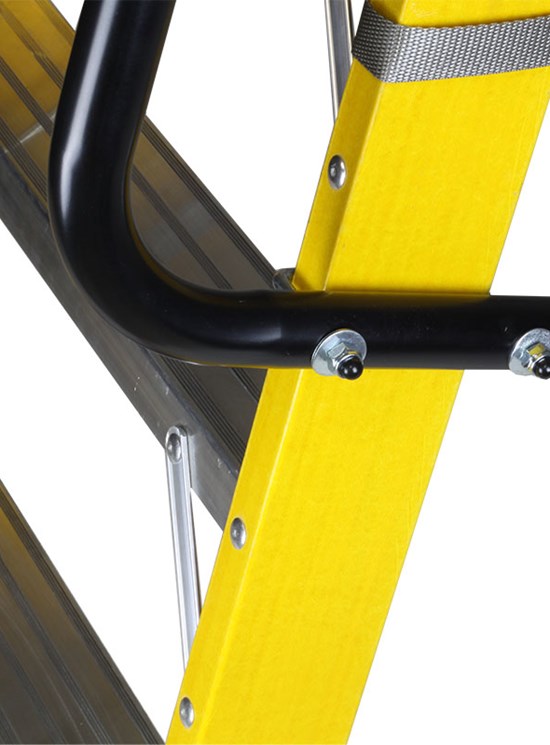

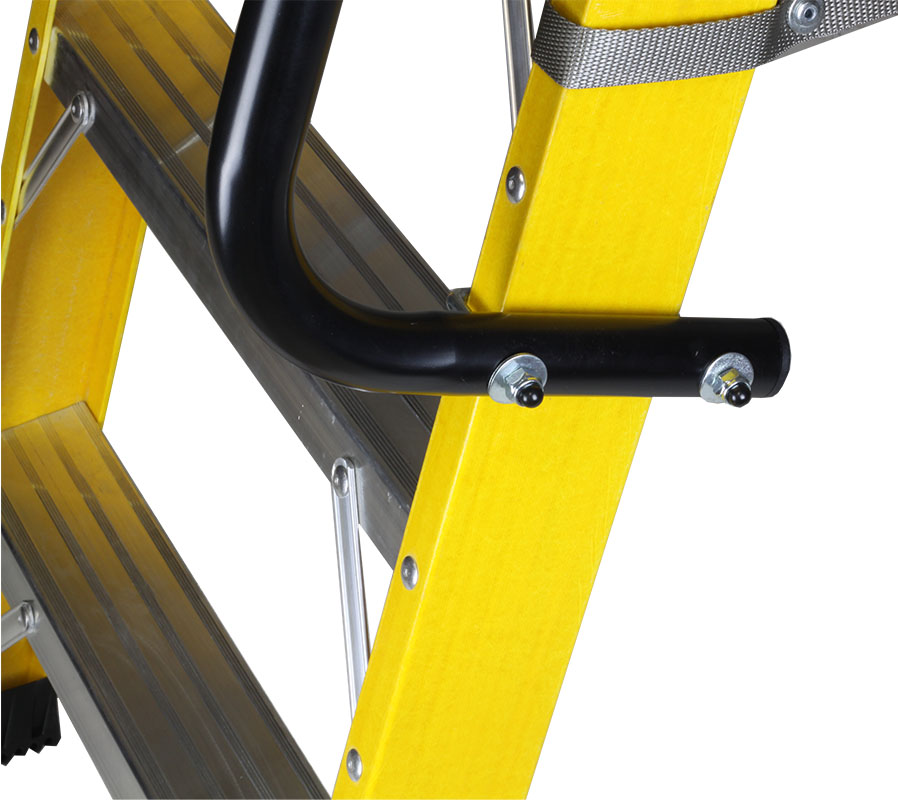

Removable shaped handrails painted with epoxy powders

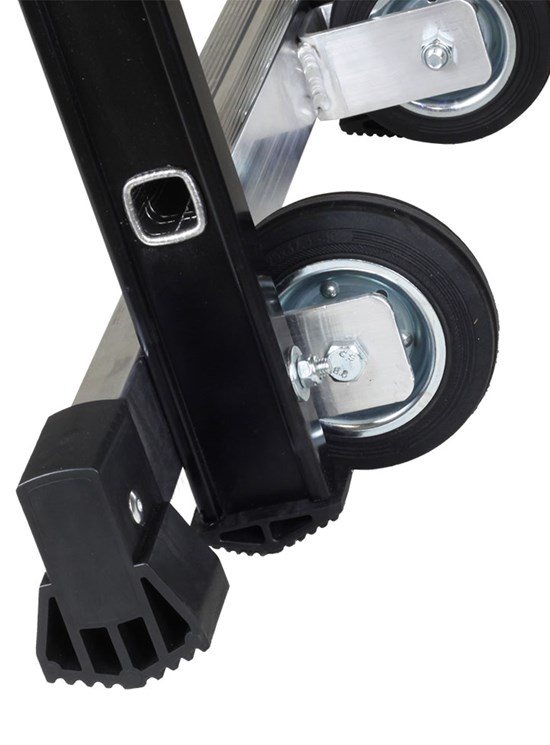

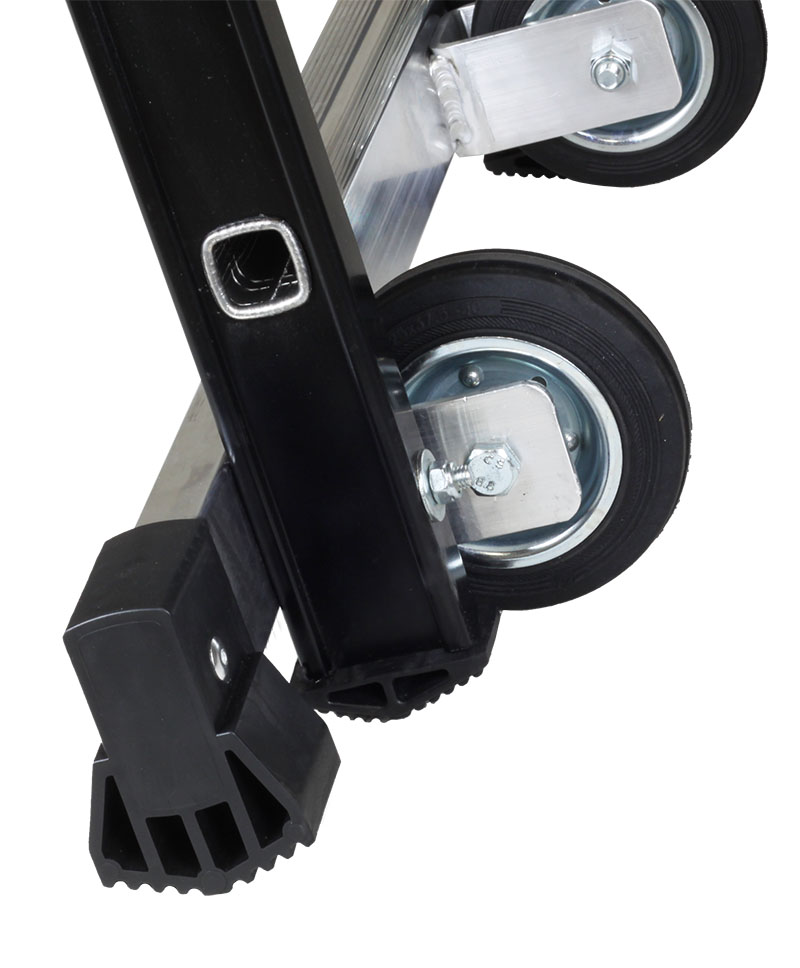

Moving wheels diam.125 mm
Outer ramp width cm 52
Front stile section mm 80x25
Back stile section mm 57x27

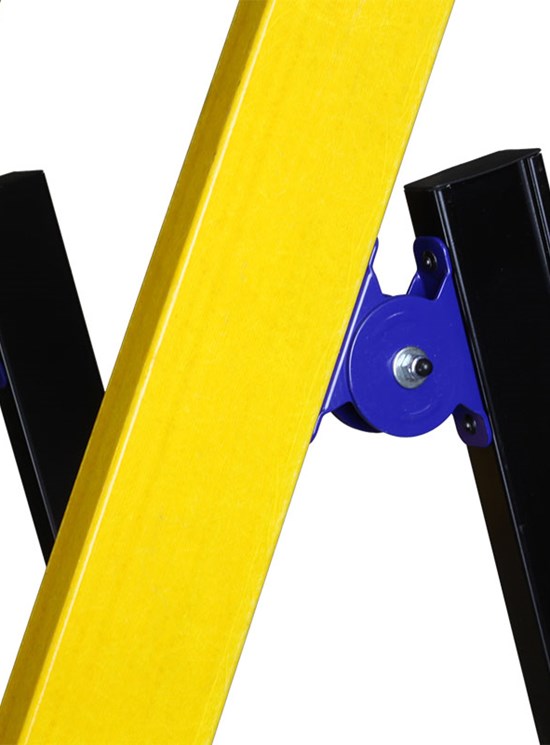

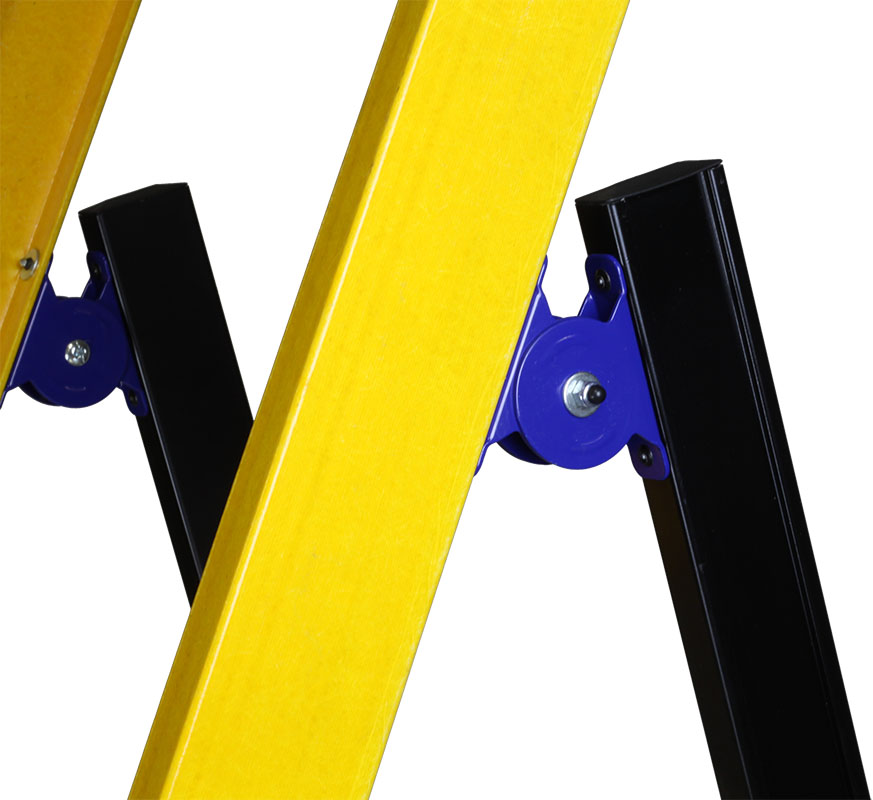

Steel opening hinges
Thermo-shrinkable plastic package

Note: RAMP AND BACK STILES ARE FIBERGLASS FOR MAXIMUM ELECTRIC INSULATION

This product has been tested for voltages up to 1000V AC and 1500V DC.
It has also been tested according to the European standards UNIEN131.1.2 as a double ladder.
The product is only permitted to be used in the vicinity of low voltage electrical systems.

CUSTOMERS WHO HAVE CHOSEN MOBY FIBRA FOR THEIR DATA CENTERS

MICROSOFT
VERTIV
AMAZON

EUROPEAN STANDARD EN 50528:2024

The MOBY FIBRA fiberglass ladder complies with the technical standard EN 50528:2024, which covers ladders used for work on low-voltage live parts, such as making connections, working on supports, and switching operations.

These ladders are also used for preliminary operations before live work, such as voltage testing, earthing, short-circuiting, etc.
The purpose of this standard is to provide ladders that have two primary functions: access to the parts of the system to be worked on, and protection of workers from electrical hazards by providing insulation and maintaining a safe distance between the operator and potentially live parts of the system.

It concerns insulating ladders for use on or near low-voltage systems.
This standard, which complies with EN 61477, must be used in accordance with Standards EN 50110-1 and EN 50110-2.
This standard is published in English only as it is specifically targeted at specialized sectors.

This standard remains applicable until April 29, 2027.

Tests are performed with an electrical charge of 36,000 volts for one minute.

This product has been tested according to European standards UNI EN 131.1.2 as a dual scale.

The product is permitted for use only near low-voltage electrical systems.

ON DEMAND (for large quantities)
