FT Easel ladder 100% fiberglass
Double ascent trestle ladder 100% in dielectric fiberglass

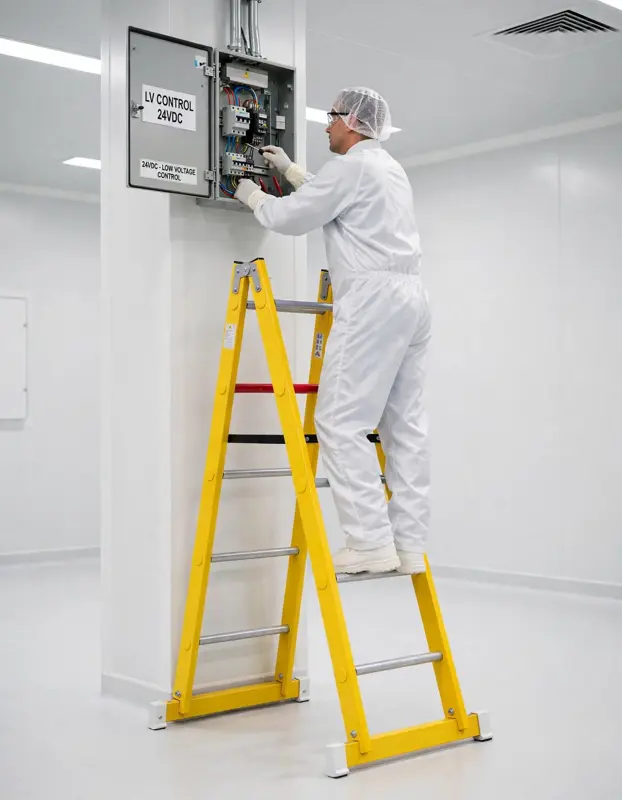

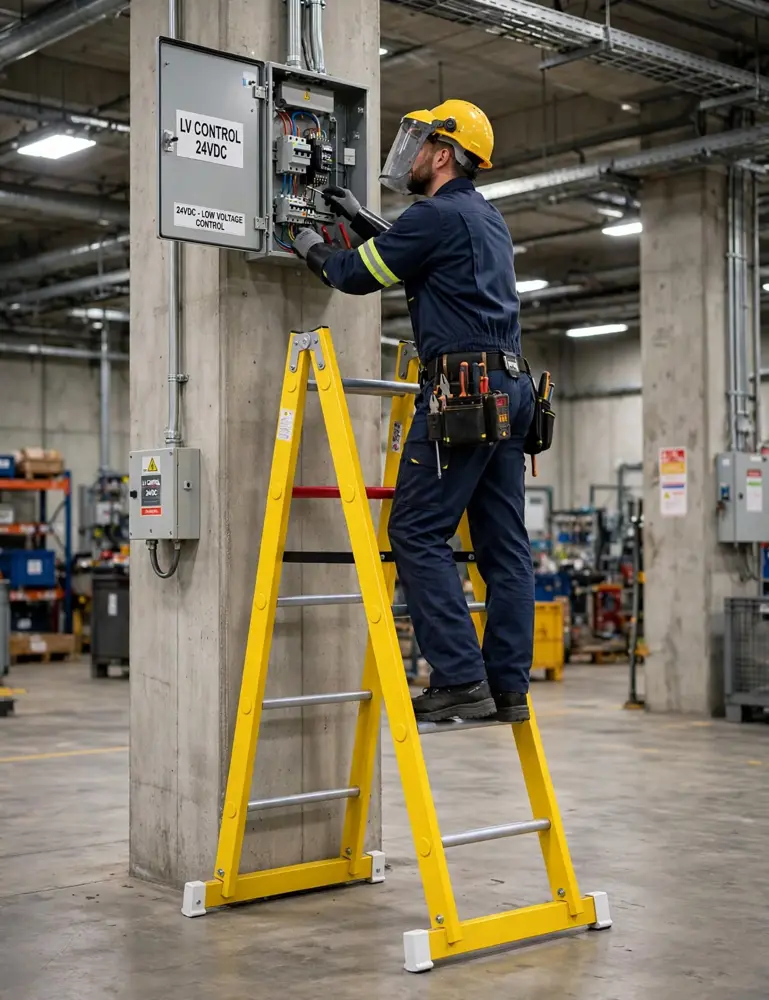

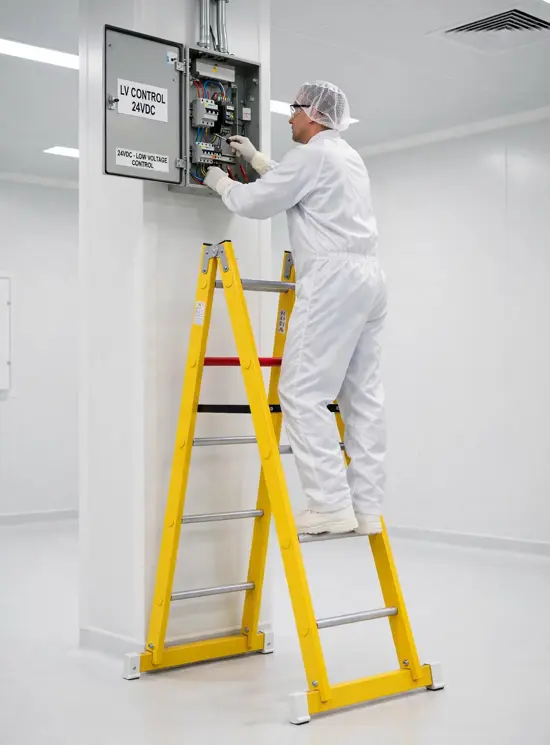

The FT 100% fiberglass professional trestle ladder is an essential tool for jobs that require stability and safety at height.
Made of fiberglass, it is equipped with 2 mm thick steel hinges and an anti-opening locking system, which guarantee a robust and reliable structure.

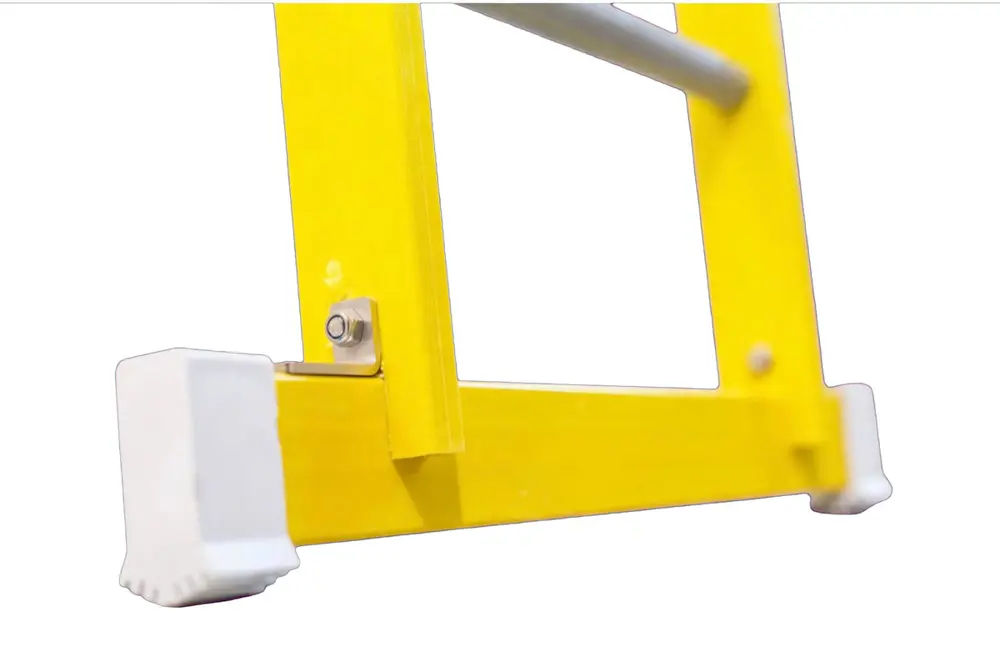

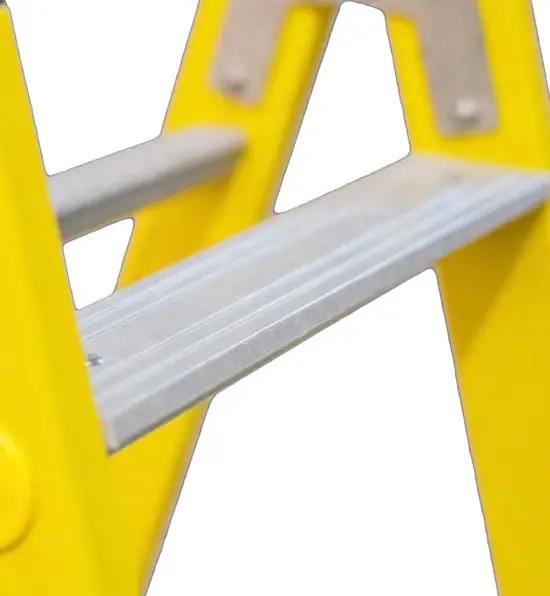

The flat 58 mm fiberglass steps and non-slip rubber feet ensure a secure footing, while the anti-opening strap provides an extra layer of protection during use.
Fiberglass is antimagnetic, resistant to acids, UV rays, humidity and corrosion.
It is recommended for sectors such as construction, electrical installations.

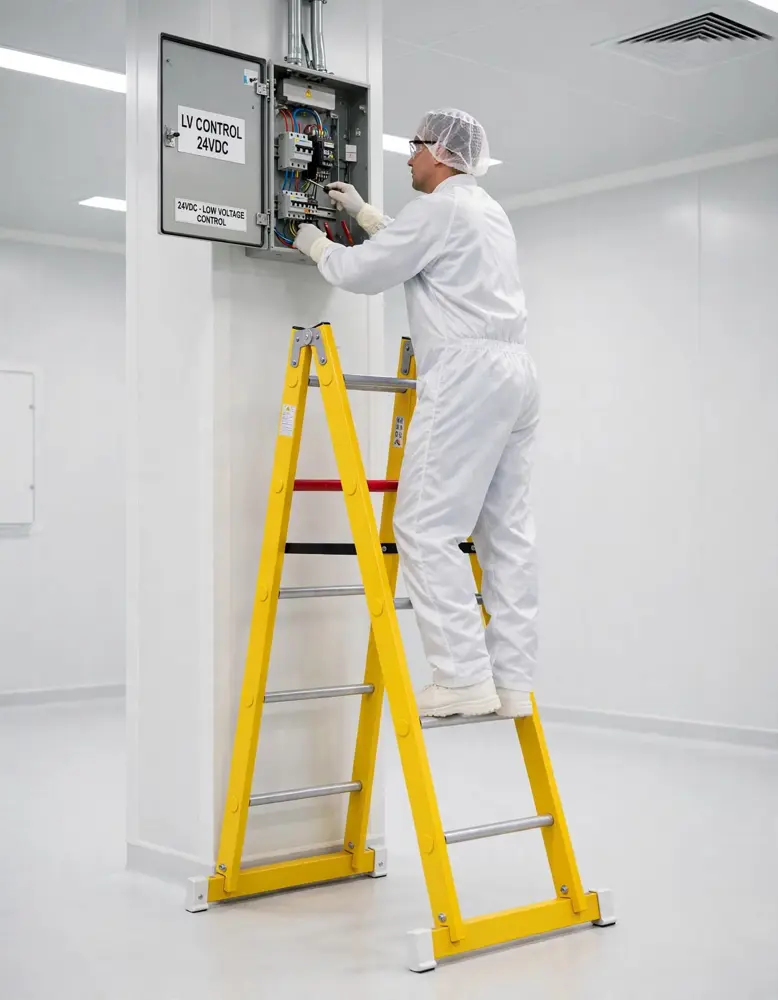

- Suitable for use in pharmaceutical or food environments

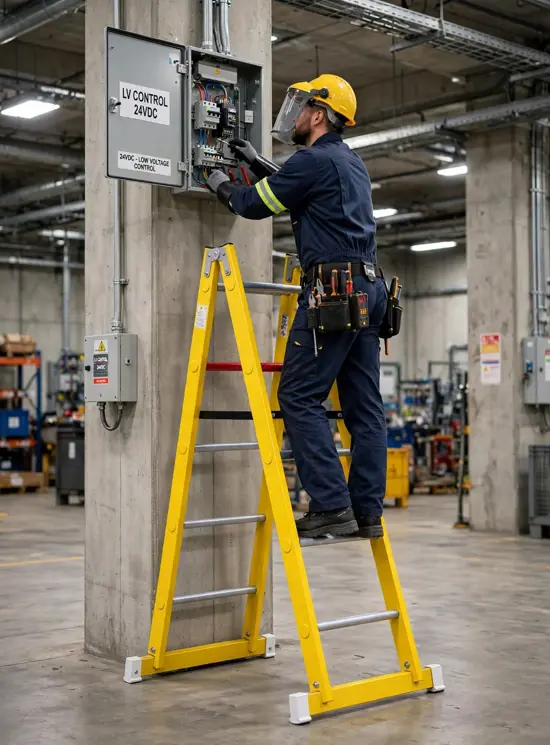

- Suitable for use in an industrial environment
| TECHNICAL FEATURES | ||||||
Model | Pegs Number | Height closed m | Height open m | Width Expander M base | Profile mm | Weight Kg |
FIBRAFT4 | 4 | 1,23 | 1,18 | 0,58 | 60x22 | 7 |
FIBRAFT5 | 5 | 1,51 | 1,44 | 0,59 | 60x22 | 9,5 |
FIBRAFT6 | 6 | 1,79 | 1,71 | 0,60 | 60x22 | 10,5 |
FIBRAFT7 | 7 | 2.07 | 1,98 | 0,63 | 60x22 | 12 |
FIBRAFT8 | 8 | 2,35 | 2,24 | 0,66 | 60x22 | 13,5 |
FIBRAFT9 | 9 | 2,63 | 2,51 | 0,69 | 60x22 | 14,5 |
FIBRAFT10 | 10 | 2,91 | 2,78 | 0,72 | 60x22 | 16 |
FIBRAFT11 | 11 | 3,19 | 3,05 | 0,75 | 60x22 | 18 |
FIBRAFT12 | 12 | 3,47 | 3,31 | 0,78 | 60x22 | 19 |
FIBRAFT13 | 13 | 3,75 | 3,58 | 0,81 | 70x28 mm | 26 |
FIBRAFT14 | 14 | 4,03 | 3,85 | 0,84 | 70x28 mm | 28 |
FIBRAFT15 | 15 | 4,31 | 4,11 | 0,87 | 70x28 mm | 30 |
FIBRAFT16 | 16 | 4,59 | 4,38 | 0,90 | 70x28 mm | 32 |
- Base spreaders supplied on both ramps

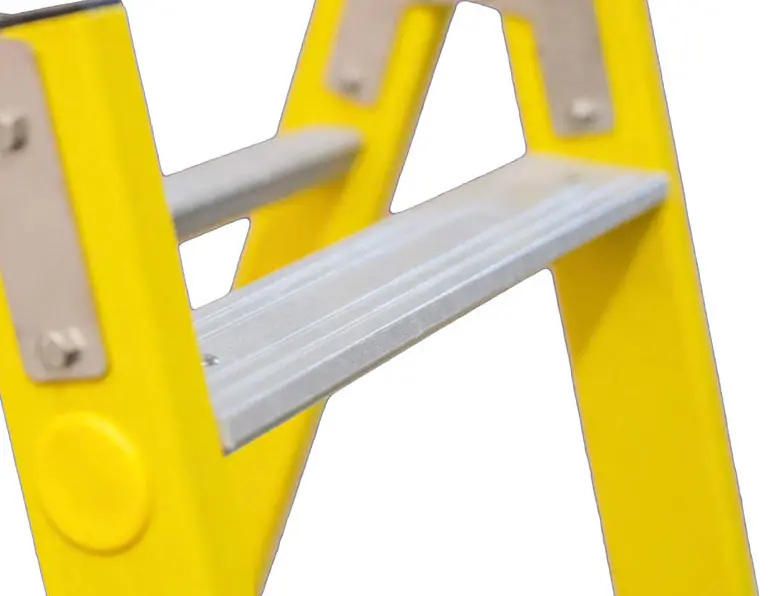

- 58 mm flat fiberglass steps
- Stainless steel screws
- Red peg indicating the maximum safety limit not to be exceeded with the feet
- Distance between rungs 28 cm

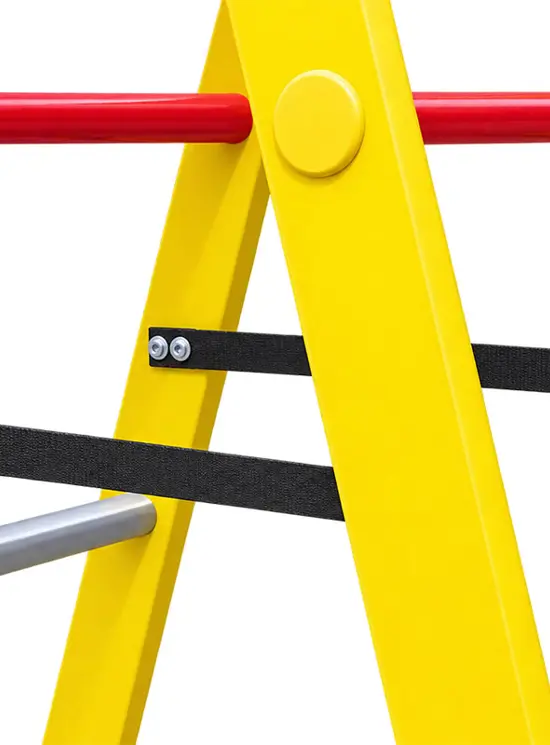

- Double belt against accidental opening

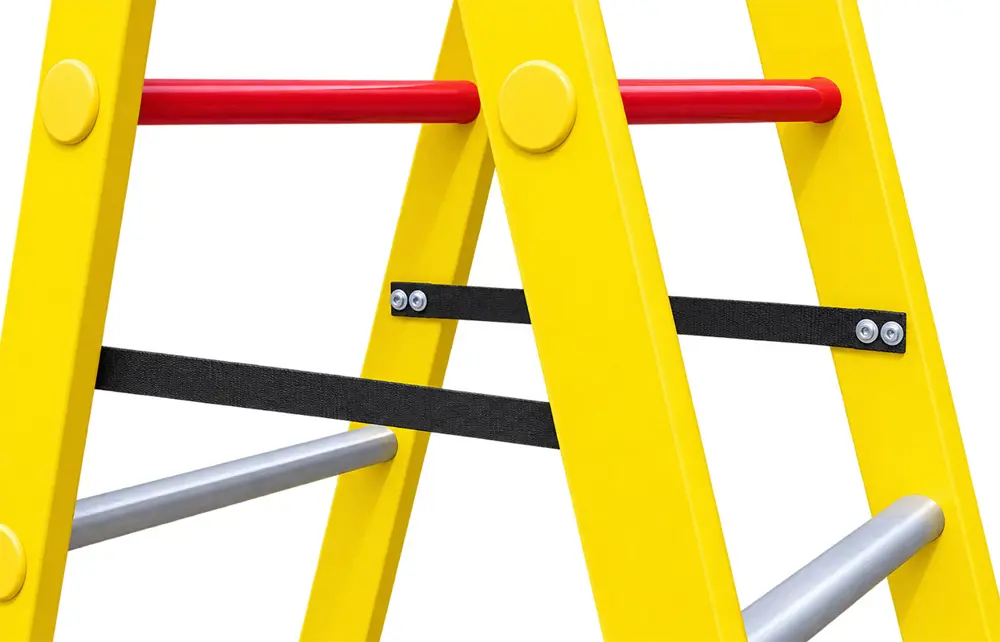

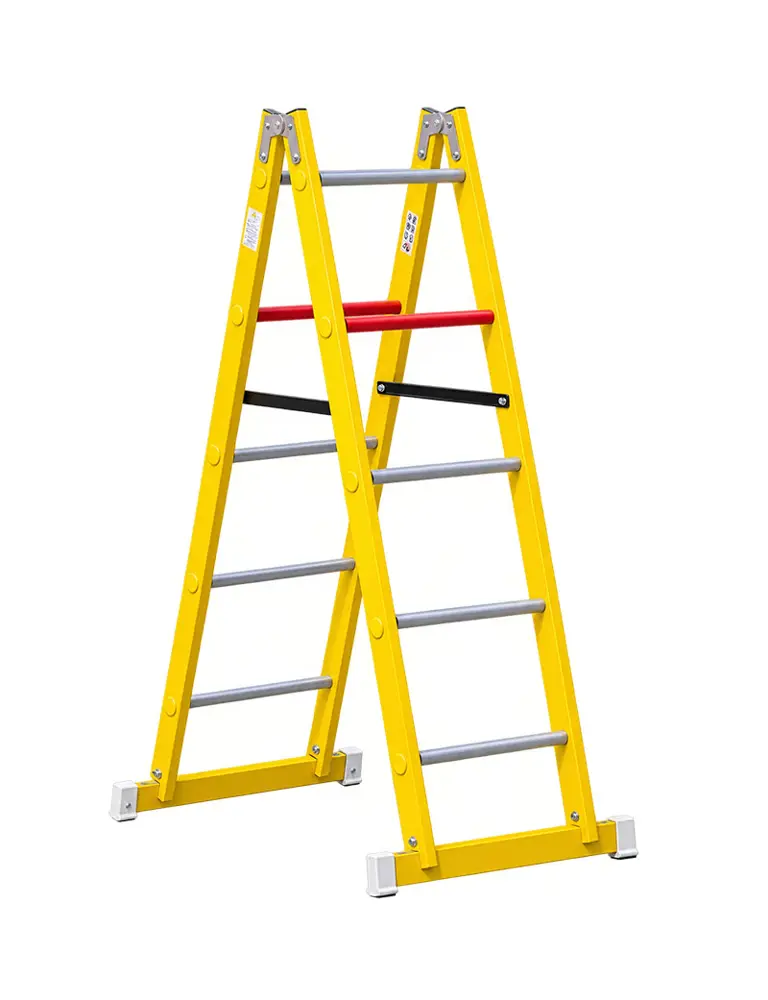

- Last safety red rungs (not walkable). The operator must remain with his feet under the red rungs.
- Double safety strap against accidental opening

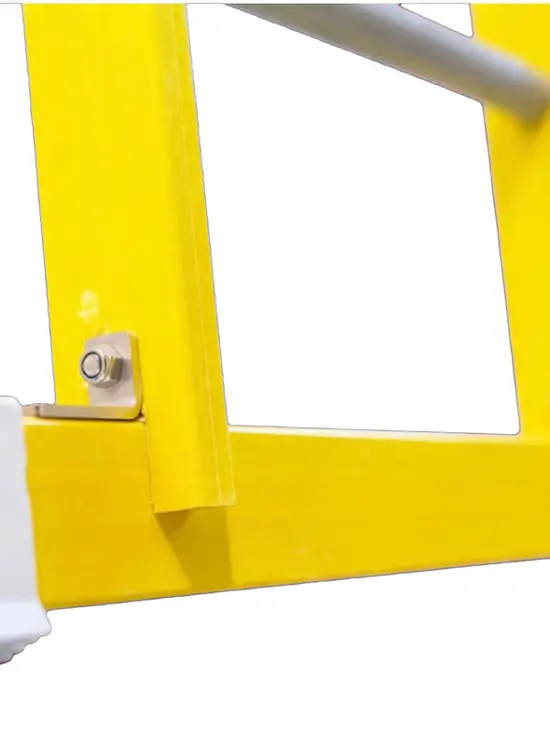

- Dual basic spreader stabilizer (standard)
- 30 mm non-slip pegs / Distance between rungs 28 cm.

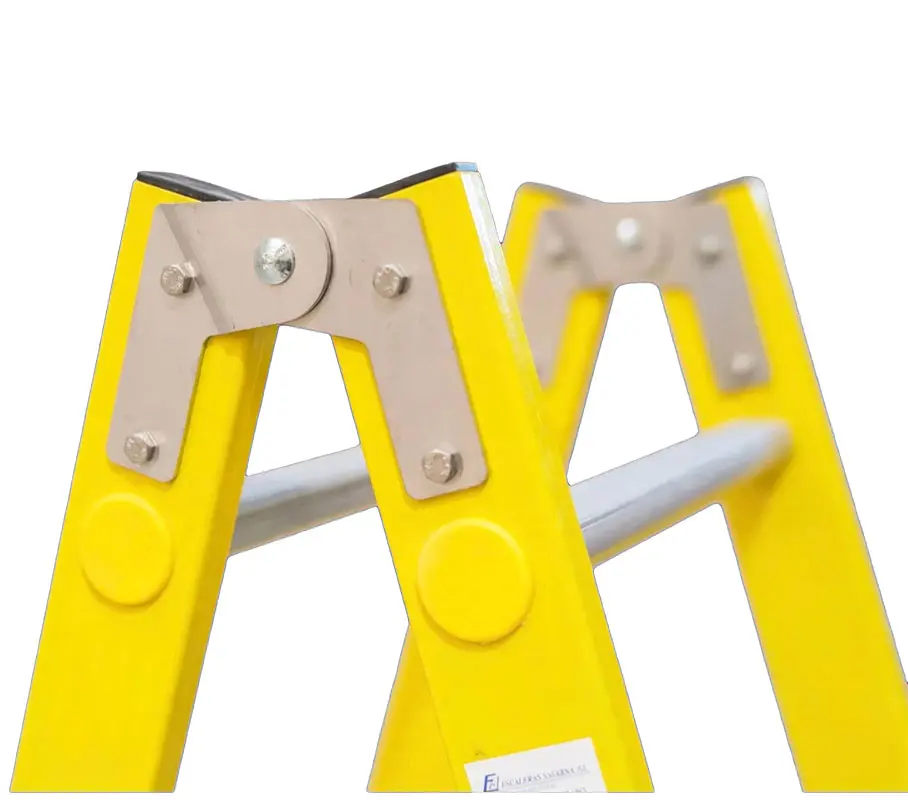

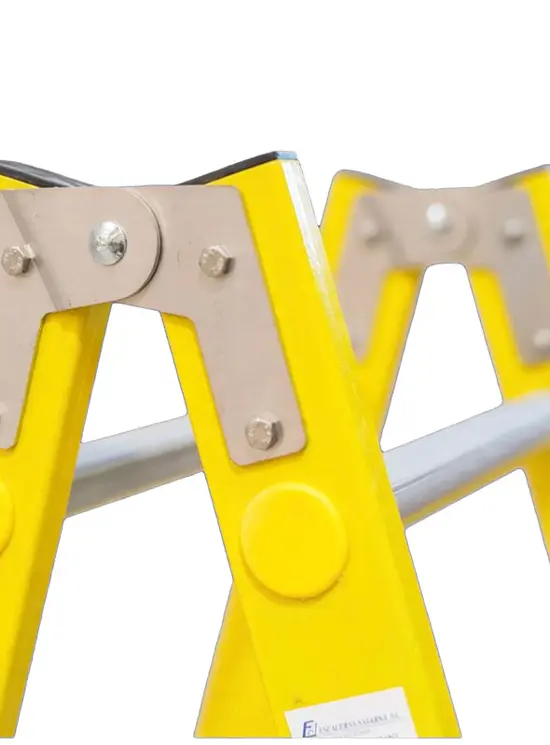

Stainless steel opening hinges
On request:
- Step with a depth of 65 mm
- Step with depth 80 mm
REGULATIONS
The FT ladder series has been successfully tested according to the following standards:
- EN 131-1: 2015+A1:2019 + A2:2025
- EN 131-2: 2010 + A1:2012 + A2:2017 + A3:2025
- EN 131-3: 2018 + A1:2025
Insulating ladder for electrical work – Tested according to EN 61478 up to 30 kV.
Designed for professional applications in the electrical sector, this insulating ladder has passed the tests required by the EN 61478 standard (Live working – Ladders of insulating material), according to the requirements and test conditions applicable up to 30 kV, as documented by the relevant test reports.
EN 61478 is specifically dedicated to ladders made of insulating material intended to facilitate access when working on live electrical systems.
Passing the documented tests attests to the verified performance of the product under the specific test conditions envisaged.
The ladder is intended only for qualified personnel, trained in electrical work, and must be used in compliance with safety procedures, the manufacturer's instructions and the intended operating conditions.
Compliance with EN 61478 tests: documented by test report.
Declared test level: up to 30 kV, within the limits and according to the methods indicated in the technical documentation of the product.
The product may only be used near low-voltage electrical installations.
